Flink同步MySQL数据到Starrocks

skylines 2024-04-01

226

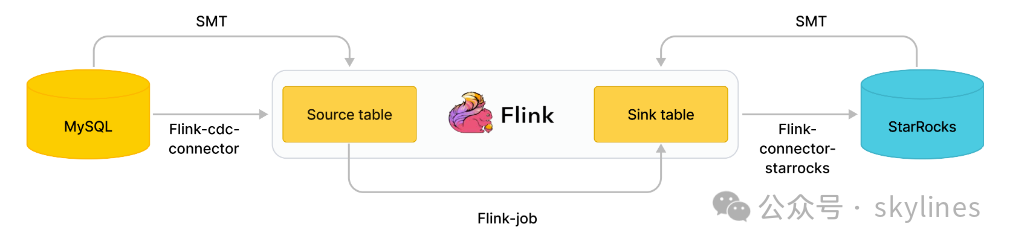

这里简单说一下使用Flink同步MySQL的数据到Starrocks数据库上，可以用以下的图可以了解大致的步骤和组件。

首先讲一下这个同步工具同步数据涉及到的组件，包括starrocks的SMT同步工具，还有flink工具，再加上连接源端和目标端的flink-cdc-connector，都是jar文件，分别是flink-sql-connector-mysql-cdc-3.0.1.jar和flink-connector-starrocks-1.2.3_flink-1.14_2.11.jar。对于连接源端的connector，版本要求不高，但是对于连接目标端的starrocks的connector，则有相对严格的要求。

flink-connector-starrocks 的 JAR 包 (x.x.x_flink-y.yy_z.zz.jar) 会包含三个版本号：

第一个版本号 x.x.x 为 flink-connector-starrocks 的版本号。
第二个版本号 y.yy 为其支持的 Flink 版本号。
第三个版本号 z.zz 为 Flink 支持的 Scala 版本号。如果 Flink 为 1.14.x 以及之前版本，则需要下载带有 Scala 版本号的 flink-connector-starrocks。

目标端MySQL数据库准备测试表和数据：

--建表语句
create table mytest_mssql_tab (id int primary key,name varchar(10),age int);
--写入初始数据
insert into mytest_mssql_tab values(1101,'suxing',25),(1102,'haha',20),(1103,'zaza',30);
insert into mytest_mssql_tab values(1104,'susu',35),(1105,'kaka',40),(1106,'papa',45);
--同步后继续写入新数据
insert into mytest_mssql_tab values(1107,'zuzu',35),(1108,'mumu',40),(1109,'pupu',45);
insert into mytest_mssql_tab values(1110,'coco',30);

接着就大概讲一下配置过程：

1、安装flink

比如我采用的是flink-1.14.5-bin-scala_2.11.tar.gz这个版本的安装包。解压之后，按照默认配置直接启动flink就可以了。

/usr/local/flink-1.14.5/bin/start-cluster.sh

Starting cluster.
Starting standalonesession daemon on host startestdb01.
Starting taskexecutor daemon on host startestdb01.
root@startestdb01:/usr/local/flink-1.14.5#
root@startestdb01:/usr/local/flink-1.14.5#
root@startestdb01:/usr/local/flink-1.14.5# ps -ef |grep flink
root       48808       1 52 22:39 pts/0    00:00:06 usr/local/jdk-11.0.1/bin/java -Xmx234881024 -Xms234881024 -XX:MaxMetaspaceSize=268435456 -Dlog.file=/usr/local/flink-1.14.5/log/flink-root-standalonesession-1-startestdb01.log -Dlog4j.configuration=file:/usr/local/flink-1.14.5/conf/log4j.properties -Dlog4j.configurationFile=file:/usr/local/flink-1.14.5/conf/log4j.properties -Dlogback.configurationFile=file:/usr/local/flink-1.14.5/conf/logback.xml -classpath usr/local/flink-1.14.5/lib/flink-connector-starrocks-1.2.3_flink-1.14_2.11.jar:/usr/local/flink-1.14.5/lib/flink-csv-1.14.5.jar:/usr/local/flink-1.14.5/lib/flink-json-1.14.5.jar:/usr/local/flink-1.14.5/lib/flink-shaded-zookeeper-3.4.14.jar:/usr/local/flink-1.14.5/lib/flink-sql-connector-mysql-cdc-3.0.1.jar:/usr/local/flink-1.14.5/lib/flink-sql-connector-sqlserver-cdc-3.0.1.jar:/usr/local/flink-1.14.5/lib/flink-table_2.11-1.14.5.jar:/usr/local/flink-1.14.5/lib/log4j-1.2-api-2.17.1.jar:/usr/local/flink-1.14.5/lib/log4j-api-2.17.1.jar:/usr/local/flink-1.14.5/lib/log4j-core-2.17.1.jar:/usr/local/flink-1.14.5/lib/log4j-slf4j-impl-2.17.1.jar:/usr/local/flink-1.14.5/lib/flink-dist_2.11-1.14.5.jar::: org.apache.flink.runtime.entrypoint.StandaloneSessionClusterEntrypoint --configDir usr/local/flink-1.14.5/conf --executionMode cluster -D jobmanager.memory.off-heap.size=134217728b -D jobmanager.memory.jvm-overhead.min=201326592b -D jobmanager.memory.jvm-metaspace.size=268435456b -D jobmanager.memory.heap.size=234881024b -D jobmanager.memory.jvm-overhead.max=201326592b
root       49078       1 59 22:39 pts/0    00:00:05 usr/local/jdk-11.0.1/bin/java -XX:+UseG1GC -Xmx145961776 -Xms145961776 -XX:MaxDirectMemorySize=201326592 -XX:MaxMetaspaceSize=268435456 -Dlog.file=/usr/local/flink-1.14.5/log/flink-root-taskexecutor-0-startestdb01.log -Dlog4j.configuration=file:/usr/local/flink-1.14.5/conf/log4j.properties -Dlog4j.configurationFile=file:/usr/local/flink-1.14.5/conf/log4j.properties -Dlogback.configurationFile=file:/usr/local/flink-1.14.5/conf/logback.xml -classpath usr/local/flink-1.14.5/lib/flink-connector-starrocks-1.2.3_flink-1.14_2.11.jar:/usr/local/flink-1.14.5/lib/flink-csv-1.14.5.jar:/usr/local/flink-1.14.5/lib/flink-json-1.14.5.jar:/usr/local/flink-1.14.5/lib/flink-shaded-zookeeper-3.4.14.jar:/usr/local/flink-1.14.5/lib/flink-sql-connector-mysql-cdc-3.0.1.jar:/usr/local/flink-1.14.5/lib/flink-sql-connector-sqlserver-cdc-3.0.1.jar:/usr/local/flink-1.14.5/lib/flink-table_2.11-1.14.5.jar:/usr/local/flink-1.14.5/lib/log4j-1.2-api-2.17.1.jar:/usr/local/flink-1.14.5/lib/log4j-api-2.17.1.jar:/usr/local/flink-1.14.5/lib/log4j-core-2.17.1.jar:/usr/local/flink-1.14.5/lib/log4j-slf4j-impl-2.17.1.jar:/usr/local/flink-1.14.5/lib/flink-dist_2.11-1.14.5.jar::: org.apache.flink.runtime.taskexecutor.TaskManagerRunner --configDir usr/local/flink-1.14.5/conf -D taskmanager.memory.network.min=67108864b -D taskmanager.cpu.cores=1.0 -D taskmanager.memory.task.off-heap.size=0b -D taskmanager.memory.jvm-metaspace.size=268435456b -D external-resources=none -D taskmanager.memory.jvm-overhead.min=201326592b -D taskmanager.memory.framework.off-heap.size=134217728b -D taskmanager.memory.network.max=67108864b -D taskmanager.memory.framework.heap.size=134217728b -D taskmanager.memory.managed.size=231525584b -D taskmanager.memory.task.heap.size=11744048b -D taskmanager.numberOfTaskSlots=1 -D taskmanager.memory.jvm-overhead.max=201326592b
root       49193   48439  0 22:39 pts/0    00:00:00 grep --color=auto flink
root@startestdb01:/usr/local/flink-1.14.5#

2、将两端flink-cdc-connector的jar包放到flink上面

mv flink-connector-starrocks-1.2.3_flink-1.14_2.11.jar /usr/local/flink-1.14.5/lib
mv flink-sql-connector-mysql-cdc-3.0.1 usr/local/flink-1.14.5/lib


##需要重启flink
/usr/local/flink-1.14.5/bin/stop-cluster.sh
/usr/local/flink-1.14.5/bin/start-cluster.sh

3、解压starrrocks的SMT到/usr/local/flink-1.14.5目录下

tar -xvf smt.tar
mv smt usr/local/flink-1.14.5

4、编辑smt配置文件

cd usr/local/flink-1.14.5/smt/conf
vi config_prod.conf
[db]
host = 172.17.7.11
port = 3306
user = myrepl
password = password
# currently available types: `mysql`, `pgsql`, `oracle`, `hive`, `clickhouse`, `sqlserver`, `tidb`
type = mysql
# # only takes effect on `type == hive`.
# # Available values: kerberos, none, nosasl, kerberos_http, none_http, zk, ldap
# authentication = kerberos


[other]
# number of backends in StarRocks
be_num = 2
# `decimal_v3` is supported since StarRocks-1.8.1
use_decimal_v3 = true
# directory to save the converted DDL SQL
output_dir = ./result




# !!!`database` `table` `schema` are case sensitive in `oracle`!!!
[table-rule.1]
# pattern to match databases for setting properties
# !!! database should be a `whole instance(or pdb) name` but not a regex when it comes with an `oracle db` !!!
database = mytest
# pattern to match tables for setting properties
table = mytest_mysql_tab
# `schema` only takes effect on `postgresql` and `oracle` and `sqlserver`
schema = ^.*$


############################################
### starrocks table configurations
############################################
# # set a column as the partition_key
# partition_key = p_key
# # override the auto-generated partitions
# partitions = START ("2021-01-02") END ("2021-01-04") EVERY (INTERVAL 1 day)
# # only take effect on tables without primary keys or unique indexes
# duplicate_keys=k1,k2
# # override the auto-generated distributed keys
# distributed_by=k1,k2
# # override the auto-generated distributed buckets
# bucket_num=32
# # properties.xxxxx: properties used to create tables
# properties.in_memory = false


############################################
### flink sink configurations
### DO NOT set `connector`, `table-name`, `database-name`, they are auto-generated
############################################
flink.starrocks.jdbc-url=jdbc:mysql://172.17.199.36:9030
flink.starrocks.load-url=172.17.199.36:8030
flink.starrocks.username=root
flink.starrocks.password=password
flink.starrocks.sink.max-retries=10
flink.starrocks.sink.buffer-flush.interval-ms=15000
flink.starrocks.sink.properties.format=json
flink.starrocks.sink.properties.strip_outer_array=true
# # used to set the server-id for mysql-cdc jobs instead of using a random server-id
# flink.cdc.server-id = 5000


############################################
### flink-cdc configuration for `tidb`
############################################
# # Only takes effect on TiDB before v4.0.0.
# # TiKV cluster's PD address.
# flink.cdc.pd-addresses = 127.0.0.1:2379


############################################
### flink-cdc plugin configuration for `postgresql`
############################################
# # for `9.*` decoderbufs, wal2json, wal2json_rds, wal2json_streaming, wal2json_rds_streaming
# # refer to https://ververica.github.io/flink-cdc-connectors/master/content/connectors/postgres-cdc.html
# # and https://debezium.io/documentation/reference/postgres-plugins.html
# flink.cdc.decoding.plugin.name = decoderbufs

5、生成source table与sink table 的执行SQL

cd usr/local/flink-1.14.5/smt
./starrocks-migrate-tool


root@startestdb01:/usr/local/flink-1.14.5/smt# ls -lrt result_mysql
total 24
-rw-r--r-- 1 root root  412 Mar 28 15:09 starrocks-external-create.all.sql
-rw-r--r-- 1 root root  412 Mar 28 15:09 starrocks-external-create.1.sql
-rw-r--r-- 1 root root  315 Mar 28 15:09 starrocks-create.1.sql
-rw-r--r-- 1 root root 1152 Mar 28 15:09 flink-create.all.sql
-rw-r--r-- 1 root root 1152 Mar 28 15:09 flink-create.1.sql
-rw-r--r-- 1 root root  305 Mar 28 15:11 starrocks-create.all.sql

6、编辑starrocks-create.all.sql并导入starrocks数据库

--修改成适用于starrocks的建库和建表语句
cat >starrocks-create.all.sql
CREATE DATABASE IF NOT EXISTS `mytest`;


CREATE TABLE IF NOT EXISTS `mytest`.`mytest_mysql_tab` (
  `id` INT NOT NULL  COMMENT "",
  `name` STRING NULL  COMMENT "",
  `age` INT NULL  COMMENT ""
) ENGINE=olap
PRIMARY KEY(`id`)
COMMENT ""
DISTRIBUTED BY HASH(`id`)
PROPERTIES (
  "replication_num" = "2"
);




mysql -h127.0.0.1 -P9030 -uroot -p < starrocks-create.all.sql

7、编辑flink-create.all.sql并启动同步

flink-create.all.sql里面包含了source table 和sink table的表结构信息和源端与目标端的连接信息等，如下所示。

--调整source table与sink table 语句
cat flink-create.all.sql
CREATE DATABASE IF NOT EXISTS `default_catalog`.`mytest`;


CREATE TABLE IF NOT EXISTS `default_catalog`.`mytest`.`mytest_mysql_tab_src` (
  `id` INT NOT NULL,
  `name` STRING NULL,
  `age` INT NULL,
  PRIMARY KEY(`id`)
 NOT ENFORCED
) with (
  'database-name' = 'mytest',
  'table-name' = 'mytest_mysql_tab',
  'connector' = 'mysql-cdc',
  'hostname' = '172.17.7.11',
  'port' = '3306',
  'username' = 'myrepl',
  'password' = 'password'
);


CREATE TABLE IF NOT EXISTS `default_catalog`.`mytest`.`mytest_mysql_tab_sink` (
  `id` INT NOT NULL,
  `name` STRING NULL,
  `age` INT NULL,
  PRIMARY KEY(`id`)
 NOT ENFORCED
) with (
  'sink.properties.format' = 'json',
  'load-url' = '172.17.199.36:8030',
  'sink.properties.strip_outer_array' = 'true',
  'connector' = 'starrocks',
  'table-name' = 'mytest_mysql_tab',
  'sink.buffer-flush.interval-ms' = '15000',
  'password' = 'password',
  'sink.max-retries' = '10',
  'jdbc-url' = 'jdbc:mysql://172.17.199.36:9030',
  'database-name' = 'mytest',
  'username' = 'root'
);




--启动同步
root@startestdb01:/usr/local/flink-1.14.5# ./bin/sql-client.sh -f /usr/local/flink-1.14.5/smt/result/flink-create.all.sql
[INFO] Executing SQL from file.
Flink SQL> CREATE DATABASE IF NOT EXISTS `default_catalog`.`mytest`;
[INFO] Execute statement succeed.
Flink SQL>
CREATE TABLE IF NOT EXISTS `default_catalog`.`mytest`.`mytest_mysql_tab_src` (
  `id` INT NOT NULL,
  `name` STRING NULL,
  `age` INT NULL,
  PRIMARY KEY(`id`)
 NOT ENFORCED
) with (
  'password' = 'password',
  'database-name' = 'mytest',
  'table-name' = 'mytest_mysql_tab',
  'connector' = 'mysql-cdc',
  'hostname' = '172.17.7.11',
  'port' = '3306',
  'username' = 'myrepl'
);
[INFO] Execute statement succeed.
Flink SQL>
CREATE TABLE IF NOT EXISTS `default_catalog`.`mytest`.`mytest_mysql_tab_sink` (
  `id` INT NOT NULL,
  `name` STRING NULL,
  `age` INT NULL,
  PRIMARY KEY(`id`)
 NOT ENFORCED
) with (
  'jdbc-url' = 'jdbc:mysql://172.17.199.36:9030',
  'username' = 'root',
  'connector' = 'starrocks',
  'table-name' = 'mytest_mysql_tab',
  'sink.buffer-flush.interval-ms' = '15000',
  'sink.properties.strip_outer_array' = 'true',
  'load-url' = '172.17.199.36:8030',
  'password' = 'password',
  'sink.properties.format' = 'json',
  'database-name' = 'mytest',
  'sink.max-retries' = '10'
);
[INFO] Execute statement succeed.
Flink SQL>
INSERT INTO `default_catalog`.`mytest`.`mytest_mysql_tab_sink` SELECT * FROM `default_catalog`.`mytest`.`mytest_mysql_tab_src`;
[INFO] Submitting SQL update statement to the cluster...
WARNING: An illegal reflective access operation has occurred
WARNING: Illegal reflective access by org.apache.flink.api.java.ClosureCleaner (file:/usr/local/flink-1.14.5/lib/flink-dist_2.11-1.14.5.jar) to field java.lang.String.value
WARNING: Please consider reporting this to the maintainers of org.apache.flink.api.java.ClosureCleaner
WARNING: Use --illegal-access=warn to enable warnings of further illegal reflective access operations
WARNING: All illegal access operations will be denied in a future release
[INFO] SQL update statement has been successfully submitted to the cluster:
Job ID: 82b8fffbf8f4431202eaa64523968a17




Shutting down the session...
done.

8、查看flink同步任务

root@startestdb01:/usr/local/flink-1.14.5# bin/flink list
Waiting for response...
------------------ Running/Restarting Jobs -------------------
27.03.2024 10:27:12 : 82b8fffbf8f4431202eaa64523968a17 : insert-into_default_catalog.mytest.mytest_mysql_tab_sink (RUNNING)
--------------------------------------------------------------
No scheduled jobs.
root@startestdb01:/usr/local/flink-1.14.5#

##从上面第7步启动同步数据的过程，有可以看到flink的一个同步任务是82b8fffbf8f4431202eaa64523968a17。

9、源端和目标端验证数据同步情况

--源端查看表mytest_mysql_tab数据
mysql> select * from mytest_mysql_tab;
+------+--------+------+
| id   | name   | age  |
+------+--------+------+
| 1106 | papa   |   45 |
| 1103 | zaza   |   30 |
| 1105 | kaka   |   40 |
| 1101 | suxing |   25 |
| 1102 | haha   |   20 |
| 1104 | susu   |   35 |
+------+--------+------+
6 rows in set (0.03 sec)


--目标端查看表mytest_mysql_tab数据
mysql> select * from mytest_mysql_tab;
+------+--------+------+
| id   | name   | age  |
+------+--------+------+
| 1106 | papa   |   45 |
| 1101 | suxing |   25 |
| 1102 | haha   |   20 |
| 1104 | susu   |   35 |
| 1103 | zaza   |   30 |
| 1105 | kaka   |   40 |
+------+--------+------+
6 rows in set (0.02 sec)


--源端向表表mytest_mysql_tab写入新数据
insert into mytest_mssql_tab values(1107,'zuzu',35),(1108,'mumu',40),(1109,'pupu',45);


--目标端再次查看表mytest_mysql_tab数据
mysql>
mysql> select * from mytest_mysql_tab;
+------+--------+------+
| id   | name   | age  |
+------+--------+------+
| 1106 | papa   |   45 |
| 1108 | mumu   |   40 |
| 1101 | suxing |   25 |
| 1107 | zuzu   |   35 |
| 1109 | pupu   |   45 |
| 1102 | haha   |   20 |
| 1104 | susu   |   35 |
| 1103 | zaza   |   30 |
| 1105 | kaka   |   40 |
+------+--------+------+
9 rows in set (0.02 sec)


mysql>
mysql>
mysql>

可以看到使用flink可以正常将源端MySQL数据库的表数据实时同步到目标端starrocks数据库上面。采用的就是cdc监控MySQL端的日志，实现了实时同步。相比DataX的cdc能力，效率更高。

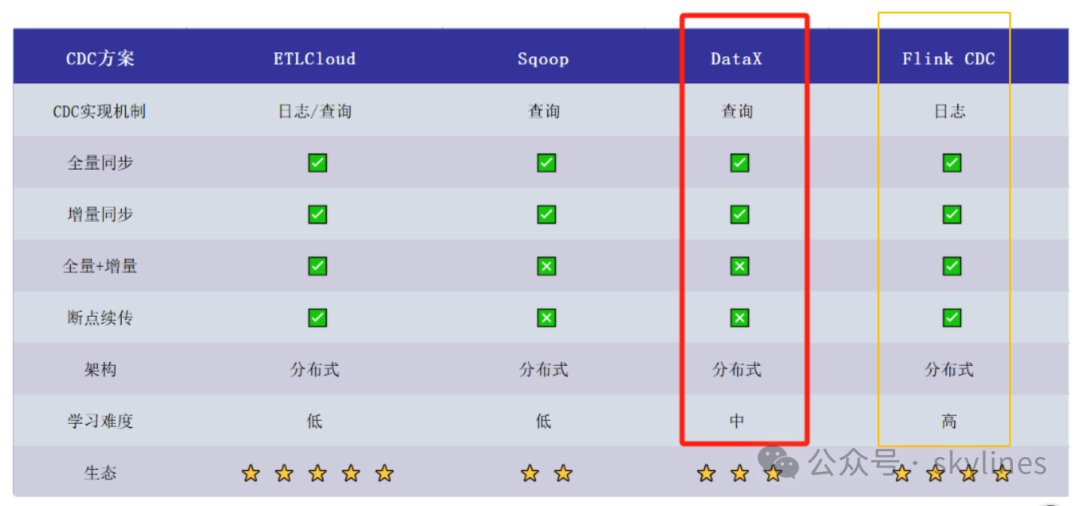

各同步工具CDC方案对照表

以上就是使用Flink同步MySQL的数据到Starrocks的简单举例。
