PostgreSQL一主两备 ETCD+PATRONI+KEEPLIVED 集群高可用安装部署实践

skylines 2023-05-25

140

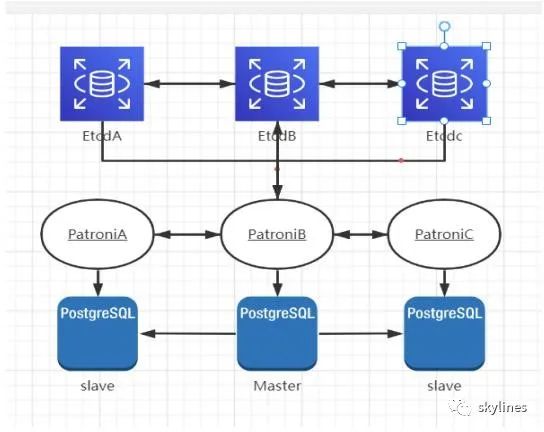

在我的三台腾讯云服务器到期被回收之前，我利用剩余的时间，进行了PostgreSQL一主两备 ETCD+PATRONI+KEEPLIVED 集群高可用安装部署实践的测试。

####安装PostgreSQL一主两备集群并安装基本软件

##安装PostgreSQL一主两备集群

PostgreSQL一主两备集群在《postgresql 15.2一主一备集群数据库安装与配置实践》的基础上（可参考配置步骤与方法），补充添加了一个节点，并完成了一主两备的PostgreSQL集群。

##安装基本软件

yum -y install vim lrzsz bash-completion

##安装并设置NTP

yum -y install chrony

####安装部署ETCD集群

yum -y install etcd

##所有节点创建ETCD配置文件

##primary

cat > etc/etcd/etcd.conf << EOF


ETCD_NAME=etcd1
ETCD_DATA_DIR="/var/lib/etcd/etcd1"
ETCD_LISTEN_PEER_URLS="http://172.16.0.16:2380"
ETCD_LISTEN_CLIENT_URLS="http://127.0.0.1:2379,http://172.16.0.16:2379"
ETCD_INITIAL_ADVERTISE_PEER_URLS="http://172.16.0.16:2380"
ETCD_INITIAL_CLUSTER="etcd1=http://172.16.0.16:2380,etcd2=http://172.16.0.11:2380,etcd3=http://172.16.0.13:2380"
ETCD_INITIAL_CLUSTER_STATE="new"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_ADVERTISE_CLIENT_URLS="http://172.16.0.16:2379"
EOF

##standby1

cat > etc/etcd/etcd.conf << EOF
ETCD_NAME=etcd2
ETCD_DATA_DIR="/var/lib/etcd/etcd2"
ETCD_LISTEN_PEER_URLS="http://172.16.0.11:2380"
ETCD_LISTEN_CLIENT_URLS="http://127.0.0.1:2379,http://172.16.0.11:2379"
ETCD_INITIAL_ADVERTISE_PEER_URLS="http://172.16.0.11:2380"
ETCD_INITIAL_CLUSTER="etcd1=http://172.16.0.16:2380,etcd2=http://172.16.0.11:2380,etcd3=http://172.16.0.13:2380"
ETCD_INITIAL_CLUSTER_STATE="new"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_ADVERTISE_CLIENT_URLS="http://172.16.0.11:2379"
EOF

##standby2

cat > etc/etcd/etcd.conf << EOF
ETCD_NAME=etcd3
ETCD_DATA_DIR="/var/lib/etcd/etcd3"
ETCD_LISTEN_PEER_URLS="http://172.16.0.13:2380"
ETCD_LISTEN_CLIENT_URLS="http://127.0.0.1:2379,http://172.16.0.13:2379"
ETCD_INITIAL_ADVERTISE_PEER_URLS="http://172.16.0.13:2380"
ETCD_INITIAL_CLUSTER="etcd1=http://172.16.0.16:2380,etcd2=http://172.16.0.11:2380,etcd3=http://172.16.0.13:2380"
ETCD_INITIAL_CLUSTER_STATE="new"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_ADVERTISE_CLIENT_URLS="http://172.16.0.13:2379"
EOF

##启动并查看etcd

systemctl start etcd
systemctl enable etcd
systemctl status etcd

[root@mytest01 ~]# systemctl status etcd
● etcd.service - Etcd Server
   Loaded: loaded (/usr/lib/systemd/system/etcd.service; enabled; vendor preset: disabled)
   Active: active (running) since Wed 2023-05-24 17:00:12 CST; 1min 5s ago
 Main PID: 1056 (etcd)
    Tasks: 10
   Memory: 22.1M
   CGroup: system.slice/etcd.service
           └─1056 usr/bin/etcd --name=etcd1 --data-dir=/var/lib/etcd/etcd1 --listen-client-urls=http://127.0.0.1:2379,http://172.16.0.16:2379
May 24 17:00:21 mytest01 etcd[1056]: peer c2d1bf26a6345972 became active
May 24 17:00:21 mytest01 etcd[1056]: established a TCP streaming connection with peer c2d1bf26a6345972 (stream Message writer)
May 24 17:00:21 mytest01 etcd[1056]: established a TCP streaming connection with peer c2d1bf26a6345972 (stream MsgApp v2 writer)
May 24 17:00:21 mytest01 etcd[1056]: established a TCP streaming connection with peer c2d1bf26a6345972 (stream MsgApp v2 reader)
May 24 17:00:21 mytest01 etcd[1056]: established a TCP streaming connection with peer c2d1bf26a6345972 (stream Message reader)
May 24 17:00:21 mytest01 etcd[1056]: health check for peer c2d1bf26a6345972 could not connect: dial tcp 172.16.0.13:2380: connect: connection refused (prober "ROUND_TRIPPER_RAFT_MESSAGE")
May 24 17:00:21 mytest01 etcd[1056]: health check for peer c2d1bf26a6345972 could not connect: dial tcp 172.16.0.13:2380: connect: connection refused (prober "ROUND_TRIPPER_SNAPSHOT")
May 24 17:00:24 mytest01 etcd[1056]: updating the cluster version from 3.0 to 3.3
May 24 17:00:24 mytest01 etcd[1056]: updated the cluster version from 3.0 to 3.3
May 24 17:00:24 mytest01 etcd[1056]: enabled capabilities for version 3.3

##任意节点查看ETCD状态与ETCD成员

[root@mytest01 ~]# etcdctl cluster-health
member b63449756a2d37cb is healthy: got healthy result from http://172.16.0.16:2379
member c2d1bf26a6345972 is healthy: got healthy result from http://172.16.0.13:2379
member d759000053f00fda is healthy: got healthy result from http://172.16.0.11:2379
cluster is healthy


[root@mytest01 ~]# etcdctl member list
b63449756a2d37cb: name=etcd1 peerURLs=http://172.16.0.16:2380 clientURLs=http://172.16.0.16:2379 isLeader=true
c2d1bf26a6345972: name=etcd3 peerURLs=http://172.16.0.13:2380 clientURLs=http://172.16.0.13:2379 isLeader=false
d759000053f00fda: name=etcd2 peerURLs=http://172.16.0.11:2380 clientURLs=http://172.16.0.11:2379 isLeader=false

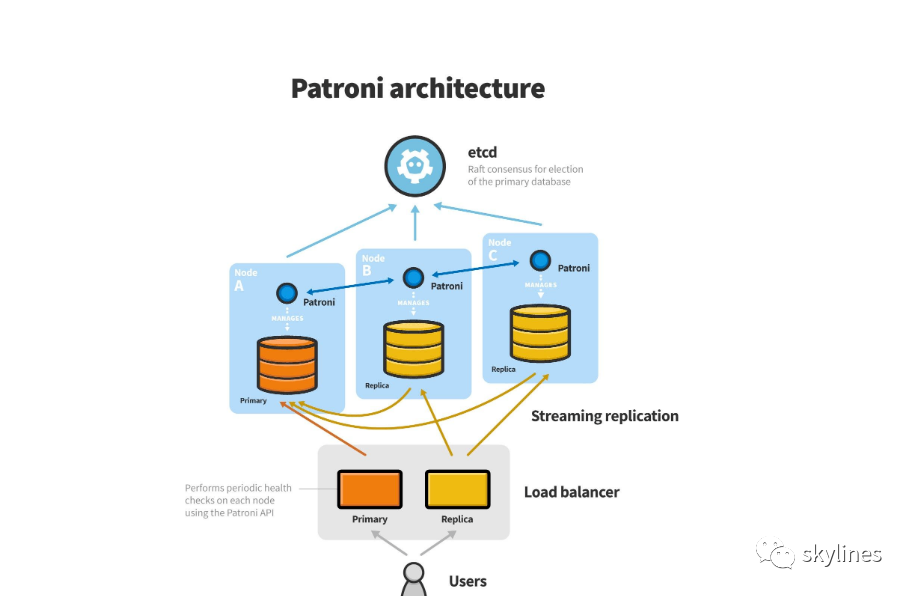

####安装部署Patroni集群

##安装Python 3

yum install -y python3

##安装pip

curl https://bootstrap.pypa.io/pip/3.6/get-pip.py -o get-pip.py
python3 get-pip.py

##安装Patroni

pip install psycopg2-binary -i https://pypi.tuna.tsinghua.edu.cn/simple
pip install patroni[etcd,consul] -i https://pypi.tuna.tsinghua.edu.cn/simple
--执行这两个命令

[root@mytest01 ~]# pip install psycopg2-binary -i https://pypi.tuna.tsinghua.edu.cn/simple


Looking in indexes: https://pypi.tuna.tsinghua.edu.cn/simple
Collecting psycopg2-binary
  Downloading https://pypi.tuna.tsinghua.edu.cn/packages/98/3e/05ab0922422c91ca0ecb5939a100f8dc2b5d15f5978433beadc87c5329bf/psycopg2-binary-2.9.6.tar.gz (384 kB)
     |████████████████████████████████| 384 kB 645 kB/s
  Preparing metadata (setup.py) ... error
  ERROR: Command errored out with exit status 1:
   command: usr/bin/python3 -c 'import io, os, sys, setuptools, tokenize; sys.argv[0] = '"'"'/tmp/pip-install-vgxx43vh/psycopg2-binary_f2648c9aa1314098a2d79739eb351251/setup.py'"'"'; __file__='"'"'/tmp/pip-install-vgxx43vh/psycopg2-binary_f2648c9aa1314098a2d79739eb351251/setup.py'"'"';f = getattr(tokenize, '"'"'open'"'"', open)(__file__) if os.path.exists(__file__) else io.StringIO('"'"'from setuptools import setup; setup()'"'"');code = f.read().replace('"'"'\r\n'"'"', '"'"'\n'"'"');f.close();exec(compile(code, __file__, '"'"'exec'"'"'))' egg_info --egg-base tmp/pip-pip-egg-info-g9orpck_
       cwd: tmp/pip-install-vgxx43vh/psycopg2-binary_f2648c9aa1314098a2d79739eb351251/
  Complete output (23 lines):
  running egg_info
  creating tmp/pip-pip-egg-info-g9orpck_/psycopg2_binary.egg-info
  writing tmp/pip-pip-egg-info-g9orpck_/psycopg2_binary.egg-info/PKG-INFO
  writing dependency_links to tmp/pip-pip-egg-info-g9orpck_/psycopg2_binary.egg-info/dependency_links.txt
  writing top-level names to tmp/pip-pip-egg-info-g9orpck_/psycopg2_binary.egg-info/top_level.txt
  writing manifest file '/tmp/pip-pip-egg-info-g9orpck_/psycopg2_binary.egg-info/SOURCES.txt'

  Error: pg_config executable not found.

  pg_config is required to build psycopg2 from source.  Please add the directory
  containing pg_config to the $PATH or specify the full executable path with the
  option:

      python setup.py build_ext --pg-config path/to/pg_config build ...

  or with the pg_config option in 'setup.cfg'.

  If you prefer to avoid building psycopg2 from source, please install the PyPI
  'psycopg2-binary' package instead.

  For further information please check the 'doc/src/install.rst' file (also at
  <https://www.psycopg.org/docs/install.html>).

  ----------------------------------------
WARNING: Discarding https://pypi.tuna.tsinghua.edu.cn/packages/98/3e/05ab0922422c91ca0ecb5939a100f8dc2b5d15f5978433beadc87c5329bf/psycopg2-binary-2.9.6.tar.gz#sha256=1f64dcfb8f6e0c014c7f55e51c9759f024f70ea572fbdef123f85318c297947c (from https://pypi.tuna.tsinghua.edu.cn/simple/psycopg2-binary/) (requires-python:>=3.6). Command errored out with exit status 1: python setup.py egg_info Check the logs for full command output.
  Downloading https://pypi.tuna.tsinghua.edu.cn/packages/92/a6/3b2ec55ce18f53ff04168ebbe959222ff79a3f6f48d907e4260afc750e9e/psycopg2_binary-2.9.5-cp36-cp36m-manylinux_2_17_x86_64.manylinux2014_x86_64.whl (3.0 MB)
     |████████████████████████████████| 3.0 MB 740 kB/s
Installing collected packages: psycopg2-binary
Successfully installed psycopg2-binary-2.9.5
WARNING: Running pip as the 'root' user can result in broken permissions and conflicting behaviour with the system package manager. It is recommended to use a virtual environment instead: https://pip.pypa.io/warnings/venv
[root@mytest01 ~]#




[root@mytest01 ~]# pip install patroni[etcd,consul] -i https://pypi.tuna.tsinghua.edu.cn/simple
Looking in indexes: https://pypi.tuna.tsinghua.edu.cn/simple
Collecting patroni[consul,etcd]
  Downloading https://pypi.tuna.tsinghua.edu.cn/packages/ae/97/48920cc96f68cd52d6b1a4fcf7d2585d914ec2d06df8f16acbdc16893fa1/patroni-3.0.2-py3-none-any.whl (216 kB)
     |████████████████████████████████| 216 kB 523 kB/s
Collecting ydiff>=1.2.0
  Downloading https://pypi.tuna.tsinghua.edu.cn/packages/1e/ed/e25e1f4fffbdfd0446f1c45504759e54676da0cde5a844d201181583fce4/ydiff-1.2.tar.gz (42 kB)
     |████████████████████████████████| 42 kB 2.5 MB/s
  Preparing metadata (setup.py) ... done
Collecting click>=4.1
  Downloading https://pypi.tuna.tsinghua.edu.cn/packages/4a/a8/0b2ced25639fb20cc1c9784de90a8c25f9504a7f18cd8b5397bd61696d7d/click-8.0.4-py3-none-any.whl (97 kB)
     |████████████████████████████████| 97 kB 368 kB/s
Collecting PyYAML
  Downloading https://pypi.tuna.tsinghua.edu.cn/packages/b3/85/79b9e5b4e8d3c0ac657f4e8617713cca8408f6cdc65d2ee6554217cedff1/PyYAML-6.0-cp36-cp36m-manylinux_2_5_x86_64.manylinux1_x86_64.manylinux_2_12_x86_64.manylinux2010_x86_64.whl (603 kB)
     |████████████████████████████████| 603 kB 186 kB/s
Collecting psutil>=2.0.0
  Downloading https://pypi.tuna.tsinghua.edu.cn/packages/af/4d/389441079ecef400e2551a3933224885a7bde6b8a4810091d628cdd75afe/psutil-5.9.5-cp36-abi3-manylinux_2_12_x86_64.manylinux2010_x86_64.manylinux_2_17_x86_64.manylinux2014_x86_64.whl (282 kB)
     |████████████████████████████████| 282 kB 334 kB/s
Collecting prettytable>=0.7
  Downloading https://pypi.tuna.tsinghua.edu.cn/packages/9e/6d/40a24eaa03ea4418129708fd3f0f17eda73d568f16d4d4fd412566168b4c/prettytable-2.5.0-py3-none-any.whl (24 kB)
Collecting urllib3!=1.21,>=1.19.1
  Downloading https://pypi.tuna.tsinghua.edu.cn/packages/7b/f5/890a0baca17a61c1f92f72b81d3c31523c99bec609e60c292ea55b387ae8/urllib3-1.26.15-py2.py3-none-any.whl (140 kB)
     |████████████████████████████████| 140 kB 211 kB/s
Collecting python-dateutil
  Downloading https://pypi.tuna.tsinghua.edu.cn/packages/36/7a/87837f39d0296e723bb9b62bbb257d0355c7f6128853c78955f57342a56d/python_dateutil-2.8.2-py2.py3-none-any.whl (247 kB)
     |████████████████████████████████| 247 kB 139 kB/s
Collecting python-etcd<0.5,>=0.4.3
  Downloading https://pypi.tuna.tsinghua.edu.cn/packages/a1/da/616a4d073642da5dd432e5289b7c1cb0963cc5dde23d1ecb8d726821ab41/python-etcd-0.4.5.tar.gz (37 kB)
  Preparing metadata (setup.py) ... done
Collecting python-consul>=0.7.1
  Downloading https://pypi.tuna.tsinghua.edu.cn/packages/3f/d0/59bc5f1c6c4d4b498c41d8ce7052ee9e9d68be19e16038a55252018a6c4d/python_consul-1.1.0-py2.py3-none-any.whl (24 kB)
Collecting importlib-metadata
  Downloading https://pypi.tuna.tsinghua.edu.cn/packages/a0/a1/b153a0a4caf7a7e3f15c2cd56c7702e2cf3d89b1b359d1f1c5e59d68f4ce/importlib_metadata-4.8.3-py3-none-any.whl (17 kB)
Collecting wcwidth
  Downloading https://pypi.tuna.tsinghua.edu.cn/packages/20/f4/c0584a25144ce20bfcf1aecd041768b8c762c1eb0aa77502a3f0baa83f11/wcwidth-0.2.6-py2.py3-none-any.whl (29 kB)
Collecting six>=1.4
  Downloading https://pypi.tuna.tsinghua.edu.cn/packages/d9/5a/e7c31adbe875f2abbb91bd84cf2dc52d792b5a01506781dbcf25c91daf11/six-1.16.0-py2.py3-none-any.whl (11 kB)
Collecting requests>=2.0
  Downloading https://pypi.tuna.tsinghua.edu.cn/packages/2d/61/08076519c80041bc0ffa1a8af0cbd3bf3e2b62af10435d269a9d0f40564d/requests-2.27.1-py2.py3-none-any.whl (63 kB)
     |████████████████████████████████| 63 kB 181 kB/s
Collecting dnspython>=1.13.0
  Downloading https://pypi.tuna.tsinghua.edu.cn/packages/9b/ed/28fb14146c7033ba0e89decd92a4fa16b0b69b84471e2deab3cc4337cc35/dnspython-2.2.1-py3-none-any.whl (269 kB)
     |████████████████████████████████| 269 kB 113 kB/s
Collecting certifi>=2017.4.17
  Downloading https://pypi.tuna.tsinghua.edu.cn/packages/9d/19/59961b522e6757f0c9097e4493fa906031b95b3ebe9360b2c3083561a6b4/certifi-2023.5.7-py3-none-any.whl (156 kB)
     |████████████████████████████████| 156 kB 108 kB/s
Collecting idna<4,>=2.5
  Downloading https://pypi.tuna.tsinghua.edu.cn/packages/fc/34/3030de6f1370931b9dbb4dad48f6ab1015ab1d32447850b9fc94e60097be/idna-3.4-py3-none-any.whl (61 kB)
     |████████████████████████████████| 61 kB 84 kB/s
Collecting charset-normalizer~=2.0.0
  Downloading https://pypi.tuna.tsinghua.edu.cn/packages/06/b3/24afc8868eba069a7f03650ac750a778862dc34941a4bebeb58706715726/charset_normalizer-2.0.12-py3-none-any.whl (39 kB)
Collecting typing-extensions>=3.6.4
  Downloading https://pypi.tuna.tsinghua.edu.cn/packages/45/6b/44f7f8f1e110027cf88956b59f2fad776cca7e1704396d043f89effd3a0e/typing_extensions-4.1.1-py3-none-any.whl (26 kB)
Collecting zipp>=0.5
  Downloading https://pypi.tuna.tsinghua.edu.cn/packages/bd/df/d4a4974a3e3957fd1c1fa3082366d7fff6e428ddb55f074bf64876f8e8ad/zipp-3.6.0-py3-none-any.whl (5.3 kB)
Building wheels for collected packages: python-etcd, ydiff
  Building wheel for python-etcd (setup.py) ... done
  Created wheel for python-etcd: filename=python_etcd-0.4.5-py3-none-any.whl size=38501 sha256=7612349adae28bb11e14ddddc6817832b7ded153a30c3a4cbcdcec679ea8894f
  Stored in directory: root/.cache/pip/wheels/d4/8d/85/9f39a924f2f2bd2a07439a908c904428ffacdf010bd7c4bbb6
  Building wheel for ydiff (setup.py) ... done
  Created wheel for ydiff: filename=ydiff-1.2-py3-none-any.whl size=16633 sha256=418c601cbbb5d3f2cf01ee057f9c3742663aab7a8ce7f7f2fc2d031073570479
  Stored in directory: root/.cache/pip/wheels/8a/a3/6d/5f34d9d5281240f24b8a5c4530d422582099fcdddd2ff10339
Successfully built python-etcd ydiff
Installing collected packages: zipp, typing-extensions, wcwidth, urllib3, six, importlib-metadata, idna, charset-normalizer, certifi, ydiff, requests, PyYAML, python-dateutil, psutil, prettytable, dnspython, click, python-etcd, python-consul, patroni
Successfully installed PyYAML-6.0 certifi-2023.5.7 charset-normalizer-2.0.12 click-8.0.4 dnspython-2.2.1 idna-3.4 importlib-metadata-4.8.3 patroni-3.0.2 prettytable-2.5.0 psutil-5.9.5 python-consul-1.1.0 python-dateutil-2.8.2 python-etcd-0.4.5 requests-2.27.1 six-1.16.0 typing-extensions-4.1.1 urllib3-1.26.15 wcwidth-0.2.6 ydiff-1.2 zipp-3.6.0
WARNING: Running pip as the 'root' user can result in broken permissions and conflicting behaviour with the system package manager. It is recommended to use a virtual environment instead: https://pip.pypa.io/warnings/venv
[root@mytest01 ~]#

##验证Patroni是否安装成功

patroni --version
patroni 3.0.2
[root@mytest01 ~]#

##在所有节点上创建Patroni配置文件

SELECT * FROM pg_create_physical_replication_slot('pgstandby3');
--补充创建槽位pgstandby3

##primary

mkdir -p usr/patroni/conf
cat > usr/patroni/conf/patroni_postgresql.yml << EOF
scope: pgsql15
namespace: /pgsql/
name: pgstandby3
restapi:
  listen: 172.16.0.16:8008
  connect_address: 172.16.0.16:8008
etcd:
  host: 172.16.0.16:2379
bootstrap:
  dcs:
    ttl: 30
    loop_wait: 10
    retry_timeout: 10
    maximum_lag_on_failover: 1048576
    master_start_timeout: 300
    synchronous_mode: false
    postgresql:
      use_pg_rewind: true
      use_slots: true
      parameters:
        listen_addresses: "0.0.0.0"
        port: 5002
        wal_level: logical
        hot_standby: "on"
        wal_keep_segments: 1000
        max_wal_senders: 10
        max_replication_slots: 10
        wal_log_hints: "on"
postgresql:
  listen: 0.0.0.0:5002
  connect_address: 172.16.0.16:5002
  data_dir: /var/lib/pgsql/15/data
  bin_dir: /usr/pgsql-15/bin
  authentication:
    replication:
      username: replica
      password: replica520A
    superuser:
      username: postgres
      password: Abcdfact@5500
tags:
    nofailover: false
    noloadbalance: false
    clonefrom: false
    nosync: false
EOF

##standby1

mkdir -p usr/patroni/conf
cat > usr/patroni/conf/patroni_postgresql.yml << EOF
scope: pgsql15
namespace: /pgsql/
name: pgstandby1
restapi:
  listen: 172.16.0.11:8008
  connect_address: 172.16.0.11:8008
etcd:
  host: 172.16.0.11:2379
bootstrap:
  dcs:
    ttl: 30
    loop_wait: 10
    retry_timeout: 10
    maximum_lag_on_failover: 1048576
    master_start_timeout: 300
    synchronous_mode: false
    postgresql:
      use_pg_rewind: true
      use_slots: true
      parameters:
        listen_addresses: "0.0.0.0"
        port: 5002
        wal_level: logical
        hot_standby: "on"
        wal_keep_segments: 1000
        max_wal_senders: 10
        max_replication_slots: 10
        wal_log_hints: "on"
postgresql:
  listen: 0.0.0.0:5002
  connect_address: 172.16.0.11:5002
  data_dir: /var/lib/pgsql/15/data
  bin_dir: /usr/pgsql-15/bin
  authentication:
    replication:
      username: replica
      password: replica520A
    superuser:
      username: postgres
      password: Abcdfact@5500
tags:
    nofailover: false
    noloadbalance: false
    clonefrom: false
    nosync: false
EOF

##standby2

mkdir -p usr/patroni/conf
cat > usr/patroni/conf/patroni_postgresql.yml << EOF
scope: pgsql15
namespace: /pgsql/
name: pgstandby2
restapi:
  listen: 172.16.0.13:8008
  connect_address: 172.16.0.13:8008
etcd:
  host: 172.16.0.13:2379
bootstrap:
  dcs:
    ttl: 30
    loop_wait: 10
    retry_timeout: 10
    maximum_lag_on_failover: 1048576
    master_start_timeout: 300
    synchronous_mode: false
    postgresql:
      use_pg_rewind: true
      use_slots: true
      parameters:
        listen_addresses: "0.0.0.0"
        port: 5002
        wal_level: logical
        hot_standby: "on"
        wal_keep_segments: 1000
        max_wal_senders: 10
        max_replication_slots: 10
        wal_log_hints: "on"
postgresql:
  listen: 0.0.0.0:5002
  connect_address: 172.16.0.13:5002
  data_dir: /var/lib/pgsql/15/data
  bin_dir: /usr/pgsql-15/bin
  authentication:
    replication:
      username: replica
      password: replica520A
    superuser:
      username: postgres
      password: Abcdfact@5500
tags:
    nofailover: false
    noloadbalance: false
    clonefrom: false
    nosync: false
EOF

##在所有节点上配置systemd管理Patroni

vim usr/lib/systemd/system/patroni.service
[Unit]
Description=patroni - a high-availability PostgreSQL
Documentation=https://patroni.readthedocs.io/en/latest/index.html
After=syslog.target network.target etcd.target
Wants=network-online.target


[Service]
Type=simple
User=postgres
Group=postgres
PermissionsStartOnly=true
ExecStart=/usr/local/bin/patroni usr/patroni/conf/patroni_postgresql.yml
ExecReload=/bin/kill -HUP $MAINPID
LimitNOFILE=65536
KillMode=process
KillSignal=SIGINT
Restart=on-abnormal
RestartSec=30s
TimeoutSec=0


[Install]
WantedBy=multi-user.target

##在所有节点上启动Patroni，并设置自启动

systemctl start patroni
systemctl enable patroni
Created symlink from etc/systemd/system/multi-user.target.wants/patroni.service to usr/lib/systemd/system/patroni.service.
systemctl status patroni
[root@mytest01 ~]# systemctl status patroni
● patroni.service - patroni - a high-availability PostgreSQL
   Loaded: loaded (/usr/lib/systemd/system/patroni.service; enabled; vendor preset: disabled)
   Active: active (running) since Wed 2023-05-24 23:47:43 CST; 48s ago
     Docs: https://patroni.readthedocs.io/en/latest/index.html
 Main PID: 18323 (patroni)
    Tasks: 2
   Memory: 21.5M
   CGroup: system.slice/patroni.service
           └─18323 usr/bin/python3 usr/local/bin/patroni usr/patroni/conf/patroni_postgresql.yml


May 24 23:48:09 mytest01 patroni[18323]: 2023-05-24 23:48:09,039 ERROR: Failed to get list of machines from http://172.16.0.16:2379/v2: MaxRetryError("HTTPConnectionPool(host='172.16.0.16', port=2379): Max retries exceeded with url...
May 24 23:48:09 mytest01 patroni[18323]: 2023-05-24 23:48:09,039 INFO: waiting on etcd
May 24 23:48:15 mytest01 patroni[18323]: 2023-05-24 23:48:15,714 WARNING: Retrying (Retry(total=1, connect=None, read=None, redirect=0, status=None)) after connection broken by 'ConnectTimeoutError(<urllib3.connection.HTTPConnection ...
May 24 23:48:17 mytest01 patroni[18323]: 2023-05-24 23:48:17,383 WARNING: Retrying (Retry(total=0, connect=None, read=None, redirect=0, status=None)) after connection broken by 'ConnectTimeoutError(<urllib3.connection.HTTPConnection ...
May 24 23:48:19 mytest01 patroni[18323]: 2023-05-24 23:48:19,051 ERROR: Failed to get list of machines from http://172.16.0.16:2379/v2: MaxRetryError("HTTPConnectionPool(host='172.16.0.16', port=2379): Max retries exceeded with url...
May 24 23:48:19 mytest01 patroni[18323]: 2023-05-24 23:48:19,051 INFO: waiting on etcd
May 24 23:48:25 mytest01 patroni[18323]: 2023-05-24 23:48:25,724 WARNING: Retrying (Retry(total=1, connect=None, read=None, redirect=0, status=None)) after connection broken by 'ConnectTimeoutError(<urllib3.connection.HTTPConnection ...
May 24 23:48:27 mytest01 patroni[18323]: 2023-05-24 23:48:27,392 WARNING: Retrying (Retry(total=0, connect=None, read=None, redirect=0, status=None)) after connection broken by 'ConnectTimeoutError(<urllib3.connection.HTTPConnection ...
May 24 23:48:29 mytest01 patroni[18323]: 2023-05-24 23:48:29,061 ERROR: Failed to get list of machines from http://172.16.0.16:2379/v2: MaxRetryError("HTTPConnectionPool(host='172.16.0.16', port=2379): Max retries exceeded with url...
May 24 23:48:29 mytest01 patroni[18323]: 2023-05-24 23:48:29,062 INFO: waiting on etcd
Hint: Some lines were ellipsized, use -l to show in full.

##查看Patroni集群状态

patronictl -c usr/patroni/conf/patroni_postgresql.yml list
[root@mytest01 ~]# patronictl -c usr/patroni/conf/patroni_postgresql.yml list
+ Cluster: pgsql15 -------------+---------+---------+----+-----------+
| Member     | Host             | Role    | State   | TL | Lag in MB |
+------------+------------------+---------+---------+----+-----------+
| pgstandby1 | 172.16.0.11:5002 | Replica | running |  1 |         0 |
| pgstandby2 | 172.16.0.13:5002 | Replica | running |1 |        0 |
| pgstandby3 | 172.16.0.16:5002 | Leader  | running |  1 |           |
+------------+------------------+---------+---------+----+-----------+

##在任意节点上查看ETCD信息

etcdctl ls pgsql/pgsql15
etcdctl get pgsql/pgsql15/members/pgstandby1
etcdctl get pgsql/pgsql15/members/pgstandby2
etcdctl get pgsql/pgsql15/members/pgstandby3
--可执行这几个命令

[root@mytest02 ~]# etcdctl ls pgsql/pgsql15
/pgsql/pgsql15/members
/pgsql/pgsql15/initialize
/pgsql/pgsql15/leader
/pgsql/pgsql15/config
/pgsql/pgsql15/status
[root@mytest02 ~]#
[root@mytest02 ~]#
[root@mytest02 ~]# etcdctl get pgsql/pgsql15/members/pgstandby1
{"conn_url":"postgres://172.16.0.11:5002/postgres","api_url":"http://172.16.0.11:8008/patroni","state":"running","role":"replica","version":"3.0.2","xlog_location":201326920,"timeline":1}
[root@mytest02 ~]#

####三个节点安装部署Keepalived

##所有节点安装keepalived

yum -y install keepalived

##添加keepalived配置文件

##primary

cat > etc/keepalived/keepalived.conf << EOF
global_defs {
   router_id LVS_DEVEL
}


vrrp_script check_haproxy {
    script "/etc/keepalived/check_haproxy.sh"
    interval 2
    weight 5
    fall 3
    rise 5
    timeout 2
}


vrrp_instance VI_1 {
    state Master
    interface eth0
    virtual_router_id 80
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 111111
    }
    virtual_ipaddress {
        172.16.0.220/24
    }
    track_script {
        check_haproxy
    }
}
EOF

##standby1

cat > etc/keepalived/keepalived.conf << EOF
global_defs {
   router_id LVS_DEVEL
}


vrrp_script check_haproxy {
    script "/etc/keepalived/check_haproxy.sh"
    interval 2
    weight 5
    fall 3
    rise 5
    timeout 2
}


vrrp_instance VI_1 {
    state Slave
    interface eth0
    virtual_router_id 80
    priority 50
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 111111
    }
    virtual_ipaddress {
        172.16.0.220/24
    }
    track_script {
        check_haproxy
    }
}
EOF

##standby2

cat > etc/keepalived/keepalived.conf << EOF
global_defs {
   router_id LVS_DEVEL
}




vrrp_script check_haproxy {
    script "/etc/keepalived/check_haproxy.sh"
    interval 2
    weight 5
    fall 3
    rise 5
    timeout 2
}




vrrp_instance VI_1 {
    state Slave
    interface eth0
    virtual_router_id 80
    priority 30
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 111111
    }
    virtual_ipaddress {
        172.16.0.220/24
    }
    track_script {
        check_haproxy
    }
}
EOF

##所有节点部署监测脚本

vim /etc/keepalived/check_haproxy.sh
#!/bin/bash
count=`ps aux | grep -v grep | grep haproxy | wc -l`
if [ $count -eq 0 ]; then
    exit 1
else
    exit 0
fi

##所有节点启动并查看keeplived

systemctl start keepalived
systemctl enable keepalived
systemctl status keepalived
--可执行以上三个命令，停keepalived服务可执行systemctl stop keepalived

[root@mytest01 ~]# systemctl status keepalived
● keepalived.service - LVS and VRRP High Availability Monitor
   Loaded: loaded (/usr/lib/systemd/system/keepalived.service; enabled; vendor preset: disabled)
   Active: active (running) since Thu 2023-05-25 09:38:16 CST; 44s ago
 Main PID: 22228 (keepalived)
    Tasks: 3
   Memory: 1.9M
   CGroup: /system.slice/keepalived.service
           ├─22228 /usr/sbin/keepalived -D
           ├─22229 /usr/sbin/keepalived -D
           └─22230 /usr/sbin/keepalived -D


May 25 09:38:20 mytest01 Keepalived_vrrp[22230]: Sending gratuitous ARP on eth0 for 172.16.0.220
May 25 09:38:20 mytest01 Keepalived_vrrp[22230]: Sending gratuitous ARP on eth0 for 172.16.0.220
May 25 09:38:20 mytest01 Keepalived_vrrp[22230]: Sending gratuitous ARP on eth0 for 172.16.0.220
May 25 09:38:20 mytest01 Keepalived_vrrp[22230]: Sending gratuitous ARP on eth0 for 172.16.0.220
May 25 09:38:25 mytest01 Keepalived_vrrp[22230]: Sending gratuitous ARP on eth0 for 172.16.0.220
May 25 09:38:25 mytest01 Keepalived_vrrp[22230]: VRRP_Instance(VI_1) Sending/queueing gratuitous ARPs on eth0 for 172.16.0.220
May 25 09:38:25 mytest01 Keepalived_vrrp[22230]: Sending gratuitous ARP on eth0 for 172.16.0.220
May 25 09:38:25 mytest01 Keepalived_vrrp[22230]: Sending gratuitous ARP on eth0 for 172.16.0.220
May 25 09:38:25 mytest01 Keepalived_vrrp[22230]: Sending gratuitous ARP on eth0 for 172.16.0.220
May 25 09:38:25 mytest01 Keepalived_vrrp[22230]: Sending gratuitous ARP on eth0 for 172.16.0.220
[root@mytest01 ~]#
[root@mytest01 ~]#

##主库查看VIP挂载情况

[root@mytest01 ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether 52:54:00:b6:46:c8 brd ff:ff:ff:ff:ff:ff
    inet 172.16.0.16/20 brd 172.16.15.255 scope global eth0
       valid_lft forever preferred_lft forever
    inet 172.16.0.220/24 scope global eth0
       valid_lft forever preferred_lft forever
    inet6 fe80::5054:ff:feb6:46c8/64 scope link
       valid_lft forever preferred_lft forever
3: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default
    link/ether 02:42:ba:5d:77:7c brd ff:ff:ff:ff:ff:ff
    inet 172.17.0.1/16 brd 172.17.255.255 scope global docker0
       valid_lft forever preferred_lft forever
[root@mytest01 ~]#
--可看到VIP 172.16.0.220已经挂载成功。

####在所有节点安装部署HAProxy

##三个节点安装HAProxy

yum -y install haproxy

##在所有节点上创建HAProxy配置文件

cat > /etc/haproxy/haproxy.cfg << EOF


global
    log         127.0.0.1 local2
    chroot      /var/lib/haproxy
    pidfile     /var/run/haproxy.pid
    maxconn     4000
    user        haproxy
    group       haproxy
    daemon
    stats socket /var/lib/haproxy/stats




defaults
    mode                    tcp
    log                     global
    option                  tcplog
    option                  dontlognull
    option                  redispatch
    retries                 3
    timeout queue           1m
    timeout connect         10s
    timeout client          1m
    timeout server          1m
    timeout check           10s
    maxconn                 3000


listen status
    bind *:1080
    mode http
    log global
    stats enable
    stats refresh 30s
    stats uri /
    stats realm Private lands
    stats auth admin:admin


listen master
    bind *:5000
    mode tcp
    option tcplog
    balance roundrobin
    option httpchk OPTIONS /master
    http-check expect status 200
    default-server inter 3s fall 3 rise 2 on-marked-down shutdown-sessions
    server pgsql1 172.16.0.16:5002 maxconn 1000 check port 8008 inter 5000 rise 2 fall 2
    server pgsql2 172.16.0.11:5002 maxconn 1000 check port 8008 inter 5000 rise 2 fall 2
    server pgsql3 172.16.0.13:5002 maxconn 1000 check port 8008 inter 5000 rise 2 fall 2


listen replicas
    bind *:5001
    mode tcp
    option tcplog
    balance roundrobin
    option httpchk OPTIONS /replica
    http-check expect status 200
    default-server inter 3s fall 3 rise 2 on-marked-down shutdown-sessions
    server pgsql1 172.16.0.16:5002 maxconn 1000 check port 8008 inter 5000 rise 2 fall 2
    server pgsql2 172.16.0.11:5002 maxconn 1000 check port 8008 inter 5000 rise 2 fall 2
    server pgsql3 172.16.0.13:5002 maxconn 1000 check port 8008 inter 5000 rise 2 fall 2
EOF

##启动HAProxy，并设置自启动

systemctl start haproxy
systemctl enable haproxy
systemctl status haproxy
--可执行以上三个命令

[root@mytest01 ~]# systemctl start haproxy
[root@mytest01 ~]# systemctl enable haproxy
Created symlink from /etc/systemd/system/multi-user.target.wants/haproxy.service to /usr/lib/systemd/system/haproxy.service.
[root@mytest01 ~]# systemctl status haproxy
● haproxy.service - HAProxy Load Balancer
   Loaded: loaded (/usr/lib/systemd/system/haproxy.service; enabled; vendor preset: disabled)
   Active: active (running) since Thu 2023-05-25 09:49:17 CST; 35s ago
 Main PID: 26476 (haproxy-systemd)
    Tasks: 3
   Memory: 1.9M
   CGroup: /system.slice/haproxy.service
           ├─26476 /usr/sbin/haproxy-systemd-wrapper -f /etc/haproxy/haproxy.cfg -p /run/haproxy.pid
           ├─26477 /usr/sbin/haproxy -f /etc/haproxy/haproxy.cfg -p /run/haproxy.pid -Ds
           └─26478 /usr/sbin/haproxy -f /etc/haproxy/haproxy.cfg -p /run/haproxy.pid -Ds


May 25 09:49:17 mytest01 systemd[1]: Started HAProxy Load Balancer.
May 25 09:49:17 mytest01 haproxy-systemd-wrapper[26476]: haproxy-systemd-wrapper: executing /usr/sbin/haproxy -f /etc/haproxy/haproxy.cfg -p /run/haproxy.pid -Ds
[root@mytest01 ~]#

####测试验证并模拟故障切换

##查看Patroni集群状态

[root@mytest01 ~]# patronictl -c /usr/patroni/conf/patroni_postgresql.yml list
+ Cluster: pgsql15 -------------+---------+---------+----+-----------+
| Member     | Host             | Role    | State   | TL | Lag in MB |
+------------+------------------+---------+---------+----+-----------+
| pgstandby1 | 172.16.0.11:5002 | Replica | running |  1 |         0 |
| pgstandby2 | 172.16.0.13:5002 | Replica | running |  1 |         0 |
| pgstandby3 | 172.16.0.16:5002 | Leader  | running |  1 |           |
+------------+------------------+---------+---------+----+-----------+
[root@mytest01 ~]#

##使用VIP在主库使用5000端口登录数据库

[root@mytest01 ~]#  psql -U postgres -h 172.16.0.220 -p 5000
psql (15.2)
Type "help" for help.
postgres=#
--可登录成功

##尝试创建测试表并写入测试数据

CREATE TABLE tb (
   id int NOT NULL,
   name varchar(255) NULL,
   PRIMARY KEY (id)
);




INSERT INTO tb (id,name) VALUES (1,'PostgreSQL');
INSERT INTO tb (id,name) VALUES (2,'MySQL');




postgres=#
postgres=# \dt
        List of relations
 Schema | Name | Type  |  Owner
--------+------+-------+----------
 public | t1   | table | postgres
 public | t2   | table | postgres
 public | tb   | table | postgres
(3 rows)




postgres=# select * from tb;
 id |    name
----+------------
  1 | PostgreSQL
  2 | MySQL
(2 rows)




postgres=#




##尝试写入一条记录
INSERT INTO tb (id,name) VALUES (3,'Oracle');




postgres=# INSERT INTO tb (id,name) VALUES (3,'Oracle');
server closed the connection unexpectedly
        This probably means the server terminated abnormally
        before or while processing the request.
The connection to the server was lost. Attempting reset: Succeeded.
postgres=#
--由于网络不稳定，导致连接中断异常




##再次尝试写入一条记录
INSERT INTO tb (id,name) VALUES (4,'SQLServer');
--写入成功。

##尝试模拟主库故障，再次查看Patroni集群状态

[root@mytest01 ~]# patronictl -c /usr/patroni/conf/patroni_postgresql.yml list
+ Cluster: pgsql15 -------------+---------+---------+----+-----------+-----------------+
| Member     | Host             | Role    | State   | TL | Lag in MB | Pending restart |
+------------+------------------+---------+---------+----+-----------+-----------------+
| pgstandby1 | 172.16.0.11:5002 | Replica | running |  1 |         0 |                 |
| pgstandby2 | 172.16.0.13:5002 | Replica | running |  1 |         0 |                 |
| pgstandby3 | 172.16.0.16:5002 | Leader  | running |  2 |           | *               |
+------------+------------------+---------+---------+----+-----------+-----------------+

--模拟主库故障，故障自动转移测试不是很理想。

因为腾讯云部在华南区的服务器暂时没有开通VIP（高可用虚拟IP的服务与功能）。

文章转载自skylines，如果涉嫌侵权，请发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。

PostgreSQL一主两备 ETCD+PATRONI+KEEPLIVED 集群高可用安装部署实践

评论
