[MYSQL] mysql升级后, 应用连不上, 报错 Bad handshake

原创 大大刺猬 2024-07-17
271

问题

测试环境数据库从 5.7.27 升级到 5.7.44之后, 应用发现连不上数据库了.


程序侧报错如下(好它喵的长):

xception in thread "main" java.lang.IllegalStateException: Cannot connect to the database!
	at MySQLConnTest57.main(MySQLConnTest57.java:18)
Caused by: com.mysql.jdbc.exceptions.jdbc4.CommunicationsException: Communications link failure

The last packet successfully received from the server was 308 milliseconds ago.  The last packet sent successfully to the server was 304 milliseconds ago.
	at sun.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method)
	at sun.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:62)
	at sun.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45)
	at java.lang.reflect.Constructor.newInstance(Constructor.java:423)
	at com.mysql.jdbc.Util.handleNewInstance(Util.java:403)
	at com.mysql.jdbc.SQLError.createCommunicationsException(SQLError.java:990)
	at com.mysql.jdbc.ExportControlled.transformSocketToSSLSocket(ExportControlled.java:202)
	at com.mysql.jdbc.MysqlIO.negotiateSSLConnection(MysqlIO.java:4869)
	at com.mysql.jdbc.MysqlIO.proceedHandshakeWithPluggableAuthentication(MysqlIO.java:1656)
	at com.mysql.jdbc.MysqlIO.doHandshake(MysqlIO.java:1217)
	at com.mysql.jdbc.ConnectionImpl.coreConnect(ConnectionImpl.java:2189)
	at com.mysql.jdbc.ConnectionImpl.connectOneTryOnly(ConnectionImpl.java:2220)
	at com.mysql.jdbc.ConnectionImpl.createNewIO(ConnectionImpl.java:2015)
	at com.mysql.jdbc.ConnectionImpl.<init>(ConnectionImpl.java:768)
	at com.mysql.jdbc.JDBC4Connection.<init>(JDBC4Connection.java:47)
	at sun.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method)
	at sun.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:62)
	at sun.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45)
	at java.lang.reflect.Constructor.newInstance(Constructor.java:423)
	at com.mysql.jdbc.Util.handleNewInstance(Util.java:403)
	at com.mysql.jdbc.ConnectionImpl.getInstance(ConnectionImpl.java:385)
	at com.mysql.jdbc.NonRegisteringDriver.connect(NonRegisteringDriver.java:323)
	at java.sql.DriverManager.getConnection(DriverManager.java:664)
	at java.sql.DriverManager.getConnection(DriverManager.java:247)
	at MySQLConnTest57.main(MySQLConnTest57.java:15)
Caused by: javax.net.ssl.SSLHandshakeException: java.security.cert.CertificateException: java.security.cert.CertPathValidatorException: Path does not chain with any of the trust anchors
	at sun.security.ssl.Alerts.getSSLException(Alerts.java:192)
	at sun.security.ssl.SSLSocketImpl.fatal(SSLSocketImpl.java:1964)
	at sun.security.ssl.Handshaker.fatalSE(Handshaker.java:328)
	at sun.security.ssl.Handshaker.fatalSE(Handshaker.java:322)
	at sun.security.ssl.ClientHandshaker.serverCertificate(ClientHandshaker.java:1614)
	at sun.security.ssl.ClientHandshaker.processMessage(ClientHandshaker.java:216)
	at sun.security.ssl.Handshaker.processLoop(Handshaker.java:1052)
	at sun.security.ssl.Handshaker.process_record(Handshaker.java:987)
	at sun.security.ssl.SSLSocketImpl.readRecord(SSLSocketImpl.java:1072)
	at sun.security.ssl.SSLSocketImpl.performInitialHandshake(SSLSocketImpl.java:1385)
	at sun.security.ssl.SSLSocketImpl.startHandshake(SSLSocketImpl.java:1413)
	at sun.security.ssl.SSLSocketImpl.startHandshake(SSLSocketImpl.java:1397)
	at com.mysql.jdbc.ExportControlled.transformSocketToSSLSocket(ExportControlled.java:187)
	... 18 more
Caused by: java.security.cert.CertificateException: java.security.cert.CertPathValidatorException: Path does not chain with any of the trust anchors
	at com.mysql.jdbc.ExportControlled$X509TrustManagerWrapper.checkServerTrusted(ExportControlled.java:303)
	at sun.security.ssl.AbstractTrustManagerWrapper.checkServerTrusted(SSLContextImpl.java:985)
	at sun.security.ssl.ClientHandshaker.serverCertificate(ClientHandshaker.java:1596)
	... 26 more
Caused by: java.security.cert.CertPathValidatorException: Path does not chain with any of the trust anchors
	at sun.security.provider.certpath.PKIXCertPathValidator.validate(PKIXCertPathValidator.java:154)
	at sun.security.provider.certpath.PKIXCertPathValidator.engineValidate(PKIXCertPathValidator.java:80)
	at java.security.cert.CertPathValidator.validate(CertPathValidator.java:292)
	at com.mysql.jdbc.ExportControlled$X509TrustManagerWrapper.checkServerTrusted(ExportControlled.java:296)
	... 28 more

查看数据库日志, 发现大量报错如下:

2024-07-17T09:47:48.275413+08:00 112 [Note] Bad handshake
2024-07-17T09:47:48.837325+08:00 113 [Note] Bad handshake
2024-07-17T09:47:49.439363+08:00 114 [Note] Bad handshake
2024-07-17T09:47:50.039733+08:00 115 [Note] Bad handshake
2024-07-17T09:47:50.532872+08:00 116 [Note] Bad handshake
2024-07-17T09:47:51.254110+08:00 117 [Note] Bad handshake
2024-07-17T09:47:51.800288+08:00 118 [Note] Bad handshake
2024-07-17T09:47:52.398900+08:00 119 [Note] Bad handshake
2024-07-17T09:47:52.924803+08:00 120 [Note] Bad handshake
2024-07-17T09:47:53.531595+08:00 121 [Note] Bad handshake

分析过程

  1. 从程序报错看是ssl证书问题导致握手失败: javax.net.ssl.SSLHandshakeException
  2. 从mysql的error日志看也是握手失败.

所以就算握手失败了哦. 那么这是发生在哪一阶段的呢?

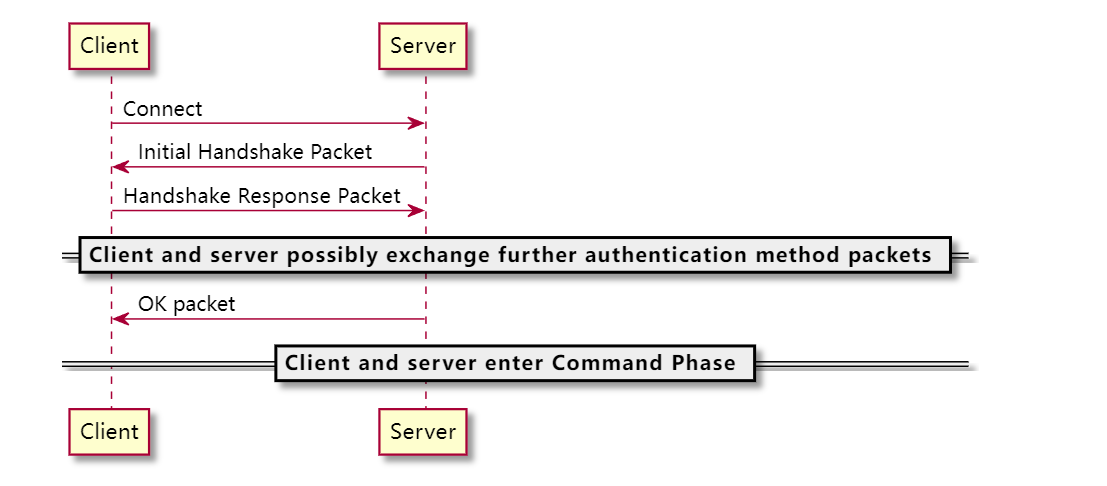

之前有讲过mysql的ssl连接过程: https://cloud.tencent.com/developer/article/2245416

也就是在client回复握手包的时候发生的. 即客户端声明了要使用ssl包, 但又不做ssl认证(表里不一). 这种情况在pymysql之类的第三方包是不会发生的.但官方提供的java驱动包却有这个问题…

复现

好巧不巧, 我们之前有mysql连接脚本. 我们可以直接使用: https://cloud.tencent.com/developer/article/2242582

只需要声明要使用ssl协议即可, 即修改Capabilities Flags的CLIENT_SSL即可. 完整的Capabilities Flags信息可看: https://cloud.tencent.com/developer/article/2243951

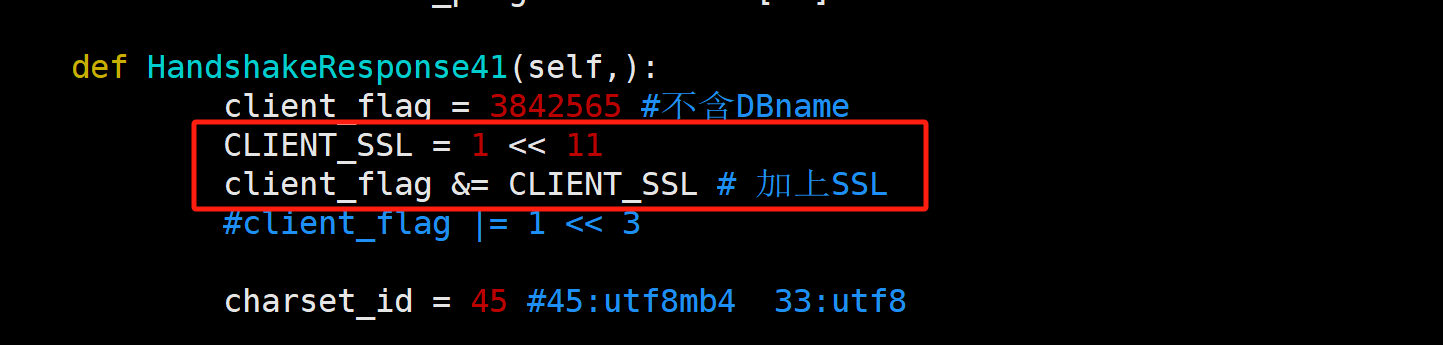

即在HandshakeResponse41添加如下代码即可

引入的包t20240717见文末

然后我们测试下

import t20240717
aa = t20240717.mysql()
aa.connect()
aa.query('select aa.id as sb,aa.name from db1.t1 as aa limit 4')
for x in aa.result():
	print(x)
print(aa.des_list)

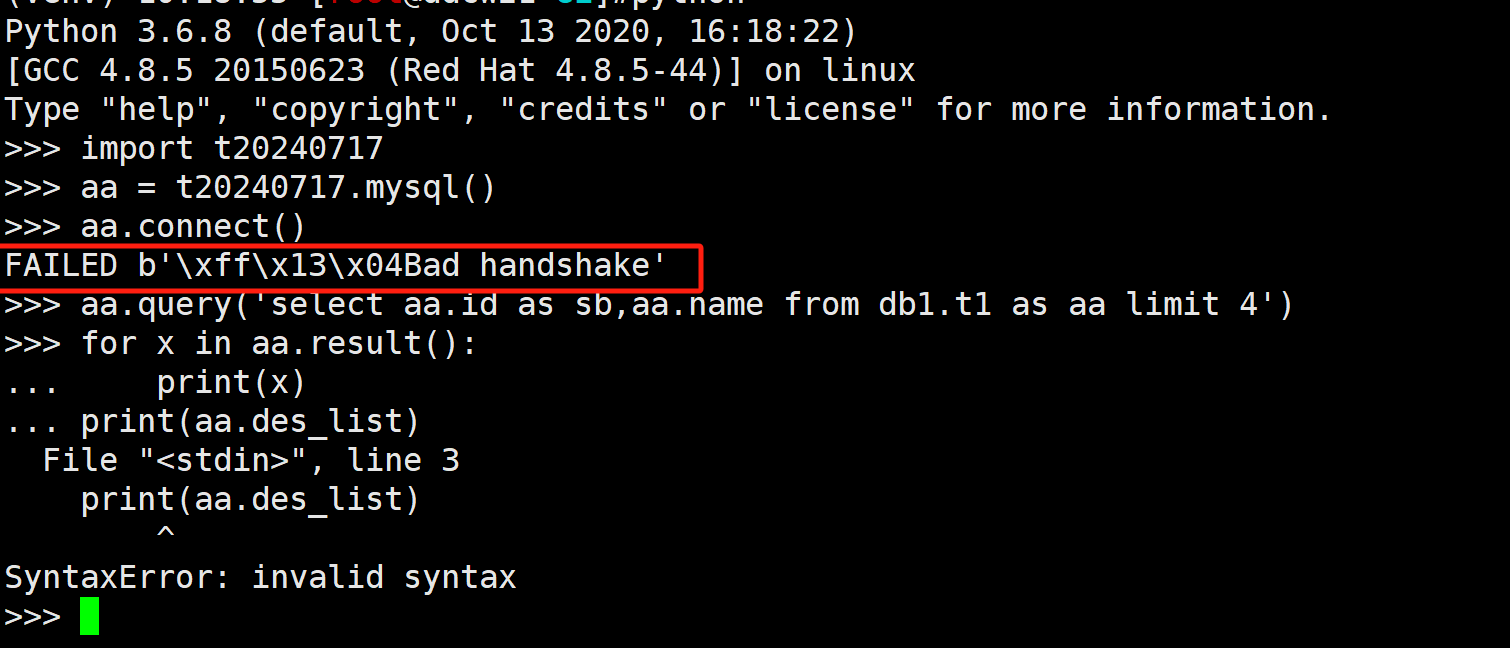

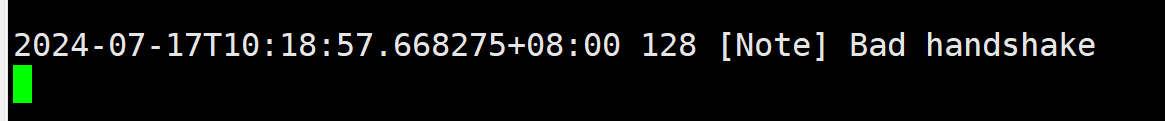

做连接的时候就已经返回 Bad handshake了. 我们再查看数据库日志, 也能找到这个报错

python对异常的处理确实比java要好一些(至少不是一大堆信息…)-_-

证明确实是声明了ssl(java驱动默认). 但又不使用ssl (未指定证书路径). 既然确认了原因, 那么就好处理了.

解决

解决方法主要是设置ssl证书信息或者取消ssl. 这里选择后者.(内网使用ssl只会降低性能)

方法1

服务端禁用ssl. 在配置文件添加skip_ssl即可. (永除后患).

skip_ssl

方法2

应用连接的时候, 连接串加上useSSL=false即可(难为开发了). 比如:

String url = "jdbc:mysql://192.168.101.202:3306/db1?useSSL=false";

总结

之前解析的mysql连接协议再一次用上了. 平时的一下看起来没diao用的知识,早晚会用到.

后续思考: 那么是从哪一个版本开始服务端默认使用(open)ssl了呢?

参考:
https://dev.mysql.com/doc/dev/mysql-server/latest/page_protocol_connection_phase.html
https://cloud.tencent.com/developer/article/2245416
https://cloud.tencent.com/developer/article/2242582
https://cloud.tencent.com/developer/article/2243951

附源码

java测试连接的源码如下

import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.SQLException;

public class MySQLConnTest57{

    public static void main(String[] args) {
        String url = "jdbc:mysql://192.168.101.202:3306/db1?useSSL=false";
        //String url = "jdbc:mysql://192.168.101.202:3306/db1?";
        String username = "ddcw";
        String password = "123456";

        System.out.println("Connecting...");

        try (Connection connection = DriverManager.getConnection(url, username, password)) {
            System.out.println("Connected successfully!");
        } catch (SQLException e) {
            throw new IllegalStateException("Cannot connect to the database!", e);
        }
    }
}

使用方法参考:

vim MySQLConnTest57.java # 写入上面的源码
javac MySQLConnTest57.java # 生成字节码
java -cp .:mysql-connector-java-5.1.49.jar MySQLConnTest57 # 指定驱动包路径(方便测试版本)

python测试连接的源码如下

基本上都是之前给过的, 这次只有一丢丢改变

t20240717.py

import hashlib
import socket
import struct
import os


#来自pymysql
def _lenenc_int(i):
	if i < 0:
		raise ValueError("Encoding %d is less than 0 - no representation in LengthEncodedInteger" % i)
	elif i < 0xFB:
		return bytes([i])
	elif i < (1 << 16):
		return b"\xfc" + struct.pack("<H", i)
	elif i < (1 << 24):
		return b"\xfd" + struct.pack("<I", i)[:3]
	elif i < (1 << 64):
		return b"\xfe" + struct.pack("<Q", i)
	else:
		raise ValueError("Encoding %x is larger than %x - no representation in LengthEncodedInteger"% (i, (1 << 64)))

def native_password(password,salt):
	stage1 = hashlib.sha1(password).digest()
	stage2 = hashlib.sha1(stage1).digest()

	rp = hashlib.sha1(salt)
	rp.update(stage2)
	result = bytearray(rp.digest())

	for x in range(len(result)):
		result[x] ^= stage1[x]
	return result

def _read_lenenc(bdata,i):
	length = btoint(bdata[i:i+1])
	i += 1
	data = bdata[i:i+length]
	i += length
	return data,i


def btoint(bdata,t='little'):
        return int.from_bytes(bdata,t)

class mysql(object):
	def __init__(self):
		self.host = '192.168.101.202'
		self.port = 3306
		self.user = 'ddcw'
		self.password = '123456'

	def read_pack(self,):
		pack_header = self.rf.read(4)
		btrl, btrh, packet_seq = struct.unpack("<HBB", pack_header)
		pack_size = btrl + (btrh << 16)
		self._next_seq_id = (self._next_seq_id + 1) % 256
		bdata = self.rf.read(pack_size) #也懒得考虑超过16MB的包了
		return bdata

	def write_pack(self,data):
		#3字节长度, 1字节seq, data
		bdata = struct.pack("<I", len(data))[:3] + bytes([self._next_seq_id]) + data
		self.sock.sendall(bdata)
		self._next_seq_id = (self._next_seq_id + 1) % 256

	def handshake(self,bdata):
		i = 0 #已经读取的字节数, 解析binlog的时候也是这么用的.....
		protocol_version = bdata[:1] #只解析10

		server_end = bdata.find(b"\0", i)
		self.server_version = bdata[i:server_end]
		i = server_end + 1

		self.thread_id = btoint(bdata[i:i+4])
		i += 4

		self.salt = bdata[i:i+8]
		i += 9 #还有1字节的filter, 没啥意义,就不保存了

		self.server_capabilities = btoint(bdata[i:i+2])
		i += 2

		self.server_charset = btoint(bdata[i:i+1])
		i += 1

		self.server_status = btoint(bdata[i:i+2])
		i += 2

		self.server_capabilities |= btoint(bdata[i:i+2]) << 16 #往左移16位 为啥不把capability_flags_1和capability_flags_2和一起呢
		i += 2

		salt_length = struct.unpack('<B',bdata[i:i+1])[0] #懒得去判断capabilities & CLIENT_PLUGIN_AUTH了
		salt_length = max(13,salt_length-8) #前面已经有8字节了
		i += 1

		i += 10 #reserved

		self.salt += bdata[i:i+salt_length]
		i += salt_length

		self.server_plugname = bdata[i:]

	def HandshakeResponse41(self,):
		client_flag = 3842565 #不含DBname
		CLIENT_SSL = 1 << 11
		client_flag &= CLIENT_SSL # 加上SSL
		#client_flag |= 1 << 3

		charset_id = 45 #45:utf8mb4  33:utf8

		#bdata = client_flag.to_bytes(4,'little') #其实应该最后在加, 毕竟还要判断很多参数, 可能还需要修改, 但是懒
		bdata = struct.pack('<iIB23s',client_flag,2**24-1,charset_id,b'')

		bdata += self.user.encode() + b'\0'

		auth_password = native_password(self.password.encode(), self.salt[:20])
		auth_response = _lenenc_int(len(auth_password)) + auth_password
		bdata += auth_response

		bdata += b"mysql_native_password" + b'\0'

		#本文有设置连接属性, 主要是为了方便观察
		attr = {'_client_name':'ddcw_for_pymysql', '_pid':str(os.getpid()), "_client_version":'0.0.1',}
		#key长度+k+v长度+v
		connect_attrs = b""
		for k, v in attr.items():
			k = k.encode()
			connect_attrs += _lenenc_int(len(k)) + k
			v = v.encode()
			connect_attrs += _lenenc_int(len(v)) + v
		bdata += _lenenc_int(len(connect_attrs)) + connect_attrs
		self.write_pack(bdata)

		auth_pack = self.read_pack() #看看是否连接成功
		if auth_pack[:1] == b'\0':
			print('OK',)
		else:
			print('FAILED',auth_pack)


	def query(self,sql):
		"""不考虑SQL超过16MB情况"""
		# payload_length:3  sequence_id:1 payload:N
		# payload: com_query(0x03):1 sql:n
		bdata = struct.pack('<IB',len(sql)+1,0x03) #I:每个com_query的seq_id都从0开始,第4字节固定为0, 所以直接用I, +1:com_query占用1字节,  0x03:com_query
		bdata += sql.encode()
		self.sock.sendall(bdata)
		self._next_seq_id = 1 #下一个包seq_id = 1

	def result(self):
		#https://dev.mysql.com/doc/dev/mysql-server/latest/page_protocol_com_query_response_text_resultset_column_definition.html
		#Protocol::ColumnDefinition41
		#字段数量
		stat = self.read_pack()
		filed_count = struct.unpack('<B',stat)[0] #不考虑0xFF(error) 0xFB(字段太多) 0x00(无返回数据,就是成功)

		#字段描述(字段数据类型)
		des_list = []
		for x in range(filed_count):
			i = 0
			bdata = self.read_pack()
			catalog,i = _read_lenenc(bdata,i)
			schema,i = _read_lenenc(bdata,i)
			table,i = _read_lenenc(bdata,i)
			org_table,i = _read_lenenc(bdata,i)
			name,i = _read_lenenc(bdata,i)
			org_name,i = _read_lenenc(bdata,i)
			i += 1 #0x0c
			character_set = btoint(bdata[i:i+2])
			i += 2
			column_length = btoint(bdata[i:i+4])
			i += 4
			_type = btoint(bdata[i:i+1]) #只解析int和str, 之前解析binlog的时候还有date.... 算了
			i += 1
			flags = btoint(bdata[i:i+2])
			i += 2
			decimals = btoint(bdata[i:i+1])
			i += 1
			des_list.append([catalog,schema,table,org_table,name,org_name,character_set,column_length,_type,flags,decimals])

		self.des_list = des_list
		bdata = self.read_pack() #EOF包
		warnings = btoint(bdata[1:3])
		row = []
		while True:
			bdata = self.read_pack()
			if bdata[0:1] == b'\xfe': #EOF包
				break
			_row = []
			i = 0
			for x in des_list:
				length = btoint(bdata[i:i+1]) #不考虑长字符
				i += 1
				_row.append(bdata[i:i+length]) #懒得做数据类型转换了
			row.append(_row)
		print(f'warnings:{warnings}  rows:{len(row)}')
		return row



	def connect(self):
		sock = socket.create_connection((self.host, self.port))
		sock.settimeout(None)
		self.sock = sock
		self.rf = sock.makefile("rb")
		self._next_seq_id = 0

		#解析server的握手包
		bdata = self.read_pack()
		self.handshake(bdata)

		#握手.发账号密码
		self.HandshakeResponse41()
墨力计划mysql
「喜欢这篇文章，您的关注和赞赏是给作者最好的鼓励」
关注作者
【版权声明】本文为墨天轮用户原创内容，转载时必须标注文章的来源（墨天轮），文章链接，文章作者等基本信息，否则作者和墨天轮有权追究责任。如果您发现墨天轮中有涉嫌抄袭或者侵权的内容，欢迎发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。

评论
