springcloud alibaba注册中心搭建

李二狗搞程序 2021-08-03

474

下载nacos 服务端jar

这边使用的是1.4.1 版本的服务包

下载地址为 https://github.com/alibaba/nacos/releases/tag/1.4.1

在windows 单机方式启动的命令为 startup.cmd -m standalone 默认点击启动文件startup.cmd是集群方式启动的，需要自己手动敲命令以单机的方式启动

启动的默认端口是8848 按默认的端口启动就可以了。

启动后，访问本地的nacos http://localhost:8848/nacos 默认登录用户密码都是 nacos

进去后可以对其修改密码，本地的密码默认应该就够了。

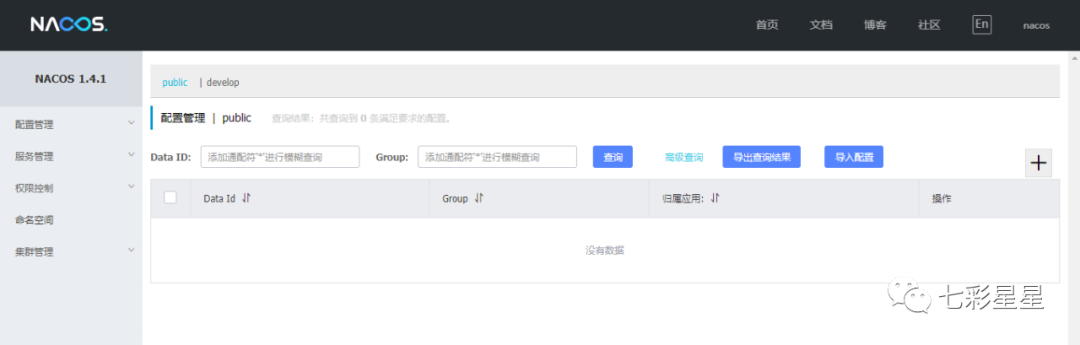

进去的界面如下

本地服务要是想注册进来则注册到该地址就行

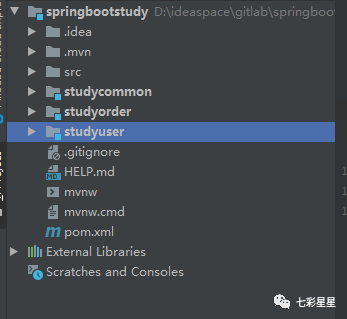

搭建个父工程， springbootstudy ，建相应的moudle 工程分别为 studyuser，studyorder

公用工程 studycommon，公用工程放对应的公共类，公共的jar包

引入注册中心的配置，在 studycommon 的配置如下

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.jiuge</groupId>
        <artifactId>springbootstudy</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <groupId>com.jiuge.common</groupId>
    <artifactId>studycommon</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>studycommon</name>
    <description>common project for Spring Boot</description>
    <packaging>jar</packaging>
    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>


        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <!-- nacos服务注册与发现 -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>




        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
    </dependencies>


    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>


</project>

studyuser 子模块的工程配置如下

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.jiuge</groupId>
        <artifactId>springbootstudy</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <groupId>com.jiuge.user</groupId>
    <artifactId>studyuser</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>studyuser</name>
    <description>user project for Spring Boot</description>
    <packaging>jar</packaging>
    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <!-- 引入公用类包 -->
        <dependency>
            <groupId>com.jiuge.common</groupId>
            <artifactId>studycommon</artifactId>
            <version>0.0.1-SNAPSHOT</version>
        </dependency>
    </dependencies>


    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

studyuser的application.yml配置如下

server:
  port: 8010
spring:
  application:
    name: user-server
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848
        namespace: 2a57e550-6295-4269-b1b4-268c46021020

springbootstudy 父工程的配置如下

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.2.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.jiuge</groupId>
    <artifactId>springbootstudy</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>springbootstudy</name>
    <description>alibaba project for Spring Boot</description>
    <packaging>pom</packaging>
    <properties>
        <java.version>1.8</java.version>
        <spring-cloud.version>Hoxton.SR8</spring-cloud.version>
        <spring-cloud-alibaba.version>2.2.5.RELEASE</spring-cloud-alibaba.version>
        <dubbo.version>2.7.8</dubbo.version>
    </properties>
    <!-- 子模块工程 -->
    <modules>
        <module>studycommon</module>
        <module>studyuser</module>
        <module>studyorder</module>
    </modules>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>


        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>


    <!-- maven 依赖管理 -->
    <dependencyManagement>
        <dependencies>


            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>${spring-cloud-alibaba.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>


        </dependencies>
    </dependencyManagement>


    <!-- 引入阿里云配置仓库 -->
    <repositories>
        <repository>
            <id>alimaven</id>
            <name>aliyun maven</name>
            <url>https://maven.aliyun.com/repository/public</url>
            <releases>
                <enabled>true</enabled>
            </releases>
            <snapshots>
                <enabled>false</enabled>
            </snapshots>
        </repository>
    </repositories>
    <pluginRepositories>
        <pluginRepository>
            <id>alimaven</id>
            <name>aliyun maven</name>
            <url>https://maven.aliyun.com/repository/public</url>
            <releases>
                <enabled>true</enabled>
            </releases>
            <snapshots>
                <enabled>false</enabled>
            </snapshots>
        </pluginRepository>
    </pluginRepositories>


    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

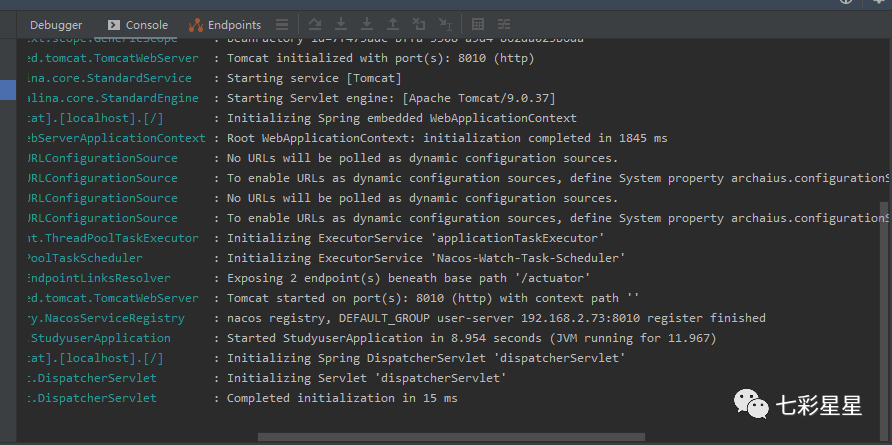

启动 studyuser服务，启动日志如下

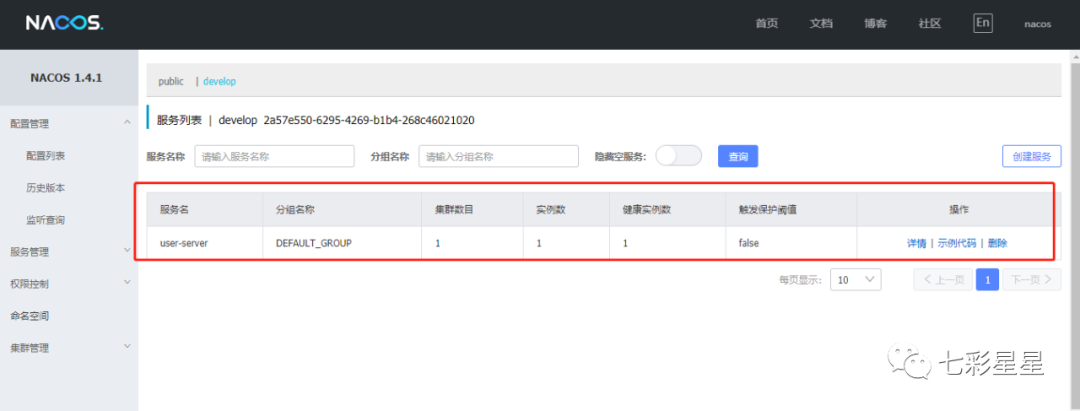

nacos管理界面能看到 studyuser注册上来的实例，就说明成功了

至此， nacos 的服务注册就算成功了。
