开源MicroPython飞控

云深之无迹 2021-11-21
1589


起点亦是终点，世间有轮回，相似又不相同。就像书里写的那样。江湖因一声“小二上酒”开始，最后也因一杯绿蚁戛然而止。生活，也是如此吧？


飞控不是一下做出来的，下面是一些重要传感器的mpy驱动代码，为飞控项目添砖加瓦。


from pyb import Pin
from time import sleep_us,ticks_us


class HC():
    def __init__(self,trig='C5',echo='C4'):
        self.trig = Pin(trig, Pin.OUT_PP)
        self.echo = Pin(echo, Pin.IN)


    def trigUp(self):
        self.trig.value(1)
        sleep_us(25)
        self.trig.value(0)


    def getlen(self):
        distance = 0
        self.trigUp()
        while self.echo.value() == 0:
            pass
        ts = ticks_us()  # 开始时间
        while self.echo.value() == 1:
            pass
        te = ticks_us()  # 结束时间
        tc = te - ts  # 回响时间（单位us）
        distance = (tc * 170) / 10000  # 距离计算（单位为:cm）
        return distance


超声波传感器


'''
参考：https://blog.csdn.net/qq_38721302/article/details/83095545
'''


MPU_ADDR=0X68
WHO_AM_I_VAL = MPU_ADDR




MPU_PWR_MGMT1_REG = 0x6B # 电源管理寄存器1
MPU_GYRO_CFG_REG  = 0X1B # 陀螺仪配置寄存器
MPU_ACCEL_CFG_REG = 0X1C # 加速度传感器配置寄存器
MPU_SAMPLE_RATE_REG=0X19 # 设置MPU6050的采样率
MPU_CFG_REG=0X1A # 配置寄存器


MPU_INT_EN_REG=0X38
MPU_USER_CTRL_REG=0X6A
MPU_FIFO_EN_REG=0X23
MPU_INTBP_CFG_REG=0X37
MPU_DEVICE_ID_REG=0X75


MPU_GYRO_XOUTH_REG=0X43
MPU_GYRO_XOUTL_REG=0X44
MPU_GYRO_YOUTH_REG=0X45
MPU_GYRO_YOUTL_REG=0X46
MPU_GYRO_ZOUTH_REG=0X47
MPU_GYRO_ZOUTL_REG=0X48


MPU_ACCEL_XOUTH_REG=0X3B
MPU_ACCEL_XOUTL_REG=0X3C
MPU_ACCEL_YOUTH_REG=0X3D
MPU_ACCEL_YOUTL_REG=0X3E
MPU_ACCEL_ZOUTH_REG=0X3F
MPU_ACCEL_ZOUTL_REG=0X40
MPU_TEMP_OUTH_REG=0X41
MPU_TEMP_OUTL_REG=0X42




config_gyro_range = 3 # 0，±250°/S；1，±500°/S；2，±1000°/S；3，±2000°/S
config_accel_range = 0# 0，±2g；1，±4g；2，±8g；3，±16g


class MPU6050():
    def __init__(self,iicbus,address=WHO_AM_I_VAL):
        self._address = address
        self._bus = iicbus
        self.reset()

    def _write_byte(self,cmd,val):
        self._bus.mem_write(val,self._address,cmd)
    def _read_byte(self,cmd):
        buf = self._bus.mem_read(1,self._address,cmd,addr_size=8)
        return int(buf[0])

    def reset(self):
        self._write_byte(MPU_PWR_MGMT1_REG, 0x00) # 配置电源管理寄存器 启动MPU6050
        self._write_byte(MPU_GYRO_CFG_REG,  config_gyro_range<<3) # 陀螺仪传感器,±2000dps
        self._write_byte(MPU_ACCEL_CFG_REG, config_accel_range<<3)# 加速度传感器,±2g
        self._write_byte(MPU_SAMPLE_RATE_REG, 0x07) # 采样频率 100
        self._write_byte(MPU_CFG_REG, 0x06) # 设置数字低通滤波器
        self._write_byte(MPU_INT_EN_REG,0X00) #关闭所有中断
        self._write_byte(MPU_USER_CTRL_REG,0X00) #I2C主模式关闭
        self._write_byte(MPU_FIFO_EN_REG,0X00) #关闭FIFO
        self._write_byte(MPU_INTBP_CFG_REG,0X80) #INT引脚低电平有效

        buf = self._read_byte(MPU_DEVICE_ID_REG)
        if buf != self._address:
            print("NPU6050 not found!")
        else:
            pass

    def _read_byte(self,cmd):
        buf = self._bus.mem_read(1,self._address,cmd,addr_size=8)
        return int(buf[0])
    def _read_u16(self,reg):
        MSB = self._read_byte(reg)
        LSB = self._read_byte(reg)
        return (MSB<< 8) + LSB
    def _read_s16(self,reg):
        result = self._read_u16(reg)
        if result > 32767:result -= 65536
        return result


    def read_Gyro_x(self):
        x = self._read_s16(MPU_GYRO_XOUTH_REG)
        return x
    def read_Gyro_y(self):
        y = self._read_s16(MPU_GYRO_YOUTH_REG)
        return y
    def read_Gyro_z(self):
        z = self._read_s16(MPU_GYRO_ZOUTH_REG)
        return z


    def read_Accel_x(self):
        x = self._read_s16(MPU_ACCEL_XOUTH_REG)
        return x
    def read_Accel_y(self):
        y = self._read_s16(MPU_ACCEL_YOUTH_REG)
        return y
    def read_Accel_z(self):
        z = self._read_s16(MPU_ACCEL_ZOUTH_REG)
        return z


    def read_Temp(self):
        temp = self._read_s16(MPU_TEMP_OUTH_REG)
        return temp




from pyb import I2C


i2c = I2C(2, I2C.MASTER)
mpu = MPU6050(i2c)


def GyroToDegree(num):
    return num / 32768 * 2000


def AccelToGram(num):
    return num / 32768 * 2


MPU6050


from imu import InvenSenseMPU, bytes_toint, MPUException
from imu import Vector3d




class MPU9250(InvenSenseMPU):
    '''
    MPU9250 constructor arguments
    1. side_str 'X' or 'Y' depending on the Pyboard I2C interface being used
    2. optional device_addr 0, 1 depending on the voltage applied to pin AD0 (Drotek default is 1)
       if None driver will scan for a device (if one device only is on bus)
    3, 4. transposition, scaling optional 3-tuples allowing for outputs to be based on vehicle
          coordinates rather than those of the sensor itself. See readme.
    '''


    _mpu_addr = (104, 105)  # addresses of MPU9250 determined by voltage on pin AD0
    _mag_addr = 12          # Magnetometer address
    _chip_id = 113


    def __init__(self, side_str, device_addr=None, transposition=(0, 1, 2), scaling=(1, 1, 1)):


        super().__init__(side_str, device_addr, transposition, scaling)
        self._mag = Vector3d(transposition, scaling, self._mag_callback)
        self.accel_filter_range = 0             # fast filtered response
        self.gyro_filter_range = 0
        self._mag_stale_count = 0               # MPU9250 count of consecutive reads where old data was returned
        self.mag_correction = self._magsetup()  # 16 bit, 100Hz update.Return correction factors.
        self._mag_callback()  # Seems neccessary to kick the mag off else 1st reading is zero (?)


    @property
    def sensors(self):
        '''
        returns sensor objects accel, gyro and mag
        '''
        return self._accel, self._gyro, self._mag


    # get temperature
    @property
    def temperature(self):
        '''
        Returns the temperature in degree C.
        '''
        try:
            self._read(self.buf2, 0x41, self.mpu_addr)
        except OSError:
            raise MPUException(self._I2Cerror)
        return bytes_toint(self.buf2[0], self.buf2[1])/333.87 + 21  # I think


    # Low pass filters
    @property
    def gyro_filter_range(self):
        '''
        Returns the gyro and temperature sensor low pass filter cutoff frequency
        Pass:               0   1   2   3   4   5   6   7
        Cutoff (Hz):        250 184 92  41  20  10  5   3600
        Sample rate (KHz):  8   1   1   1   1   1   1   8
        '''
        try:
            self._read(self.buf1, 0x1A, self.mpu_addr)
            res = self.buf1[0] & 7
        except OSError:
            raise MPUException(self._I2Cerror)
        return res


    @gyro_filter_range.setter
    def gyro_filter_range(self, filt):
        '''
        Sets the gyro and temperature sensor low pass filter cutoff frequency
        Pass:               0   1   2   3   4   5   6   7
        Cutoff (Hz):        250 184 92  41  20  10  5   3600
        Sample rate (KHz):  8   1   1   1   1   1   1   8
        '''
        if filt in range(8):
            try:
                self._write(filt, 0x1A, self.mpu_addr)
            except OSError:
                raise MPUException(self._I2Cerror)
        else:
            raise ValueError('Filter coefficient must be between 0 and 7')


    @property
    def accel_filter_range(self):
        '''
        Returns the accel low pass filter cutoff frequency
        Pass:               0   1   2   3   4   5   6   7 BEWARE 7 doesn't work on device I tried.
        Cutoff (Hz):        460 184 92  41  20  10  5   460
        Sample rate (KHz):  1   1   1   1   1   1   1   1
        '''
        try:
            self._read(self.buf1, 0x1D, self.mpu_addr)
            res = self.buf1[0] & 7
        except OSError:
            raise MPUException(self._I2Cerror)
        return res


    @accel_filter_range.setter
    def accel_filter_range(self, filt):
        '''
        Sets the accel low pass filter cutoff frequency
        Pass:               0   1   2   3   4   5   6   7 BEWARE 7 doesn't work on device I tried.
        Cutoff (Hz):        460 184 92  41  20  10  5   460
        Sample rate (KHz):  1   1   1   1   1   1   1   1
        '''
        if filt in range(8):
            try:
                self._write(filt, 0x1D, self.mpu_addr)
            except OSError:
                raise MPUException(self._I2Cerror)
        else:
            raise ValueError('Filter coefficient must be between 0 and 7')


    def _magsetup(self):                        # mode 2 100Hz continuous reads, 16 bit
        '''
        Magnetometer initialisation: use 16 bit continuous mode.
        Mode 1 is 8Hz mode 2 is 100Hz repetition
        returns correction values
        '''
        try:
            self._write(0x0F, 0x0A, self._mag_addr)      # fuse ROM access mode
            self._read(self.buf3, 0x10, self._mag_addr)  # Correction values
            self._write(0, 0x0A, self._mag_addr)         # Power down mode (AK8963 manual 6.4.6)
            self._write(0x16, 0x0A, self._mag_addr)      # 16 bit (0.15uT/LSB not 0.015), mode 2
        except OSError:
            raise MPUException(self._I2Cerror)
        mag_x = (0.5*(self.buf3[0] - 128))/128 + 1
        mag_y = (0.5*(self.buf3[1] - 128))/128 + 1
        mag_z = (0.5*(self.buf3[2] - 128))/128 + 1
        return (mag_x, mag_y, mag_z)


    @property
    def mag(self):
        '''
        Magnetomerte object
        '''
        return self._mag


    def _mag_callback(self):
        '''
        Update magnetometer Vector3d object (if data available)
        '''
        try:                                    # If read fails, returns last valid data and
            self._read(self.buf1, 0x02, self._mag_addr)  # increments mag_stale_count
            if self.buf1[0] & 1 == 0:
                return self._mag                # Data not ready: return last value
            self._read(self.buf6, 0x03, self._mag_addr)
            self._read(self.buf1, 0x09, self._mag_addr)
        except OSError:
            raise MPUException(self._I2Cerror)
        if self.buf1[0] & 0x08 > 0:             # An overflow has occurred
            self._mag_stale_count += 1          # Error conditions retain last good value
            return                              # user should check for ever increasing stale_counts
        self._mag._ivector[1] = bytes_toint(self.buf6[1], self.buf6[0])  # Note axis twiddling and little endian
        self._mag._ivector[0] = bytes_toint(self.buf6[3], self.buf6[2])
        self._mag._ivector[2] = -bytes_toint(self.buf6[5], self.buf6[4])
        scale = 0.15                            # scale is 0.15uT/LSB
        self._mag._vector[0] = self._mag._ivector[0]*self.mag_correction[0]*scale
        self._mag._vector[1] = self._mag._ivector[1]*self.mag_correction[1]*scale
        self._mag._vector[2] = self._mag._ivector[2]*self.mag_correction[2]*scale
        self._mag_stale_count = 0


    @property
    def mag_stale_count(self):
        '''
        Number of consecutive times where old data was returned
        '''
        return self._mag_stale_count


    def get_mag_irq(self):
        '''
        Uncorrected values because floating point uses heap
        '''
        self._read(self.buf1, 0x02, self._mag_addr)
        if self.buf1[0] == 1:                   # Data is ready
            self._read(self.buf6, 0x03, self._mag_addr)
            self._read(self.buf1, 0x09, self._mag_addr)    # Mandatory status2 read
            self._mag._ivector[1] = 0
            if self.buf1[0] & 0x08 == 0:        # No overflow has occurred
                self._mag._ivector[1] = bytes_toint(self.buf6[1], self.buf6[0])
                self._mag._ivector[0] = bytes_toint(self.buf6[3], self.buf6[2])
                self._mag._ivector[2] = -bytes_toint(self.buf6[5], self.buf6[4])



MPU9250

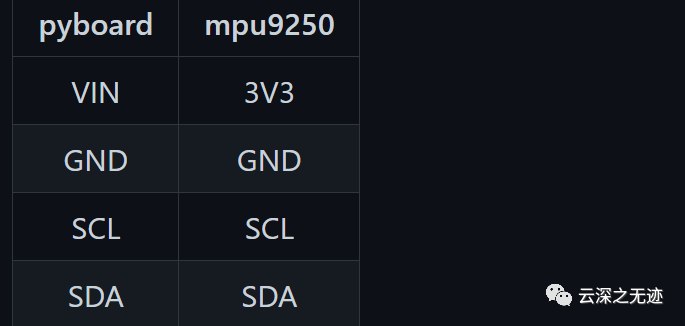

I2C接线图


使用MPU6050 Yaw轴会不可避免的飘动，MPU9250自带磁力计，可以减少飘动。


# 控制电机函数


from pyb import Timer,Pin,ADC
import time


class Motor():
    # 电机pwm初始化
    def __init__(self,isInit=False):
        timerMotor_1 = Timer(3, freq=50)
        timerMotor_2 = Timer(4, freq=50)
        self.motor1 = timerMotor_1.channel(1, Timer.PWM, pin=Pin('B4'))
        self.motor2 = timerMotor_1.channel(2, Timer.PWM, pin=Pin('B5'))
        self.motor3 = timerMotor_2.channel(3, Timer.PWM, pin=Pin('B8'))
        self.motor4 = timerMotor_2.channel(4, Timer.PWM, pin=Pin('B9'))
        self.motors = [self.motor1,self.motor2,self.motor3,self.motor4]
        # self.x = ADC(Pin('X2'))
        # self.btn_stop = Pin('X4',Pin.IN)
        if not isInit:
            for moto in self.motors:
                self.MotoSet(moto)
            time.sleep(1)
        self.MotosPwmUpdate([0,0,0,0])
    # 电机初始化 设置最高油门和最低油门
    def MotoSet(self,moto):
        moto.pulse_width_percent(10)
        time.sleep(2)
        moto.pulse_width_percent(5)


    # pwm 更新函数 1
    # 可以用于调试单个电机
    def MotoPwmUpdate(self,n,pwm):
        if pwm < 0 or pwm > 100:
            return None
        self.motors[n].pulse_width_percent(5 + pwm*5/100)


    # pwm 更新函数 2
    # 用于实际飞行
    def MotosPwmUpdate(self,pwms):

        for moto,pwm in zip(self.motors,pwms):
            moto.pulse_width_percent(5 + pwm*5/100)


    # 电机停止转动
    # 用于紧急制动和测试
    def MotoStop(self):
        for moto in self.motors:
            moto.pulse_width_percent(5)



电调控制，PWM实现


然后就是PWM的接收机太费引脚，换PPM，问题在于转换~

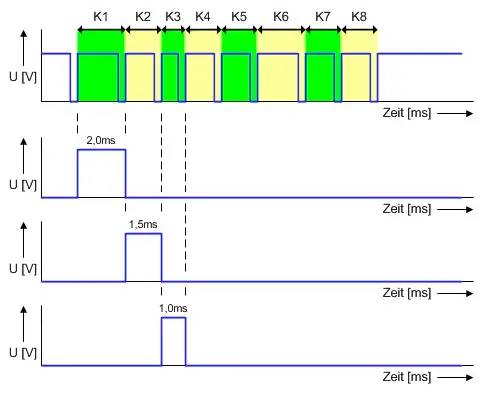

上面是PPM

下面是PWM



标准的PPM信号，以0.4ms的低电平为起始标识。后边以电平的上升沿的间隔时间来表达各个通道的控制量。一般排列10个上升沿后，电平保持高电平，直到重复下一个PPM信号。


PPM信号可以看做是一帧数据，它包含了8个通道的信息。每个上升沿间隔时间刚好等于PWM信号的高电平持续时间，也就1000us~2000us之间。

PPM的重复周期也为20ms，也是50hz的刷新频率。


import pyb
import micropython
micropython.alloc_emergency_exception_buf(100)


# Futaba PPM decoder
# http://diydrones.com/profiles/blogs/705844:BlogPost:38393
class Decoder():


    def __init__(self, pin: str):
        self.pin = pin
        self.current_channel = -1
        self.channels = [0] * 20 # up to 10 channels
        self.timer = pyb.Timer(2, prescaler=83, period=0x3fffffff)
        self.timer.counter(0)
        # clear any previously set interrupt
        pyb.ExtInt(pin, pyb.ExtInt.IRQ_RISING, pyb.Pin.PULL_NONE, None)
        self.ext_int = pyb.ExtInt(pin, pyb.ExtInt.IRQ_RISING, pyb.Pin.PULL_NONE, self._callback)


    def _callback(self, t):
        ticks = self.timer.counter()
        if ticks > 5000:
            self.current_channel = 0
        elif self.current_channel > -1:
            self.channels[self.current_channel] = ticks
            self.current_channel += 1
        self.timer.counter(0)


    def get_channel_value(self, channel: int) -> int:
        return self.channels[channel]


    def enable(self):
        self.ext_int.enable()


    def disable(self):
        self.ext_int.disable()


PPM驱动代码



# 匿名上位机 移植上位机、协议版本v4.34
# 移植部分功能
# 关闭了数据的校验功能，提高发送速度
class ANO():
    def  __init__(self,uart):
        self.writechar = uart.writechar
        self.BYTE0 = lambda x : (x>>0)&0xff
        self.BYTE1 = lambda x : (x>>8)&0xff
        self.BYTE2 = lambda x : (x>>16)&0xff
        self.BYTE3 = lambda x : (x>>24)&0xff
        pass


    # 发送数据
    def ANO_Send_Data(self,data):
        for v in data:
            self.writechar(v)


    #send 数据
    def cs(self,data_to_send):
        _cnt = len(data_to_send)
        data_to_send[3] = _cnt - 4
        data_to_send.append(0) # 需要校验功能的将这一行改了就行
        self.ANO_Send_Data(data_to_send)


    # 飞机姿态 高度 飞行模式 是否解锁
    def ANO_DT_Send_Status(self,angle_rol, angle_pit, angle_yaw, alt, fly_model, armed):




        _cnt = 0
        _temp = 0
        _temp2 = alt
        data_to_send  =  []
        data_to_send.append(0xAA)
        data_to_send.append(0xAA)
        data_to_send.append(0x01)
        data_to_send.append(0)


        _temp = int(angle_rol * 100)
        data_to_send.append(self.BYTE1(_temp))
        data_to_send.append(self.BYTE0(_temp))
        _temp = int(angle_pit * 100)
        data_to_send.append(self.BYTE1(_temp))
        data_to_send.append(self.BYTE0(_temp))
        _temp = int(angle_yaw * 100)
        data_to_send.append(self.BYTE1(_temp))
        data_to_send.append(self.BYTE0(_temp))


        data_to_send.append(self.BYTE3(_temp2))
        data_to_send.append(self.BYTE2(_temp2))
        data_to_send.append(self.BYTE1(_temp2))
        data_to_send.append(self.BYTE0(_temp2))


        data_to_send.append(fly_model)


        data_to_send.append(armed)
        self.cs(data_to_send)


    # PID信息
    def ANO_DT_Send_PID(self,group, p1_p, p1_i, p1_d, p2_p, p2_i, p2_d, p3_p, p3_i, p3_d):
        _cnt = 0
        _temp = 0
        data_to_send  =  []
        data_to_send.append(0xAA)
        data_to_send.append(0xAA)
        data_to_send.append(0x10 + group -1)
        data_to_send.append(0)


        _temp = p1_p  * 1000
        data_to_send.append(self.BYTE1(_temp))
        data_to_send.append(self.BYTE0(_temp))
        _temp = p1_i * 1000
        data_to_send.append(self.BYTE1(_temp))
        data_to_send.append(self.BYTE0(_temp))
        _temp = p1_d * 1000
        data_to_send.append(self.BYTE1(_temp))
        data_to_send.append(self.BYTE0(_temp))


        _temp = p2_p * 1000
        data_to_send.append(self.BYTE1(_temp))
        data_to_send.append(self.BYTE0(_temp))
        _temp = p2_i * 1000
        data_to_send.append(self.BYTE1(_temp))
        data_to_send.append(self.BYTE0(_temp))
        _temp = p2_d * 1000
        data_to_send.append(self.BYTE1(_temp))
        data_to_send.append(self.BYTE0(_temp))


        _temp = p3_p * 1000
        data_to_send.append(self.BYTE1(_temp))
        data_to_send.append(self.BYTE0(_temp))
        _temp = p3_i * 1000
        data_to_send.append(self.BYTE1(_temp))
        data_to_send.append(self.BYTE0(_temp))
        _temp = p3_d * 1000
        data_to_send.append(self.BYTE1(_temp))
        data_to_send.append(self.BYTE0(_temp))


        self.cs(data_to_send)


    # 传感器数据
    def ANO_DT_Send_Senser(self,a_x, a_y, a_z, g_x, g_y, g_z, m_x, m_y, m_z):
        _cnt = 0
        _temp = 0
        data_to_send = []
        data_to_send.append(0xAA)
        data_to_send.append(0xAA)
        data_to_send.append(0x02)
        data_to_send.append(0)


        _temp = a_x
        data_to_send.append(self.BYTE1(_temp))
        data_to_send.append(self.BYTE0(_temp))
        _temp = a_y
        data_to_send.append(self.BYTE1(_temp))
        data_to_send.append(self.BYTE0(_temp))
        _temp = a_z
        data_to_send.append(self.BYTE1(_temp))
        data_to_send.append(self.BYTE0(_temp))


        _temp = g_x
        data_to_send.append(self.BYTE1(_temp))
        data_to_send.append(self.BYTE0(_temp))
        _temp = g_y
        data_to_send.append(self.BYTE1(_temp))
        data_to_send.append(self.BYTE0(_temp))
        _temp = g_z
        data_to_send.append(self.BYTE1(_temp))
        data_to_send.append(self.BYTE0(_temp))


        _temp = m_x
        data_to_send.append(self.BYTE1(_temp))
        data_to_send.append(self.BYTE0(_temp))
        _temp = m_y
        data_to_send.append(self.BYTE1(_temp))
        data_to_send.append(self.BYTE0(_temp))
        _temp = m_z
        data_to_send.append(self.BYTE1(_temp))
        data_to_send.append(self.BYTE0(_temp))


        self.cs(data_to_send)


    # 电机pwm数据 0-1000
    def ANO_DT_Send_MotoPWM(self, m_1, m_2, m_3, m_4, m_5, m_6, m_7, m_8):
        _cnt = 0


        data_to_send = []
        data_to_send.append(0xAA)
        data_to_send.append(0xAA)
        data_to_send.append(0x06)
        data_to_send.append(0)


        data_to_send.append(self.BYTE1(m_1))
        data_to_send.append(self.BYTE0(m_1))
        data_to_send.append(self.BYTE1(m_2))
        data_to_send.append(self.BYTE0(m_2))
        data_to_send.append(self.BYTE1(m_3))
        data_to_send.append(self.BYTE0(m_3))
        data_to_send.append(self.BYTE1(m_4))
        data_to_send.append(self.BYTE0(m_4))
        data_to_send.append(self.BYTE1(m_5))
        data_to_send.append(self.BYTE0(m_5))
        data_to_send.append(self.BYTE1(m_6))
        data_to_send.append(self.BYTE0(m_6))
        data_to_send.append(self.BYTE1(m_7))
        data_to_send.append(self.BYTE0(m_7))
        data_to_send.append(self.BYTE1(m_8))
        data_to_send.append(self.BYTE0(m_8))


        self.cs(data_to_send)


匿名上位机若干协议移植，2.4G控制


下面是个相似的项目：

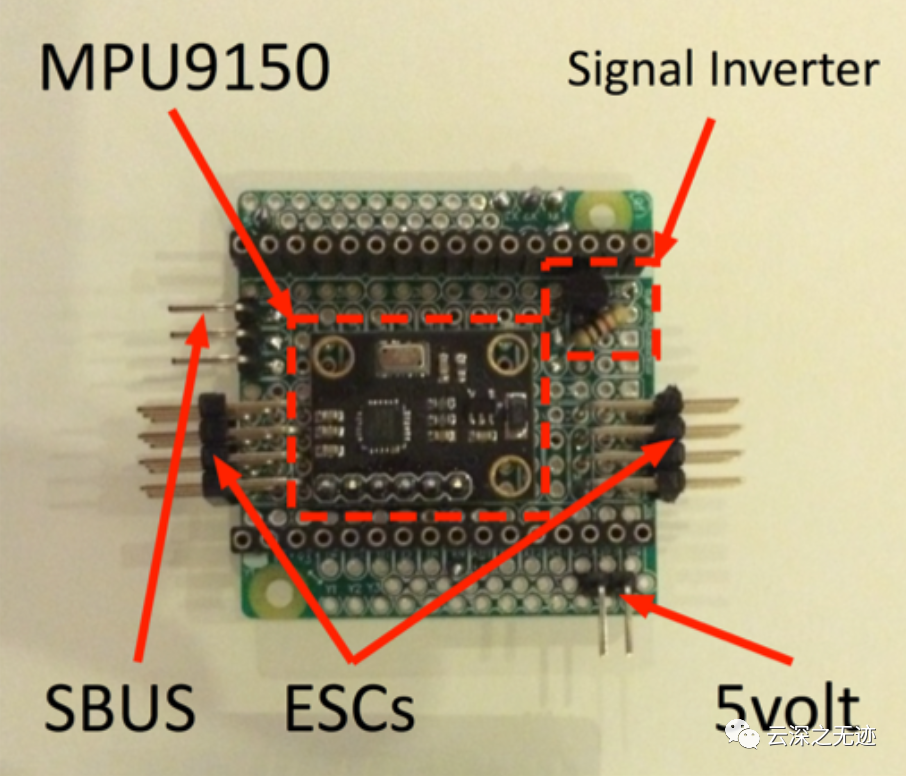

  • 惯性测量单元 (IMU)

  • SBUS接口（用于连接SBUS RC接收器）



就是这么简单的东西。。。




airPy 代码

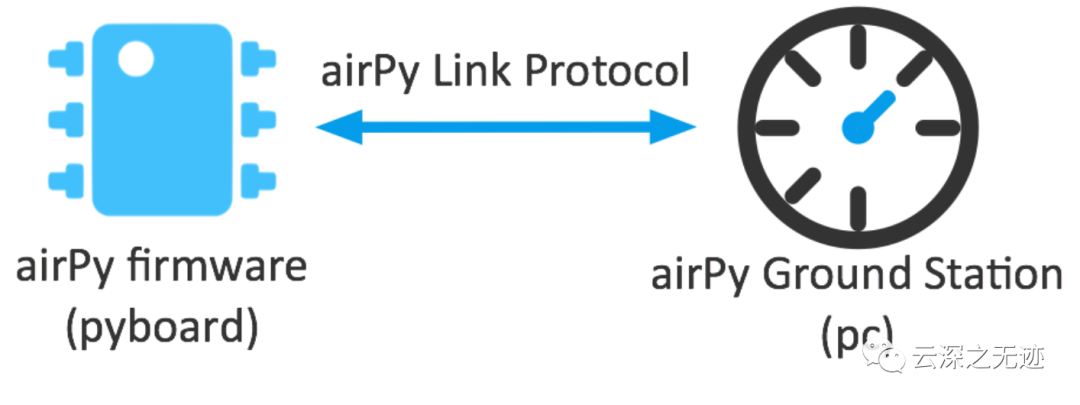

airPy代码分为3个模块：

  • airPy 固件：运行在 pyboard 上的 python 代码

  • airPy 地面站：在 PC 上运行的 JavaFx 代码，用于配置/调整 airPy 板

  • airPy Link Protocol：用于板卡与地面站通信的串行协议


airPy Link Protocol目前仅用于配置和调整目的。

它是一种可变大小的串行协议，用于 pyboard 和地面站之间的数据通信。

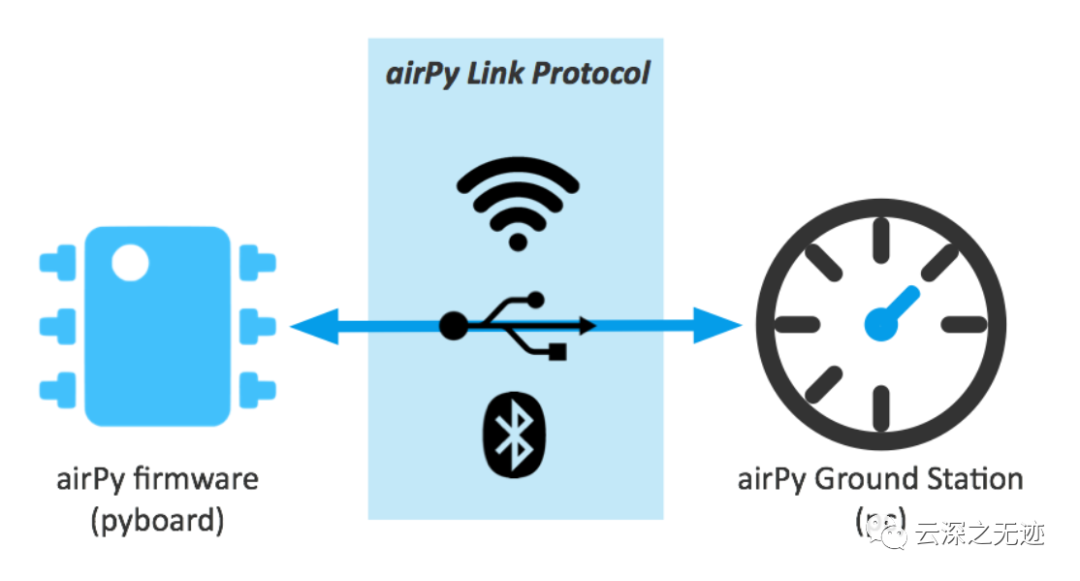

这个想法是不仅在 USB 上而且在 Wi-fi、蓝牙和 ad hoc RF 通道（例如 433MHz）上使用这个协议。

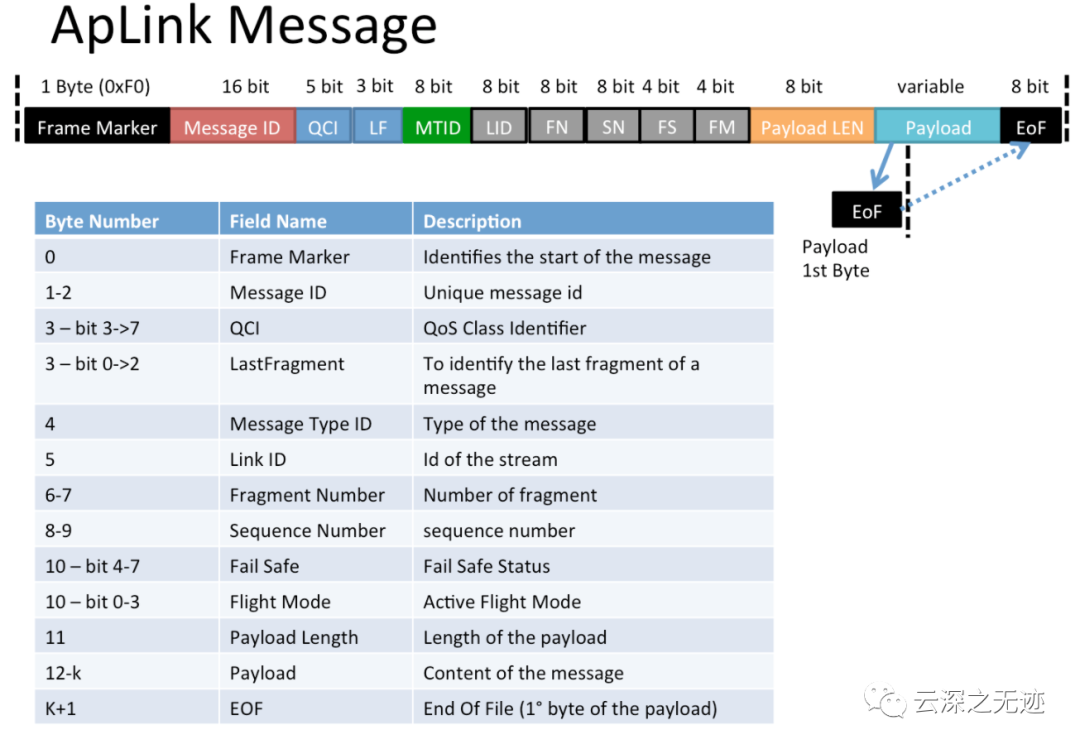

每个 APLINK 消息都包含一个标头和一个可变大小的有效负载（取决于内容），如以下架构中所指定。












参考文章：


https://github.com/micropython-IMU/micropython-mpu9x50

microPython-MPU9x50驱动

https://www.jianshu.com/u/38cc558a2c62

micropython驱动的移植者

https://blog.csdn.net/qq_38721302/article/details/83095545

STM32 驱动MPU6050（使用了本文的寄存器定义）

https://github.com/Sokrates80/air-py

特别的，有一个microPython的飞控开源项目了，减少了我的工作量。

https://github.com/Sokrates80/airPy-GS

相应搭配的地面站

https://github.com/micropython-IMU/micropython-fusion

MicroPython 的单个平台上获取传感器数据并执行融合的情况

https://github.com/wagnerc4/flight_controller

另外一个完整的项目

https://github.com/ArduPilot/ardupilot

pid参考了这里，APM飞控

http://www.air-py.com/

相关网站

开源的mpy飞控系统



python
文章转载自云深之无迹，如果涉嫌侵权，请发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。

评论
