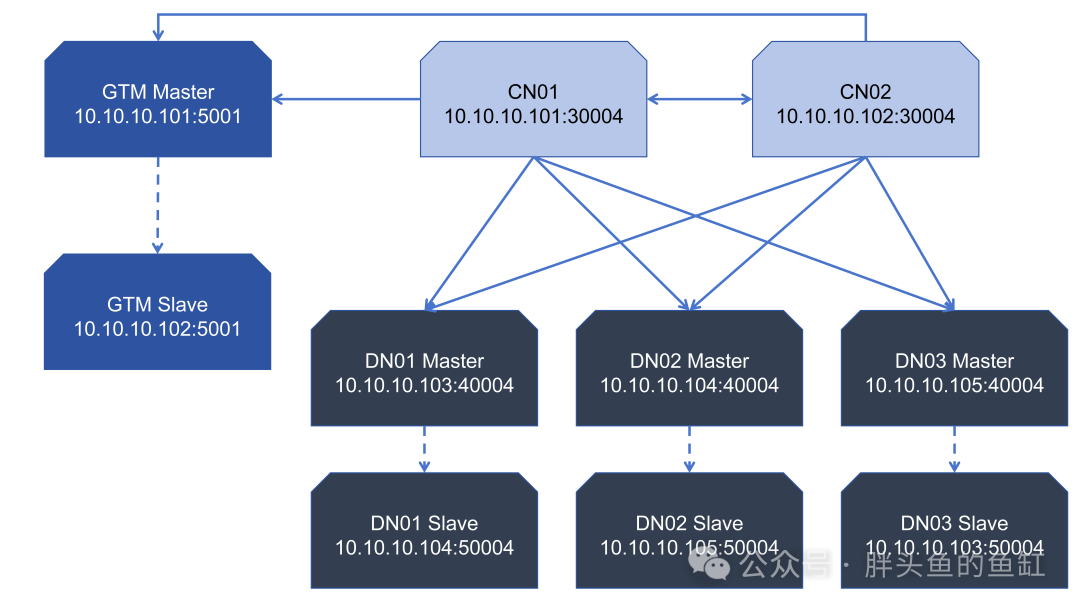

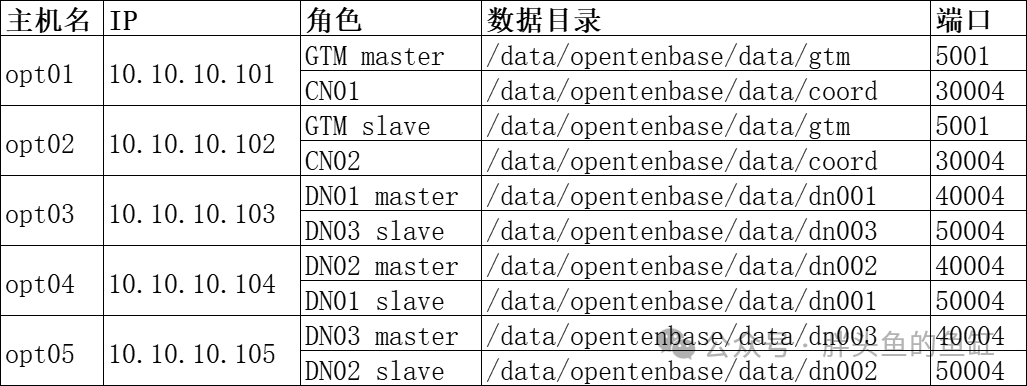

集群规划
按照下面的规划进行搭建，本次使用的操作系统是CentOS 7.9：
部署集群
1. 操作系统配置
配置HOSTS*
cat >> etc/hosts <<EOF
10.10.10.101 opt01
10.10.10.102 opt02
10.10.10.103 opt03
10.10.10.104 opt04
10.10.10.105 opt05
EOF
关闭防火墙
systemctl stop firewalld.service
systemctl disable firewalld.service
关闭SELinux
sed -i 's/^SELINUX=enforcing$/SELINUX=disabled/' etc/selinux/config
setenforce 0
创建用户
mkdir data
useradd -d data/opentenbase -s bin/bash -m opentenbase
passwd opentenbase
配置ssh互信
su - opentenbase
ssh-keygen -t rsa
ssh-copy-id -i ~/.ssh/id_rsa.pub opt01
ssh-copy-id -i ~/.ssh/id_rsa.pub opt02
ssh-copy-id -i ~/.ssh/id_rsa.pub opt03
ssh-copy-id -i ~/.ssh/id_rsa.pub opt04
ssh-copy-id -i ~/.ssh/id_rsa.pub opt05
安装依赖软件
rm -rf etc/yum.repos.d/CentOS-*
cat > etc/yum.repos.d/redhat.repo <<EOF
[CentOS]
name=CentOS
baseurl=https://mirrors.aliyun.com/centos-vault/centos/7/os/x86_64
enabled=1
gpgcheck=0
EOF
yum -y install gcc make readline-devel zlib-devel openssl-devel uuid-devel bison flex git
2. 数据库软件下载与安装
仅需在一个节点执行即可
su - opentenbase
git clone https://github.com/OpenTenBase/OpenTenBase
# 在下面地址下载最新安装包
# https://github.com/OpenTenBase/OpenTenBase/tags
tar -xvf OpenTenBase-2.6.0.tar.gz
cd data/opentenbase/OpenTenBase-2.6.0/
chmod +x configure*
./configure --prefix=/data/opentenbase/install/opentenbase_bin_v2.0 --enable-user-switch --with-openssl --with-ossp-uuid CFLAGS=-g
make clean
make -sj
make install
chmod +x contrib/pgxc_ctl/make_signature
cd contrib
make -sj
make install
# 配置环境变量（每个节点都需要执行）
cat >> ~/.bashrc <<EOF
export OPENTENBASE_HOME=/data/opentenbase/install/opentenbase_bin_v2.0
export PATH=\$OPENTENBASE_HOME/bin:\$PATH
export LD_LIBRARY_PATH=\$OPENTENBASE_HOME/lib:\$LD_LIBRARY_PATH
export LC_ALL=C
EOF
3.配置集群
mkdir data/opentenbase/pgxc_ctl
cd data/opentenbase/pgxc_ctl
#根据官方文档配置文件进行调整：
vim pgxc_ctl.conf
#!/bin/bash
# Haiwen Yin's OpenTenBase Cluster Configuration
IP_1=10.10.10.101
IP_2=10.10.10.102
IP_3=10.10.10.103
IP_4=10.10.10.104
IP_5=10.10.10.105
pgxcInstallDir=/data/opentenbase/install/opentenbase_bin_v2.0
pgxcOwner=opentenbase
defaultDatabase=postgres
pgxcUser=$pgxcOwner
tmpDir=/tmp
localTmpDir=$tmpDir
configBackup=n
configBackupHost=pgxc-linker
configBackupDir=$HOME/pgxc
configBackupFile=pgxc_ctl.bak
#---- GTM ----------
gtmName=gtm
gtmMasterServer=$IP_1
gtmMasterPort=50001
gtmMasterDir=/data/opentenbase/data/gtm
gtmExtraConfig=none
gtmMasterSpecificExtraConfig=none
gtmSlave=y
gtmSlaveServer=$IP_2
gtmSlavePort=50001
gtmSlaveDir=/data/opentenbase/data/gtm
gtmSlaveSpecificExtraConfig=none
#---- Coordinators -------
coordMasterDir=/data/opentenbase/data/coord
coordArchLogDir=/data/opentenbase/data/coord_archlog
coordNames=(cn01 cn02)
coordPorts=(30004 30004)
poolerPorts=(31110 31110)
coordPgHbaEntries=(0.0.0.0/0)
coordMasterServers=($IP_1 $IP_2)
coordMasterDirs=($coordMasterDir $coordMasterDir)
coordMaxWALsernder=2
coordMaxWALSenders=($coordMaxWALsernder $coordMaxWALsernder)
coordSlave=n
coordSlaveSync=n
coordArchLogDirs=($coordArchLogDir $coordArchLogDir)
coordExtraConfig=coordExtraConfig
cat > $coordExtraConfig <<EOF
#================================================
# Added to all the coordinator postgresql.conf
# Original: $coordExtraConfig
include_if_exists = '/data/opentenbase/global/global_opentenbase.conf'
wal_level = replica
wal_keep_segments = 256
max_wal_senders = 4
archive_mode = on
archive_timeout = 1800
archive_command = 'echo 0'
log_truncate_on_rotation = on
log_filename = 'postgresql-%M.log'
log_rotation_age = 4h
log_rotation_size = 100MB
hot_standby = on
wal_sender_timeout = 30min
wal_receiver_timeout = 30min
shared_buffers = 1024MB
max_pool_size = 2000
log_statement = 'ddl'
log_destination = 'csvlog'
logging_collector = on
log_directory = 'pg_log'
listen_addresses = '*'
max_connections = 2000
EOF
coordSpecificExtraConfig=(none none)
coordExtraPgHba=coordExtraPgHba
cat > $coordExtraPgHba <<EOF
local all all trust
host all all 0.0.0.0/0 trust
host replication all 0.0.0.0/0 trust
host all all ::1/128 trust
host replication all ::1/128 trust
EOF
coordSpecificExtraPgHba=(none none)
coordAdditionalSlaves=n
cad1_Sync=n
#---- Datanodes ---------------------
dn1MstrDir=/data/opentenbase/data/dn001
dn2MstrDir=/data/opentenbase/data/dn002
dn3MstrDir=/data/opentenbase/data/dn003
dn1SlvDir=/data/opentenbase/data/dn001
dn2SlvDir=/data/opentenbase/data/dn002
dn3SlvDir=/data/opentenbase/data/dn003
dn1ALDir=/data/opentenbase/data/datanode_archlog
dn2ALDir=/data/opentenbase/data/datanode_archlog
dn3ALDir=/data/opentenbase/data/datanode_archlog
primaryDatanode=dn01
datanodeNames=(dn01 dn02 dn03)
datanodePorts=(40004 40004 40004)
datanodePoolerPorts=(41110 41110 41110)
datanodePgHbaEntries=(0.0.0.0/0)
datanodeMasterServers=($IP_3 $IP_4 $IP_5)
datanodeMasterDirs=($dn1MstrDir $dn2MstrDir $dn3MstrDir)
dnWALSndr=4
datanodeMaxWALSenders=($dnWALSndr $dnWALSndr $dnWALSndr)
datanodeSlave=y
datanodeSlaveServers=($IP_4 $IP_5 $IP_3)
datanodeSlavePorts=(50004 50004 50004)
datanodeSlavePoolerPorts=(51110 51110 51110)
datanodeSlaveSync=n
datanodeSlaveDirs=($dn1SlvDir $dn2SlvDir $dn3SlvDir)
datanodeArchLogDirs=($dn1ALDir/dn001 $dn2ALDir/dn002 $dn3ALDir/dn003)
datanodeExtraConfig=datanodeExtraConfig
cat > $datanodeExtraConfig <<EOF
#================================================
# Added to all the coordinator postgresql.conf
# Original: $datanodeExtraConfig
include_if_exists = '/data/opentenbase/global/global_opentenbase.conf'
listen_addresses = '*'
wal_level = replica
wal_keep_segments = 256
max_wal_senders = 4
archive_mode = on
archive_timeout = 1800
archive_command = 'echo 0'
log_directory = 'pg_log'
logging_collector = on
log_truncate_on_rotation = on
log_filename = 'postgresql-%M.log'
log_rotation_age = 4h
log_rotation_size = 100MB
hot_standby = on
wal_sender_timeout = 30min
wal_receiver_timeout = 30min
shared_buffers = 1024MB
max_connections = 4000
max_pool_size = 4000
log_statement = 'ddl'
log_destination = 'csvlog'
wal_buffers = 1GB
EOF
datanodeSpecificExtraConfig=(none none none)
datanodeExtraPgHba=datanodeExtraPgHba
cat > $datanodeExtraPgHba <<EOF
local all all trust
host all all 0.0.0.0/0 trust
host replication all 0.0.0.0/0 trust
host all all ::1/128 trust
host replication all ::1/128 trust
EOF
datanodeSpecificExtraPgHba=(none none none)
datanodeAdditionalSlaves=n
walArchive=n

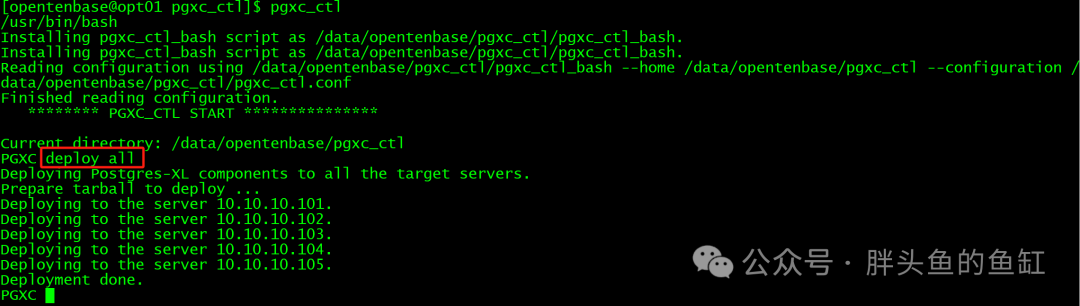

4. 分发软件
pgxc_ctl
> deploy all
5. 启动数据库
pgxc_ctl
> init all

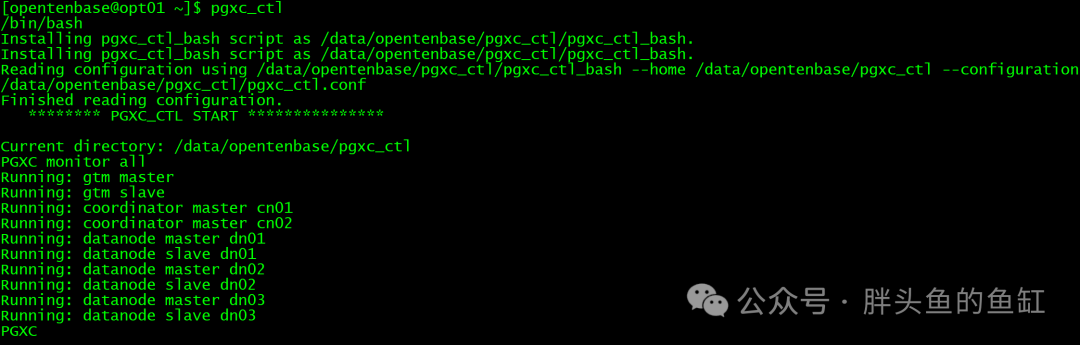

6. 查看集群状态
pgxc_ctl
> monitor all

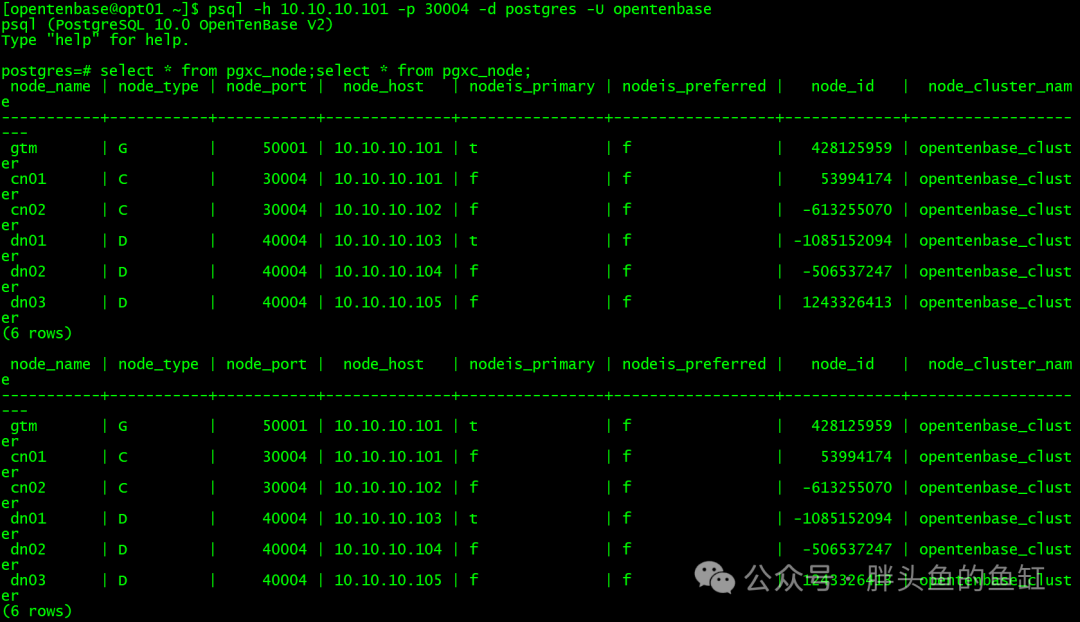

访问数据库
psql -h 10.10.10.101 -p 30004 -d postgres -U opentenbase
select * from pgxc_node;
总结
整体来说OpenTenBase的安装过程还是比较快捷的。
但是有几点需要记录一下：
使用RHEL8.10安装有点问题，不知道是操作还是其他的原因，回头再整一次
uuid-devel没有在标准iso和epel中，安装有点点麻烦
