Halo 16-全新的多模式数据库

贾桂权 2024-09-05

109

我们于6月份发布了全新的羲和（Halo）16版本（RP1）。其中一个重大变化是引入了多模式的概念。

引入多模式是我们在深入了解、分析客户实际需求后做出的重要的产品决策。一般而言，一家中等规模及以上的企业里通常有数百至数千个数据库实例，并且是多种类型的数据库共存的。其中，又尤以Oracle、MySQL、PostgreSQL占绝大多数。而这其中，真正存在大数据量、高并发需求的其实并不多。“二八”法则在这里也完全适用。这也就意味着企业需要花费很多的成本和精力去应对很多“不重要”，但又无法置之不理的问题。而多模式就是其中能很好的去应对这种场景的技术手段。

多模式可以将多种类型的、多个数据库实例整合为一个数据库实例或集群，从而帮助用户降低硬件、软件成本和管理成本。

Halo 16多模式数据库，支持建立Oracle、MySQL、PostgreSQL等多种驱动协议接口同时监听，来接收各种模式终端APP的连接，Halo 16多模式数据库自动适配模式（Oracle、MySQL、PostgreSQL等）引擎。在一个实例中可以开启多个兼容引擎模式，共同运行而不相互影响。模式与接口的配比，可以一对多，也可以多对多，扩展非常方便。

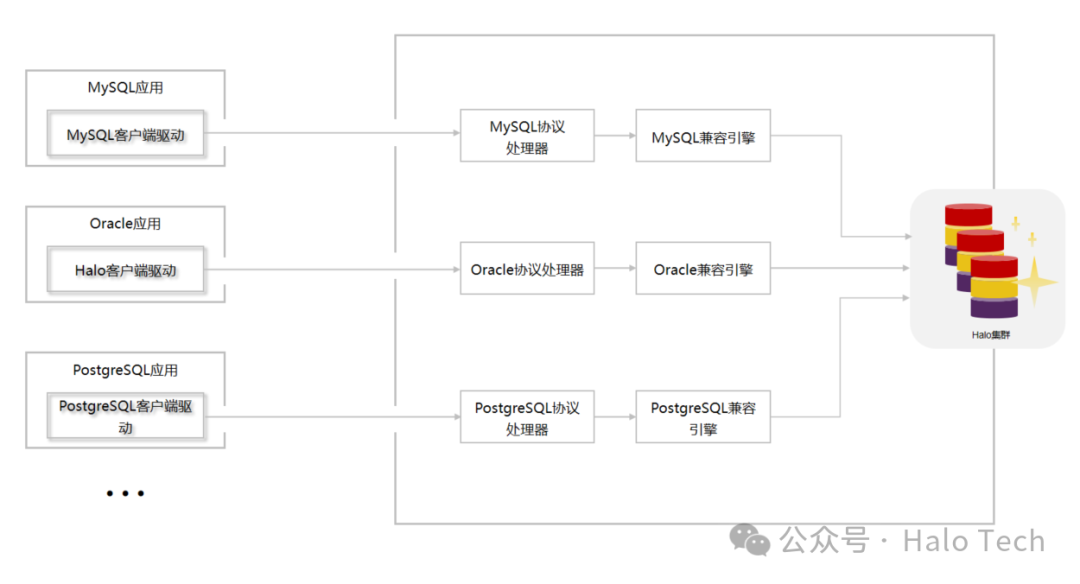

多模式架构如下图

Halo 16多模式数据库，由配置参数cluster_net_services进行控制，默认配置字符串为''。cluster_net_services可以添加多个模式接口，但端口号不允许重复，否者启动时会配置校验报错。修改cluster_net_services的值后，必须重启才能生效。 cluster_net_services支持模式与接口一对一，多对多的配置方式。

1、新添加一种模式的数据库配置格式为"IP:PORT:MODE"。

postgresql.conf配置：

listen_addresses ='*'
port = 5432
database_compat_mode = 'postgresql'

现在要新添加一个端口为1521的oracle模式接口，cluster_net_services可以进行以下设置：

cluster_net_services = '*:1521:oracle'
# 或者
cluster_net_services = ':1521:oracle'
#其中IP不填写，默认为listen_addresses的值

重启后提示信息如下：

[guanhongchao@guanhongchao-dev halo_16]$ pg_ctl start
waiting for server to start....2024-08-12 00:46:53.549 CST [1877260] LOG:  starting 羲和(Halo) 1.0.16.3 (20240625) on x86_64-pc-linux-gnu, compiled by gcc (GCC) 8.5.0 20210514 (Red Hat 8.5.0-22), 64-bit
2024-08-12 00:46:53.550 CST [1877260] LOG:  listening on IPv4 address "0.0.0.0", port 5432
2024-08-12 00:46:53.550 CST [1877260] LOG:  listening on IPv6 address "::", port 5432
2024-08-12 00:46:53.568 CST [1877260] LOG:  listening on Unix socket "/var/run/halo/.s.PGSQL.5432"
2024-08-12 00:46:53.585 CST [1877260] LOG:  listening on IPv4 address "0.0.0.0", port 1521
2024-08-12 00:46:53.585 CST [1877260] LOG:  listening on IPv6 address "::", port 1521
2024-08-12 00:46:53.601 CST [1877260] LOG:  listening on Unix socket "/var/run/halo/.s.PGSQL.1521"
2024-08-12 00:46:53.618 CST [1877260] LOG:  listening on IPv4 address "0.0.0.0", port 9001
2024-08-12 00:46:53.618 CST [1877260] LOG:  listening on IPv6 address "::", port 9001
2024-08-12 00:46:53.635 CST [1877260] LOG:  listening on Unix socket "/var/run/halo/.s.PGSQL.9001"
2024-08-12 00:46:53.679 CST [1877263] LOG:  database system was shut down at 2024-08-12 00:46:50 CST
2024-08-12 00:46:53.705 CST [1877260] LOG:  database system is ready to accept connections
 done
server started
[guanhongchao@guanhongchao-dev halo_16]$ psql -p 5432
psql (1.0.16.3 (20240625))
Type "help" for help.

halo0root=# show database_compat_mode;
 database_compat_mode
----------------------
 postgresql
(1 row)

halo0root=# \q
[guanhongchao@guanhongchao-dev halo_16]$ psql -p 1521 -d oracledb
psql (1.0.16.3 (20240625))
Type "help" for help.

oracledb=# show database_compat_mode;
 database_compat_mode
----------------------
 oracle
(1 row)

oracledb=#

2、新添加多种模式数据库格式配置为

"IP:PORT:MODE, IP:PORT:MODE, IP:PORT:MODE"

与上postgresql.conf配置一样，cluster_net_services新添加

5433的postgresql模式接口；
1521，1522的两个oracle模式接口；
3307的mysql模式接口。

则cluster_net_services可以进行以下设置

cluster_net_services = ':5433:postgresql,:1521:oracle,:1522:oracle,:3307:mysql'

重启后提示信息如下：

[guanhongchao@guanhongchao-dev halo_16]$ pg_ctl start
waiting for server to start....2024-08-12 01:04:57.258 CST [1877439] LOG:  starting 羲和(Halo) 1.0.16.3 (20240625) on x86_64-pc-linux-gnu, compiled by gcc (GCC) 8.5.0 20210514 (Red Hat 8.5.0-22), 64-bit
2024-08-12 01:04:57.258 CST [1877439] LOG:  listening on IPv4 address "0.0.0.0", port 5432
2024-08-12 01:04:57.258 CST [1877439] LOG:  listening on IPv6 address "::", port 5432
2024-08-12 01:04:57.278 CST [1877439] LOG:  listening on Unix socket "/var/run/halo/.s.PGSQL.5432"
2024-08-12 01:04:57.295 CST [1877439] LOG:  listening on IPv4 address "0.0.0.0", port 5433
2024-08-12 01:04:57.295 CST [1877439] LOG:  listening on IPv6 address "::", port 5433
2024-08-12 01:04:57.312 CST [1877439] LOG:  listening on Unix socket "/var/run/halo/.s.PGSQL.5433"
2024-08-12 01:04:57.337 CST [1877439] LOG:  listening on IPv4 address "0.0.0.0", port 1521
2024-08-12 01:04:57.337 CST [1877439] LOG:  listening on IPv6 address "::", port 1521
2024-08-12 01:04:57.362 CST [1877439] LOG:  listening on IPv4 address "0.0.0.0", port 1522
2024-08-12 01:04:57.362 CST [1877439] LOG:  listening on IPv6 address "::", port 1522
2024-08-12 01:04:57.362 CST [1877439] LOG:  listening on Unix socket "/var/run/halo/.s.PGSQL.1521"
2024-08-12 01:04:57.378 CST [1877439] LOG:  listening on Unix socket "/var/run/halo/.s.PGSQL.1522"
2024-08-12 01:04:57.395 CST [1877439] LOG:  listening on IPv4 address "0.0.0.0", port 3307
2024-08-12 01:04:57.395 CST [1877439] LOG:  listening on IPv6 address "::", port 3307
2024-08-12 01:04:57.412 CST [1877439] LOG:  listening on Unix socket "/var/run/halo/.s.PGSQL.3307"
2024-08-12 01:04:57.428 CST [1877439] LOG:  listening on IPv4 address "0.0.0.0", port 9001
2024-08-12 01:04:57.428 CST [1877439] LOG:  listening on IPv6 address "::", port 9001
2024-08-12 01:04:57.445 CST [1877439] LOG:  listening on Unix socket "/var/run/halo/.s.PGSQL.9001"
2024-08-12 01:04:57.489 CST [1877442] LOG:  database system was shut down at 2024-08-12 01:04:54 CST
2024-08-12 01:04:57.515 CST [1877439] LOG:  database system is ready to accept connections
 done
server started
[guanhongchao@guanhongchao-dev halo_16]$ psql -p 5432
psql (1.0.16.3 (20240625))
Type "help" for help.

halo0root=# show cluster_net_services ;
                  cluster_net_services
--------------------------------------------------------
 :5433:postgresql,:1521:oracle,:1522:oracle,:3307:mysql
(1 row)

Halo 16多模式数据库不仅兼容以前版本的功能，原来postgresql.conf就有的三个参数listen_addresses、port、database_compat_mode可以创建一个模式接口，我们简称为原始模式接口。cluster_net_services还增加了兼容配置的小功能。

cluster_net_services含有配置'::oracle'相当于'listen_addresses:port:oracle'，这样就会与原始模式接口发生冲突，为了避免这种情况发生，我们系统默认cluster_net_services 配置优先级最高，启动时会自动替换原始模式接口为oracle模式,并显示相应的warning提醒。

启动后提示信息如下：

[guanhongchao@guanhongchao-dev halo_16]$ pg_ctl start
waiting for server to start....2024-08-12 01:08:03.380 CST [1877481] LOG:  starting 羲和(Halo) 1.0.16.3 (20240625) on x86_64-pc-linux-gnu, compiled by gcc (GCC) 8.5.0 20210514 (Red Hat 8.5.0-22), 64-bit
2024-08-12 01:08:03.381 CST [1877481] LOG:  listening on IPv4 address "0.0.0.0", port 5432
2024-08-12 01:08:03.381 CST [1877481] LOG:  listening on IPv6 address "::", port 5432
2024-08-12 01:08:03.393 CST [1877481] LOG:  listening on Unix socket "/var/run/halo/.s.PGSQL.5432"
2024-08-12 01:08:03.401 CST [1877481] WARNING:  The database_compat_mode configuration parameter has been overwritten.
2024-08-12 01:08:03.401 CST [1877481] LOG:  listening on IPv4 address "0.0.0.0", port 9001
2024-08-12 01:08:03.401 CST [1877481] LOG:  listening on IPv6 address "::", port 9001
2024-08-12 01:08:03.409 CST [1877481] LOG:  listening on Unix socket "/var/run/halo/.s.PGSQL.9001"
2024-08-12 01:08:03.436 CST [1877484] LOG:  database system was shut down at 2024-08-12 01:08:00 CST
2024-08-12 01:08:03.453 CST [1877481] LOG:  database system is ready to accept connections
 done
server started
[guanhongchao@guanhongchao-dev halo_16]$ psql -p 5432
psql (1.0.16.3 (20240625))
Type "help" for help.

halo0root=# show cluster_net_services ;
 cluster_net_services
----------------------
 ::oracle
(1 row)

cluster_net_services 里含有配置':3307:postgresql'，代表listen_addresses:3307:postgresql，如果halo 14版second_port配置参数默认是3307，这样就会发生冲突，为了避免这种情况发生，我们系统默认cluster_net_services 配置优先级最高，启动时会替换second_port模式为postgresql，并相应的warning提醒。

启动后提示信息如下：

[guanhongchao@guanhongchao-dev halo_16]$ pg_ctl start
waiting for server to start....2024-08-12 01:14:25.492 CST [1877535] LOG:  starting 羲和(Halo) 1.0.16.3 (20240625) on x86_64-pc-linux-gnu, compiled by gcc (GCC) 8.5.0 20210514 (Red Hat 8.5.0-22), 64-bit
2024-08-12 01:14:25.493 CST [1877535] LOG:  listening on IPv4 address "0.0.0.0", port 5432
2024-08-12 01:14:25.493 CST [1877535] LOG:  listening on IPv6 address "::", port 5432
2024-08-12 01:14:25.510 CST [1877535] LOG:  listening on Unix socket "/var/run/halo/.s.PGSQL.5432"
2024-08-12 01:14:25.526 CST [1877535] WARNING:  The second_port configuration parameter has been overwritten.
2024-08-12 01:14:25.527 CST [1877535] LOG:  listening on IPv4 address "0.0.0.0", port 3307
2024-08-12 01:14:25.527 CST [1877535] LOG:  listening on IPv6 address "::", port 3307
2024-08-12 01:14:25.543 CST [1877535] LOG:  listening on Unix socket "/var/run/halo/.s.PGSQL.3307"
2024-08-12 01:14:25.560 CST [1877535] LOG:  listening on IPv4 address "0.0.0.0", port 9001
2024-08-12 01:14:25.560 CST [1877535] LOG:  listening on IPv6 address "::", port 9001
2024-08-12 01:14:25.576 CST [1877535] LOG:  listening on Unix socket "/var/run/halo/.s.PGSQL.9001"
2024-08-12 01:14:25.612 CST [1877538] LOG:  database system was shut down at 2024-08-12 01:13:07 CST
2024-08-12 01:14:25.637 CST [1877535] LOG:  database system is ready to accept connections
 done
server started
[guanhongchao@guanhongchao-dev halo_16]$ psql -p 3307
psql (1.0.16.3 (20240625))
Type "help" for help.

halo0root=# show cluster_net_services ;
 cluster_net_services
----------------------
 :3307:postgresql
(1 row)

为了方便DBA对Halo 16多模式数据库的统一维护管理。原始模式接口可以进行session级的模式引擎切换功能，DBA不需要再申请各种模式对应的网段IP与端口号进行访问操作，同时也不会影响原来的数据通信通道。具体操作示例如下：

[guanhongchao@guanhongchao-dev halo_16]$ pg_ctl start
waiting for server to start....2024-08-12 01:27:26.485 CST [1877744] LOG:  starting 羲和(Halo) 1.0.16.3 (20240625) on x86_64-pc-linux-gnu, compiled by gcc (GCC) 8.5.0 20210514 (Red Hat 8.5.0-22), 64-bit
2024-08-12 01:27:26.485 CST [1877744] LOG:  listening on IPv4 address "0.0.0.0", port 5432
2024-08-12 01:27:26.486 CST [1877744] LOG:  listening on IPv6 address "::", port 5432
2024-08-12 01:27:26.497 CST [1877744] LOG:  listening on Unix socket "/var/run/halo/.s.PGSQL.5432"
2024-08-12 01:27:26.513 CST [1877744] LOG:  listening on IPv4 address "0.0.0.0", port 1521
2024-08-12 01:27:26.513 CST [1877744] LOG:  listening on IPv6 address "::", port 1521
2024-08-12 01:27:26.530 CST [1877744] LOG:  listening on Unix socket "/var/run/halo/.s.PGSQL.1521"
2024-08-12 01:27:26.546 CST [1877744] LOG:  listening on IPv4 address "0.0.0.0", port 9001
2024-08-12 01:27:26.547 CST [1877744] LOG:  listening on IPv6 address "::", port 9001
2024-08-12 01:27:26.563 CST [1877744] LOG:  listening on Unix socket "/var/run/halo/.s.PGSQL.9001"
2024-08-12 01:27:26.607 CST [1877747] LOG:  database system was shut down at 2024-08-12 01:27:22 CST
2024-08-12 01:27:26.632 CST [1877744] LOG:  database system is ready to accept connections
 done
server started
[guanhongchao@guanhongchao-dev halo_16]$ psql -p 5432
psql (1.0.16.3 (20240625))
Type "help" for help.

halo0root=# \c oracledb;
You are now connected to database "oracledb" as user "guanhongchao".
oracledb=# show database_compat_mode ;
 database_compat_mode
----------------------
 postgresql
(1 row)

oracledb=# set database_compat_mode = 'oracle';
SET
oracledb=# select * from employees where rownum <=2;
 empno | ename | mgr  | sal | deptno
-------+-------+------+-----+--------
  7369 | SMITH | 7902 | 800 |     20
  7900 | JAMES | 7698 | 950 |     30
(2 rows)

为了方便监控与配置管理，Halo 16多模式数据库还引入独立的监控与配置管理模式接口，它由admin_addresses，admin_port两个配置参数控制，伴随着数据库的启动而打开。

admin_addresses 模式监听地址为地址字符串，默认为空值，取listen_addresses的地址。
admin_port 模式监听端口为整型，默认端口为9001。

[guanhongchao@guanhongchao-dev halo_16]$ psql -p 9001
psql (1.0.16.3 (20240625))
Type "help" for help.

halo0root=# show database_compat_mode ;
 database_compat_mode
----------------------
 postgresql
(1 row)

Halo 16多模式数据库一直秉承以客户需求为中心，“从客户中来，到客户中去”，现已完成深度兼容Oracle，MySQL，PostgreSQL模式数据库。未来，Halo 16多模式数据库希望可以和更多客户伙伴并肩而行，不断扩展模式接口协议库与模式引擎库，让用户用得更加舒心，用得更加放心的企业级数据库。
