Whoami：5年+金融、政府、医疗领域工作经验的DBA
Certificate：OCP、PCP、YCP
Skill：Oracle、Mysql、PostgreSQL、国产数据库
Platform：CSDN、墨天伦、公众号（呆呆的私房菜）

上周末参加了崖山数据库举办的中级认证考试，今天就发证啦~

那么今天就来分享一下崖山数据库关于运维方面常用的脚本吧~

日常维护

## 据库启停
##由于服务都是通过yasboot工具管理 ，所以必须先启动om和agent服务。
yasboot process yasagent start -c yashandb
yasboot process yasagent status -c yashandb
yasboot process yasom start -c yashandb
yasboot process yasom status -c yashandb


## 查看状态
yasql sys/yashan#2023@127.0.0.1:1688 -c "select database_name  from v\$database;"
yasql sys/yashan#2023@127.0.0.1:1688 -c "select status from v\$instance;"
yasboot cluster status -c yashandb


##启动数据库
yasboot cluster start -c yashandb -m nomount
yasboot cluster start -c yashandb -m mount
yasboot cluster start -c yashandb
数据库启动的三个状态： nomount --> mount --> open
nomount 可通过 alter database mount; alter database open;的方式推进启动进度。


##关闭数据库
yasboot cluster stop -c yashandb
##重启数据库
yasboot cluster restart -c yashandb


-- 表空间大小查询
select id,
       dt.tablespace_name,
       max_size  1024  1024 max_size_mb,
       total_bytes  1024  1024 total_size_mb,
       ts_used_size_mb,
       status,
       contents,
       logging,
       allocation_type,
       block_size,
       segment_space_management,
       encrypted
  from dba_tablespaces dt
  left join (select tablespace_name,
                    sum(bytes)  1024  1024 ts_used_size_mb
               from dba_segments d
              group by d.tablespace_name) eg
    on dt.tablespace_name = eg.tablespace_name;


-- 临时表空间信息
SELECT FILE_ID,
       FILE_NAME,
       STATUS,
       BYTES  1024  1024 SIZE_MB,
       AUTOEXTENSIBLE,
       TABLESPACE_NAME,
       MAXBYTES  1024  1024 MAXSIZE_MB,
       INCREMENT_BY
  FROM DBA_TEMP_FILES;

  -- 日志文件信息
select thread#,
       name,
       block_size,
       block_count,
       used_blocks,
       sequence#,
       status
  from v$logfile;


-- 用户信息
select username,
       user_id,
       password,
       account_status,
       lock_date,
       expiry_date,
       default_tablespace,
       created,
       authentication_type,
       last_login,
       password_change_date,
       database_maintained,
       profile
  from dba_users;

 -- 密码过期可通过加密密文修改：
alter user xx identified by values "S:39435DAFBF9608EF2430B7AFD1169B7A949D96D9397C2070F39DAB47D70FCB126A1BC1E5A63BD60F8A70" default tablespace users;


-- 所有用户角色
select grantee,
       granted_role privilege,
       'role_privs' privilege_type,
       case admin_option
         when 'y' then
          'yes'
         else
          'no'
       end admin_option
  from dba_role_privs
union
select grantee, privilege, 'sys_privs' privilege_type, admin_option
  from dba_sys_privs
union
select grantee,
       privilege || ' on ' || owner || '.' || table_name privilege,
       'table_privs' privilege_type,
       grantable
  from dba_tab_privs t
 where t.grantee in
       (select username
          from all_users a
         where a.username not in ('sys', 'sysdba', 'syssso', 'sysauditor'))
 order by grantee, privilege_type, privilege;

-- 查看参数
select * from v$parameter;
show parameter xx;


-- 统计对象情况
select d.owner, d.object_type, count(*) cnt
  from dba_objects d
 where d.owner not in ('sys', 'sysdba', 'syssso', 'ctisys', 'sysauditor')
 group by d.owner, d.object_type;

-- 查看推荐参数
exec DBMS_PARAM.OPTIMIZE();
select dbms_param.show_recommend() as recommend_settings from dual;


-- 查看归档情况
select database_id, database_name, log_mode, block_size, restore_time from v$database;


-- 查看每小时归档情况
select left(first_time, 10) day,
        sum(decode(substr(first_time, 12, 2), '00', 1, 0)) h00,
        sum(decode(substr(first_time, 12, 2), '01', 1, 0)) h01,
        sum(decode(substr(first_time, 12, 2), '02', 1, 0)) h02,
        sum(decode(substr(first_time, 12, 2), '03', 1, 0)) h03,
        sum(decode(substr(first_time, 12, 2), '04', 1, 0)) h04,
        sum(decode(substr(first_time, 12, 2), '05', 1, 0)) h05,
        sum(decode(substr(first_time, 12, 2), '06', 1, 0)) h06,
        sum(decode(substr(first_time, 12, 2), '07', 1, 0)) h07,
        sum(decode(substr(first_time, 12, 2), '08', 1, 0)) h08,
        sum(decode(substr(first_time, 12, 2), '09', 1, 0)) h09,
        sum(decode(substr(first_time, 12, 2), '10', 1, 0)) h10,
        sum(decode(substr(first_time, 12, 2), '11', 1, 0)) h11,
        sum(decode(substr(first_time, 12, 2), '12', 1, 0)) h12,
        sum(decode(substr(first_time, 12, 2), '13', 1, 0)) h13,
        sum(decode(substr(first_time, 12, 2), '14', 1, 0)) h14,
        sum(decode(substr(first_time, 12, 2), '15', 1, 0)) h15,
        sum(decode(substr(first_time, 12, 2), '16', 1, 0)) h16,
        sum(decode(substr(first_time, 12, 2), '17', 1, 0)) h17,
        sum(decode(substr(first_time, 12, 2), '18', 1, 0)) h18,
        sum(decode(substr(first_time, 12, 2), '19', 1, 0)) h19,
        sum(decode(substr(first_time, 12, 2), '20', 1, 0)) h20,
        sum(decode(substr(first_time, 12, 2), '21', 1, 0)) h21,
        sum(decode(substr(first_time, 12, 2), '22', 1, 0)) h22,
        sum(decode(substr(first_time, 12, 2), '23', 1, 0)) h23,
        count(*) total
from  v$archived_log
where first_time>=(sysdate-7)
group by left(first_time, 10)
order by left(first_time, 10) desc;


-- 会话情况
select count(*) cnt,
       a.ip_address,
               a.cli_program,
       a.cli_hostname,
       a.cli_osuser,
               a.username,
               a.status
from   v$session a
group  by a.ip_address,
               a.cli_program,
       a.cli_hostname,
       a.cli_osuser,
               a.username,
               a.status
order  by count(*) desc;


-- 查看错误日志
select * from (select incident_id, session_id, error_number, error_argument, error_comments from v$diag_incident) where rownum<=100;


-- 查看awr信息
select dbid, snap_interval, retention, most_recent_snap_id, most_recent_snap_time, status_flag from sys.wrm$_wr_control;


-- 查看慢sql
 select *
  from (select sa.SQL_TEXT,
               sa.SQL_FULLTEXT,
               sa.EXECUTIONS "执行次数",
               round(sa.ELAPSED_TIME  1000000, 2) "总执行时间",
               round(sa.ELAPSED_TIME  1000000  sa.EXECUTIONS, 2) "平均执行时间",
               sa.COMMAND_TYPE,
               sa.PARSING_USER_ID "用户ID",
               u.username "用户名",
               sa.HASH_VALUE
          from v$sqlarea sa
          left join all_users u
            on sa.PARSING_USER_ID = u.user_id
         where sa.EXECUTIONS > 0
         order by (sa.ELAPSED_TIME  sa.EXECUTIONS) desc)
 where rownum <= 5;


-- 查看事务隔离级别
select * from v$transaction;


-- 等待事件
select * from (select  * from v$system_event order by total_waits desc) where rownum<=20;


-- 查看TX锁对象（被阻塞的会话）
select inst_id, sid, serial#, username, sql_id, lockwait, wait_event, ip_address from gv$session where wait_event is not null;
select sql_id, sql_text from gv$sqltext where sql_id = '';


 -- 查看锁源
select * from v$lock; --拿取sid
select sql_text  from "V_$SQLTEXT" a join "V_$SESSION" b on a.HASH_VALUE  = b.SQL_HASH_VALUE  AND b.sid = xx;


select l.lmode,
       o.owner,
       o.object_name,
       o.object_type,
       s.sid,
       s.serial#,
       s.sql_id,
       st.sql_text,
       p.THREAD_ID
  from v$locked_object l,
       dba_objects     o,
       v_$session      s,
       v$process       p,
       v$sqltext,
       v_$sqltext      st
 where l.object_id = o.object_id
   and l.session_id = s.sid
   and s.paddr = p.THREAD_ADDR
   and st.hash_value = s.sql_hash_value
 order by o.object_id;


-- 查看前5系统等待事件
select * from gv$session_wait where wait_event is not null;
select * from (select * from gv$system_event order by AVERAGE_WAIT_FG desc) where rownum <=5;
select * from (select * from gv$system_wait_class order by time_waited desc ) where rownum <= 5;

备份恢复

1. SQL命令备份恢复

##1. 数据库全备
mkdir -p home/yashan/backup/
yasql  as sysdba
backup database full format '/home/yashan/backup/full_20211209191000' tag 'yashan_fullbak_20231129' parallelism 3;


##2. 数据库0级备份和1级备份
backup database incremental level 0 format '/home/yashan/backup/base_0_20231129';
backup database incremental level 1 format '/home/yashan/backup/incr_1_20231129';


##3. 数据库恢复
yasboot cluster stop -c yashandb
yasboot cluster start -c yashandb -m nomount
##注：恢复之前，要先清空数据目录
restore database from '/home/yashan/backup/base_0_20231129' parallelism 3;
recover database; --恢复到最新
--restore database until time to_date('2023-11-29 11:50:50','yyyy-mm-dd hh24:mi:ss');  --恢复到指定时间点
alter database open <resetlogs>;

2. yasrman备份恢复

##1. 创建catalog
yasrman sys/sys@127.0.0.1:1688 -c 'create catalog' -D home/yashan/catalog
yasrman sys/sys@127.0.0.1:1688 -c 'show all' -D home/yashan/catalog


## 2. 数据库全备
yasrman sys/yashan#2023@127.0.0.1:1688 -c "backup database full format '/home/yashan/backup/full_001' tag 'full_backup' parallelism 3" -D /home/yashan/catalog
##不指定存放路径的话，默认备份存放路径：$YASDB_DATA/backup


##3. 数据库0级备份和1级备份
## 0级备份
yasrman sys/yashan#2023@127.0.0.1:1688 -c "backup database incremental level 0 format '/home/yashan/backup/full_001' tag 'full_backup' parallelism 3" -D /home/yashan/catalog
yasrman sys/yashan#2023@127.0.0.1:1688 -c "backup database incremental level 1 format '/home/yashan/backup/full_001' tag 'full_backup' parallelism 3" -D /home/yashan/catalog
## 1级备份


##4. 查看备份集
yasrman sys/yashan#2023@127.0.0.1:1688 -c "list backup" -D /home/yashan/catalog


##4. 删除备份集
##(物理)
yasrman sys/yashan#2023@127.0.0.1:1688 -c "delete backupset tag 'full_backup1'" -D /home/yashan/catalog

3. 备份策略示例

每周日全备1次，周一到周六增备1次

cat /home/yashan/script/yashan_backup.sh
#!/bin/bash
#############################################
# Scipt is uesd to set backup level 0 policy.
# Author: Rae
# Date: 2023/11/29
# Version: 1.0
#############################################
# Set enviroment parameter
source ~/.bash_profile
export DATE=`date +%Y%m%d-%H%M%S`
export CURRENT_DATE=`date +%A`


BAK_PATH="/home/yashan/backup"
CATALOG_PATH="/home/yashan/catalog"
BAK_LOG="/home/yashan/backup/yashan_backup.log"
USERNAME="sys"
PASSWORD="yashan#2023"
IP="127.0.0.1"
PORT=1688
PARALLELISM=4


# Create necessary directory
if [ ! -d ${BAK_PATH} ];then
 mkdir -p ${BAK_PATH}
fi
if [ ! -d ${CATALOG_PATH} ];then
 mkdir -p ${CATALOG_PATH}
 yasrman ${USERNAME}/${PASSWORD}@127.0.0.1:1688 -c 'create catalog' -D ${CATALOG_PATH}
 echo "`date +%Y%m%d-%H%M%S` | [Info] | Success create yashan catalog !" >> ${BAK_LOG}
fi


if [ ${CURRENT_DATE} == "Sunday" ];then
 echo "`date +%Y%m%d-%H%M%S` | [Info] | Begin backup databaseincremental level 0 !" >> ${BAK_LOG}
 yasrman ${USERNAME}/${PASSWORD}@${IP}:${PORT} -c "backup database incremental level 0 format '${BAK_PATH}/level0_${DATE}' tag 'level0_${DATE}'" -D ${CATALOG_PATH}
 echo "`date +%Y%m%d-%H%M%S` | [Info] | Success backup databaseincremental level 0 !" >> ${BAK_LOG}


else
 previous_sunday=`date -d "last Sunday" +%Y%m%d`
 result=`yasrman ${USERNAME}/${PASSWORD}@${IP}:${PORT} -c "list backup" -D ${CATALOG_PATH} | grep "tag" | grep "level0" | grep ${previous_sunday} | wc -l`
 if [[ ${result} == 1 ]];then
  echo "`date +%Y%m%d-%H%M%S` | [Info] | Begin backup databaseincremental level 1 !" >> ${BAK_LOG}
  yasrman ${USERNAME}/${PASSWORD}@${IP}:${PORT} -c "backup database incremental level 1 format '${BAK_PATH}/level0_${DATE}' tag 'level1_${DATE}'" -D ${CATALOG_PATH}
  echo "`date +%Y%m%d-%H%M%S` | [Info] | Success backup databaseincremental level 1 !" >> ${BAK_LOG}
 else
  echo "`date +%Y%m%d-%H%M%S` | [Info] | Begin backup databaseincremental level 0 !" >> ${BAK_LOG}
  yasrman ${USERNAME}/${PASSWORD}@${IP}:${PORT} -c "backup database incremental level 0 format '${BAK_PATH}/level0_${DATE}' tag 'level0_${DATE}'" -D ${CATALOG_PATH}
  echo "`date +%Y%m%d-%H%M%S` | [Info] | Success backup databaseincremental level 0 !" >> ${BAK_LOG}
 fi
fi


#配置定时任务
crontab -l
0 1 * * * /home/yashan/script/yashan_backup.sh

性能分析

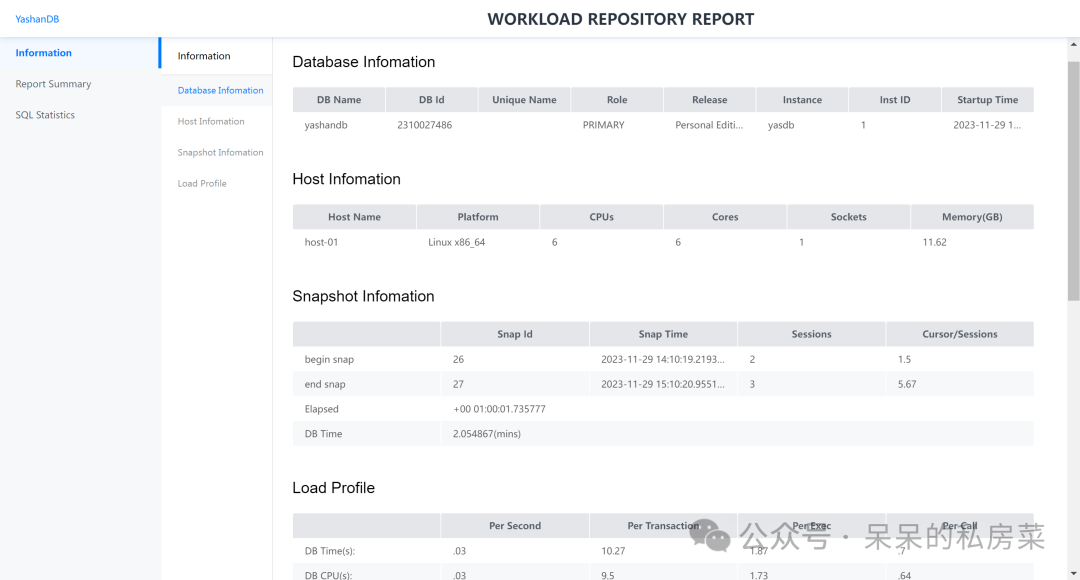

1. AWR报告

select dbid, instance_number, snap_id, begin_interval_time from WRM$_SNAPSHOT;
set serveroutput on
exec dbms_awr.awr_report(dbid,instance_number,start_snap_id,stop_snap_id);


手工创建快照：exec dbms_awr.create_snapshot();

主要记录了数据库基本信息、数据库负载情况以及SQL执行情况。

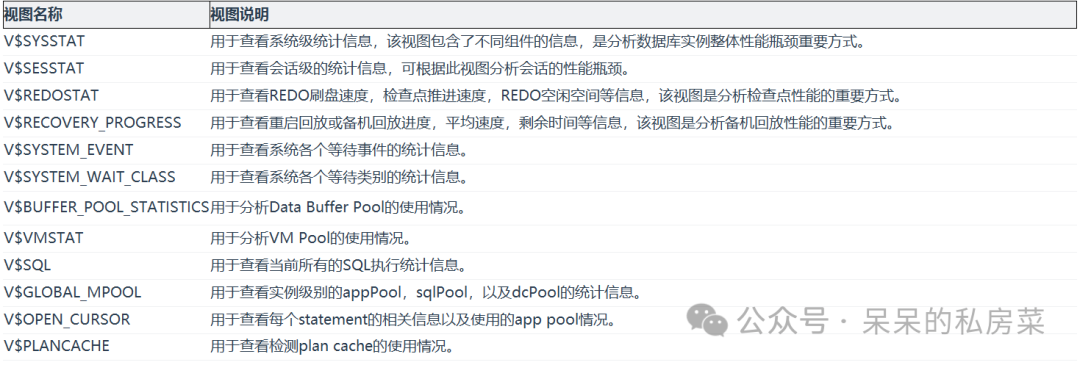

2. 性能视图

3. 执行计划

方式1：
explain select * from a, b where a.id = b.id;


方式2：
alter session set statistic_level = all;
set autotrace on;
select *  from a, b where a.id = b.id;

4. 统计信息

判断列统计信息准确性（最大值，最小值判断）：
select max(id), min(id) from t1;
select high_value, low_value from dba_tab_col_statistics where table_name = 'T1' and column_name = 'ID';


查看统计信息是否失效：
select owner, table_name, num_rows, avg_space, chain_cnt, sample_size, last_analyzed, global_stats, stale_stats from dba_tab_statistics where table_name = 'T1';


统计信息收集：
ANALYZE TABLE t1 PARTITION NULL INDEX_CASCADE true METHOD_OPTION 'FOR ALL COLUMNS' GRANULARITY 'AUTO' PARALLEL_DEGREE 1;

5. hint调优

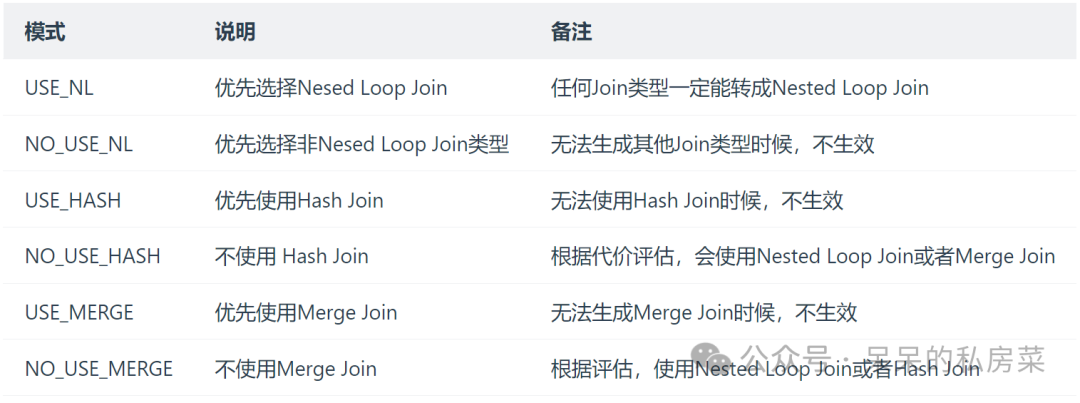

改变join的hint

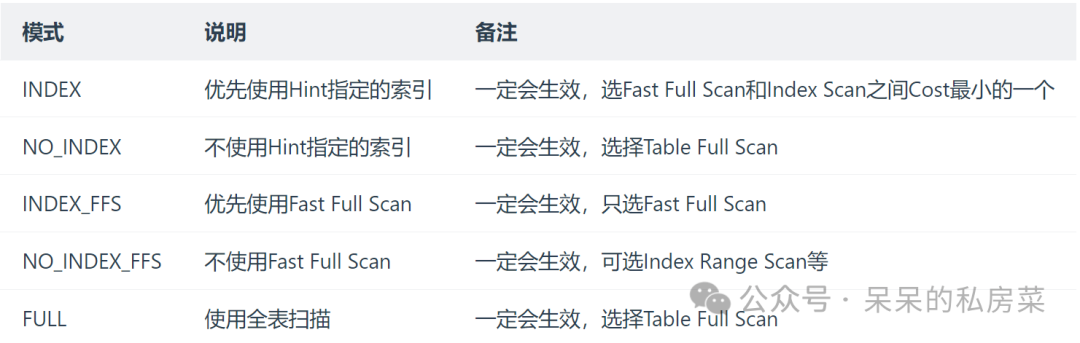

改变访问路径的hint

选择率的hint

explain select * from t1, t2, t3 where t1.c1 = t2.c1 selectivity 0.0001 and t2.c1 = t3.c1;

绑定执行计划outline

-- 对给定的SQL创建OUTLINE。
CREATE OUTLINE ol_a FOR CATEGORY ctgy_ab ON
SELECT /*+ FULL(a) */ a.area_name
FROM area a
WHERE a.area_no LIKE '01';


-- 对给定的源outline 进行复制，且归属到默认的DEFAULT类别
CREATE OUTLINE ol_a1 FROM ol_a;

总结

1. 崖山数据库大部分视图与Oracle一致，运维学习成本较低，具备Oracle经验的工程师可以快速轻松上手；
2. 针对数据库历史运行情况和状态的数据库视图较少，遇性能问题或回溯历史事件时分析存在难度；
3. 部分功能的运维体验感有待提升，如awr无法直接导出，亦无类似oracle的addm等功能；
4. 数据库国产化路上依然任重道远，还需要在实践中不断去优化，在保证数据库稳定性的同时，不断去扩展产品功能，优化产品性能，提高用户体验，锤炼出一款真正“好用”、“耐用“的产品。

本文内容就到这啦，阅读完本篇，相信你对崖山数据库的日常运维知识有了一定的认识了吧！我们下篇再见！
