MINIO：集群部署（Linux CentOS 7.9 + MINIO + NGINX + KeepAlived）

Nephilim 2024-09-14

343

Tips：一些记录，一些笔记

2024/09/13

FRIDAY

When a person’s speech and manner with good motivation,then happiness like his shadow followed him.

当一个人的言谈和举止怀着良善的动机，快乐便如影随形。

MINIO

MinIO 是高性能的对象存储，是为海量数据存储、人工智能、大数据分析而设计的，它完全兼容Amazon S3接口，单个对象最大可达5TB，适合存储海量图片、视频、日志文件、备份数据和容器/虚拟机镜像等。

MINIO的部署有两种方式：

单机部署
分布式部署

主从（存储容量有限制）
资源池

分布式MINIO可以让你将多块硬盘或者多台服务器，组成一个对象存储服务，你可以使用这些存储设备，而不需要考虑其真实的物理位置。

并且，由于硬盘分布在不同的节点上，分布式MINIO避免了单点故障。

MinIO主要采用Golang语言实现，，客户端与存储服务器之间采用http/https通信协议。

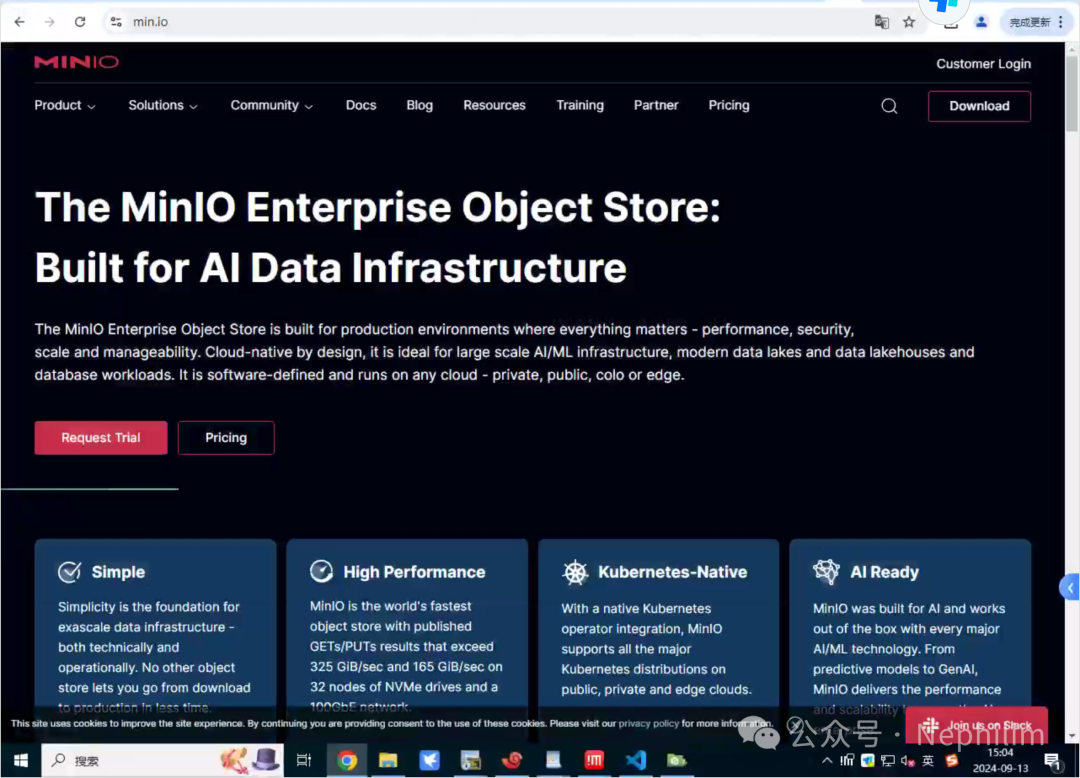

官方网站：

https://min.io/

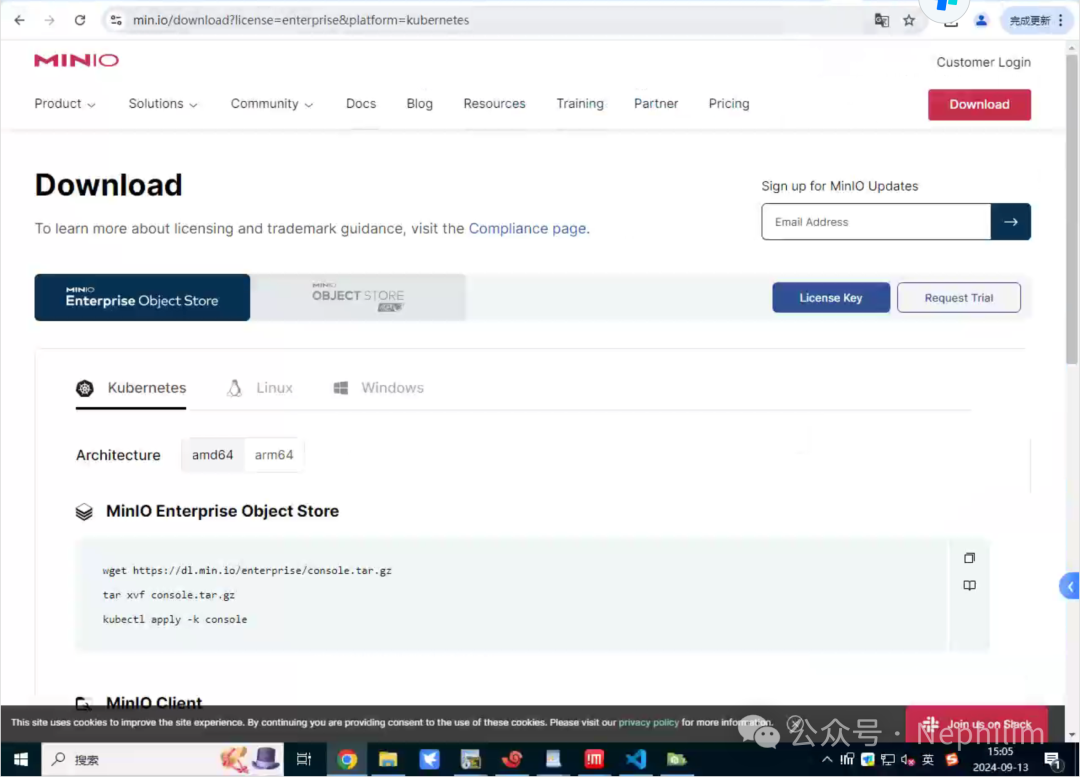

官方下载地址：

https://min.io/download

官方文档：

https://min.io/docs/minio/linux/index.html

官方【Quick Start】文档：

https://docs.min.io/docs/minio-quickstart-guide.html

MINIO中文文档：

http://docs.minio.org.cn/docs

————————

对象存储中常见的「术语」

S3	Simple Storage Service，也就是简单存储服务，这个概念是Amazon（亚马逊）在2006年推出的。对象存储就是从那个时候诞生的。 S3提供了一个简单的WEB服务接口，可以用于随时在WEB上的任何位置存储和检索任何数量的数据。
Object	存储到Minio的基本对象，例如：文件字节流等等
Bucket	用来存储 Object的逻辑空间；每个Bucket之间的数据是相互隔离的。
Driver	部署 Minio的时候设置的磁盘； Minio中的所有对象的数据都会存储在 Driver中。
Set	一组 Driver的集合；分布式部署回根据集群规模自动划分一个或者多个 Set；每个 Set中的Driver分布在不同位置；一个Object存储在一个Set上；

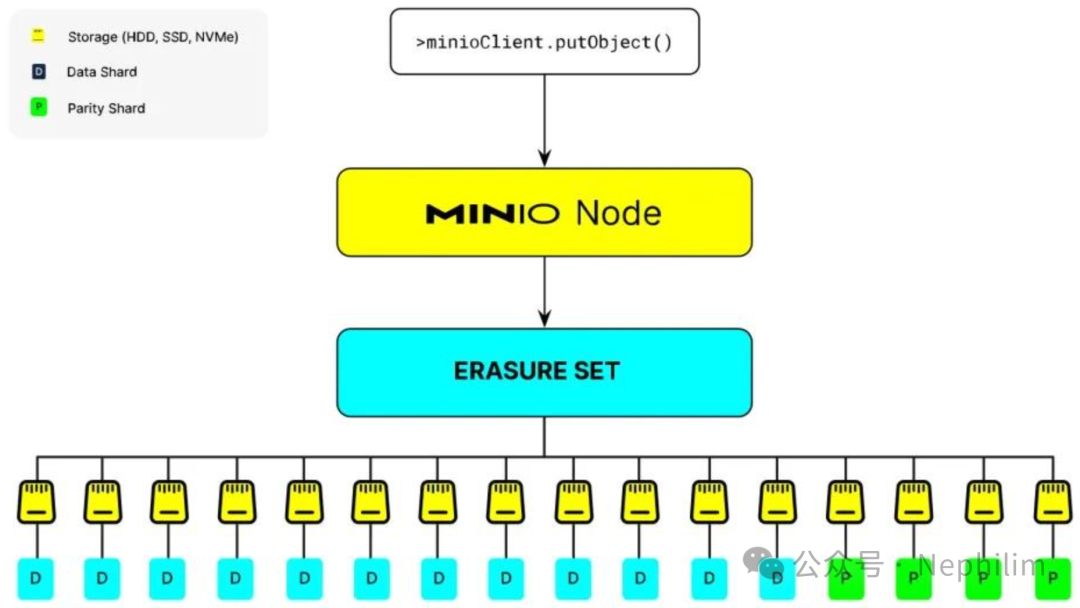

纠删码（Erasure Code）	一种恢复丢失和损坏的数据的「数学算法」，它是一种编码技术。在分布式存储系统中，纠删码主要有三类：阵列纠删码（Array Code：RAID 5 RAID 6）里德·所罗门纠删码（RS Reed-Solomon）低密度奇偶校验纠删码（LDPC LowDensity Parity Check Code）

关于「纠删码」后面会单独开一篇笔记详细描述。

MINIO分布式集群架构

环境准备：

节点	目录
192.168.2.41	/mnt/driver-1
192.168.2.42	/mnt/driver-1
192.168.2.43	/mnt/driver-1
192.168.2.44	/mnt/driver-1

注意：

每台机器上的对应目录需要使用独立的盘单独挂载出来
每台机器上都创建相同的路径

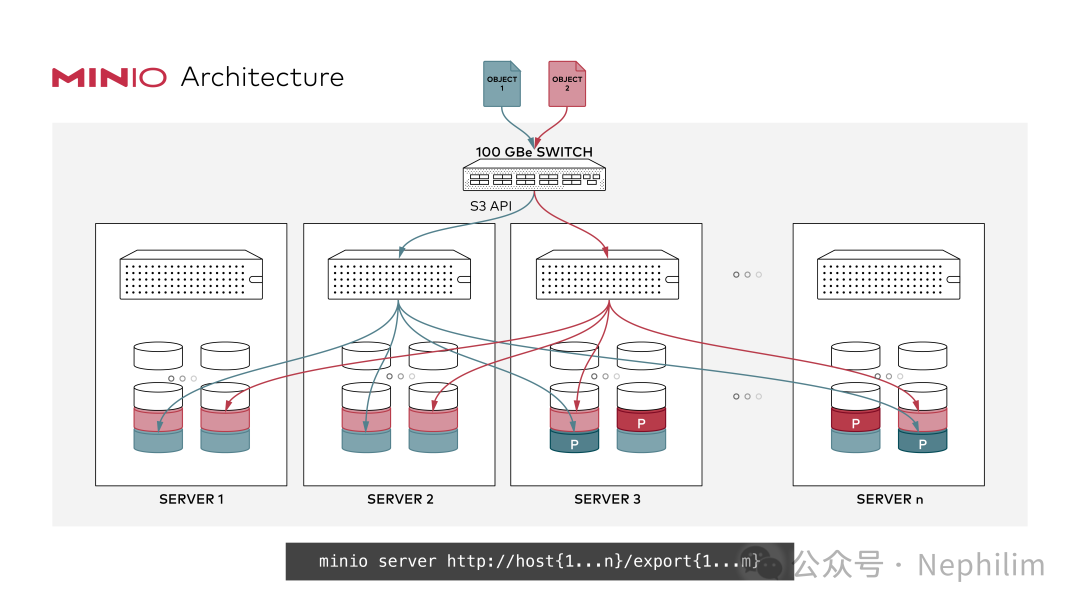

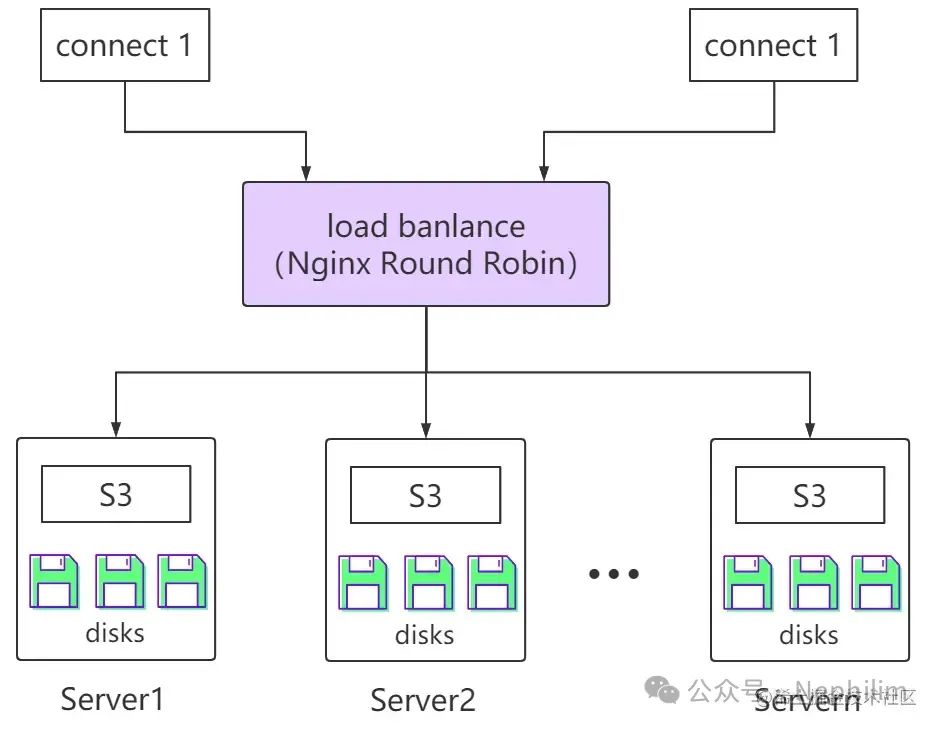

MINIO架构图：

操作系统：配置

关闭SELINUX：

[root@minio1 ~]# cat etc/selinux/config


# This file controls the state of SELinux on the system.
# SELINUX= can take one of these three values:
#     enforcing - SELinux security policy is enforced.
#     permissive - SELinux prints warnings instead of enforcing.
#     disabled - No SELinux policy is loaded.
SELINUX=disabled
# SELINUXTYPE= can take one of three values:
#     targeted - Targeted processes are protected,
#     minimum - Modification of targeted policy. Only selected processes are protected.
#     mls - Multi Level Security protection.
SELINUXTYPE=targeted




[root@minio1 ~]#
[root@minio1 ~]# getenforce
Disabled
[root@minio1 ~]#

关闭防火墙（firewalld）

[root@minio1 ~]# systemctl status firewalld
● firewalld.service - firewalld - dynamic firewall daemon
   Loaded: loaded (/usr/lib/systemd/system/firewalld.service; enabled; vendor preset: enabled)
   Active: active (running) since Thu 2024-09-12 23:38:41 EDT; 3h 43min ago
     Docs: man:firewalld(1)
 Main PID: 932 (firewalld)
    Tasks: 2
   CGroup: system.slice/firewalld.service
           └─932 usr/bin/python2 -Es usr/sbin/firewalld --nofork --nopid


Sep 12 23:38:22 minio1 systemd[1]: Starting firewalld - dynamic firewall daemon...
Sep 12 23:38:41 minio1 systemd[1]: Started firewalld - dynamic firewall daemon.
Sep 12 23:38:43 minio1 firewalld[932]: WARNING: AllowZoneDrifting is enabled. This is considered an inse... now.
Hint: Some lines were ellipsized, use -l to show in full.
[root@minio1 ~]#
[root@minio1 ~]# systemctl stop firewalld
[root@minio1 ~]#
[root@minio1 ~]# systemctl disable firewalld
Removed symlink etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed symlink etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.
[root@minio1 ~]#
[root@minio1 ~]# systemctl status firewalld
● firewalld.service - firewalld - dynamic firewall daemon
   Loaded: loaded (/usr/lib/systemd/system/firewalld.service; disabled; vendor preset: enabled)
   Active: inactive (dead)
     Docs: man:firewalld(1)


Sep 12 23:38:22 minio1 systemd[1]: Starting firewalld - dynamic firewall daemon...
Sep 12 23:38:41 minio1 systemd[1]: Started firewalld - dynamic firewall daemon.
Sep 12 23:38:43 minio1 firewalld[932]: WARNING: AllowZoneDrifting is enabled. This is considered an inse... now.
Sep 13 03:22:47 minio1 systemd[1]: Stopping firewalld - dynamic firewall daemon...
Sep 13 03:22:48 minio1 systemd[1]: Stopped firewalld - dynamic firewall daemon.
Hint: Some lines were ellipsized, use -l to show in full.
[root@minio1 ~]#

查看主机名相关配置

[root@minio1 ~]# cat etc/hosts
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6


192.168.2.41 minio1
192.168.2.42 minio2
192.168.2.43 minio3
192.168.2.44 minio4


[root@minio1 ~]#
[root@minio1 ~]# cat etc/hostname
minio1
[root@minio1 ~]#

系统最大文件数：

永久设置

[root@minio1 ~]# cat etc/security/limits.conf | grep -v "^#" | strings
*       soft    nofile  65536
*       hard    nofile  65536
[root@minio1 ~]#

临时设置

[root@minio1 ~]# ulimit -n 65536
[root@minio1 ~]#
[root@minio1 ~]# ulimit -n
65536
[root@minio1 ~]#

挂载目录：

[root@minio1 ~]# cat etc/fstab


#
# etc/fstab
# Created by anaconda on Thu Sep 12 21:47:17 2024
#
# Accessible filesystems, by reference, are maintained under '/dev/disk'
# See man pages fstab(5), findfs(8), mount(8) and/or blkid(8) for more info
#
/dev/mapper/centos-root                        xfs     defaults        0 0
#UUID=777a22d3-7f26-4336-9281-baad52479c66 boot                   xfs     defaults        0 0
/dev/sda1 boot                   xfs     defaults        0 0
/dev/mapper/centos-swap swap                    swap    defaults        0 0


/dev/sdb1       mnt/driver-1   ext4    defaults        0 0
[root@minio1 ~]#
[root@minio1 ~]# df -h
Filesystem               Size  Used Avail Use% Mounted on
devtmpfs                 2.9G     0  2.9G   0% dev
tmpfs                    3.0G     0  3.0G   0% dev/shm
tmpfs                    3.0G   11M  3.0G   1% run
tmpfs                    3.0G     0  3.0G   0% sys/fs/cgroup
/dev/mapper/centos-root   44G  3.9G   41G   9%
/dev/sdb1                 16G   45M   15G   1% mnt/driver-1
/dev/sda1               1014M  172M  843M  17% boot
tmpfs                    597M   16K  597M   1% run/user/989
tmpfs                    597M     0  597M   0% run/user/0
[root@minio1 ~]#

MINIO：安装

创建存放MINIO启动脚本与配置文件的目录：

[root@minio1 ~]# mkdir opt/minio
[root@minio1 ~]#

将下载的MINIO的程序上传到前面创建的目录中：

[root@minio1 ~]# cd opt/minio/
[root@minio1 minio]# ls -ltr
total 128136
-rw-r--r-- 1 root root  27312280 Sep 13 21:31 mc
-rw-r--r-- 1 root root 103891096 Sep 13 21:31 minio
[root@minio1 minio]#
[root@minio1 minio]# scp * root@minio2:/opt/minio/
mc                                                                            100%   26MB  26.0MB/s   00:01
minio                                                                         100%   99MB  33.0MB/s   00:03
[root@minio1 minio]# scp * root@minio3:/opt/minio/
mc                                                                            100%   26MB  26.1MB/s   00:00
minio                                                                         100%   99MB  33.0MB/s   00:03
[root@minio1 minio]# scp * root@minio4:/opt/minio/
mc                                                                            100%   26MB  26.0MB/s   00:01
minio                                                                         100%   99MB  33.0MB/s   00:03
[root@minio1 minio]#

或者，不像上面这样，直接安装从官方下载的「Server Client」对应的 RPM包：

[root@minio1 ~]# ls -ltr
total 48012
-rw-------. 1 root root     1547 Sep 12 22:14 anaconda-ks.cfg
-rw-r--r--. 1 root root     1595 Sep 12 22:44 initial-setup-ks.cfg
-rw-r--r--  1 root root 10429499 Sep 13 21:31 mcli-20240909075310.0.0-1.x86_64.rpm
-rw-r--r--  1 root root 38722807 Sep 13 21:31 minio-20240909165928.0.0-1.x86_64.rpm
[root@minio1 ~]#
[root@minio1 ~]# rpm -ivh minio-20240909165928.0.0-1.x86_64.rpm
Preparing...                          ################################# [100%]
Updating  installing...
   1:minio-20240909165928.0.0-1       ################################# [100%]
[root@minio1 ~]#
[root@minio1 ~]# rpm -ivh mcli-20240909075310.0.0-1.x86_64.rpm
Preparing...                          ################################# [100%]
Updating  installing...
   1:mcli-20240909075310.0.0-1        ################################# [100%]
[root@minio1 ~]#
[root@minio1 ~]# rpm -qa | grep minio
minio-20240909165928.0.0-1.x86_64
[root@minio1 ~]#
[root@minio1 ~]# rpm -qa | grep mcli
mcli-20240909075310.0.0-1.x86_64
[root@minio1 ~]#
[root@minio1 ~]# rpm -ql minio
/lib/systemd/system/minio.service
/usr/local/bin/minio
[root@minio1 ~]#
[root@minio1 ~]# rpm -ql mcli
/usr/local/bin/mcli
[root@minio1 ~]#

可以看到 RPM的方式，在「/usr/local/bin」下分别创建了 MINIO的服务端与客户端的程序，并且新增了一个系统服务：

[root@minio1 ~]# cat lib/systemd/system/minio.service
[Unit]
Description=MinIO
Documentation=https://docs.min.io
Wants=network-online.target
After=network-online.target
AssertFileIsExecutable=/usr/local/bin/minio


[Service]
Type=notify


WorkingDirectory=/usr/local


User=minio-user
Group=minio-user
ProtectProc=invisible


EnvironmentFile=-/etc/default/minio
ExecStart=/usr/local/bin/minio server $MINIO_OPTS $MINIO_VOLUMES


# Let systemd restart this service always
Restart=always


# Specifies the maximum file descriptor number that can be opened by this process
LimitNOFILE=1048576


# Turn-off memory accounting by systemd, which is buggy.
MemoryAccounting=no


# Specifies the maximum number of threads this process can create
TasksMax=infinity


# Disable timeout logic and wait until process is stopped
TimeoutSec=infinity


SendSIGKILL=no


[Install]
WantedBy=multi-user.target


# Built for ${project.name}-${project.version} (${project.name})
[root@minio1 ~]#

MINIO：集群配置

配置用于MINIO集群启动的脚本：

[root@minio1 minio]# pwd
/opt/minio
[root@minio1 minio]#
[root@minio1 minio]# ls -ltr
total 128140
-rw-r--r-- 1 root root  27312280 Sep 13 21:31 mc
-rw-r--r-- 1 root root 103891096 Sep 13 21:31 minio
-rw-r--r-- 1 root root       564 Sep 13 22:00 run.sh
[root@minio1 minio]#
[root@minio1 minio]# cat run.sh
#!/bin/bash
#export MINIO_ACCESS_KEY=minioadmin
#export MINIO_SECRET_KEY=minioadmin

export MINIO_ROOT_USER=minioadmin
export MINIO_ROOT_PASSWORD=minioadmin

/usr/local/bin/minio server --config-dir /opt/minio --console-address ":9001" \
http://192.168.2.41:9000/mnt/driver-1/data1 http://192.168.2.41:9000/mnt/driver-1/data2 \
http://192.168.2.42:9000/mnt/driver-1/data1 http://192.168.2.42:9000/mnt/driver-1/data2 \
http://192.168.2.43:9000/mnt/driver-1/data1 http://192.168.2.43:9000/mnt/driver-1/data2 \
http://192.168.2.44:9000/mnt/driver-1/data1 http://192.168.2.44:9000/mnt/driver-1/data2
[root@minio1 minio]#
[root@minio1 minio]# scp run.sh root@minio2:/opt/minio/
run.sh                                                                        100%  564    24.2KB/s   00:00
[root@minio1 minio]# scp run.sh root@minio3:/opt/minio/
run.sh                                                                        100%  564    54.1KB/s   00:00
[root@minio1 minio]# scp run.sh root@minio4:/opt/minio/
run.sh                                                                        100%  564    24.2KB/s   00:00
[root@minio1 minio]#

变量说明：

MINIO_ACCESS_KEY	指定用户名（新版本中已经淘汰的参数）
MINIO_SECRET_KEY	指定密码（新版本中已经淘汰的参数）
MINIO_ROOT_USER	指定用户名（新版本的参数）长度最少「5」个字符
MINIO_ROOT_PASSWORD	指定密码（新版本的参数）密码不能过于简单，否则Minio启动会失败长度最少「8」个字符
--config-dir	指定集群配置文件目录
--address	数据服务的监听端口，默认「9000」

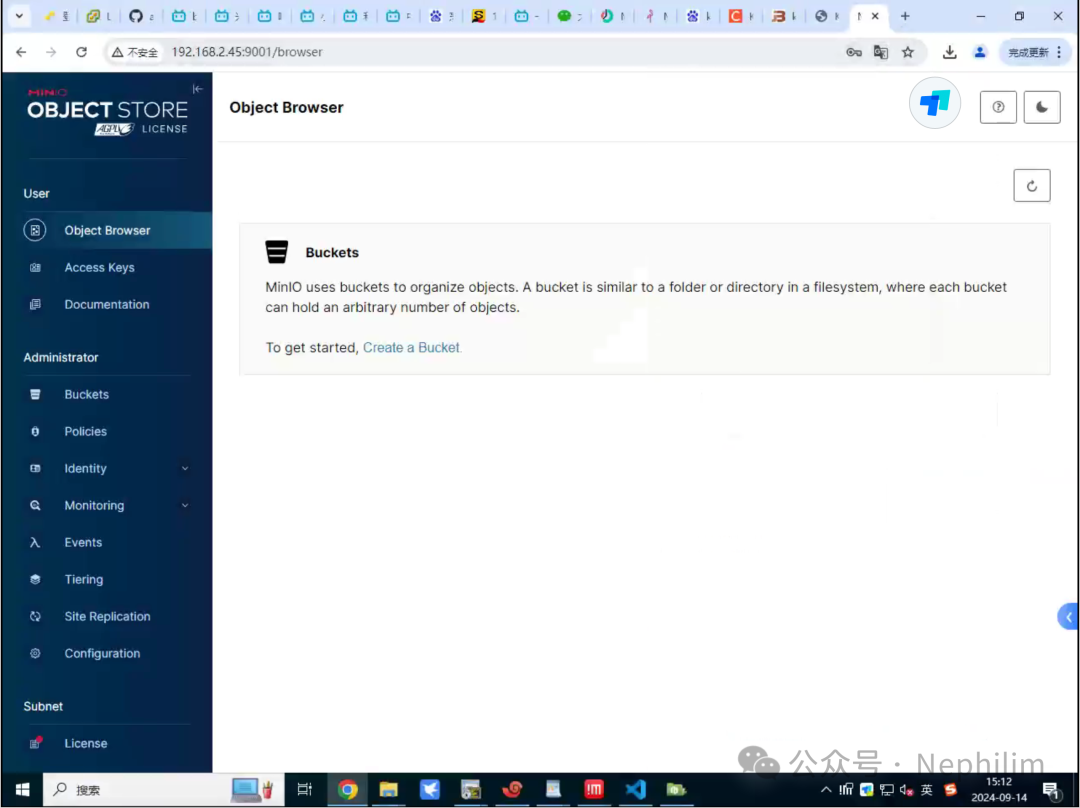

--console-address	控制台服务的监听端口（可视化WEB界面），默认「9001」

修改MINIO的服务文件：

[root@minio1 minio]# cat usr/lib/systemd/system/minio.service
[Unit]
Description=Minio service
Documentation=https://docs.minio.io/


[Service]
WorkingDirectory=/opt/minio/
ExecStart=/opt/minio/run.sh


Restart=on-failure
RestartSec=5


[Install]
WantedBy=multi-user.target
[root@minio1 minio]#


[root@minio1 minio]# scp usr/lib/systemd/system/minio.service root@minio2:/usr/lib/systemd/system/
minio.service                                                                 100%  988   173.7KB/s   00:00
[root@minio1 minio]# scp usr/lib/systemd/system/minio.service root@minio3:/usr/lib/systemd/system/
minio.service                                                                 100%  988     1.2MB/s   00:00
[root@minio1 minio]# scp usr/lib/systemd/system/minio.service root@minio4:/usr/lib/systemd/system/
minio.service                                                                 100%  988     1.1MB/s   00:00
[root@minio1 minio]#

修改权限：

[root@minio1 ~]# ls -ltr usr/lib/systemd/system/minio.service
-rw-r--r-- 1 root root 988 Sep 13 22:09 usr/lib/systemd/system/minio.service
[root@minio1 ~]#
[root@minio1 ~]# chmod +x usr/lib/systemd/system/minio.service
[root@minio1 ~]#
[root@minio1 ~]#
[root@minio1 ~]# ls -ltr usr/local/bin/ | grep minio
-rwxr-xr-x 1 root root 103891096 Sep  9 20:27 minio
[root@minio1 ~]#
[root@minio1 ~]# ls -ltr opt/minio/
total 128140
-rw-r--r-- 1 root root  27312280 Sep 13 21:31 mc
-rw-r--r-- 1 root root 103891096 Sep 13 21:31 minio
-rw-r--r-- 1 root root       564 Sep 13 22:00 run.sh
[root@minio1 ~]#
[root@minio1 ~]# chmod +x opt/minio/*
[root@minio1 ~]#
[root@minio1 ~]# ls -ltr usr/lib/systemd/system/minio.service
-rwxr-xr-x 1 root root 988 Sep 13 22:09 usr/lib/systemd/system/minio.service
[root@minio1 ~]#
[root@minio1 ~]# ls -ltr opt/minio/
total 128140
-rwxr-xr-x 1 root root  27312280 Sep 13 21:31 mc
-rwxr-xr-x 1 root root 103891096 Sep 13 21:31 minio
-rwxr-xr-x 1 root root       564 Sep 13 22:00 run.sh
[root@minio1 ~]#

启动服务：

[root@minio1 ~]# systemctl enable minio
[root@minio1 ~]#
[root@minio1 ~]# systemctl start minio
[root@minio1 ~]#
[root@minio1 ~]# systemctl status minio
● minio.service - Minio service
   Loaded: loaded (/usr/lib/systemd/system/minio.service; enabled; vendor preset: disabled)
   Active: active (running) since Sat 2024-09-14 11:31:36 CST; 4s ago
     Docs: https://docs.minio.io/
 Main PID: 30704 (run.sh)
    Tasks: 12
   CGroup: system.slice/minio.service
           ├─30704 bin/bash opt/minio/run.sh
           └─30706 usr/local/bin/minio server --config-dir opt/minio --console-address :9001 http://192.168...


Sep 14 11:31:36 minio1 run.sh[30704]: MinIO Object Storage Server
Sep 14 11:31:36 minio1 run.sh[30704]: Copyright: 2015-2024 MinIO, Inc.
Sep 14 11:31:36 minio1 run.sh[30704]: License: GNU AGPLv3 - https://www.gnu.org/licenses/agpl-3.0.html
Sep 14 11:31:36 minio1 run.sh[30704]: Version: RELEASE.2024-09-09T16-59-28Z (go1.22.7 linux/amd64)
Sep 14 11:31:36 minio1 run.sh[30704]: API: http://192.168.2.41:9000  http://192.168.122.1:9000  http://1...:9000
Sep 14 11:31:36 minio1 run.sh[30704]: WebUI: http://192.168.2.41:9001 http://192.168.122.1:9001 http://1...:9001
Sep 14 11:31:36 minio1 run.sh[30704]: Docs: https://docs.min.io
Sep 14 11:31:36 minio1 run.sh[30704]: ---------------------------
Sep 14 11:31:36 minio1 run.sh[30704]: WARN: Detected Linux kernel version older than 4.0 release, there ...mance
Sep 14 11:31:36 minio1 run.sh[30704]: WARN: Detected default credentials 'minioadmin:minioadmin', we rec...ables
Hint: Some lines were ellipsized, use -l to show in full.
[root@minio1 ~]#

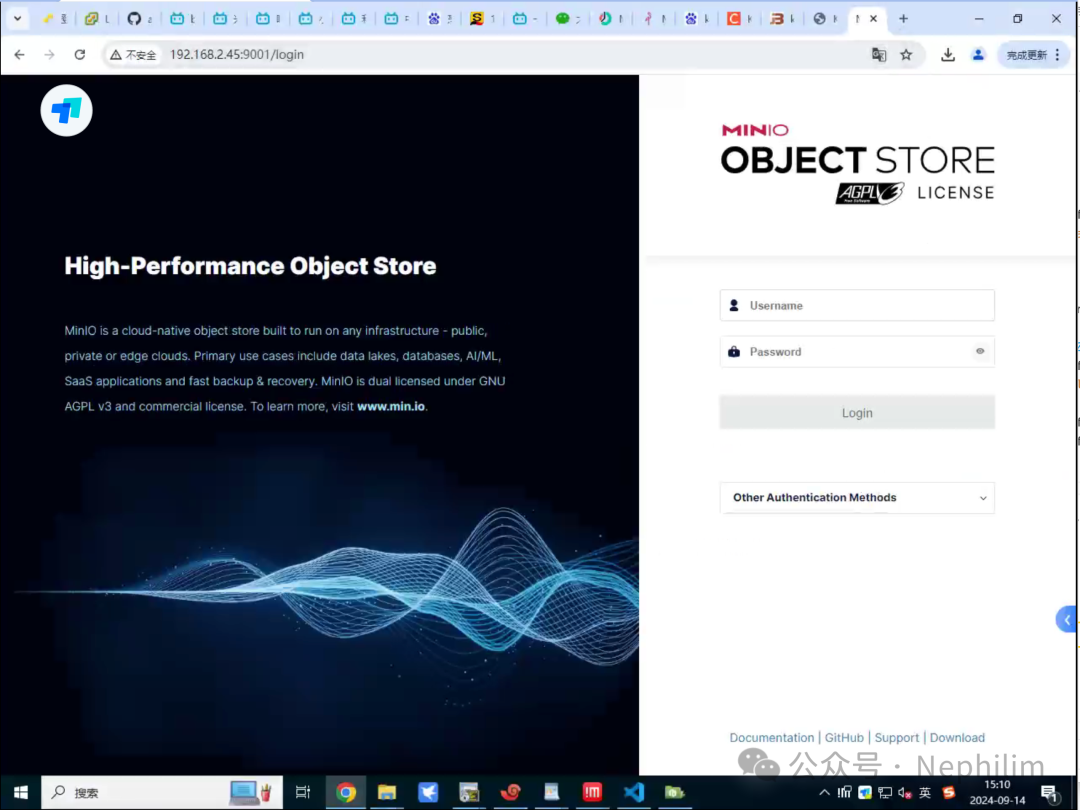

这样，就可以通过集群的任何一个节点的「9000」端口访问MINIO了：

192.168.2.41:9000
192.168.2.42:9000
192.168.2.43:9000
192.168.2.44:9000

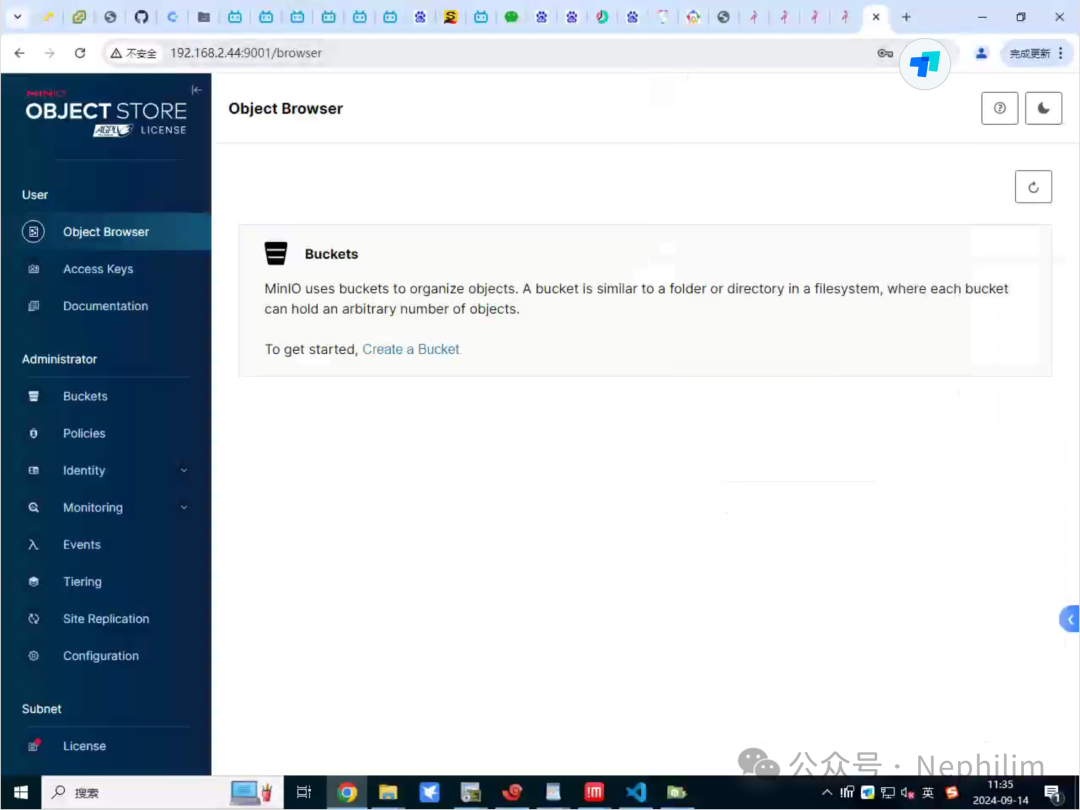

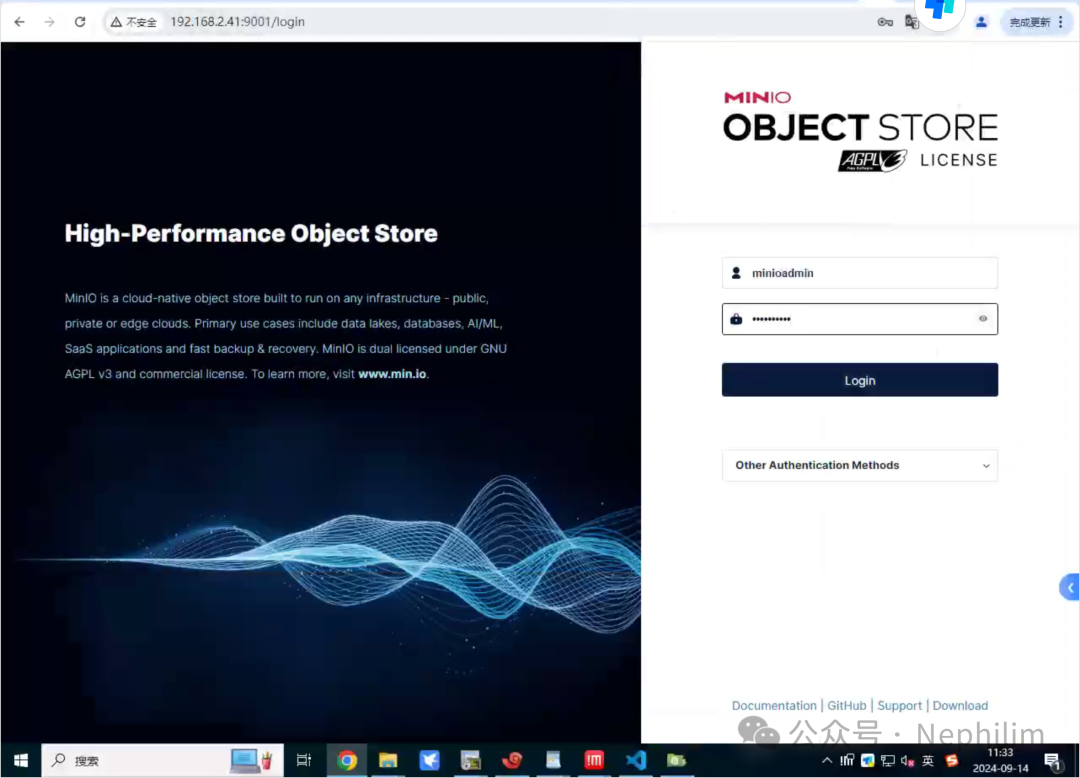

登录后就可以访问：

Nginx：必要性

上面虽然配置成功了，但是访问同一套MINIO，我们有四个节点的登录端口显然是很不方便的。

因此，我们需要用Nginx做一层代理，将访问路径统一一下。

安装编译工具以及依赖库

安装编译工具与依赖包：

[root@minio1 ~]# dnf install -y make zlib zlib-devel gcc-c++ libtool  openssl openssl-devel
Last metadata expiration check: 1:44:19 ago on Sat 14 Sep 2024 10:46:14 AM CST.
Package make-1:3.82-24.el7.x86_64 is already installed.
Package zlib-1.2.7-18.el7.x86_64 is already installed.
Package openssl-1:1.0.2k-19.el7.x86_64 is already installed.
Dependencies resolved.
================================================================================================================
 Package                         Arch               Version                           Repository           Size
================================================================================================================
Installing:
 gcc-c++                         x86_64             4.8.5-44.el7                      base                7.2 M
 libtool                         x86_64             2.4.2-22.el7_3                    base                588 k
 openssl-devel                   x86_64             1:1.0.2k-19.el7                   base                1.5 M
 zlib-devel                      x86_64             1.2.7-20.el7_9                    updates              50 k
Installing dependencies:
 autoconf                        noarch             2.69-11.el7                       base                701 k
 automake                        noarch             1.13.4-3.el7                      base                679 k
 cpp                             x86_64             4.8.5-44.el7                      base                5.9 M
 gcc                             x86_64             4.8.5-44.el7                      base                 16 M
 glibc                           i686               2.17-317.el7                      base                4.3 M
 glibc-devel                     x86_64             2.17-317.el7                      base                1.1 M
 glibc-headers                   x86_64             2.17-317.el7                      base                690 k
 keyutils-libs-devel             x86_64             1.5.8-3.el7                       base                 37 k
 krb5-devel                      x86_64             1.15.1-50.el7                     base                273 k
 libcom_err-devel                x86_64             1.42.9-19.el7                     base                 32 k
 libkadm5                        x86_64             1.15.1-50.el7                     base                179 k
 libselinux-devel                x86_64             2.5-15.el7                        base                187 k
 libsepol-devel                  x86_64             2.5-10.el7                        base                 77 k
 libstdc++-devel                 x86_64             4.8.5-44.el7                      base                1.5 M
 libverto-devel                  x86_64             0.2.5-4.el7                       base                 12 k
 m4                              x86_64             1.4.16-10.el7                     base                256 k
 nss-softokn-freebl              i686               3.44.0-8.el7_7                    base                214 k
 pcre-devel                      x86_64             8.32-17.el7                       base                480 k
 perl-Test-Harness               noarch             3.28-3.el7                        base                302 k
 perl-Thread-Queue               noarch             3.02-2.el7                        base                 17 k
 kernel-headers                  x86_64             3.10.0-1160.119.1.el7             updates             9.1 M
 zlib                            i686               1.2.7-20.el7_9                    updates              91 k


Transaction Summary
================================================================================================================
Install  26 Packages


Total download size: 51 M
Installed size: 112 M
Downloading Packages:
(1/26): automake-1.13.4-3.el7.noarch.rpm                                        1.0 MB/s | 679 kB     00:00
(2/26): autoconf-2.69-11.el7.noarch.rpm                                         952 kB/s | 701 kB     00:00
(3/26): cpp-4.8.5-44.el7.x86_64.rpm                                             1.4 MB/s | 5.9 MB     00:04
(4/26): gcc-c++-4.8.5-44.el7.x86_64.rpm                                         1.4 MB/s | 7.2 MB     00:04
(5/26): glibc-devel-2.17-317.el7.x86_64.rpm                                     4.8 MB/s | 1.1 MB     00:00
(6/26): glibc-headers-2.17-317.el7.x86_64.rpm                                   4.0 MB/s | 690 kB     00:00
(7/26): glibc-2.17-317.el7.i686.rpm                                             2.4 MB/s | 4.3 MB     00:01
(8/26): keyutils-libs-devel-1.5.8-3.el7.x86_64.rpm                              1.7 MB/s |  37 kB     00:00
(9/26): libcom_err-devel-1.42.9-19.el7.x86_64.rpm                               1.8 MB/s |  32 kB     00:00
(10/26): krb5-devel-1.15.1-50.el7.x86_64.rpm                                    6.5 MB/s | 273 kB     00:00
(11/26): libkadm5-1.15.1-50.el7.x86_64.rpm                                      5.5 MB/s | 179 kB     00:00
(12/26): libselinux-devel-2.5-15.el7.x86_64.rpm                                 9.4 MB/s | 187 kB     00:00
(13/26): libsepol-devel-2.5-10.el7.x86_64.rpm                                   3.6 MB/s |  77 kB     00:00
(14/26): libtool-2.4.2-22.el7_3.x86_64.rpm                                      4.8 MB/s | 588 kB     00:00
(15/26): libverto-devel-0.2.5-4.el7.x86_64.rpm                                  330 kB/s |  12 kB     00:00
(16/26): libstdc++-devel-4.8.5-44.el7.x86_64.rpm                                2.4 MB/s | 1.5 MB     00:00
(17/26): m4-1.4.16-10.el7.x86_64.rpm                                            427 kB/s | 256 kB     00:00
(18/26): nss-softokn-freebl-3.44.0-8.el7_7.i686.rpm                             365 kB/s | 214 kB     00:00
(19/26): pcre-devel-8.32-17.el7.x86_64.rpm                                      831 kB/s | 480 kB     00:00
(20/26): openssl-devel-1.0.2k-19.el7.x86_64.rpm                                 1.4 MB/s | 1.5 MB     00:01
(21/26): perl-Test-Harness-3.28-3.el7.noarch.rpm                                3.1 MB/s | 302 kB     00:00
(22/26): perl-Thread-Queue-3.02-2.el7.noarch.rpm                                 24 kB/s |  17 kB     00:00
(23/26): zlib-1.2.7-20.el7_9.i686.rpm                                           464 kB/s |  91 kB     00:00
(24/26): zlib-devel-1.2.7-20.el7_9.x86_64.rpm                                   367 kB/s |  50 kB     00:00
(25/26): gcc-4.8.5-44.el7.x86_64.rpm                                            1.8 MB/s |  16 MB     00:09
(26/26): kernel-headers-3.10.0-1160.119.1.el7.x86_64.rpm                        3.2 MB/s | 9.1 MB     00:02
----------------------------------------------------------------------------------------------------------------
Total                                                                           4.6 MB/s |  51 MB     00:11
Running transaction check
Transaction check succeeded.
Running transaction test
Transaction test succeeded.
Running transaction
  Preparing        :                                                                                        1/1
  Installing       : kernel-headers-3.10.0-1160.119.1.el7.x86_64                                           1/26
  Installing       : perl-Thread-Queue-3.02-2.el7.noarch                                                   2/26
  Installing       : perl-Test-Harness-3.28-3.el7.noarch                                                   3/26
  Installing       : pcre-devel-8.32-17.el7.x86_64                                                         4/26
  Installing       : libverto-devel-0.2.5-4.el7.x86_64                                                     5/26
  Installing       : libstdc++-devel-4.8.5-44.el7.x86_64                                                   6/26
  Installing       : libsepol-devel-2.5-10.el7.x86_64                                                      7/26
  Installing       : libselinux-devel-2.5-15.el7.x86_64                                                    8/26
  Installing       : libcom_err-devel-1.42.9-19.el7.x86_64                                                 9/26
  Installing       : keyutils-libs-devel-1.5.8-3.el7.x86_64                                               10/26
  Installing       : nss-softokn-freebl-3.44.0-8.el7_7.i686                                               11/26
  Running scriptlet: glibc-2.17-317.el7.i686                                                              12/26
  Installing       : glibc-2.17-317.el7.i686                                                              12/26
  Running scriptlet: glibc-2.17-317.el7.i686                                                              12/26
  Installing       : cpp-4.8.5-44.el7.x86_64                                                              13/26
  Running scriptlet: cpp-4.8.5-44.el7.x86_64                                                              13/26
  Running scriptlet: glibc-headers-2.17-317.el7.x86_64                                                    14/26
  Installing       : glibc-headers-2.17-317.el7.x86_64                                                    14/26
  Installing       : glibc-devel-2.17-317.el7.x86_64                                                      15/26
  Running scriptlet: glibc-devel-2.17-317.el7.x86_64                                                      15/26
  Installing       : gcc-4.8.5-44.el7.x86_64                                                              16/26
  Running scriptlet: gcc-4.8.5-44.el7.x86_64                                                              16/26
  Installing       : libkadm5-1.15.1-50.el7.x86_64                                                        17/26
  Running scriptlet: libkadm5-1.15.1-50.el7.x86_64                                                        17/26
  Installing       : krb5-devel-1.15.1-50.el7.x86_64                                                      18/26
  Installing       : m4-1.4.16-10.el7.x86_64                                                              19/26
  Running scriptlet: m4-1.4.16-10.el7.x86_64                                                              19/26
  Installing       : autoconf-2.69-11.el7.noarch                                                          20/26
  Running scriptlet: autoconf-2.69-11.el7.noarch                                                          20/26
  Installing       : automake-1.13.4-3.el7.noarch                                                         21/26
  Running scriptlet: automake-1.13.4-3.el7.noarch                                                         21/26
  Installing       : zlib-1.2.7-20.el7_9.i686                                                             22/26
  Running scriptlet: zlib-1.2.7-20.el7_9.i686                                                             22/26
  Installing       : zlib-devel-1.2.7-20.el7_9.x86_64                                                     23/26
  Installing       : openssl-devel-1:1.0.2k-19.el7.x86_64                                                 24/26
  Installing       : libtool-2.4.2-22.el7_3.x86_64                                                        25/26
  Running scriptlet: libtool-2.4.2-22.el7_3.x86_64                                                        25/26
  Installing       : gcc-c++-4.8.5-44.el7.x86_64                                                          26/26
  Verifying        : autoconf-2.69-11.el7.noarch                                                           1/26
  Verifying        : automake-1.13.4-3.el7.noarch                                                          2/26
  Verifying        : cpp-4.8.5-44.el7.x86_64                                                               3/26
  Verifying        : gcc-4.8.5-44.el7.x86_64                                                               4/26
  Verifying        : gcc-c++-4.8.5-44.el7.x86_64                                                           5/26
  Verifying        : glibc-2.17-317.el7.i686                                                               6/26
  Verifying        : glibc-devel-2.17-317.el7.x86_64                                                       7/26
  Verifying        : glibc-headers-2.17-317.el7.x86_64                                                     8/26
  Verifying        : keyutils-libs-devel-1.5.8-3.el7.x86_64                                                9/26
  Verifying        : krb5-devel-1.15.1-50.el7.x86_64                                                      10/26
  Verifying        : libcom_err-devel-1.42.9-19.el7.x86_64                                                11/26
  Verifying        : libkadm5-1.15.1-50.el7.x86_64                                                        12/26
  Verifying        : libselinux-devel-2.5-15.el7.x86_64                                                   13/26
  Verifying        : libsepol-devel-2.5-10.el7.x86_64                                                     14/26
  Verifying        : libstdc++-devel-4.8.5-44.el7.x86_64                                                  15/26
  Verifying        : libtool-2.4.2-22.el7_3.x86_64                                                        16/26
  Verifying        : libverto-devel-0.2.5-4.el7.x86_64                                                    17/26
  Verifying        : m4-1.4.16-10.el7.x86_64                                                              18/26
  Verifying        : nss-softokn-freebl-3.44.0-8.el7_7.i686                                               19/26
  Verifying        : openssl-devel-1:1.0.2k-19.el7.x86_64                                                 20/26
  Verifying        : pcre-devel-8.32-17.el7.x86_64                                                        21/26
  Verifying        : perl-Test-Harness-3.28-3.el7.noarch                                                  22/26
  Verifying        : perl-Thread-Queue-3.02-2.el7.noarch                                                  23/26
  Verifying        : kernel-headers-3.10.0-1160.119.1.el7.x86_64                                          24/26
  Verifying        : zlib-1.2.7-20.el7_9.i686                                                             25/26
  Verifying        : zlib-devel-1.2.7-20.el7_9.x86_64                                                     26/26


Installed:
  gcc-c++-4.8.5-44.el7.x86_64                               libtool-2.4.2-22.el7_3.x86_64
  openssl-devel-1:1.0.2k-19.el7.x86_64                      zlib-devel-1.2.7-20.el7_9.x86_64
  autoconf-2.69-11.el7.noarch                               automake-1.13.4-3.el7.noarch
  cpp-4.8.5-44.el7.x86_64                                   gcc-4.8.5-44.el7.x86_64
  glibc-2.17-317.el7.i686                                   glibc-devel-2.17-317.el7.x86_64
  glibc-headers-2.17-317.el7.x86_64                         keyutils-libs-devel-1.5.8-3.el7.x86_64
  krb5-devel-1.15.1-50.el7.x86_64                           libcom_err-devel-1.42.9-19.el7.x86_64
  libkadm5-1.15.1-50.el7.x86_64                             libselinux-devel-2.5-15.el7.x86_64
  libsepol-devel-2.5-10.el7.x86_64                          libstdc++-devel-4.8.5-44.el7.x86_64
  libverto-devel-0.2.5-4.el7.x86_64                         m4-1.4.16-10.el7.x86_64
  nss-softokn-freebl-3.44.0-8.el7_7.i686                    pcre-devel-8.32-17.el7.x86_64
  perl-Test-Harness-3.28-3.el7.noarch                       perl-Thread-Queue-3.02-2.el7.noarch
  kernel-headers-3.10.0-1160.119.1.el7.x86_64               zlib-1.2.7-20.el7_9.i686


Complete!
[root@minio1 ~]#

PCRE

安装PCRE可以让Nginx支持「Rewrite」

获取源码包：

[root@minio1 pcre]# pwd
/upload/pcre
[root@minio1 pcre]#
[root@minio1 pcre]# ls -ltr
total 0
[root@minio1 pcre]#
[root@minio1 pcre]# wget http://downloads.sourceforge.net/project/pcre/pcre/8.35/pcre-8.35.tar.gz
--2024-09-14 12:43:16--  http://downloads.sourceforge.net/project/pcre/pcre/8.35/pcre-8.35.tar.gz
Resolving downloads.sourceforge.net (downloads.sourceforge.net)... 204.68.111.105
Connecting to downloads.sourceforge.net (downloads.sourceforge.net)|204.68.111.105|:80... connected.
HTTP request sent, awaiting response... 302 Found
Location: http://jaist.dl.sourceforge.net/project/pcre/pcre/8.35/pcre-8.35.tar.gz?viasf=1 [following]
--2024-09-14 12:43:18--  http://jaist.dl.sourceforge.net/project/pcre/pcre/8.35/pcre-8.35.tar.gz?viasf=1
Resolving jaist.dl.sourceforge.net (jaist.dl.sourceforge.net)... 150.65.7.130, 2001:df0:2ed:feed::feed
Connecting to jaist.dl.sourceforge.net (jaist.dl.sourceforge.net)|150.65.7.130|:80... connected.
HTTP request sent, awaiting response... 200 OK
Length: 1996552 (1.9M) [application/x-gzip]
Saving to: ‘pcre-8.35.tar.gz’


100%[======================================================================>] 1,996,552   51.6KB/s   in 50s


2024-09-14 12:44:09 (38.7 KB/s) - ‘pcre-8.35.tar.gz’ saved [1996552/1996552]


[root@minio1 pcre]#
[root@minio1 pcre]# ls -ltr
total 1952
-rw-r--r-- 1 root root 1996552 Apr  9  2014 pcre-8.35.tar.gz
[root@minio1 pcre]#
[root@minio1 pcre]# du -sh *
2.0M    pcre-8.35.tar.gz
[root@minio1 pcre]#

解压，并编译安装：

[root@minio1 pcre]# tar -xzf pcre-8.35.tar.gz
[root@minio1 pcre]# ls -ltr
total 1964
drwxr-xr-x 7 1169 1169    8192 Apr  4  2014 pcre-8.35
-rw-r--r-- 1 root root 1996552 Apr  9  2014 pcre-8.35.tar.gz
[root@minio1 pcre]#
[root@minio1 pcre]# cd pcre-8.35/
[root@minio1 pcre-8.35]#
[root@minio1 pcre-8.35]# ./configure && make && make install
（... 过多的输出）

安装完成后，查看PCRE的版本，验证安装：

[root@minio1 pcre-8.35]# whereis pcre-config
pcre-config: /usr/bin/pcre-config usr/local/bin/pcre-config usr/share/man/man1/pcre-config.1.gz
[root@minio1 pcre-8.35]#
[root@minio1 pcre-8.35]# which pcre-config
/usr/local/bin/pcre-config
[root@minio1 pcre-8.35]#
[root@minio1 pcre-8.35]# pcre-config --version
8.35
[root@minio1 pcre-8.35]#

NGINX：源码包编译安装

获取源码包：

[root@minio1 nginx]# pwd
/upload/nginx
[root@minio1 nginx]#
[root@minio1 nginx]# ls -ltr
total 0
[root@minio1 nginx]#
[root@minio1 nginx]# wget http://nginx.org/download/nginx-1.20.2.tar.gz
--2024-09-14 12:50:00--  http://nginx.org/download/nginx-1.20.2.tar.gz
Resolving nginx.org (nginx.org)... 3.125.197.172, 52.58.199.22, 2a05:d014:5c0:2600::6, ...
Connecting to nginx.org (nginx.org)|3.125.197.172|:80... connected.
HTTP request sent, awaiting response... 200 OK
Length: 1062124 (1.0M) [application/octet-stream]
Saving to: ‘nginx-1.20.2.tar.gz’


100%[======================================================================>] 1,062,124   62.8KB/s   in 24s


2024-09-14 12:50:26 (42.9 KB/s) - ‘nginx-1.20.2.tar.gz’ saved [1062124/1062124]


[root@minio1 nginx]#
[root@minio1 nginx]# ls -ltr
total 1040
-rw-r--r-- 1 root root 1062124 Nov 16  2021 nginx-1.20.2.tar.gz
[root@minio1 nginx]#
[root@minio1 nginx]# du -sh *
1.1M    nginx-1.20.2.tar.gz
[root@minio1 nginx]#

解压，并编译安装：

[root@minio1 nginx]# pwd
/upload/nginx
[root@minio1 nginx]#
[root@minio1 nginx]# ls -ltr
total 1040
-rw-r--r-- 1 root root 1062124 Nov 16  2021 nginx-1.20.2.tar.gz
[root@minio1 nginx]#
[root@minio1 nginx]# tar -xzf nginx-1.20.2.tar.gz
[root@minio1 nginx]#
[root@minio1 nginx]# cd nginx-1.20.2/
[root@minio1 nginx-1.20.2]#
[root@minio1 nginx-1.20.2]# mkdir usr/local/webserver/nginx -p
[root@minio1 nginx-1.20.2]#
[root@minio1 nginx-1.20.2]# ./configure --prefix=/usr/local/webserver/nginx --with-http_stub_status_module --with-http_ssl_module --with-pcre=/upload/pcre/pcre-8.35
（... 过多的输出）


checking for POSIX semaphores ... not found
checking for POSIX semaphores in libpthread ... found
checking for struct msghdr.msg_control ... found
checking for ioctl(FIONBIO) ... found
checking for ioctl(FIONREAD) ... found
checking for struct tm.tm_gmtoff ... found
checking for struct dirent.d_namlen ... not found
checking for struct dirent.d_type ... found
checking for sysconf(_SC_NPROCESSORS_ONLN) ... found
checking for sysconf(_SC_LEVEL1_DCACHE_LINESIZE) ... found
checking for openat(), fstatat() ... found
checking for getaddrinfo() ... found
checking for OpenSSL library ... found
checking for zlib library ... found
creating objs/Makefile


Configuration summary
  + using PCRE library: /upload/pcre/pcre-8.35
  + using system OpenSSL library
  + using system zlib library


  nginx path prefix: "/usr/local/webserver/nginx"
  nginx binary file: "/usr/local/webserver/nginx/sbin/nginx"
  nginx modules path: "/usr/local/webserver/nginx/modules"
  nginx configuration prefix: "/usr/local/webserver/nginx/conf"
  nginx configuration file: "/usr/local/webserver/nginx/conf/nginx.conf"
  nginx pid file: "/usr/local/webserver/nginx/logs/nginx.pid"
  nginx error log file: "/usr/local/webserver/nginx/logs/error.log"
  nginx http access log file: "/usr/local/webserver/nginx/logs/access.log"
  nginx http client request body temporary files: "client_body_temp"
  nginx http proxy temporary files: "proxy_temp"
  nginx http fastcgi temporary files: "fastcgi_temp"
  nginx http uwsgi temporary files: "uwsgi_temp"
  nginx http scgi temporary files: "scgi_temp"


[root@minio1 nginx-1.20.2]#
[root@minio1 nginx-1.20.2]# make && make install
（... 过多的输出）


cp conf/koi-utf '/usr/local/webserver/nginx/conf'
cp conf/win-utf '/usr/local/webserver/nginx/conf'
test -f '/usr/local/webserver/nginx/conf/mime.types' \
        || cp conf/mime.types '/usr/local/webserver/nginx/conf'
cp conf/mime.types '/usr/local/webserver/nginx/conf/mime.types.default'
test -f '/usr/local/webserver/nginx/conf/fastcgi_params' \
        || cp conf/fastcgi_params '/usr/local/webserver/nginx/conf'
cp conf/fastcgi_params \
        '/usr/local/webserver/nginx/conf/fastcgi_params.default'
test -f '/usr/local/webserver/nginx/conf/fastcgi.conf' \
        || cp conf/fastcgi.conf '/usr/local/webserver/nginx/conf'
cp conf/fastcgi.conf '/usr/local/webserver/nginx/conf/fastcgi.conf.default'
test -f '/usr/local/webserver/nginx/conf/uwsgi_params' \
        || cp conf/uwsgi_params '/usr/local/webserver/nginx/conf'
cp conf/uwsgi_params \
        '/usr/local/webserver/nginx/conf/uwsgi_params.default'
test -f '/usr/local/webserver/nginx/conf/scgi_params' \
        || cp conf/scgi_params '/usr/local/webserver/nginx/conf'
cp conf/scgi_params \
        '/usr/local/webserver/nginx/conf/scgi_params.default'
test -f '/usr/local/webserver/nginx/conf/nginx.conf' \
        || cp conf/nginx.conf '/usr/local/webserver/nginx/conf/nginx.conf'
cp conf/nginx.conf '/usr/local/webserver/nginx/conf/nginx.conf.default'
test -d '/usr/local/webserver/nginx/logs' \
        || mkdir -p '/usr/local/webserver/nginx/logs'
test -d '/usr/local/webserver/nginx/logs' \
        || mkdir -p '/usr/local/webserver/nginx/logs'
test -d '/usr/local/webserver/nginx/html' \
        || cp -R html '/usr/local/webserver/nginx'
test -d '/usr/local/webserver/nginx/logs' \
        || mkdir -p '/usr/local/webserver/nginx/logs'
make[1]: Leaving directory `/upload/nginx/nginx-1.20.2'
[root@minio1 nginx-1.20.2]#

这样，Nginx就安装完成了。

Nginx的目录结构：

[root@minio1 nginx-1.20.2]# tree usr/local/webserver/nginx/
/usr/local/webserver/nginx/
├── conf
│   ├── fastcgi.conf
│   ├── fastcgi.conf.default
│   ├── fastcgi_params
│   ├── fastcgi_params.default
│   ├── koi-utf
│   ├── koi-win
│   ├── mime.types
│   ├── mime.types.default
│   ├── nginx.conf
│   ├── nginx.conf.default
│   ├── scgi_params
│   ├── scgi_params.default
│   ├── uwsgi_params
│   ├── uwsgi_params.default
│   └── win-utf
├── html
│   ├── 50x.html
│   └── index.html
├── logs
└── sbin
    └── nginx


4 directories, 18 files
[root@minio1 nginx-1.20.2]#

配置文件：/usr/local/webserver/nginx/conf/nginx.conf

启动目录：/usr/local/webserver/sbin/nginx

配置NGINX的Linux系统服务：

[root@minio1 system]# pwd
/usr/lib/systemd/system
[root@minio1 system]#
[root@minio1 system]# cat nginx.service
[Unit]
Description=Nginx HTTP Server
After=network.target


[Service]
Type=forking
ExecStart=/usr/local/webserver/nginx/sbin/nginx -c usr/local/webserver/nginx/conf/nginx.conf
ExecReload=/usr/local/webserver/nginx/sbin/nginx -c usr/local/webserver/nginx/conf/nginx.conf -s reload
ExecStop=/usr/local/webserver/nginx/sbin/nginx -s stop
PrivateTmp=true


[Install]
WantedBy=multi-user.target
[root@minio1 system]#

在NGINX中配置MINIO

修改NGINX的配置文件：

[root@minio1 system]# cat usr/local/webserver/nginx/conf/nginx.conf


#user  nobody;
worker_processes  1;


#error_log  logs/error.log;
#error_log  logs/error.log  notice;
#error_log  logs/error.log  info;


#pid        logs/nginx.pid;




events {
    worker_connections  1024;
}




http {
    include       mime.types;
    default_type  application/octet-stream;


    #log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
    #                  '$status $body_bytes_sent "$http_referer" '
    #                  '"$http_user_agent" "$http_x_forwarded_for"';


    #access_log  logs/access.log  main;


    sendfile        on;
    #tcp_nopush     on;


    #keepalive_timeout  0;
    keepalive_timeout  65;


    #gzip  on;


    upstream minio_s3 {
        least_conn;
        server 192.168.2.41:9000;
        server 192.168.2.42:9000;
        server 192.168.2.43:9000;
        server 192.168.2.44:9000;
    }
    upstream minio_console {
        least_conn;
        server 192.168.2.41:9001;
        server 192.168.2.42:9001;
        server 192.168.2.43:9001;
        server 192.168.2.44:9001;
    }


    server {
        listen       80;
        listen  [::]:80;


        server_name  192.168.2.45;


        #charset koi8-r;


        #access_log  logs/host.access.log  main;


        # Allow special characters in headers
        ignore_invalid_headers off;
        # Allow any size file to be uploaded.
        # Set to a value such as 1000m; to restrict file size to a specific value
        client_max_body_size 0;
        # Disable buffering
        proxy_buffering off;
        proxy_request_buffering off;


        location / {
            # root   html;
            # index  index.html index.htm;


            proxy_set_header Host $http_host;
            proxy_set_header X-Real-IP $remote_addr;
            proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
            proxy_set_header X-Forwarded-Proto $scheme;


            proxy_connect_timeout 300;
            # Default is HTTP/1, keepalive is only enabled in HTTP/1.1
            proxy_http_version 1.1;
            proxy_set_header Connection "";
            chunked_transfer_encoding off;


            proxy_pass http://minio_s3; # This uses the upstream directive definition to load balance
        }


        location /minio/ui/ {
            rewrite ^/minio/ui/(.*) $1 break;
            proxy_set_header Host $http_host;
            proxy_set_header X-Real-IP $remote_addr;
            proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
            proxy_set_header X-Forwarded-Proto $scheme;
            proxy_set_header X-NginX-Proxy true;


            # This is necessary to pass the correct IP to be hashed
            # real_ip_header X-Real-IP;


            proxy_connect_timeout 300;


            # To support websockets in MinIO versions released after January 2023
            proxy_http_version 1.1;
            proxy_set_header Upgrade $http_upgrade;
            proxy_set_header Connection "upgrade";
            # Some environments may encounter CORS errors (Kubernetes + Nginx Ingress)
            # Uncomment the following line to set the Origin request to an empty string
            proxy_set_header Origin '';


            chunked_transfer_encoding off;


            # This uses the upstream directive definition to load balance
            proxy_pass http://minio_console;
        }


        #error_page  404              404.html;


        # redirect server error pages to the static page 50x.html
        #
        error_page   500 502 503 504  50x.html;
        location = /50x.html {
            root   html;
        }


        # proxy the PHP scripts to Apache listening on 127.0.0.1:80
        #
        #location ~ \.php$ {
        #    proxy_pass   http://127.0.0.1;
        #}


        # pass the PHP scripts to FastCGI server listening on 127.0.0.1:9000
        #
        #location ~ \.php$ {
        #    root           html;
        #    fastcgi_pass   127.0.0.1:9000;
        #    fastcgi_index  index.php;
        #    fastcgi_param  SCRIPT_FILENAME  scripts$fastcgi_script_name;
        #    include        fastcgi_params;
        #}


        # deny access to .htaccess files, if Apache's document root
        # concurs with nginx's one
        #
        #location ~ \.ht {
        #    deny  all;
        #}
    }




    # another virtual host using mix of IP-, name-, and port-based configuration
    #
    #server {
    #    listen       8000;
    #    listen       somename:8080;
    #    server_name  somename  alias  another.alias;


    #    location / {
    #        root   html;
    #        index  index.html index.htm;
    #    }
    #}




    # HTTPS server
    #
    #server {
    #    listen       443 ssl;
    #    server_name  localhost;


    #    ssl_certificate      cert.pem;
    #    ssl_certificate_key  cert.key;


    #    ssl_session_cache    shared:SSL:1m;
    #    ssl_session_timeout  5m;


    #    ssl_ciphers  HIGH:!aNULL:!MD5;
    #    ssl_prefer_server_ciphers  on;


    #    location / {
    #        root   html;
    #        index  index.html index.htm;
    #    }
    #}


}
[root@minio1 system]#

上面，这里的地址配置：

server_name  192.168.2.45;

写的是一个虚拟地址，后面用「KeepAlive」配出来。

NGINX：启动

启动系统服务：

[root@minio1 system]# systemctl enable nginx
Created symlink from /etc/systemd/system/multi-user.target.wants/nginx.service to /usr/lib/systemd/system/nginx.service.
[root@minio1 system]#
[root@minio1 system]# systemctl start nginx
[root@minio1 system]#
[root@minio1 system]# systemctl status nginx
● nginx.service - Nginx HTTP Server
   Loaded: loaded (/usr/lib/systemd/system/nginx.service; enabled; vendor preset: disabled)
   Active: active (running) since Sat 2024-09-14 13:34:30 CST; 4s ago
  Process: 12648 ExecStart=/usr/local/webserver/nginx/sbin/nginx -c /usr/local/webserver/nginx/conf/nginx.conf (code=exited, status=0/SUCCESS)
 Main PID: 12651 (nginx)
    Tasks: 2
   CGroup: /system.slice/nginx.service
           ├─12651 nginx: master process /usr/local/webserver/nginx/sbin/nginx -c /usr/local/webserver/nginx/...
           └─12652 nginx: worker process


Sep 14 13:34:30 minio1 systemd[1]: Starting Nginx HTTP Server...
Sep 14 13:34:30 minio1 systemd[1]: Started Nginx HTTP Server.
[root@minio1 system]#
[root@minio1 system]# ps -ef | grep nginx
root     12651     1  0 13:34 ?        00:00:00 nginx: master process /usr/local/webserver/nginx/sbin/nginx -c /usr/local/webserver/nginx/conf/nginx.conf
nobody   12652 12651  0 13:34 ?        00:00:00 nginx: worker process
root     12666  2210  0 13:34 pts/0    00:00:00 grep --color=auto nginx
[root@minio1 system]#
[root@minio1 system]# netstat -tupln | grep nginx
tcp        0      0 0.0.0.0:80              0.0.0.0:*               LISTEN      12651/nginx: master
tcp6       0      0 :::80                   :::*                    LISTEN      12651/nginx: master
[root@minio1 system]#

可以看到，Nginx已经拉起来了。

KeepAlived

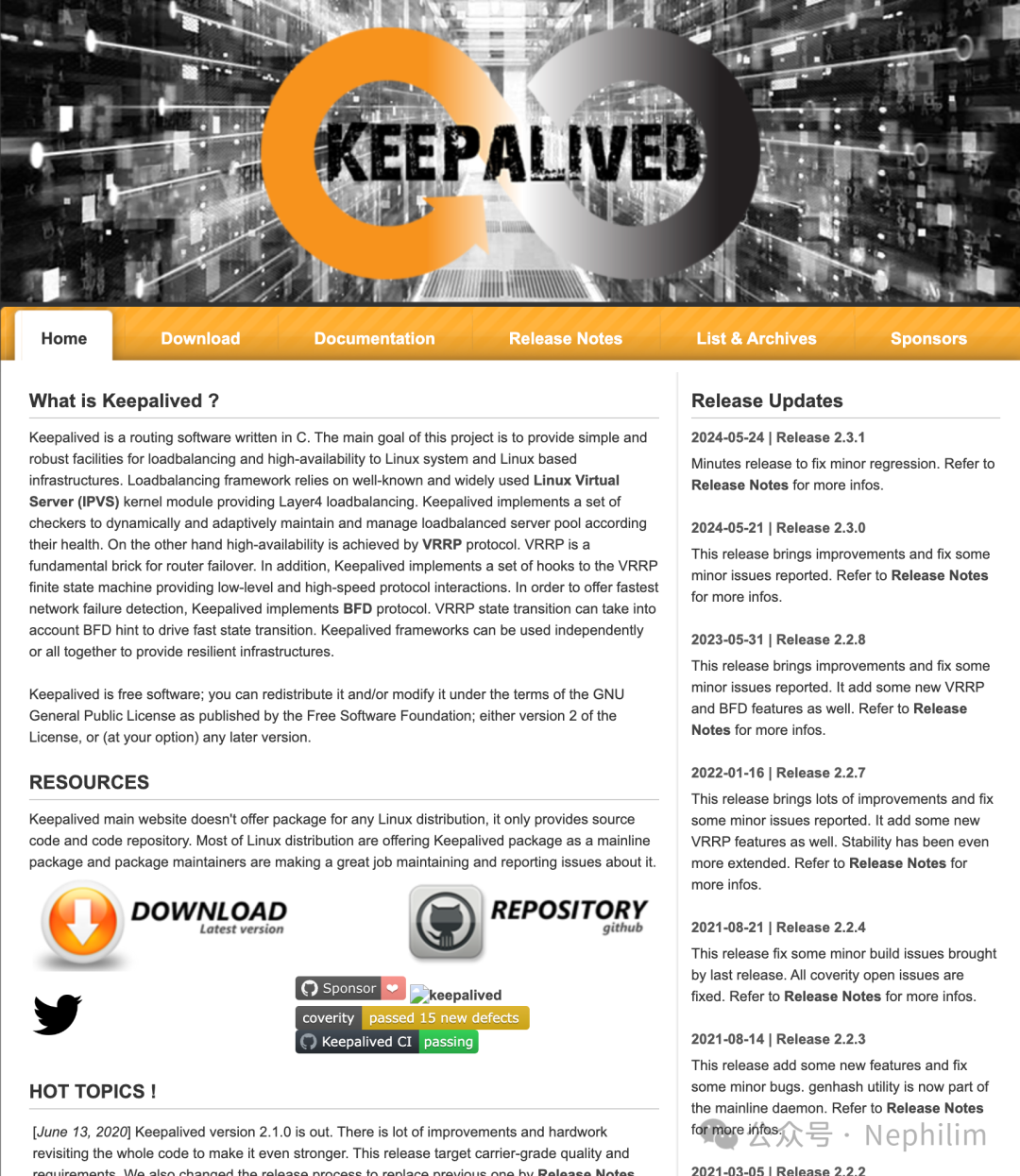

官方网站：

https://www.keepalived.org/

它的最新版本是「2.3.1」

Keepalived for Linux
- Version 2.3.1
- Release Notes - May 24, 2024
- MD5SUM:={5434ebc3becb6f86ebc3adc04e3e7e6d}

下载链接：

https://keepalived.org/software/keepalived-2.3.1.tar.gz

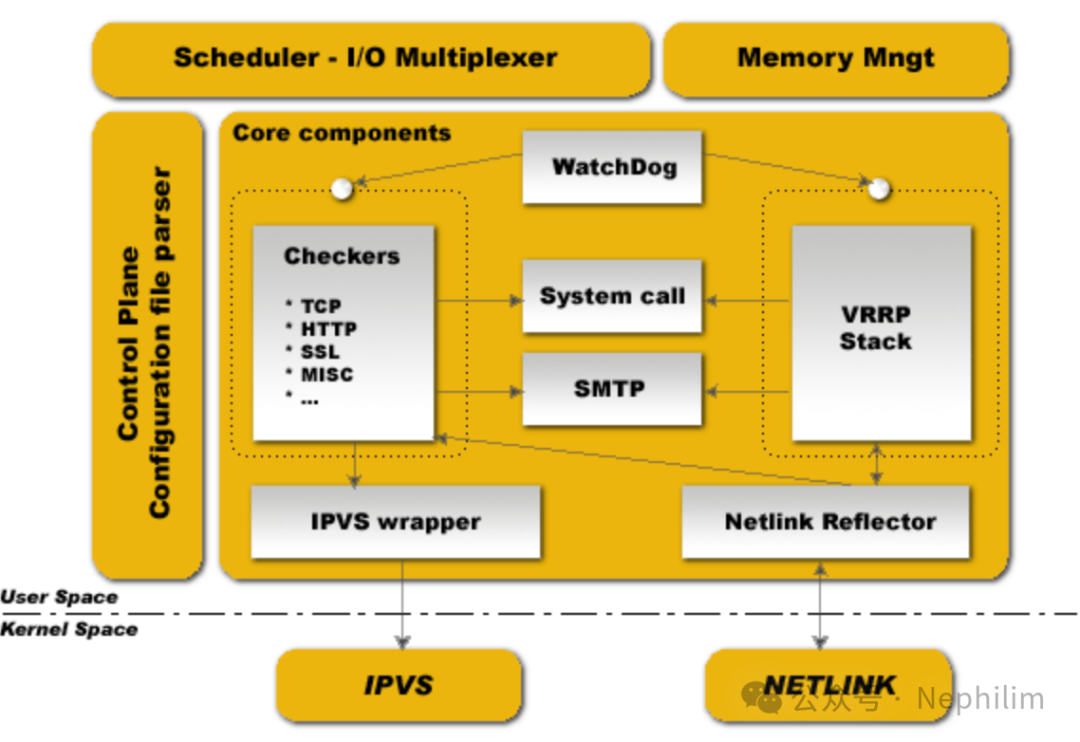

KeepAlived：架构图：

KeepAlived：安装

一、源码编译

上传安装介质：

将从官网下载到的安装介质（源码包）上传服务器：

[root@minio1 keepalived]# pwd
/upload/keepalived
[root@minio1 keepalived]#
[root@minio1 keepalived]# ls -ltr
total 1184
-rw-r--r-- 1 root root 1210697 Sep 14 14:40 keepalived-2.3.1.tar.gz
[root@minio1 keepalived]#
[root@minio1 keepalived]# du -sh *
1.2M    keepalived-2.3.1.tar.gz
[root@minio1 keepalived]#

解压：

[root@minio1 keepalived]# ls -ltr
total 1184
-rw-r--r-- 1 root root 1210697 Sep 14 14:40 keepalived-2.3.1.tar.gz
[root@minio1 keepalived]#
[root@minio1 keepalived]# tar -xzf keepalived-2.3.1.tar.gz
[root@minio1 keepalived]#
[root@minio1 keepalived]# ls -ltr
total 1188
drwxrwxr-x 10 1000 1000    4096 May 24 14:46 keepalived-2.3.1
-rw-r--r--  1 root root 1210697 Sep 14 14:40 keepalived-2.3.1.tar.gz
[root@minio1 keepalived]#
[root@minio1 keepalived]# cd keepalived-2.3.1/
[root@minio1 keepalived-2.3.1]#
[root@minio1 keepalived-2.3.1]# ls -ltr
total 1216
-rw-rw-r--  1 1000 1000     41 Sep 28  2009 AUTHOR
-rw-rw-r--  1 1000 1000  18092 Nov 20  2012 COPYING
-rw-rw-r--  1 1000 1000    823 Dec 25  2017 CONTRIBUTORS
-rwxrwxr-x  1 1000 1000    100 May  5  2020 build_setup
-rwxrwxr-x  1 1000 1000    100 Dec 21  2020 autogen.sh
-rw-rw-r--  1 1000 1000 507110 Jan 27  2021 ChangeLog
-rw-rw-r--  1 1000 1000   6898 Mar 15  2021 TODO
-rw-rw-r--  1 1000 1000   3212 Nov 21  2021 Makefile.am
-rw-rw-r--  1 1000 1000   2720 Nov 21  2021 Dockerfile.in
drwxrwxr-x  3 1000 1000     41 Jul  7  2022 snap
-rw-rw-r--  1 1000 1000  10714 Jun  7  2023 keepalived.spec.in
-rw-rw-r--  1 1000 1000   2963 Nov 22  2023 README.md
-rw-rw-r--  1 1000 1000   9954 Mar  2  2024 INSTALL
-rw-rw-r--  1 1000 1000 118553 May 24 14:37 configure.ac
-rw-rw-r--  1 1000 1000  44361 May 24 14:46 aclocal.m4
-rw-rw-r--  1 1000 1000  31979 May 24 14:46 Makefile.in
-rwxrwxr-x  1 1000 1000 451003 May 24 14:46 configure
drwxrwxr-x  2 1000 1000     26 May 24 14:46 tools
drwxrwxr-x  2 1000 1000     43 May 24 14:46 m4
drwxrwxr-x  2 1000 1000   4096 May 24 14:46 lib
drwxrwxr-x 10 1000 1000    260 May 24 14:46 keepalived
drwxrwxr-x  5 1000 1000    210 May 24 14:46 doc
drwxrwxr-x  2 1000 1000     83 May 24 14:46 build-aux
drwxrwxr-x  2 1000 1000     44 May 24 14:46 bin_install
[root@minio1 keepalived-2.3.1]#

源码安装：

./configure
make
make install

二、YUM

更简单的安装方式是通过YUM：

[root@minio1 ~]# dnf search keepalived
Last metadata expiration check: 4:02:50 ago on Sat 14 Sep 2024 10:46:14 AM CST.
======================================= Name Exactly Matched: keepalived =======================================
keepalived.x86_64 : Load balancer and high availability service
[root@minio1 ~]#
[root@minio1 ~]# dnf install keepalived
Last metadata expiration check: 4:03:00 ago on Sat 14 Sep 2024 10:46:14 AM CST.
Dependencies resolved.
================================================================================================================
 Package                           Arch                 Version                        Repository          Size
================================================================================================================
Installing:
 keepalived                        x86_64               1.3.5-19.el7                   base               332 k
Installing dependencies:
 net-snmp-agent-libs               x86_64               1:5.7.2-49.el7                 base               708 k


Transaction Summary
================================================================================================================
Install  2 Packages


Total download size: 1.0 M
Installed size: 3.0 M
Is this ok [y/N]: y
Downloading Packages:
(1/2): keepalived-1.3.5-19.el7.x86_64.rpm                                       3.6 MB/s | 332 kB     00:00
(2/2): net-snmp-agent-libs-5.7.2-49.el7.x86_64.rpm                              7.4 MB/s | 708 kB     00:00
----------------------------------------------------------------------------------------------------------------
Total                                                                            11 MB/s | 1.0 MB     00:00
Running transaction check
Transaction check succeeded.
Running transaction test
Transaction test succeeded.
Running transaction
  Preparing        :                                                                                        1/1
  Installing       : net-snmp-agent-libs-1:5.7.2-49.el7.x86_64                                              1/2
  Running scriptlet: net-snmp-agent-libs-1:5.7.2-49.el7.x86_64                                              1/2
  Installing       : keepalived-1.3.5-19.el7.x86_64                                                         2/2
  Running scriptlet: keepalived-1.3.5-19.el7.x86_64                                                         2/2
  Verifying        : keepalived-1.3.5-19.el7.x86_64                                                         1/2
  Verifying        : net-snmp-agent-libs-1:5.7.2-49.el7.x86_64                                              2/2


Installed:
  keepalived-1.3.5-19.el7.x86_64                    net-snmp-agent-libs-1:5.7.2-49.el7.x86_64


Complete!
[root@minio1 ~]#
[root@minio1 ~]# rpm -qa | grep keepalived
keepalived-1.3.5-19.el7.x86_64
[root@minio1 ~]#
[root@minio1 ~]# rpm -ql keepalived
/etc/keepalived
/etc/keepalived/keepalived.conf
/etc/sysconfig/keepalived
/usr/bin/genhash
/usr/lib/systemd/system/keepalived.service
/usr/libexec/keepalived
/usr/sbin/keepalived
/usr/share/doc/keepalived-1.3.5
/usr/share/doc/keepalived-1.3.5/AUTHOR
/usr/share/doc/keepalived-1.3.5/CONTRIBUTORS
/usr/share/doc/keepalived-1.3.5/COPYING
/usr/share/doc/keepalived-1.3.5/ChangeLog
/usr/share/doc/keepalived-1.3.5/NOTE_vrrp_vmac.txt
/usr/share/doc/keepalived-1.3.5/README
/usr/share/doc/keepalived-1.3.5/TODO
/usr/share/doc/keepalived-1.3.5/keepalived.conf.SYNOPSIS
/usr/share/doc/keepalived-1.3.5/samples
/usr/share/doc/keepalived-1.3.5/samples/keepalived.conf.HTTP_GET.port
/usr/share/doc/keepalived-1.3.5/samples/keepalived.conf.IPv6
/usr/share/doc/keepalived-1.3.5/samples/keepalived.conf.SMTP_CHECK
/usr/share/doc/keepalived-1.3.5/samples/keepalived.conf.SSL_GET
/usr/share/doc/keepalived-1.3.5/samples/keepalived.conf.fwmark
/usr/share/doc/keepalived-1.3.5/samples/keepalived.conf.inhibit
/usr/share/doc/keepalived-1.3.5/samples/keepalived.conf.misc_check
/usr/share/doc/keepalived-1.3.5/samples/keepalived.conf.misc_check_arg
/usr/share/doc/keepalived-1.3.5/samples/keepalived.conf.quorum
/usr/share/doc/keepalived-1.3.5/samples/keepalived.conf.sample
/usr/share/doc/keepalived-1.3.5/samples/keepalived.conf.status_code
/usr/share/doc/keepalived-1.3.5/samples/keepalived.conf.track_interface
/usr/share/doc/keepalived-1.3.5/samples/keepalived.conf.virtual_server_group
/usr/share/doc/keepalived-1.3.5/samples/keepalived.conf.virtualhost
/usr/share/doc/keepalived-1.3.5/samples/keepalived.conf.vrrp
/usr/share/doc/keepalived-1.3.5/samples/keepalived.conf.vrrp.localcheck
/usr/share/doc/keepalived-1.3.5/samples/keepalived.conf.vrrp.lvs_syncd
/usr/share/doc/keepalived-1.3.5/samples/keepalived.conf.vrrp.routes
/usr/share/doc/keepalived-1.3.5/samples/keepalived.conf.vrrp.rules
/usr/share/doc/keepalived-1.3.5/samples/keepalived.conf.vrrp.scripts
/usr/share/doc/keepalived-1.3.5/samples/keepalived.conf.vrrp.static_ipaddress
/usr/share/doc/keepalived-1.3.5/samples/keepalived.conf.vrrp.sync
/usr/share/doc/keepalived-1.3.5/samples/sample.misccheck.smbcheck.sh
/usr/share/man/man1/genhash.1.gz
/usr/share/man/man5/keepalived.conf.5.gz
/usr/share/man/man8/keepalived.8.gz
/usr/share/snmp/mibs/KEEPALIVED-MIB.txt
/usr/share/snmp/mibs/VRRP-MIB.txt
/usr/share/snmp/mibs/VRRPv3-MIB.txt
[root@minio1 ~]#

KeepAlived：主从配置

架构：

主节点	192.168.2.41
从节点	192.168.2.42

主节点配置：

[root@minio1 keepalived]# ifconfig
ens192: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.2.41  netmask 255.255.255.0  broadcast 192.168.2.255
        inet6 fe80::7d7a:b063:c131:ed30  prefixlen 64  scopeid 0x20<link>
        ether 00:50:56:ac:48:20  txqueuelen 1000  (Ethernet)
        RX packets 577044  bytes 438612765 (418.2 MiB)
        RX errors 0  dropped 435  overruns 0  frame 0
        TX packets 124090  bytes 559646912 (533.7 MiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0


lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        inet6 ::1  prefixlen 128  scopeid 0x10<host>
        loop  txqueuelen 1000  (Local Loopback)
        RX packets 568  bytes 45128 (44.0 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 568  bytes 45128 (44.0 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0


virbr0: flags=4099<UP,BROADCAST,MULTICAST>  mtu 1500
        inet 192.168.122.1  netmask 255.255.255.0  broadcast 192.168.122.255
        ether 52:54:00:5c:41:0b  txqueuelen 1000  (Ethernet)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0


[root@minio1 keepalived]#
[root@minio1 keepalived]# pwd
/etc/keepalived
[root@minio1 keepalived]#
[root@minio1 keepalived]# ls -ltr
total 8
-rw-r--r-- 1 root root 3598 Oct  1  2020 keepalived.conf_bak_20240914_1454
-rw-r--r-- 1 root root  507 Sep 14 14:55 keepalived.conf
[root@minio1 keepalived]#
[root@minio1 keepalived]# cat keepalived.conf
global_defs {
    router_id r1
    script_user root
}


vrrp_script check_nginx {
    script "/etc/keepalived/check-nginx.sh"
    interval 2
    weight -2
    fall 2
    rise 2
}


vrrp_instance VI_1 {
    state MASTER
    interface ens192
    virtual_router_id 51
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass Nephilim@123
    }
    virtual_ipaddress {
        192.168.2.45
    }
    track_script {
        check_nginx
    }
}


[root@minio1 keepalived]#

从节点配置：

[root@minio2 keepalived]# pwd
/etc/keepalived
[root@minio2 keepalived]#
[root@minio2 keepalived]# ls -ltr
total 4
-rw-r--r-- 1 root root 506 Sep 14 14:56 keepalived.conf
[root@minio2 keepalived]#
[root@minio2 keepalived]# cat keepalived.conf
global_defs {
    router_id r2
    script_user root
}


vrrp_script check_nginx {
    script "/etc/keepalived/check-nginx.sh"
    interval 2
    weight -2
    fall 2
    rise 2
}


vrrp_instance VI_1 {
    state BACKUP
    interface ens192
    virtual_router_id 51
    priority 99
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass Nephilim@123
    }
    virtual_ipaddress {
        192.168.2.45
    }
    track_script {
        check_nginx
    }
}


[root@minio2 keepalived]#

同一套 KeepAlived主从：

virtual_router_id，必须保持一致
priority，数值越高，优先级越高
auth_pass，必须保持一致
interface，虚拟IP挂载到哪块网卡上
virtual_ipaddress，虚拟IP的值
track_script，检测脚本；如果执行失败，则「虚拟IP」将在主从之间切换

Nginx检测脚本：

[root@minio1 keepalived]# pwd
/etc/keepalived
[root@minio1 keepalived]#
[root@minio1 keepalived]# ls -ltr
total 12
-rw-r--r-- 1 root root 3598 Oct  1  2020 keepalived.conf_bak_20240914_1454
-rw-r--r-- 1 root root  477 Sep 14 14:58 keepalived.conf
-rw-r--r-- 1 root root  199 Sep 14 15:03 check-nginx.sh
[root@minio1 keepalived]#
[root@minio1 keepalived]# cat check-nginx.sh
#!/bin/sh


if [ $(ps -C nginx --no-header|wc -l) -eq 0 ]; then
    systemctl start nginx
    sleep 1
    if [ $(ps -C nginx --no-header|wc -l) -eq 0 ]; then
        exit 1
    fi
else
    exit 0
fi


[root@minio1 keepalived]#
[root@minio1 keepalived]# ll
total 12
-rw-r--r-- 1 root root  199 Sep 14 15:03 check-nginx.sh
-rw-r--r-- 1 root root  477 Sep 14 14:58 keepalived.conf
-rw-r--r-- 1 root root 3598 Oct  1  2020 keepalived.conf_bak_20240914_1454
[root@minio1 keepalived]#
[root@minio1 keepalived]# chmod +x check-nginx.sh
[root@minio1 keepalived]#
[root@minio1 keepalived]# scp check-nginx.sh root@minio2:/etc/keepalived/
check-nginx.sh                                                                100%  199   246.6KB/s   00:00
[root@minio1 keepalived]#

启动 KeepAlived 之前：

[root@minio1 keepalived]# systemctl status keepalived
● keepalived.service - LVS and VRRP High Availability Monitor
   Loaded: loaded (/usr/lib/systemd/system/keepalived.service; enabled; vendor preset: disabled)
   Active: inactive (dead) since Sat 2024-09-14 14:51:37 CST; 14min ago
  Process: 13698 ExecStart=/usr/sbin/keepalived $KEEPALIVED_OPTIONS (code=exited, status=0/SUCCESS)
 Main PID: 13701 (code=exited, status=0/SUCCESS)


Sep 14 14:51:31 minio1 Keepalived_healthcheckers[13702]: Activating healthchecker for service [10.10.10.3]:1358
Sep 14 14:51:31 minio1 Keepalived_healthcheckers[13702]: Activating healthchecker for service [10.10.10.3]:1358
Sep 14 14:51:32 minio1 Keepalived_vrrp[13703]: Stopped
Sep 14 14:51:32 minio1 Keepalived[13701]: Keepalived_vrrp exited with permanent error CONFIG. Terminating
Sep 14 14:51:32 minio1 Keepalived[13701]: Stopping
Sep 14 14:51:32 minio1 Keepalived_healthcheckers[13702]: Removing service [192.168.201.100]:443 from VS [1...443
Sep 14 14:51:32 minio1 Keepalived_healthcheckers[13702]: Removing service [192.168.200.4]:1358 from VS [10...358
Sep 14 14:51:32 minio1 Keepalived_healthcheckers[13702]: Removing service [192.168.200.5]:1358 from VS [10...358
Sep 14 14:51:32 minio1 Keepalived_healthcheckers[13702]: Stopped
Sep 14 14:51:37 minio1 Keepalived[13701]: Stopped Keepalived v1.3.5 (03/19,2017), git commit v1.3.5-6-g6fa32f2
Hint: Some lines were ellipsized, use -l to show in full.
[root@minio1 keepalived]#
[root@minio1 keepalived]# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens192: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether 00:50:56:ac:48:20 brd ff:ff:ff:ff:ff:ff
    inet 192.168.2.41/24 brd 192.168.2.255 scope global noprefixroute ens192
       valid_lft forever preferred_lft forever
    inet6 fe80::7d7a:b063:c131:ed30/64 scope link noprefixroute
       valid_lft forever preferred_lft forever
3: virbr0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default qlen 1000
    link/ether 52:54:00:5c:41:0b brd ff:ff:ff:ff:ff:ff
    inet 192.168.122.1/24 brd 192.168.122.255 scope global virbr0
       valid_lft forever preferred_lft forever
4: virbr0-nic: <BROADCAST,MULTICAST> mtu 1500 qdisc pfifo_fast master virbr0 state DOWN group default qlen 1000
    link/ether 52:54:00:5c:41:0b brd ff:ff:ff:ff:ff:ff
[root@minio1 keepalived]#

可以通过「ip addr」看到，当前「ens192」上并没有挂载虚拟IP

KeepAlived启动后：

[root@minio1 keepalived]# systemctl start keepalived
[root@minio1 keepalived]#
[root@minio1 keepalived]# systemctl status keepalived
● keepalived.service - LVS and VRRP High Availability Monitor
   Loaded: loaded (/usr/lib/systemd/system/keepalived.service; enabled; vendor preset: disabled)
   Active: active (running) since Sat 2024-09-14 15:06:23 CST; 5s ago
  Process: 13968 ExecStart=/usr/sbin/keepalived $KEEPALIVED_OPTIONS (code=exited, status=0/SUCCESS)
 Main PID: 13970 (keepalived)
    Tasks: 3
   CGroup: /system.slice/keepalived.service
           ├─13970 /usr/sbin/keepalived -D
           ├─13972 /usr/sbin/keepalived -D
           └─13973 /usr/sbin/keepalived -D


Sep 14 15:06:23 minio1 Keepalived_vrrp[13973]: VRRP_Script(check_nginx) succeeded
Sep 14 15:06:24 minio1 Keepalived_vrrp[13973]: VRRP_Instance(VI_1) Transition to MASTER STATE
Sep 14 15:06:25 minio1 Keepalived_vrrp[13973]: VRRP_Instance(VI_1) Entering MASTER STATE
Sep 14 15:06:25 minio1 Keepalived_vrrp[13973]: VRRP_Instance(VI_1) setting protocol VIPs.
Sep 14 15:06:25 minio1 Keepalived_vrrp[13973]: Sending gratuitous ARP on ens192 for 192.168.2.45
Sep 14 15:06:25 minio1 Keepalived_vrrp[13973]: VRRP_Instance(VI_1) Sending/queueing gratuitous ARPs on en...2.45
Sep 14 15:06:25 minio1 Keepalived_vrrp[13973]: Sending gratuitous ARP on ens192 for 192.168.2.45
Sep 14 15:06:25 minio1 Keepalived_vrrp[13973]: Sending gratuitous ARP on ens192 for 192.168.2.45
Sep 14 15:06:25 minio1 Keepalived_vrrp[13973]: Sending gratuitous ARP on ens192 for 192.168.2.45
Sep 14 15:06:25 minio1 Keepalived_vrrp[13973]: Sending gratuitous ARP on ens192 for 192.168.2.45
Hint: Some lines were ellipsized, use -l to show in full.
[root@minio1 keepalived]#
[root@minio1 keepalived]# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens192: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether 00:50:56:ac:48:20 brd ff:ff:ff:ff:ff:ff
    inet 192.168.2.41/24 brd 192.168.2.255 scope global noprefixroute ens192
       valid_lft forever preferred_lft forever
    inet 192.168.2.45/32 scope global ens192
       valid_lft forever preferred_lft forever
    inet6 fe80::7d7a:b063:c131:ed30/64 scope link noprefixroute
       valid_lft forever preferred_lft forever
3: virbr0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default qlen 1000
    link/ether 52:54:00:5c:41:0b brd ff:ff:ff:ff:ff:ff
    inet 192.168.122.1/24 brd 192.168.122.255 scope global virbr0
       valid_lft forever preferred_lft forever
4: virbr0-nic: <BROADCAST,MULTICAST> mtu 1500 qdisc pfifo_fast master virbr0 state DOWN group default qlen 1000
    link/ether 52:54:00:5c:41:0b brd ff:ff:ff:ff:ff:ff
[root@minio1 keepalived]#

可以看到虚拟IP「192.168.2.45」已经被挂载到了「ens192」上了。

通过Keepalived的VIP访问MINIO

如果上述步骤都成功执行，此时就可以通过Keepalived服务挂载的VIP访问MINIO了：

至此，MINIO的集群部署，就全部完成了。

END

温馨提示

如果你喜欢本文，请分享到朋友圈，想要获得更多信息，请关注我。

文章转载自Nephilim，如果涉嫌侵权，请发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。

MINIO：集群部署（Linux CentOS 7.9 + MINIO + NGINX + KeepAlived）

评论
