错误描述

当你给自己的Django项目，安装了「drf_spectacular」并配置了Swagger后，你有可能会在访问网页的时候遇到如题所示的错误。

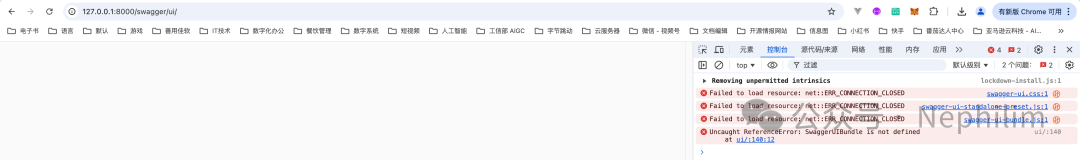

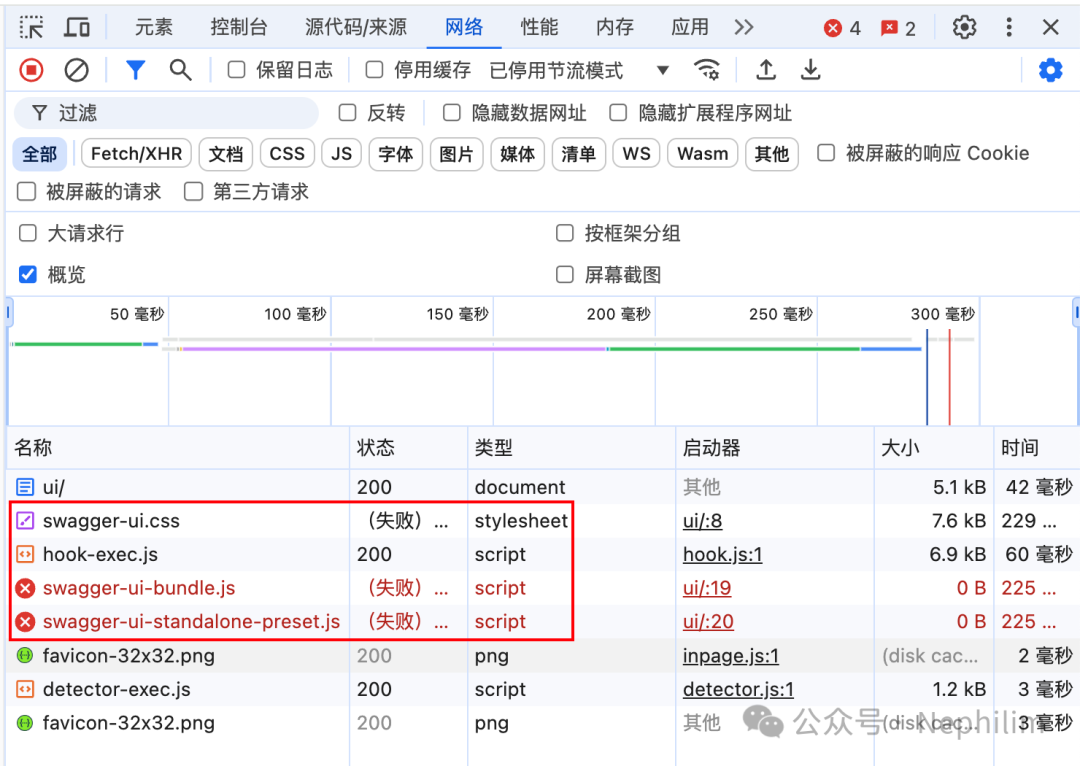

它的表现，具体如下所示：

问题原因

问题原因：

「drf-spectacular」默认不包含UI资源，采用CDN方式引入网络外部资源。

如果你无法访问CDN，则你的页面显示就会出现截图所示的空白。

解决方法：安装

安装：「drf-spectacular-sidecar」

首先，升级你的PIP：

(.venv) (base) adamhuan@Leviathan djangoProject_AdamhuanBase % python -V
Python 3.12.3
(.venv) (base) adamhuan@Leviathan djangoProject_AdamhuanBase % python -m pip install --upgrade pip
Looking in indexes: https://mirrors.aliyun.com/pypi/simple/
Requirement already satisfied: pip in ./.venv/lib/python3.12/site-packages (23.2.1)
Collecting pip
  Downloading https://mirrors.aliyun.com/pypi/packages/d4/55/90db48d85f7689ec6f81c0db0622d704306c5284850383c090e6c7195a5c/pip-24.2-py3-none-any.whl (1.8 MB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 1.8/1.8 MB 2.8 MB/s eta 0:00:00
Installing collected packages: pip
  Attempting uninstall: pip
    Found existing installation: pip 23.2.1
    Uninstalling pip-23.2.1:
      Successfully uninstalled pip-23.2.1
Successfully installed pip-24.2
(.venv) (base) adamhuan@Leviathan djangoProject_AdamhuanBase %

安装「PIPENV」

(.venv) (base) adamhuan@Leviathan djangoProject_AdamhuanBase % pip list | grep env
(.venv) (base) adamhuan@Leviathan djangoProject_AdamhuanBase %
(.venv) (base) adamhuan@Leviathan djangoProject_AdamhuanBase % pip install pipenv
Looking in indexes: https://mirrors.aliyun.com/pypi/simple/
Collecting pipenv
  Downloading https://mirrors.aliyun.com/pypi/packages/fd/45/9441892f5e7380ec5db371bfbd1f2f1659fed9bf2ea122f1fc20798afda7/pipenv-2024.1.0-py3-none-any.whl (3.0 MB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 3.0/3.0 MB 2.5 MB/s eta 0:00:00
Collecting certifi (from pipenv)
  Downloading https://mirrors.aliyun.com/pypi/packages/12/90/3c9ff0512038035f59d279fddeb79f5f1eccd8859f06d6163c58798b9487/certifi-2024.8.30-py3-none-any.whl (167 kB)
Collecting packaging>=22 (from pipenv)
  Downloading https://mirrors.aliyun.com/pypi/packages/08/aa/cc0199a5f0ad350994d660967a8efb233fe0416e4639146c089643407ce6/packaging-24.1-py3-none-any.whl (53 kB)
Collecting setuptools>=67 (from pipenv)
  Downloading https://mirrors.aliyun.com/pypi/packages/ff/ae/f19306b5a221f6a436d8f2238d5b80925004093fa3edea59835b514d9057/setuptools-75.1.0-py3-none-any.whl (1.2 MB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 1.2/1.2 MB 2.7 MB/s eta 0:00:00
Collecting virtualenv>=20.24.2 (from pipenv)
  Downloading https://mirrors.aliyun.com/pypi/packages/59/90/57b8ac0c8a231545adc7698c64c5a36fa7cd8e376c691b9bde877269f2eb/virtualenv-20.26.6-py3-none-any.whl (6.0 MB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 6.0/6.0 MB 2.5 MB/s eta 0:00:00
Collecting distlib<1,>=0.3.7 (from virtualenv>=20.24.2->pipenv)
  Downloading https://mirrors.aliyun.com/pypi/packages/91/a1/cf2472db20f7ce4a6be1253a81cfdf85ad9c7885ffbed7047fb72c24cf87/distlib-0.3.9-py2.py3-none-any.whl (468 kB)
Collecting filelock<4,>=3.12.2 (from virtualenv>=20.24.2->pipenv)
  Downloading https://mirrors.aliyun.com/pypi/packages/b9/f8/feced7779d755758a52d1f6635d990b8d98dc0a29fa568bbe0625f18fdf3/filelock-3.16.1-py3-none-any.whl (16 kB)
Collecting platformdirs<5,>=3.9.1 (from virtualenv>=20.24.2->pipenv)
  Downloading https://mirrors.aliyun.com/pypi/packages/3c/a6/bc1012356d8ece4d66dd75c4b9fc6c1f6650ddd5991e421177d9f8f671be/platformdirs-4.3.6-py3-none-any.whl (18 kB)
Installing collected packages: distlib, setuptools, platformdirs, packaging, filelock, certifi, virtualenv, pipenv
Successfully installed certifi-2024.8.30 distlib-0.3.9 filelock-3.16.1 packaging-24.1 pipenv-2024.1.0 platformdirs-4.3.6 setuptools-75.1.0 virtualenv-20.26.6
(.venv) (base) adamhuan@Leviathan djangoProject_AdamhuanBase %
(.venv) (base) adamhuan@Leviathan djangoProject_AdamhuanBase %
(.venv) (base) adamhuan@Leviathan djangoProject_AdamhuanBase % pip list | grep env
pipenv                    2024.1.0
virtualenv                20.26.6
(.venv) (base) adamhuan@Leviathan djangoProject_AdamhuanBase %
(.venv) (base) adamhuan@Leviathan djangoProject_AdamhuanBase % pipenv --version
pipenv, version 2024.1.0
(.venv) (base) adamhuan@Leviathan djangoProject_AdamhuanBase %
(.venv) (base) adamhuan@Leviathan djangoProject_AdamhuanBase %
(.venv) (base) adamhuan@Leviathan djangoProject_AdamhuanBase % pipenv -h
Usage: pipenv [OPTIONS] COMMAND [ARGS]...


Options:
  --where                         Output project home information.
  --venv                          Output virtualenv information.
  --py                            Output Python interpreter information.
  --envs                          Output Environment Variable options.
  --rm                            Remove the virtualenv.
  --bare                          Minimal output.
  --man                           Display manpage.
  --support                       Output diagnostic information for use in
                                  GitHub issues.
  --site-packages  --no-site-packages
                                  Enable site-packages for the virtualenv.

  --python TEXT                   Specify which version of Python virtualenv
                                  should use.
  --clear                         Clears caches (pipenv, pip).
  -q, --quiet                     Quiet mode.
  -v, --verbose                   Verbose mode.
  --pypi-mirror TEXT              Specify a PyPI mirror.
  --version                       Show the version and exit.
  -h, --help                      Show this message and exit.




Usage Examples:
   Create a new project using Python 3.7, specifically:
   $ pipenv --python 3.7


   Remove project virtualenv (inferred from current directory):
   $ pipenv --rm


   Install all dependencies for a project (including dev):
   $ pipenv install --dev


   Create a lockfile containing pre-releases:
   $ pipenv lock --pre


   Show a graph of your installed dependencies:
   $ pipenv graph


   Check your installed dependencies for security vulnerabilities:
   $ pipenv check


   Install a local setup.py into your virtual environment/Pipfile:
   $ pipenv install -e .


   Use a lower-level pip command:
   $ pipenv run pip freeze


Commands:
  check         Checks for PyUp Safety security vulnerabilities and against
                PEP 508 markers provided in Pipfile.
  clean         Uninstalls all packages not specified in Pipfile.lock.
  graph         Displays currently-installed dependency graph information.
  install       Installs provided packages and adds them to Pipfile, or (if no
                packages are given), installs all packages from Pipfile.
  lock          Generates Pipfile.lock.
  open          View a given module in your editor.
  requirements  Generate a requirements.txt from Pipfile.lock.
  run           Spawns a command installed into the virtualenv.
  scripts       Lists scripts in current environment config.
  shell         Spawns a shell within the virtualenv.
  sync          Installs all packages specified in Pipfile.lock.
  uninstall     Uninstalls a provided package and removes it from Pipfile.
  update        Runs lock, then sync.
  upgrade       Resolves provided packages and adds them to Pipfile, or (if no
                packages are given), merges results to Pipfile.lock
  verify        Verify the hash in Pipfile.lock is up-to-date.
(.venv) (base) adamhuan@Leviathan djangoProject_AdamhuanBase %

通过「PIPENV」安装「drf-spectacular-sidecar」

(.venv) (base) adamhuan@Leviathan djangoProject_AdamhuanBase % pipenv install drf-spectacular-sidecar
Courtesy Notice:
Pipenv found itself running within a virtual environment,  so it will automatically use that environment, instead of  creating its own for any project. You can set
PIPENV_IGNORE_VIRTUALENVS=1 to force pipenv to ignore that environment and create  its own instead.
You can set PIPENV_VERBOSITY=-1 to suppress this warning.
Creating a Pipfile for this project...
Installing drf-spectacular-sidecar...
Resolving drf-spectacular-sidecar...
Added drf-spectacular-sidecar to Pipfile's [packages] ...
✔ Installation Succeeded
Pipfile.lock not found, creating...
Locking [packages] dependencies...
Building requirements...
Resolving dependencies...
✔ Success!
Locking [dev-packages] dependencies...
Updated Pipfile.lock (90d9173b40dc9a953ce7d397eb2d2276190aba65ddb0511a29283ba9085c1b69)!
To activate this project's virtualenv, run pipenv shell.
Alternatively, run a command inside the virtualenv with pipenv run.
Installing dependencies from Pipfile.lock (5c1b69)...
(.venv) (base) adamhuan@Leviathan djangoProject_AdamhuanBase %

解决方法：配置

文件「settings.py」

最终，该文件「settings.py」的完整内容如下：

"""
Django settings for djangoProject_AdamhuanBase project.


Generated by 'django-admin startproject' using Django 5.1.2.


For more information on this file, see
https://docs.djangoproject.com/en/5.1/topics/settings/


For the full list of settings and their values, see
https://docs.djangoproject.com/en/5.1/ref/settings/
"""


from pathlib import Path


# Build paths inside the project like this: BASE_DIR  'subdir'.
BASE_DIR = Path(__file__).resolve().parent.parent




# Quick-start development settings - unsuitable for production
# See https://docs.djangoproject.com/en/5.1/howto/deployment/checklist/


# SECURITY WARNING: keep the secret key used in production secret!
SECRET_KEY = "django-insecure-b!+z92+09x957wqzbl@&6z*k3eakn)g$0pg^2h0_quaoh)pd5v"


# SECURITY WARNING: don't run with debug turned on in production!
DEBUG = True


ALLOWED_HOSTS = []




# Application definition

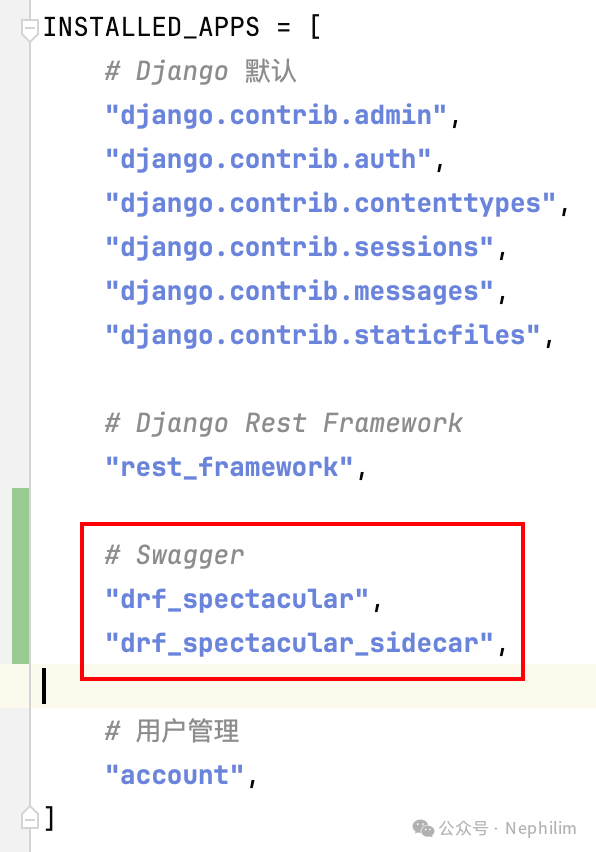

INSTALLED_APPS = [
    # Django 默认
    "django.contrib.admin",
    "django.contrib.auth",
    "django.contrib.contenttypes",
    "django.contrib.sessions",
    "django.contrib.messages",
    "django.contrib.staticfiles",


    # Django Rest Framework
    "rest_framework",


    # Swagger
    "drf_spectacular",
    "drf_spectacular_sidecar",


    # 用户管理
    "account",
]


MIDDLEWARE = [
    "django.middleware.security.SecurityMiddleware",
    "django.contrib.sessions.middleware.SessionMiddleware",
    "django.middleware.common.CommonMiddleware",
    "django.middleware.csrf.CsrfViewMiddleware",
    "django.contrib.auth.middleware.AuthenticationMiddleware",
    "django.contrib.messages.middleware.MessageMiddleware",
    "django.middleware.clickjacking.XFrameOptionsMiddleware",
]


ROOT_URLCONF = "djangoProject_AdamhuanBase.urls"


TEMPLATES = [
    {
        "BACKEND": "django.template.backends.django.DjangoTemplates",
        "DIRS": [BASE_DIR  'templates']
        ,
        "APP_DIRS": True,
        "OPTIONS": {
            "context_processors": [
                "django.template.context_processors.debug",
                "django.template.context_processors.request",
                "django.contrib.auth.context_processors.auth",
                "django.contrib.messages.context_processors.messages",
            ],
        },
    },
]


WSGI_APPLICATION = "djangoProject_AdamhuanBase.wsgi.application"




# Database
# https://docs.djangoproject.com/en/5.1/ref/settings/#databases


DATABASES = {
    "default": {
        "ENGINE": "django.db.backends.sqlite3",
        "NAME": BASE_DIR  "db.sqlite3",
    }
}




# Password validation
# https://docs.djangoproject.com/en/5.1/ref/settings/#auth-password-validators


AUTH_PASSWORD_VALIDATORS = [
    {
        "NAME": "django.contrib.auth.password_validation.UserAttributeSimilarityValidator",
    },
    {
        "NAME": "django.contrib.auth.password_validation.MinimumLengthValidator",
    },
    {
        "NAME": "django.contrib.auth.password_validation.CommonPasswordValidator",
    },
    {
        "NAME": "django.contrib.auth.password_validation.NumericPasswordValidator",
    },
]




# Internationalization
# https://docs.djangoproject.com/en/5.1/topics/i18n/


# LANGUAGE_CODE = "en-us"
LANGUAGE_CODE = "zh-hans"


# TIME_ZONE = "UTC"
TIME_ZONE = "Asia/Shanghai"


USE_I18N = True


USE_TZ = True




# Static files (CSS, JavaScript, Images)
# https://docs.djangoproject.com/en/5.1/howto/static-files/


STATIC_URL = "static/"


# Default primary key field type
# https://docs.djangoproject.com/en/5.1/ref/settings/#default-auto-field


DEFAULT_AUTO_FIELD = "django.db.models.BigAutoField"

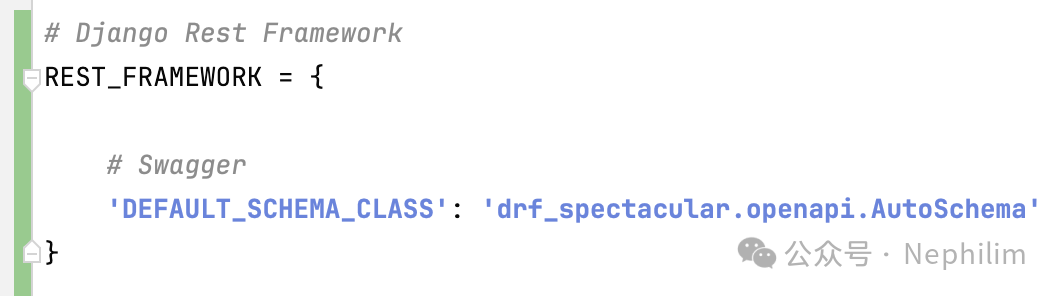

# Django Rest Framework
REST_FRAMEWORK = {


    # Swagger
    'DEFAULT_SCHEMA_CLASS': 'drf_spectacular.openapi.AutoSchema'
}


# Swagger


SPECTACULAR_SETTINGS = {
    # SIDECAR
    'SWAGGER_UI_DIST': 'SIDECAR',
    'SWAGGER_UI_FAVICON_HREF': 'SIDECAR',
    'REDOC_DIST': 'SIDECAR',


    # 自定义 OpenAPI 描述信息
    'TITLE': 'xxxxxxx',
    'DESCRIPTION': 'xxxxxxx',
    'VERSION': '1.0.0',
    'SERVE_INCLUDE_SCHEMA': False,
}

文件「urls.py」

"""
URL configuration for djangoProject_AdamhuanBase project.


The `urlpatterns` list routes URLs to views. For more information please see:
    https://docs.djangoproject.com/en/5.1/topics/http/urls/
Examples:
Function views
    1. Add an import:  from my_app import views
    2. Add a URL to urlpatterns:  path('', views.home, name='home')
Class-based views
    1. Add an import:  from other_app.views import Home
    2. Add a URL to urlpatterns:  path('', Home.as_view(), name='home')
Including another URLconf
    1. Import the include() function: from django.urls import include, path
    2. Add a URL to urlpatterns:  path('blog/', include('blog.urls'))
"""


from django.contrib import admin
from django.urls import path, include


# Swagger
from drf_spectacular.views import SpectacularJSONAPIView, SpectacularRedocView, SpectacularSwaggerView


urlpatterns = [


    # Swagger
    path('swagger/json/', SpectacularJSONAPIView.as_view(), name='schema'),
    path('swagger/ui/', SpectacularSwaggerView.as_view(url_name='schema',), name='swagger-ui'),
    path('swagger/redoc/', SpectacularRedocView.as_view(url_name='schema',), name='redoc'),


    # Django 管理页面
    path("admin/", admin.site.urls),


    # 用户管理
    path("account/", include("account.urls")),
]
