SpringBoot + Redis 实现一个轻量级的消息队列

IT实战联盟 2021-04-19

387

前言

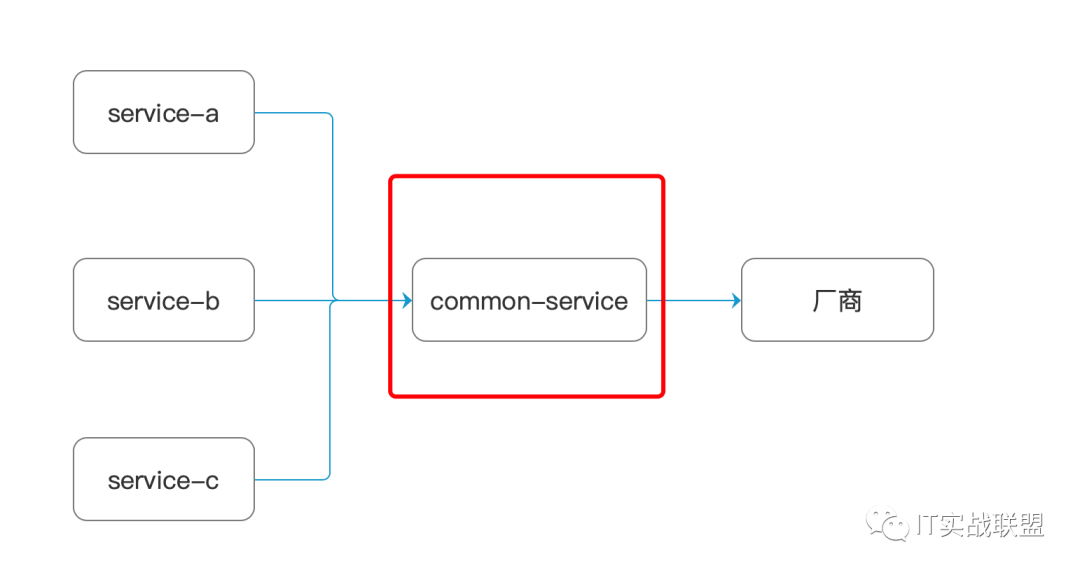

最近在开发一个需求，大致内容是需要对接第三方厂商获取有用的信息，为了减少公司内其他系统的接入成本（需要各种配置和验证比较复杂）打算单独开一个服务来对接厂商，然后对公司内其他系统开放API 进行统一接入，这样可以统一对请求、返回数据进行管理和监控。

问题

由于厂商返回的数据是有很多种状态，那么这些状态又不能返回给公司内部调用方。相当于 common-service 服务要对返回数据做持久化，为后续问题追溯做准备。对了并发请求是比较高的，返回数据不能同步写库。最先考虑到的是项目中引入 MQ 异步消费记录写入数据库中，但是要申请服务器资源自建MQ或者使用云平台的MQ中间件产品。

大家都懂的要申请新的资源是要经过层层审批的，最后还不一定拿到。基于这样的情况打算在现有的 Redis 上做文章，使用Redis 实现一个轻量级的消息队列来解决上述问题。

Redis 消息队列

行内称Redis 为“万金油” 啥都能干，不止作缓存服务器，哈哈！一般来说消息队列有2种业务场景：

发布订阅者模式
生产消费者模式

以上两种基于Redis都可以实现，这里不再做详细说明了，小伙伴们随便找找就能看到一堆说明。

实现步骤

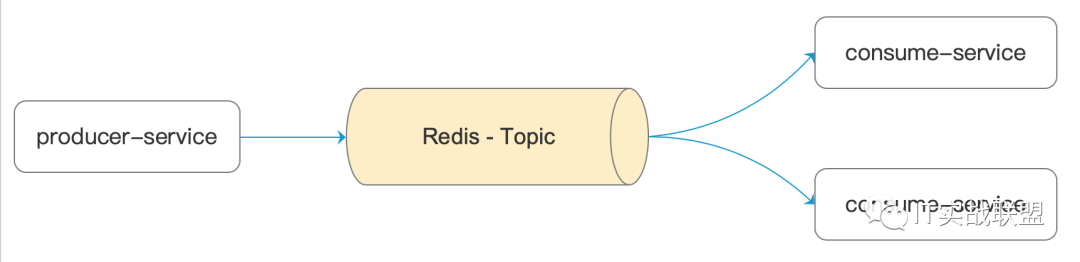

1、创建生产者和消费者服务

这里创建2个工程：

producer-service：生产者服务
consume-service：消费者服务

2、引入 Redis 依赖

SpringBoot 工程引入以下依赖：

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-data-redis</artifactId>
</dependency>

3、增加 Redis 相关配置

SpringBoot 工程的 application.yml 文件增加以下配置，修改个人的host/pasword：

spring:
  redis:
    host: 127.0.0.1
    port: 6379
    password: 123456
    jedis:
      pool:
        max-active: 10
        max-idle: 0
    timeout: 60000
    database: 0

4、生产者服务增加Config 配置

import com.fasterxml.jackson.annotation.JsonAutoDetect;
import com.fasterxml.jackson.annotation.PropertyAccessor;
import com.fasterxml.jackson.databind.ObjectMapper;
import org.springframework.cache.CacheManager;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.cache.RedisCacheConfiguration;
import org.springframework.data.redis.cache.RedisCacheManager;
import org.springframework.data.redis.cache.RedisCacheWriter;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.serializer.Jackson2JsonRedisSerializer;
import org.springframework.data.redis.serializer.RedisSerializationContext;
import org.springframework.data.redis.serializer.StringRedisSerializer;
import org.springframework.session.data.redis.config.ConfigureRedisAction;
import org.springframework.session.data.redis.config.annotation.web.http.EnableRedisHttpSession;

@Configuration
@EnableRedisHttpSession
public class RedisConfig {

    @Bean
    public RedisTemplate<Object, Object> redisTemplate(RedisConnectionFactory redisConnectionFactory) {
        RedisTemplate<Object, Object> redisTemplate = new RedisTemplate<>();
        redisTemplate.setConnectionFactory(redisConnectionFactory);

        // 使用Jackson2JsonRedisSerialize 替换默认的jdkSerializeable序列化
        Jackson2JsonRedisSerializer jackson2JsonRedisSerializer = new Jackson2JsonRedisSerializer(Object.class);

        ObjectMapper objectMapper = new ObjectMapper();
        objectMapper.setVisibility(PropertyAccessor.ALL, JsonAutoDetect.Visibility.ANY);
        objectMapper.enableDefaultTyping(ObjectMapper.DefaultTyping.NON_FINAL);

        jackson2JsonRedisSerializer.setObjectMapper(objectMapper);

        // 设置value的序列化规则和 key的序列化规则
        redisTemplate.setKeySerializer(new StringRedisSerializer());
        redisTemplate.setValueSerializer(jackson2JsonRedisSerializer);
        redisTemplate.afterPropertiesSet();
        return redisTemplate;
    }
    @Bean
    public CacheManager cacheManager(RedisConnectionFactory connectionFactory) {
        //初始化一个RedisCacheWriter
        RedisCacheWriter redisCacheWriter = RedisCacheWriter.nonLockingRedisCacheWriter(connectionFactory);

        Jackson2JsonRedisSerializer serializer = new Jackson2JsonRedisSerializer(Object.class);

        RedisSerializationContext.SerializationPair<Object> pair = RedisSerializationContext.SerializationPair.fromSerializer(serializer);

        RedisCacheConfiguration defaultCacheConfig=RedisCacheConfiguration.defaultCacheConfig().serializeValuesWith(pair);

        return new RedisCacheManager(redisCacheWriter, defaultCacheConfig);
    }
    @Bean
    public static ConfigureRedisAction configureRedisAction() {
        return ConfigureRedisAction.NO_OP;
    }
}

5、producer-service 发送消息

@Autowired
private RestTemplate restTemplate;

public void sendRedisMessage(){
    redisTemplate.convertAndSend("TOPIC_BLACK","这是一条消息......");
}

由于spring-redis内部是用
RedisMessageListenerContainer进行消息监听的，所以客户端程序需要自己实现MessageListener，并且要把指定的topic注册到RedisMessageListenerContainer，那么监听到topic上有消息，RedisMessageListenerContainer便会通知该MessageListener。

6、consume-service 添加Config配置

import com.fasterxml.jackson.annotation.JsonAutoDetect;
import com.fasterxml.jackson.annotation.PropertyAccessor;
import com.fasterxml.jackson.databind.ObjectMapper;
import org.springframework.boot.autoconfigure.AutoConfigureAfter;
import org.springframework.cache.CacheManager;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.cache.RedisCacheConfiguration;
import org.springframework.data.redis.cache.RedisCacheManager;
import org.springframework.data.redis.cache.RedisCacheWriter;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.listener.PatternTopic;
import org.springframework.data.redis.listener.RedisMessageListenerContainer;
import org.springframework.data.redis.listener.adapter.MessageListenerAdapter;
import org.springframework.data.redis.serializer.Jackson2JsonRedisSerializer;
import org.springframework.data.redis.serializer.RedisSerializationContext;
import org.springframework.data.redis.serializer.StringRedisSerializer;

@Configuration
@AutoConfigureAfter({Receiver.class})
public class RedisConfig {
    /**
     * 消息监听适配器，注入接受消息方法，输入方法名字 反射方法
     *
     * @param receiver
     * @return
     */
    @Bean
    public MessageListenerAdapter getMessageListenerAdapter(Receiver receiver) {
        return new MessageListenerAdapter(receiver, "receiveMessage"); //当没有继承MessageListener时需要写方法名字
    }

    /**
     * 创建消息监听容器
     *
     * @param redisConnectionFactory
     * @param messageListenerAdapter
     * @return
     */
    @Bean
    public RedisMessageListenerContainer getRedisMessageListenerContainer(RedisConnectionFactory redisConnectionFactory, MessageListenerAdapter messageListenerAdapter) {
        RedisMessageListenerContainer redisMessageListenerContainer = new RedisMessageListenerContainer();
        redisMessageListenerContainer.setConnectionFactory(redisConnectionFactory);
        redisMessageListenerContainer.addMessageListener(messageListenerAdapter, new PatternTopic("TOPIC_BLACK"));
        return redisMessageListenerContainer;
    }


    @Bean
    public RedisTemplate<Object, Object> redisTemplate(RedisConnectionFactory redisConnectionFactory) {
        RedisTemplate<Object, Object> redisTemplate = new RedisTemplate<>();
        redisTemplate.setConnectionFactory(redisConnectionFactory);

        // 使用Jackson2JsonRedisSerialize 替换默认的jdkSerializeable序列化
        Jackson2JsonRedisSerializer jackson2JsonRedisSerializer = new Jackson2JsonRedisSerializer(Object.class);

        ObjectMapper objectMapper = new ObjectMapper();
        objectMapper.setVisibility(PropertyAccessor.ALL, JsonAutoDetect.Visibility.ANY);
        objectMapper.enableDefaultTyping(ObjectMapper.DefaultTyping.NON_FINAL);

        jackson2JsonRedisSerializer.setObjectMapper(objectMapper);

        // 设置value的序列化规则和 key的序列化规则
        redisTemplate.setKeySerializer(new StringRedisSerializer());
        redisTemplate.setValueSerializer(jackson2JsonRedisSerializer);
        redisTemplate.afterPropertiesSet();
        return redisTemplate;
    }
    @Bean
    public CacheManager cacheManager(RedisConnectionFactory connectionFactory) {
        //初始化一个RedisCacheWriter
        RedisCacheWriter redisCacheWriter = RedisCacheWriter.nonLockingRedisCacheWriter(connectionFactory);

        Jackson2JsonRedisSerializer serializer = new Jackson2JsonRedisSerializer(Object.class);

        RedisSerializationContext.SerializationPair<Object> pair = RedisSerializationContext.SerializationPair.fromSerializer(serializer);

        RedisCacheConfiguration defaultCacheConfig=RedisCacheConfiguration.defaultCacheConfig().serializeValuesWith(pair);

        return new RedisCacheManager(redisCacheWriter, defaultCacheConfig);
    }
}

7、consume-service 监听Topic消息

import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.connection.Message;
import org.springframework.data.redis.connection.MessageListener;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.data.redis.serializer.RedisSerializer;
import org.springframework.stereotype.Component;
import org.apache.commons.lang3.StringEscapeUtils;


@Component
@Slf4j
public class Receiver implements MessageListener {
    @Autowired
    private StringRedisTemplate stringRedisTemplate;

    @Override
    public void onMessage(Message message, byte[] pattern) {
        RedisSerializer<String> valueSerializer = stringRedisTemplate.getStringSerializer();
        String deserialize = valueSerializer.deserialize(message.getBody());
        log.info("收到的mq消息" + deserialize);
        //TODO 写入数据库业务 省略......
    }
}

好了，上面就是实现的核心代码，有问题可以留言讨哦~~~
