开篇

在文章<RocketMQ的事务消息>一文中, 我们介绍了RocketMQ事务实现的基本原理, 并且给出了一个简单的Demo. 这篇文章我们就要通过源码的解读着重看看其实现的原理. 为了便于后面的分析, 我们把上篇中实现的事务监听拿过来:

@Slf4j
@Component
@RocketMQTransactionListener(rocketMQTemplateBeanName = "extRocketMQTemplate")
public class TransactionListenerImpl implements RocketMQLocalTransactionListener {


    @Resource
    private TestOrderService testOrderService;


    @Override
    public RocketMQLocalTransactionState executeLocalTransaction(org.springframework.messaging.Message message, Object o) {
        log.info("执行本地事务, 消息:{}", JSONObject.toJSONString(message));


        // 执行本地业务逻辑, 如果本地事务执行成功, 则通知Broker可以提交消息让Consumer进行消费


        TestOrder testOrder = (TestOrder) o;
        try {
            boolean success = testOrderService.createOrder(testOrder);
            return success ? RocketMQLocalTransactionState.COMMIT : RocketMQLocalTransactionState.UNKNOWN;


        } catch (Exception e) {
            log.info("本地任务执行异常: {}", e.getMessage());


            return RocketMQLocalTransactionState.ROLLBACK;
        }
    }


    @Override
    public RocketMQLocalTransactionState checkLocalTransaction(org.springframework.messaging.Message message) {
        log.info("check local transaction ");
        // 提供事务执行状态的回查方法，提供给broker回调
        // 正常情况下不会调用到
        String orderId = (String) message.getPayload();
        TestOrder testOrder = testOrderService.queryByOrderId(orderId);


        if (ObjectUtil.isNotNull(testOrder)) {
            return RocketMQLocalTransactionState.COMMIT;
        } else {
            return RocketMQLocalTransactionState.ROLLBACK;
        }
    }
}

从实现中我们可以看到我们主要实现了接口RocketMQLocalTransactionListener, 但是这是rocketmq-spring-boot-starter封装的接口, 它的实际使用可以在源码RocketMQTransactionConfiguration和RocketMQUtil中到:

@Configuration
public class RocketMQTransactionConfiguration implements ApplicationContextAware, SmartInitializingSingleton {
    // 省略....
    private void registerTransactionListener(String beanName, Object bean) {
        Class<?> clazz = AopProxyUtils.ultimateTargetClass(bean);


        if (!RocketMQLocalTransactionListener.class.isAssignableFrom(bean.getClass())) {
            throw new IllegalStateException(clazz + " is not instance of " + RocketMQLocalTransactionListener.class.getName());
        }
        RocketMQTransactionListener annotation = clazz.getAnnotation(RocketMQTransactionListener.class);
        RocketMQTemplate rocketMQTemplate = (RocketMQTemplate) applicationContext.getBean(annotation.rocketMQTemplateBeanName());
        if (((TransactionMQProducer) rocketMQTemplate.getProducer()).getTransactionListener() != null) {
            throw new IllegalStateException(annotation.rocketMQTemplateBeanName() + " already exists RocketMQLocalTransactionListener");
        }
        ((TransactionMQProducer) rocketMQTemplate.getProducer()).setExecutorService(new ThreadPoolExecutor(annotation.corePoolSize(), annotation.maximumPoolSize(),
            annotation.keepAliveTime(), TimeUnit.MILLISECONDS, new LinkedBlockingDeque<>(annotation.blockingQueueSize())));
        // 核心: 使用RocketMQUtil进行了转换
        ((TransactionMQProducer) rocketMQTemplate.getProducer()).setTransactionListener(RocketMQUtil.convert((RocketMQLocalTransactionListener) bean));
        log.debug("RocketMQLocalTransactionListener {} register to {} success", clazz.getName(), annotation.rocketMQTemplateBeanName());
    }
}


// 转换的核心逻辑
public static TransactionListener convert(RocketMQLocalTransactionListener listener) {
        // 转换成TransactionListener
        return new TransactionListener() {
            @Override
            public LocalTransactionState executeLocalTransaction(Message message, Object obj) {
                RocketMQLocalTransactionState state = listener.executeLocalTransaction(convertToSpringMessage(message), obj);
                return convertLocalTransactionState(state);
            }


            @Override
            public LocalTransactionState checkLocalTransaction(MessageExt messageExt) {
                RocketMQLocalTransactionState state = listener.checkLocalTransaction(convertToSpringMessage(messageExt));
                return convertLocalTransactionState(state);
            }
        };
    }

所以RocketMQ的实现核心在接口TransactionListener, 下面就进入我们今天的主题, 看看TransactionListener是如何实现事务的.

RocketMQ的事务源码

public interface TransactionListener {
    LocalTransactionState executeLocalTransaction(Message var1, Object var2);


    LocalTransactionState checkLocalTransaction(MessageExt var1);
}

这个接口需要实现两个方法：

executeLocalTransaction：执行本地事务，在这里我们直接把订单数据插入到数据库中，并返回本地事务的执行结果。

checkLocalTransaction：反查本地事务，在这里我们的处理是，在数据库中查询订单号是否存在，如果存在则提交事务，如果不存在，可能是本地事务失败了，也可能是本地事务还在执行，所以返回 UNKNOW。

Producer发送事务消息

接下来我们再来看看RocketMQ producer 是如何发送事务消息的.

    public TransactionSendResult sendMessageInTransaction(final Message msg,
        final LocalTransactionExecuter localTransactionExecuter, final Object arg)
        throws MQClientException {
        TransactionListener transactionListener = getCheckListener();
        if (null == localTransactionExecuter && null == transactionListener) {
            throw new MQClientException("tranExecutor is null", null);
        }


        // ignore DelayTimeLevel parameter
        if (msg.getDelayTimeLevel() != 0) {
            MessageAccessor.clearProperty(msg, MessageConst.PROPERTY_DELAY_TIME_LEVEL);
        }


        Validators.checkMessage(msg, this.defaultMQProducer);


        SendResult sendResult = null;
        // 这个给消息添加属性, 标明消息是事务消息, 也就是半消息
        MessageAccessor.putProperty(msg, MessageConst.PROPERTY_TRANSACTION_PREPARED, "true");
        MessageAccessor.putProperty(msg, MessageConst.PROPERTY_PRODUCER_GROUP, this.defaultMQProducer.getProducerGroup());

        //调用发送消息的方法, 发送这条半消息
        try {
            sendResult = this.send(msg);
        } catch (Exception e) {
            throw new MQClientException("send message Exception", e);
        }


        LocalTransactionState localTransactionState = LocalTransactionState.UNKNOW;
        Throwable localException = null;
        switch (sendResult.getSendStatus()) {
            case SEND_OK: {
                try {
                    if (sendResult.getTransactionId() != null) {
                        msg.putUserProperty("__transactionId__", sendResult.getTransactionId());
                    }
                    String transactionId = msg.getProperty(MessageConst.PROPERTY_UNIQ_CLIENT_MESSAGE_ID_KEYIDX);
                    if (null != transactionId && !"".equals(transactionId)) {
                        msg.setTransactionId(transactionId);
                    }
                    if (null != localTransactionExecuter) {
                        localTransactionState = localTransactionExecuter.executeLocalTransactionBranch(msg, arg);
                    } else if (transactionListener != null) {
                        log.debug("Used new transaction API");
                        // 执行本地事务
                        localTransactionState = transactionListener.executeLocalTransaction(msg, arg);
                    }
                    if (null == localTransactionState) {
                        localTransactionState = LocalTransactionState.UNKNOW;
                    }


                    if (localTransactionState != LocalTransactionState.COMMIT_MESSAGE) {
                        log.info("executeLocalTransactionBranch return {}", localTransactionState);
                        log.info(msg.toString());
                    }
                } catch (Throwable e) {
                    log.info("executeLocalTransactionBranch exception", e);
                    log.info(msg.toString());
                    localException = e;
                }
            }
            break;
            case FLUSH_DISK_TIMEOUT:
            case FLUSH_SLAVE_TIMEOUT:
            case SLAVE_NOT_AVAILABLE:
                localTransactionState = LocalTransactionState.ROLLBACK_MESSAGE;
                break;
            default:
                break;
        }


        // 根据本地事务返回结果(localTransactionState)和事务消息的结果(sendResult) , 向Broker发送或提交事务消息请求

        try {
            this.endTransaction(sendResult, localTransactionState, localException);
        } catch (Exception e) {
            log.warn("local transaction execute " + localTransactionState + ", but end broker transaction failed", e);
        }


        // 构造事务消息的返回结果
        TransactionSendResult transactionSendResult = new TransactionSendResult();
        transactionSendResult.setSendStatus(sendResult.getSendStatus());
        transactionSendResult.setMessageQueue(sendResult.getMessageQueue());
        transactionSendResult.setMsgId(sendResult.getMsgId());
        transactionSendResult.setQueueOffset(sendResult.getQueueOffset());
        transactionSendResult.setTransactionId(sendResult.getTransactionId());
        transactionSendResult.setLocalTransactionState(localTransactionState);
        return transactionSendResult;
    }

首先给待发送消息添加了一个属性 PROPERTY_TRANSACTION_PREPARED，表明这是一个事务消息，也就是半消息，然后会像发送普通消息一样去把这条消息发送到 Broker 上。如果发送成功了，就开始调用我们之前提供的接口 TransactionListener 的实现类中，执行本地事务的方法 executeLocalTransaction() 来执行本地事务，在我们的例子中就是在数据库中插入一条订单记录。

最后，根据半消息发送的结果和本地事务执行的结果，来决定提交或者回滚事务。在实现方法 endTransaction() 中，producer 就是给 Broker 发送了一个单向的 RPC 请求，告知 Broker 完成事务的提交或者回滚。由于有事务反查的机制来兜底，这个 RPC 请求即使失败或者丢失，也都不会影响事务最终的结果。最后构建事务消息的发送结果，并返回。

Broker处理事务消息

然后, 我们再去看看Broker在收到消息后是如何处理的, 核心代码如下, 这段代码在package org.apache.rocketmq.broker.processor.SendMessageProcessor中, 网上给出的很多源码解读的文章都是在方法SendMessage()方法,自己拉下代码可以看到用的已经是异步的方法了.

    private CompletableFuture<RemotingCommand> asyncSendMessage(ChannelHandlerContext ctx, RemotingCommand request,
                                                                SendMessageContext mqtraceContext,
                                                                SendMessageRequestHeader requestHeader) {


        //省略.....

        CompletableFuture<PutMessageResult> putMessageResult = null;
        Map<String, String> origProps = MessageDecoder.string2messageProperties(requestHeader.getProperties());

        // 根据是否是事务消息的标志, 选择发送事务消息还是普通消息
        String transFlag = origProps.get(MessageConst.PROPERTY_TRANSACTION_PREPARED);
        if (transFlag != null && Boolean.parseBoolean(transFlag)) {
            if (this.brokerController.getBrokerConfig().isRejectTransactionMessage()) {
                response.setCode(ResponseCode.NO_PERMISSION);
                response.setRemark(
                        "the broker[" + this.brokerController.getBrokerConfig().getBrokerIP1()
                                + "] sending transaction message is forbidden");
                return CompletableFuture.completedFuture(response);
            }
            // 发送事务消息
            putMessageResult = this.brokerController.getTransactionalMessageService().asyncPrepareMessage(msgInner);
        } else {
            // 发送普通消息
            putMessageResult = this.brokerController.getMessageStore().asyncPutMessage(msgInner);
        }
        return handlePutMessageResultFuture(putMessageResult, response, request, msgInner, responseHeader, mqtraceContext, ctx, queueIdInt);
    }

这段代码主要是根据是否是事务消息的标志, 决定是进行事务消息的存储, 还是普通消息的存储, 我们关注的是事务消息, 所以顺着21行的代码继续往下看:

    public CompletableFuture<PutMessageResult> asyncPutHalfMessage(MessageExtBrokerInner messageInner) {
        return store.asyncPutMessage(parseHalfMessageInner(messageInner));
    }


//  这里几下了消息的实际队列和这题, 然后又在12行重新set了一个新的主题: TopicValidator.RMQ_SYS_TRANS_HALF_TOPIC;
    private MessageExtBrokerInner parseHalfMessageInner(MessageExtBrokerInner msgInner) {
        MessageAccessor.putProperty(msgInner, MessageConst.PROPERTY_REAL_TOPIC, msgInner.getTopic());
        MessageAccessor.putProperty(msgInner, MessageConst.PROPERTY_REAL_QUEUE_ID,
            String.valueOf(msgInner.getQueueId()));
        msgInner.setSysFlag(
            MessageSysFlag.resetTransactionValue(msgInner.getSysFlag(), MessageSysFlag.TRANSACTION_NOT_TYPE));
        msgInner.setTopic(TransactionalMessageUtil.buildHalfTopic());
        msgInner.setQueueId(0);
        msgInner.setPropertiesString(MessageDecoder.messageProperties2String(msgInner.getProperties()));
        return msgInner;
    }

在这段代码中，RocketMQ 并没有把半消息保存到消息中客户端指定的那个队列中，而是记录了原始的主题队列后，把这个半消息保存在了一个特殊的内部主题 RMQ_SYS_TRANS_HALF_TOPIC 中，使用的队列号固定为 0。这个主题和队列对消费者是不可见的，所以里面的消息永远不会被消费。这样，就保证了在事务提交成功之前，这个半消息对消费者来说是消费不到的。到这里，Broker 就初步处理完了 Producer 发送的事务半消息。

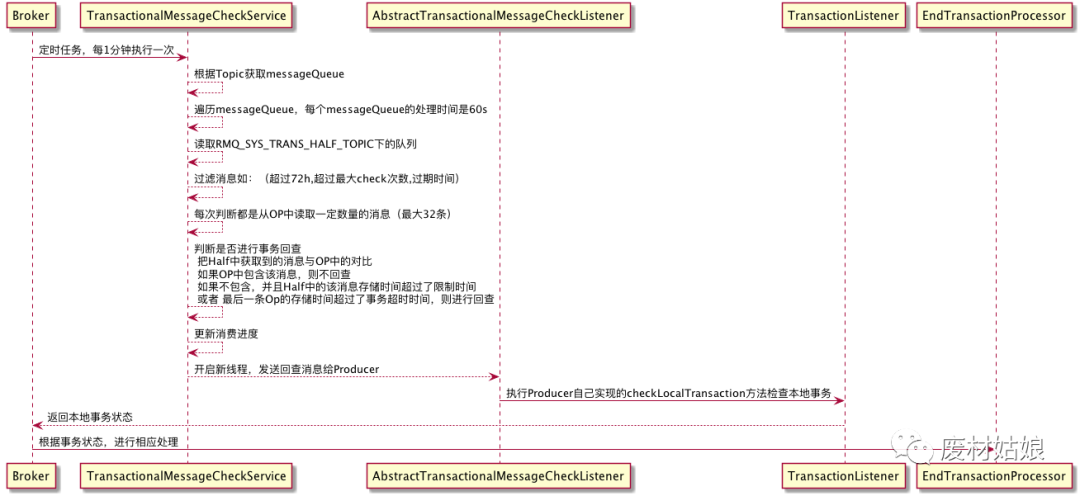

半消息事务回查

在org.apache.rocketmq.broker.transaction.TransactionalMessageCheckService类中, 定义了一个定时任务(没分钟执行一次)用于半消息的事务会查.

    @Override
    public void run() {
        log.info("Start transaction check service thread!");
        // 定时任务时间间隔
        long checkInterval = brokerController.getBrokerConfig().getTransactionCheckInterval();
        while (!this.isStopped()) {
            this.waitForRunning(checkInterval);
        }
        log.info("End transaction check service thread!");
    }


    @Override
    protected void onWaitEnd() {
        long timeout = brokerController.getBrokerConfig().getTransactionTimeOut();
        int checkMax = brokerController.getBrokerConfig().getTransactionCheckMax();
        long begin = System.currentTimeMillis();
        log.info("Begin to check prepare message, begin time:{}", begin);
        // 事务消息回查
        this.brokerController.getTransactionalMessageService().check(timeout, checkMax, this.brokerController.getTransactionalMessageCheckListener());
        log.info("End to check prepare message, consumed time:{}", System.currentTimeMillis() - begin);
    }

核心的逻辑在底19行, 调用check()方法


    @Override
    public void check(long transactionTimeout, int transactionCheckMax,
        AbstractTransactionalMessageCheckListener listener) {
        try {
            String topic = TopicValidator.RMQ_SYS_TRANS_HALF_TOPIC;
            Set<MessageQueue> msgQueues = transactionalMessageBridge.fetchMessageQueues(topic);
            if (msgQueues == null || msgQueues.size() == 0) {
                log.warn("The queue of topic is empty :" + topic);
                return;
            }
            log.debug("Check topic={}, queues={}", topic, msgQueues);
            // 遍历所有半消息队列
            for (MessageQueue messageQueue : msgQueues) {
                // ...... 省略
                while (true) {
                    // .....省略

                       // 实际去回查的地方
                        if (isNeedCheck) {
                            if (!putBackHalfMsgQueue(msgExt, i)) {
                                continue;
                            }
                            listener.resolveHalfMsg(msgExt);
                        } else {
                            pullResult = fillOpRemoveMap(removeMap, opQueue, pullResult.getNextBeginOffset(), halfOffset, doneOpOffset);
                            log.debug("The miss offset:{} in messageQueue:{} need to get more opMsg, result is:{}", i,
                                messageQueue, pullResult);
                            continue;
                        }
                    }
                    newOffset = i + 1;
                    i++;
                }
            //.....省略
        } catch (Throwable e) {
            log.error("Check error", e);
        }


    }

这段代码的主要逻辑主要维护两个主题的队列RMQ_SYS_TRANS_HALF_TOPIC 和RMQ_SYS_TRANS_OP_HALF_TOPIC, 前者是半消息队列, 后者是执行结束后存放消息的队列. 遍历半消息队列中的消息,如果已经存在于RMQ_SYS_TRANS_OP_HALF_TOPIC主题中, 则直接标记为完成, 如果没在完成的队列中, 则会判断是否具有回查条件, 如果有, 则回查并根据回查结果进行相应的处理.

RMQ_SYS_TRANS_HALF_TOPIC
prepare消息的主题，事务消息首先先进入到该主题。
RMQ_SYS_TRANS_OP_HALF_TOPIC
当消息服务器收到事务消息的提交或回滚请求后，会将消息存储在该主题下。

Broker处理END_TRANSACTION

 // org.apache.rocketmq.broker.processor.EndTransactionProcessor


@Override
    public RemotingCommand processRequest(ChannelHandlerContext ctx, RemotingCommand request) throws
        RemotingCommandException {
        final RemotingCommand response = RemotingCommand.createResponseCommand(null);
        final EndTransactionRequestHeader requestHeader =
            (EndTransactionRequestHeader)request.decodeCommandCustomHeader(EndTransactionRequestHeader.class);
        LOGGER.debug("Transaction request:{}", requestHeader);
        if (BrokerRole.SLAVE == brokerController.getMessageStoreConfig().getBrokerRole()) {
            response.setCode(ResponseCode.SLAVE_NOT_AVAILABLE);
            LOGGER.warn("Message store is slave mode, so end transaction is forbidden. ");
            return response;
        }

        OperationResult result = new OperationResult();
       //进入事务消息提交处理流程
        if (MessageSysFlag.TRANSACTION_COMMIT_TYPE == requestHeader.getCommitOrRollback()) {
            //根据commitLogOffset从commitlog文件中查找消息
            result = this.brokerController.getTransactionalMessageService().commitMessage(requestHeader);
            if (result.getResponseCode() == ResponseCode.SUCCESS) {
                RemotingCommand res = checkPrepareMessage(result.getPrepareMessage(), requestHeader);
                if (res.getCode() == ResponseCode.SUCCESS) {
                    //恢复事务消息的真实的主题、队列，并设置事务ID
                    MessageExtBrokerInner msgInner = endMessageTransaction(result.getPrepareMessage());
                    msgInner.setSysFlag(MessageSysFlag.resetTransactionValue(msgInner.getSysFlag(), requestHeader.getCommitOrRollback()));
                    msgInner.setQueueOffset(requestHeader.getTranStateTableOffset());
                    msgInner.setPreparedTransactionOffset(requestHeader.getCommitLogOffset());
                    msgInner.setStoreTimestamp(result.getPrepareMessage().getStoreTimestamp());
                    MessageAccessor.clearProperty(msgInner, MessageConst.PROPERTY_TRANSACTION_PREPARED);

                    //发送最终消息,被consumer消费
                    RemotingCommand sendResult = sendFinalMessage(msgInner);
                    if (sendResult.getCode() == ResponseCode.SUCCESS) {
                         //删除预处理消息(prepare)
                        //其实是将消息存储在主题为：RMQ_SYS_TRANS_OP_HALF_TOPIC的主题中，代表这些消息已经被处理（提交或回滚）。
                        this.brokerController.getTransactionalMessageService().deletePrepareMessage(result.getPrepareMessage());
                    }
                    return sendResult;
                }
                return res;
            }
            // 回滚事务的处理流程
        } else if (MessageSysFlag.TRANSACTION_ROLLBACK_TYPE == requestHeader.getCommitOrRollback()) {
            result = this.brokerController.getTransactionalMessageService().rollbackMessage(requestHeader);
            if (result.getResponseCode() == ResponseCode.SUCCESS) {
                RemotingCommand res = checkPrepareMessage(result.getPrepareMessage(), requestHeader);
                if (res.getCode() == ResponseCode.SUCCESS) {
                    //删除预处理消息(prepare)
                    //将消息存储在RMQ_SYS_TRANS_OP_HALF_TOPIC中，代表该消息已被处理
                    this.brokerController.getTransactionalMessageService().deletePrepareMessage(result.getPrepareMessage());
                }
                return res;
            }
        }
        response.setCode(result.getResponseCode());
        response.setRemark(result.getResponseRemark());
        return response;
    }

这里的核心逻辑是：

根据commitlogOffset找到消息
如果是提交动作，就恢复原消息的主题与队列，再次存入commitlog文件进而转到消息消费队列，供消费者消费，然后将原预处理消息存入一个新的主题RMQ_SYS_TRANS_OP_HALF_TOPIC，代表该消息已被处理
回滚消息，则直接将原预处理消息存入一个新的主题RMQ_SYS_TRANS_OP_HALF_TOPIC，代表该消息已被处理

数据库

文章转载自废材姑娘，如果涉嫌侵权，请发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。
