1.前言部分

1.1首先对喜欢认可《Oracle 高性能自动化运维》小伙伴说声诚挚的抱歉，前几年忙于工作上事情，确实疏忽了关注邮箱信息。最近翻阅以前文档记录，准备将部分源码提供下载，同时作为补偿会分享一些可用于自动化运维/监控的脚本（某监控项目），希望没有影响别人的利益。

1.2作为后续，希望大家可以多交流，技术工作上的都可以。在目前复杂的去O、开源、信创国产化环境，抱团取暖才是正途。

1.3附录下载(第9章)，需要的请加V(tompson666)。

2.说明内容

说实话，本人不怎么会运营公众号，至于为什么要启用，回答是受到朋友启发。

初衷是：公众号主要用于学习交流，说得比较直白的话就是，笔者当年也是从小白过来的，通过不断"白嫖"前辈同行经验升级入行，也希望能够被别人"白嫖"，用马斯洛的模型来说，是精神上的满足。

3.关于DBA未来？

对于这个绕不开的话题，可能大家有时候都会迷茫。通过个人的经验就是：多元化技能储备，坦然面对。

4.正题部分

4.1Histograms and Selectivity(公式限制性使用）

Histogram选择率Selectivity计算：

pop/nonpop值针对高度均衡直方图，宽度均衡每个ndv都在单个buckets不跨界

1.Sel of popvalue

S(col = popvalue) = (popvalue buckets/total buckets)

2.Sel of nonpopvalue

--高度均衡

S(col = nonpopvalue) = density

Density =(1/# NP values)* (NP buckets#/Total buckets)

3.Sel of buckets with endpoints <= value

S(col <= value) = (buckets with endpoints <= value)/(total # buckets)

4.2基础数据准备

create table t_histogram_height(id,id_skew )
as
with set1 as(
select rownum as id ,mod(rownum,7） as id_skew
from dba_objects where rownum<=1000)
select * from set1
-------
create table t_histogram_width(id,id_skew )
as
with set1 as(
select rownum as id ,mod(rownum,7） as id_skew
from dba_objects where rownum<=1000)
select * from set1




--查询分布
select id_skew as id_skew,
count(*) as cardinality,
sum(count(*)) over
(order by id_skew
range unbounded preceding) as sum_cardinality
from t_histogram_width
group by id_skew;
SQL>   2    3    4    5    6    7
   ID_SKEW CARDINALITY SUM_CARDINALITY
---------- ----------- ---------------
         0         142             142
         1         143             285
         2         143             428
         3         143             571
         4         143             714
         5         143             857
         6         143            1000
--7个ndv
--创建宽度均衡衡直方图(buckets>=num_ndv):


begin
dbms_stats.gather_table_stats(
ownname => 'CBO',
tabname => 't_histogram_height',
estimate_percent => 50,
method_opt => 'FOR COLUMNS SIZE 7 id_skew',                --在ID列上创建7个直方图,如果创建buckets大于ndv,也是创建宽度均衡直方图
degree => 4,
cascade => true);
end;
--查询直方图信息
SQL> select * from dba_histograms h where h.TABLE_NAME=upper('t_histogram_width');
OWNER      TABLE_NAME                     COLUMN_NAME          ENDPOINT_NUMBER ENDPOINT_VALUE ENDPOINT_ACTUAL_VALUE
---------- ------------------------------ -------------------- --------------- -------------- ------------------------------
CBO        T_HISTOGRAM_WIDTH              ID                                 0              1
CBO        T_HISTOGRAM_WIDTH              ID                                 1            143
CBO        T_HISTOGRAM_WIDTH              ID                                 2            286
CBO        T_HISTOGRAM_WIDTH              ID                                 3            429
CBO        T_HISTOGRAM_WIDTH              ID                                 4            572
CBO        T_HISTOGRAM_WIDTH              ID                                 5            715
CBO        T_HISTOGRAM_WIDTH              ID                                 6            858
CBO        T_HISTOGRAM_WIDTH              ID                                 7           1000


SQL> select t.owner,t.table_name,t.column_name,t.num_distinct,t.num_nulls,t.density,t.HISTOGRAM from dba_tab_col_statistics t where t.table_name='T_HISTOGRAM_WIDTH';
OWNER      TABLE_NAME                     COLUMN_NAME          NUM_DISTINCT  NUM_NULLS    DENSITY HISTOGRAM
---------- ------------------------------ -------------------- ------------ ---------- ---------- ---------------
CBO        T_HISTOGRAM_WIDTH              ID_SKEW                         7          0      .0005 FREQUENCY                              -->宽度/频度均衡,buckets=ndv(7)
CBO        T_HISTOGRAM_WIDTH              ID                           1000          0       .001 HEIGHT BALANCED                      -->高度均衡,bucket(7)<ndv（1000）






-------eg:高度均衡
begin
dbms_stats.gather_table_stats(
ownname => 'CBO',
tabname => 't_histogram_height',
estimate_percent => 50,
method_opt => 'FOR ALL COLUMNS SIZE 5',                --在ID列上创建5个bucktes<ndv(7)，高度均衡
degree => 4,
cascade => true);
end;


SQL>  select * from dba_histograms h where h.TABLE_NAME=upper('t_histogram_height');
OWNER      TABLE_NAME                     COLUMN_NAME          ENDPOINT_NUMBER ENDPOINT_VALUE ENDPOINT_ACTUAL_VALUE
---------- ------------------------------ -------------------- --------------- -------------- ------------------------------
CBO        T_HISTOGRAM_HEIGHT             ID                                 0              1
CBO        T_HISTOGRAM_HEIGHT             ID                                 1            200
CBO        T_HISTOGRAM_HEIGHT             ID                                 2            400
CBO        T_HISTOGRAM_HEIGHT             ID                                 3            600
CBO        T_HISTOGRAM_HEIGHT             ID                                 4            800
CBO        T_HISTOGRAM_HEIGHT             ID                                 5           1000
CBO        T_HISTOGRAM_HEIGHT             ID_SKEW                            0              0
CBO        T_HISTOGRAM_HEIGHT             ID_SKEW                            1              1
CBO        T_HISTOGRAM_HEIGHT             ID_SKEW                            2              2
CBO        T_HISTOGRAM_HEIGHT             ID_SKEW                            3              4
CBO        T_HISTOGRAM_HEIGHT             ID_SKEW                            4              5
CBO        T_HISTOGRAM_HEIGHT             ID_SKEW                            5              6         -->5buckets
--
SQL> select t.owner,t.table_name,t.column_name,t.num_distinct,t.num_nulls,t.density,t.HISTOGRAM from dba_tab_col_statistics t where t.table_name='T_HISTOGRAM_HEIGHT';


OWNER      TABLE_NAME                     COLUMN_NAME          NUM_DISTINCT  NUM_NULLS    DENSITY HISTOGRAM
---------- ------------------------------ -------------------- ------------ ---------- ---------- ---------------
CBO        T_HISTOGRAM_HEIGHT             ID_SKEW                         7          0    .142858 HEIGHT BALANCED       -->高度均衡
CBO        T_HISTOGRAM_HEIGHT             ID                           1000          0       .001 HEIGHT BALANCED

4.3Histogram信息

1)popvalue:值出现在多个跨界buckets bounds
2)nonpopvalue:出现在单个buckets不跨界




SQL> select t.owner,t.table_name,t.column_name,t.num_distinct,t.num_nulls,t.density,t.HISTOGRAM from dba_tab_col_statistics t where t.table_name='T_HISTOGRAM_WIDTH';
OWNER      TABLE_NAME                     COLUMN_NAME          NUM_DISTINCT  NUM_NULLS    DENSITY HISTOGRAM
---------- ------------------------------ -------------------- ------------ ---------- ---------- ---------------
CBO        T_HISTOGRAM_WIDTH              ID_SKEW                         7          0      .0005 FREQUENCY                              -->宽度/频度均衡,buckets=ndv(7)
CBO        T_HISTOGRAM_WIDTH              ID                           1000          0       .001 HEIGHT BALANCED                      -->高度均衡,bucket(7)<ndv（1000）




--density密度：


宽度/频度均衡Sel=1/(2*num_rows)


===========================================================
SQL> select * from dba_histograms h where h.TABLE_NAME=upper('t_histogram_width');
OWNER      TABLE_NAME                     COLUMN_NAME          ENDPOINT_NUMBER ENDPOINT_VALUE ENDPOINT_ACTUAL_VALUE
---------- ------------------------------ -------------------- --------------- -------------- ------------------------------
CBO        T_HISTOGRAM_WIDTH              ID                                 0              1
CBO        T_HISTOGRAM_WIDTH              ID                                 1            143
CBO        T_HISTOGRAM_WIDTH              ID                                 2            286
CBO        T_HISTOGRAM_WIDTH              ID                                 3            429
CBO        T_HISTOGRAM_WIDTH              ID                                 4            572
CBO        T_HISTOGRAM_WIDTH              ID                                 5            715
CBO        T_HISTOGRAM_WIDTH              ID                                 6            858
CBO        T_HISTOGRAM_WIDTH              ID                                 7           1000
--7ndv，每个ndv重复出现143次=1000/7
SQL> select t.owner,t.table_name,t.column_name,t.num_distinct,t.num_nulls,t.density,t.HISTOGRAM from dba_tab_col_statistics t where t.table_name='T_HISTOGRAM_WIDTH';
OWNER      TABLE_NAME                     COLUMN_NAME          NUM_DISTINCT  NUM_NULLS    DENSITY HISTOGRAM
---------- ------------------------------ -------------------- ------------ ---------- ---------- ---------------
CBO        T_HISTOGRAM_WIDTH              ID_SKEW                         7          0      .0005 FREQUENCY                              -->宽度/频度均衡,buckets=ndv(7)
CBO        T_HISTOGRAM_WIDTH              ID                           1000          0       .001 HEIGHT BALANCED                      -->高度均衡,bucket(7)<ndv（1000）

4.4宽度均衡

--宽度/频度均衡(buckets>=ndv)
1)Sel of popvalue
select * from t_histogram_width where id=0
选择率Sel= (popvalue buckets/total buckets) =1/7
Cards=1000*Sel=143


SQL> SQL>   2    3    4    5    6    7    8    9   10   11   12   13   14   15   16   17   18   19
Query Plan
----------------------------------------------------------------------------------------------------------------------------------------
0     SELECT STATEMENT   (Cards=142 IO_COST=3 Cost=3 MB=0 Elaps_time=1s) OPT=ALL_ROWS (PA=) (PO=)
1   0    TABLE ACCESS BY INDEX ROWID T_HISTOGRAM_WIDTH (Cards=142 IO_COST=3 Cost=3 MB=0 Elaps_time=1s) OPT=ANALYZED (PA=) (PO=)
2   1      INDEX RANGE SCAN IDX_HIST_WIDTH (Cards=142 IO_COST=1 Cost=1 MB= Elaps_time=1s) OPT=ANALYZED (PA=) (PO=)


2)Sel of buckets with endpoints <= value
select * from t_histogram_width where id<=3    -->0,1,2,3(4buckets)
选择率Sel= (popvalue buckets/total buckets) =4/7
Cards=1000*Sel=572
Query Plan
----------------------------------------------------------------------------------------------------------------------------------------
0     SELECT STATEMENT   (Cards=572 IO_COST=3 Cost=3 MB=0 Elaps_time=1s) OPT=ALL_ROWS (PA=) (PO=)
1   0    TABLE ACCESS FULL T_HISTOGRAM_WIDTH (Cards=572 IO_COST=3 Cost=3 MB=0 Elaps_time=1s) OPT=ANALYZED (PA=) (PO=)


3）Sel of nonpopvalue=1/num_rows
        ID CARDINALITY SUM_CARDINALITY
---------- ----------- ---------------
         0         990             990
         1          10            1000
         2           1            1001
         3           1            1002
         4           1            1003
         5           1            1004
         6           1            1005
         7           1            1006
         8           1            1007
         9           1            1008
select * from t_skew1 where id=9    -->9thbucket
选择率Sel= 1/1008
Cards=1008*Sel=1
Query Plan
----------------------------------------------------------------------------------------------------------------------------------------
0     SELECT STATEMENT   (Cards=1 IO_COST=3 Cost=3 MB=0 Elaps_time=1s) OPT=ALL_ROWS (PA=) (PO=)
1   0    TABLE ACCESS FULL T_SKEW1 (Cards=1 IO_COST=3 Cost=3 MB=0 Elaps_time=1s) OPT=ANALYZED (PA=) (PO=)

4.5高度均衡

--buckets<ndv


OWNER      TABLE_NAME                     COLUMN_NAME          NUM_DISTINCT  NUM_NULLS    DENSITY HISTOGRAM
---------- ------------------------------ -------------------- ------------ ---------- ---------- ---------------
CBO        T_SKEW1                        ID                             10          0 .005952381 HEIGHT BALANCED


        ID CARDINALITY SUM_CARDINALITY
---------- ----------- ---------------
         0         990             990
         1          10            1000
         2           1            1001
         3           1            1002
         4           1            1003
         5           1            1004
         6           1            1005
         7           1            1006
         8           1            1007
         9           1            1008
begin
dbms_stats.gather_table_stats(
ownname => 'CBO',
tabname => 't_skew1',
estimate_percent => 50,
method_opt => 'FOR ALL COLUMNS SIZE 5',                --创建5个buckets
degree => 4,
cascade => true);
end;
OWNER      TABLE_NAME                     COLUMN_NAME          NUM_DISTINCT NUM_BUCKETS    DENSITY HISTOGRAM
---------- ------------------------------ -------------------- ------------ ----------- ---------- ---------------
CBO        T_SKEW1                        ID                             10           5 .005952381 HEIGHT BALANCED


OWNER      TABLE_NAME                     COLUMN_NAME          ENDPOINT_NUMBER ENDPOINT_VALUE ENDPOINT_ACTUAL_VALU
---------- ------------------------------ -------------------- --------------- -------------- --------------------
CBO        T_SKEW1                        ID                                 5              9
CBO        T_SKEW1                        ID                                 4              0                       -->bucket1/2/3重复不被显示，保存值为0


pop value通过ENDPOINT_NUMBER gap识别


5个buckets，1008rows，每buckets201rows
0-990rows
1-10rows
2~9:1rows

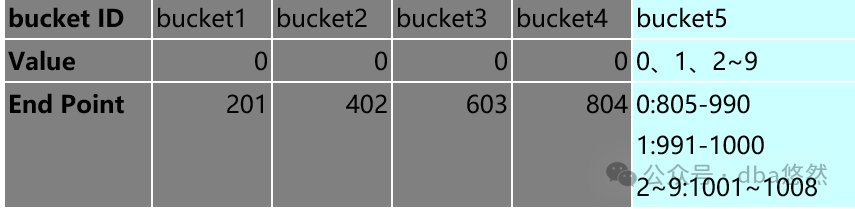

数据分布情况：

其中:
0跨4个buckets
其余值(1~9)分布在第5个buckets


1)Sel of nonpupvalue
id=0 Sel=Density
Density =(1/# NP values)* (NP buckets#/Total buckets)
           =1/9*






SQL> SQL>   2    3    4    5    6    7    8    9   10   11   12   13   14   15   16   17   18   19
Query Plan
----------------------------------------------------------------------------------------------------------------------------------------
0     SELECT STATEMENT   (Cards=990 IO_COST=2 Cost=2 MB=0 Elaps_time=1s) OPT=ALL_ROWS (PA=) (PO=)
1   0    INDEX FAST FULL SCAN ID_T_SKEW1 (Cards=990 IO_COST=2 Cost=2 MB=0 Elaps_time=1s) OPT=ANALYZED (PA=) (PO=)

5.总结

最近忙于一些事情，准备有些仓促，请见谅。后续会陆续分享一些未来及的发布在书籍中的内容，请保持关注，--可加VX互动—-。
