C# 数据包捕获 SharpPcap库应用指南

技术老小子 2024-10-02

SharpPcap是一个功能强大的.NET库,用于跨平台(Windows、Mac、Linux)的数据包捕获。本文将介绍SharpPcap的主要特性,并提供几个详细的应用示例。

主要特性

跨平台支持:

Linux: 支持libpcap
Windows: 支持Npcap和WinDivert
所有平台: 支持实时设备列表、统计信息、从实时设备和离线设备读取数据包

数据包处理:

支持Berkeley数据包过滤器
可以将数据包转储到Pcap文件
支持Pcap和pcap-ng格式(使用libpcap >=1.1.0或npcap时)

性能优化:

使用ReadOnlySpan<>避免内存分配和复制
提供辅助方法将捕获的数据包转换为对象实例

其他特性:

NativeLibrary支持,便于跨平台库解析
支持.NET Core 3和.NET Framework

应用示例

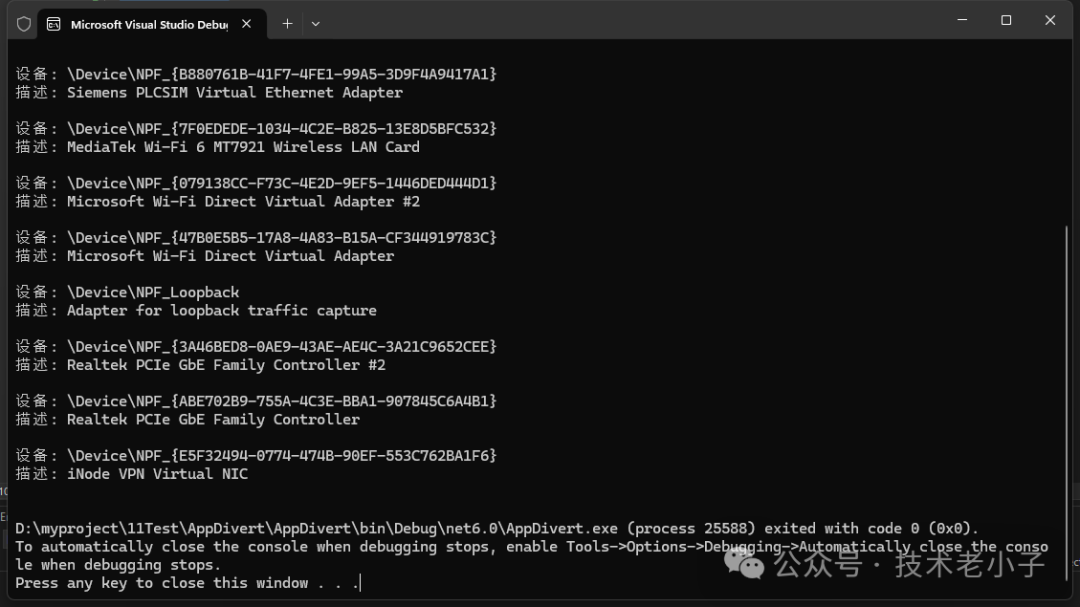

1. 列出可用的网络设备

using SharpPcap;


class Program
{
    static void Main(string[] args)
    {
         获取所有可用的捕获设备
        var devices = CaptureDeviceList.Instance;


         打印每个设备的信息
        foreach (var dev in devices)
        {
            Console.WriteLine($"设备: {dev.Name}");
            Console.WriteLine($"描述: {dev.Description}");
            Console.WriteLine();
        }
    }
}

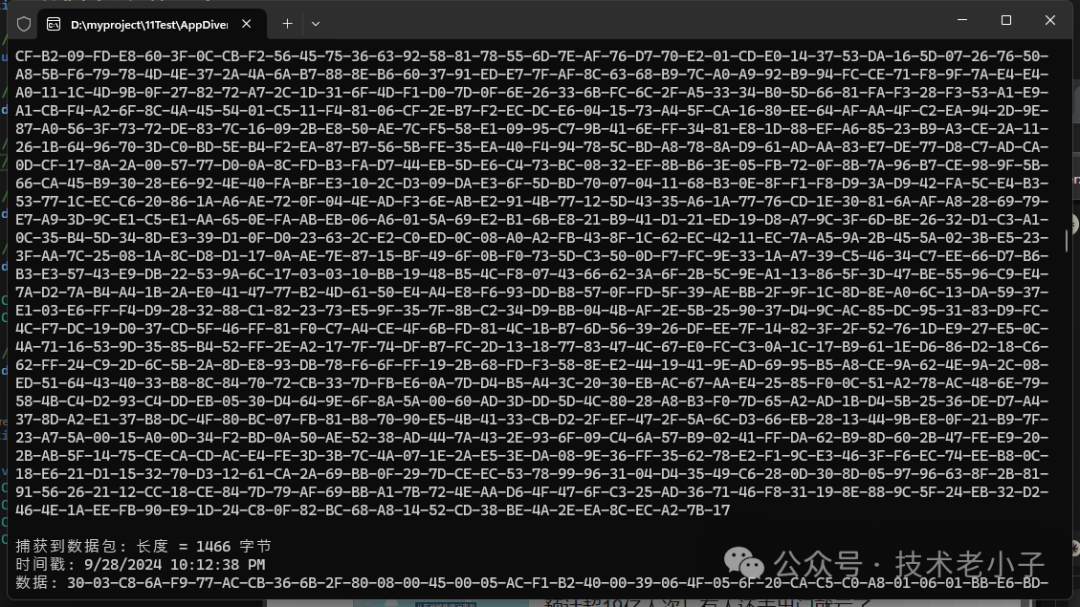

2. 捕获实时数据包

using SharpPcap;
using SharpPcap.LibPcap;


class Program
{
    static void Main(string[] args)
    {
        // 选择第一个可用的设备
        using var device = LibPcapLiveDeviceList.Instance[6];


        // 打开设备
        device.Open(DeviceModes.Promiscuous);


        // 设置过滤器（可选）
        device.Filter = "tcp";


        // 注册数据包到达事件处理程序
        device.OnPacketArrival += Device_OnPacketArrival;


        // 开始捕获
        device.StartCapture();


        Console.WriteLine("开始捕获数据包。按任意键停止...");
        Console.ReadKey();


        // 停止捕获
        device.StopCapture();
    }


    static void Device_OnPacketArrival(object sender, PacketCapture e)
    {
        var packet = e.GetPacket();
        Console.WriteLine($"捕获到数据包: 长度 = {packet.Data.Length} 字节");
        Console.WriteLine($"时间戳: {packet.Timeval.Date}");
        Console.WriteLine($"数据: {BitConverter.ToString(packet.Data)}");
        Console.WriteLine();
    }
}

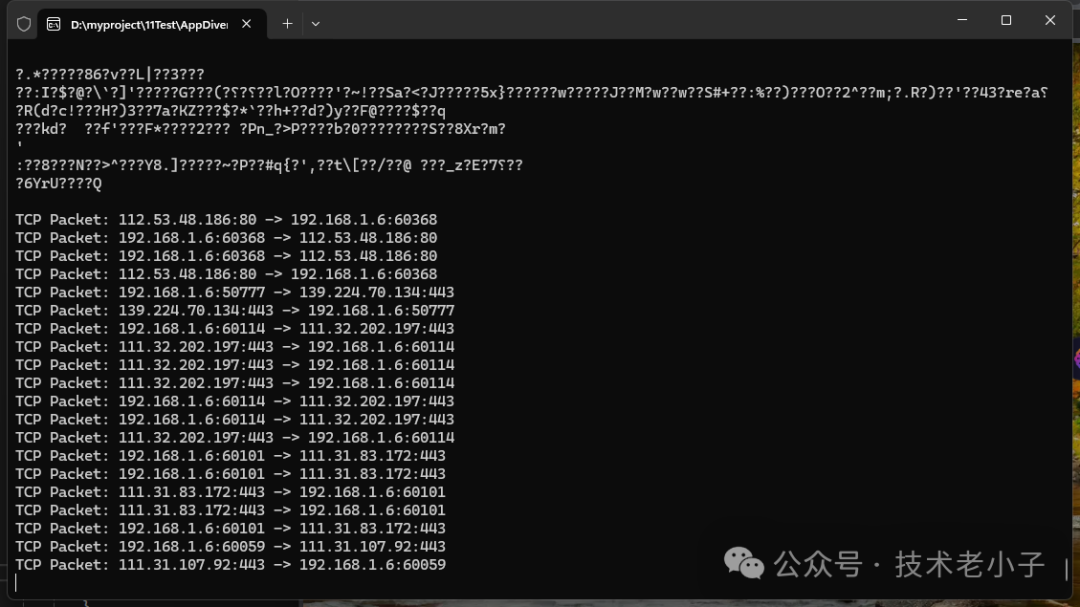

3. 截获http的数据包

using System;
using System.Text;
using SharpPcap;
using PacketDotNet;


class Program
{
    static void Main(string[] args)
    {
        // 获取所有可用的捕获设备
        var devices = CaptureDeviceList.Instance;


        if (devices.Count < 1)
        {
            Console.WriteLine("No devices found. Make sure WinPcap or Npcap is installed.");
            return;
        }


        // 选择第一个设备
        var device = devices[6];


        Console.WriteLine($"Capturing on {device.Description}");


        // 打开设备
        device.Open(DeviceModes.Promiscuous);


        // 设置过滤器，只捕获HTTP流量
        device.Filter = "tcp port 80 or tcp port 443";


        // 注册数据包到达事件处理程序
        device.OnPacketArrival += Device_OnPacketArrival;


        // 开始捕获
        device.StartCapture();


        Console.WriteLine("Capturing HTTP traffic. Press any key to stop...");
        Console.ReadKey();


        // 停止捕获
        device.StopCapture();
        device.Close();
    }


    static void Device_OnPacketArrival(object sender, PacketCapture e)
    {
        var rawPacket = e.GetPacket();
        var packet = Packet.ParsePacket(rawPacket.LinkLayerType, rawPacket.Data);


        var tcpPacket = packet.Extract<TcpPacket>();
        if (tcpPacket != null)
        {
            var ipPacket = (IPPacket)tcpPacket.ParentPacket;
            Console.WriteLine($"TCP Packet: {ipPacket.SourceAddress}:{tcpPacket.SourcePort} -> " +
                              $"{ipPacket.DestinationAddress}:{tcpPacket.DestinationPort}");


            if (tcpPacket.PayloadData != null && tcpPacket.PayloadData.Length > 0)
            {
                string payload = Encoding.ASCII.GetString(tcpPacket.PayloadData);
                if (payload.StartsWith("GET") || payload.StartsWith("POST") ||
                    payload.StartsWith("HTTP/1.1") || payload.StartsWith("HTTP/1.0"))
                {
                    Console.WriteLine("HTTP Content:");
                    Console.WriteLine(payload);
                    Console.WriteLine();
                }
            }
        }
    }
}

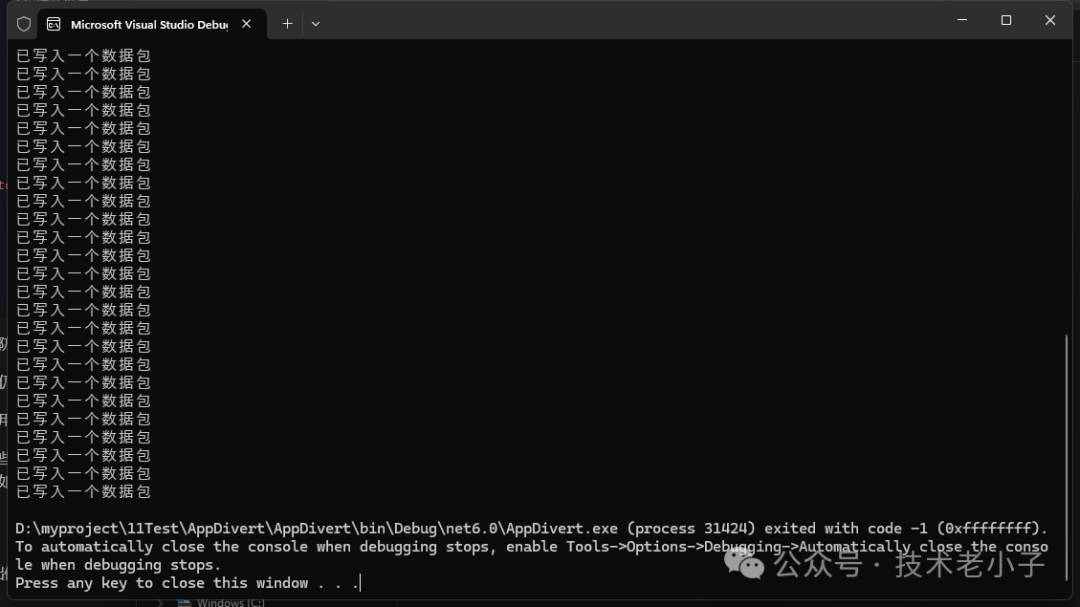

4. 写入捕获文件

using System;
using SharpPcap;
using PacketDotNet;


class Program
{
    static void Main(string[] args)
    {
        // 获取第一个网络接口
        using var device = CaptureDeviceList.Instance[0];


        // 打开设备
        device.Open(mode: DeviceModes.Promiscuous, read_timeout: 1000);


        // 创建捕获文件写入器
        using var writer = new CaptureFileWriterDevice("capture.pcap");
        writer.Open(device);


        // 设置数据包到达事件处理
        device.OnPacketArrival += (sender, e) =>
        {
            writer.Write(e.GetPacket());
            Console.WriteLine("已写入一个数据包");
        };


        // 开始捕获
        device.StartCapture();


        Console.WriteLine("正在捕获数据包，按任意键停止...");
        Console.ReadKey();


        // 停止捕获
        device.StopCapture();
    }
}

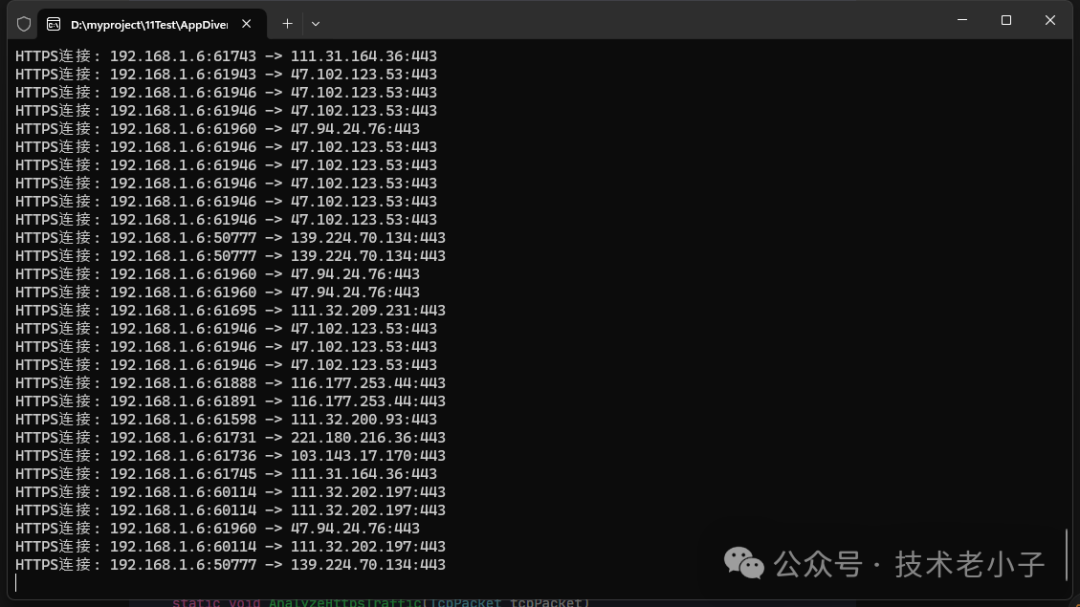

5. HTTP流量分析

using System;
using System.Text;
using PacketDotNet;
using SharpPcap;


class Program
{
    static void Main(string[] args)
    {
        // 获取第一个网络接口
        using var device = CaptureDeviceList.Instance[6];
        device.Open(mode: DeviceModes.Promiscuous, read_timeout: 1000);


        // 设置过滤器捕获HTTP和HTTPS流量
        device.Filter = "tcp port 80 or tcp port 443";


        device.OnPacketArrival += (sender, e) =>
        {
            var rawPacket = e.GetPacket();
            var packet = Packet.ParsePacket(rawPacket.LinkLayerType, rawPacket.Data);


            if (packet is EthernetPacket ethernetPacket)
            {
                var ipPacket = ethernetPacket.PayloadPacket as IPPacket;
                var tcpPacket = ipPacket?.PayloadPacket as TcpPacket;


                if (tcpPacket != null && tcpPacket.PayloadData != null && tcpPacket.PayloadData.Length > 0)
                {
                    if (tcpPacket.DestinationPort == 80)
                    {
                        AnalyzeHttpTraffic(tcpPacket);
                    }
                    else if (tcpPacket.DestinationPort == 443)
                    {
                        AnalyzeHttpsTraffic(tcpPacket);
                    }
                }
            }
        };


        device.StartCapture();


        Console.WriteLine("正在捕获HTTP和HTTPS流量，按任意键停止...");
        Console.ReadKey();


        device.StopCapture();
    }


    static void AnalyzeHttpTraffic(TcpPacket tcpPacket)
    {
        string payload = Encoding.ASCII.GetString(tcpPacket.PayloadData);
        if (payload.StartsWith("GET") || payload.StartsWith("POST") || payload.StartsWith("PUT") || payload.StartsWith("DELETE"))
        {
            string[] lines = payload.Split('\n');
            string requestLine = lines[0].Trim();
            string[] parts = requestLine.Split(' ');
            if (parts.Length >= 2)
            {
                string method = parts[0];
                string url = parts[1];
                Console.WriteLine($"HTTP请求: {method} {url}");
            }
        }
    }


    static void AnalyzeHttpsTraffic(TcpPacket tcpPacket)
    {
        // 获取 IP 包
        var ipPacket = (IPPacket)tcpPacket.ParentPacket;


        if (ipPacket != null)
        {
            // 从 IP 包获取源和目标地址
            var sourceAddress = ipPacket.SourceAddress;
            var destinationAddress = ipPacket.DestinationAddress;


            // 从 TCP 包获取源和目标端口
            var sourcePort = tcpPacket.SourcePort;
            var destinationPort = tcpPacket.DestinationPort;


            Console.WriteLine($"HTTPS连接: {sourceAddress}:{sourcePort} -> {destinationAddress}:{destinationPort}");


            // 检查 TLS 握手包
            if (tcpPacket.PayloadData != null && tcpPacket.PayloadData.Length > 0 && tcpPacket.PayloadData[0] == 0x16)
            {
                Console.WriteLine("检测到TLS握手包");
            }
        }
        else
        {
            Console.WriteLine("无法获取 IP 包信息");
        }
    }
}

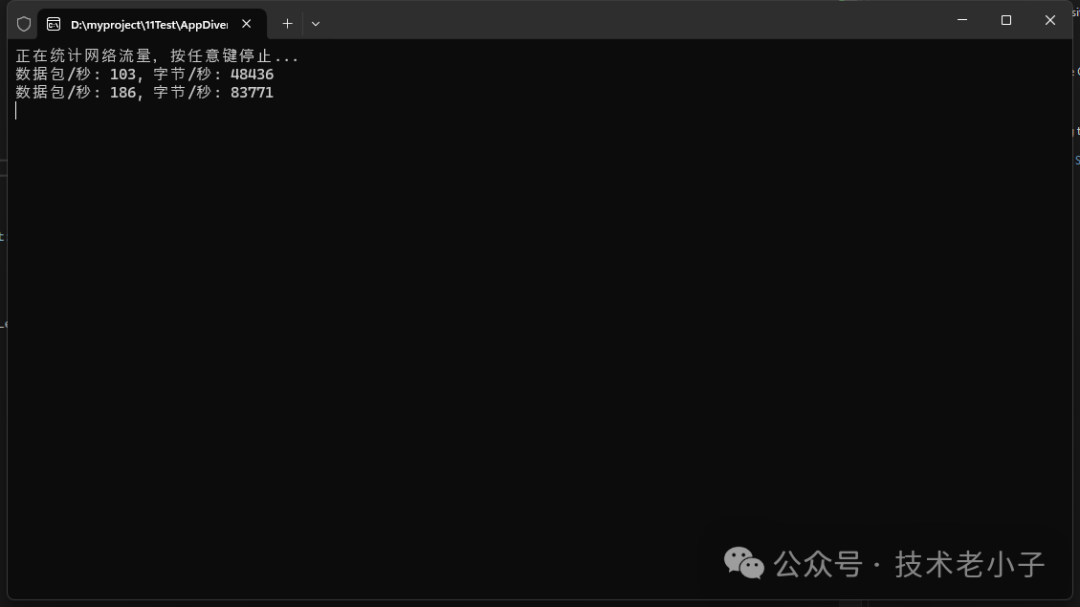

6. 实时网络流量统计

using System;
using System.Threading;
using SharpPcap;


class Program
{
    static long packetCount = 0;
    static long byteCount = 0;


    static void Main(string[] args)
    {
        // 获取第一个网络接口
        using var device = CaptureDeviceList.Instance[6];
        device.Open(mode: DeviceModes.Promiscuous, read_timeout: 1000);


        device.OnPacketArrival += (sender, e) =>
        {
            Interlocked.Increment(ref packetCount);
            Interlocked.Add(ref byteCount, e.GetPacket().Data.Length);
        };


        // 启动统计线程
        var statsThread = new Thread(PrintStats);
        statsThread.Start();


        device.StartCapture();


        Console.WriteLine("正在统计网络流量，按任意键停止...");
        Console.ReadKey();


        device.StopCapture();
        statsThread.Join();
    }


    static void PrintStats()
    {
        long lastPacketCount = 0;
        long lastByteCount = 0;
        while (true)
        {
            Thread.Sleep(1000);
            long currentPacketCount = Interlocked.Read(ref packetCount);
            long currentByteCount = Interlocked.Read(ref byteCount);


            long packetsPerSecond = currentPacketCount - lastPacketCount;
            long bytesPerSecond = currentByteCount - lastByteCount;


            Console.WriteLine($"数据包/秒: {packetsPerSecond}, 字节/秒: {bytesPerSecond}");


            lastPacketCount = currentPacketCount;
            lastByteCount = currentByteCount;
        }
    }
}

结论

SharpPcap提供了强大而灵活的数据包捕获和处理功能。通过上述示例,我们展示了如何使用SharpPcap来列出网络设备、捕获实时数据包、读写捕获文件以及收集网络统计信息。这些功能使SharpPcap成为网络分析、安全审计和协议开发等领域的有力工具。
