摘要

‍

本节需要完成的是SparkStreaming实时写HDFS，解决小文件的问题和数据晚到的问题，为离线指标统计做准备。

数据数据样例：

{"name":"张三","userid":"user_821","amount":"7.219049934789908","sex":"男","create_date":"2021-03-12"}

预期结果：

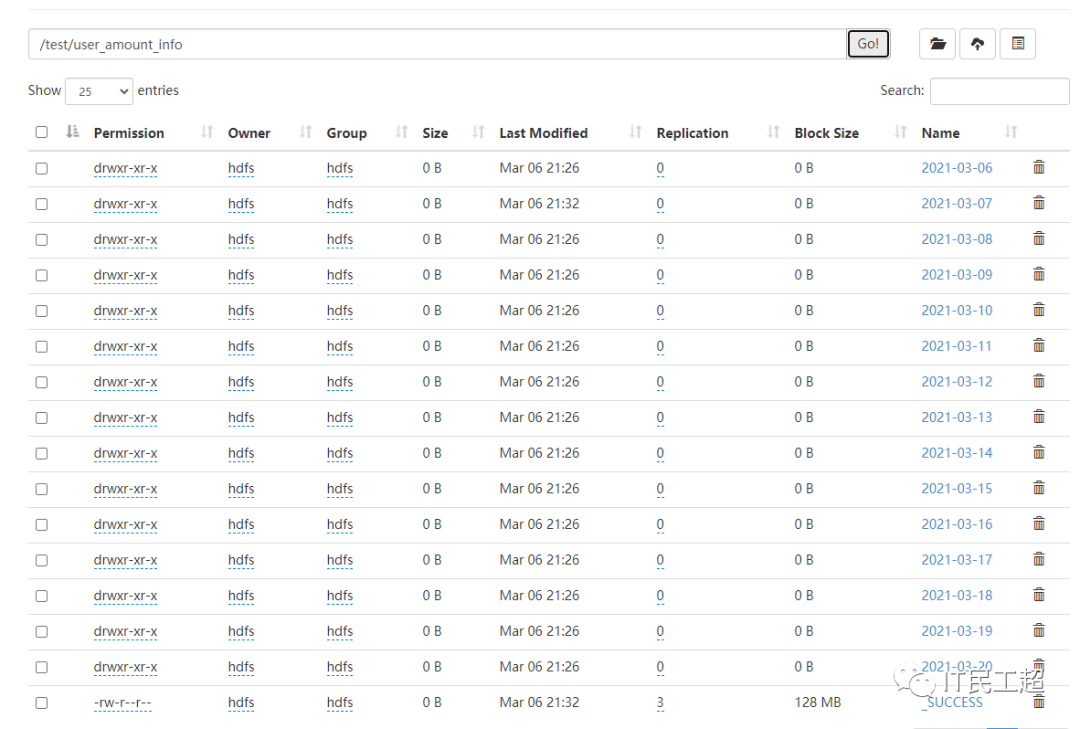

/test/user_amount_info/+数据里面的时间(create_date)/系统文件名

调用PairRDDFunctions#saveAsHadoopFile

方法声明

def saveAsHadoopFile(
      path: String,
      keyClass: Class[_],
      valueClass: Class[_],
      outputFormatClass: Class[_ <: OutputFormat[_, _]],
      conf: JobConf = new JobConf(self.context.hadoopConfiguration),
      codec: Option[Class[_ <: CompressionCodec]] = None)

该API由PairRDDFunctions提供，想到将数据转换成（key,value）类型如

（"2020-03-07",data）,再提取对应的key拼接写出路径，在写出数据时将key写出的地方注释掉，仅写出Value部分及可

重写MultipleTextOutputFormat(拼接写出路径)

重写generateFileNameForKeyValue方法拼接路径

class RDDMultipleTextOutputFormat  extends MultipleTextOutputFormat[String,String] {
  var theTextOutputFormat: TextOutputFormat[String, String] = null
  override def generateFileNameForKeyValue(key: String, value: String, name: String): String = {
  // key 即为  数据(key,value)中的key
   // eg:/2021-03-06/part-00000
    key+File.separator+name
  }


  override def getBaseRecordWriter(fs: FileSystem, job: JobConf, name: String, arg3: Progressable): RecordWriter[String, String] = {
    if (theTextOutputFormat == null) theTextOutputFormat = new NoKeyTextOutPutFormat[String, String]()
    theTextOutputFormat.getRecordWriter(fs, job, name, arg3)
  }
}

到此路径拼接完成

重写TextOutputFormat类

增加文件存在获取append流的代码
注释写出key的代码(write 方法中)

class NoKeyTextOutPutFormat[K,V] extends TextOutputFormat[String,String]{


  class LineRecordWriter[K,V] extends RecordWriter[String, String]{
    val utf8 = "UTF-8"
   val newline = "\n".getBytes(utf8)
     var out: DataOutputStream = null
     var keyValueSeparator:Array[Byte] = null
    //构造方法
    def this(out: DataOutputStream, keyValueSeparator: String){
      this()
      this.out=out
      this.keyValueSeparator=keyValueSeparator.getBytes(utf8)
    }
    // key 和 value的分隔符
    def this(out: DataOutputStream){
      this(out,"\t")
    }


    @throws[IOException]
    private def writeObject(o: Any): Unit = {
      if (o.isInstanceOf[Text]) {
        val to = o.asInstanceOf[Text]
        out.write(to.getBytes, 0, to.getLength)
      }
      else out.write(o.toString.getBytes(utf8))
    }




    /**
     * 注释掉key 只写出value字段
     * @param key
     * @param value
     */
    override def write(key: String, value: String): Unit = {
      val nullKey = key == null || key.isInstanceOf[NullWritable]
      val nullValue = value == null || value.isInstanceOf[NullWritable]
      if (nullKey && nullValue) return
      //if (!nullKey) writeObject(key)
      //if (!(nullKey || nullValue)) out.write(keyValueSeparator)
      if (!nullValue) writeObject(value)
      out.write(newline)
    }
    override def close(reporter: Reporter): Unit = {
      out.close()
    }
  }


override def getRecordWriter(ignored: FileSystem,
                             job: JobConf,
                             name: String,
                             progress: Progressable): LineRecordWriter[K, V] ={
    //是否开启压缩
  val isCompressed = FileOutputFormat.getCompressOutput(job)
  /// 默认key和value的分隔符
  val keyValueSeparator = job.get("mapreduce.output.textoutputformat.separator", "\t")
  if (!isCompressed) {
    val file = FileOutputFormat.getTaskOutputPath(job, name)
    val fs = file.getFileSystem(job)
  // 增加判断文件s会否存在逻辑 获取Append流
    var fileOut: FSDataOutputStream=null;
    if(fs.exists(file)){
      fileOut=fs.append(file)
    }else{
      fileOut = fs.create(file, progress)
    }
    //val fileOut = fs.create(file, progress)
    new LineRecordWriter[K, V](fileOut, keyValueSeparator)
  }
  else {
    val codecClass = FileOutputFormat.getOutputCompressorClass(job, classOf[GzipCodec])
    // create the named codec
    val codec = ReflectionUtils.newInstance(codecClass, job)
    // build the filename including the extension
    val file = FileOutputFormat.getTaskOutputPath(job, name + codec.getDefaultExtension)
    val fs = file.getFileSystem(job)
    var fileOut: FSDataOutputStream=null;
  // 增加判断文件s会否存在逻辑 获取Append流
    if(fs.exists(file)){
      fileOut=fs.append(file)
    }else{
      fileOut = fs.create(file, progress)
    }
    //val fileOut = fs.create(file, progress)
     new LineRecordWriter[K, V](new DataOutputStream(codec.createOutputStream(fileOut)), keyValueSeparator)
  }
}
}

编写主类进行测试

object UserAmountInfoStreaming {
  def main(args: Array[String]): Unit = {
    val conf = new SparkConf()
      .setMaster("local[3]")
      .setAppName("UserAmountInfoStreaming")
      .set("spark.streaming.backpressure.enabled", "true") // 开启被压
      .set("spark.streaming.kafka.maxRatePerPartition", "100")// 每秒拉取每个分区的消息数 100
      .set("spark.streaming.stopGracefullyOnShutdown", "true") //设置优雅关闭
      .set("spark.serializer", "org.apache.spark.serializer.KryoSerializer") //设置序列化方法
      .set("spark.streaming.kafka.allowNonConsecutiveOffsets","true")
    val ssc = new StreamingContext(conf,Seconds(5))//5秒一个批次
    System.setProperty("HADOOP_USER_NAME", "admin")
    System.setProperty("USER", "admin")
    val kafkaParams: Map[String, Object] = Map[String, Object](
      "bootstrap.servers" -> "bigdata01:9092",
      "key.deserializer" -> classOf[StringDeserializer],
      "value.deserializer" -> classOf[StringDeserializer],
      "group.id" -> "it_test02",
      "auto.offset.reset" -> "earliest", //  earliest
      "enable.auto.commit" -> "false"// 设置手动提交offsit


    )


    val topics=Array("user_amount_info");
    val kafkaDstream = KafkaUtils.createDirectStream[String, String](
      ssc,
      LocationStrategies.PreferConsistent,
      ConsumerStrategies.Subscribe[String, String](topics, kafkaParams)
    )


    // 转换数据结构
    val resultDf: DStream[(String, String)] = kafkaDstream.mapPartitions(it => {
      var list = List[(String, String)]()
      while (it.hasNext) {
        val consumerRecord = it.next()
        val str = consumerRecord.value()
        if(!str.isEmpty){
          //{"name":"藱皻ゃ芶","userid":"user_395","amount":"35.3578784689529","sex":"女","create_date":"2021-03-13"}
          //转换数据格式 提取数据时间
          list=(JSON.parseObject(str).getString("create_date"),str)::list
        }
      }
      list.iterator
    })
    //写出数据
    resultDf.foreachRDD(rdd=>{
      val conf: JobConf = new JobConf(rdd.context.hadoopConfiguration)
      conf.set("dfs.support.append","true")
      //conf.setMapOutputCompressorClass(classOf[GzipCodec])
      conf.set("mapreduce.output.fileoutputformat.compress.codec",classOf[GzipCodec].getName) //设置压缩类型
      conf.set("mapreduce.output.fileoutputformat.compress","true") // 设置开启压缩
      conf.set("set mapreduce.output.fileoutputformat.compress.type","BLOCK");// 设置压缩类型为block
      conf.set("mapreduce.output.textoutputformat.separator","|") // 设置key value的分隔符
      conf.set("fs.defaultFS", "hdfs://bigdata01:8020")
      rdd.saveAsHadoopFile("/test/user_amount_info",classOf[String],classOf[String],classOf[RDDMultipleTextOutputFormat],conf)
    })
    //提交offet
    kafkaDstream.foreachRDD { rdd =>
     val offsetRanges = rdd.asInstanceOf[HasOffsetRanges].offsetRanges
     kafkaDstream.asInstanceOf[CanCommitOffsets].commitAsync(offsetRanges)
   }
    ssc.start()
    ssc.awaitTermination()
  }
}

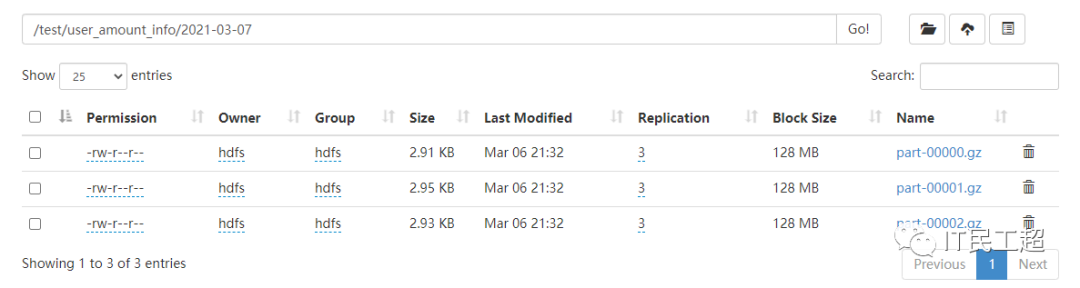

/test/user_amount_info/2021-03-07

总结

每批次消费数据条数计算：

创建topic时指定的分区数

kafka-topics --zookeeper bigdata01:2181 --create --replication-factor 3 --partitions 3 --topic user_amount_info

set("spark.streaming.kafka.maxRatePerPartition", "100")//每秒拉取对应分区的数据条数
val ssc = new StreamingContext(conf,Seconds(5))//5秒一个批次


一个批次处理的总消息条数为：100*5*3=1500


spark.streaming.kafka.maxRatePerPartition*批次时间间隔*分区数

SparkStreaming的第一个Stage的分区数与Kafka主题分区数的关系

SparkStreming第一个Stage的分区数和Kafka主题的分区数一致，这也是在Kafka分区数据未出现倾斜时相对于来说较好的消费方法。

为什么要手动提交offsit

默认情况下在拉取到数据后，再下一次拉取数据前就会提交offsit，当处理时间超过批次时间后，程序出错，提交offsit，将导致漏消费。

问题：

SparkStreaming已将数据写出到HDFS，但本批次offsit提交失败，导致重复消费，怎么处理? 欢迎留下您的见解和思考，大家一起讨论。
