RocketMQ之msgKey查询逻辑

不修边幅的创客 2020-09-18

1386

点击上方蓝色字体，选择“设为星标”

01 msgKey索引生成

在讲之前,我们需要知道生产者(producer)允许针对某条消息设置KEYS,具体可以参考Producer代码和MessageConst代码,其中KEYS可以是有多个关键词构成并且多个key之间使用空格分开的.要知道这一点,因为msgKey索引就是基于这些key生成的.

在前面的文章中:msgId查询逻辑讲过了生产者生产一条消息到落盘的过程,在上一篇的基础上,我们继续读一些关键代码,然后看看msgKey的生成逻辑.当一条消息落盘成功之后,在CommitLog.putMessage(final MessageExtBrokerInner msg)中消息的相关信息会被封装成: DispatchRequest对象,然后丢给DispatchMessageService进行分发.如下代码所示:

  public PutMessageResult putMessage(final MessageExtBrokerInner msg) {
      //省略其它非讲解代码

      //往文件中追加消息
      result = mapedFile.appendMessage(msg, this.appendMessageCallback);

      //省略其它非讲解d代码

     //如果追加成功了,则封装消息到DispatchRequest
     DispatchRequest dispatchRequest = new DispatchRequest(//
            topic,// 1
            queueId,// 2
            result.getWroteOffset(),// 3
            result.getWroteBytes(),// 4
            tagsCode,// 5
            msg.getStoreTimestamp(),// 6
            result.getLogicsOffset(),// 7
            msg.getKeys(),// 8
            /**
             * Transaction
             */
            msg.getSysFlag(),// 9
            msg.getPreparedTransactionOffset());// 10

      //交给DispachMessageService进行分发
      this.defaultMessageStore.putDispatchRequest(dispatchRequest);

      //省略其它非讲解d代码
  }

public void putDispatchRequest(final DispatchRequest dispatchRequest) {
    //调用DispatchMessageService的putRequest进行分发
    this.dispatchMessageService.putRequest(dispatchRequest);
}

在DispatchMessageService.putRequest中,dispatchRequest被放到了List<DispatchRequest> requestWrtie集合中, DispatchMessageService线程在后台一直运行，不断执行doDispatch(),如下代码所示:

public void putRequest(final DispatchRequest dispatchRequest) {
    int requestsWriteSize = 0;
    int putMsgIndexHightWater =
            DefaultMessageStore.this.getMessageStoreConfig().getPutMsgIndexHightWater();
    synchronized (this) {
        //把分发请求放到集合中
        this.requestsWrite.add(dispatchRequest);
        requestsWriteSize = this.requestsWrite.size();
        if (!this.hasNotified) {
            this.hasNotified = true;
            this.notify();
        }
    }
 }

privatevoid doDispatch() {
  if (!this.requestsRead.isEmpty()) {
      for (DispatchRequest req : this.requestsRead) {


          final int tranType = MessageSysFlag.getTransactionValue(req.getSysFlag());
          // 1、分发消息位置信息到ConsumeQueue
          switch (tranType) {
          case MessageSysFlag.TransactionNotType:
          case MessageSysFlag.TransactionCommitType:
              // 将请求发到具体的Consume Queue
              DefaultMessageStore.this.putMessagePostionInfo(req.getTopic(), req.getQueueId(),
                  req.getCommitLogOffset(), req.getMsgSize(), req.getTagsCode(),
                  req.getStoreTimestamp(), req.getConsumeQueueOffset());
              break;
          case MessageSysFlag.TransactionPreparedType:
          case MessageSysFlag.TransactionRollbackType:
              break;
          }
      }
      //消息发送到IndexService服务,构建msgKey的索引
      if (DefaultMessageStore.this.getMessageStoreConfig().isMessageIndexEnable()) {
          DefaultMessageStore.this.indexService.putRequest(this.requestsRead.toArray());
      }


      this.requestsRead.clear();
  }
}

在IndexService的putRequest中,会把请求放到一个LinkedBlockingQueue阻塞队列中,然后由IndexService线程不停的从该队列中取消息,然后建立索引,其中该队列长度30万条消息,如果超过,会丢失,所以基于msgKey有可能存在查不到的情况.代码如下:

private LinkedBlockingQueue<Object[]> requestQueue = new LinkedBlockingQueue<Object[]>(300000);

/**
 * 向队列中添加请求，队列满情况下，丢弃请求
 */
public void putRequest(final Object[] reqs) {
    boolean offer = this.requestQueue.offer(reqs);
    if (!offer) {
        if (log.isDebugEnabled()) {
            log.debug("putRequest index failed, {}", reqs);
        }
    }
}

@Override
public void run() {
    log.info(this.getServiceName() + " service started");


    while (!this.isStoped()) {
        try {
            //线程不停的从队列中poll消息,然后建立索引
            Object[] req = this.requestQueue.poll(3000, TimeUnit.MILLISECONDS);


            if (req != null) {
                //不为空,则建立索引
                this.buildIndex(req);
            }
        }
        catch (Exception e) {
            log.warn(this.getServiceName() + " service has exception. ", e);
        }
    }
    log.info(this.getServiceName() + " service end");
}

public void buildIndex(Object[] req) {
  boolean breakdown = false;
  //获取当前正在写入的索引文件
  IndexFile indexFile = retryGetAndCreateIndexFile();
  if (indexFile != null) {
    long endPhyOffset = indexFile.getEndPhyOffset();
    //循环所有消息,为每一条消息建立索引
    MSG_WHILE: for (Object o : req) {
        DispatchRequest msg = (DispatchRequest) o;
        String topic = msg.getTopic();
        //取出当前消息的所有的keys,keys在文章的最前面说过,每个key用空格分开        String keys = msg.getKeys();
        if (msg.getCommitLogOffset() < endPhyOffset) {
            continue;
         }
        //如果不为空,使用空格切割字符串,
        if (keys != null && keys.length() > 0) {
            String[] keyset = keys.split(MessageConst.KEY_SEPARATOR);
            //循环key,为当前消息构建索引
            for (String key : keyset) {
                // TODO 是否需要TRIM
                if (key.length() > 0) {
                    //除了topic和key,还有消息的commitLogoffset和消息的时间戳,构建索引
                    //所以msgKey支持范围查询
                    for (boolean ok =
                            indexFile.putKey(buildKey(topic, key), msg.getCommitLogOffset(),
                                msg.getStoreTimestamp()); !ok;) {
                        log.warn("index file full, so create another one, " + indexFile.getFileName());
                        indexFile = retryGetAndCreateIndexFile();
                        if (null == indexFile) {
                            breakdown = true;
                            break MSG_WHILE;
                        }

                        ok =
                                indexFile.putKey(buildKey(topic, key), msg.getCommitLogOffset(),
                                    msg.getStoreTimestamp());
                    }
                }
            }
      }
}

private String buildKey(final String topic, final String key) {
    return topic + "#" + key;
}

在IndexFile的putKey中,计算key(topic + "#" + key)、phyOffset和storeTimeStamp的哈希值,然后写入到索引文件MappedByteBuffer中,至此基于消息keys的索引就建立好了,代码如下:

public boolean putKey(final String key, final long phyOffset, final long storeTimestamp) {
      //省略了其它非讲解代码
      // 写入真正索引
      this.mappedByteBuffer.putInt(absIndexPos, keyHash);
      this.mappedByteBuffer.putLong(absIndexPos + 4, phyOffset);
      this.mappedByteBuffer.putInt(absIndexPos + 4 + 8, (int) timeDiff);
      this.mappedByteBuffer.putInt(absIndexPos + 4 + 8 + 4, slotValue);
      //省略其它非讲解代码
}

基于msgKey的消息索引的建立流程已经讲过,那如何根据topic和msgKey对消息进行检索呢?

02 使用msgKey检索消息

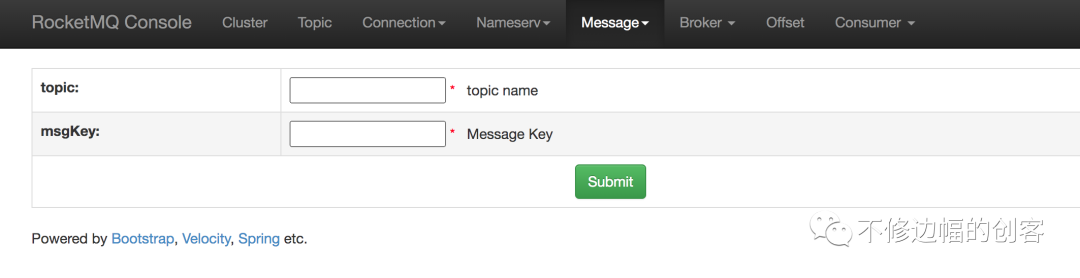

如下图所示,RocketMQ的console中提供了基于msgKey查询的接口,topic和key必须填写,如下图所示:

提交之后,最终被QueryMsgByKeySubCommand的queryByKey方法执行(RocketMQ Console引入里rocketmq客户端端),默认会加上三个默认参数 :

参数1 : 最大返回消息数 : 默认64

参数2 : 开始时间戳 : 0

参数3 : 结束时间戳 : Long.MAX_VALUE

代码展示如下:

voidqueryByKey(final DefaultMQAdminExt admin, final String topic, final String key)
        throws MQClientException, InterruptedException {
    admin.start();
    //查询消息
    QueryResult queryResult = admin.queryMessage(topic, key, 64, 0, Long.MAX_VALUE);
    System.out.printf("%-50s %4s %40s\n",//
        "#Message ID",//
        "#QID",//
        "#Offset");
    for (MessageExt msg : queryResult.getMessageList()) {
        System.out.printf("%-50s %4d %40d\n", msg.getMsgId(), msg.getQueueId(), msg.getQueueOffset());
    }
}

经过一系列的方法调用之后,我们可以看MQAdminImpl.queryMessage,在该方法中,获取当前topic的路由信息(这里注意,RocketMQ Console项目会引入rocketmq客户端,并启动MQClientInstance并与nameserver交互),解析出当前topic所在的broker地址,循环broker地址,封装请求信息:topic、key、maxNum、begin和end信息去broker请求信息,然后把每个broker的查询结果封装到List中,返回给用户,代码如下:

public QueryResult queryMessage(String topic, String key, int maxNum, long begin, long end)
            throws MQClientException, InterruptedException {
        //获取路由信息
        TopicRouteData topicRouteData = this.mQClientFactory.getAnExistTopicRouteData(topic);
        if (null == topicRouteData) {
            this.mQClientFactory.updateTopicRouteInfoFromNameServer(topic);
            topicRouteData = this.mQClientFactory.getAnExistTopicRouteData(topic);
        }
        //解析出当前topic所在的broker地址
        if (topicRouteData != null) {
            List<String> brokerAddrs = new LinkedList<String>();
            for (BrokerData brokerData : topicRouteData.getBrokerDatas()) {
                String addr = brokerData.selectBrokerAddr();
                if (addr != null) {
                    brokerAddrs.add(addr);
                }
            }


            if (!brokerAddrs.isEmpty()) {
                final CountDownLatch countDownLatch = new CountDownLatch(brokerAddrs.size());
                //封装所有结果
                final List<QueryResult> queryResultList = new LinkedList<QueryResult>();
                //循环每个broker地址,封装请求信息,建立链接,获取消息
                for (String addr : brokerAddrs) {
                    try {
                        //封装请求信息
                        QueryMessageRequestHeader requestHeader = new QueryMessageRequestHeader();
                        requestHeader.setTopic(topic);
                        requestHeader.setKey(key);
                        requestHeader.setMaxNum(maxNum);
                        requestHeader.setBeginTimestamp(begin);
                        requestHeader.setEndTimestamp(end);
                        //请求broker
                        this.mQClientFactory.getMQClientAPIImpl().queryMessage(addr, requestHeader,
                            1000 * 15, new InvokeCallback() {
                                 public void operationComplete(ResponseFuture responseFuture) {
                                        //省略其它非讲解d代码

                                        List<MessageExt> wrappers =
                                                        MessageDecoder.decodes(
                                                            ByteBuffer.wrap(response.getBody()), true);
                                         //封装结果




                                         QueryResult qr =
                                                        new QueryResult(responseHeader
                                                            .getIndexLastUpdateTimestamp(), wrappers);
                                        //List 保存结果
                                        queryResultList.add(qr);

                                         //省略其它非讲解代码
                                 }
                     }
                     //省略了很多代码
            }
      }
}

在broker上,有单独的类来处理查询消息的请求,跟msgId的位置一样,在类QueryMessageProcessor的processRequest中,根据msgKey的查询逻辑会走RequestCode.QUERY_MESSAGE,代码如下:

@Override
public RemotingCommand processRequest(ChannelHandlerContext ctx, RemotingCommand request)
        throws RemotingCommandException {
    switch (request.getCode()) {
      case RequestCode.QUERY_MESSAGE:
          //按照Message Key查询消息
          return this.queryMessage(ctx, request);
      case RequestCode.VIEW_MESSAGE_BY_ID:
          //按照MessageId查询消息
          return this.viewMessageById(ctx, request);
       default:
          break;
    }
    return null;
}

  public RemotingCommand queryMessage(ChannelHandlerContext ctx, RemotingCommand request)
            throws RemotingCommandException
       //省略了其它非讲解代码
       final QueryMessageResult queryMessageResult =
             this.brokerController.getMessageStore().queryMessage(requestHeader.getTopic(),
              requestHeader.getKey(), requestHeader.getMaxNum(), requestHeader.getBeginTimestamp(),
              requestHeader.getEndTimestamp());
        //省略了其它非讲解d代码
    }

在DefaultMessageStore.queryMessage中对消息进行查询,代码如下:

public QueryMessageResult queryMessage(String topic, String key, int maxNum, long begin, long end) {


        //找出所有符合条件的phyOffset,只找maxNum就返回
        QueryOffsetResult queryOffsetResult =
                this.indexService.queryOffset(topic, key, maxNum, begin, lastQueryMsgTime);
        if (queryOffsetResult.getPhyOffsets().isEmpty()) {
            break;
        }
        //省略其它代码
        //循环集合取数据
        for (int m = 0; m < queryOffsetResult.getPhyOffsets().size(); m++) {
           //...
           if (match) {
                //根据phyOffset取数据,并把结果封装
                SelectMapedBufferResult result = this.commitLog.getData(offset, false);
                if (result != null) {
                    int size = result.getByteBuffer().getInt(0);
                    result.getByteBuffer().limit(size);
                    result.setSize(size);
                    queryMessageResult.addMessage(result);
                }
            }

    }
}
