细说Flink链接doris

Flink Doris Connector 可以支持通过 Flink 操作（读取、插入、修改、删除） Doris 中存储的数据。下面我们介绍如何通过Flink如果通过Datastream和SQL操作Doris。

修改和删除只支持在 Unique Key 模型上
目前的删除是支持 Flink CDC 的方式接入数据实现自动删除，如果是其他数据接入的方式删除需要自己实现。

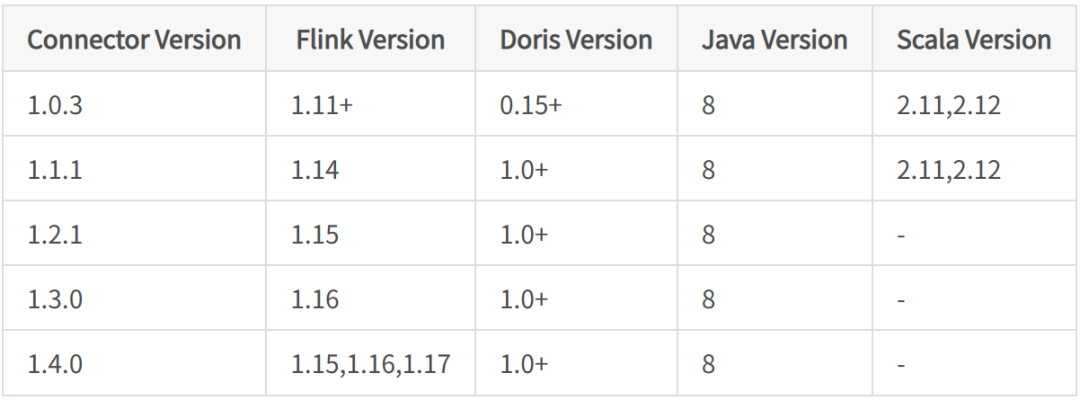

版本兼容

使用

Maven

✦

添加 flink-doris-connector

<!-- flink-doris-connector -->
<dependency>
  <groupId>org.apache.doris</groupId>
  <artifactId>flink-doris-connector-1.16</artifactId>
  <version>1.4.0</version>
</dependency>

请根据不同的 Flink 版本替换对应的 Connector 和 Flink 依赖版本。

编译 ✦

编译时，可直接运行sh build.sh。

编译成功后，会在 dist 目录生成目标jar包，如：flink-doris-connector-1.5.0-SNAPSHOT.jar。将此文件复制到 Flink 的 classpath 中即可使用 Flink-Doris-Connector 。例如， Local 模式运行的 Flink ，将此文件放入 lib/ 文件夹下。Yarn 集群模式运行的 Flink ，则将此文件放入预部署包。

使用方法

读取

✦

SQL

-- doris source
CREATE TABLE flink_doris_source (
    name STRING,
    age INT,
    price DECIMAL(5,2),
    sale DOUBLE
    )
    WITH (
      'connector' = 'doris',
      'fenodes' = 'FE_IP:HTTP_PORT',
      'table.identifier' = 'database.table',
      'username' = 'root',
      'password' = 'password'
);

DataStream

DorisOptions.Builder builder = DorisOptions.builder()
        .setFenodes("FE_IP:HTTP_PORT")
        .setTableIdentifier("db.table")
        .setUsername("root")
        .setPassword("password");


DorisSource<List<?>> dorisSource = DorisSourceBuilder.<List<?>>builder()
        .setDorisOptions(builder.build())
        .setDorisReadOptions(DorisReadOptions.builder().build())
        .setDeserializer(new SimpleListDeserializationSchema())
        .build();


env.fromSource(dorisSource, WatermarkStrategy.noWatermarks(), "doris source").print();

写入

✦

SQL

-- enable checkpoint
SET 'execution.checkpointing.interval' = '10s';


-- doris sink
CREATE TABLE flink_doris_sink (
    name STRING,
    age INT,
    price DECIMAL(5,2),
    sale DOUBLE
    )
    WITH (
      'connector' = 'doris',
      'fenodes' = 'FE_IP:HTTP_PORT',
      'table.identifier' = 'db.table',
      'username' = 'root',
      'password' = 'password',
      'sink.label-prefix' = 'doris_label'
);


-- submit insert job
INSERT INTO flink_doris_sink select name,age,price,sale from flink_doris_source

DataStream

DorisSink是通过StreamLoad想Doris写入数据，DataStream写入时，支持不同的序列化方法

String 数据流(SimpleStringSerializer)

// enable checkpoint
env.enableCheckpointing(10000);
// using batch mode for bounded data
env.setRuntimeMode(RuntimeExecutionMode.BATCH);


DorisSink.Builder<String> builder = DorisSink.builder();
DorisOptions.Builder dorisBuilder = DorisOptions.builder();
dorisBuilder.setFenodes("FE_IP:HTTP_PORT")
        .setTableIdentifier("db.table")
        .setUsername("root")
        .setPassword("password");


DorisExecutionOptions.Builder  executionBuilder = DorisExecutionOptions.builder();
executionBuilder.setLabelPrefix("label-doris") //streamload label prefix
                .setDeletable(false);


builder.setDorisReadOptions(DorisReadOptions.builder().build())
        .setDorisExecutionOptions(executionBuilder.build())
        .setSerializer(new SimpleStringSerializer()) //serialize according to string
        .setDorisOptions(dorisBuilder.build());


//mock string source
List<Tuple2<String, Integer>> data = new ArrayList<>();
data.add(new Tuple2<>("doris",1));
DataStreamSource<Tuple2<String, Integer>> source = env.fromCollection(data);


source.map((MapFunction<Tuple2<String, Integer>, String>) t -> t.f0 + "\t" + t.f1)
      .sinkTo(builder.build());

RowData 数据流(RowDataSerializer)

// enable checkpoint
env.enableCheckpointing(10000);
// using batch mode for bounded data
env.setRuntimeMode(RuntimeExecutionMode.BATCH);


//doris sink option
DorisSink.Builder<RowData> builder = DorisSink.builder();
DorisOptions.Builder dorisBuilder = DorisOptions.builder();
dorisBuilder.setFenodes("FE_IP:HTTP_PORT")
        .setTableIdentifier("db.table")
        .setUsername("root")
        .setPassword("password");


// json format to streamload
Properties properties = new Properties();
properties.setProperty("format", "json");
properties.setProperty("read_json_by_line", "true");
DorisExecutionOptions.Builder  executionBuilder = DorisExecutionOptions.builder();
executionBuilder.setLabelPrefix("label-doris") //streamload label prefix
                .setDeletable(false)
                .setStreamLoadProp(properties); //streamload params


//flink rowdata‘s schema
String[] fields = {"city", "longitude", "latitude", "destroy_date"};
DataType[] types = {DataTypes.VARCHAR(256), DataTypes.DOUBLE(), DataTypes.DOUBLE(), DataTypes.DATE()};


builder.setDorisReadOptions(DorisReadOptions.builder().build())
        .setDorisExecutionOptions(executionBuilder.build())
        .setSerializer(RowDataSerializer.builder()    //serialize according to rowdata
                           .setFieldNames(fields)
                           .setType("json")           //json format
                           .setFieldType(types).build())
        .setDorisOptions(dorisBuilder.build());


//mock rowdata source
DataStream<RowData> source = env.fromElements("")
    .map(new MapFunction<String, RowData>() {
        @Override
        public RowData map(String value) throws Exception {
            GenericRowData genericRowData = new GenericRowData(4);
            genericRowData.setField(0, StringData.fromString("beijing"));
            genericRowData.setField(1, 116.405419);
            genericRowData.setField(2, 39.916927);
            genericRowData.setField(3, LocalDate.now().toEpochDay());
            return genericRowData;
        }
    });


source.sinkTo(builder.build());

SchemaChange 数据流(JsonDebeziumSchemaSerializer)

// enable checkpoint
env.enableCheckpointing(10000);


Properties props = new Properties();
props.setProperty("format", "json");
props.setProperty("read_json_by_line", "true");
DorisOptions dorisOptions = DorisOptions.builder()
        .setFenodes("127.0.0.1:8030")
        .setTableIdentifier("test.t1")
        .setUsername("root")
        .setPassword("").build();


DorisExecutionOptions.Builder  executionBuilder = DorisExecutionOptions.builder();
executionBuilder.setLabelPrefix("label-prefix")
        .setStreamLoadProp(props).setDeletable(true);


DorisSink.Builder<String> builder = DorisSink.builder();
builder.setDorisReadOptions(DorisReadOptions.builder().build())
        .setDorisExecutionOptions(executionBuilder.build())
        .setDorisOptions(dorisOptions)
        .setSerializer(JsonDebeziumSchemaSerializer.builder().setDorisOptions(dorisOptions).build());


env.fromSource(mySqlSource, WatermarkStrategy.noWatermarks(), "MySQL Source")
        .sinkTo(builder.build());
