dolphinscheduler+flink+seatunnel集成详细教程

大数据技能圈 2023-07-31

114

1.软件版本

Flink:1.16.1

Dolphinscheduler:3.1.3

Seatunnel:2.3.3-SNAPSHOT（修复了2.3.2使用Flink引擎的时候无法提交任务的bug）

2.安装Flink

1)解压

tar -zxvf flink-1.16.1-bin-scala_2.12.tgz -C /opt/software/flink
mv flink-1.16.1 1.16.1

2)配置文件

flink-conf.yaml

jobmanager.rpc.address:jobmanager_ip
jobmanager.bind-host:0.0.0.0
taskmanager.bind-host:0.0.0.0
taskmanager.host:taskmanager_ip
parallelism.default:xrest.address:0.0.0.0
rest.port:8081
rest.bind-address:0.0.0.0
env.pid.dir: opt/log/flink/1.16.1/pids

master

master_ip

worker

worker1_ip
worker2_ip
worker3_ip

zoo.cfg

tickTime=2000
initLimit=10
syncLimit=5
clientPort=2181
server.1=zookeeper1_ip:2888:3888
server.2=zookeeper2_ip:2888:3888
server.3=zookeeper3_ip:2888:3888

3)发送到其他节点

scp -rp 1.16.1 用户名@target_ip:/dir1/dir2/（需要提前做服务器间免密登录）

4)启动

./start-cluster.sh

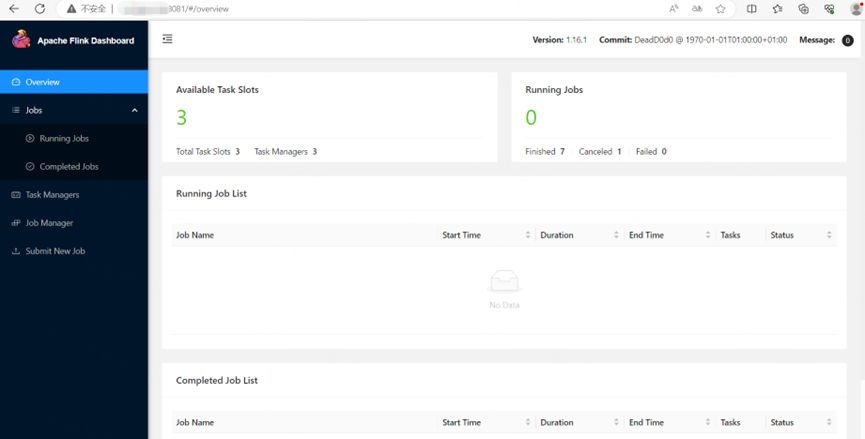

5)查看页面

flink-ui-ip:8081

3.安装seatunnel

目前的seatunnel最新版本是2.3.2，经测试发现在集成flink1.16.1的时候，会出现无法提交任务，在配置flink-cdc任务的时候出现无法找到jar包的错误，所以需要自己打包最新分支的代码：seatunnel-dev；（在集成flink1.13.x,1.14.x,1.15.x时没有发现这个错误）

1)下载源代码：

2)编译代码

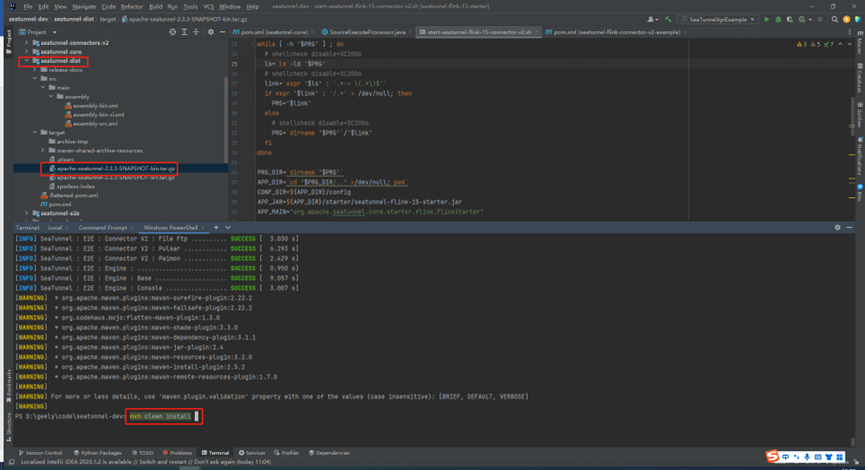

在代码最外层pom文件平级目录使用terminal执行命令1：

mvn clean install

注意：在编译过程中可能会遇到错误，执行命令2：

mvn spotless:apply

成功后，继续执行命令1.

编译成功后，可在seatunnle-dist/target/出现apache-seatunnel-2.3.3-SNAPSHOT-bin.tar.gz文件

3)上传apache-seatunnel-2.3.3-SNAPSHOT-bin.tar.gz文件到服务器

4)解压

tar -zxvf apache-seatunnel-2.3.3-SNAPSHOT-bin.tar.gz -C /opt/seatunnel/

5)配置文件

配置seatunnel集群信息

hazelcast.yaml：

member-list:
- host1_ip
- host2_ip
- host3_ip

hazelcast-client.yaml：

cluster-members:
- host1_ip:5801
- host2_ip:5801
- host3_ip:5801

配置Flink信息

seatunnel-env.sh:

FLINK_HOME=${FLINK_HOME:-/opt/software/flink/1.16.1}

6)分发到其他节点

scp -rp apache-seatunnel-2.3.3-SNAPSHOT 用户名@target_host_ip:/dir1/dir2/

6)启动（所有节点）

bin/seatunnel-cluster.sh –daemon

4.安装dolphinscheduler

1)解压

tar -zxvf apache-dolphinscheduler-3.1.7.tar.gz -C /opt/software/dolphinscheduler

2)配置文件

dolphinscheduler_env.sh:

export JAVA_HOME=${JAVA_HOME:-/usr/local/java/jdk1.8.0_341}
export DATABASE=${DATABASE:-mysql}
export SPRING_PROFILES_ACTIVE=${DATABASE}
export SPRING_DATASOURCE_URL=jdbc:mysql://mysql_host_ip:3306/dolphinscheduler_3_1_7?useUnicode=true&characterEncoding=UTF-8&useSSL=false
export SPRING_DATASOURCE_USERNAME=user
export SPRING_DATASOURCE_PASSWORD=password
export
SPRING_CACHE_TYPE=${SPRING_CACHE_TYPE:-none}
export SPRING_JACKSON_TIME_ZONE=${SPRING_JACKSON_TIME_ZONE:-Asia/Shanghai}
export
MASTER_FETCH_COMMAND_NUM=${MASTER_FETCH_COMMAND_NUM:-10}
export
REGISTRY_TYPE=${REGISTRY_TYPE:-zookeeper}
export
REGISTRY_ZOOKEEPER_CONNECT_STRING=${REGISTRY_ZOOKEEPER_CONNECT_STRING:-host1_ip:2181,host2_ip:2181,host3_ip:2181}
export
HADOOP_HOME=${HADOOP_HOME:-/opt/soft/hadoop}
export
HADOOP_CONF_DIR=${HADOOP_CONF_DIR:-/opt/soft/hadoop/etc/hadoop}
export
SPARK_HOME1=${SPARK_HOME1:-/opt/soft/spark1}
export
SPARK_HOME2=${SPARK_HOME2:-/opt/soft/spark2}
export PYTHON_HOME=${PYTHON_HOME:-/opt/soft/python}
export
HIVE_HOME=${HIVE_HOME:-/opt/soft/hive}
export
FLINK_HOME=${FLINK_HOME:-/opt/soft/flink}
export
DATAX_HOME=${DATAX_HOME:-/opt/soft/datax}
# 配置seatunnel
export
SEATUNNEL_HOME=${SEATUNNEL_HOME:-/opt/software/seatunnel/apache-seatunnel-2.3.3-SNAPSHOT}
export
CHUNJUN_HOME=${CHUNJUN_HOME:-/opt/soft/chunjun}
export
PATH=$HADOOP_HOME/bin:$SPARK_HOME1/bin:$SPARK_HOME2/bin:$PYTHON_HOME/bin:$JAVA_HOME/bin:$HIVE_HOME/bin:$FLINK_HOME/bin:$DATAX_HOME/bin:$SEATUNNEL_HOME/bin:$CHUNJUN_HOME/bin:$PATH

install_env.sh:

ips=${ips:-"host1_ip,host2_ip,host3_ip"}
sshPort=${sshPort:-"22"}
masters=${masters:-"master_ip"}
workers=${workers:-"worker1_ip:default,
worker2_ip:default, worker3_ip:default"}
alertServer=${alertServer:-"alert_ip"}
apiServers=${apiServers:-"api_ip"}
installPath=${installPath:-"/opt/software/dolphinscheduler/3.1.7_install"}
deployUser=${deployUser:-"hadoop"}
zkRoot=${zkRoot:-"/dolphinscheduler"}

3)将mysql-connector-java-8.0.25.jar放到master-server,worker-server,alert-server,api-server,tools五个模块的/libs下面

4)初始化数据库（提前安装好mysql,并创建空的元数据库，元数据库在dolphinscheduler_env.sh要进行配置）

执行/tools/bin/upgrade-schema.sh

注意：如果出现读不到驱动的错误，可以修改master-server,worker-server,alert-server,api-server,tools下面的/conf/application.yaml文件，将driver-class-name: com.mysql.cj.jdbc.Driver 改为driver-class-name: com.mysql.jdbc.Driver

5)启动zookeeper（三台服务器上都执行）

进入到{FLINK_HOME}/bin/

执行命令./start-zookeeper-quorum.sh

6)启动dolphinscheduler

进入{DOLPHINSCHEDULER_HOME}/bin/

第一次运行可执行命令（会把配置文件分发到其他节点并启动）

./install.sh

往后没有配置文件发生改变的情况下，可以使用./start-all.sh来进行启动

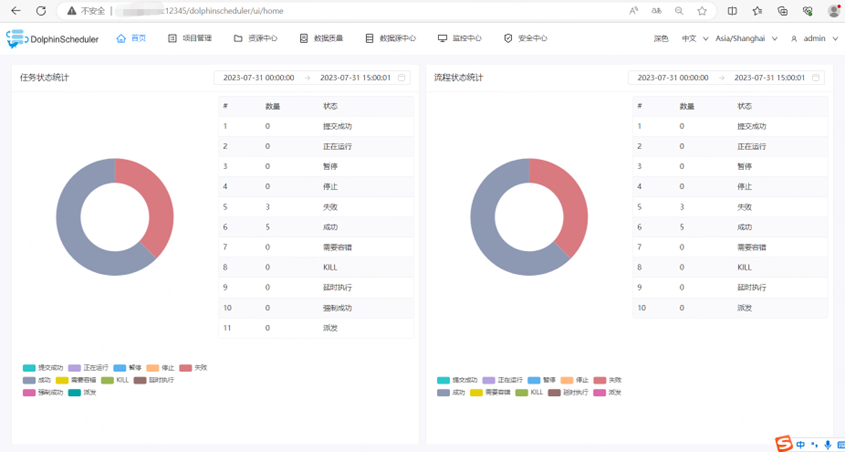

7)验证

访问http://api_ip:12345/dolphinscheduler/ui/默认账号密码admin/dolphinscheduler123

5.测试dolphinscheduler+flink+seatunnel集成

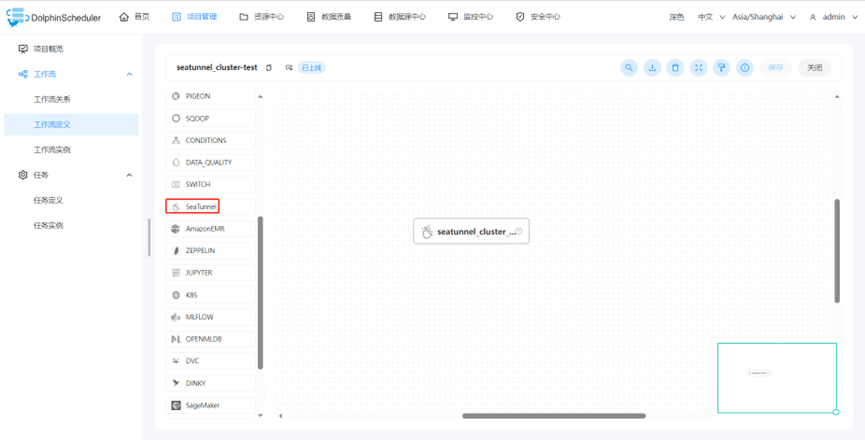

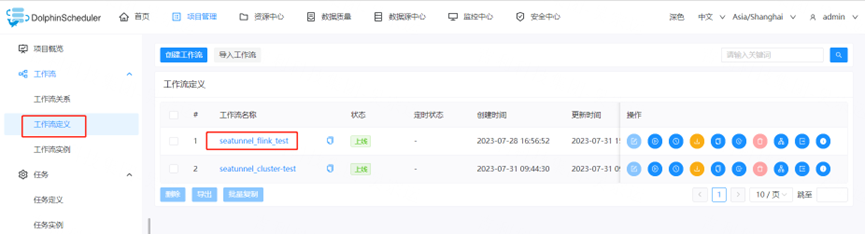

1).创建任务；

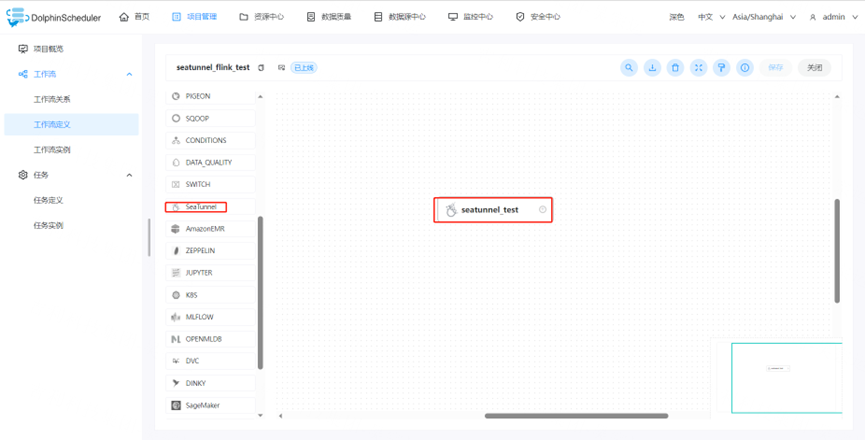

选择seatunnel组件

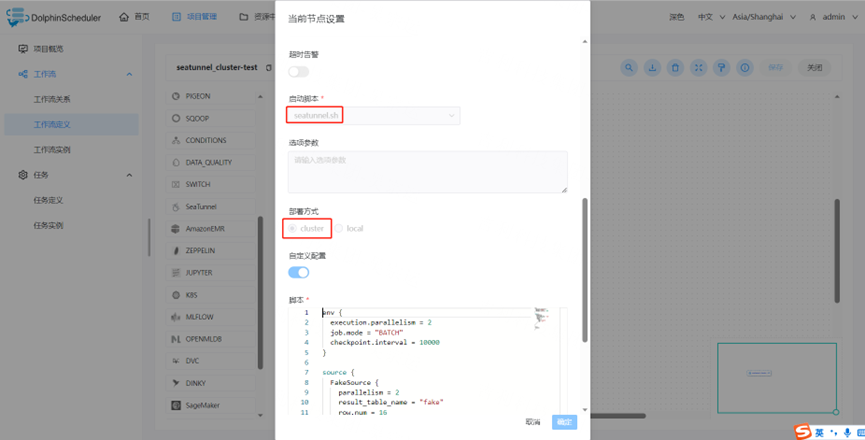

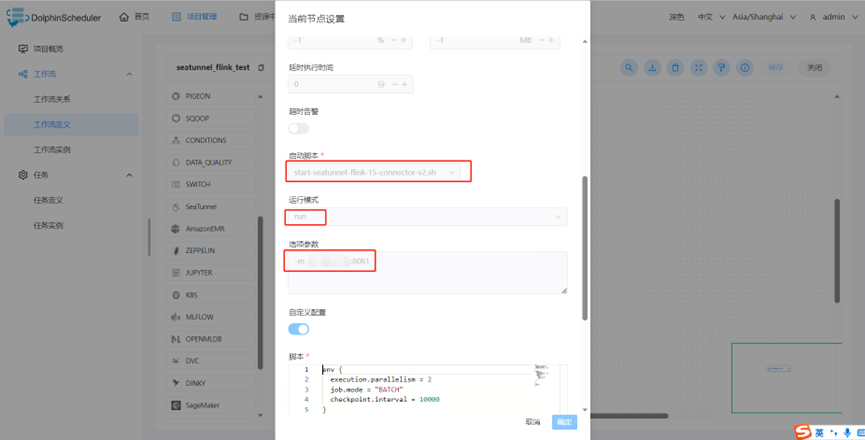

启动脚本选择start-seatunnel-flink-15-connector-v2.sh；运行模式选择run模式；选项参数-m flink-master-ip:8081

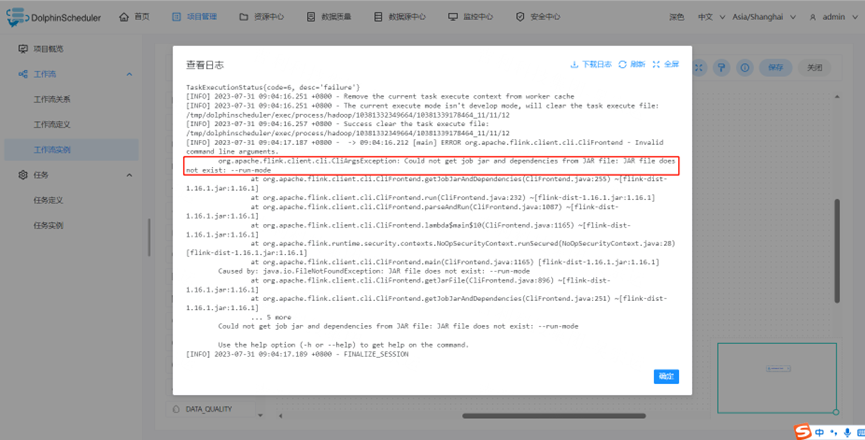

注意：此时在提交任务后会报org.apache.flink.client.cli.CliArgsException:

Could not get job jar and dependencies from JAR file: JAR file does not exist: --run-mode错误；这是因为dolphinscheduler源码中对于RUN模式默认加了参数--run-mode run；需要单独对dolphinscheduler-task-seatunnel-xxx.jar手动进行打包；

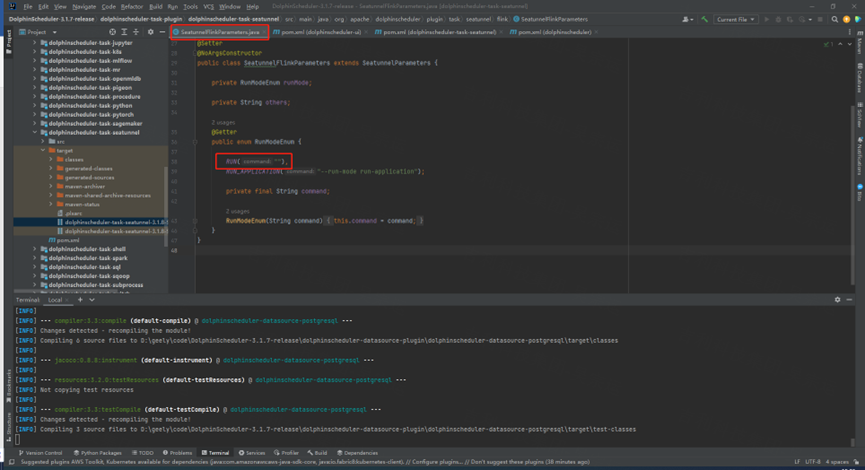

2)下载dolphinschedueler-3.1.7-release分支代码3)修改源代码

将D:\geely\code\DolphinScheduler-3.1.7-release\dolphinscheduler-task-plugin

\dolphinscheduler-task-seatunnel\src\main\java\org\apache\dolphinscheduler\plugin\task\seatunnel\flinkSeatunnelFlinkParameters.java中的RUN("--run-mode run ") 改为RUN(""),

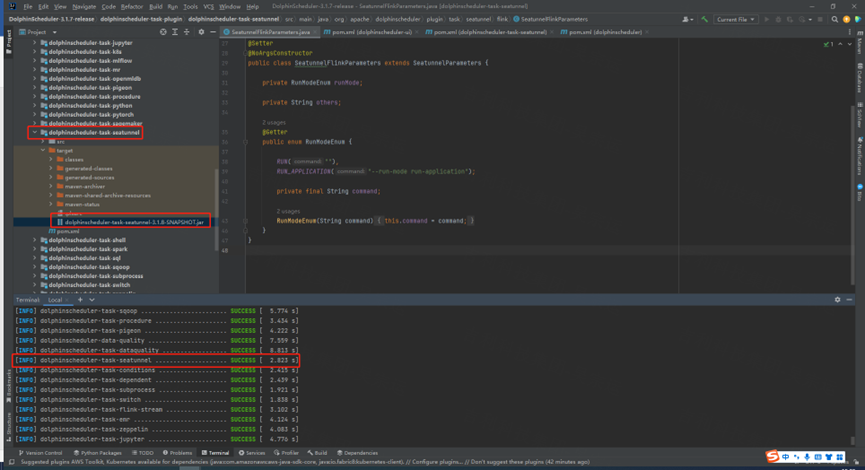

4)编译打包

打包命令：

mvn clean install -Prelease '-Dmaven.test.skip=true' '-Dcheckstyle

.skip=true' '-Dmaven.javadoc.skip=true'

打包结束后在D:\geely\code\DolphinScheduler-3.1.7-release\

dolphinscheduler-task-plugin\dolphinscheduler-task-seatunnel\target下找到dolphinscheduler-task-seatunnel-3.1.8-SNAPSHOT.jar

5)替换jar包

替换dolphinscheduler下面master-server,worker-server,alert-server,api-server,tools下面/libs/中的dolphinscheduler-task-seatunnel-3.1.7.jar（删除dolphinscheduler-task-seatunnel-3.1.7.jar，将dolphinscheduler-task-seatunnel-3.1.8-SNAPSHOT.jar放到目录下面）

6)重启集群

再次执行bin/stop-all.sh bin/install.sh重启集群；

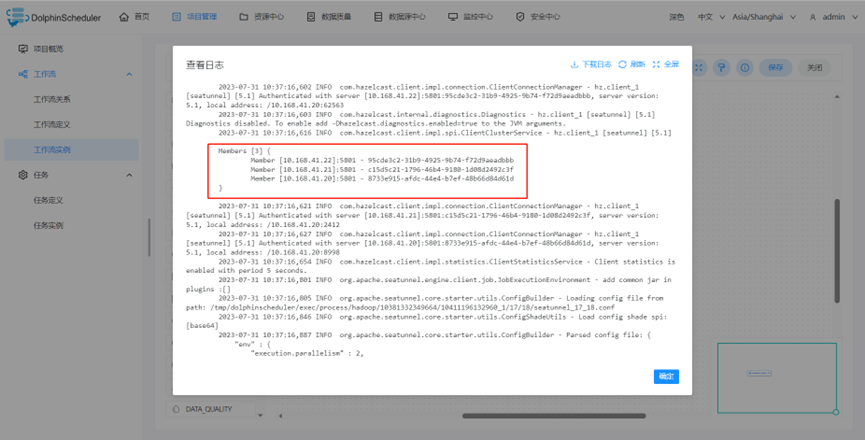

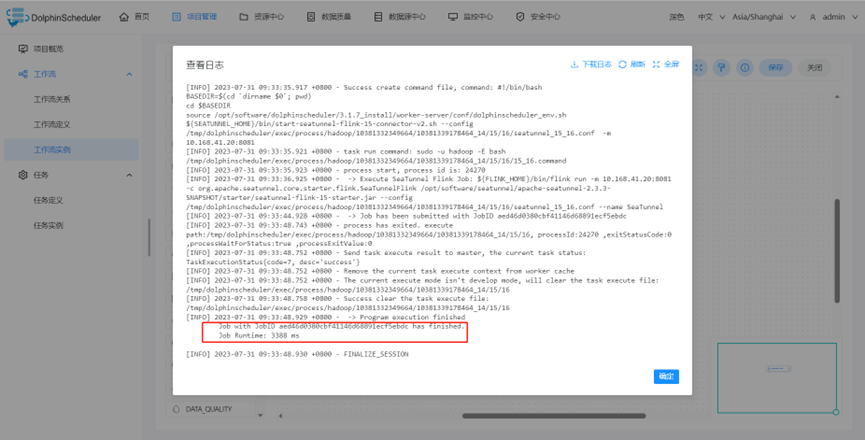

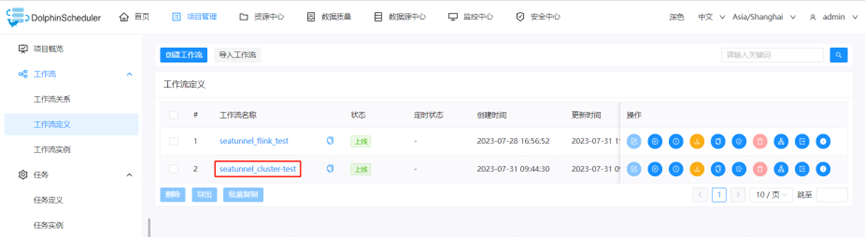

7)再次运行任务，执行成功。
