在当今的云计算时代，微服务架构已经成为构建复杂应用的主流模式。为了支持这一架构，我们需要一个强大而灵活的服务发现和配置管理平台。Nacos以其卓越的功能和易用性成为众多开发者的首选。同时，选择PostgreSQL作为其后端数据库，不仅保障了数据的安全性和持久性，还提升了系统的性能。本文将详细介绍如何在Kubernetes环境中部署Nacos，并将其数据存储集成到PostgreSQL中，帮助您快速搭建起一套高效稳定的微服务平台。
Nacos高可用架构图
1、Kubernetes集群可用
2、StorageClass存储类可用
3、Ingress Controller可用
4、PostgreSQL集群可用
1、下载初始化脚本
$ sudo mkdir etc/kubernetes/addons/nacos
$ sudo curl -L -o etc/kubernetes/addons/nacos/nacos-pg.sql https://github.com/wuchubuzai2018/nacos-datasource-extend-plugins/raw/refs/heads/main/nacos-datasource-plugin-ext/nacos-postgresql-datasource-plugin-ext/src/main/resources/schema/nacos-pg.sql
2、postgresql创建库并授权
$ CREATE USER nacos WITH PASSWORD '123456';
$ CREATE DATABASE nacos_prod OWNER nacos;
3、导入数据
$ psql -h 172.139.20.188 -p 9999 -U nacos -W nacos_prod < etc/kubernetes/addons/nacos/nacos-pg.sql
1、创建命名空间
$ kubectl create ns nacos
2、创建Nacos配置文件
$ cat <<'EOF' | sudo tee etc/kubernetes/addons/nacos/application.properties > dev/null
#*************** Spring Boot Related Configurations ***************#
#server.servlet.contextPath=/nacos
server.error.include-message=ALWAYS
server.port=8848
#*************** Network Related Configurations ***************#
#*************** Config Module Related Configurations ***************#
spring.sql.init.platform=postgresql
db.num=1
db.url.0=jdbc:postgresql://172.139.20.188:9999/nacos_prod?tcpKeepAlive=true&reWriteBatchedInserts=true&ApplicationName=nacos_java
db.user.0=nacos
db.password.0=123456
db.pool.config.connectionTimeout=30000
db.pool.config.validationTimeout=10000
db.pool.config.maximumPoolSize=20
db.pool.config.minimumIdle=2
db.pool.config.driverClassName=org.postgresql.Driver
nacos.config.push.maxRetryTime=50
#*************** Naming Module Related Configurations ***************#
#*************** CMDB Module Related Configurations ***************#
#***********Metrics for tomcat **************************#
server.tomcat.mbeanregistry.enabled=true
#***********Expose prometheus and health **************************#
management.metrics.export.elastic.enabled=false
management.metrics.export.influx.enabled=false
#*************** Access Log Related Configurations ***************#
server.tomcat.accesslog.enabled=true
server.tomcat.accesslog.rotate=true
server.tomcat.accesslog.file-date-format=.yyyy-MM-dd-HH
server.tomcat.accesslog.pattern=%h %l %u %t "%r" %s %b %D %{User-Agent}i %{Request-Source}i
server.tomcat.basedir=file:.
#*************** Access Control Related Configurations ***************#
nacos.security.ignore.urls=/,/error,/**/*.css,/**/*.js,/**/*.html,/**/*.map,/**/*.svg,/**/*.png,/**/*.ico,/console-ui/public/**,/v1/auth/**,/v1/console/health/**,/actuator/**,/v1/console/server/**
nacos.core.auth.system.type=nacos
nacos.core.auth.enabled=true
nacos.core.auth.caching.enabled=true
nacos.core.auth.enable.userAgentAuthWhite=false
nacos.core.auth.server.identity.key=authKey
nacos.core.auth.server.identity.value=shigzh
nacos.core.auth.plugin.nacos.token.cache.enable=false
nacos.core.auth.plugin.nacos.token.expire.seconds=18000
nacos.core.auth.plugin.nacos.token.secret.key=MjA4OTcxNjAtYWE5MS00YmQwLTkxYWQtOTIzMTYyNGE3OWExCg==
#*************** Control Plugin Related Configurations ***************#
#*************** Config Change Plugin Related Configurations ***************#
#*************** Istio Related Configurations ***************#
nacos.istio.mcp.server.enabled=false
#*************** Core Related Configurations ***************#
#*************** JRaft Related Configurations ***************#
#*************** Distro Related Configurations ***************#
#*************** Grpc Configurations ***************#
EOF
$ kubectl create configmap nacos-config --from-file=application.properties=/etc/kubernetes/addons/nacos/application.properties -n nacos
configmap/nacos-config created
Tip：上述基于默认配置文件适配postgresql 以及开启鉴权参数。
适配postgresql参数：
spring.sql.init.platform
db.url
db.pool.config.driverClassName
开启鉴权参数：
nacos.core.auth.enabled
nacos.core.auth.server.identity.key # 服务之间使用的，不是登录用户信息
nacos.core.auth.server.identity.value # 服务之间使用的，不是登录用户信息
nacos.core.auth.plugin.nacos.token.secret.key # 原字符32位+且要base64编码
3、下载nacos连接postgresql驱动
$ sudo curl -o etc/kubernetes/addons/nacos/nacos-postgresql-plugin-1.0.0.jar -L https://github.com/wuchubuzai2018/nacos-datasource-extend-plugins/releases/download/1.0.0/nacos-postgresql-plugin-1.0.0.jar
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0
100 1216k 100 1216k 0 0 780k 0 0:00:01 0:00:01 --:--:-- 5600k
4、部署Nacos服务
$ cat <<'EOF' | sudo tee etc/kubernetes/addons/nacos/deploy.yml > dev/null
---
apiVersion: v1
kind: Service
metadata:
name: nacos
namespace: nacos
spec:
ports:
- port: 8848
name: server
targetPort: 8848
- port: 9848
name: client-rpc
targetPort: 9848
- port: 9849
name: raft-rpc
targetPort: 9849
## 兼容1.4.x版本的选举端口
- port: 7848
name: old-raft-rpc
targetPort: 7848
selector:
app: nacos
---
apiVersion: v1
kind: Service
metadata:
name: nacos-headless
namespace: nacos
spec:
publishNotReadyAddresses: true
ports:
- port: 8848
name: server
targetPort: 8848
- port: 9848
name: client-rpc
targetPort: 9848
- port: 9849
name: raft-rpc
targetPort: 9849
## 兼容1.4.x版本的选举端口
- port: 7848
name: old-raft-rpc
targetPort: 7848
clusterIP: None
selector:
app: nacos
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: nacos
namespace: nacos
spec:
replicas: 3
podManagementPolicy: Parallel
serviceName: nacos-headless
selector:
matchLabels:
app: nacos
template:
metadata:
labels:
app: nacos
annotations:
pod.alpha.kubernetes.io/initialized: "true"
spec:
affinity:
podAntiAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
- labelSelector:
matchExpressions:
- key: "app"
operator: In
values:
- nacos
topologyKey: "kubernetes.io/hostname"
initContainers:
- name: peer-finder-plugin-install
image: core.jiaxzeng.com/library/nacos/nacos-peer-finder-plugin:1.1
imagePullPolicy: Always
volumeMounts:
- mountPath: home/nacos/plugins/peer-finder
name: data
subPath: peer-finder
containers:
- name: nacos
imagePullPolicy: Always
image: core.jiaxzeng.com/library/nacos/nacos-server:v2.4.3-slim
resources:
requests:
memory: "2Gi"
cpu: "500m"
startupProbe:
failureThreshold: 12
httpGet:
path: v1/console/health/readiness
port: 8848
scheme: HTTP
initialDelaySeconds: 60
periodSeconds: 10
successThreshold: 1
timeoutSeconds: 10
livenessProbe:
httpGet:
path: v1/console/health/readiness
port: 8848
timeoutSeconds: 10
successThreshold: 1
periodSeconds: 5
failureThreshold: 3
ports:
- containerPort: 8848
name: client-port
- containerPort: 9848
name: client-rpc
- containerPort: 9849
name: raft-rpc
- containerPort: 7848
name: old-raft-rpc
env:
- name: NACOS_REPLICAS
value: "3"
- name: SERVICE_NAME
value: "nacos-headless"
- name: DOMAIN_NAME
value: "cluster.local"
- name: POD_NAMESPACE
valueFrom:
fieldRef:
apiVersion: v1
fieldPath: metadata.namespace
- name: NACOS_SERVER_PORT
value: "8848"
- name: NACOS_APPLICATION_PORT
value: "8848"
- name: PREFER_HOST_MODE
value: "hostname"
volumeMounts:
- name: data
mountPath: home/nacos/plugins/peer-finder
subPath: peer-finder
- name: data
mountPath: home/nacos/data
subPath: data
- name: data
mountPath: home/nacos/logs
subPath: logs
- mountPath: home/nacos/conf/application.properties
name: config
subPath: application.properties
volumes:
- configMap:
defaultMode: 420
name: nacos-config
name: config
volumeClaimTemplates:
- metadata:
name: data
spec:
accessModes: [ "ReadWriteMany" ]
storageClassName: "ceph-fs-storage"
resources:
requests:
storage: 8Gi
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
annotations:
cert-manager.io/cluster-issuer: "selfsigned-cluster-issuer"
name: nacos
namespace: nacos
spec:
ingressClassName: nginx
rules:
- host: nacos.jiaxzeng.com
http:
paths:
- pathType: Prefix
path:
backend:
service:
name: nacos
port:
number: 8848
tls:
- secretName: nacos.jiaxzeng.com-tls
hosts:
- nacos.jiaxzeng.com
EOF
$ kubectl apply -f etc/kubernetes/addons/nacos/deploy.yml
service/nacos created
service/nacos-headless created
statefulset.apps/nacos created
ingress.networking.k8s.io/nacos created
5、拷贝postgresql驱动到容器
for i in `seq 0 2`;do
kubectl -n nacos cp etc/kubernetes/addons/nacos/nacos-postgresql-plugin-1.0.0.jar nacos-${i}:plugins/peer-finder
done

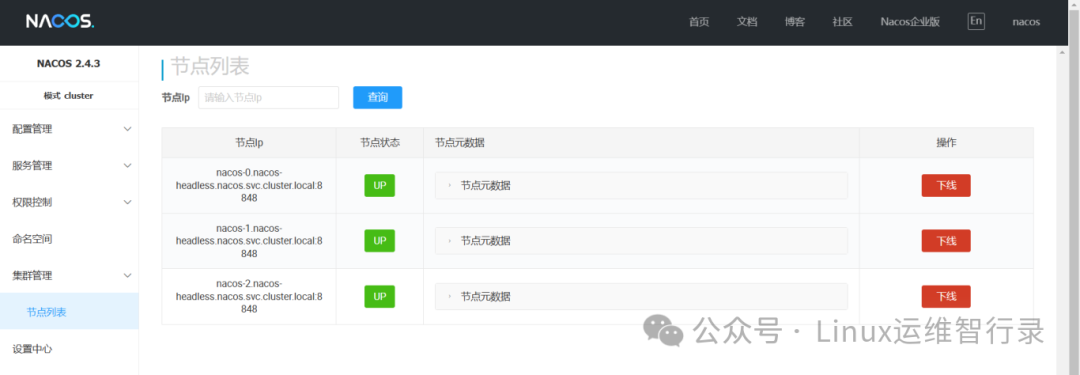

$ kubectl -n nacos get pod,svc,pvc,ingress
NAME READY STATUS RESTARTS AGE
pod/nacos-0 1/1 Running 0 93s
pod/nacos-1 1/1 Running 0 92s
pod/nacos-2 1/1 Running 0 92s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/nacos ClusterIP 10.110.115.106 <none> 8848/TCP,9848/TCP,9849/TCP,7848/TCP 73s
service/nacos-headless ClusterIP None <none> 8848/TCP,9848/TCP,9849/TCP,7848/TCP 73s
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
persistentvolumeclaim/data-nacos-0 Bound pvc-a08d8647-9dbd-4696-9966-718586e39cac 8Gi RWX ceph-fs-storage 16m
persistentvolumeclaim/data-nacos-1 Bound pvc-265c6035-8886-4344-bcd7-3f3ffacddc73 8Gi RWX ceph-fs-storage 11m
persistentvolumeclaim/data-nacos-2 Bound pvc-833ac0e3-b53c-4eac-9951-13e8bbf33e31 8Gi RWX ceph-fs-storage 11m
NAME CLASS HOSTS ADDRESS PORTS AGE
ingress.networking.k8s.io/nacos nginx nacos.jiaxzeng.com 10.109.195.237 80, 443 73s
Tip：默认密码：nacos/nacos
通过上述步骤，我们不仅可以在Kubernetes中成功部署Nacos，还能借助PostgreSQL的强大功能保证数据的安全性和一致性。这不仅增强了系统的可靠性，也使得微服务的开发和运维变得更加简单高效。对于正在探索微服务治理方案的企业来说，这样的组合无疑是一个极具吸引力的选择。希望这篇文章能为您提供有价值的参考，帮助您构建出更加稳固的微服务架构。
