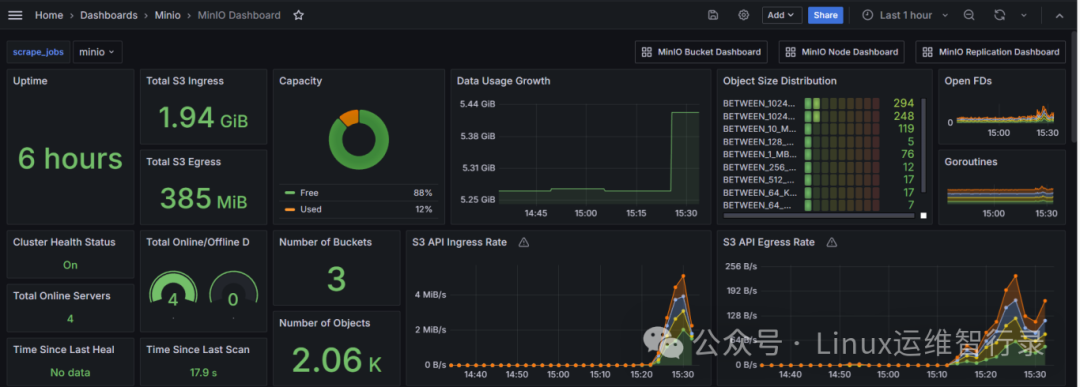

企业级MinIO监控面板：确保数据存储的高性能与安全

1、创建minio客户端并配置连接信息

$ kubectl run minio-client --rm -it --image 172.139.20.170:5000/library/minio/minio-client:2024.10.29-debian-12-r1 -- bash
If you don't see a command prompt, try pressing enter.
I have no name!@minio-client:/opt/bitnami/minio-client$ mc alias set 'minio' 'http://minio-headless.kube-system.svc:9000' admin clouD@0209
mc: Configuration written to `/.mc/config.json`. Please update your access credentials.
mc: Successfully created `/.mc/share`.
mc: Initialized share uploads `/.mc/share/uploads.json` file.
mc: Initialized share downloads `/.mc/share/downloads.json` file.
Added `minio` successfully.

2、获取minio集群指标

I have no name!@minio-client:/opt/bitnami/minio-client$ mc admin prometheus generate minio
scrape_configs:
- job_name: minio-job
  bearer_token: eyJhbGciOiJIUzUxMiIsInR5cCI6IkpXVCJ9.eyJpc3MiOiJwcm9tZXRoZXVzIiwic3ViIjoiYWRtaW4iLCJleHAiOjQ4ODgyODU4NjV9.tj9LKCNNbVpSV9GAtzN4lnJHiwnGmP7I00wygUTIAZdpdb7r6cfhsFb-b-MgAZWv0KmGt43rVcvvgCReLEyHQw
  metrics_path: minio/v2/metrics/cluster
  scheme: http
  static_configs:
  - targets: ['minio-headless.kube-system.svc:9000']

3、获取minio节点

I have no name!@minio-client:/opt/bitnami/minio-client$ mc admin prometheus generate minio node
scrape_configs:
- job_name: minio-job-node
  bearer_token: eyJhbGciOiJIUzUxMiIsInR5cCI6IkpXVCJ9.eyJpc3MiOiJwcm9tZXRoZXVzIiwic3ViIjoiYWRtaW4iLCJleHAiOjQ4ODgyODU4ODN9.ENu1FTNMyl0rimO5MS0LG8So-lvr_RcLpDJdjanjtKvYyT7stL03Uwg47yHhLcU4sU5bCs0x0onAIPQh3MDKvg
  metrics_path: minio/v2/metrics/node
  scheme: http
  static_configs:
  - targets: ['minio-headless.kube-system.svc:9000']

4、获取minio桶

I have no name!@minio-client:/opt/bitnami/minio-client$ mc admin prometheus generate minio bucket
scrape_configs:
- job_name: minio-job-bucket
  bearer_token: eyJhbGciOiJIUzUxMiIsInR5cCI6IkpXVCJ9.eyJpc3MiOiJwcm9tZXRoZXVzIiwic3ViIjoiYWRtaW4iLCJleHAiOjQ4ODgyODU4OTF9.2_VULWlR_DQePcE4GgNgDthIeMkHOvgNfsy35iWVWbCHfVVbzKK8jE5fytWEomiLnQewYtDndZIIXKvq7IHpOQ
  metrics_path: minio/v2/metrics/bucket
  scheme: http
  static_configs:
  - targets: ['minio-headless.kube-system.svc:9000']

5、获取minio资源

I have no name!@minio-client:/opt/bitnami/minio-client$ mc admin prometheus generate minio resource
scrape_configs:
- job_name: minio-job-resource
  bearer_token: eyJhbGciOiJIUzUxMiIsInR5cCI6IkpXVCJ9.eyJpc3MiOiJwcm9tZXRoZXVzIiwic3ViIjoiYWRtaW4iLCJleHAiOjQ4ODgyODU4OTZ9.zvIDGTuo_LjxKvSydlP3V_DBGz0LMY5MUHMjha6n20RJswaRIvH7JVd020QWWdrtvWIoS-pAWqMLzK3umGkRSw
  metrics_path: minio/v2/metrics/resource
  scheme: http
  static_configs:
  - targets: ['minio-headless.kube-system.svc:9000']

1、Prometheus采集gitlab数据

$ kubectl -n kube-system edit cm prometheus
    - job_name: minio
      bearer_token: eyJhbGciOiJIUzUxMiIsInR5cCI6IkpXVCJ9.eyJpc3MiOiJwcm9tZXRoZXVzIiwic3ViIjoiYWRtaW4iLCJleHAiOjQ4ODgwMjYxMzd9.x_LnmpMpyA2wJAtzBPBv47AXLDqq4RmJcaCfbXkwkuc
FwmNhtr-UDY3IXSYRIuyMjmucDa99rBIvsHUMefc_Pw
      metrics_path: minio/v2/metrics/cluster
      scheme: http
      static_configs:
      - targets: ['minio.kube-system.svc:9000']

    - job_name: minio-node
      bearer_token: eyJhbGciOiJIUzUxMiIsInR5cCI6IkpXVCJ9.eyJpc3MiOiJwcm9tZXRoZXVzIiwic3ViIjoiYWRtaW4iLCJleHAiOjQ4ODgwMjYxNDh9.l-Fkcq2dGXwHNtKDj1c5qRmGEIez4qGoGRAQwJXHSjp
96bAKFQbVfoJLLMj4UMOqmPGF3eDZbLJ25b9pdNXRfw
      metrics_path: minio/v2/metrics/node
      scheme: http
      kubernetes_sd_configs:
      - role: endpoints
      relabel_configs:
      - action: keep
        source_labels: [__meta_kubernetes_namespace, __meta_kubernetes_endpoints_name, __meta_kubernetes_endpoint_port_name]
        regex: kube-system;minio;minio-api

    - job_name: minio-bucket
      bearer_token: eyJhbGciOiJIUzUxMiIsInR5cCI6IkpXVCJ9.eyJpc3MiOiJwcm9tZXRoZXVzIiwic3ViIjoiYWRtaW4iLCJleHAiOjQ4ODgwMjYxNTd9.YIiuBB-NrHwe1v8m0DiGBirlqB5UdailbTUUQCMLPY1
T4gTuaipIKHLCMP5S5Ym1P3tXCIr6twEQwsTOeo-uxw
      metrics_path: minio/v2/metrics/bucket
      scheme: http
      static_configs:
      - targets: ['minio.kube-system.svc:9000']

    - job_name: minio-resource
      bearer_token: eyJhbGciOiJIUzUxMiIsInR5cCI6IkpXVCJ9.eyJpc3MiOiJwcm9tZXRoZXVzIiwic3ViIjoiYWRtaW4iLCJleHAiOjQ4ODgwMjYxNjh9.roXpbUb4vAYfe-0y6ew6oxeC5hEeS_0VmHMkzsIPRLU
MYtVNFY4vXrpn9LGnTxwvR730o0LSkc5lzY0g8vxwCw
      metrics_path: minio/v2/metrics/resource
      scheme: http
      static_configs:
      - targets: ['minio.kube-system.svc:9000']

Tip：minio-node要采集到所有minio-server的实例，建议使用endpoint的方式来采集

2、验证是否采集成功

$ curl -s $(kubectl -n kube-system get svc prometheus -ojsonpath='{.spec.clusterIP}:{.spec.ports[0].port}')/prometheus/api/v1/query --data-urlencode 'query=up{job=~"minio.*"}' | jq '.data.result[] | {job: .metric.job, instance: .metric.instance ,status: .value[1]}'
{
  "job": "minio-bucket",
  "instance": "minio.kube-system.svc:9000",
  "status": "1"
}
{
  "job": "minio-resource",
  "instance": "minio.kube-system.svc:9000",
  "status": "1"
}
{
  "job": "minio",
  "instance": "minio.kube-system.svc:9000",
  "status": "1"
}
{
  "job": "minio-node",
  "instance": "10.244.85.203:9000",
  "status": "1"
}
{
  "job": "minio-node",
  "instance": "10.244.217.116:9000",
  "status": "1"
}
{
  "job": "minio-node",
  "instance": "10.244.135.186:9000",
  "status": "1"
}
{
  "job": "minio-node",
  "instance": "10.244.58.210:9000",
  "status": "1"
}
