背景
某数据库服务器发现存在大量处于TIME_WAIT状态的tcp连接, 但是mysql数据库里面的连接不到100, 应用服务器处于TIME_WAIT的tcp连接更是达到了几万, 连接的端口都是mysql服务器的3306, 也就是这些连接活着的时候都是连接的数据库. 而每天凌晨的时候这些TIME WAIT的连接就都没了.
分析
首先我们使用man netstat查看下TIME_WAIT是个啥状态. 这里稍汇总了下:
| column1 | column2 |
|---|---|
| ESTABLISHED | The socket has an established connection |
| SYN_SENT | The socket is actively attempting to establish a connection |
| SYN_RECV | A connection request has been received from the network |
| FIN_WAIT1 | The socket is closed, and the connection is shutting down |
| FIN_WAIT2 | Connection is closed, and the socket is waiting for a shutdown from the remote end |
| TIME_WAIT | The socket is waiting after close to handle packets still in the network |
| CLOSE | The socket is not being used |
| CLOSE_WAIT | The remote end has shut down, waiting for the socket to close |
| LAST_ACK | The remote end has shut down, and the socket is closed. Waiting for acknowledgement |
| LISTEN | The socket is listening for incoming connections. Such sockets are not included in the output unless you specify the --listening (-l) or --all (-a) option |
| CLOSING | Both sockets are shut down but we still don’t have all our data sent |
| UNKNOWN | The state of the socket is unknown. |
也就是说TIME_WAIT状态是在CLOSED之前的一个状态,比如是刚发完ACK之后的状态. 完整的状态变化过程我们可以查看相关的rfc文档, 其示意图如下:
+---------+ ---------\ active OPEN | CLOSED | \ ----------- +---------+<---------\ \ create TCB | ^ \ \ snd SYN passive OPEN | | CLOSE \ \ ------------ | | ---------- \ \ create TCB | | delete TCB \ \ V | \ \ +---------+ CLOSE | \ | LISTEN | ---------- | | +---------+ delete TCB | | rcv SYN | | SEND | | ----------- | | ------- | V +---------+ snd SYN,ACK / \ snd SYN +---------+ | |<----------------- ------------------>| | | SYN | rcv SYN | SYN | | RCVD |<-----------------------------------------------| SENT | | | snd ACK | | | |------------------ -------------------| | +---------+ rcv ACK of SYN \ / rcv SYN,ACK +---------+ | -------------- | | ----------- | x | | snd ACK | V V | CLOSE +---------+ | ------- | ESTAB | | snd FIN +---------+ | CLOSE | | rcv FIN V ------- | | ------- +---------+ snd FIN / \ snd ACK +---------+ | FIN |<----------------- ------------------>| CLOSE | | WAIT-1 |------------------ | WAIT | +---------+ rcv FIN \ +---------+ | rcv ACK of FIN ------- | CLOSE | | -------------- snd ACK | ------- | V x V snd FIN V +---------+ +---------+ +---------+ |FINWAIT-2| | CLOSING | | LAST-ACK| +---------+ +---------+ +---------+ | rcv ACK of FIN | rcv ACK of FIN | | rcv FIN -------------- | Timeout=2MSL -------------- | | ------- x V ------------ x V \ snd ACK +---------+delete TCB +---------+ ------------------------>|TIME WAIT|------------------>| CLOSED | +---------+ +---------+
也就是说在关闭tcp连接了, 但未关闭完成, 而这么大的量, 说明在频繁的断开连接, 也就是还存在频繁的建立连接. 也就是说应用使用的是短连接! 我们可以登录数据库,执行如下sql确认
-- 查看一共的连接次数
show global status like 'Connections';
-- 查看当前的连接的id 绝大部分的id应该都是接近Connections值的. 表明都是新连接
show processlist;
我们还可以查看下mysql的error日志,
应该能在日志里面发现大量的[Note] Got an error reading communication packets信息,
而且应该很少有[Note] Aborted connection 2599805 to db之类的信息.(异常断开连接太多的话, 是很难有TIME WAIT状态的连接的, 而我们本次环境有大量的TIME WAIT连接, 说明是很多短连接正常断开的.)
每天凌晨的时候TIME WAIT的连接清零应该就是应用重启了一波. 我们可以使用ps -ef查看进程的启动时间确定.
复现

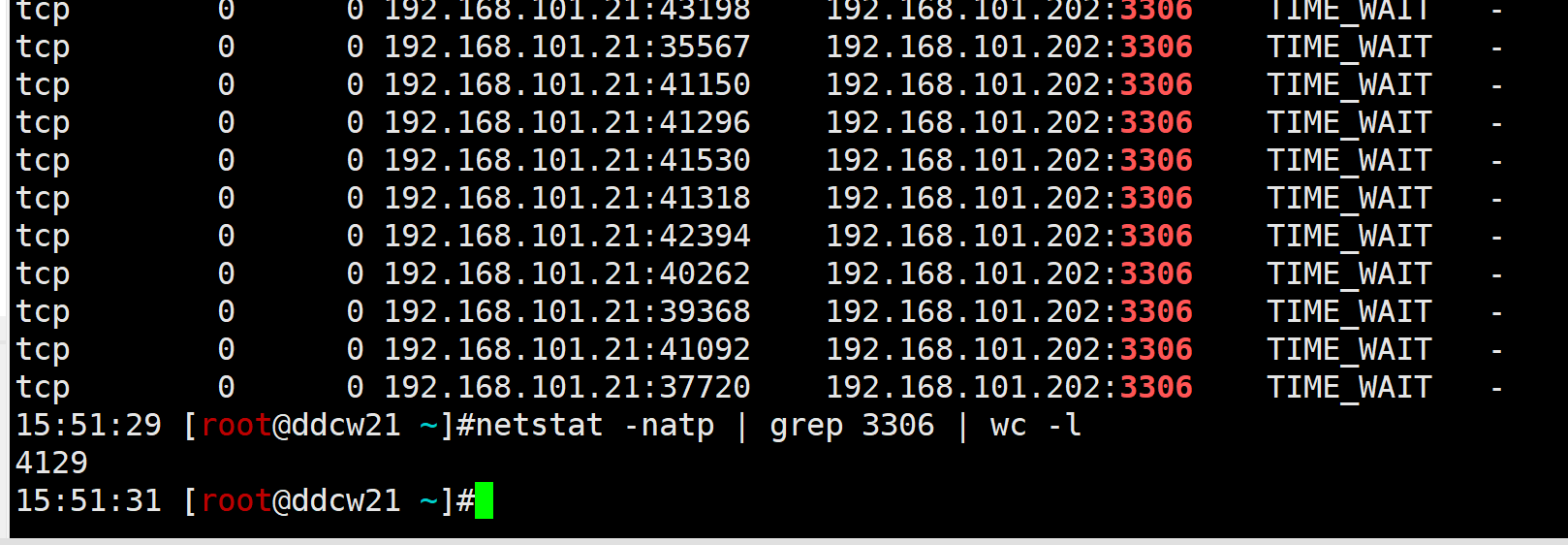

既然原因知道了, 那我们就复现验证下吧. 在应用服务器上执行测试脚本模拟大量的短连接(见文末),然后查看连接情况
发现确实存在大量的TIME_WAIT的连接

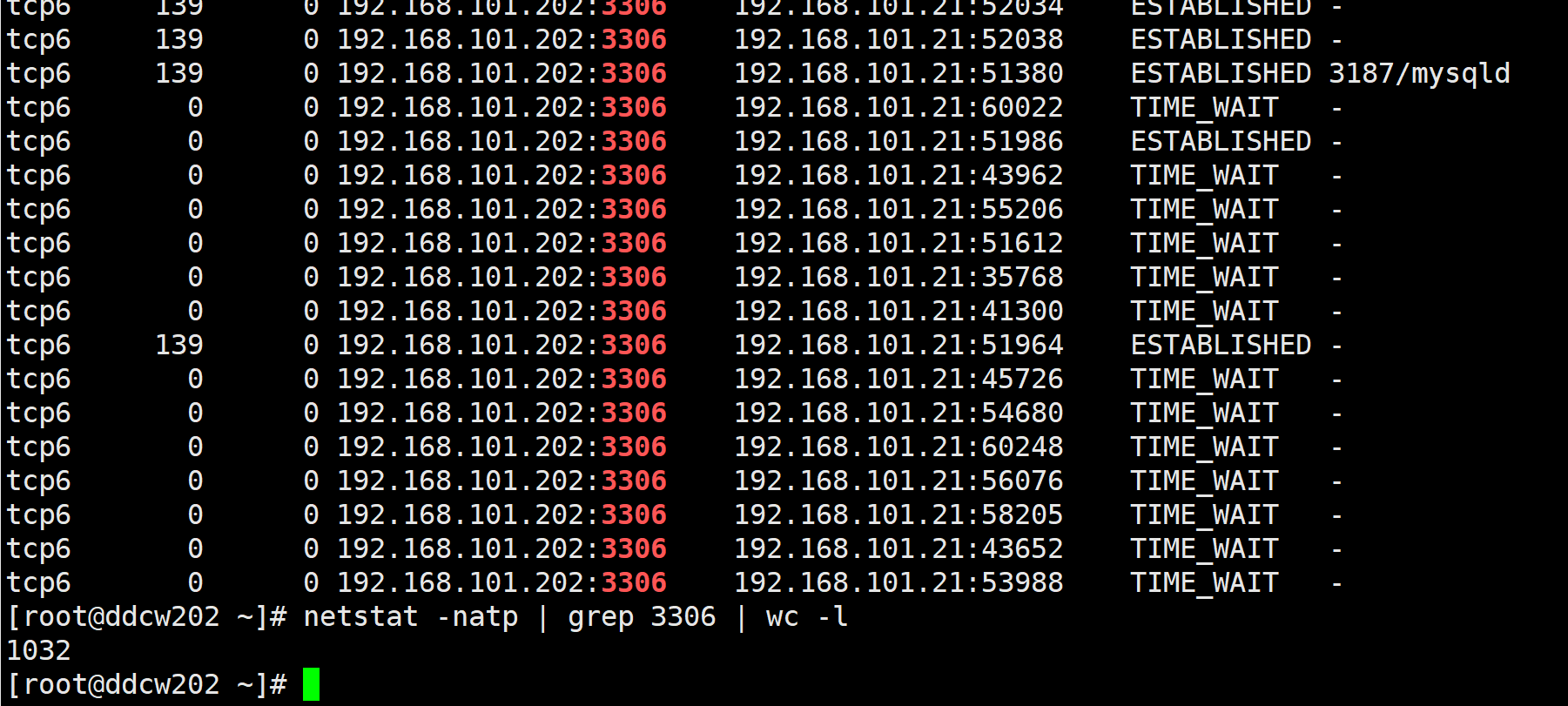

然后我们在数据库服务器查看tcp连接

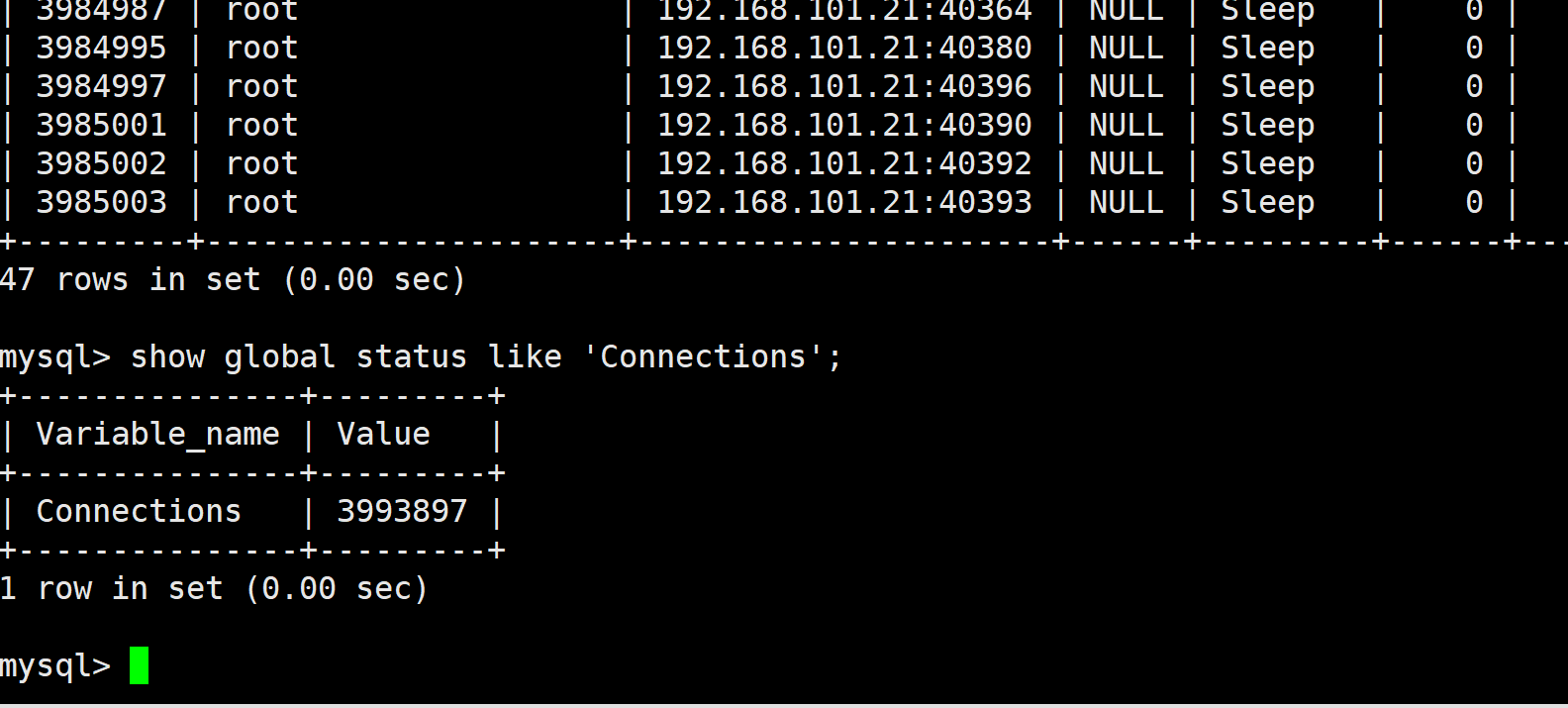

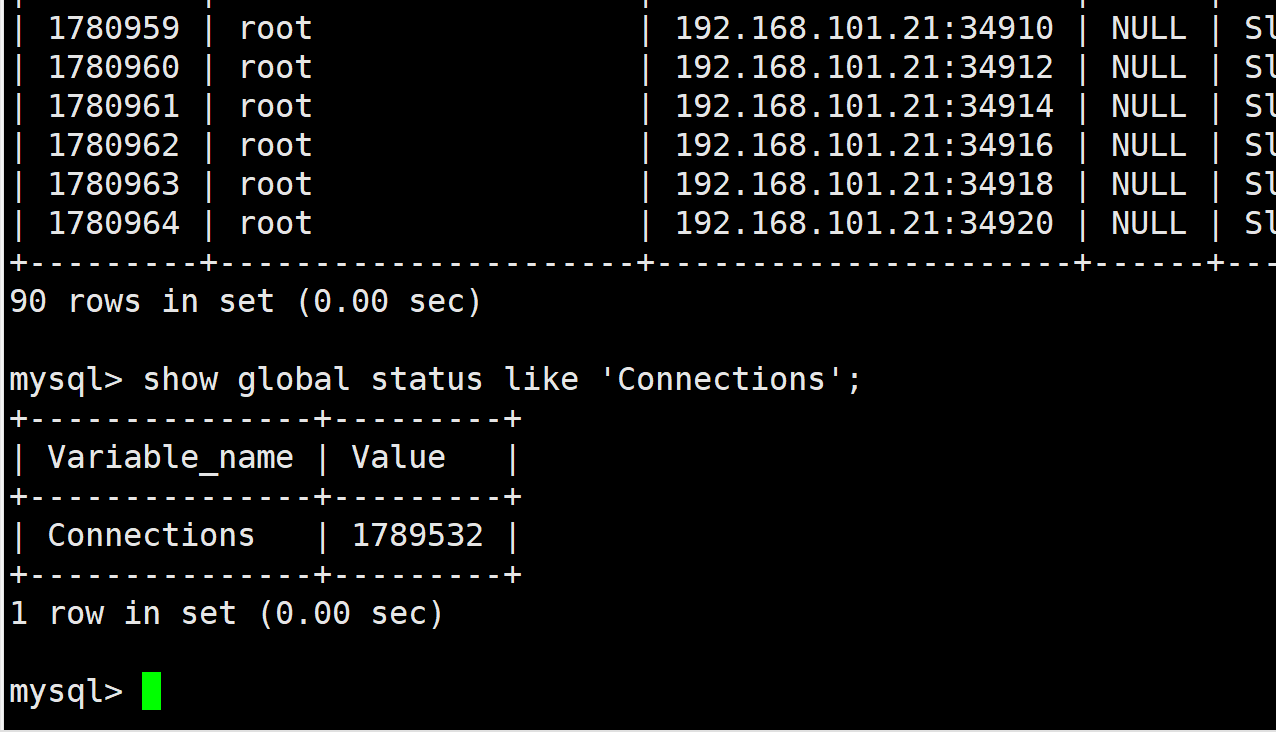

发现数据库也有不少处于TIME WAIT的连接. 我们再查看下数据库里面的连接情况:

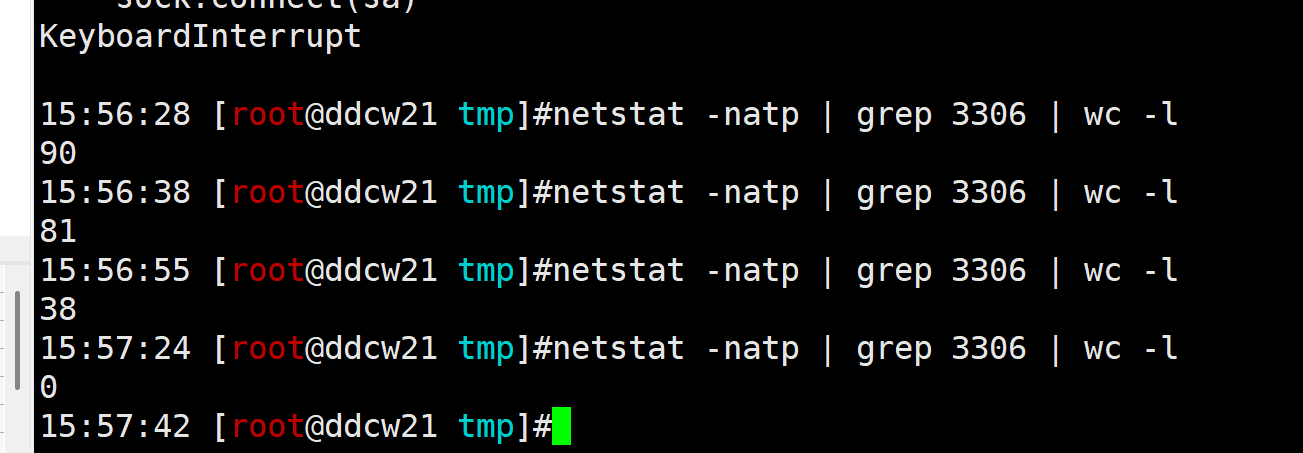

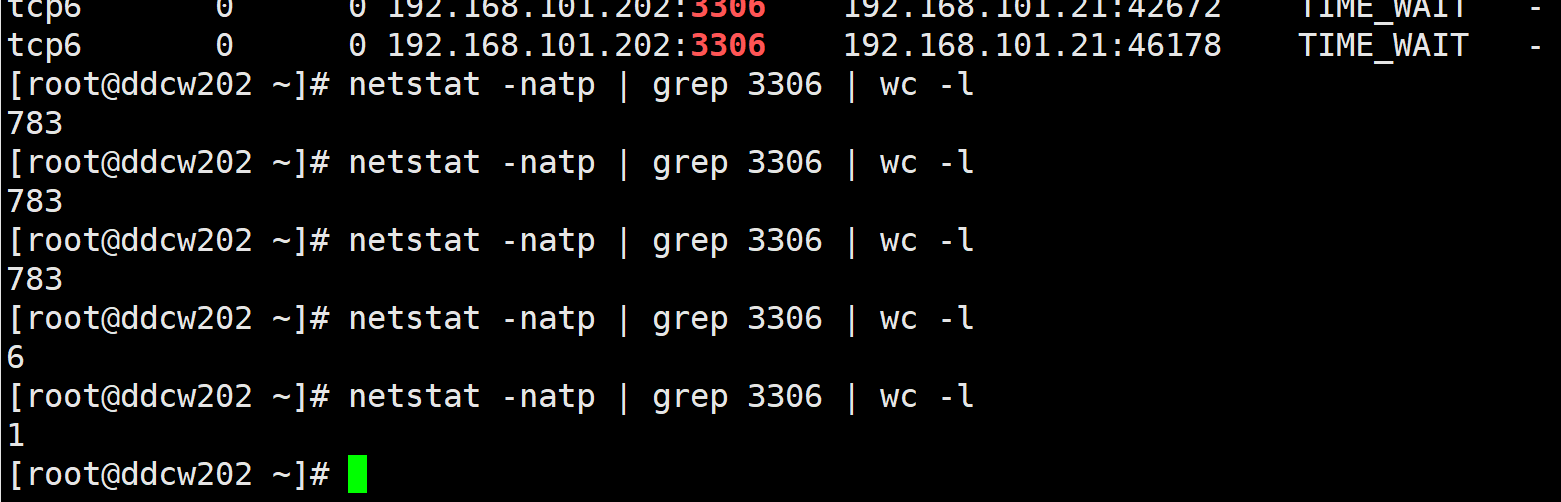

最后我们停止测试脚本, 再观察下, TIME WAIT的连接是否会"清零"
发现连接数都降下来了, 毕竟连接都没了, 连接相关的socket资源之类的肯定也是回收了的
如果复现的时候未出现大量TIME WAIT, 则需要加大并发, 或者调整下相关内核参数(net.ipv4.tcp_tw_reuse和net.ipv4.tcp_tw_reuse)
总结
关于"服务器出现大量的TIME_WAIT, 每天凌晨就清零了"的结论就是:
- 应用使用大量的短连接.
- 每天凌晨重启了应用.
参考:
https://www.rfc-editor.org/rfc/rfc793
附测试脚本
import pymysql
import time
from multiprocessing import Process
def testconn():
conn = pymysql.connect(
host='192.168.101.202',
port=3306,
user='root',
password='123456',
)
cursor = conn.cursor()
cursor.execute('select 1+1')
conn.close()
def testrun():
while True:
testconn()
#time.sleep(0.1)
maxconn = 200
p = {}
for i in range(maxconn):
p[i] = Process(target=testrun,)
for i in range(maxconn):
p[i].start()
for i in range(maxconn):
p[i].join()
