前言
DB monitor 是一款开源的数据库监控平台，提供完整可用的数据监控方案，告别冗长的SQL脚本、常用手册，复杂数据通过web页面即可轻易浏览，通过前后端分离架构，Python+Django+restframework提供后台API，celery定制数据采集策略，Iview作为前端展示。
功能简介
1、资源管理
-
Oracle/MySQL/Redis/Linux资源信息录入
-
资源管理中各类设备信息作为采集设备来源，支持动态加入实例监控列表
2、实例列表
- 查看各监控实例列表及详细信息
3、 监控告警
- 告警配置及告警信息查看
4、数据库部署
- 支持Oracle19c RAC/RAC One Node/单实例，MySQL5.7/8.0单实例部署
部署方式
本地部署
docker 离线部署
环境准备
主机： CentOS Linux release 7.9.2009
IP ：192.168.20.253
dbmonitor: 下载地址
db_monitor_vue:下载地址
docker 离线部署:下载地址
以下演示如何使用docker 离线部署方式进行安装。
注意：部署时，dbmonitor和db_monitor_vue版本保持同步，docker 离线部署中的安装包可能较旧
部署步骤
介质上传
docker 离线安装文件包含，docker 安装rpm，docker 镜像，docker_dbmonitor服务，db_monitor_vue-master前端页面
[root@dmdem dbmonitor]# pwd
/soft/dbmonitor
[root@dmdem dbmonitor]# tree -L 2
.
├── db_monitor_vue-master.zip
├── db_monitor(docker).docx
├── docker_dbmonitor.zip
├── images
│ ├── docker_dbmonitor_django.tar
│ ├── docker_dbmonitor_nginx.tar
│ ├── mysql.tar.gz
│ └── redis.tar.gz
└── soft
├── compose-1.25.5.tar.gz
├── containerd.io-1.2.6-3.3.el7.x86_64.rpm
├── container-selinux-2.107-3.el7.noarch.rpm
├── docker-19.03.9.tgz
├── docker-ce-19.03.9-3.el7.x86_64.rpm
├── docker-ce-cli-19.03.9-3.el7.x86_64.rpm
├── docker-compose-Linux-x86_64
├── instantclient-basic-linux.x64-11.2.0.4.0.zip
└── instantclient-basic-linux.x64-19.5.0.0.0dbru.zip
docker 环境部署
[root@dmdem soft]# pwd
/soft/dbmonitor/soft
[root@dmdem soft]# yum install docker-ce-cli-19.03.9-3.el7.x86_64.rpm container-selinux-2.107-3.el7.noarch.rpm containerd.io-1.2.6-3.3.el7.x86_64.rpm docker-ce-19.03.9-3.el7.x86_64.rpm
-- 启动docker
[root@dmdem soft]# systemctl start docker
[root@dmdem soft]# systemctl status docker
● docker.service - Docker Application Container Engine
Loaded: loaded (/usr/lib/systemd/system/docker.service; disabled; vendor preset: disabled)
Active: active (running) since Mon 2025-03-31 09:43:41 CST; 20s ago
Docs: https://docs.docker.com
Main PID: 14276 (dockerd)
Tasks: 13
Memory: 34.1M
CGroup: /system.slice/docker.service
└─14276 /usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock
Mar 31 09:43:41 dmdem dockerd[14276]: time="2025-03-31T09:43:41.141723314+08:00" level=info msg="scheme \"unix\" not registered, fallback to default scheme" module=grpc
Mar 31 09:43:41 dmdem dockerd[14276]: time="2025-03-31T09:43:41.141738643+08:00" level=info msg="ccResolverWrapper: sending update to cc: {[{unix:///run/containerd/containerd...." module=grpc
Mar 31 09:43:41 dmdem dockerd[14276]: time="2025-03-31T09:43:41.141753569+08:00" level=info msg="ClientConn switching balancer to \"pick_first\"" module=grpc
Mar 31 09:43:41 dmdem dockerd[14276]: time="2025-03-31T09:43:41.210305004+08:00" level=info msg="Loading containers: start."
Mar 31 09:43:41 dmdem dockerd[14276]: time="2025-03-31T09:43:41.350606321+08:00" level=info msg="Default bridge (docker0) is assigned with an IP address 172.17.0.0/16. Daemon ...d IP address"
Mar 31 09:43:41 dmdem dockerd[14276]: time="2025-03-31T09:43:41.403862540+08:00" level=info msg="Loading containers: done."
Mar 31 09:43:41 dmdem dockerd[14276]: time="2025-03-31T09:43:41.438212977+08:00" level=info msg="Docker daemon" commit=9d988398e7 graphdriver(s)=overlay2 version=19.03.9
Mar 31 09:43:41 dmdem dockerd[14276]: time="2025-03-31T09:43:41.438368431+08:00" level=info msg="Daemon has completed initialization"
Mar 31 09:43:41 dmdem dockerd[14276]: time="2025-03-31T09:43:41.459861577+08:00" level=info msg="API listen on /var/run/docker.sock"
Mar 31 09:43:41 dmdem systemd[1]: Started Docker Application Container Engine.
Hint: Some lines were ellipsized, use -l to show in full.
[root@dmdem soft]# docker -v
Docker version 19.03.9, build 9d988398e7
-- 安装docker-compose
[root@dmdem soft]# mv docker-compose-Linux-x86_64 /usr/local/sbin/docker-compose
[root@dmdem soft]# docker-compose -v
docker-compose version 1.25.5, build 8a1c60f6
加载镜像
[root@dmdem images]# pwd
/soft/dbmonitor/images
[root@dmdem images]# docker load < mysql.tar.gz
cdb3f9544e4c: Loading layer [==================================================>] 58.44MB/58.44MB
6f8d38b0e2b6: Loading layer [==================================================>] 338.4kB/338.4kB
aae63f31dee9: Loading layer [==================================================>] 10.43MB/10.43MB
4801a487d51a: Loading layer [==================================================>] 4.471MB/4.471MB
c0c26734fb83: Loading layer [==================================================>] 1.536kB/1.536kB
94f8d8f5acbf: Loading layer [==================================================>] 46.11MB/46.11MB
8aeebb3964c1: Loading layer [==================================================>] 28.16kB/28.16kB
22b402e93939: Loading layer [==================================================>] 3.584kB/3.584kB
489bddb9c55e: Loading layer [==================================================>] 257.2MB/257.2MB
f8cb294d5d80: Loading layer [==================================================>] 9.728kB/9.728kB
a968f24d4187: Loading layer [==================================================>] 1.536kB/1.536kB
Loaded image: mysql:5.7.22
[root@dmdem images]# docker load < redis.tar.gz
42755cf4ee95: Loading layer [==================================================>] 130.9MB/130.9MB
8df2083a369f: Loading layer [==================================================>] 344.6kB/344.6kB
45054e60b3cc: Loading layer [==================================================>] 41.6MB/41.6MB
8a51b76b95be: Loading layer [==================================================>] 2.703MB/2.703MB
c5d99fc5fd1b: Loading layer [==================================================>] 16.84MB/16.84MB
f10162bd3fcb: Loading layer [==================================================>] 1.536kB/1.536kB
c70e9287563b: Loading layer [==================================================>] 4.608kB/4.608kB
Loaded image: redis:3.2.1
[root@dmdem images]# docker load < docker_dbmonitor_django.tar
613be09ab3c0: Loading layer [==================================================>] 211.1MB/211.1MB
0b0618c6ced8: Loading layer [==================================================>] 34.05MB/34.05MB
7da7d3716181: Loading layer [==================================================>] 20.99kB/20.99kB
a317a6aa16e0: Loading layer [==================================================>] 2.148MB/2.148MB
87365bb20418: Loading layer [==================================================>] 257.8MB/257.8MB
1ff796d14e4f: Loading layer [==================================================>] 162.3MB/162.3MB
5ddd6cd3032d: Loading layer [==================================================>] 16.38kB/16.38kB
72dc59b41d26: Loading layer [==================================================>] 18.94kB/18.94kB
51c3351a5d26: Loading layer [==================================================>] 12.26MB/12.26MB
1a846578eb30: Loading layer [==================================================>] 126.6MB/126.6MB
ec1577ab10fa: Loading layer [==================================================>] 3.072kB/3.072kB
beae4e05c5f3: Loading layer [==================================================>] 246.7MB/246.7MB
c5a5bceddded: Loading layer [==================================================>] 151.7MB/151.7MB
Loaded image: docker_dbmonitor_django:latest
[root@dmdem images]# docker load < docker_dbmonitor_nginx.tar
d0fe97fa8b8c: Loading layer [==================================================>] 72.49MB/72.49MB
f14cffae5c1a: Loading layer [==================================================>] 64.53MB/64.53MB
280ddd108a0a: Loading layer [==================================================>] 3.072kB/3.072kB
fe08d9d9f185: Loading layer [==================================================>] 4.096kB/4.096kB
cdd1d8ebeb06: Loading layer [==================================================>] 3.584kB/3.584kB
0c0b010650ff: Loading layer [==================================================>] 3.072kB/3.072kB
b8726887f726: Loading layer [==================================================>] 3.584kB/3.584kB
Loaded image: docker_dbmonitor_nginx:latest
配置修改及其他处理
– 软件包部署
可以将docker_dbmonitor.zip放在/目录下，解压
[root@dmdem dbmonitor]# pwd
/soft/dbmonitor
[root@dmdem /]# cp docker_dbmonitor.zip /
[root@dmdem db_monitor]# cd /docker_dbmonitor/db_monitor
[root@dmdem db_monitor]# pwd
/docker_dbmonitor/db_monitor
[root@dmdem db_monitor]# mkdir soft
[root@dmdem db_monitor]# cd soft/
[root@dmdem soft]# pwd
/docker_dbmonitor/db_monitor/soft
[root@dmdem soft]# cp /soft/dbmonitor/soft/instantclient-basic-linux.x64-19.5.0.0.0dbru.zip ./
[root@dmdem soft]# unzip instantclient-basic-linux.x64-19.5.0.0.0dbru.zip
–修改端口配置(可选)
mysql默认使用3306端口，可以通过修改docker-compose.yml来适应不同端口。
db:
image: mysql:5.7.22
expose:
- "3307"
ports:
- "3307:3306"
volumes:
- ./mysql:/var/lib/mysql:rw
environment:
- MYSQL_DATABASE=db_monitor
- MYSQL_ROOT_PASSWORD=mysqld
command: --character-set-server=utf8mb4 --collation-server=utf8mb4_unicode_ci
打包前端文件
根据后端服务器的地址修改前端配置文件，此步骤重要，另外需要通过yarn重新打包，所以需要自行安装yarn环境
可参考Windows下安装yarn的三种方法 进行安装。
调整 baseUrl的dev，pro中的IP为本机IP
C:\db_monitor_vue-master\src\config
export default {
/**
* @description 配置显示在浏览器标签的title
*/
title: 'DBmoitor 数据库监控平台',
/**
* @description token在Cookie中存储的天数，默认1天
*/
cookieExpires: 1,
/**
* @description 是否使用国际化，默认为false
* 如果不使用，则需要在路由中给需要在菜单中展示的路由设置meta: {title: 'xxx'}
* 用来在菜单中显示文字
*/
useI18n: false,
/**
* @description api请求基础路径
*/
baseUrl: {
// dev: 'https://www.easy-mock.com/mock/5add9213ce4d0e69998a6f51/iview-admin/',
dev: 'http://192.168.20.253:8000/',
pro: 'http://192.168.20.253:8000/'
},
/**
* @description 默认打开的首页的路由name值，默认为home
*/
homeName: 'home',
/**
* @description 需要加载的插件
*/
plugin: {
// 'error-store': {
// showInHeader: false, // 设为false后不会在顶部显示错误日志徽标
// developmentOff: false // 设为true后在开发环境不会收集错误信息，方便开发中排查错误
// }
}
}
进行打包
C:\db_monitor_vue-master>yarn build
yarn run v1.22.22
$ vue-cli-service build
C:\db_monitor_vue-master>dir
驱动器 C 中的卷没有标签。
卷的序列号是 04BF-E783
C:\db_monitor_vue-master 的目录
2025/03/31 10:38 <DIR> .
2025/03/31 10:38 <DIR> ..
2021/03/17 19:28 38 .babelrc
2021/03/17 19:28 147 .editorconfig
2021/03/17 19:28 0 .eslintignore
2021/03/17 19:28 469 .eslintrc.js
2021/03/17 19:28 327 .gitignore
2021/03/17 19:28 59 .postcssrc.js
2021/03/17 19:28 85 .travis.yml
2021/03/17 19:28 50 cypress.json
2025/03/31 10:38 <DIR> dist <========
2021/03/17 19:28 1,068 LICENSE
2025/03/31 10:37 <DIR> node_modules
2025/03/31 10:36 841,893 package-lock.json
2021/03/17 19:28 1,773 package.json
2021/03/17 19:28 <DIR> public
2021/03/17 19:28 555 README.md
2021/03/17 19:28 <DIR> src
2021/03/17 19:28 <DIR> tests
2021/03/17 19:28 1,724 vue.config.js
13 个文件 848,188 字节
7 个目录 19,341,185,024 可用字节
上传打包后的dist文件
[root@dmdem db_monitor_vue]# pwd
/docker_dbmonitor/db_monitor_vue
[root@dmdem db_monitor_vue]# ll
total 0
drwxr-xr-x 6 root root 88 Mar 31 10:30 dist
drwxr-xr-x 6 root root 88 Feb 24 2021 distbak
如果打包中遇到如下错误，
C:\Users\Administrator>cd C:\db_monitor_vue-master
C:\db_monitor_vue-master>yarn build
yarn run v1.22.22
$ vue-cli-service build
'vue-cli-service' 不是内部或外部命令，也不是可运行的程序
或批处理文件。
error Command failed with exit code 1.
info Visit https://yarnpkg.com/en/docs/cli/run for documentation about this command.
解决
C:\db_monitor_vue-master>yarn global add @vue/cli
C:\db_monitor_vue-master>npm config set registry https://registry.npmmirror.com
# 重新安装依赖
C:\db_monitor_vue-master>npm install
sh 文件转换(可选)
从windows上传到Linux的sh脚本，可能存在内部换行码，需要在Linux 手动转换
[root@dmdem db_monitor]# chmod u+x *.sh
[root@dmdem db_monitor]# pwd
/docker_dbmonitor/db_monitor
[root@dmdem db_monitor]# dos2unix celery_shutdown.sh
dos2unix: converting file celery_shutdown.sh to Unix format ...
[root@dmdem db_monitor]# dos2unix celery_start.sh
dos2unix: converting file celery_start.sh to Unix format ...
[root@dmdem db_monitor]# dos2unix web_start.sh
dos2unix: converting file web_start.sh to Unix format ...
[root@dmdem db_monitor]# dos2unix web_shutdown.sh
dos2unix: converting file web_shutdown.sh to Unix format ...
未转换报错
[root@dmdem db_monitor]# pwd
/docker_dbmonitor/db_monitor
[root@dmdem db_monitor]# sh web_start.sh
File "manage.py", line 16
) from exc
^
SyntaxError: invalid syntax
File "manage.py", line 16
) from exc
^
SyntaxError: invalid syntax
web_start.sh: line 3: $'\r': command not found
启动db_monitor
[root@dmdem docker_dbmonitor]# pwd
/docker_dbmonitor
[root@dmdem docker_dbmonitor]# docker-compose up -d
Starting docker_dbmonitor_db_1 ...
Starting docker_dbmonitor_db_1 ... done
Creating docker_dbmonitor_django_1 ... done
Creating docker_dbmonitor_nginx_1 ... done
[root@dmdem docker_dbmonitor]# docker ps -a
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
46f0f4700ed0 docker_dbmonitor_nginx "/docker-entrypoint.…" 14 seconds ago Up 13 seconds 80/tcp, 0.0.0.0:8001->8001/tcp docker_dbmonitor_nginx_1
b898e395e12a docker_dbmonitor_django "container-entrypoin…" 14 seconds ago Up 13 seconds 0.0.0.0:8000->8000/tcp, 8080/tcp docker_dbmonitor_django_1
795dbd64d15c redis:3.2.1 "docker-entrypoint.s…" About a minute ago Up About a minute 0.0.0.0:6379->6379/tcp docker_dbmonitor_redis_1
f8fbf2cf4cf2 mysql:5.7.22 "docker-entrypoint.s…" About a minute ago Up 14 seconds 0.0.0.0:3306->3306/tcp docker_dbmonitor_db_1
–初始化数据
MySQL数据库导入initdata
注：如果MySQL数据库未重新初始化则不需要执行导入，默认的mysql文件夹中已有数据库
日志查看
db_monitor/logs/celery_worker.log --可以查看具体的celery任务执行情况，如数据库安装时的执行细节
db_monitor/logs/django-web.log
[root@dmdem logs]# pwd
/docker_dbmonitor/db_monitor/logs
[root@dmdem logs]# ls -lrt
total 12
-rw-r--r-- 1 root root 0 Mar 31 10:32 check.log
-rw-r--r-- 1 root root 760 Mar 31 10:32 celery-beat.log
-rw-r--r-- 1 root root 291 Mar 31 10:32 django-web.log
-rw-r--r-- 1 root root 3838 Mar 31 10:32 celery-worker.log
-- 进入docker_dbmonitor_django容器
[root@dmdem logs]# docker exec -it b898e395e12a bash
(app-root) bash-4.2# celery -A db_monitor worker -l info
/opt/app-root/lib/python3.6/site-packages/celery/platforms.py:801: RuntimeWarning: You're running the worker with superuser privileges: this is
absolutely not recommended!
Please specify a different user using the --uid option.
User information: uid=0 euid=0 gid=0 egid=0
uid=uid, euid=euid, gid=gid, egid=egid,
-------------- celery@django v4.3.0 (rhubarb)
---- **** -----
--- * *** * -- Linux-3.10.0-1160.31.1.el7.x86_64-x86_64-with-centos-7.8.2003-Core 2025-03-31 10:35:19
-- * - **** ---
- ** ---------- [config]
- ** ---------- .> app: db_monitor:0x7f413dbd76d8
- ** ---------- .> transport: redis://redis:6379/2
- ** ---------- .> results: redis://redis:6379/1
- *** --- * --- .> concurrency: 4 (prefork)
-- ******* ---- .> task events: OFF (enable -E to monitor tasks in this worker)
--- ***** -----
-------------- [queues]
.> celery exchange=celery(direct) key=celery
[tasks]
. db_monitor.celery.debug_task
. oracle.tasks.create_oracle_report
. system.tasks.main_check
. system.tasks.oracle_onenode_setup
. system.tasks.oracle_rac_onenode_setup
. system.tasks.oracle_rac_setup
[2025-03-31 10:35:19,926: INFO/MainProcess] Connected to redis://redis:6379/2
[2025-03-31 10:35:19,943: INFO/MainProcess] mingle: searching for neighbors
[2025-03-31 10:35:20,971: INFO/MainProcess] mingle: sync with 1 nodes
[2025-03-31 10:35:20,973: INFO/MainProcess] mingle: sync complete
[2025-03-31 10:35:20,993: WARNING/MainProcess] /opt/app-root/lib/python3.6/site-packages/celery/fixups/django.py:202: UserWarning: Using settings.DEBUG leads to a memory leak, never use this setting in production environments!
warnings.warn('Using settings.DEBUG leads to a memory leak, never '
[2025-03-31 10:35:20,994: INFO/MainProcess] celery@django ready.
(app-root) bash-4.2# celery -A db_monitor beat -l info
celery beat v4.3.0 (rhubarb) is starting.
ERROR: Pidfile (celerybeat.pid) already exists.
Seems we're already running? (pid: 38)

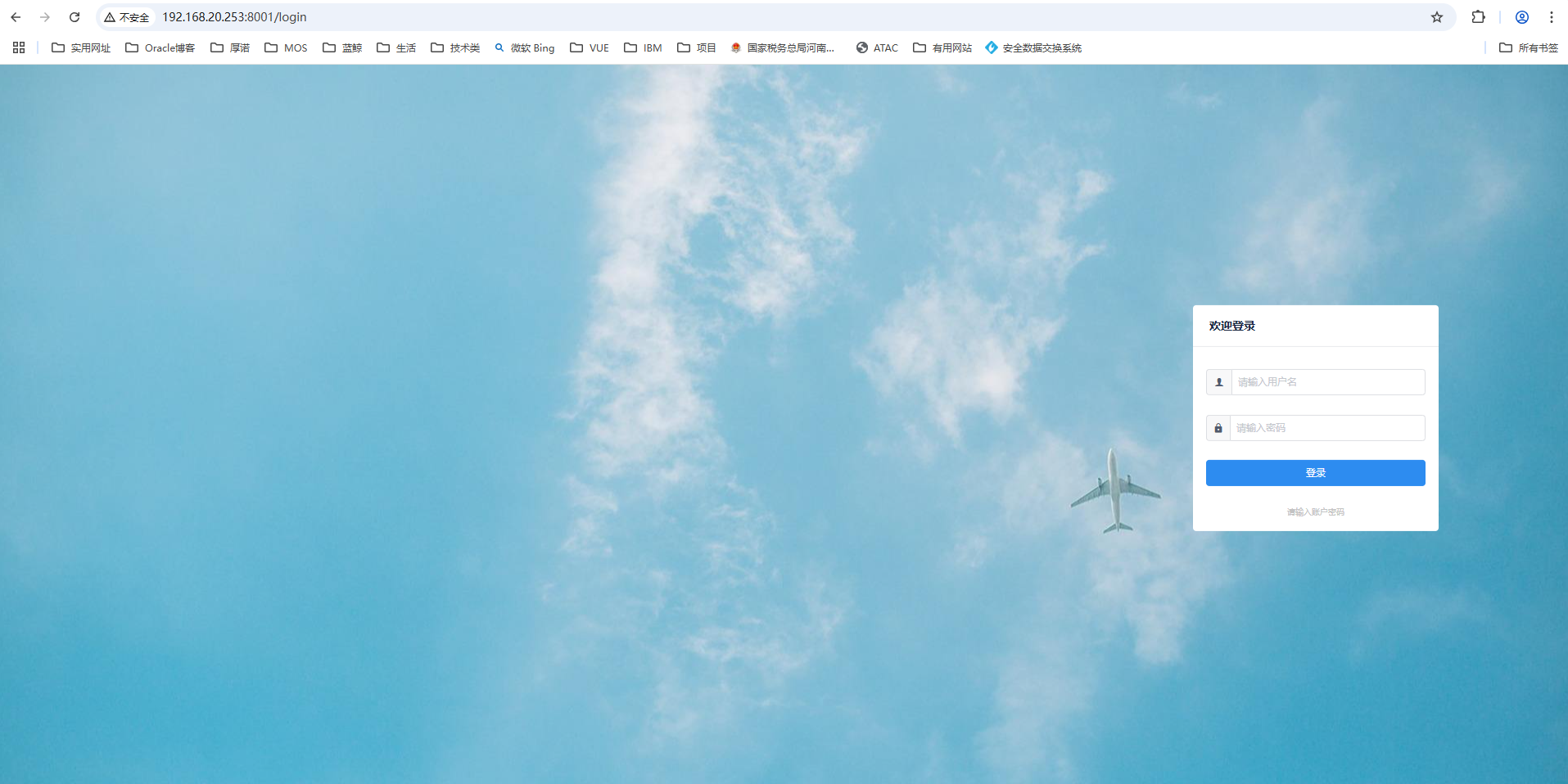

登陆
默认访问地址为
ip:8001 --前端
访问 http://192.168.20.253:8001/
密码 admin/111111
ip:8000/admin --后端
访问 http://192.168.20.253:8000/admin
密码 admin/111111
其他
后端Mysql登陆
[root@dmdem logs]# docker ps -a
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
46f0f4700ed0 docker_dbmonitor_nginx "/docker-entrypoint.…" 6 minutes ago Up 6 minutes 80/tcp, 0.0.0.0:8001->8001/tcp docker_dbmonitor_nginx_1
b898e395e12a docker_dbmonitor_django "container-entrypoin…" 6 minutes ago Up 6 minutes 0.0.0.0:8000->8000/tcp, 8080/tcp docker_dbmonitor_django_1
795dbd64d15c redis:3.2.1 "docker-entrypoint.s…" 7 minutes ago Up 7 minutes 0.0.0.0:6379->6379/tcp docker_dbmonitor_redis_1
f8fbf2cf4cf2 mysql:5.7.22 "docker-entrypoint.s…" 7 minutes ago Up 6 minutes 0.0.0.0:3306->3306/tcp docker_dbmonitor_db_1
[root@dmdem logs]# docker exec -it f8fbf2cf4cf2 bash
root@f8fbf2cf4cf2:/# mysql -uroot -pmysqld
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 132
Server version: 5.7.22 MySQL Community Server (GPL)
Copyright (c) 2000, 2018, Oracle and/or its affiliates. All rights reserved.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
mysql> show databases;
+--------------------+
| Database |
+--------------------+
| information_schema |
| db_monitor |
| mysql |
| performance_schema |
| sys |
+--------------------+
5 rows in set (0.00 sec)
mysql> use db_monitor
Reading table information for completion of table and column names
You can turn off this feature to get a quicker startup with -A
Database changed
mysql> show tables;
+-------------------------------------+
| Tables_in_db_monitor |
+-------------------------------------+
| alarm_conf |
| alarm_info |
| alarm_info_his |
| alert_log |
| auth_group |
| auth_group_permissions |
| auth_permission |
| authtoken_token |
| django_admin_log |
| django_celery_beat_clockedschedule |
| django_celery_beat_crontabschedule |
| django_celery_beat_intervalschedule |
| django_celery_beat_periodictask |
| django_celery_beat_periodictasks |
| django_celery_beat_solarschedule |
| django_celery_results_taskresult |
| django_content_type |
| django_migrations |
| django_session |
| linux_disk |
| linux_disk_his |
| linux_io_stat |
| linux_io_stat_his |
| linux_list |
| linux_stat |
| linux_stat_his |
| mysql_list |
| mysql_slowquery |
| mysql_stat |
| mysql_stat_his |
| oracle_controlfile |
| oracle_list |
| oracle_redolog |
| oracle_report |
| oracle_stat |
| oracle_stat_his |
| oracle_table_stats |
| oracle_tablespace |
| oracle_tablespace_his |
| oracle_temp_tablespace |
| oracle_temp_tablespace_his |
| oracle_undo_tablespace |
| oracle_undo_tablespace_his |
| redis_list |
| redis_stat |
| redis_stat_his |
| setup_log |
| users |
| users_groups |
| users_user_permissions |
+-------------------------------------+
50 rows in set (0.00 sec)
总结
DB monitor 作为一个轻量级的数据库监控平台，提供本地和docker两种部署方式，对于小型企业来说，相当友好，可以根据实际情况进行部署测试。
「喜欢这篇文章，您的关注和赞赏是给作者最好的鼓励」
关注作者
【版权声明】本文为墨天轮用户原创内容，转载时必须标注文章的来源（墨天轮），文章链接，文章作者等基本信息，否则作者和墨天轮有权追究责任。如果您发现墨天轮中有涉嫌抄袭或者侵权的内容，欢迎发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。
