InfluxDB 集群代理 Influx Proxy，Docker 部署全流程

e影 2021-11-19

4366

简介

InfluxDB 是一个时间序列数据库，用于处理海量写入与负载查询。InfluxDB旨在用作涉及大量时间戳数据的任何用例（包括DevOps监控，应用程序指标，物联网传感器数据和实时分析）的后端存储。

Influx Proxy 是一个基于高可用、一致性哈希的 InfluxDB 集群代理服务，实现了 InfluxDB 高可用集群的部署方案，具有动态扩/缩容、故障恢复、数据同步等能力。连接到 Influx Proxy 和连接原生的 InfluxDB Server 没有显著区别 (支持的查询语句列表)，对上层客户端是透明的，上层应用可以像使用单机的 InfluxDB 一样使用，Influx Proxy 会处理请求的转发，并对各个 InfluxDB 集群节点进行管理。Influx Proxy 基于饿了么开源的 Influx-Proxy，并进一步开发和优化，支持了更多的特性，移除了 Python、Redis 依赖，解决了受限于一个数据库、需要额外配置 KEYMAPS 、数据负载不均衡的问题。

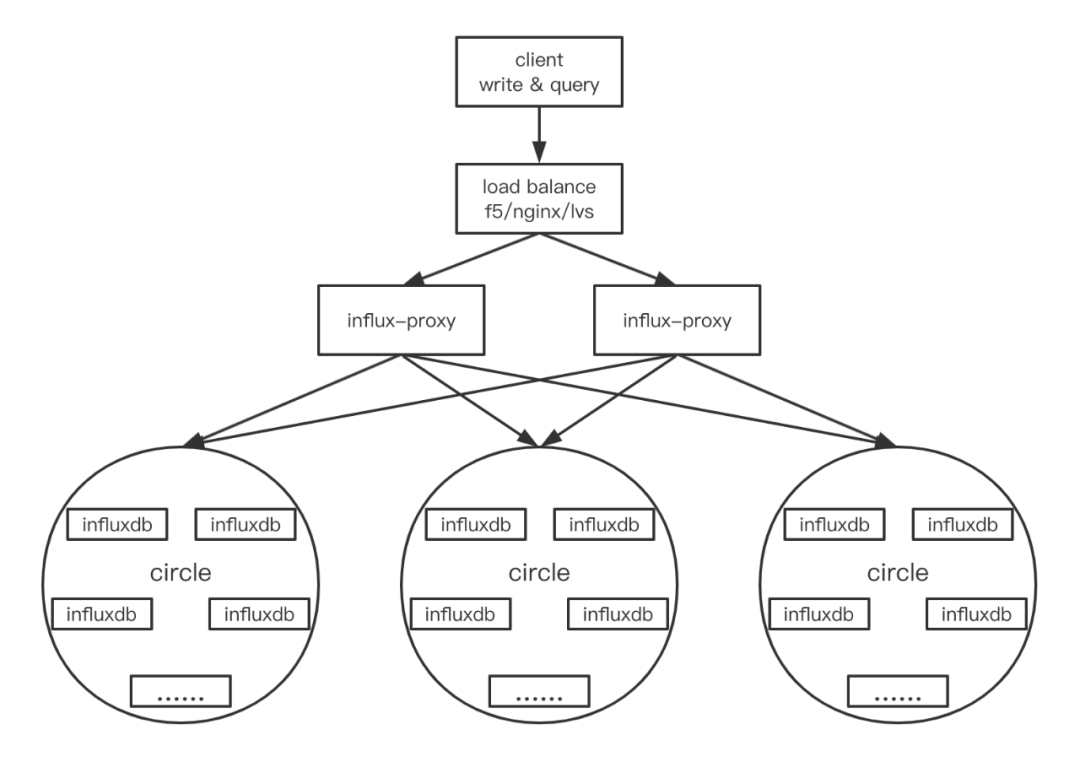

架构

Influx-proxy 集群代理服务 2*2集群（Docker）

Influxdb 配置

# influxdb.conf


reporting-disabled = true         # 禁用报告，默认为 false
[meta]
dir = "/root/influxdb/meta"    # 元信息目录
[data]
dir = "/root/influxdb/data"    # 数据目录
wal-dir = "/root/influxdb/wal" # 预写目录
wal-fsync-delay = "10ms"          # SSD 设置为 0s，非 SSD 推荐设置为 0ms-100ms
index-version = "tsi1"            # tsi1 磁盘索引，inmem 内存索引需要大量内存
query-log-enabled = true          # 查询的日志，默认是 true
cache-max-memory-size = "1g"      # 分片缓存写入的最大内存大小，默认是 1g
[coordinator]
write-timeout = "20s"             # 写入请求超时时间，默认为 10s
[http]
# bind-address = ":8086"            # 绑定地址，需要绑定 ip:port 时使用
auth-enabled = false              # 认证开关，默认是 false
log-enabled = true                # http 请求日志，默认是 true
access-log-path = "/var/log/influxdb"
[logging]
level = "info"                    # 日志等级，error、warn、info(默认)、debug

Docker 启动命令

# influxdb_1
docker stop influxdb_1
docker rm influxdb_1
docker run -it -d -p 8086:8086 \
  --name influxdb_1 \
    --expose 8090 --expose 8099 \
  -v /home/influxdb/influxdb_1/data:/root/influxdb/data \
    -v /home/influxdb/influxdb_1/meta:/root/influxdb/meta \
    -v /home/influxdb/influxdb_1/wal:/root/influxdb/wal \
    -v /home/influxdb/influxdb_1/log:/var/log/influxdb \
    -v /home/influxdb/influxdb.conf:/etc/influxdb/influxdb.conf \
    influxdb:1.8

# influxdb_2
docker stop influxdb_2
docker rm influxdb_2
docker run -it -d -p 8087:8086 \
  --name influxdb_2 \
    --expose 8090 --expose 8099 \
  -v /home/influxdb/influxdb_2/data:/root/influxdb/data \
    -v /home/influxdb/influxdb_2/meta:/root/influxdb/meta \
    -v /home/influxdb/influxdb_2/wal:/root/influxdb/wal \
    -v /home/influxdb/influxdb_2/log:/var/log/influxdb \
    -v /home/influxdb/influxdb.conf:/etc/influxdb/influxdb.conf \
    influxdb:1.8



# influxdb_3
docker stop influxdb_3
docker rm influxdb_3
docker run -it -d -p 8088:8086 \
  --name influxdb_3 \
    --expose 8090 --expose 8099 \
  -v /home/influxdb/influxdb_3/data:/root/influxdb/data \
    -v /home/influxdb/influxdb_3/meta:/root/influxdb/meta \
    -v /home/influxdb/influxdb_3/wal:/root/influxdb/wal \
    -v /home/influxdb/influxdb_3/log:/var/log/influxdb \
    -v /home/influxdb/influxdb.conf:/etc/influxdb/influxdb.conf \
    influxdb:1.8


# influxdb_4
docker stop influxdb_4
docker rm influxdb_4
docker run -it -d -p 8089:8086 \
  --name influxdb_4 \
    --expose 8090 --expose 8099 \
  -v /home/influxdb/influxdb_4/data:/root/influxdb/data \
    -v /home/influxdb/influxdb_4/meta:/root/influxdb/meta \
    -v /home/influxdb/influxdb_4/wal:/root/influxdb/wal \
    -v /home/influxdb/influxdb_4/log:/var/log/influxdb \
    -v /home/influxdb/influxdb.conf:/etc/influxdb/influxdb.conf \
    influxdb:1.8

Influx-proxy

文档地址：https://github.com/chengshiwen/influx-proxy/wiki

下载地址：https://github.com/chengshiwen/influx-proxy/releases/download/v2.5.6/influx-proxy-2.5.6-linux-amd64.tar.gz

制作镜像

influx-proxy-2.5.6-linux-amd64.tar.gz 解压缩，在文件夹 influx-proxy-2.5.6-linux-amd64 同一级目录下，创建 Dockerfile 文件，如下。

FROM centos
RUN mkdir -p /var/log/proxy
RUN yum install -y epel-release
RUN yum install -y golang
RUN rm -rf /var/cache/yum//*
COPY /influx-proxy-2.5.6-linux-amd64/ influx-proxy
WORKDIR influx-proxy
EXPOSE 7076
CMD ["/influx-proxy/influx-proxy"]

build influx-proxy 镜像

# Dockerfile 同级执行 build 命令
docker build -t influx-proxy:2.5.6 .

influx-proxy 配置文件 proxy.json

{
    "circles": [
        {
            "name": "circle-1",
            "backends": [
                {
                    "name": "influxdb-1-1",
                    "url": "http://192.168.1.148:8086",
                    "username": "",
                    "password": "",
                    "auth_encrypt": false
                },
                {
                    "name": "influxdb-1-2",
                    "url": "http://192.168.1.148:8087",
                    "username": "",
                    "password": "",
                    "auth_encrypt": false
                }
            ]
        },
        {
            "name": "circle-2",
            "backends": [
                {
                    "name": "influxdb-2-1",
                    "url": "http://192.168.1.148:8088",
                    "username": "",
                    "password": "",
                    "auth_encrypt": false
                },
                {
                    "name": "influxdb-2-2",
                    "url": "http://192.168.1.148:8089",
                    "username": "",
                    "password": "",
                    "auth_encrypt": false
                }
            ]
        }
    ],
    "listen_addr": ":7076",
    "db_list": [],
    "data_dir": "data",
    "tlog_dir": "log",
    "hash_key": "idx",
    "flush_size": 10000,
    "flush_time": 1,
    "check_interval": 1,
    "rewrite_interval": 10,
    "conn_pool_size": 20,
    "write_timeout": 10,
    "idle_timeout": 10,
    "username": "",
    "password": "",
    "auth_encrypt": false,
    "write_tracing": false,
    "query_tracing": false,
    "https_enabled": false,
    "https_cert": "",
    "https_key": ""
}

docker run，启动 influx-proxy

docker stop influx_proxy_1
docker rm influx_proxy_1
docker run -it -d -p 7076:7076 \
  --name influx_proxy_1 \
    -v /home/influxdb/proxy.json:/influx-proxy/proxy.json \
    -v /home/influxdb/influx_proxy_1/data:/influx-proxy/data \
    influx-proxy:2.5.6


docker stop influx_proxy_2
docker rm influx_proxy_2
docker run -it -d -p 7077:7076 \
    --name influx_proxy_2 \
    -v /home/influxdb/proxy.json:/influx-proxy/proxy.json \
    -v /home/influxdb/influx_proxy_2/data:/influx-proxy/data \
    influx-proxy:2.5.6

nginx

nginx.conf

user  root;
worker_processes  2;


error_log  /var/log/nginx/error.log notice;
pid        /var/run/nginx.pid;


events {
    worker_connections  1024;
}


http {
    include       /etc/nginx/mime.types;
    default_type  application/octet-stream;


    log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
                      '$status $body_bytes_sent "$http_referer" '
                      '"$http_user_agent" "$http_x_forwarded_for"';


    access_log  /var/log/nginx/access.log  main;

    port_in_redirect  off;

    sendfile  on;
    tcp_nopush  on;
    tcp_nodelay  on;


    keepalive_timeout  65;
    client_body_timeout  12;
    client_header_timeout  12;
    send_timeout  10;


    include  /etc/nginx/conf.d/*.conf;


     upstream myserver {
        server 192.168.1.148:7076;
        server 192.168.1.148:7077;
    }


     server {
        listen       8080;
        server_name  localhost;


        #charset koi8-r;
        #access_log  logs/host.access.log  main;


        location / {
            proxy_redirect off;
            proxy_pass http://myserver;
            proxy_set_header Host $host;
            proxy_set_header X-Real-IP $remote_addr;
            proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        }


        #error_page  404              /404.html;


        # redirect server error pages to the static page /50x.html
        #
        error_page   500 502 503 504  /50x.html;
        location = /50x.html {
            root   html;
        }


    }
}

docker run 启动 nginx

docker stop nginx_influx_proxy
docker rm nginx_influx_proxy
docker run -it -d -p 8080:8080 \
    --name nginx_influx_proxy \
    -v /home/influxdb/nginx.conf:/etc/nginx/nginx.conf \
    -v /home/influxdb/nginx/logs:/var/log/nginx \
    nginx

查询所有 influxdb 实例的健康状态

http://127.0.0.1:8080/health

部署完成。

参考：

https://github.com/chengshiwen/influx-proxy/wiki?v=1#%E6%8E%A5%E5%8F%A3-query
