Rust中使用RabbitMQ消息队列

原创 chirpyli All China Database Union 2025-04-21

325

使用RabbitMQ需要用实现了AMQP协议的客户端，lapin是Rust中一个实现了AMQP协议的客户端，这里使用lapin来连接RabbitMQ。关于AMQP协议，可以参考这篇文章一篇文章讲透彻了AMQP协议以及AMQP协议原文。

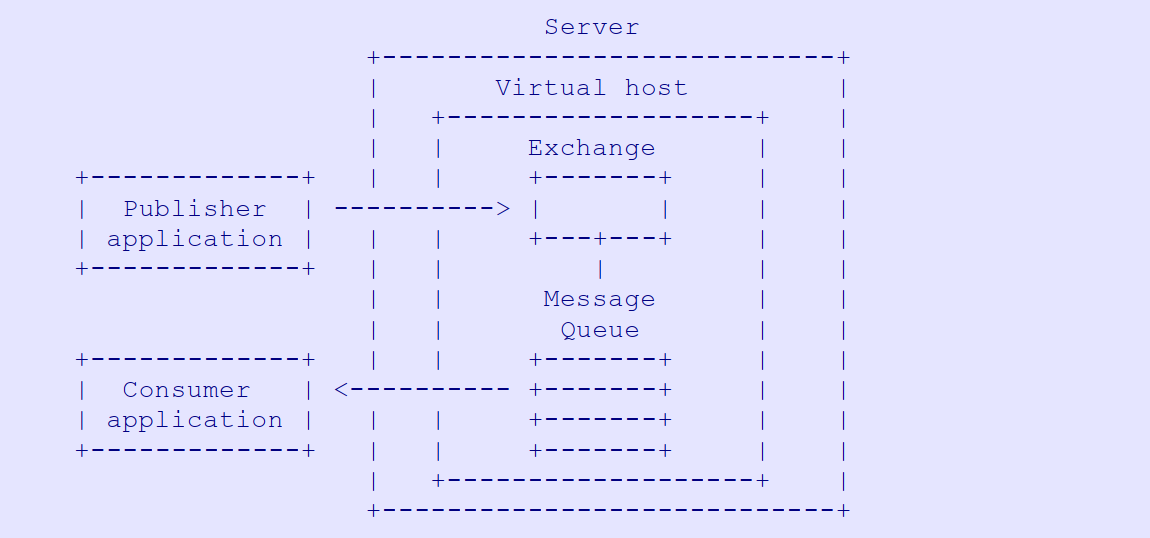

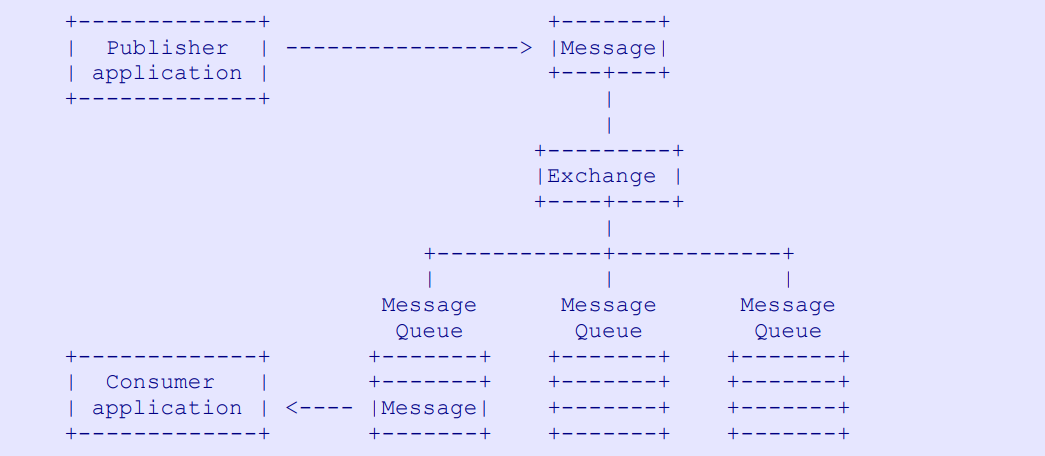

工作过程

发布者（Publisher）发布消息（Message），经由交换机（Exchange）。
交换机根据路由规则将收到的消息分发给与该交换机绑定的队列（Queue）。
最后 AMQP 代理会将消息投递给订阅了此队列的消费者，或者消费者按照需求自行获取。

简单场景

对简单的场景，比如不需要路由，不需要交换机（采用默认exchange），只需要一个队列，可以参考如下示例：

发布者

连接到RabbitMQ服务器
创建消息通道
声明一个队列
发布消息

use log::{info, error};
use env_logger::Env;
use std::time::Duration;
use lapin::{Connection, ConnectionProperties,
    options::QueueDeclareOptions, options::BasicPublishOptions, types::FieldTable,
    BasicProperties, types::ReplyCode};


#[tokio::main]
async fn main() -> Result<(), lapin::Error> {
    env_logger::Builder::from_env(Env::default().default_filter_or("info")).init();

    info!("This is an demo of using rabbitmq amqp client in rust");

    // connect to rabbitmq and send a message
    let amqp_url = "amqp://guest:guest@localhost:5672/%2F";

    // Producer和Consumer客户端通过TCP连接到rabbitmq服务器
    let conn = Connection::connect(amqp_url, ConnectionProperties::default()).await?;

    // 创建消息通道
    let channel_a = conn.create_channel().await?;
    let channel_b = conn.create_channel().await?;

    // 声明一个队列
    let queue = channel_a
        .queue_declare("hello", QueueDeclareOptions::default(), FieldTable::default())
        .await?;

    info!("Declared queue {:?}", queue);

    for i in 1..100 {
        let body = format!("hello world a {}", i);

        // 发送消息
        let _confirm = channel_a
            .basic_publish(
                "",
                "hello",
                BasicPublishOptions::default(),
                body.as_bytes(),
                BasicProperties::default(),
            )
            .await?;

        info!("channel_a Publish {}", body);

        tokio::time::sleep(Duration::from_secs(1)).await;
    }

    for i in 1..100 {
        let body = format!("hello world b {}", i);

        // 发送消息
        let _confirm = channel_b
            .basic_publish(
                "",
                "hello",
                BasicPublishOptions::default(),
                body.as_bytes(),
                BasicProperties::default(),
            )
            .await?;

        info!("channel_b Publish {}", body);

        tokio::time::sleep(Duration::from_secs(1)).await;
    }

    channel_a.close(200, "OK").await?;

    channel_b.close(200, "OK").await?;
    conn.close(200, "OK").await?;
    info!("Connection closed");

    Ok(())
}

消费者

连接到RabbitMQ服务器
创建消息通道
声明一个队列
接收消息

use log::{info, error};
use env_logger::Env;
use std::time::Duration;
use std::string::String;
use lapin::{Connection, ConnectionProperties, Consumer,
    options::*, types::FieldTable,
    BasicProperties};
use futures_lite::stream::StreamExt;


#[tokio::main]
async fn main() -> Result<(), lapin::Error> {
    env_logger::Builder::from_env(Env::default().default_filter_or("info")).init();

    info!("This is an demo of using rabbitmq amqp client in rust");

    // connect to rabbitmq and send a message
    let amqp_url = "amqp://guest:guest@localhost:5672/%2F";

    // Producer和Consumer客户端通过TCP连接到rabbitmq服务器
    let conn = Connection::connect(amqp_url, ConnectionProperties::default()).await?;

    // 创建消息通道
    let channel_a = conn.create_channel().await?;

    // 声明一个队列
    let queue = channel_a
        .queue_declare("hello", QueueDeclareOptions::default(), FieldTable::default())
        .await?;

    info!("Declared queue {:?}", queue);

    // 接收消息
    let mut consumer = channel_a.basic_consume(
        "hello",
        "my_consumer",
        lapin::options::BasicConsumeOptions::default(),
        FieldTable::default(),
    ).await?;

    while let Some(delivery) = consumer.next().await {
        match delivery {
            Ok(delivery) => {
                let msg = String::from_utf8(delivery.data).unwrap();
                info!("Received message: {:?}", msg);
            }
            Err(e) => {
                error!("Error receiving message: {:?}", e);
            }
        }
    }

    channel_a.close(200, "Bye").await?;
    conn.close(200, "Bye").await?;

    Ok(())
}

fanout路由场景

该类型路由规则非常简单，会把所有发送到该exchange的消息路由到所有与它绑定的Queue中，相当于广播功能。

发布者

连接到RabbitMQ服务器
创建消息通道
声明队列
创建交换机
绑定队列到交换机
发布消息

use log::*;
use env_logger::Env;
use lapin::{Connection, ConnectionProperties,
    options::*, types::FieldTable,
    BasicProperties, ExchangeKind};

#[tokio::main]
async fn main() -> Result<(), lapin::Error> {
    env_logger::Builder::from_env(Env::default().default_filter_or("info")).init();

    info!("This is an demo of using rabbitmq amqp client in rust");

    // connect to rabbitmq and send a message
    let amqp_url = "amqp://guest:guest@localhost:5672/%2F";

    // Producer和Consumer客户端通过TCP连接到rabbitmq服务器
    let conn = Connection::connect(amqp_url, ConnectionProperties::default()).await?;

    // 创建消息通道
    let channel = conn.create_channel().await?;

    let mut queueoptions = QueueDeclareOptions::default();
    queueoptions.durable = true;
    queueoptions.auto_delete = true;

    // 声明一个队列
    channel.queue_declare("worker_1", queueoptions, FieldTable::default()).await?;
    channel.queue_declare("worker_2", queueoptions, FieldTable::default()).await?;

    // 创建一个fanout类型的交换机
    channel.exchange_declare("myexchange", ExchangeKind::Fanout, ExchangeDeclareOptions::default(), FieldTable::default()).await?;

    // 绑定队列到交换机
    channel.queue_bind("worker_1", "myexchange", "", QueueBindOptions::default(), FieldTable::default()).await?;
    channel.queue_bind("worker_2", "myexchange", "", QueueBindOptions::default(), FieldTable::default()).await?;

    let payload = b"Hello, world!"; // 发送消息

    let mut publish_options = BasicPublishOptions::default();
    publish_options.mandatory = false;

    let properties = BasicProperties::default();

    let _confirm = channel.basic_publish("myexchange", "", publish_options, payload, properties).await?;

    info!("publish message: {:?}", String::from_utf8_lossy(payload));

    channel.close(200, "Bye").await?;

    Ok(())
}

消费者

连接到RabbitMQ服务器
创建消息通道
声明队列
创建交换机
绑定队列到交换机
接收消息


use log::*;
use env_logger::Env;
use lapin::{Connection, ConnectionProperties,
    options::*, types::*,
    BasicProperties, ExchangeKind};
use futures_lite::stream::StreamExt;
use std::env;

#[tokio::main]
async fn main() -> Result<(), lapin::Error> {
    env_logger::Builder::from_env(Env::default().default_filter_or("info")).init();

    let mut args = Vec::new();
    for arg in env::args().skip(1) {
        args.push(arg);
    }

    info!("This is an demo of using rabbitmq amqp client in rust");

    // connect to rabbitmq and send a message
    let amqp_url = "amqp://guest:guest@localhost:5672/%2F";

    // Producer和Consumer客户端通过TCP连接到rabbitmq服务器
    let conn = Connection::connect(amqp_url, ConnectionProperties::default()).await?;

    // 创建消息通道
    let channel = conn.create_channel().await?;

    let mut queueoptions = QueueDeclareOptions::default();
    queueoptions.durable = true;
    queueoptions.auto_delete = true;

    let queue_name = String::from("worker_") + args[0].as_str();

    info!("Queue name: {}", queue_name);

    // 声明一个队列
    channel.queue_declare(&queue_name, queueoptions, FieldTable::default()).await?;

    // 创建一个fanout类型的交换机
    channel.exchange_declare("myexchange", ExchangeKind::Fanout, ExchangeDeclareOptions::default(), FieldTable::default()).await?;

    // 绑定队列到交换机
    channel.queue_bind(&queue_name, "myexchange", "", QueueBindOptions::default(), FieldTable::default()).await?;

    let consumer_options = BasicConsumeOptions::default();

    let properties = BasicProperties::default();

    let consumer_tag = String::from("consumer_") + args[0].as_str(); // 消费者标签

    // 消费消息
    let mut consumer = channel.basic_consume(&queue_name, &consumer_tag, consumer_options, FieldTable::default()).await?;

    while let Some(delivery) = consumer.next().await {
        let delivery = delivery?;

        let body = delivery.data;
        let delivery_tag = delivery.delivery_tag;

        info!("Received message: {:?}", String::from_utf8(body).unwrap());

        channel.basic_ack(delivery_tag, BasicAckOptions::default()).await?;
    }

    channel.close(200, "Bye").await?;

    Ok(())
}

direct路由场景

direct模式是RabbitMQ默认的exchange类型，该类型路由规则非常简单，消息会被路由到binding key与routing key完全匹配的Queue中。

发布者

连接到RabbitMQ服务器
创建消息通道
声明队列
创建交换机
绑定队列到交换机，指定路由键
发布消息，指定路由键，注意与fanout的区别，fanout不用指定路由键

use log::*;
use env_logger::Env;
use lapin::{Connection, ConnectionProperties,
    options::*, types::FieldTable,
    BasicProperties, ExchangeKind};

#[tokio::main]
async fn main() -> Result<(), lapin::Error> {
    env_logger::Builder::from_env(Env::default().default_filter_or("info")).init();

    info!("This is an demo of using rabbitmq amqp client in rust");

    // connect to rabbitmq and send a message
    let amqp_url = "amqp://guest:guest@localhost:5672/%2F";

    // Producer和Consumer客户端通过TCP连接到rabbitmq服务器
    let conn = Connection::connect(amqp_url, ConnectionProperties::default()).await?;

    // 创建消息通道
    let channel = conn.create_channel().await?;

    let mut queueoptions = QueueDeclareOptions::default();
    queueoptions.durable = true;
    queueoptions.auto_delete = true;

    // 声明一个队列
    channel.queue_declare("worker_1", queueoptions, FieldTable::default()).await?;
    channel.queue_declare("worker_2", queueoptions, FieldTable::default()).await?;

    // 创建一个direct类型的交换机
    channel.exchange_declare("exchange-direct", ExchangeKind::Direct, ExchangeDeclareOptions::default(), FieldTable::default()).await?;

    // 绑定队列到交换机，并指定路由键
    channel.queue_bind("worker_1", "exchange-direct", "beijing", QueueBindOptions::default(), FieldTable::default()).await?;
    channel.queue_bind("worker_2", "exchange-direct", "hangzhou", QueueBindOptions::default(), FieldTable::default()).await?;

    let payload1 = b"Hello, beijing!"; // 发送消息
    let payload2 = b"Hello, hangzhou!";

    let mut publish_options = BasicPublishOptions::default();
    publish_options.mandatory = false;

    let properties = BasicProperties::default();

    // 发布消息时，需要指定交换机名称和路由键
    let _confirm = channel.basic_publish("exchange-direct", "beijing", publish_options, payload1, properties.clone()).await?;
    info!("publish message: {:?}", String::from_utf8_lossy(payload1));

    let _confirm = channel.basic_publish("exchange-direct", "hangzhou", publish_options, payload2, properties).await?;


    channel.close(200, "Bye").await?;

    Ok(())
}

消费者

连接到RabbitMQ服务器
创建消息通道
声明队列
创建direct类型交换机
绑定队列到交换机，指定路由键
接收消息

use log::*;
use env_logger::Env;
use lapin::{Connection, ConnectionProperties,
    options::*, types::FieldTable,
    BasicProperties, ExchangeKind};
use futures_lite::stream::StreamExt;
use std::env;

#[tokio::main]
async fn main() -> Result<(), lapin::Error> {
    env_logger::Builder::from_env(Env::default().default_filter_or("info")).init();

    info!("This is an demo of using rabbitmq amqp client in rust");

        // 获取命令行参数, 第一个参数是队列ID，第二个参数是消费者ID
    let mut args = Vec::new();
    for arg in env::args().skip(1) {
        args.push(arg);
    }

    let mut route_key = String::from("");
    if args[0] == 1.to_string() {
        route_key = String::from("beijing");
    } else if args[0] == 2.to_string() {
        route_key = String::from("hangzhou");
    } else {
        panic!("Please input a valid queue ID");
    }

    // connect to rabbitmq and send a message
    let amqp_url = "amqp://guest:guest@localhost:5672/%2F";

    // Producer和Consumer客户端通过TCP连接到rabbitmq服务器
    let conn = Connection::connect(amqp_url, ConnectionProperties::default()).await?;

    // 创建消息通道
    let channel = conn.create_channel().await?;

    let mut queueoptions = QueueDeclareOptions::default();
    queueoptions.durable = true;
    queueoptions.auto_delete = true;

    let queue_name = String::from("worker_") + args[0].as_str();

    info!("Queue name: {}", queue_name);

    // 声明一个队列
    channel.queue_declare(&queue_name, queueoptions, FieldTable::default()).await?;

    // 创建一个direct类型的交换机
    channel.exchange_declare("exchange-direct", ExchangeKind::Direct, ExchangeDeclareOptions::default(), FieldTable::default()).await?;

    // 绑定队列到交换机，并指定路由键
    channel.queue_bind(&queue_name, "exchange-direct", &route_key, QueueBindOptions::default(), FieldTable::default()).await?;

    let properties = BasicProperties::default();

    let consumer_tag = String::from("consumer_") + args[1].as_str(); // 消费者标签

    // 消费消息
    let mut consumer = channel.basic_consume(&queue_name, &consumer_tag, BasicConsumeOptions::default(), FieldTable::default()).await?;

    while let Some(delivery) = consumer.next().await {
        let delivery = delivery?;

        let body = delivery.data;
        let delivery_tag = delivery.delivery_tag;

        info!("consumer {:?} received message: {:?} from queue {:?}", args[1], String::from_utf8(body).unwrap(), &queue_name);

        channel.basic_ack(delivery_tag, BasicAckOptions::default()).await?;
    }

    channel.close(200, "Bye").await?;

    Ok(())
}
