本文将介绍在DolphinScheduler中使用ProcessBuilder
执行Shell命令的方法。默认通过BashShellInterceptorBuilder
封装Shell脚本并生成执行命令，支持普通模式和sudo模式运行。同时，结合Spring Boot应用示例，展示了如何配置工作目录、合并错误流、监控执行状态，并输出日志信息，从而实现对Shell任务的高效管理和调度。
1
ProcessBuilder
DolphinScheduler中的使用
1.1、命令的封装
org.apache.dolphinscheduler.plugin.task.api.shell.ShellInterceptorBuilderFactory
public class ShellInterceptorBuilderFactory {
private final static String INTERCEPTOR_TYPE = PropertyUtils.getString("shell.interceptor.type", "bash");
@SuppressWarnings("unchecked")
public static IShellInterceptorBuilder newBuilder() {
TODO 默认的走的是这个逻辑
if (INTERCEPTOR_TYPE.equalsIgnoreCase("bash")) {
return new BashShellInterceptorBuilder();
}
if (INTERCEPTOR_TYPE.equalsIgnoreCase("sh")) {
return new ShShellInterceptorBuilder();
}
if (INTERCEPTOR_TYPE.equalsIgnoreCase("cmd")) {
return new CmdShellInterceptorBuilder();
}
throw new IllegalArgumentException("not support shell type: " + INTERCEPTOR_TYPE);
}
}
默认走的是 BashShellInterceptorBuilder。
org.apache.dolphinscheduler.plugin.task.api.shell.bash.BashShellInterceptorBuilder
public class BashShellInterceptorBuilder
extends
BaseLinuxShellInterceptorBuilder<BashShellInterceptorBuilder, BashShellInterceptor> {
@Override
public BashShellInterceptorBuilder newBuilder() {
return new BashShellInterceptorBuilder();
}
@Override
public BashShellInterceptor build() throws FileOperateException, IOException {
TODO 这里是生成shell脚本的核心点
generateShellScript();
List<String> bootstrapCommand = generateBootstrapCommand();
TODO 实例化BashShellInterceptor
return new BashShellInterceptor(bootstrapCommand, shellDirectory);
}
这个是如果不是sudo的方式，进行命令执行的前缀
@Override
protected String shellInterpreter() {
return "bash";
}
@Override
protected String shellExtension() {
return ".sh";
}
@Override
protected String shellHeader() {
return "#!/bin/bash";
}
}
org.apache.dolphinscheduler.plugin.task.api.shell.BaseLinuxShellInterceptorBuilder#generateBootstrapCommand
protected List<String> generateBootstrapCommand() {
if (sudoEnable) {
TODO 默认是走这里的，其实就是sudo -u 租户 -i opt/xx.sh
return bootstrapCommandInSudoMode();
}
TODO bash opt/xx.sh
return bootstrapCommandInNormalMode();
}
bootstrapCommandInSudoMode():
private List<String>
bootstrapCommandInSudoMode() {
if (PropertyUtils.getBoolean(AbstractCommandExecutorConstants.TASK_RESOURCE_LIMIT_STATE, false)) {
return bootstrapCommandInResourceLimitMode();
}
List<String> bootstrapCommand = new ArrayList<>();
bootstrapCommand.add("sudo");
if (StringUtils.isNotBlank(runUser)) {
bootstrapCommand.add("-u");
bootstrapCommand.add(runUser);
}
bootstrapCommand.add("-i");
bootstrapCommand.add(shellAbsolutePath().toString());
return bootstrapCommand;
}
bootstrapCommandInNormalMode():
private List<String> bootstrapCommandInNormalMode() {
List<String> bootstrapCommand = new ArrayList<>();
bootstrapCommand.add(shellInterpreter());
bootstrapCommand.add(shellAbsolutePath().toString());
return bootstrapCommand;
}
1.2、命令的执行
org.apache.dolphinscheduler.plugin.task.api.shell.BaseShellInterceptor
public abstract class BaseShellInterceptor implements IShellInterceptor {
protected final String workingDirectory;
protected final List<String> executeCommands;
protected BaseShellInterceptor(List<String> executeCommands, String workingDirectory) {
this.executeCommands = executeCommands;
this.workingDirectory = workingDirectory;
}
@Override
public Process execute() throws IOException {
init process builder
ProcessBuilder processBuilder = new ProcessBuilder();
setting up a working directory
TODO 设置工作路径，目的其实就是在执行脚本的时候，可以在该目录的位置来加载比如说jar包什么的
processBuilder.directory(new File(workingDirectory));
merge error information to standard output stream
processBuilder.redirectErrorStream(true);
processBuilder.command(executeCommands);
log.info("Executing shell command : {}", String.join(" ", executeCommands));
return processBuilder.start();
}
}
2
最佳实践实例
2.1、pom.xml配置
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter</artifactId>
<version>2.6.1</version>
</dependency>
2.2、pom.xml配置
@SpringBootApplication
public class Application {
public static void main(String[] args) throws Exception {
SpringApplication.run(Application.class, args);
List<String> executeCommands = new ArrayList<>();
executeCommands.add("sudo");
executeCommands.add("-u");
executeCommands.add("qiaozhanwei");
executeCommands.add("-i");
executeCommands.add("/opt/test/my.sh");
ProcessBuilder processBuilder = new ProcessBuilder();
setting up a working directory
TODO 设置工作路径，目的其实就是在执行脚本的时候，可以在该目录的位置来加载比如说jar包什么的
processBuilder.directory(new File("/opt/test"));
merge error information to standard output stream
processBuilder.redirectErrorStream(true);
processBuilder.command(executeCommands);
Process process = processBuilder.start();
try (BufferedReader inReader = new BufferedReader(new InputStreamReader(process.getInputStream()))) {
String line;
while ((line = inReader.readLine()) != null) {
TODO 终端日志输出
System.out.println(line);
}
} catch (Exception e) {
e.printStackTrace();
}
TODO 等10分钟，如果10分钟不结束，返回且status为false
boolean status = process.waitFor(10, TimeUnit.MINUTES);
System.out.println("status ->" + status);
}
}
2.3、日志输出结果
. ____ _ __ _ _
/\\ ___'_ __ _ _(_)_ __ __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
\\/ ___)| |_)| | | | | || (_| | ) ) ) )
' |____| .__|_| |_|_| |_\__, |
=========|_|==============|___/=/_/_/_/
:: Spring Boot :: (v2.6.1)
2024-06-15 18:33:16.090 INFO 31834 --- [ main] com.journey.test.Application : Starting Application using Java 1.8.0_401 on 192.168.1.4 with PID 31834 (/Users/qiaozhanwei/IdeaProjects/springboot2/target/classes started by qiaozhanwei in Users/qiaozhanwei/IdeaProjects/springboot2)
2024-06-15 18:33:16.091 INFO 31834 --- [ main] com.journey.test.Application : No active profile set, falling back to default profiles: default
2024-06-15 18:33:16.244 INFO 31834 --- [ main] com.journey.test.Application : Started Application in 0.252 seconds (JVM running for 0.42)
Number of Maps = 1
Samples per Map = 100000
2024-06-15 18:33:16,790 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
Wrote input for Map #0
Starting Job
2024-06-15 18:33:17,329 INFO client.DefaultNoHARMFailoverProxyProvider: Connecting to ResourceManager at kvm-10-253-26-85/10.253.26.85:8032
2024-06-15 18:33:17,586 INFO mapreduce.JobResourceUploader: Disabling Erasure Coding for path: tmp/hadoop-yarn/staging/qiaozhanwei/.staging/job_1694766249884_0931
2024-06-15 18:33:17,837 INFO input.FileInputFormat: Total input files to process : 1
2024-06-15 18:33:18,024 INFO mapreduce.JobSubmitter: number of splits:1
2024-06-15 18:33:18,460 INFO mapreduce.JobSubmitter: Submitting tokens for job: job_1694766249884_0931
2024-06-15 18:33:18,460 INFO mapreduce.JobSubmitter: Executing with tokens: []
2024-06-15 18:33:18,648 INFO conf.Configuration: resource-types.xml not found
2024-06-15 18:33:18,648 INFO resource.ResourceUtils: Unable to find 'resource-types.xml'.
2024-06-15 18:33:18,698 INFO impl.YarnClientImpl: Submitted application application_1694766249884_0931
2024-06-15 18:33:18,734 INFO mapreduce.Job: The url to track the job: http://kvm-10-253-26-85:8088/proxy/application_1694766249884_0931/
2024-06-15 18:33:18,734 INFO mapreduce.Job: Running job: job_1694766249884_0931
2024-06-15 18:33:24,978 INFO mapreduce.Job: Job job_1694766249884_0931 running in uber mode : false
2024-06-15 18:33:24,978 INFO mapreduce.Job: map 0% reduce 0%
2024-06-15 18:33:29,153 INFO mapreduce.Job: map 100% reduce 0%
2024-06-15 18:33:34,384 INFO mapreduce.Job: map 100% reduce 100%
2024-06-15 18:33:34,455 INFO mapreduce.Job: Job job_1694766249884_0931 completed successfully
2024-06-15 18:33:34,565 INFO mapreduce.Job: Counters: 54
File System Counters
FILE: Number of bytes read=28
FILE: Number of bytes written=548863
FILE: Number of read operations=0
FILE: Number of large read operations=0
FILE: Number of write operations=0
HDFS: Number of bytes read=278
HDFS: Number of bytes written=215
HDFS: Number of read operations=9
HDFS: Number of large read operations=0
HDFS: Number of write operations=3
HDFS: Number of bytes read erasure-coded=0
Job Counters
Launched map tasks=1
Launched reduce tasks=1
Data-local map tasks=1
Total time spent by all maps in occupied slots (ms)=37968
Total time spent by all reduces in occupied slots (ms)=79360
Total time spent by all map tasks (ms)=2373
Total time spent by all reduce tasks (ms)=2480
Total vcore-milliseconds taken by all map tasks=2373
Total vcore-milliseconds taken by all reduce tasks=2480
Total megabyte-milliseconds taken by all map tasks=4859904
Total megabyte-milliseconds taken by all reduce tasks=10158080
Map-Reduce Framework
Map input records=1
Map output records=2
Map output bytes=18
Map output materialized bytes=28
Input split bytes=160
Combine input records=0
Combine output records=0
Reduce input groups=2
Reduce shuffle bytes=28
Reduce input records=2
Reduce output records=0
Spilled Records=4
Shuffled Maps =1
Failed Shuffles=0
Merged Map outputs=1
GC time elapsed (ms)=87
CPU time spent (ms)=1420
Physical memory (bytes) snapshot=870387712
Virtual memory (bytes) snapshot=9336647680
Total committed heap usage (bytes)=2716860416
Peak Map Physical memory (bytes)=457416704
Peak Map Virtual memory (bytes)=3773362176
Peak Reduce Physical memory (bytes)=412971008
Peak Reduce Virtual memory (bytes)=5563285504
Shuffle Errors
BAD_ID=0
CONNECTION=0
IO_ERROR=0
WRONG_LENGTH=0
WRONG_MAP=0
WRONG_REDUCE=0
File Input Format Counters
Bytes Read=118
File Output Format Counters
Bytes Written=97
Job Finished in 17.292 seconds
Estimated value of Pi is 3.14120000000000000000
status ->true
Process finished with exit code 0
转载自Journey
原文链接：https://segmentfault.com/a/1190000044966157
用户案例
迁移实战
发版消息
加入社区
关注社区的方式有很多：

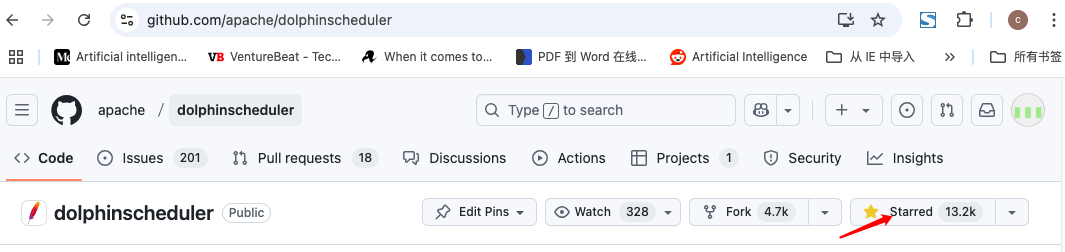

GitHub: https://github.com/apache/dolphinscheduler 官网：https://dolphinscheduler.apache.org/en-us 订阅开发者邮件：dev@dolphinscheduler@apache.org X.com：@DolphinSchedule YouTube：https://www.youtube.com/@apachedolphinscheduler Slack：https://join.slack.com/t/asf-dolphinscheduler/shared_invite/zt-1cmrxsio1-nJHxRJa44jfkrNL_Nsy9Qg
