提问：作为DBA运维的你是否遇到过这些烦恼
1、现场进行项目部署测试时，突然发生slave节点的sql线程异常？
2、唯一索引列中居然存在重复数据，且因唯一键重复导致数据无法插入？
心中有章，遇事不慌
作为DBA的你，遇到问题无从下手，除了在问题面前徘徊，还能如何选择？如果你一次或多次遇到该问题还是无法解决，又很懊恼，该如何排忧呢？关注公众号，关注《包拯断案》专栏，让小编为你排忧解难~
一整套故障排错及应对策略送给你，让你像包拯一样断案如神：
#首先
遇到此类问题后，我们要做到心中有章（章程），遇事不慌。一定要冷静，仔细了解故障现象（与研发/用户仔细沟通其反馈的问题，了解故障现象、操作流程、数据库架构等信息）
#其次
我们要根据故障现象进行初步分析。心中要想：什么情况下，客户会禁用“会话级唯一性检查”？例如：是客户输入了重复数据，还是因为误操作导致的？
#然后
针对上述思考，我们需要逐步验证并排除，确定问题排查方向。
#接着
确定了问题方向，进行具体分析。通过现象得出部分结论，通过部分结论继续排查并论证。
#最后
针对问题有了具体分析后，再进行线下复现，最终梳理故障报告。
真刀实战，我们能赢
说了这么多理论，想必实战更让你心动。那我们就拿一个真实案例进行分析——某商业银行客户的开发测试环境，使用GreateRouter三节点集中式数据库产品，后端的数据节点是1主2从半同步复制GreatDB。
现场DBA发现slave节点的sql线程异常，show slave status检查Slave_SQL_Running=No，Last_Errno=1062。
greatdb> show slave status \G*************************** 1. row ***************************Slave_IO_State: Waiting for source to send event......Last_Errno: 1062Last_Error: Coordinator stopped because there were error(s) in the worker(s). The most recent failure being: Worker 1 failed executing transaction '1b79061d-71ae-11ef-9633-00163e2cb875:17436241' at master log greatdb-bin.000288, end_log_pos 362599392.. See error log and/or performance_schema.replication_applier_status_by_worker table for more details about this failure or others, if any.......
检查表performance_schema.replication_applier_status_by_worker，显示信息如下：
greatdb> select * from performanceschema.replication_applier_status \G....LAST_ERROR_NUMBER: 1062LAST_ERROR_MESSAGE: Wroker 1 failed executing transaction '1b79061d-71ae-11ef-9633-00163e2cb875:17436241' at master log greatdb-bin.000288, end_log_pos 362599392; Could not execute Write_rows event on table xxxx; Duplicate entry 'Ms001-0xx-20230901-1' for key 'fnd_rixin_intrt.UK0_Fnd_Rixin_intrt', Error_code: 1062; handler error HA_ERR_FOUND_DUPP_KEY; the event's master log First, end_log_pos 362599392...
提示表nfesp_fesl1_db_jy.fnd_rixin_intrt的唯一索引UK0_fnd_Rixin_Intrt有重复数据。
检查表nfesp_fesl1_db_jy.fnd_rixin_intrt的信息，有唯一索引UK0_fnd_Rixin_Intrt ( IvsmPd_ECD , Txn_Mkt_ID , Fnd_Qtn_Dt , NetVal_TpCd ) ,检查mysql主库中的数据，发现SN_Rcrd_ID=860和1711的2条数据唯一索引列完全相同。
问题总结
1主2从GreatDB架构中，nfesp_fesl1_db_jy.fnd_rixin_intrt表在master节点中，唯一索引列存在2条重复数据；重复数据的第2条在slave节点上回放时，由于唯一键重复而无法插入，导致sql_thread停止。
问题分析
使用greatsqlbinlog解析master节点的binlog文件greatdb-bin.000288，检查该事务是一个多值insert语句。在gtid事务中，有如下设置会话变量的信息：
SET @@session.foreign_key_checks=1, @@session.sql_auto_is_null=0,@@session.unique_checks=0, @@session.autocommit=1/*!*/;
该信息表明，在执行该事务时，用户修改了会话级变量unique_checks，禁用了唯一性检查。
2.1 源码分析

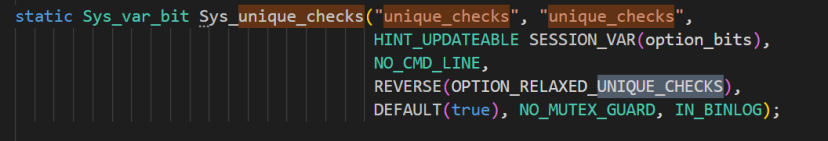

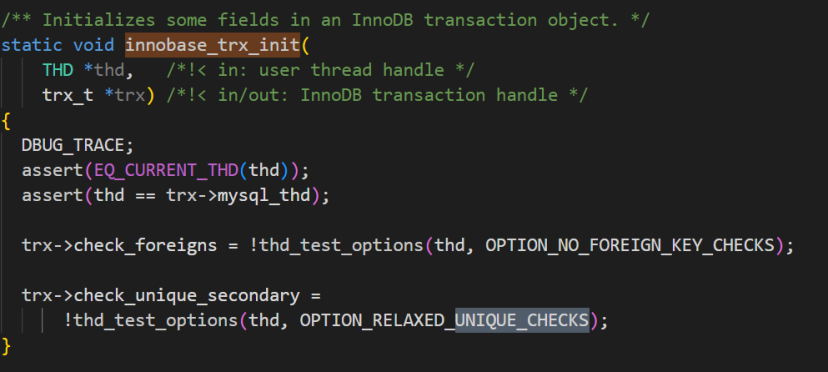

unique_checks 的设置是改变option_bits变量第OPTION_RELAXED_UNIQUE_CHECKS位的值，该值最终会保存到事务结构trx->check_unique_secondary上：

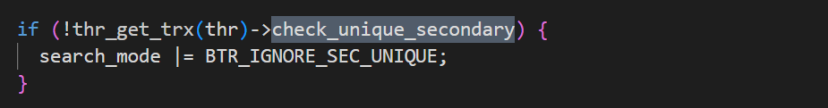

在函数row_ins_sec_index_entry_low中，转换为

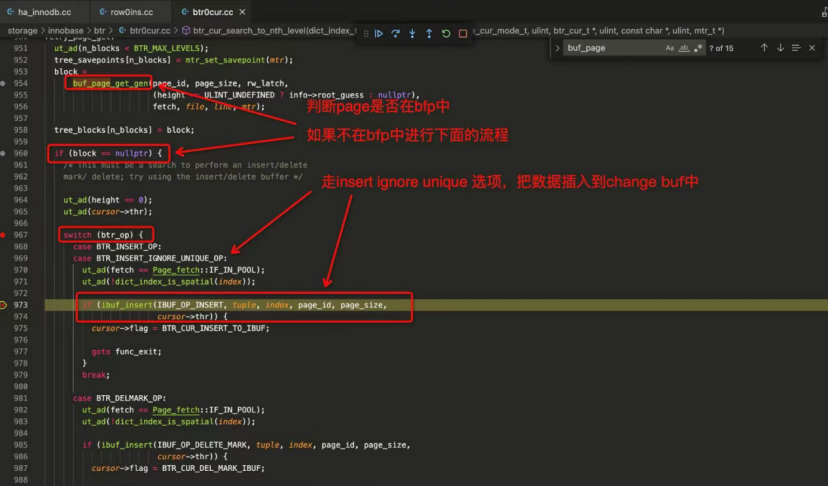

在函数btr_cur_search_to_nth_level（Searches an index tree and positions a tree cursor on a given level.）中的处理如下：
先在buffer pool中扫描寻找对应的页面，如果找不到（即block =nullptr），btr_op=BTR_INSERT_IGNORE_UNIQUE_OP，则不检查数据的唯一性，直接插入到change buffer中。
总结：从源码上看，满足以下几个条件可能导致唯一索引插入重复值
禁用唯一索引检查unique_checks=OFF
使用了change buffer
要更新的唯一索引页不在buffer pool中
2.2 问题复现
1.检查环境变量，使用change buffer
greatdb> show variables like 'unique%';+---------------+-------+| Variable_name | Value |+---------------+-------+| unique_checks | ON |+---------------+-------+1 row in set (0.01 sec)greatdb> show variables like 'innodb_change_buffering';+-------------------------+-------+| Variable_name | Value |+-------------------------+-------+| innodb_change_buffering | all |+-------------------------+-------+1 row in set (0.01 sec)
2.创建测试表sbtest_uq，在（c,pad）上创建唯一索引
CREATE TABLE `sbtest_uq` (`id` int NOT NULL AUTO_INCREMENT,`k` int NOT NULL DEFAULT '0',`c` char(120) NOT NULL DEFAULT '',`pad` char(60) NOT NULL DEFAULT '',PRIMARY KEY (`id`),KEY `k_1` (`k`),unique key `uk_c_pad`(`c`,`pad`)) ENGINE=InnoDB AUTO_INCREMENT=1000001 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci;
3.在sbtest_uq中插入唯一索引列(c,pad)='1','1'的一条数据(id=1)
greatdb> truncate table sbtest_uq;Query OK, 0 rows affected (0.10 sec)greatdb> insert into sbtest_uq(id,k,c,pad) values(1,1,'1','1');Query OK, 1 row affected (0.01 sec)greatdb> insert into sbtest_uq select * from sbtest1 where id>1;Query OK, 999999 rows affected (55.99 sec)Records: 999999 Duplicates: 0 Warnings: 0
4.在master节点执行其他DML操作，将sbtest_uq从buffer pool中挤出
#'执行其他操作，将sbtest_uq从buffer pool中挤出'greatdb>truncate table sbtest12;Query OK, 0 rows affected (0.51 sec)greatdb>insert into sbtest12 select * from sbtest2;Query OK, 1000000 rows affected (28.36 sec)Records: 1000000 Duplicates: 0 Warnings: 0#'检查buffer pool中已没有sbtest_uq'greatdb>select * from sys.innodb_buffer_stats_by_table where object_schema='test' and object_name='sbtest_uq';Empty set (0.26 sec)
5.slave节点1：确认buffer pool中没有表sbtest_uq的数据
#'检查buffer pool中已经没有sbtest_uq'greatdb> select * from sys.innodb_buffer_stats_by_table where object_schema='test' and object_name='sbtest_uq';Empty set (0.26 sec)
6.slave节点2：将sbtest_uq的索引数据加载到buffer pool中
greatdb> select * from sbtest_uq where c='1' and pad='1';+----+---+---+-----+| id | k | c | pad |+----+---+---+-----+| 1 | 1 | 1 | 1 |+----+---+---+-----+1 row in set (0.19 sec)greatdb> select * from sys.innodb_buffer_stats_by_table where object_schema='test' and object_name='sbtest_uq';+---------------+-------------+------------+-----------+-------+--------------+-----------+-------------+| object_schema | object_name | allocated | data | pages | pages_hashed | pages_old | rows_cached |+---------------+-------------+------------+-----------+-------+--------------+-----------+-------------+| test | sbtest_uq | 112.00 KiB | 48.45 KiB | 7 | 0 | 7 | 413 |+---------------+-------------+------------+-----------+-------+--------------+-----------+-------------+1 row in set (0.28 sec)
7.在master节点插入唯一索引列(c,pad)='1','1'的另一条数据（id=9999999）
#'关闭唯一键检查，插入重复数据'greatdb> set unique_checks=OFF;Query OK, 0 rows affected (0.00 sec)#'插入重复数据'greatdb> insert into sbtest_uq(id,k,c,pad) values(9999999,1,'1','1');Query OK, 1 row affected (0.01 sec)
8.检查master和slave上的数据及复制状态
master节点：(c,pad)列上已存在重复数据
#'查询表sbtest_uq，确认c+pad列上已存在重复数据'greatdb> select * from sbtest_uq where id in(1,9999999);+---------+---+---+-----+| id | k | c | pad |+---------+---+---+-----+| 1 | 1 | 1 | 1 || 9999999 | 1 | 1 | 1 |+---------+---+---+-----+2 rows in set (0.00 sec)
slave节点1：(c,pad)列上已存在重复数据；复制线程Slave_SQL_Running=Yes
greatdb> select * from sbtest_uq where id in(1,9999999);+---------+---+---+-----+| id | k | c | pad |+---------+---+---+-----+| 1 | 1 | 1 | 1 || 9999999 | 1 | 1 | 1 |+---------+---+---+-----+2 rows in set (0.07 sec)greatdb> show slave status\G*************************** 1. row ***************************Slave_IO_State: Waiting for source to send event。。。。。。Slave_IO_Running: YesSlave_SQL_Running: Yes。。。。。。Retrieved_Gtid_Set: e6ea0eeb-591c-11ef-8984-00163e919d0a:209358-209371Executed_Gtid_Set: e6cbf195-591c-11ef-99d9-00163e33cf00:1-1572367,e6d361d5-591c-11ef-b1d5-00163e0ea4a5:1-138208,e6ea0eeb-591c-11ef-8984-00163e919d0a:1-209371......1 row in set, 1 warning (0.00 sec)
slave节点2：(c,pad)列上没有重复数据；复制线程Slave_SQL_Running=No，提示唯一键重复
greatdb> select * from sbtest_uq where id in(1,9999999);+----+---+---+-----+| id | k | c | pad |+----+---+---+-----+| 1 | 1 | 1 | 1 |+----+---+---+-----+1 row in set (0.00 sec)greatdb> show slave status\G*************************** 1. row ***************************Slave_IO_State: Waiting for source to send event......Slave_IO_Running: YesSlave_SQL_Running: No......Last_Errno: 1062Last_Error: Coordinator stopped because there were error(s) in the worker(s). The most recent failure being: Worker 1 failed executing transaction 'e6ea0eeb-591c-11ef-8984-00163e919d0a:209371' at master log greatdb-bin.000020, end_log_pos 606. See error log and/or performance_schema.replication_applier_status_by_worker table for more details about this failure or others, if any.......Last_SQL_Errno: 1062Last_SQL_Error: Coordinator stopped because there were error(s) in the worker(s). The most recent failure being: Worker 1 failed executing transaction 'e6ea0eeb-591c-11ef-8984-00163e919d0a:209371' at master log greatdb-bin.000020, end_log_pos 606. See error log and/or performance_schema.replication_applier_status_by_worker table for more details about this failure or others, if any.......Retrieved_Gtid_Set: e6ea0eeb-591c-11ef-8984-00163e919d0a:209366-209371Executed_Gtid_Set: e6cbf195-591c-11ef-99d9-00163e33cf00:1-1572367,e6d361d5-591c-11ef-b1d5-00163e0ea4a5:1-138208,e6ea0eeb-591c-11ef-8984-00163e919d0a:1-209370......1 row in set, 1 warning (0.00 sec)greatdb> select * fromperformance_schema.replication_applier_status_by_worker\G*************************** 1. row ***************************CHANNEL_NAME:WORKER_ID: 1THREAD_ID: NULLSERVICE_STATE: OFFLAST_ERROR_NUMBER: 1062LAST_ERROR_MESSAGE: Worker 1 failed executing transaction 'e6ea0eeb-591c-11ef-8984-00163e919d0a:209371' at master log greatdb-bin.000020, end_log_pos 606; Could not execute Write_rows event on table test.sbtest_uq; Duplicate entry '1-1' for key 'sbtest_uq.uk_c_pad', Error_code: 1062; handler error HA_ERR_FOUND_DUPP_KEY; the event`s master log greatdb-bin.000019, end_log_pos 606LAST_ERROR_TIMESTAMP: 2024-09-14 09:35:47.947584LAST_APPLIED_TRANSACTION: e6ea0eeb-591c-11ef-8984-00163e919d0a:209370LAST_APPLIED_TRANSACTION_ORIGINAL_COMMIT_TIMESTAMP: 2024-09-14 09:31:27.529353LAST_APPLIED_TRANSACTION_IMMEDIATE_COMMIT_TIMESTAMP: 2024-09-14 09:31:27.529353LAST_APPLIED_TRANSACTION_START_APPLY_TIMESTAMP: 2024-09-14 09:31:28.832359LAST_APPLIED_TRANSACTION_END_APPLY_TIMESTAMP: 2024-09-14 09:31:55.294233APPLYING_TRANSACTION: e6ea0eeb-591c-11ef-8984-00163e919d0a:209371APPLYING_TRANSACTION_ORIGINAL_COMMIT_TIMESTAMP: 2024-09-14 09:35:47.858275APPLYING_TRANSACTION_IMMEDIATE_COMMIT_TIMESTAMP: 2024-09-14 09:35:47.858275APPLYING_TRANSACTION_START_APPLY_TIMESTAMP: 2024-09-14 09:35:47.861972LAST_APPLIED_TRANSACTION_RETRIES_COUNT: 0LAST_APPLIED_TRANSACTION_LAST_TRANSIENT_ERROR_NUMBER: 0LAST_APPLIED_TRANSACTION_LAST_TRANSIENT_ERROR_MESSAGE:LAST_APPLIED_TRANSACTION_LAST_TRANSIENT_ERROR_TIMESTAMP: 0000-00-00 00:00:00.000000APPLYING_TRANSACTION_RETRIES_COUNT: 0APPLYING_TRANSACTION_LAST_TRANSIENT_ERROR_NUMBER: 0APPLYING_TRANSACTION_LAST_TRANSIENT_ERROR_MESSAGE:APPLYING_TRANSACTION_LAST_TRANSIENT_ERROR_TIMESTAMP: 0000-00-00 00:00:00.000000#'完成事务回放的方法：stop slave;查询其他大表，将sbtest_uq从buffer pool中挤出;start slave;'
小结
测试过程验证了可以在唯一索引列中插入重复数据：在主从复制的slave节点，如果buffer pool中没有唯一索引信息，该事务会正常回放，插入重复数据；如果buffer pool中存在唯一索引信息，该事务回放时，会由于主键重复而失败，从而导致sql线程中断。
回到客户的问题：由于buffer pool中没有索引UK0_fnd_Rixin_Intrt的信息，所以在master节点能插入重复数据；但slave端回放binlog时，索引UK0_fnd_Rixin_Intrt信息在buffer pool中，会由于主键重复而导致sql线程中断。
复盘总结
应用系统禁用唯一索引检查（设置unique_checks=OFF），一般是为了提高数据加载速度，但前提是确保唯一索引列的数据唯一。在不能确保唯一性时，请不要禁用唯一性检查，否则可能导致数据重复，对业务的正常运行造成威胁。
