前 言
最近，遇到了 Oracle ASM 磁盘组故障的几个小问题，感觉比较典型，可能有很多朋友在工作中也会遇到，特此记录一下。Oracle ASM 官方有一本在线书籍《Automatic Storage Management Administrator’s Guide》,详细记录了 ASM 相关的管理员指南操作，使用 ASMCA、ASMCMD 命令行实用程序，可用于管理 Oracle ASM 实例、磁盘组、磁盘组的文件权限改造、磁盘组内的文件和目录、磁盘组模板以及卷。记得大概在六年前也写过一篇 《Oracle ASM 磁盘组基础知识整理收藏版》，内容较多，阅读量也比较高，看来很受欢迎。
问题一、OCR 磁盘为 DROPPED 状态处理
近期搭建了一套生产仿真环境的 RAC，由于系统工程师配置多路径时没有配置正确，仅配置了单路径，测试高可用的时候发现多路径链路并没有高可用，在测试的过程中导致 OCR 磁盘出现异常，被踢出 OCR 磁盘组出现了DROPPED 状态。
检查 OCR 状态
使用 query 命令查看仅有两块磁盘，缺少一块盘。因 OCR 是默认冗余，数据库还能正常提供服务，暂时没有影响，但不能再失去一块盘，否则就会挂掉。
$ crsctl query css votedisk
## STATE File Universal Id File Name Disk group
-- ----- ----------------- --------- ---------
1. ONLINE 47bc00a3d8c34f2fbf56c11613ce71e7 (/dev/asmdisks/otwrac-ocr01) [OCR]
2. ONLINE 060ea9af3ca04f20bf3d01e5ef7e9f91 (/dev/asmdisks/otwrac-ocr02) [OCR]
Located 2 voting disk(s).

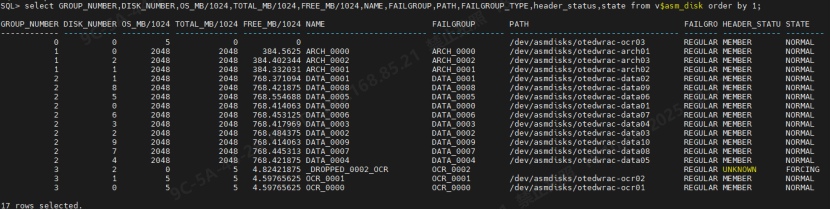

使用 SQL 在 ASM 实例或者 DB 实例查看，确实发现有一块 5GB 大小的磁盘出现 UNKNOWN 状态，磁盘名字为 _DROPPED_0002_OCR 则可以确定就是 OCR 磁盘。

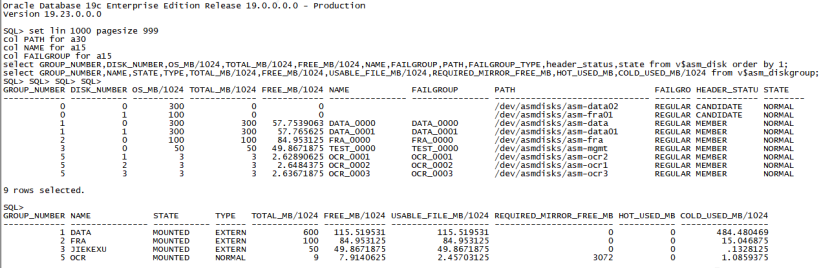

SQL> set lin 1000 pagesize 999
SQL> col NAME for a25
SQL> col FAILGROUP for a15
SQL> col path for a35
SQL> select GROUP_NUMBER,DISK_NUMBER,OS_MB/1024,TOTAL_MB/1024,FREE_MB/1024,NAME,FAILGROUP,PATH,FAILGROUP_TYPE,header_status,state from v$asm_disk order by 1;
GROUP_NUMBER DISK_NUMBER OS_MB/1024 TOTAL_MB/1024 FREE_MB/1024 NAME FAILGROUP PATH FAILGRO HEADER_STATU STATE
------------ ----------- ---------- ------------- ------------ ------------------------- --------------- ----------------------------------- ------- ------------ --------
0 0 5 0 0 /dev/asmdisks/otedwrac-ocr03 REGULAR MEMBER NORMAL
1 0 2048 2048 384.5625 ARCH_0000 ARCH_0000 /dev/asmdisks/otedwrac-arch01 REGULAR MEMBER NORMAL
1 2 2048 2048 384.402344 ARCH_0002 ARCH_0002 /dev/asmdisks/otedwrac-arch03 REGULAR MEMBER NORMAL
1 1 2048 2048 384.332031 ARCH_0001 ARCH_0001 /dev/asmdisks/otedwrac-arch02 REGULAR MEMBER NORMAL
2 1 2048 2048 768.371094 DATA_0001 DATA_0001 /dev/asmdisks/otedwrac-data02 REGULAR MEMBER NORMAL
2 8 2048 2048 768.421875 DATA_0008 DATA_0008 /dev/asmdisks/otedwrac-data09 REGULAR MEMBER NORMAL
2 5 2048 2048 768.554688 DATA_0005 DATA_0005 /dev/asmdisks/otedwrac-data06 REGULAR MEMBER NORMAL
2 0 2048 2048 768.414063 DATA_0000 DATA_0000 /dev/asmdisks/otedwrac-data01 REGULAR MEMBER NORMAL
2 6 2048 2048 768.453125 DATA_0006 DATA_0006 /dev/asmdisks/otedwrac-data07 REGULAR MEMBER NORMAL
2 3 2048 2048 768.417969 DATA_0003 DATA_0003 /dev/asmdisks/otedwrac-data04 REGULAR MEMBER NORMAL
2 2 2048 2048 768.484375 DATA_0002 DATA_0002 /dev/asmdisks/otedwrac-data03 REGULAR MEMBER NORMAL
2 9 2048 2048 768.414063 DATA_0009 DATA_0009 /dev/asmdisks/otedwrac-data10 REGULAR MEMBER NORMAL
2 7 2048 2048 768.445313 DATA_0007 DATA_0007 /dev/asmdisks/otedwrac-data08 REGULAR MEMBER NORMAL
2 4 2048 2048 768.421875 DATA_0004 DATA_0004 /dev/asmdisks/otedwrac-data05 REGULAR MEMBER NORMAL
3 2 0 5 4.82421875 _DROPPED_0002_OCR OCR_0002 REGULAR UNKNOWN FORCING
3 1 5 5 4.59765625 OCR_0001 OCR_0001 /dev/asmdisks/otedwrac-ocr02 REGULAR MEMBER NORMAL
3 0 5 5 4.59765625 OCR_0000 OCR_0000 /dev/asmdisks/otedwrac-ocr01 REGULAR MEMBER NORMAL
--也可以使用 lsdsk -p 命令在 ASM 中查询。
--示例：正常输出
ASMCMD> lsdsk -p
Group_Num Disk_Num Incarn Mount_Stat Header_Stat Mode_Stat State Path
2 0 4081510609 CACHED MEMBER ONLINE NORMAL /dev/sdc
2 1 4081510610 CACHED MEMBER ONLINE NORMAL /dev/sdd
1 0 4081510605 CACHED MEMBER ONLINE NORMAL /dev/sde
3 0 4081510612 CACHED MEMBER ONLINE NORMAL /dev/sdf
3 1 4081510613 CACHED MEMBER ONLINE NORMAL /dev/sdg
3 2 4081510611 CACHED MEMBER ONLINE NORMAL /dev/sdh
2 2 4081510608 CACHED MEMBER ONLINE NORMAL /dev/sdi
1 1 4081510604 CACHED MEMBER ONLINE NORMAL /dev/sdj
2 4 4081510607 CACHED MEMBER ONLINE NORMAL /dev/sdk
2 3 4081510606 CACHED MEMBER ONLINE NORMAL /dev/sdl
1 2 4081510603 CACHED MEMBER ONLINE NORMAL /dev/sdm
ASMCMD>
我们去查看 ASM 日志，发现此 OCR 磁盘确实也是被 ASM 实例强制 drop 掉了，这里仅提供日志路径，如果有相似问题，请自行查看。
--19c /u01/app/grid/diag/asm/+asm/+ASM1/trace/alert_+ASM1.log grep OCR_00 alert_+ASM1.log
强制重新添加
这里如果不使用强制，可能无法添加磁盘，会报已经存在；但如果使用 Force 强制添加时一定要确认是正确的磁盘，如果把其他正常磁盘加进去问题就大了，赶紧跑路吧。。。
--alter diskgroup OCR drop disk OCR_02 FORCE;
alter diskgroup OCR add disk '/dev/asmdisks/otwrac-ocr03' force;
问题二、添加 ASM 磁盘遇到 ORA-15137 问题处理

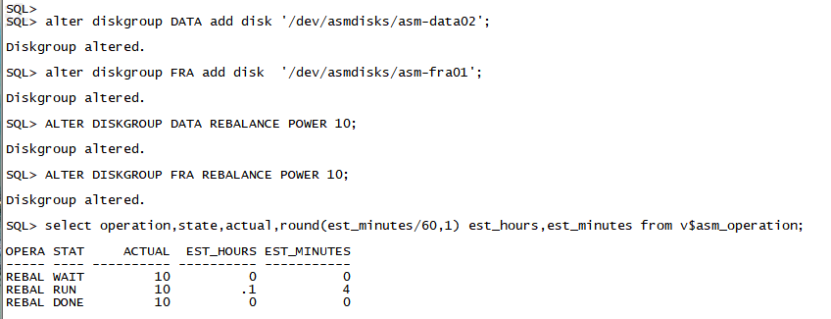

还有一次在测试环境中，表空间不足，需要添加 ASM 磁盘，但在 ASM 实例中添加磁盘时报错 ORA-15137 问题处理。
su - grid
sqlplus / as sysasm
alter diskgroup DATA add disk '/dev/asmdisks/asm-data04'rebalance power 10;
ORA-15032: not all alterations performed
ORA-15137: The ASM cluster is in rolling patch state.
确认集群的当前状态是否为滚动补丁状态
(+ASM1)$ crsctl query crs activeversion -f Oracle Clusterware active version on the cluster is [19.0.0.0.0]. The cluster upgrade state is [ROLLING PATCH]. The cluster active patch level is [3509829075]. (+ASM1)$ asmcmd showclusterstate In Rolling Patch
检查各节点的补丁是否一致
$ /u01/app/19.0.0.0/grid/bin/kfod op=patches
(+ASM1)$ kfod op=patches
kgfnGetFacility: facility=0x15f4d90
kgfnInitDiag: diagctx=0x14c1fc0
---------------
List of Patches
===============
29517242
29517247
29585399
36233263
36233343
36240578
36383196
36460248
$ /u01/app/19.0.0.0/grid/bin/kfod op=PATCHLVL
kgfnGetFacility: facility=0x24a8d90
kgfnInitDiag: diagctx=0x2375fc0
-------------------
Current Patch level
===================
1545812015
(+ASM2)$ kfod op=patches
kgfnGetFacility: facility=0x2161d90
kgfnInitDiag: diagctx=0x202efc0
---------------
List of Patches
===============
29517242
29517247
29585399
36233263
36233343
36240578
36383196
36460248
(+ASM2)$ kfod op=PATCHLVL
kgfnGetFacility: facility=0x1badd90
kgfnInitDiag: diagctx=0x1a7afc0
-------------------
Current Patch level
===================
1545812015
opatch lspatches
36460248;TOMCAT RELEASE UPDATE 19.0.0.0.0 (36460248)
36383196;DBWLM RELEASE UPDATE 19.0.0.0.0 (36383196)
36240578;OCW RELEASE UPDATE 19.23.0.0.0 (36240578)
36233343;ACFS RELEASE UPDATE 19.23.0.0.0 (36233343)
36233263;Database Release Update : 19.23.0.0.240416 (36233263)
以上排查结果一致,如果不一致要么打补丁，要么回退小补丁；接下来排查这四项。
$ <GRID_HOME>/bin/crsctl query crs releasepatch
$ <GRID_HOME>/bin/crsctl query crs softwarepatch
$ <GRID_HOME>/bin/crsctl query crs releaseversion
$ <GRID_HOME>/bin/crsctl query crs softwareversion
(+ASM1)$ crsctl query crs releasepatch
Oracle Clusterware release patch level is [1545812015] and the complete list of patches [29517242 29517247 29585399 36233263 36233343 36240578 36383196 36460248 ] have been applied on the local node. The release patch string is [19.23.0.0.0].
Oracle Clusterware release patch level is [1545812015] and the complete list of patches [29517242 29517247 29585399 36233263 36233343 36240578 36383196 36460248 ] have been applied on the local node. The release patch string is [19.23.0.0.0].
(+ASM1)$ crsctl query crs softwarepatch
Oracle Clusterware patch level on node dwrac-86 is [3509829075].
Oracle Clusterware patch level on node dwrac-87 is [1545812015].
(+ASM1)$ crsctl query crs releaseversion
Oracle High Availability Services release version on the local node is [19.0.0.0.0]
Oracle High Availability Services release version on the local node is [19.0.0.0.0]
(+ASM1)$ crsctl query crs softwareversion
Oracle Clusterware version on node [dwrac-86] is [19.0.0.0.0]
Oracle Clusterware version on node [dwrac-87] is [19.0.0.0.0]
(+ASM1)$ cluutil -ckpt -oraclebase $ORACLE_BASE -chkckpt -name ROOTCRS_PREPATCH -status
FAIL
(+ASM2)$ cluutil -ckpt -oraclebase $ORACLE_BASE -chkckpt -name ROOTCRS_PREPATCH -status
START
如果发现补丁不一致，需要对不一致的节点进行修复。这里发现 softwarepatch 不一致。
解决办法
根据文档ORA-15137 After Rolling Back Failed Patch at GI_HOME (Doc ID 1968727.1)
Case 1. Update the patch level on all nodes, As root user
$ clscfg -patch
Example:
# <GRID_HOME>/bin/clscfg -patch
clscfg: -patch mode specified
clscfg: EXISTING configuration version 5 detected.
clscfg: version 5 is 12c Release 1.
Successfully accumulated necessary OCR keys.
Creating OCR keys for user 'root', privgrp 'root'..
Operation successful.
And validate as root user
[root@dwrac-86 ~]# /u01/app/19.0.0.0/grid/bin/clscfg -patch
clscfg: -patch mode specified
clscfg: EXISTING configuration version 19 detected.
Successfully accumulated necessary OCR keys.
Creating OCR keys for user 'root', privgrp 'root'..
Operation successful.
[root@dwrac-87 ~]# /u01/app/19.0.0.0/grid/bin/clscfg -patch
clscfg: -patch mode specified
clscfg: EXISTING configuration version 19 detected.
Successfully accumulated necessary OCR keys.
Creating OCR keys for user 'root', privgrp 'root'..
Operation successful.
$ crsctl query crs softwarepatch
Example:
# <GRID_HOME>/bin/crsctl query crs softwarepatch
Oracle Clusterware patch level on node host01 is [1964077727].
# <GRID_HOME>/bin/crsctl query crs softwarepatch
Oracle Clusterware patch level on node host02 is [1964077727].
dwrac-86:/home/grid(+ASM1)$ crsctl query crs softwarepatch
Oracle Clusterware patch level on node dwrac-86 is [1545812015].
dwrac-87:/home/grid(+ASM2)$ crsctl query crs softwarepatch
Oracle Clusterware patch level on node dwrac-87 is [1545812015].
If both were at same level,stop rolling patch mode from one of the node as root user
如果两者处于同一级别，则以根用户身份从其中一个节点停止滚动补丁模式
# crsctl stop rollingpatch
Then startup the cluster and create asm diskgroup. 然后启动群集并创建 asm 磁盘组。
Example:
[root@dwrac-86 ~]# /u01/app/19.0.0.0/grid/bin/crsctl stop rollingpatch
CRS-1161: The cluster was successfully patched to patch level [1545812015].
另外一种情况就是补丁不一致的情况下，应用相同补丁或者回退小补丁，这里没有遇到，就不在说明了。
修复不一致的节点,在多余补丁的节点上执行以下操作：
# 停止数据库
$ shutdown immediate
# 准备补丁前操作
$ ./rootcrs.sh -prepatch
# 提交并回滚多余补丁（假设多余补丁ID为29757256）
$ ./patchgen commit -rb 29757256
# 补丁后操作
$ ./rootcrs.sh -postpatch
# 再次执行准备和补丁后操作以确保一致性
$ ./rootcrs.sh -prepatch
$ ./rootcrs.sh -postpatch
验证集群状态,确保集群状态从滚动补丁变为正常。
$ asmcmd showclusterstate
In Rolling Patch -> NORMAL
ASM 其他常用命令 SQL
--使用 ASMCMD showclustermode 命令来确定是否启用了 Oracle Flex ASM
$ asmcmd showclustermode
ASM cluster : Flex mode enabled - Direct Storage Access
--使用 SQL*Plus 和 ASMCMD 命令查看 Oracle Flex ASM 连接
col INSTANCE_NAME for a35
set line 345
SELECT instance_name, db_name, status FROM V$ASM_CLIENT;
INSTANCE_NAME DB_NAME STATUS
--------------- -------- ------------
+ASM1 +ASM CONNECTED
orcl1 orcl CONNECTED
orcl2 orcl CONNECTED
$ asmcmd lsct data
DB_Name Status Software_Version Compatible_version Instance_Name Disk_Group
+ASM CONNECTED 19.0.0.0.0 19.0.0.0.0 +ASM DATA
orcl CONNECTED 19.0.0.0.0 19.0.0.0.0 orcl1 DATA
orcl CONNECTED 19.0.0.0.0 19.0.0.0.0 orcl2 DATA
--示例 6-1 使用 V$ASM_ATTRIBUTE 视图查看磁盘组属性
--这是使用V$ASM_ATTRIBUTE和V$ASM_DISKGROUP视图的一个示例。要使磁盘组在V$ASM_ATTRIBUTE视图输出中显示，COMPATIBLE.ASM值必须设置为11.1或更高。标记为只读（Y）的属性只能在磁盘组创建期间进行设置。
SELECT SUBSTR(dg.name,1,12) AS diskgroup, SUBSTR(a.name,1,24) AS name,
SUBSTR(a.value,1,24) AS value, read_only FROM V$ASM_DISKGROUP dg,
V$ASM_ATTRIBUTE a WHERE dg.name = 'DATA' AND dg.group_number = a.group_number
AND a.name NOT LIKE '%template%';
DISKGROUP NAME VALUE READ_ON
------------ ------------------------ ------------------------ -------
DATA idp.type dynamic N
DATA idp.boundary auto N
DATA vam_migration_done false Y
DATA scrub_metadata.enabled TRUE N
DATA scrub_async_limit 1 N
DATA content_hardcheck.enable FALSE N
DATA access_control.umask 066 N
DATA access_control.enabled FALSE N
DATA cell.sparse_dg allnonsparse N
DATA cell.smart_scan_capable FALSE N
DATA compatible.advm 19.0.0.0.0 N
DATA compatible.rdbms 19.0.0.0.0 N
DATA compatible.asm 19.0.0.0.0 N
DATA appliance._partnering_ty GENERIC Y
DATA au_size 1048576 Y
DATA content.check FALSE N
DATA content.type data N
DATA logical_sector_size 512 N
DATA sector_size 512 N
DATA ate_conversion_done true Y
DATA preferred_read.enabled FALSE N
DATA thin_provisioned FALSE N
DATA failgroup_repair_time 24.0h N
DATA phys_meta_replicated true Y
DATA disk_repair_time 12.0h N
--示例6-3 使用V$ASM_DISK查看磁盘组中的磁盘
--这是在Oracle ASM实例上运行V$ASM_DISK和V$ASM_DISKGROUP视图的使用示例。该示例显示与磁盘组关联的磁盘，以及磁盘的挂载状态、状态和故障组。
SELECT SUBSTR(dg.name,1,16) AS diskgroup, SUBSTR(d.name,1,16) AS asmdisk,
d.mount_status, d.state, SUBSTR(d.failgroup,1,16) AS failgroup
FROM V$ASM_DISKGROUP dg, V$ASM_DISK d WHERE dg.group_number = d.group_number;
DISKGROUP ASMDISK MOUNT_S STATE FAILGROUP
---------------- ---------------- ------- -------- ----------------
DATA DATA_0008 CACHED NORMAL DATA_0008
--示例6-4 使用V$ASM_DISK_STAT查看磁盘组中的磁盘
--这是在Oracle ASM实例上使用V$ASM_DISK_STAT和V$ASM_DISKGROUP_STAT视图的一个示例。该示例显示与特定磁盘组关联的磁盘，以及挂载状态、状态和各种读写统计信息。
SELECT SUBSTR(dgs.name,1,10) AS diskgroup, SUBSTR(ds.name,1,10) AS asmdisk,
ds.mount_status, ds.state, ds.reads, ds.writes, ds.read_time, ds.write_time,
bytes_read, bytes_written
FROM V$ASM_DISKGROUP_STAT dgs, V$ASM_DISK_STAT ds
WHERE dgs.group_number = ds.group_number AND dgs.name = 'DATA';
DISKGROUP ASMDISK MOUNT_S STATE READS WRITES READ_TIME WRITE_TIME BYTES_READ BYTES_WRITTEN
---------- ---------- ------- ------- ------ ------ --------- ---------- ---------- -------------
DATA DATA_0000 CACHED NORMAL 841 10407 1.212218 3.511977 23818240 178369024
DATA DATA_0008 CACHED NORMAL 26065 1319 1.592524 .297728 436203520 38358528
DATA DATA_0010 CACHED NORMAL 561 868 .794849 .337575 18631680 22584320
--示例6-5 使用V$ASM_CLIENT查看磁盘组客户端
这是在Oracle ASM实例上使用V$ASM_CLIENT和V$ASM_DISKGROUP视图的一个示例。该示例显示磁盘组以及有关已连接数据库客户端实例的信息。
SELECT dg.name AS diskgroup, SUBSTR(c.instance_name,1,12) AS instance,
SUBSTR(c.db_name,1,12) AS dbname, SUBSTR(c.SOFTWARE_VERSION,1,12) AS software,
SUBSTR(c.COMPATIBLE_VERSION,1,12) AS compatible
FROM V$ASM_DISKGROUP dg, V$ASM_CLIENT c
WHERE dg.group_number = c.group_number;
DISKGROUP INSTANCE DBNAME SOFTWARE COMPATIBLE
------------------------------ ------------ -------- ------------ ------------
DATA +ASM +ASM 19.0.0.0.0 19.0.0.0.0
DATA orcl orcl 19.0.0.0.0 19.0.0.0.0
DATA +ASM asmvol 19.0.0.0.0 19.0.0.0.0
FRA orcl orcl 19.0.0.0.0 19.0.0.0.0
...
--示例6-9 使用V$ASM_FILE查看Oracle ASM文件访问控制信息
--此示例显示了在V$ASM_FILE视图中显示的Oracle ASM文件访问控制文件权限信息。
SELECT dg.name AS diskgroup, a.name, f.permissions, f.user_number, u.os_name,
f.usergroup_number, ug.name
FROM V$ASM_DISKGROUP dg, V$ASM_USER u, V$ASM_USERGROUP ug, V$ASM_FILE f, V$ASM_ALIAS a
WHERE dg.name = 'FRA' AND dg.group_number = u.group_number AND
u.group_number = ug.group_number AND ug.group_number = f.group_number AND
f.group_number = a.group_number AND
f.usergroup_number = ug.usergroup_number AND f.user_number = u.user_number AND
f.file_number = a.file_number;
DISKGROUP NAME PERMISSIONS USER_NUMBER OS_NAME USERGROUP_NUMBER NAME
--------- ---------------------- ----------- ----------- ------- ---------------- -------
DATA USERS.259.685366091 rw-r----- 3 grid 1 asm_fra
DATA TEMP.264.685366227 rw-r----- 3 grid 1 asm_fra
...
参考链接
https://docs.oracle.com/en/database/oracle/oracle-database/19/ostmg/asm-intro.html#GUID-D577D6A5-0A08-4070-B4FA-A39C5D548CD2 https://docs.oracle.com/en/database/oracle/oracle-database/26/ostmg/create-diskgroups.html#GUID-D8A4F1E1-D5F2-4372-8BF8-2A6CB9724930 ORA-15137 After Rolling Back Failed Patch at GI_HOME (Doc ID 1968727.1)
全文完，希望可以帮到正在阅读的你，如果觉得有帮助，可以分享给你身边的朋友，同事，你关心谁就分享给谁，一起学习共同进步~~~
欢迎关注我的公众号【JiekeXu DBA之路】，一起学习新知识！
——————————————————————————
公众号：JiekeXu DBA之路
墨天轮：https://www.modb.pro/u/4347
CSDN ：https://blog.csdn.net/JiekeXu
ITPUB：https://blog.itpub.net/69968215
腾讯云：https://cloud.tencent.com/developer/user/5645107
——————————————————————————
最后修改时间：2025-11-04 23:50:25
「喜欢这篇文章，您的关注和赞赏是给作者最好的鼓励」
关注作者
【版权声明】本文为墨天轮用户原创内容，转载时必须标注文章的来源（墨天轮），文章链接，文章作者等基本信息，否则作者和墨天轮有权追究责任。如果您发现墨天轮中有涉嫌抄袭或者侵权的内容，欢迎发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。
