postgres btree索引全解析

开源喵 2021-07-10

869

b-tree的索引页总览

pg的B-Tree是一种变种,算法详情请参考src/backend/access/nbtree/README,btee的索引页分为以下几种:

meta page
  ->root page         #btpo_flags=2
     ->branch page    #btpo_flags=0
       ->leaf page   #btpo_flags=1
 注:如果即是leaf又是root则  btpo_flags=3

其中mete Paga和root page是必备，meta page需要一个页来存储，表示指向root page的page id.随着记录的增加，一个root page可能存不下所有的heap items，所以就需要分裂成leaf page,如果继续分裂就存在了brache page和leaf page.

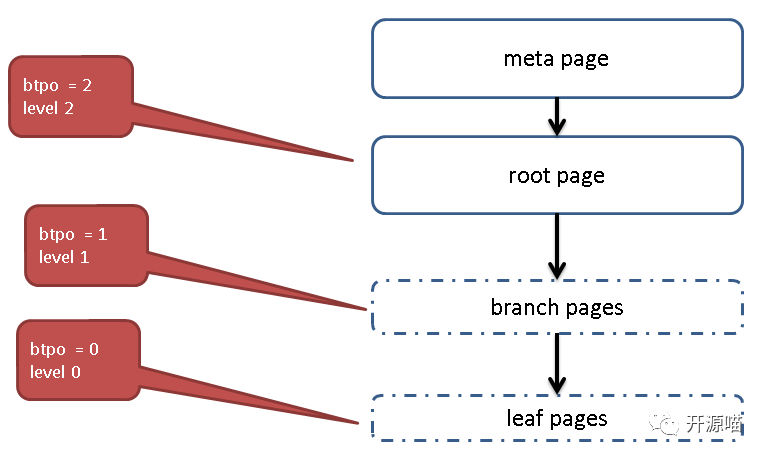

索引的结构图如下：

我们从一步一步从只包含root page，到root page->leaf page,再到root page-branch page->leaf page开始讲解。

研究btree利器pageinspect

create extension pgstatuple create extension pageinspect #查询page, index 详细信息

show how many pages in one table

select pg_relpages(regclass)

show one table tuple information

select * from pgstattuple(regclass)

show one table index information

select * from pgstatindex(regclass)

show one page information

select * from page_header(get_raw_page(relname text, 'main', page number))

show one page all tuples information

select * from heap_page_items(get_raw_page(relname text, 'main', page number))

show one index information

select * from bt_metap(relname text);

show one index page information

select * from bt_page_stats(relname text, page number)

show one index page all tuples information

select * from bt_page_items(relname text, page number)

bt_metap和bt_page_stats字段解释

为了方便后面的理解，我们首先解释一下两个表查询结果的字段解释。

postgres=# select * from bt_metap('tab1_pkey');
 magic  | version | root | level | fastroot | fastlevel
--------+---------+------+-------+----------+-----------
 340322 |       2 |    1 |     0 |        1 |         0
 root:表示root page
 level:层级。0表示只有root层;1表示包含leaf层;2表示包含1级的branch和1级leaf,以此类推(存在多级的branch，只有1级的leaf)。

postgres=# select * from bt_page_stats('tab1_pkey',1);
 blkno | type | live_items | dead_items | avg_item_size | page_size | free_size | btpo_prev | btpo_next | btpo | btpo_flags
-------+------+------------+------------+---------------+-----------+-----------+-----------+-----------+------+------------
     1 | l    |        100 |          0 |            16 |      8192 |      6148 |         0 |         0 |    0 |          3
btno_flags:
   3:既是root也是leaf
   2:表示root层
   0:表示branch层
   1:表示leaf层
btpo:表示当前在第几层。举个例子：如果bt_metap.level=3，表示两层branch和leaf。结构为：branch2(btpo=2)->branch1(btpo=1)->leaf0(btpo=0)
btpo_next:下一个指向的Page id
btpo_prev:上一个指向的Page id
type:
   r:表示root
   l:表示leaf
   i:表示branch
blkno:表示page no

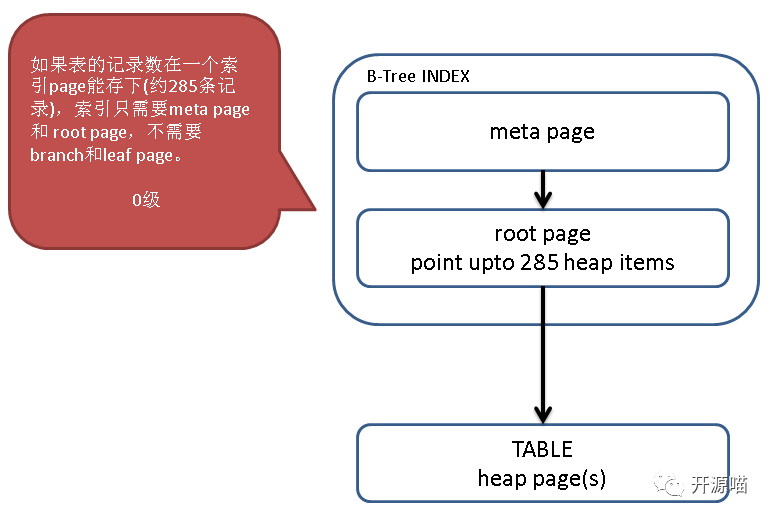

0层结构(只有root page和meta)

0层结构，只有meta和root页。root页最多可以存储的item数，取决于索引字段数据的长度、以及索引页的大小。

postgres=# create table tbtree(id int primary key, info text);
CREATE TABLE
postgres=# insert into tbtree select generate_series(1,100), md5(random()::text);
INSERT 0 100
postgres=# vacuum analyze tbtree;
VACUUM

postgres=# select * from bt_metap('tbtree_pkey');
 magic  | version | root | level | fastroot | fastlevel | oldest_xact | last_cleanup_num_tuples | allequalimage
--------+---------+------+-------+----------+-----------+-------------+-------------------------+---------------
 340322 |       4 |    1 |     0 |        1 |         0 |           0 |                     100 | t
(1 row)

level=0:表示只有root层，没有branch和leaf
root=1:表示root的page no=1.通过Page no=1继续往下查

postgres=# select * from bt_page_stats('tbtree_pkey',1);
 blkno | type | live_items | dead_items | avg_item_size | page_size | free_size | btpo_prev | btpo_next | btpo | btpo_flags
-------+------+------------+------------+---------------+-----------+-----------+-----------+-----------+------+------------
     1 | l    |        100 |          0 |            16 |      8192 |      6148 |         0 |         0 |    0 |          3
(1 row)
根据page id=1查看结果解释：
btpo_flags=3:表示既是root也是leaf
btpo=0:表示已经是最后一层
既然只有一层，我们根据这一层查看ctid的情况，根据blkno=1的条件查看

postgres=# select * from bt_page_items('tbtree_pkey',1);
 itemoffset |  ctid   | itemlen | nulls | vars |          data           | dead |  htid   | tids
------------+---------+---------+-------+------+-------------------------+------+---------+------
          1 | (0,1)   |      16 | f     | f    | 01 00 00 00 00 00 00 00 | f    | (0,1)   |
          2 | (0,2)   |      16 | f     | f    | 02 00 00 00 00 00 00 00 | f    | (0,2)   |
          3 | (0,3)   |      16 | f     | f    | 03 00 00 00 00 00 00 00 | f    | (0,3)   |
....
        100 | (0,100) |      16 | f     | f    | 64 00 00 00 00 00 00 00 | f    | (0,100) |

  0级ctid 表示存储的是heap页的寻址.
  如果是多层结构，那么branch page中的ctid， 它表示的是同级btree页(链条项ctid)或者下级btree页的寻址(具体我们后面例子会看到)
  当ctid指向heap时， data是对应的列值。(多级结构的data意义不一样，后面会讲)

1层结构

包括meta page, root page, leaf page.如果是边界页(branch or leaf)，那么其中一个方向没有PAGE，这个方向的链表信息都统一指向meta page。(这里的说明很重要)

postgres=#  truncate table tbtree;
TRUNCATE TABLE
postgres=# insert into tbtree select generate_series(1,1000), md5(random()::text);
INSERT 0 1000
postgres=# vacuum analyze tbtree;
VACUUM

postgres=# select * from bt_metap('tbtree_pkey');
 magic  | version | root | level | fastroot | fastlevel | oldest_xact | last_cleanup_num_tuples | allequalimage
--------+---------+------+-------+----------+-----------+-------------+-------------------------+---------------
 340322 |       4 |    3 |     1 |        3 |         1 |           0 |                    1000 | t
(1 row)

level=1:表示有root层和leaf
root=3:表示root的page no=3.通过Page no=3继续往下查

postgres=# select * from bt_page_stats('tbtree_pkey',3);
 blkno | type | live_items | dead_items | avg_item_size | page_size | free_size | btpo_prev | btpo_next | btpo | btpo_flags
-------+------+------------+------------+---------------+-----------+-----------+-----------+-----------+------+------------
     3 | r    |          3 |          0 |            13 |      8192 |      8096 |         0 |         0 |    1 |          2
(1 row)

根据page no=3查看结果解释：
btpo_flags=2:表示这个是root层
btpo=1:表示第一层（最底层btpo=0, 这种页里面存储的ctid才代表指向heap page的地址）
live_items=3:如果不是最后一层，既leaf层，表示blkno=3下面还有3个page
我们继续根据blkno=3去bt_page_items查找

blkno=3:
postgres=# select * from bt_page_items('tbtree_pkey',3);
 itemoffset | ctid  | itemlen | nulls | vars |          data           | dead | htid | tids
------------+-------+---------+-------+------+-------------------------+------+------+------
          1 | (1,0) |       8 | f     | f    |                         |      |      |
          2 | (2,1) |      16 | f     | f    | 6f 01 00 00 00 00 00 00 |      |      |
          3 | (4,1) |      16 | f     | f    | dd 02 00 00 00 00 00 00 |      |      |
(3 rows)

第一条data为空，表示最左边的page,不保存最小值
第二条data为ctid=(2,1)，2表示pageno=2,1表示偏移量。以此类推。
既然这里有page no=1  2  4,那么我们分别查看一看bt_page_stats

blkno=1:
postgres=# select * from bt_page_stats('tbtree_pkey',1);
 blkno | type | live_items | dead_items | avg_item_size | page_size | free_size | btpo_prev | btpo_next | btpo | btpo_flags
-------+------+------------+------------+---------------+-----------+-----------+-----------+-----------+------+------------
     1 | l    |        367 |          0 |            16 |      8192 |       808 |         0 |         2 |    0 |          1
(1 row)

btpo_flags=1 说明是leaf层
btpo=0 说明是最后一层了
btpo_next=2 说明下一个page no=2
btpo_prev 说明上一个page no=0,指向meta
live_itmes 说明存在367条记录（最后一层的live_items代表tuple数，其他层的代表page数）

blkno=2:
postgres=# select * from bt_page_stats('tbtree_pkey',2);
 blkno | type | live_items | dead_items | avg_item_size | page_size | free_size | btpo_prev | btpo_next | btpo | btpo_flags
-------+------+------------+------------+---------------+-----------+-----------+-----------+-----------+------+------------
     2 | l    |        367 |          0 |            16 |      8192 |       808 |         1 |         4 |    0 |          1
(1 row)

btpo_next=4 说明下一个page no=4,继续查看

blkno=4:
postgres=# select * from bt_page_stats('tbtree_pkey',4);
 blkno | type | live_items | dead_items | avg_item_size | page_size | free_size | btpo_prev | btpo_next | btpo | btpo_flags
-------+------+------------+------------+---------------+-----------+-----------+-----------+-----------+------+------------
     4 | l    |        268 |          0 |            16 |      8192 |      2788 |         2 |         0 |    0 |          1
(1 row)

btpo_next=0 说明下一个指向meta
btpo_prev=2 说明上一个pageno=2

总结：通过这个例子我们可以看出来leaf层的最左(pageno=1)的上一个pageno为meta leaf层的最右(pageno=4)下一个pageno为meta.其余的leaf page都是双向链表。

2层结构

记录数超过1层结构的索引可以存储的记录数时，会分裂为2层结构，除了meta page和root page，还可能包含1层branch page以及1层leaf page。 如果是边界页(branch or leaf)，那么其中一个方向没有PAGE，这个方向的链表信息都统一指向meta page。(这里的说明很重要)

create table tab2(id int primary key, info text);
postgres=# select 285^2;
 ?column?
----------
    81225
postgres=# insert into tab2 select trunc(random()*10000000), md5(random()::text) from generate_series(1,1000000) on conflict on constraint tab2_pkey do nothing;
INSERT 0 951384
postgres=# vacuum analyze tab2;
VACUUM

postgres=# select * from bt_metap('tab2_pkey');
 magic  | version | root | level | fastroot | fastlevel | oldest_xact | last_cleanup_num_tuples | allequalimage
--------+---------+------+-------+----------+-----------+-------------+-------------------------+---------------
 340322 |       4 |  412 |     2 |      412 |         2 |           0 |                  951384 | t
(1 row)

level=2:表示有root、branch、leaf
root=412:表示root的page no=421.通过Page no=412继续往下查

root层查看

blkno=412(root层)
postgres=# select * from bt_page_stats('tab2_pkey', 412);
 blkno | type | live_items | dead_items | avg_item_size | page_size | free_size | btpo_prev | btpo_next | btpo | btpo_flags
-------+------+------------+------------+---------------+-----------+-----------+-----------+-----------+------+------------
   412 | r    |         11 |          0 |            15 |      8192 |      7936 |         0 |         0 |    2 |          2
(1 row)
根据page no=412查看结果解释：
btpo_flags=2:表示这个是root层
btpo=1:表示第一层（最底层btpo=0, 这种页里面存储的ctid才代表指向heap page的地址）
live_items=11:如果不是最后一层，既leaf层，表示blkno=11下面还有11个page
我们继续根据blkno=412去bt_page_items查找。

branch的page no查询，branch层查看

postgres=# select * from bt_page_items('tab2_pkey', 412);
 itemoffset |   ctid   | itemlen | nulls | vars |          data           | dead | htid | tids
------------+----------+---------+-------+------+-------------------------+------+------+------
          1 | (3,0)    |       8 | f     | f    |                         |      |      |
          2 | (2490,1) |      16 | f     | f    | 90 2b 0b 00 00 00 00 00 |      |      |
          3 | (1251,1) |      16 | f     | f    | 29 66 17 00 00 00 00 00 |      |      |
          4 | (2498,1) |      16 | f     | f    | 32 39 25 00 00 00 00 00 |      |      |
          5 | (625,1)  |      16 | f     | f    | e1 d6 31 00 00 00 00 00 |      |      |
          6 | (2502,1) |      16 | f     | f    | ce 28 3e 00 00 00 00 00 |      |      |
          7 | (1244,1) |      16 | f     | f    | 43 9b 4b 00 00 00 00 00 |      |      |
          8 | (2461,1) |      16 | f     | f    | 1a 2d 59 00 00 00 00 00 |      |      |
          9 | (411,1)  |      16 | f     | f    | fc b8 65 00 00 00 00 00 |      |      |
         10 | (1817,1) |      16 | f     | f    | 3f 09 77 00 00 00 00 00 |      |      |
         11 | (1138,1) |      16 | f     | f    | 1f 69 89 00 00 00 00 00 |      |      |
(11 rows)
总共11个page，我们pageno=3可以了

leaf层查看

postgres=# select * from bt_page_stats('tab2_pkey', 3);
 blkno | type | live_items | dead_items | avg_item_size | page_size | free_size | btpo_prev | btpo_next | btpo | btpo_flags
-------+------+------------+------------+---------------+-----------+-----------+-----------+-----------+------+------------
     3 | i    |        229 |          0 |            15 |      8192 |      3576 |         0 |      2490 |    1 |          0
(1 row)

btpo_flags=0 表示branch
btpo=1 表示第一层
继续查看blkno的Items,通过bt_page_items

postgres=# select * from bt_page_items('tab2_pkey', 3);
 itemoffset |   ctid   | itemlen | nulls | vars |          data           | dead | htid | tids
------------+----------+---------+-------+------+-------------------------+------+------+------
          1 | (967,1)  |      16 | f     | f    | 90 2b 0b 00 00 00 00 00 |      |      |
          2 | (1,0)    |       8 | f     | f    |                         |      |      |
          3 | (1852,1) |      16 | f     | f    | 45 0f 00 00 00 00 00 00 |      |      |
          4 | (902,1)  |      16 | f     | f    | 76 21 00 00 00 00 00 00 |      |      |
          5 | (1921,1) |      16 | f     | f    | c3 32 00 00 00 00 00 00 |      |      |
...
         229 | (1898,1) |      16 | f     | f    | 40 1c 0b 00 00 00 00 00 |      |      |
(229 rows)
上述的229条记录代表，branch层page no=3包含229个page页，这些页存相应的leaf

查看blkno=1(为什么查看blkno=1,因为最左的索引page的data都为空):
postgres=# select * from bt_page_stats('tab2_pkey', 1);
 blkno | type | live_items | dead_items | avg_item_size | page_size | free_size | btpo_prev | btpo_next | btpo | btpo_flags
-------+------+------------+------------+---------------+-----------+-----------+-----------+-----------+------+------------
     1 | l    |        374 |          0 |            16 |      8192 |       668 |         0 |      1852 |    0 |          1
(1 row)

btpo_flags=1 表示leaf
btpo=0 表示第0层
btpo_prev=0表示最左指向meta
live_item=374表示对应到heap的记录

postgres=# select * from bt_page_items('tab2_pkey', 1);
 itemoffset |    ctid    | itemlen | nulls | vars |          data           | dead |    htid    | tids
------------+------------+---------+-------+------+-------------------------+------+------------+------
          1 | (2920,1)   |      16 | f     | f    | 45 0f 00 00 00 00 00 00 |      |            |
          2 | (153,41)   |      16 | f     | f    | 00 00 00 00 00 00 00 00 | f    | (153,41)   |
          3 | (816,83)   |      16 | f     | f    | 05 00 00 00 00 00 00 00 | f    | (816,83)   |
          4 | (5150,8)   |      16 | f     | f    | 07 00 00 00 00 00 00 00 | f    | (5150,8)   |
......
如果我们根据索引页结构的原理，能推算出来(153,41)是最小值，取它就没错了。
postgres=#  select *from tab2 where ctid='(153,41)';
 id |               info
----+----------------------------------
  0 | 04cf1e2ceda0e9a2cc01e0a79331c933
(1 row)

postgres=# select min(id)  from tab2;
 min
-----
   0

多层结构

多层结构，除了meta page，还可能包含多层branch page，以及一层leaf page。

多层结构其实和上面的2层结构差不多，就是多了branch层。

meta page:
postgres=# select * from bt_metap('tab3_pkey');
 magic  | version |  root  | level | fastroot | fastlevel
--------+---------+--------+-------+----------+-----------
 340322 |       2 | 116816 |     3 |   116816 |         3
(1 row)

root层:btpo=3表示第3层
ppostgres=# select * from bt_page_stats('tab3_pkey', 116816);
 blkno  | type | live_items | dead_items | avg_item_size | page_size | free_size | btpo_prev | btpo_next | btpo | btpo_flags
--------+------+------------+------------+---------------+-----------+-----------+-----------+-----------+------+------------
 116816 | r    |          3 |          0 |            13 |      8192 |      8096 |         0 |         0 |    3 |          2
(1 row)


root层下面的第一个branch:
postgres=# select * from bt_page_items('tab2_pkey', 412);
 postgres=# select * from bt_page_items('tab3_pkey', 116816);
 itemoffset |    ctid    | itemlen | nulls | vars |          data
------------+------------+---------+-------+------+-------------------------
          1 | (412,1)    |       8 | f     | f    |
          2 | (116815,1) |      16 | f     | f    | 5f 9e c5 01 00 00 00 00
          3 | (198327,1) |      16 | f     | f    | bd 3c 8b 03 00 00 00 00
(3 rows)

第一个brahch:btpo=2表明是第2层
postgres=# select * from bt_page_stats('tab3_pkey', 412);
 blkno | type | live_items | dead_items | avg_item_size | page_size | free_size | btpo_prev | btpo_next | btpo | btpo_flags
-------+------+------------+------------+---------------+-----------+-----------+-----------+-----------+------+------------
   412 | i    |        286 |          0 |            15 |      8192 |      2436 |         0 |    116815 |    2 |          0
(1 row)

第一个branch下面的branch,既第二个branch:
ppostgres=# select * from bt_page_items('tab3_pkey', 412);
 itemoffset |   ctid    | itemlen | nulls | vars |          data
------------+-----------+---------+-------+------+-------------------------
          1 | (81636,1) |      16 | f     | f    | 5f 9e c5 01 00 00 00 00  -- 这是指向当前层级右页的ctid
          2 | (3,1)     |       8 | f     | f    |    -- 注意第一条初始值是这
          3 | (411,1)   |      16 | f     | f    | 77 97 01 00 00 00 00 00
          4 | (698,1)   |      16 | f     | f    | ed 2e 03 00 00 00 00 00
...
        286 | (81350,1) |      16 | f     | f    | e9 06 c4 01 00 00 00 00
(286 rows)

第二个branch查看：btpo=1表示第一层
postgres=# select * from bt_page_stats('tab3_pkey', 3);
 blkno | type | live_items | dead_items | avg_item_size | page_size | free_size | btpo_prev | btpo_next | btpo | btpo_flags
-------+------+------------+------------+---------------+-----------+-----------+-----------+-----------+------+------------
     3 | i    |        286 |          0 |            15 |      8192 |      2436 |         0 |       411 |    1 |          0
(1 row)

第二个brach下面的leaf层
postgres=# select * from bt_page_items('tab3_pkey', 3);
 itemoffset |  ctid   | itemlen | nulls | vars |          data
------------+---------+---------+-------+------+-------------------------
          1 | (287,1) |      16 | f     | f    | 77 97 01 00 00 00 00 00
          2 | (1,1)   |       8 | f     | f    |
          3 | (2,1)   |      16 | f     | f    | 6f 01 00 00 00 00 00 00
          4 | (4,1)   |      16 | f     | f    | dd 02 00 00 00 00 00 00
...
        286 | (286,1) |      16 | f     | f    | 09 96 01 00 00 00 00 00
(286 rows)

leaf层:btpo=0表示最后一层了
postgres=# select * from bt_page_stats('tab3_pkey', 1);
 blkno | type | live_items | dead_items | avg_item_size | page_size | free_size | btpo_prev | btpo_next | btpo | btpo_flags
-------+------+------------+------------+---------------+-----------+-----------+-----------+-----------+------+------------
     1 | l    |        367 |          0 |            16 |      8192 |       808 |         0 |         2 |    0 |          1
(1 row)

实战表演

postgres=# insert into tbl1 select trunc(random()*10000000), md5(random()::text) from generate_series(1,5000000) on conflict on constraint tbl1_pkey do nothing;
INSERT 0 3935181

postgres=# vacuum ANALYZE tbl1;
VACUUM
postgres=# select * from bt_metap('tbl1_pkey');
 magic  | version | root | level | fastroot | fastlevel | oldest_xact | last_cleanup_num_tuples | allequalimage
--------+---------+------+-------+----------+-----------+-------------+-------------------------+---------------
 340322 |       4 |  412 |     2 |      412 |         2 |           0 |                 3934710 | t
(1 row)

索引结构如下:

命中0条记录

读了3个INDEX PAGE, 包括1 meta page, 1 root page, 1 branch page.因为从branch判断没有记录，索引没必要再去读leaf(注：执行计划中的rows=1)

postgres=#  select id from tbl1 where id = 1;
 id
----
(0 rows)

postgres=# explain (analyze,verbose,timing,costs,buffers) select id from tbl1 where id = 1;
                                                         QUERY PLAN
----------------------------------------------------------------------------------------------------------------------------
 Index Only Scan using tbl1_pkey on public.tbl1  (cost=0.43..4.45 rows=1 width=4) (actual time=0.041..0.042 rows=0 loops=1)
   Output: id
   Index Cond: (tbl1.id = 1)
   Heap Fetches: 0
   Buffers: shared hit=2 read=1 #read=1 物理读
 Planning:
   Buffers: shared hit=8
 Planning Time: 0.224 ms
 Execution Time: 0.098 ms
(9 rows)
首次有一个物理读 read=1

postgres=# explain (analyze,verbose,timing,costs,buffers) select id from tbl1 where id = 1;
                                                         QUERY PLAN
----------------------------------------------------------------------------------------------------------------------------
 Index Only Scan using tbl1_pkey on public.tbl1  (cost=0.43..4.45 rows=1 width=4) (actual time=0.035..0.036 rows=0 loops=1)
   Output: id
   Index Cond: (tbl1.id = 1)
   Heap Fetches: 0
   Buffers: shared hit=3
 Planning Time: 0.112 ms
 Execution Time: 0.073 ms
(7 rows)
第二次3个缓存

命中1条记录

读了4个INDEX PAGE, 包括1 meta page, 1 root page, 1 branch page, 1 leaf page.

postgres=# explain (analyze,verbose,timing,costs,buffers) select id from tbl1 where id = 0;
                                                         QUERY PLAN
----------------------------------------------------------------------------------------------------------------------------
 Index Only Scan using tbl1_pkey on public.tbl1  (cost=0.43..4.45 rows=1 width=4) (actual time=0.120..0.122 rows=1 loops=1)
   Output: id
   Index Cond: (tbl1.id = 0)
   Heap Fetches: 0
   Buffers: shared hit=4
 Planning Time: 0.108 ms
 Execution Time: 0.163 ms
(7 rows)

命中4条记录

读了22个INDEX PAGE, 1 meta page + 4* (1 root + 1 branch + 1 leaf) = 13

postgres=# explain (analyze,verbose,timing,costs,buffers) select id,ctid from tbl1 where id in( 0,3897332,4378675,2955292);
                                                       QUERY PLAN
-------------------------------------------------------------------------------------------------------------------------
 Index Scan using tbl1_pkey on public.tbl1  (cost=0.43..33.79 rows=4 width=10) (actual time=0.036..0.068 rows=4 loops=1)
   Output: id, ctid
   Index Cond: (tbl1.id = ANY ('{0,3897332,4378675,2955292}'::integer[]))
   Buffers: shared hit=13
 Planning Time: 0.126 ms
 Execution Time: 0.098 ms
(6 rows)

命中两条记录之sql优化

下面两条SQL，一个用In，一个用>= and <=,呈现出不同的状态：第一个1 meta page + 7 * (1 root + 1 branch + 1 leaf) = 22 第二个1 meta page +1 root + 1 branch + 1 leaf = 4。说明这两条数据在一个page

postgres=# explain (analyze,verbose,timing,costs,buffers) select id from tbl1 where id in (0,1,2,3,5,6,7);
                                                         QUERY PLAN
-----------------------------------------------------------------------------------------------------------------------------
 Index Only Scan using tbl1_pkey on public.tbl1  (cost=0.43..31.13 rows=7 width=4) (actual time=0.035..0.083 rows=1 loops=1)
   Output: id
   Index Cond: (tbl1.id = ANY ('{0,1,2,3,5,6,7}'::integer[]))
   Heap Fetches: 0
   Buffers: shared hit=22
 Planning Time: 0.117 ms
 Execution Time: 0.114 ms
(7 rows)

postgres=# explain (analyze,verbose,timing,costs,buffers) select id from tbl1 where id >=0 and id<=7;
                                                         QUERY PLAN
----------------------------------------------------------------------------------------------------------------------------
 Index Only Scan using tbl1_pkey on public.tbl1  (cost=0.43..4.51 rows=4 width=4) (actual time=0.014..0.016 rows=2 loops=1)
   Output: id
   Index Cond: ((tbl1.id >= 0) AND (tbl1.id <= 7))
   Heap Fetches: 0
   Buffers: shared hit=4
 Planning:
   Buffers: shared hit=11
 Planning Time: 0.302 ms
 Execution Time: 0.044 ms
(9 rows)

参考:https://developer.aliyun.com/article/53701

数据库

文章转载自开源喵，如果涉嫌侵权，请发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。
