作者：任仲禹，爱可生数据库工程师，OBCE/OceanBase 2025 年度布道师。
爱可生开源社区出品，原创内容未经授权不得随意使用，转载请联系小编并注明来源。
本文约 2600 字，预计阅读需要 8 分钟。
1. 背景
某客户在 Oracle -> OceanBase（Oracle 模式）业务改造的 POC 测试中发现，某些大数据量批处理业务场景 INSERT ... SELECT
执行慢（OceanBase 侧表现为查询不出结果、报错超时）。
INSERT
/*+ enable_parallel_dml parallel(186) */
INTO ACA6 (
AAZ219,
...
AAA508
)
SELECT
/*+ USE_MERGE(A B) PARALLEL(186) monitor renzy888 */
'313' || LPAD(SEQ_KEY_ID.NEXTVAL, 17, 0),
A.AAZ661,
...
'0'
FROM
ACA5 A,
AC61 B
WHERE
A.AAZ257 = B.AAZ257
ANDEXISTS (
SELECT
1
FROM
IMP_TREATMENT.AAA6 D
WHERE
D.AAA345 = B.AAA345
AND D.AAE140 = A.AAE140
AND D.BAA528 = '0'
AND D.AAD128 = A.AAE013.ZY
AND (
A.AAE013.WH ISNULL
OR (
A.AAE013.WH ISNOTNULL
AND A.AAE013.WH = SUBSTR(AAA345, 1, 4)
)
)
)
AND NVL(B.AAE019, 0) <> 0
AND B.AAE041 <= 202408
AND (
B.AAE042 ISNULL
OR B.AAE042 >= 202408
)
AND A.AAZ654 = ('31300000006706838590')
2. 分析过程
2.1 逻辑执行计划

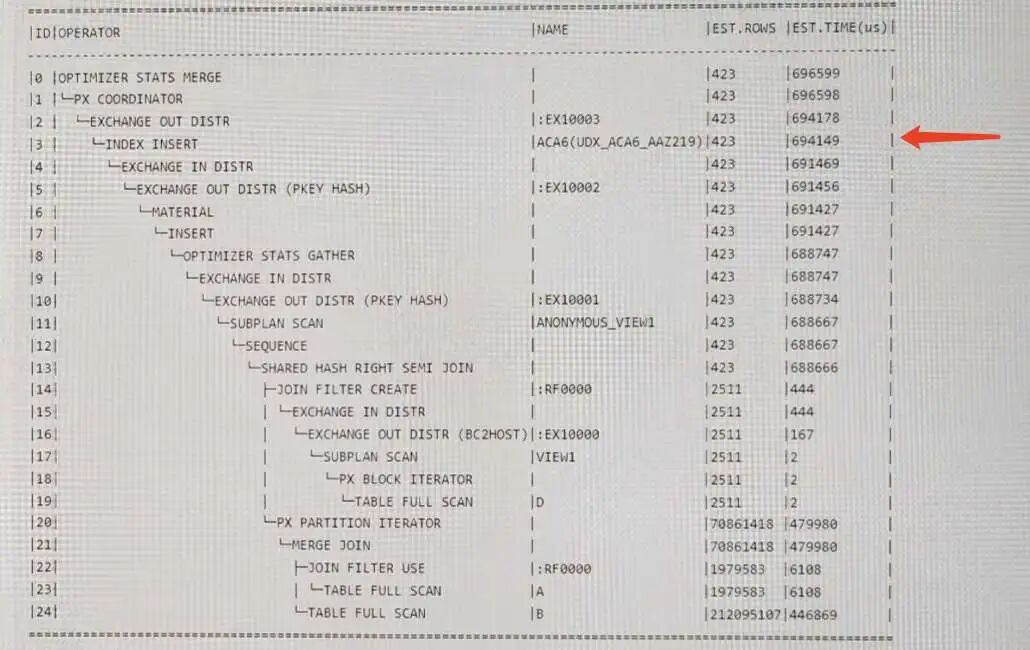

ODC 上获取 SQL 的逻辑执行计划如下图：
2.2 物理执行计划
通过获取 GV$OB_SQL_AUDIT
中 SQL 语句的 plan_id
，查询 慢 SQL 的物理执行计划。
obclient [SYS]> select * from gv$ob_plan_cache_plan_explain where plan_id= 2917135; +-----------+--------------+----------+---------+------------+--------------+----------------------------------------+------+-----------+--------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| TENANT_ID | SVR_IP | SVR_PORT | PLAN_ID | PLAN_DEPTH | PLAN_LINE_ID | OPERATOR | NAME | ROWS | COST | PROPERTY |
+-----------+--------------+----------+---------+------------+--------------+----------------------------------------+------+-----------+--------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| 1002 | 20.9.177.177 | 2882 | 2917135 | 0 | 0 | PHY_OPTIMIZER_STATS_GATHERING | NULL | 423 | 696598 | NULL |
| 1002 | 20.9.177.177 | 2882 | 2917135 | 1 | 1 | PHY_PX_FIFO_COORD | NULL | 423 | 696597 | NULL |
| 1002 | 20.9.177.177 | 2882 | 2917135 | 2 | 2 | PHY_PX_REDUCE_TRANSMIT | NULL | 423 | 694177 | NULL |
| 1002 | 20.9.177.177 | 2882 | 2917135 | 3 | 3 | PHY_PX_MULTI_PART_INSERT | NULL | 423 | 694148 | NULL |
| 1002 | 20.9.177.177 | 2882 | 2917135 | 4 | 4 | PHY_PX_FIFO_RECEIVE | NULL | 423 | 691468 | NULL |
| 1002 | 20.9.177.177 | 2882 | 2917135 | 5 | 5 | PHY_PX_DIST_TRANSMIT | NULL | 423 | 691455 | NULL |
| 1002 | 20.9.177.177 | 2882 | 2917135 | 6 | 6 | PHY_MATERIAL | NULL | 423 | 691426 | NULL |
| 1002 | 20.9.177.177 | 2882 | 2917135 | 7 | 7 | PHY_PX_MULTI_PART_INSERT | NULL | 423 | 691426 | NULL |
| 1002 | 20.9.177.177 | 2882 | 2917135 | 8 | 8 | PHY_OPTIMIZER_STATS_GATHERING | NULL | 423 | 688746 | NULL |
| 1002 | 20.9.177.177 | 2882 | 2917135 | 9 | 9 | PHY_PX_FIFO_RECEIVE | NULL | 423 | 688746 | NULL |
| 1002 | 20.9.177.177 | 2882 | 2917135 | 10 | 10 | PHY_PX_REPART_TRANSMIT | NULL | 423 | 688733 | NULL |
| 1002 | 20.9.177.177 | 2882 | 2917135 | 11 | 11 | PHY_SUBPLAN_SCAN | NULL | 423 | 688666 | NULL |
| 1002 | 20.9.177.177 | 2882 | 2917135 | 12 | 12 | PHY_SEQUENCE | NULL | 423 | 688666 | NULL |
| 1002 | 20.9.177.177 | 2882 | 2917135 | 13 | 13 | PHY_HASH_JOIN | NULL | 423 | 688665 | NULL |
| 1002 | 20.9.177.177 | 2882 | 2917135 | 14 | 14 | PHY_JOIN_FILTER | NULL | 2511 | 443 | NULL |
| 1002 | 20.9.177.177 | 2882 | 2917135 | 15 | 15 | PHY_PX_FIFO_RECEIVE | NULL | 2511 | 443 | NULL |
| 1002 | 20.9.177.177 | 2882 | 2917135 | 16 | 16 | PHY_PX_DIST_TRANSMIT | NULL | 2511 | 166 | NULL |
| 1002 | 20.9.177.177 | 2882 | 2917135 | 17 | 17 | PHY_SUBPLAN_SCAN | NULL | 2511 | 1 | NULL |
| 1002 | 20.9.177.177 | 2882 | 2917135 | 18 | 18 | PHY_GRANULE_ITERATOR | NULL | 2511 | 1 | NULL |
| 1002 | 20.9.177.177 | 2882 | 2917135 | 19 | 19 | PHY_TABLE_SCAN | D | 2511 | 1 | table_rows:5022, physical_range_rows:5022, logical_range_rows:5022, index_back_rows:0, output_rows:2511, avaiable_index_name[IDX_AAA6_AAA036,IDX_AAA6_AAA345,IDX_AAA6_AAE712,IDX_AAA6_AAE924,AAA6], pruned_index_name[IDX_AAA6_AAA036,IDX_AAA6_AAA345,IDX_AAA6_AAE712,IDX_AAA6_AAE924], estimation info[table_id:822261, (table_type:10, version:-1--1--1, logical_rc:5022, physical_rc:5022)] |
| 1002 | 20.9.177.177 | 2882 | 2917135 | 14 | 20 | PHY_GRANULE_ITERATOR | NULL | 70861418 | 479979 | NULL |
| 1002 | 20.9.177.177 | 2882 | 2917135 | 15 | 21 | PHY_MERGE_JOIN | NULL | 70861418 | 479979 | NULL |
| 1002 | 20.9.177.177 | 2882 | 2917135 | 16 | 22 | PHY_JOIN_FILTER | NULL | 1979583 | 6107 | NULL |
| 1002 | 20.9.177.177 | 2882 | 2917135 | 17 | 23 | PHY_TABLE_SCAN | A | 1979583 | 6107 | table_rows:5987520, physical_range_rows:6069176, logical_range_rows:6069176, index_back_rows:0, output_rows:5655876, avaiable_index_name[PK_ACA5_1,IDX_ACA5_AAZ654,IDX_ACA5_AAE140,ACA5], pruned_index_name[IDX_ACA5_AAE140], estimation info[table_id:1053846, (table_type:10, version:-1--1--1, logical_rc:47190, physical_rc:47190), (table_type:10, version:-1--1--1, logical_rc:93283, physical_rc:93283), (table_type:10, version:-1--1--1, logical_rc:94123, physical_rc:94123), (table_type:10, version:-1--1--1, logical_rc:92977, physical_rc:92977), (table_type:10, version:-1--1--1, logical_rc:47076, physical_rc:47076), (table_type:10, version:-1--1--1, logical_rc:46959, physical_rc:46959), (table_type:10, version:-1--1--1, logical_rc:46852, physical_rc:46852), (table_type:10, version:-1--1--1, logical_rc:93889, physical_rc:93889), (table_type:10, version:-1--1--1, logical_rc:93527, physical_rc:93527), (table_type:10, version:-1--1--1, logical_rc:93405, physical_rc:93405)] |
| 1002 | 20.9.177.177 | 2882 | 2917135 | 16 | 24 | PHY_TABLE_SCAN | B | 212095107 | 446868 | table_rows:229607267, physical_range_rows:232433145, logical_range_rows:232433145, index_back_rows:0, output_rows:212095106, avaiable_index_name[U_AC61_AAZ179_1,IDX_AC61_AAA350_2,IDX_AC61_AAC001_2,IDX_AC61_AAZ172_2,IDX_AC61_AAZ649_2,IDX_AC61_AAZ713_2,AC61], pruned_index_name[IDX_AC61_AAA350_2,IDX_AC61_AAC001_2,IDX_AC61_AAZ172_2,IDX_AC61_AAZ649_2,IDX_AC61_AAZ713_2], estimation info[table_id:1054126, (table_type:10, version:-1--1--1, logical_rc:1805188, physical_rc:1805188), (table_type:10, version:-1--1--1, logical_rc:3572809, physical_rc:3572809), (table_type:10, version:-1--1--1, logical_rc:3603544, physical_rc:3603544), (table_type:10, version:-1--1--1, logical_rc:3567340, physical_rc:3567340), (table_type:10, version:-1--1--1, logical_rc:1806504, physical_rc:1806504), (table_type:10, version:-1--1--1, logical_rc:1799898, physical_rc:1799898), (table_type:10, version:-1--1--1, logical_rc:1788445, physical_rc:1788445), (table_type:10, version:-1--1--1, logical_rc:3591925, physical_rc:3591925), (table_type:10, version:-1--1--1, logical_rc:3579490, physical_rc:3579490), (table_type:10, version:-1--1--1, logical_rc:3580307, physical_rc:3580307)] |
+-----------+--------------+----------+---------+------------+--------------+----------------------------------------+------+-----------+--------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
25 rows in set (0.162 sec)
物理执行计划与逻辑执行计划一致，先排除计划跑偏的问题（本实例中 AB 两表 MergeJoin 的性能理论是最佳的，因为两表间的谓词过滤性极差）。
2.3 sql_plan_monitor 监控
实时监控 SQL 的执行状态，注意下文 sql_plan_monitor
的输出只是瞬时输出，实际诊断过程需要重复执行。
obclient [SYS]> SELECT op_id, op, output_rows, rescan, threads,
-> close_time - open_time AS open_dt,
-> last_row_eof_time - first_row_time AS row_dt,
-> open_time, close_time, first_row_time, last_row_eof_time
-> FROM (
-> SELECT plan_line_id AS op_id,
-> concat(lpad(' ', max(plan_depth), ' '), plan_operation) AS op,
-> sum(output_rows) AS output_rows,
-> sum(STARTS) AS rescan,
-> min(first_refresh_time) AS open_time,
-> max(last_refresh_time) AS close_time,
-> min(first_change_time) AS first_row_time,
-> max(last_change_time) AS last_row_eof_time,
-> count(1) AS threads
-> FROM gv$sql_plan_monitor
-> WHERE trace_id = 'YB420A08E3AB-000625B15CFFA43F-0-0'
-> GROUPBY plan_line_id, plan_operation, plan_depth
-> ORDERBY plan_line_id
-> ) a;
+-------+---------------------------------------+-------------+--------+---------+----------------------------+----------------------------+------------------------------+------------------------------+------------------------------+------------------------------+
| OP_ID | OP | OUTPUT_ROWS | RESCAN | THREADS | OPEN_DT | ROW_DT | OPEN_TIME | CLOSE_TIME | FIRST_ROW_TIME | LAST_ROW_EOF_TIME |
+-------+---------------------------------------+-------------+--------+---------+----------------------------+----------------------------+------------------------------+------------------------------+------------------------------+------------------------------+
| 0 | PHY_OPTIMIZER_STATS_GATHERING | 0 | 0 | 1 | NULL | NULL | 05-NOV-24 04.22.54.712937 PM | NULL | NULL | NULL |
| 1 | PHY_PX_FIFO_COORD | 0 | 0 | 1 | NULL | NULL | 05-NOV-24 04.22.54.712937 PM | NULL | NULL | NULL |
| 2 | PHY_PX_REDUCE_TRANSMIT | 0 | 0 | 186 | NULL | NULL | 05-NOV-24 04.31.51.616971 PM | NULL | NULL | NULL |
| 3 | PHY_PX_MULTI_PART_INSERT | 0 | 0 | 186 | NULL | NULL | 05-NOV-24 04.31.51.616971 PM | NULL | NULL | NULL |
| 4 | PHY_PX_FIFO_RECEIVE | 34061312 | 0 | 186 | NULL | NULL | 05-NOV-24 04.31.51.616971 PM | NULL | 05-NOV-24 04.31.52.015599 PM | NULL |
| 5 | PHY_PX_DIST_TRANSMIT | 37776128 | 0 | 186 | NULL | NULL | 05-NOV-24 04.22.54.763501 PM | NULL | 05-NOV-24 04.31.51.670017 PM | NULL |
| 6 | PHY_MATERIAL | 37776128 | 0 | 186 | NULL | NULL | 05-NOV-24 04.22.54.763501 PM | NULL | 05-NOV-24 04.31.51.670017 PM | NULL |
| 7 | PHY_PX_MULTI_PART_INSERT | 203346003 | 0 | 186 | NULL | +000000000 00:08:57.065607 | 05-NOV-24 04.22.54.763501 PM | NULL | 05-NOV-24 04.22.55.584554 PM | 05-NOV-24 04.31.52.650161 PM |
| 8 | PHY_OPTIMIZER_STATS_GATHERING | 203346003 | 0 | 186 | NULL | +000000000 00:08:57.726162 | 05-NOV-24 04.22.54.763501 PM | NULL | 05-NOV-24 04.22.54.918743 PM | 05-NOV-24 04.31.52.644905 PM |
| 9 | PHY_PX_FIFO_RECEIVE | 203346003 | 0 | 186 | NULL | +000000000 00:08:57.729324 | 05-NOV-24 04.22.54.763501 PM | NULL | 05-NOV-24 04.22.54.915581 PM | 05-NOV-24 04.31.52.644905 PM |
| 10 | PHY_PX_REPART_TRANSMIT | 22278160 | 0 | 9 | +000000000 00:08:26.689008 | +000000000 00:08:26.660537 | 05-NOV-24 04.22.54.720869 PM | 05-NOV-24 04.31.21.409877 PM | 05-NOV-24 04.22.54.747228 PM | 05-NOV-24 04.31.21.407765 PM |
| 11 | PHY_SUBPLAN_SCAN | 22278160 | 0 | 9 | +000000000 00:08:26.689008 | +000000000 00:08:26.645777 | 05-NOV-24 04.22.54.720869 PM | 05-NOV-24 04.31.21.409877 PM | 05-NOV-24 04.22.54.747228 PM | 05-NOV-24 04.31.21.393005 PM |
| 12 | PHY_SEQUENCE | 22278160 | 0 | 9 | +000000000 00:08:26.689008 | +000000000 00:08:26.645777 | 05-NOV-24 04.22.54.720869 PM | 05-NOV-24 04.31.21.409877 PM | 05-NOV-24 04.22.54.747228 PM | 05-NOV-24 04.31.21.393005 PM |
| 13 | PHY_HASH_JOIN | 22278160 | 0 | 9 | +000000000 00:08:26.689008 | +000000000 00:08:26.644722 | 05-NOV-24 04.22.54.720869 PM | 05-NOV-24 04.31.21.409877 PM | 05-NOV-24 04.22.54.747228 PM | 05-NOV-24 04.31.21.391950 PM |
| 14 | PHY_JOIN_FILTER | 5005 | 0 | 9 | +000000000 00:08:26.687952 | +000000000 00:00:00.001055 | 05-NOV-24 04.22.54.720869 PM | 05-NOV-24 04.31.21.408821 PM | 05-NOV-24 04.22.54.732465 PM | 05-NOV-24 04.22.54.733520 PM |
| 15 | PHY_PX_FIFO_RECEIVE | 5005 | 0 | 9 | +000000000 00:08:26.687952 | +000000000 00:00:00.001055 | 05-NOV-24 04.22.54.720869 PM | 05-NOV-24 04.31.21.408821 PM | 05-NOV-24 04.22.54.732465 PM | 05-NOV-24 04.22.54.733520 PM |
| 20 | PHY_GRANULE_ITERATOR | 22784040 | 0 | 9 | +000000000 00:08:26.687952 | +000000000 00:08:26.647884 | 05-NOV-24 04.22.54.720869 PM | 05-NOV-24 04.31.21.408821 PM | 05-NOV-24 04.22.54.743011 PM | 05-NOV-24 04.31.21.390895 PM |
| 21 | PHY_MERGE_JOIN | 22784040 | 0 | 9 | +000000000 00:08:26.687952 | +000000000 00:08:26.647884 | 05-NOV-24 04.22.54.720869 PM | 05-NOV-24 04.31.21.408821 PM | 05-NOV-24 04.22.54.743011 PM | 05-NOV-24 04.31.21.390895 PM |
| 22 | PHY_JOIN_FILTER | 611561 | 0 | 9 | +000000000 00:08:26.687952 | +000000000 00:08:26.640481 | 05-NOV-24 04.22.54.720869 PM | 05-NOV-24 04.31.21.408821 PM | 05-NOV-24 04.22.54.739847 PM | 05-NOV-24 04.31.21.380328 PM |
| 23 | PHY_TABLE_SCAN | 611561 | 0 | 9 | +000000000 00:08:26.687952 | +000000000 00:08:26.640481 | 05-NOV-24 04.22.54.720869 PM | 05-NOV-24 04.31.21.408821 PM | 05-NOV-24 04.22.54.739847 PM | 05-NOV-24 04.31.21.380328 PM |
| 24 | PHY_TABLE_SCAN | 22388172 | 0 | 9 | +000000000 00:08:26.687952 | +000000000 00:08:26.640481 | 05-NOV-24 04.22.54.720869 PM | 05-NOV-24 04.31.21.408821 PM | 05-NOV-24 04.22.54.739847 PM | 05-NOV-24 04.31.21.380328 PM |
+-------+---------------------------------------+-------------+--------+---------+----------------------------+----------------------------+------------------------------+------------------------------+------------------------------+------------------------------+
21 rows in set (0.327 sec)
发现耗时最差的算子在：【4-6】号算子，这 3 个算子耗时 20min+ 无法跑出。
简单解释下:
7 号算子 PHY_PX_MULTI_PART_INSERT
是第一次往 ACA6
表写入数据（即写主键），大概写入 2 亿左右数据（OUTPUT_ROWS
输出）。
6 号算子 -> 3 号算子需要物化下层算子（7 号写主键算子）输出的数据，且需要等待下层算子输出所有数据后才能够开始执行；可以通过 FIRST_ROW_TIME
/ LAST_ROW_EOF_TIME
字段判断：
7 号算子 04.22.55.584554
吐出第一行数据，04.31.52.650161
吐出最后一行数据。6 号算子 04.31.51.670017
开始接收下层（6 号）算子数据，并输出数据到上层算子，即再次往ACA6
表写入数据，这里写的是全局唯一索引（结合逻辑执行计划来看，这里还涉及到EXCHANGE IN/OUT
分布式算子的跨节点写入，存在大量 RPC 网络开销）。
3. 原因分析
3.1 ACA6 表的表结构
CREATE TABLE"IMP_xxxxxxxx"."ACA6" (
.....
"AAA508"VARCHAR2(200) NOTNULLENABLE,
"AAA350"NUMBER(20),
CONSTRAINT"UDX_ACA6_AAZ219"UNIQUE ("AAZ219")
......
3.2 为啥这里写全局唯一索引慢？
7号算子是写主键（即数据），而对于分区表来说，就相当于多个分区同时写入。
反之，这里 6->3 号算子需要物化数据、向上层算子写全局唯一（非分区）索引，相当于写单分区，效率相对慢（这里虽然开了 PARALLEL_DML
并发，但由于写单分区只能用到基于数据块的并发）。
为啥确定是写全局唯一索引?

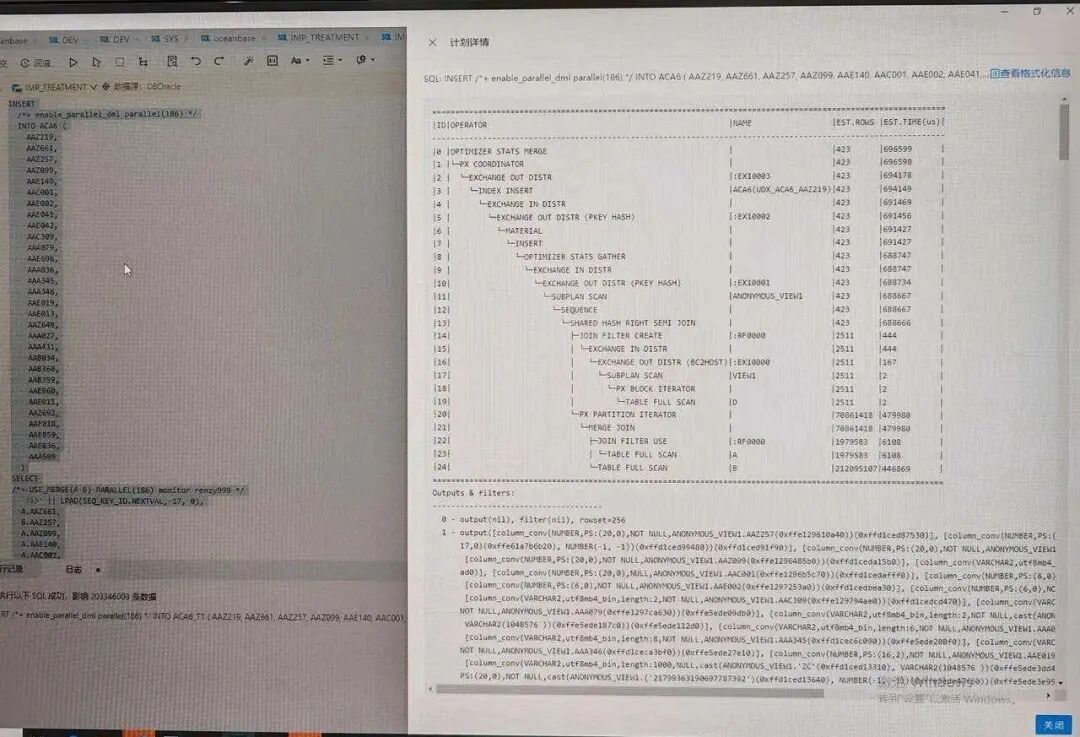

EXPLAIN EXTENDED
逻辑执行计划中有输出 INDEX INSERT
算子。
4. 结论
这个全局唯一索引是 OMS 带来的，源端 Oracle 侧为主键时，因为 OceanBase 强制要求（分区表中主键必须包含分区列），所以 OMS 将其改造为 原主键字段，分区键 的全局唯一非分区索引。
对于
INSERT ... SELECT ...
场景来说，当 OceanBase 目标表中存在全局索引（如下列表）时需要INSERT
多次，执行计划中会有INDEX INSERT
算子。全局唯一非分区索引 全局唯一分区索引 全局普通非分区索引 全局普通分区索引 遇到
INDEX INSERT
全局非分区索引的情况，大数据量跑批场景性能可能不是很客观，对此最佳优化措施就是改为全局分区索引。本例中对
INSERT
目标表ACA6
进行改造，将表中全局唯一非分区索引（UDX_ACA6_AAZ219）改造为全局唯一分区索引，充分利用到分区并发的优势，改造后该INSERT ... SELECT ...
语句的效率有明显提升：
CREATE UNIQUE INDEX "IMP_xxxxxxxx"."UDX_ACA6_AAZ219" ON "IMP_xxxxxxxx"."ACA6"("AAZ219") partition by hash(AAZ219) partitions 36;
源库 Oracle 中执行需 32 分钟。 目标库 OceanBase 中 14 分钟即可跑完（优化前执行超时）。
