Kubernetes安装ingress-nginx-controller

蛮懒 2020-05-25

1478

Kubernetes 集群内部使用kube-dns实现服务发现的功能；

Kubernetes 集群中的应用使用 NodePort 和 LoadBlancer 类型的 Service 可以实现把应用暴露给外部用户使用，NodePort要维护端口信息，适合小规模应用；

Kubernetes提供另一个非常重要的资源对象可用来暴露服务给外部用户，即ingress

Ingress
是外部访问kuberenets集群的一个入口，将外部的请求转发到集群内不同的 Service 上，相当于 nginx、haproxy 等负载均衡代理服务器。

Ingress controller 类似监听器，通过kube-apiserver实时感知service、pod变化，当得到这些变化信息后，Ingress controlle结合 Ingress的配置，更新反向代理负载均衡器，达到服务发现的作用。现在用得较多的是ingress controller包括：traefik和nginx-controller，traefik性能较nginx-controller差，但配置简单；本文具体讨论通过helm安装nginx-controller

步骤1：在应用商店添加栏，添加应用商店ingress-nginx，执行刷新，等待状态变成active，商店url地址：

https://github.com/kubernetes/ingress-nginx.git

点击应用商店栏下的启动，选择ingress-nginx，进入如下页面，在应答下设置controller.service.type（默认是LoadBalancer）为NodePort。

当controller.service.type为LoadBalancer类型，适于购买云厂商托管提供的Kubernetes 集群，会自动分配外网 IP 作为集群的EXTERNAL-IP，否则本地部署的Kubernetes 集群安装后会出现nginx-ingress service的EXTERNAL-IP 一直是<Pending>状态

也可手动指定EXTERNAL-IP，命令如下：

helm install --name nginx-ingress --namespace kube-system --set "rbac.create=true,controller.service.externalIPs[0]=192.168.0.123,controller.service.externalIPs[1]=192.168.0.122,controller.service.externalIPs[2]=192.168.0.121" stable/nginx-ingress

但是因为指定的EXTERNAL-IP是内网 IP，所以不能接入外部网络。

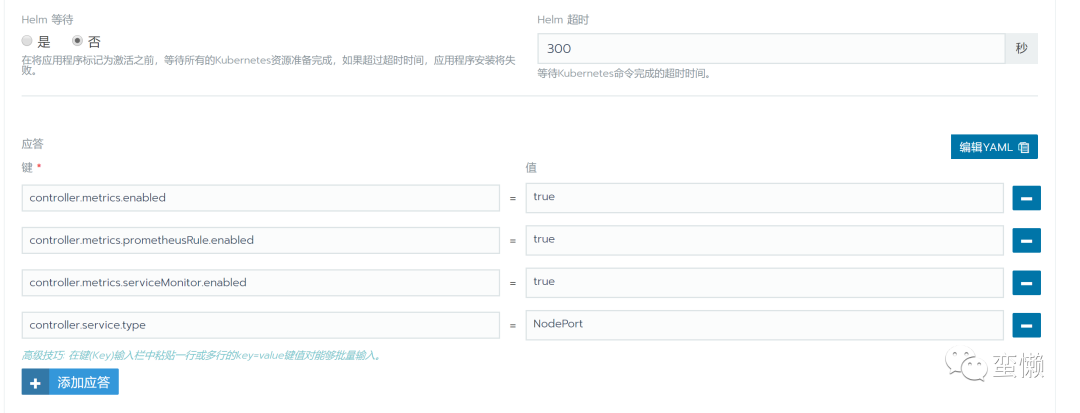

同时为了能使Prometheus能够通过/metrics采集监控数据，ingress-nginx需要添加额外设置如下：

get svc -n ingress-nginx，得到如下的资源

ingress-nginx-controller
ingress-nginx-controller-admission
ingress-nginx-controller-metrics

从ingress-nginx-controller容器中，访问ingress-nginx-controller-metrics的ClusterIP:9913/metrics

curl 10.102.67.233:9913/metrics
# HELP go_gc_duration_seconds A summary of the pause duration of garbage collection cycles.
# TYPE go_gc_duration_seconds summary
go_gc_duration_seconds{quantile="0"} 6.704e-06
go_gc_duration_seconds{quantile="0.25"} 2.4994e-05
go_gc_duration_seconds{quantile="0.5"} 3.4973e-05
go_gc_duration_seconds{quantile="0.75"} 0.000186418
go_gc_duration_seconds{quantile="1"} 0.001107024
go_gc_duration_seconds_sum 0.002850017
go_gc_duration_seconds_count 20
# HELP go_goroutines Number of goroutines that currently exist.
# TYPE go_goroutines gauge
go_goroutines 97
# HELP go_info Information about the Go environment.
# TYPE go_info gauge
go_info{version="go1.14.2"} 1
# HELP go_memstats_alloc_bytes Number of bytes allocated and still in use.
# TYPE go_memstats_alloc_bytes gauge
go_memstats_alloc_bytes 5.687784e+06
# HELP go_memstats_alloc_bytes_total Total number of bytes allocated, even if freed.
# TYPE go_memstats_alloc_bytes_total counter
go_memstats_alloc_bytes_total 6.4473584e+07
.......

在prometheus的configmap中添加job如下，其中targets是通过get svc -n ingress-nginx获取metrics对应的资源名称.namespace.svc.cluster.local:metrics暴露的端口

    - job_name: 'ingress-nginx-controller-metrics'
      static_configs:
      - targets: ['ingress-nginx-controller-metrics.ingress-nginx.svc.cluster.local:9913']

kubectl delete -f prometheus-configmap.yaml

kubectl create -f prometheus-configmap.yaml

kubectl get svc -n kube-ops

curl -X POST "http://NodeIP:NodePort/-/reload" # 外部能够访问该服务的IP及端口

ingress-nginx chart 的配置参数及默认值如下：

镜像默认地址：quay.io/kubernetes-ingress-controller/nginx-ingress-controller

参数	描述	默认值
controller.image.repository	镜像地址
`controller.image.tag`	镜像tag	`0.30.0`
`controller.image.digest`	镜像描述	`""`
`controller.image.pullPolicy`	拉取镜像的策略	`IfNotPresent`
`controller.image.runAsUser`	User ID	`101`
`controller.containerPort.http`	监听http请求的端口	`80`
`controller.containerPort.https`	监听https请求的端口	`443`
`controller.config`	nginx的ConfigMap对象	none
`controller.configAnnotations`		{}
`controller.hostNetwork`	当`controller.service.externalIPs` 被设置且使用 `kube-proxy` 时，不要设置该值为true，否则端口冲突 `80`	false
`controller.dnsPolicy`	当`hostNetwork=true其值变为` `ClusterFirstWithHostNet`	`ClusterFirst`
`controller.dnsConfig`	pod's dns config 自定义dns配置	`{}`
`controller.electionID`	election ID用于 status更新	`ingress-controller-leader`
`controller.extraEnvs`	pods额外设置的环境变量	`{}`
`controller.extraContainers`	pods额外设置的容器	{}
`controller.extraVolumeMounts`	volumeMounts挂载点	`{}`
`controller.extraVolumes`	数据卷	`{}`
`controller.extraInitContainers`	初始化容器Containers, app容器启动前的容器	`[]`
`controller.healthCheckPath`	health检测路径	`/healthz"`
`controller.ingressClass`	ingress路由类名	`nginx`
`controller.maxmindLicenseKey`	Maxmind许可证密钥，用于下载GeoLite2数据库。请参阅访问和使用GeoLite2数据库	""
`controller.scope.enabled`	限制入口控制器的范围	`false`
`controller.scope.namespace`	命名空间	`""`
`controller.extraArgs`	额外的容器启动参数	`{}`
`controller.kind`	部署方式Deployment或DaemonSet	`Deployment`
`controller.annotations`	部署时添加的注释	`{}`
`controller.autoscaling.enabled`	为true会创建Horizontal Pod Autoscaler	false
`controller.autoscaling.minReplicas`	自动缩放的最小副本数	2
`controller.autoscaling.maxReplicas`	autoscaling是能的情况下设置最大副本数	`11`
`controller.autoscaling.targetCPUUtilizationPercentage`	触发扩容的cpu利用率	`"50"`
`controller.autoscaling.targetMemoryUtilizationPercentage`	触发扩容的内存利用率	`"50"`
`controller.hostPort.enabled`	使能端口映射TCP/80及TCP/443	false
`controller.hostPort.ports.http`	`controller.hostPort.enabled为` `true` 的http端口	`"80"`
`controller.hostPort.ports.https`	`controller.hostPort.enabled为` `true` 的https端口	`"443"`
`controller.tolerations`	node taints to tolerate (requires Kubernetes >=1.6)	`[]`
`controller.affinity`	node/pod affinities (requires Kubernetes >=1.6)	`{}`
`controller.terminationGracePeriodSeconds`	终止pod的等待时间	`60`
`controller.minReadySeconds`	允许pod更新时kill掉其他pod的就绪时间	`0`
`controller.nodeSelector`	标签选择	`{}`
`controller.podAnnotations`	pod注释	`{}`
`controller.podLabels`	元素据标签	`{}`
`controller.podSecurityContext`	Security context 策略	`{}`
`controller.replicaCount`	副本数	`1`
`controller.minAvailable`	分布式场景下最小可用数	`1`
`controller.resources`	resource管理requests & limits	`{}`
`controller.priorityClassName`	controller priorityClassName	`nil`
`controller.lifecycle`	钩子	`{}`
`controller.service.annotations`	service注释	`{}`
`controller.service.labels`	service标签	`{}`
`controller.publishService.enabled`		false
`controller.publishService.pathOverride`	重写默认的publish-service名称	`""`
`controller.service.enabled`	disabled情况下service不会被创建，在`controller.kind` 为 `DaemonSet` 且`controller.hostPorts.enabled` 为 `true 时很有用`	true
`controller.service.clusterIP`	service IP ( `"-"` 表示传递空)	`nil`
`controller.service.externalIPs`	service的外部IP列表，当 `controller.hostNetwork` 为 `true` 且使用了 `kube-proxy` 会导致端口冲突 `80`	`[]`
`controller.service.externalTrafficPolicy`	`co` `ntroller.service.type` 为 `NodePort` or `LoadBalancer` , 当设置为 `Local` 使能 source IP preservation	`"Cluster"`
`controller.service.sessionAffinity`	需确保 `ClientIP` 或 `None`	`""`
`controller.service.healthCheckNodePort`	`c` `ontroller.service.type` 为`NodePort` 或`LoadBalancer` 和 `controller.service.externalTrafficPolicy` 设置为`Local` , 将暴露该健康监测端口. 如果为空, 会随机生成port	`""`
`controller.service.loadBalancerIP`	负载均衡器的IP	`""`
`controller.service.loadBalancerSourceRanges`	允许访问负载均衡器IP CIDRs列表	`[]`
`controller.service.enableHttp`	80	`true`
`controller.service.enableHttps`	443	`true`
`controller.service.targetPorts.http`	设置targetPort映射到Ingress的80端口	`80`
`controller.service.targetPorts.https`	设置targetPort映射到Ingress的端443口	`443`
`controller.service.ports.http`	设置service的http端口	`80`
`controller.service.ports.https`	设置service的https端口	`443`
`controller.service.type`	service创建的类型	`LoadBalancer`
`controller.service.nodePorts.http`	设置nodePort通过http映射到Ingress的80端口	`""`
`controller.service.nodePorts.https`	设置nodePort通过https映射到Ingress的80端口	""
`controller.service.nodePorts.tcp`	设置nodePort通过tcp映射到Ingress的80端口	{}
`controller.service.nodePorts.udp`	设置nodePort通过udp映射到Ingress的80端口	{}
`controller.livenessProbe.initialDelaySeconds`	liveness probe初始化延迟时间	10
`controller.livenessProbe.periodSeconds`	隔多久执行一次探活	10
`controller.livenessProbe.timeoutSeconds`	探活超时时间	5
`controller.livenessProbe.successThreshold`	探活失败后被认为探活成功的最少连续成功次数	1
`controller.livenessProbe.failureThreshold`	探活成功后被认为探活失败的最少连续失败次数	3
`controller.livenessProbe.port`	liveness probe监听的端口	10254
`controller.readinessProbe.initialDelaySeconds`	readiness probe首次等待时间	10
`controller.readinessProbe.periodSeconds`	隔多久执行一次可读性检测	10
`controller.readinessProbe.timeoutSeconds`	可读性检测超时时间	1
`controller.readinessProbe.successThreshold`	可读性失败后被认为可读性成功的最少连续成功次数	1
`controller.readinessProbe.failureThreshold`	可读性成功后被认为可读性失败的最少连续失败次数	3
`controller.readinessProbe.port`	readiness probe监听的端口号	10254
`controller.metrics.enabled`	`true使能` Prometheus metrics	`false`
`controller.metrics.service.annotations`	Prometheus metrics service注释	`{}`
`controller.metrics.service.clusterIP`	Prometheus metrics service的cluster IP	`nil`
`controller.metrics.service.externalIPs`	Prometheus metrics service 的external IP	`[]`
`controller.metrics.service.labels`	metrics service标签	`{}`
`controller.metrics.service.loadBalancerIP`	指定负载均衡的IP地址	`""`
`controller.metrics.service.loadBalancerSourceRanges`	允许访问负载均衡的IP CIDRs列表	`[]`
`controller.metrics.service.servicePort`	Prometheus metrics service 端口	`9913`
`controller.metrics.service.type`	Prometheus metrics service类型	`ClusterIP`
`controller.metrics.serviceMonitor.enabled`	true 创建 ServiceMonitor用于Prometheus operator	`false`
`controller.metrics.serviceMonitor.additionalLabels`	用于发现ServiceMonitor的标签	`{}`
`controller.metrics.serviceMonitor.honorLabels`	`false`	false
`controller.metrics.serviceMonitor.namespace`	servicemonitor resource的命名空间	`nginx ingress同名空间`
`controller.metrics.serviceMonitor.namespaceSelector`	namespaceSelector指定scrape的namespaces	`helm release namespace`
`controller.metrics.serviceMonitor.scrapeInterval`	Prometheus scraping的间隔	`30s`
`controller.metrics.prometheusRule.enabled`	`true` 创建prometheusRules用于Prometheus operator	`false`
`controller.metrics.prometheusRule.additionalLabels`	用于发现prometheusRules的标签	`{}`
`controller.metrics.prometheusRule.namespace`	prometheusRules resource的命名空间	`nginxingress同命名空间`
`controller.metrics.prometheusRule.rules`	prometheus中的rulesYAML格式	`[]`
`controller.admissionWebhooks.enabled`	创建Ingress admission webhooks. 验证ingress 语法	`true`
`controller.admissionWebhooks.failurePolicy`	admission webhooks失败策略	`Fail`
`controller.admissionWebhooks.port`	Admission webhook端口	`8443`
`controller.admissionWebhooks.service.annotations`	admission webhook service注解	`{}`
`controller.admissionWebhooks.service.clusterIP`	admission webhook service 的cluster IP	`nil`
`controller.admissionWebhooks.service.externalIPs`	admission webhook service 的外部IP	`[]`
`controller.zadmissionWebhooks.service.loadBalancerIP`	指定负载均衡的IP地址	`""`
`controller.admissionWebhooks.service.loadBalancerSourceRanges`	允许访问负载均衡的IP CIDRs列表	`[]`
`controller.admissionWebhooks.service.servicePort`	Admission webhook service 端口	`443`
`controller.admissionWebhooks.service.type`	admission webhook service类型	`ClusterIP`
`controller.admissionWebhooks.patch.enabled`	patch使能	true
`controller.admissionWebhooks.patch.image.repository`	webhook integration jobs镜像地址	`jettech/kube-webhook-certgen`
`controller.admissionWebhooks.patch.image.tag`	webhook integration jobs的镜像tag	`v1.2.0`
`controller.admissionWebhooks.patch.image.digest`	webhook integration jobs镜像描述	`""`
`controller.admissionWebhooks.patch.image.pullPolicy`	webhook integration jobs镜像的策略	`IfNotPresent`
`controller.admissionWebhooks.patch.priorityClassName`	Priority class for the webhook integration jobs	`""`
`controller.admissionWebhooks.patch.podAnnotations`	webhook job pods注释	`{}`
`controller.admissionWebhooks.patch.nodeSelector`	运行admission hook patch jobs的节点选择器	`{}`
`controller.admissionWebhooks.patch.tolerations`	Node taints/tolerations for running admission hook patch jobs	`[]`
`controller.customTemplate.configMapName`	configMap containing a custom nginx template	`""`
`controller.customTemplate.configMapKey`	configMap key携带nginx模板	`""`
`controller.addHeaders`	configMap key:value对携带响应客户端的头部信息	`{}`
`controller.proxySetHeaders`	configMap key:value对携带请求后端服务的头部信息	`{}`
`controller.updateStrategy`	允许设置RollingUpdate策略	`{}`
`controller.configMapNamespace`	nginx-configmap命名空间	`""`
`controller.tcp.configMapNamespace`	tcp-services-configmap命名空间	`""`
`controller.tcp.annotations`	tcp configmap	`{}`
`controller.udp.configMapNamespace`	udp-services-configmap命名空间	`""`
`controller.udp.annotations`	udp configmap注释	`{}`
`defaultBackend.enabled`	使用default backend组件	`false`
`defaultBackend.image.repository`	镜像地址	`k8s.gcr.io/defaultbackend-amd64`
`defaultBackend.image.tag`	镜像tag	`1.5`
`defaultBackend.image.digest`	镜像描述	`""`
`defaultBackend.image.pullPolicy`	拉取镜像的策略	`IfNotPresent`
`defaultBackend.image.runAsUser`	User ID，默认使用nobody	`65534`
`defaultBackend.extraArgs`	额外参数	`{}`
`defaultBackend.extraEnvs`	额外环境变量	`[]`
`defaultBackend.port`	Http port	`8080`
`defaultBackend.livenessProbe.initialDelaySeconds`	liveness probe初始化延迟时间	30
`defaultBackend.livenessProbe.periodSeconds`	隔多久执行一次探活	10
`defaultBackend.livenessProbe.timeoutSeconds`	探活超时时间	5
`defaultBackend.livenessProbe.successThreshold`	探活失败后被认为探活成功的最少连续成功次数	1
`defaultBackend.livenessProbe.failureThreshold`	探活成功后被认为探活失败的最少连续失败次数	3
`defaultBackend.readinessProbe.initialDelaySeconds`	readiness probe首次等待时间	0
`defaultBackend.readinessProbe.periodSeconds`	隔多久执行一次可读性检测	5
`defaultBackend.readinessProbe.timeoutSeconds`	可读性检测超时时间	5
`defaultBackend.readinessProbe.successThreshold`	可读性失败后被认为可读性成功的最少连续成功次数	1
`defaultBackend.readinessProbe.failureThreshold`	可读性成功后被认为可读性失败的最少连续失败次数	6
`defaultBackend.tolerations`		`[]`
`defaultBackend.affinity`	node/pod affinities (requires Kubernetes >=1.6)	`{}`
`defaultBackend.nodeSelector`	节点标签	`{}`
`defaultBackend.podAnnotations`	注释	`{}`
`defaultBackend.podLabels`	标签	`{}`
`defaultBackend.replicaCount`	默认副本数	`1`
`defaultBackend.minAvailable`	最小可用pod	`1`
`defaultBackend.resources`	default backend pod resource requests & limits	`{}`
`defaultBackend.priorityClassName`	default backend priorityClassName	`nil`
`defaultBackend.podSecurityContext`	默认添加到后端的Security context policies	`{}`
`defaultBackend.service.annotations`	默认的后端服务注释	`{}`
`defaultBackend.service.clusterIP`	后端service的cluster IP	`nil`
`defaultBackend.service.externalIPs`	默认后端服务的外部IP列表	`[]`
`defaultBackend.service.loadBalancerIP`	指定负载均衡的IP地址	`""`
`defaultBackend.service.loadBalancerSourceRanges`	允许访问负载均衡的IP CIDRs列表	`[]`
`defaultBackend.service.type`	默认的后端服务创建类型	`ClusterIP`
`defaultBackend.serviceAccount.create`	`true` , 创建后端服务账号名称. 只有让pod security policy 运行在后端才有效	`true`
`defaultBackend.serviceAccount.name`	后端服务账号名称
`imagePullSecrets`	`nil`
`rbac.create`	`true` , 创建并使用RBAC resources	`true`
`rbac.scope`	i`true` , 不要创建使用clusterrole and -binding 结合controller.scope.enabled = true设置为true可以禁用负载均衡器状态更新并完全限制入口范围	`false`
`podSecurityPolicy.enabled`	`true` , 创建并使用Pod Security Policy 资源	`false`
`serviceAccount.create`	`true` , 创建 service account	`true`
`serviceAccount.name`	service 账号
`revisionHistoryLimit`	维护的允许回滚的历史版本数	`10`

安装后生成3个pod，ingress-nginx-controller-admission、ingress-nginx-controller及ingress-nginx-controller-metrics，对应yaml文件分别如下，本文未详细给出rbac相关资源对应yaml

ingress-nginx-controller-admission文件：

apiVersion: v1
kind: Service
metadata:
  creationTimestamp: null
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/managed-by: Tiller
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/version: 0.32.0
    helm.sh/chart: ingress-nginx-2.3.0
    io.cattle.field/appId: ingress-nginx
  managedFields:
  - apiVersion: v1
    fieldsType: FieldsV1
    fieldsV1:
      f:metadata:
        f:labels:
          .: {}
          f:app.kubernetes.io/component: {}
          f:app.kubernetes.io/instance: {}
          f:app.kubernetes.io/managed-by: {}
          f:app.kubernetes.io/name: {}
          f:app.kubernetes.io/version: {}
          f:helm.sh/chart: {}
          f:io.cattle.field/appId: {}
      f:spec:
        f:ports:
          .: {}
          k:{"port":443,"protocol":"TCP"}:
            .: {}
            f:name: {}
            f:port: {}
            f:protocol: {}
            f:targetPort: {}
        f:selector:
          .: {}
          f:app.kubernetes.io/component: {}
          f:app.kubernetes.io/instance: {}
          f:app.kubernetes.io/name: {}
        f:sessionAffinity: {}
        f:type: {}
    manager: Go-http-client
    operation: Update
    time: "2020-05-23T06:28:02Z"
  name: ingress-nginx-controller-admission
  selfLink: /api/v1/namespaces/ingress-nginx/services/ingress-nginx-controller-admission
spec:
  ports:
  - name: https-webhook
    port: 443
    protocol: TCP
    targetPort: webhook
  selector:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  sessionAffinity: None
  type: ClusterIP
status:
  loadBalancer: {}

ingress-nginx-controller-metrics.yaml

apiVersion: v1
kind: Service
metadata:
  creationTimestamp: null
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/managed-by: Tiller
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/version: 0.32.0
    helm.sh/chart: ingress-nginx-2.3.0
    io.cattle.field/appId: ingress-nginx
  managedFields:
  - apiVersion: v1
    fieldsType: FieldsV1
    fieldsV1:
      f:metadata:
        f:labels:
          .: {}
          f:app.kubernetes.io/component: {}
          f:app.kubernetes.io/instance: {}
          f:app.kubernetes.io/managed-by: {}
          f:app.kubernetes.io/name: {}
          f:app.kubernetes.io/version: {}
          f:helm.sh/chart: {}
          f:io.cattle.field/appId: {}
      f:spec:
        f:ports:
          .: {}
          k:{"port":9913,"protocol":"TCP"}:
            .: {}
            f:name: {}
            f:port: {}
            f:protocol: {}
            f:targetPort: {}
        f:selector:
          .: {}
          f:app.kubernetes.io/component: {}
          f:app.kubernetes.io/instance: {}
          f:app.kubernetes.io/name: {}
        f:sessionAffinity: {}
        f:type: {}
    manager: Go-http-client
    operation: Update
    time: "2020-05-24T02:27:16Z"
  name: ingress-nginx-controller-metrics
  selfLink: /api/v1/namespaces/ingress-nginx/services/ingress-nginx-controller-metrics
spec:
  ports:
  - name: metrics
    port: 9913
    protocol: TCP
    targetPort: metrics
  selector:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  sessionAffinity: None
  type: ClusterIP
status:
  loadBalancer: {}

ingress-nginx-controller.yaml文件：

apiVersion: v1
kind: Service
metadata:
  annotations:
    field.cattle.io/publicEndpoints: '[{"port":30390,"protocol":"TCP","serviceName":"ingress-nginx:ingress-nginx-controller","allNodes":true},{"port":31792,"protocol":"TCP","serviceName":"ingress-nginx:ingress-nginx-controller","allNodes":true}]'
  creationTimestamp: null
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/managed-by: Tiller
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/version: 0.32.0
    helm.sh/chart: ingress-nginx-2.3.0
    io.cattle.field/appId: ingress-nginx
  managedFields:
  - apiVersion: v1
    fieldsType: FieldsV1
    fieldsV1:
      f:metadata:
        f:annotations:
          .: {}
          f:field.cattle.io/publicEndpoints: {}
        f:labels:
          .: {}
          f:app.kubernetes.io/component: {}
          f:app.kubernetes.io/instance: {}
          f:app.kubernetes.io/managed-by: {}
          f:app.kubernetes.io/name: {}
          f:app.kubernetes.io/version: {}
          f:helm.sh/chart: {}
          f:io.cattle.field/appId: {}
      f:spec:
        f:externalTrafficPolicy: {}
        f:ports:
          .: {}
          k:{"port":80,"protocol":"TCP"}:
            .: {}
            f:name: {}
            f:port: {}
            f:protocol: {}
            f:targetPort: {}
          k:{"port":443,"protocol":"TCP"}:
            .: {}
            f:name: {}
            f:port: {}
            f:protocol: {}
            f:targetPort: {}
        f:selector:
          .: {}
          f:app.kubernetes.io/component: {}
          f:app.kubernetes.io/instance: {}
          f:app.kubernetes.io/name: {}
        f:sessionAffinity: {}
        f:type: {}
    manager: Go-http-client
    operation: Update
    time: "2020-05-23T07:32:13Z"
  name: ingress-nginx-controller
  selfLink: /api/v1/namespaces/ingress-nginx/services/ingress-nginx-controller
spec:
  externalTrafficPolicy: Cluster
  ports:
  - name: http
    port: 80
    protocol: TCP
    targetPort: http
  - name: https
    port: 443
    protocol: TCP
    targetPort: https
  selector:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  sessionAffinity: None
  type: NodePort
status:
  loadBalancer: {}

数据库

文章转载自蛮懒，如果涉嫌侵权，请发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。

Kubernetes安装ingress-nginx-controller

评论
