Sentinel 深度剖析 之 流量控制中算法

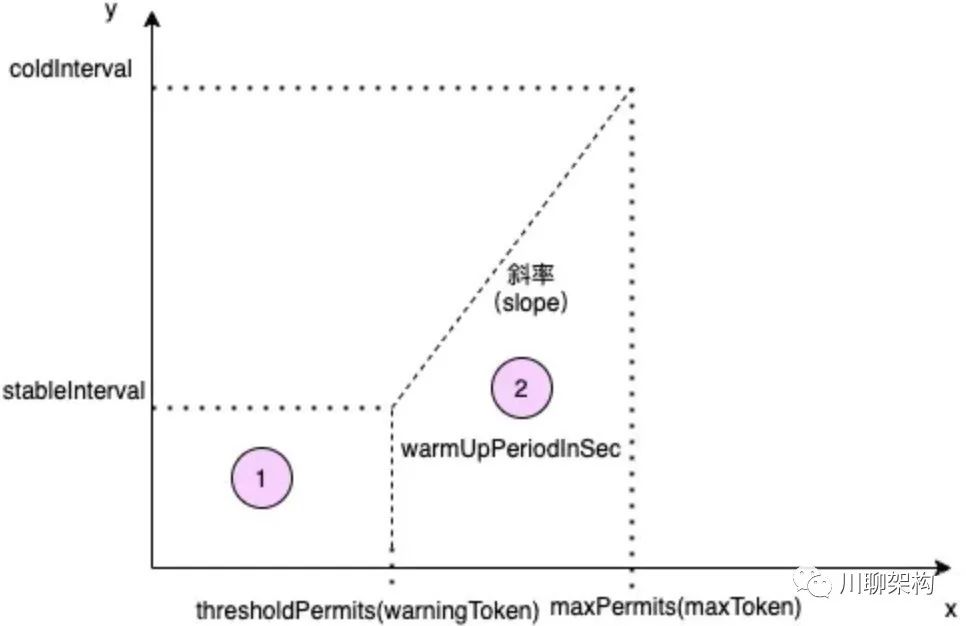

stableInterval=1/count(稳定生产一个令牌需要时间)

coldInterval=stableInterval*coldFactor冷启动因子(生产一个令牌需要的最长时长)

坐标时间(1)长方形区域面积=长(thresholdPermits(warningToken))*宽(stableInterval)

坐标时间(1)长方形区域面积=0.5*warmUpPeriodSec

(thresholdPermits(warningToken))=0.5*warmUpPeriodSec/stableInterval

warningToken=(int)(warmUpPeriodInSec*count)/(coldFactor-1);

maxPermits=2*warmUpPeriodSec/(stableInterval+coldInterval)+thresholdPermits(warningToken)

maxToken=warningToken+(int)(2*warmUpPeriodInSec*count/(1.0+coldFactor));

slope=(coldInterval-stableInterval)/(maxToken-warningToken)

slope=(coldFactor-1.0)/count/(maxToken-warningToken);

private void construct(double count, int warmUpPeriodInSec,int coldFactor) {
  if (coldFactor <= 1) {
    throw new IllegalArgumentException("Cold factor should be larger than 1");
  }
  this.count = count;
  this.coldFactor = coldFactor;
  // (1) thresholdPermits = 0.5 * warmupPeriod / stableInterval.
  // warningToken = 100;
  warningToken = (int)(warmUpPeriodInSec * count) / (coldFactor - 1);
  // (2) maxPermits = thresholdPermits + 2 * warmupPeriod / (stableInterval + coldInterval)
  // maxToken = 200
  maxToken = warningToken + (int)(2 * warmUpPeriodInSec * count / (1.0 + coldFactor));
  // slope = (coldIntervalMicros - stableIntervalMicros) / (maxPermits - thresholdPermits);
  slope = (coldFactor - 1.0) / count / (maxToken - warningToken);
}
public boolean canPass(Node node, int acquireCount, boolean prioritized) {
  long passQps = (long) node.passQps();
  long previousQps = (long) node.previousPassQps();
  // (1) 令牌的生产过程和滑落过程
  syncToken(previousQps);
  // 开始计算它的斜率
  // 如果进入了警戒线，开始调整他的qps
  long restToken = storedTokens.get();
  // (2) 令牌桶中剩余的令牌数
  if (restToken >= warningToken) { // (3-1) 当剩余令牌大于令牌桶阈值,开启预热
    long aboveToken = restToken - warningToken;
    // 消耗的速度要比warning快，但是要比慢
    // current interval = restToken*slope+1/count
    // (4)根据斜率计算出预热时的QPS
    double warningQps = Math.nextUp(1.0 / (aboveToken * slope + 1.0 / count));
    if (passQps + acquireCount <= warningQps) { //(5) 判断是否放行
      return true;
    }
  } else { // (3-2) 剩余令牌小于令牌桶阈值, 不开启预热,流量稳定通行
    if (passQps + acquireCount <= count) {
      return true;
    }
  }
  return false;
}
protected void syncToken(long passQps) {
  long currentTime = TimeUtil.currentTimeMillis();
  // 去除尾数即秒数
  currentTime = currentTime - currentTime % 1000;
  // 上次记录的时间戳
  long oldLastFillTime = lastFilledTime.get();
  if (currentTime <= oldLastFillTime) {
    return;
  }
  // 获取桶中令牌数
  long oldValue = storedTokens.get();
  // 令牌生产
  long newValue = coolDownTokens(currentTime, passQps);
  if (storedTokens.compareAndSet(oldValue, newValue)) { // 2 将生产的令牌放入令牌桶
    long currentValue = storedTokens.addAndGet(0 -passQps); // 从令牌桶中滑落已使用的令牌
    if (currentValue < 0) {
      storedTokens.set(0L);
    }
    lastFilledTime.set(currentTime);
  }
}
private long coolDownTokens(long currentTime, long passQps) {
  long oldValue = storedTokens.get();
  long newValue = oldValue;
  // 添加令牌的判断前提条件:
  // 当令牌的消耗程度远远低于警戒线的时候
  if (oldValue < warningToken) {
    newValue = (long)(oldValue + (currentTime -
    lastFilledTime.get()) * count / 1000);
  } else if (oldValue > warningToken) {
    if (passQps < (int)count / coldFactor) {
      newValue = (long)(oldValue + (currentTime - lastFilledTime.get()) * count / 1000);
    }
  }
  return Math.min(newValue, maxToken);
}

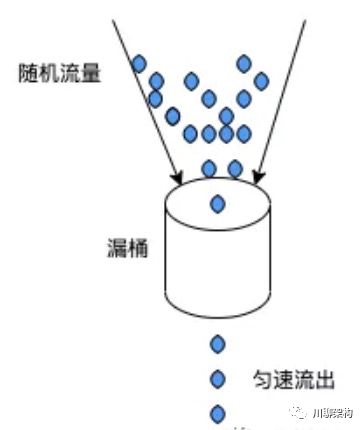

public boolean canPass(Node node, int acquireCount, boolean prioritized) {
  // Pass when acquire count is less or equal than 0.
  if (acquireCount <= 0) {
    return true;
  }
  // Reject when count is less or equal than 0.
  // Otherwise,the costTime will be max of long and waitTime will overflow in some cases.
  if (count <= 0) {
    return false;
  }
  long currentTime = TimeUtil.currentTimeMillis();

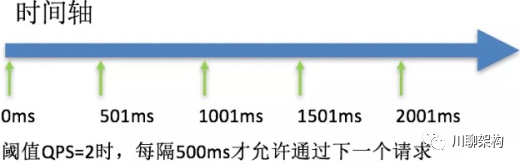

  // Calculate the interval between every two requests.
  // 1) 两次请求的时间间隔
  long costTime = Math.round(1.0 * (acquireCount) / count * 1000);
  // Expected pass time of this request.
  // 2)计算这次请求的通过预留时间 = 上次请求通过时间+时间间隔
  long expectedTime = costTime + latestPassedTime.get();
  // 3)当预期时间 <= 当前时间, 则允许通过并更新上次请求时间戳
  if (expectedTime <= currentTime) {
    // Contention may exist here, but it's okay.
    latestPassedTime.set(currentTime);
    return true;
  } else {
    // Calculate the time to wait.
    // 4)当预期时间 > 当前时间, 则需要等待; 计算需要等待时间
    long waitTime = costTime + latestPassedTime.get() - TimeUtil.currentTimeMillis();
    // 5)需要等待的时间> 最⼤队列时间, 则拒绝 默认超时时间500毫秒
    if (waitTime > maxQueueingTimeMs) {
      return false;
    } else {
      long oldTime =
      latestPassedTime.addAndGet(costTime);
      try {
        waitTime = oldTime -
        TimeUtil.currentTimeMillis();
        // 6)
        if (waitTime > maxQueueingTimeMs) {
          latestPassedTime.addAndGet(-costTime);
          return false;
        }
        // in race condition waitTime may <= 0
        // 7)
        if (waitTime > 0) {
            Thread.sleep(waitTime);
        }
        return true;
      } catch (InterruptedException e) {
      }
    }
  }
  return false;
}
