二叉树深度优先遍历

架构师成长 2020-06-15
348

遍历方式

二叉树深度优先遍历方式有先序遍历、中序遍历、后序遍历。

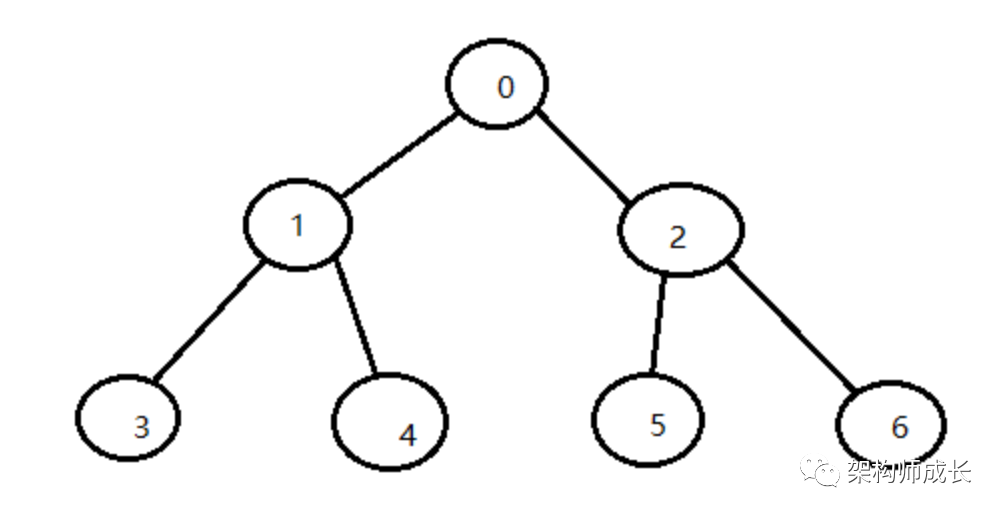

假设树形结构如下:

深度优先遍历实现

import java.util.ArrayList;
import java.util.List;


public class BinaryTreeTraverse {


static class BinTree {
public BinTree left;
public BinTree right;
public BinTree root;
// 数据域
private Object data;
// 存节点
public List<BinTree> datas;


public BinTree(BinTree left, BinTree right, Object data) {
this.left = left;
this.right = right;
this.data = data;
}


// 将初始的左右孩子值为空
public BinTree(Object data) {
this(null, null, data);
}


public BinTree() {
        }


public void createTree(Object[] objs) {
datas = new ArrayList<BinTree>();
// 将一个数组的值依次转换为Node节点
for (Object o : objs) {
datas.add(new BinTree(o));
}
// 第一个数为根节点
root = datas.get(0);
// 建立二叉树
for (int i = 0; i < objs.length / 2; i++) {
//左孩子
datas.get(i).left = datas.get(i * 2 + 1);
// 右孩子
if (i * 2 + 2 < datas.size()) {//避免偶数的时候 下标越界
datas.get(i).right = datas.get(i * 2 + 2);
}
}
}


//先序遍历
public void preOrder(BinTree root) {


if (root != null) {
System.out.print(root.data + " ");
preOrder(root.left);
preOrder(root.right);
}
}


//中序遍历
public void inOrder(BinTree root) {


if (root != null) {
inOrder(root.left);
System.out.print(root.data+ " ");
inOrder(root.right);
}
}


//后序遍历
public void afterOrder(BinTree root) {


if (root != null) {
afterOrder(root.left);
afterOrder(root.right);
System.out.print(root.data+ " ");
}
}


}


public static void main(String[] args) {
BinTree BinTree = new BinTree();
Object[] a = {0,1, 2, 3, 4, 5, 6};
BinTree.createTree(a);


System.out.print("先序遍历:");
BinTree.preOrder(BinTree.root);
System.out.println();


System.out.print("中序遍历:");
BinTree.inOrder(BinTree.root);
System.out.println();


System.out.print("后序遍历:");
BinTree.afterOrder(BinTree.root);
}


}

实现结果:

先序遍历:0 1 3 4 2 5 6
中序遍历:3 1 4 0 5 2 6
后序遍历:3 4 1 5 6 2 0
