第四篇：Nacos Server 详探

重塑之路 2020-05-02

1269

上文我们在参考源码样例的基础上（传送门），成功启动了自己的Nacos Server，本片文章我们在上一篇的基础上，继续详细步骤，来理解Nacos Server 使用的步骤和每部分的功能，为下一步自己的封装做好准备。

设置maven

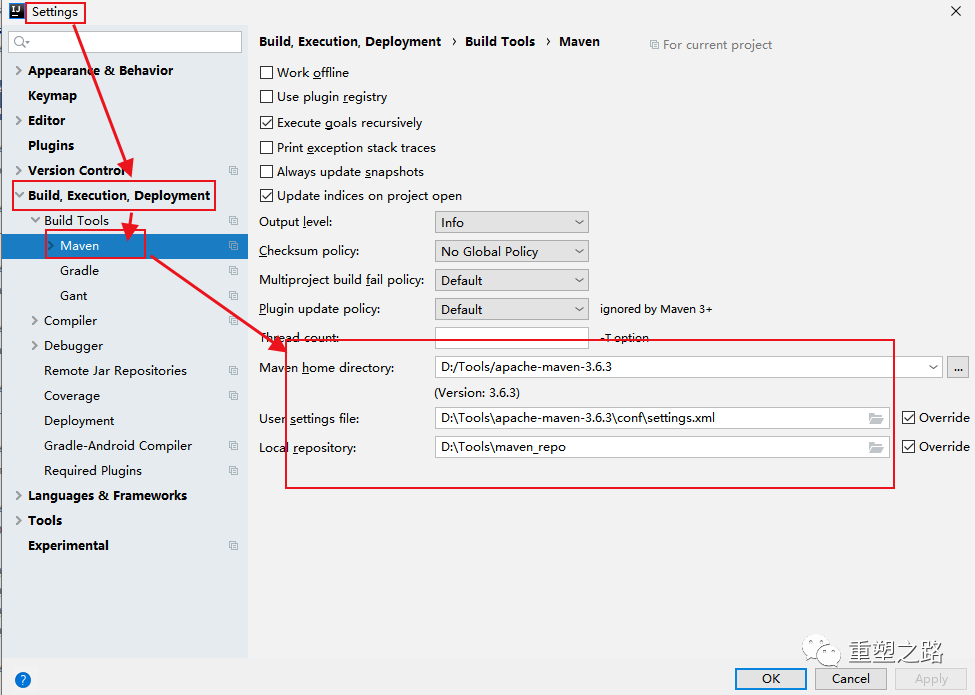

我们先做好maven配置，在idea中，File-->Settings

在settings.xml中，我们修改两个地方：

1、设置自己maven仓库位置，默认是C盘

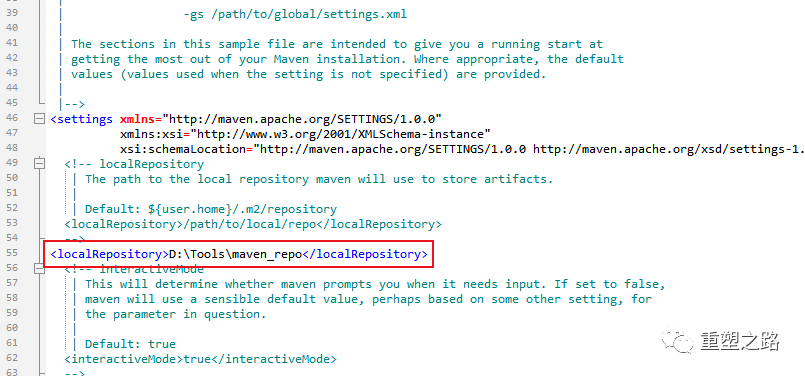

在localRepository节点中修改自己想存放的位置（这里存放的是项目依赖的jar包）

<localRepository>D:\Tools\maven_repo</localRepository>

1、修改仓库源

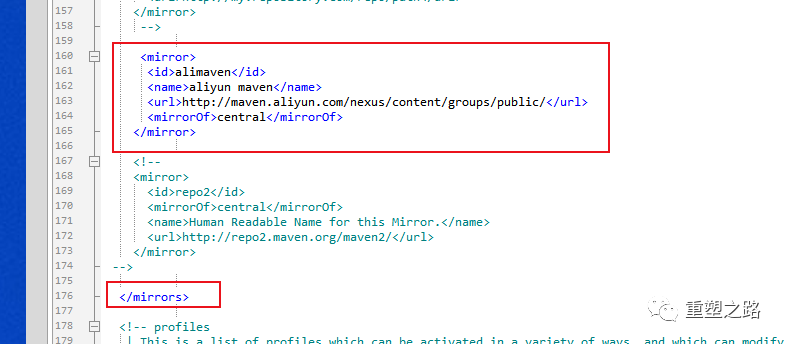

在mirrors节点中添加

     <mirror>
      <id>alimaven</id>
      <name>aliyun maven</name>
      <url>http://maven.aliyun.com/nexus/content/groups/public/</url>
      <mirrorOf>central</mirrorOf>
    </mirror>

创建项目

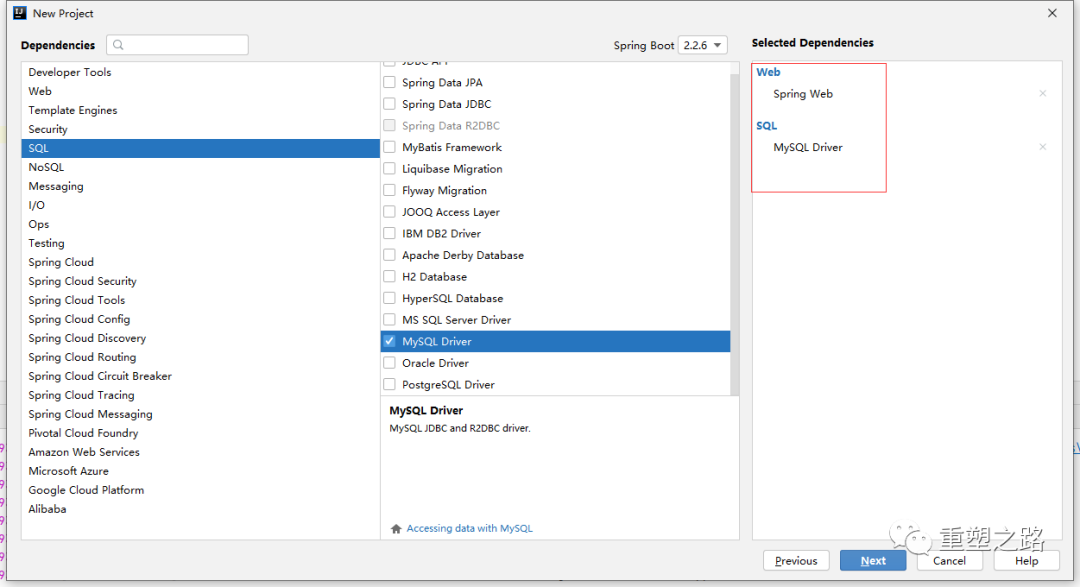

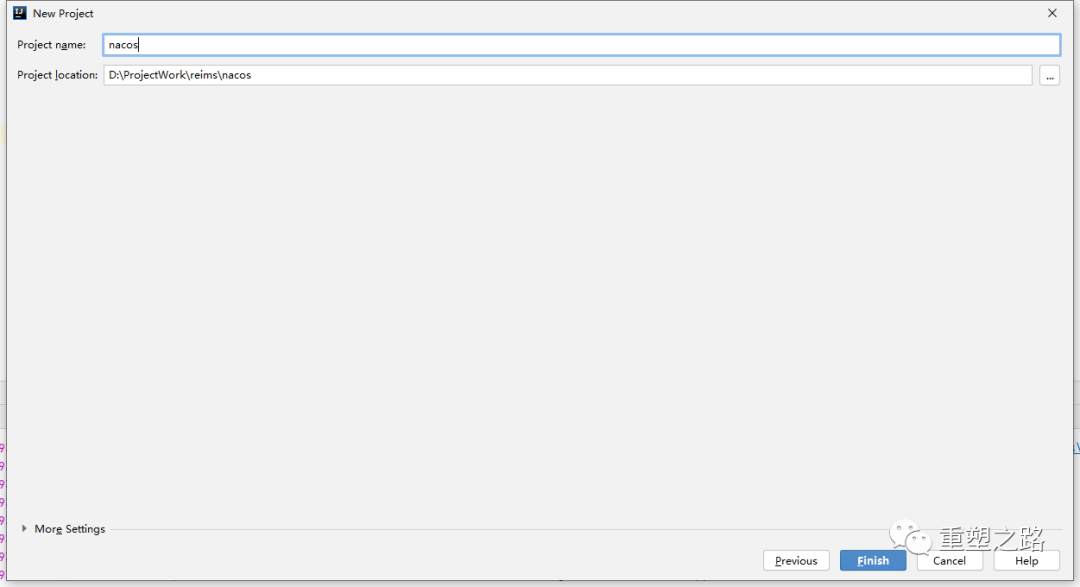

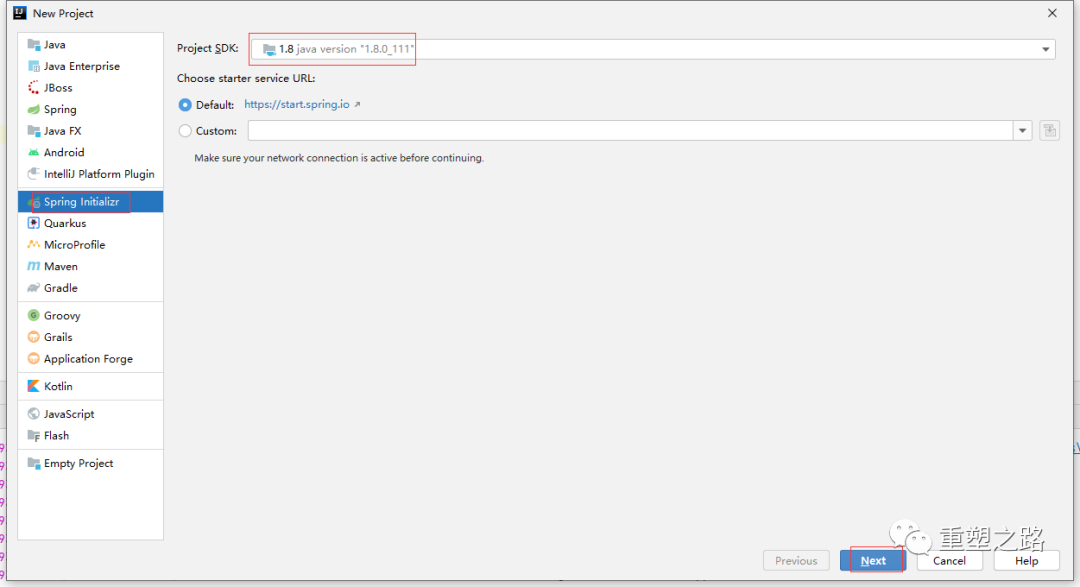

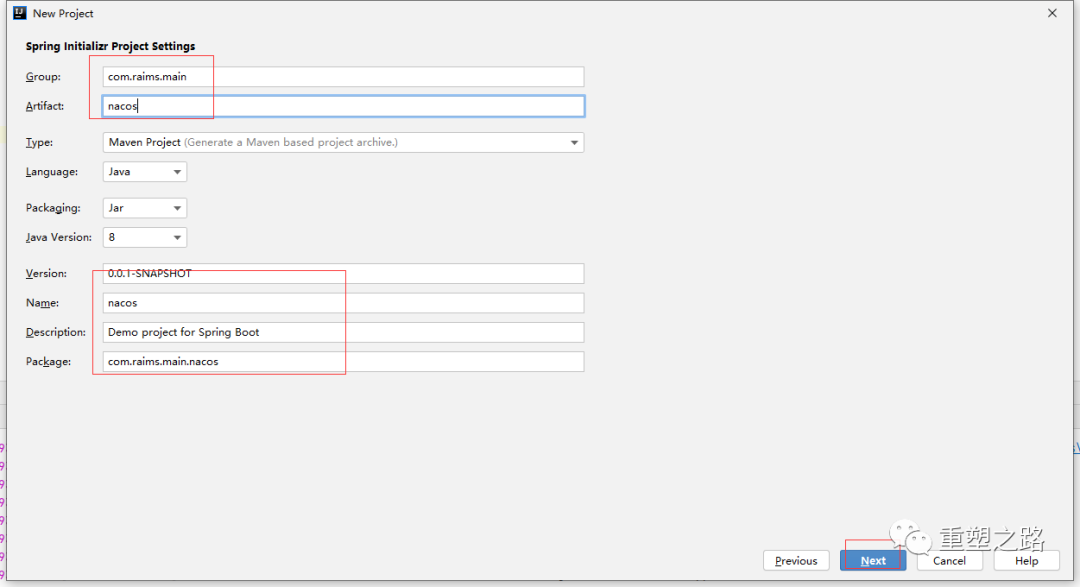

在idea中 File-->New-->Project

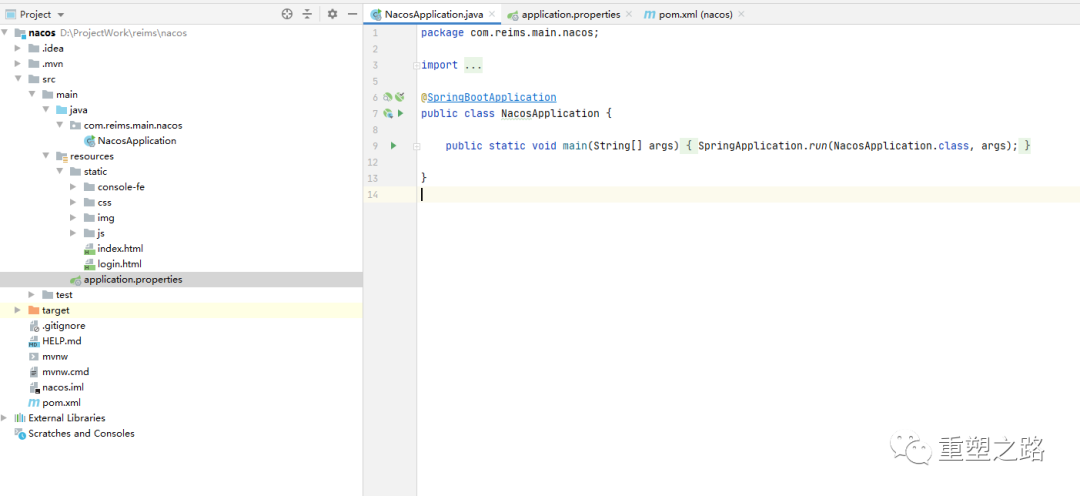

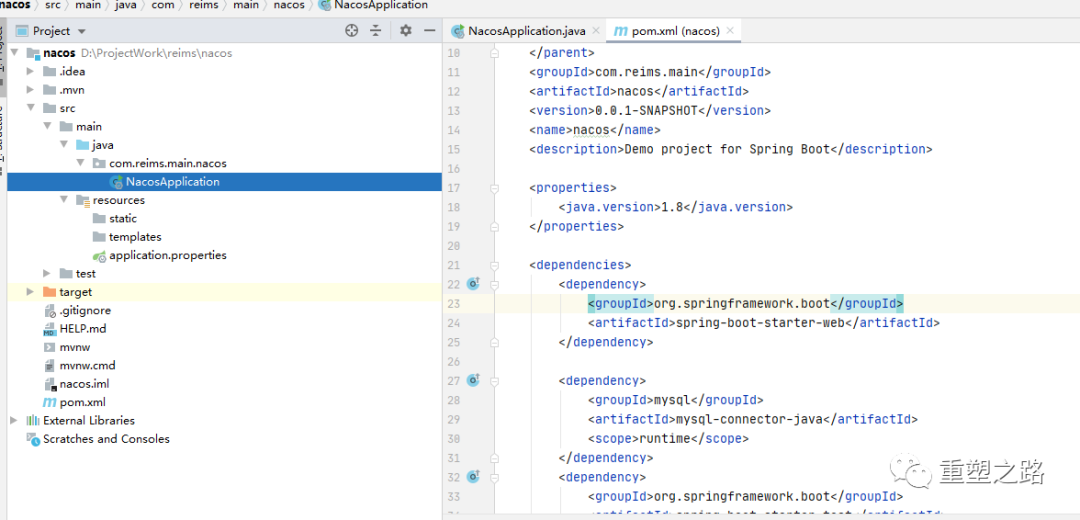

创建完毕，项目结构：

启动NacosApplication.java

"C:\Program Files\Java\jdk1.8.0_111\bin\java.exe" -agentlib:jdwp=transport=dt_socket,address=127.0.0.1:57519,suspend=y,server=n -XX:TieredStopAtLevel=1 -noverify -Dspring.output.ansi.enabled=always -Dcom.sun.management.jmxremote -Dspring.jmx.enabled=true -Dspring.liveBeansView.mbeanDomain -Dspring.application.admin.enabled=true -javaagent:C:\Users\back_\AppData\Local\JetBrains\IntelliJIdea2020.1\captureAgent\debugger-agent.jar -Dfile.encoding=UTF-8 -classpath "C:\Program Files\Java\jdk1.8.0_111\jre\lib\charsets.jar;C:\Program Files\Java\jdk1.8.0_111\jre\lib\deploy.jar;C:\Program Files\Java\jdk1.8.0_111\jre\lib\ext\access-bridge-64.jar;C:\Program Files\Java\jdk1.8.0_111\jre\lib\ext\cldrdata.jar;C:\Program Files\Java\jdk1.8.0_111\jre\lib\ext\dnsns.jar;C:\Program Files\Java\jdk1.8.0_111\jre\lib\ext\jaccess.jar;C:\Program Files\Java\jdk1.8.0_111\jre\lib\ext\jfxrt.jar;C:\Program Files\Java\jdk1.8.0_111\jre\lib\ext\localedata.jar;C:\Program Files\Java\jdk1.8.0_111\jre\lib\ext\nashorn.jar;C:\Program Files\Java\jdk1.8.0_111\jre\lib\ext\sunec.jar;C:\Program Files\Java\jdk1.8.0_111\jre\lib\ext\sunjce_provider.jar;C:\Program Files\Java\jdk1.8.0_111\jre\lib\ext\sunmscapi.jar;C:\Program Files\Java\jdk1.8.0_111\jre\lib\ext\sunpkcs11.jar;C:\Program Files\Java\jdk1.8.0_111\jre\lib\ext\zipfs.jar;C:\Program Files\Java\jdk1.8.0_111\jre\lib\javaws.jar;C:\Program Files\Java\jdk1.8.0_111\jre\lib\jce.jar;C:\Program Files\Java\jdk1.8.0_111\jre\lib\jfr.jar;C:\Program Files\Java\jdk1.8.0_111\jre\lib\jfxswt.jar;C:\Program Files\Java\jdk1.8.0_111\jre\lib\jsse.jar;C:\Program Files\Java\jdk1.8.0_111\jre\lib\management-agent.jar;C:\Program Files\Java\jdk1.8.0_111\jre\lib\plugin.jar;C:\Program Files\Java\jdk1.8.0_111\jre\lib\resources.jar;C:\Program Files\Java\jdk1.8.0_111\jre\lib\rt.jar;D:\ProjectWork\reims\nacos\target\classes;D:\Tools\maven_repo\org\springframework\boot\spring-boot-starter-web\2.2.6.RELEASE\spring-boot-starter-web-2.2.6.RELEASE.jar;D:\Tools\maven_repo\org\springframework\boot\spring-boot-starter\2.2.6.RELEASE\spring-boot-starter-2.2.6.RELEASE.jar;D:\Tools\maven_repo\org\springframework\boot\spring-boot\2.2.6.RELEASE\spring-boot-2.2.6.RELEASE.jar;D:\Tools\maven_repo\org\springframework\boot\spring-boot-autoconfigure\2.2.6.RELEASE\spring-boot-autoconfigure-2.2.6.RELEASE.jar;D:\Tools\maven_repo\org\springframework\boot\spring-boot-starter-logging\2.2.6.RELEASE\spring-boot-starter-logging-2.2.6.RELEASE.jar;D:\Tools\maven_repo\ch\qos\logback\logback-classic\1.2.3\logback-classic-1.2.3.jar;D:\Tools\maven_repo\ch\qos\logback\logback-core\1.2.3\logback-core-1.2.3.jar;D:\Tools\maven_repo\org\apache\logging\log4j\log4j-to-slf4j\2.12.1\log4j-to-slf4j-2.12.1.jar;D:\Tools\maven_repo\org\apache\logging\log4j\log4j-api\2.12.1\log4j-api-2.12.1.jar;D:\Tools\maven_repo\org\slf4j\jul-to-slf4j\1.7.30\jul-to-slf4j-1.7.30.jar;D:\Tools\maven_repo\jakarta\annotation\jakarta.annotation-api\1.3.5\jakarta.annotation-api-1.3.5.jar;D:\Tools\maven_repo\org\yaml\snakeyaml\1.25\snakeyaml-1.25.jar;D:\Tools\maven_repo\org\springframework\boot\spring-boot-starter-json\2.2.6.RELEASE\spring-boot-starter-json-2.2.6.RELEASE.jar;D:\Tools\maven_repo\com\fasterxml\jackson\core\jackson-databind\2.10.3\jackson-databind-2.10.3.jar;D:\Tools\maven_repo\com\fasterxml\jackson\core\jackson-annotations\2.10.3\jackson-annotations-2.10.3.jar;D:\Tools\maven_repo\com\fasterxml\jackson\core\jackson-core\2.10.3\jackson-core-2.10.3.jar;D:\Tools\maven_repo\com\fasterxml\jackson\datatype\jackson-datatype-jdk8\2.10.3\jackson-datatype-jdk8-2.10.3.jar;D:\Tools\maven_repo\com\fasterxml\jackson\datatype\jackson-datatype-jsr310\2.10.3\jackson-datatype-jsr310-2.10.3.jar;D:\Tools\maven_repo\com\fasterxml\jackson\module\jackson-module-parameter-names\2.10.3\jackson-module-parameter-names-2.10.3.jar;D:\Tools\maven_repo\org\springframework\boot\spring-boot-starter-tomcat\2.2.6.RELEASE\spring-boot-starter-tomcat-2.2.6.RELEASE.jar;D:\Tools\maven_repo\org\apache\tomcat\embed\tomcat-embed-core\9.0.33\tomcat-embed-core-9.0.33.jar;D:\Tools\maven_repo\org\apache\tomcat\embed\tomcat-embed-el\9.0.33\tomcat-embed-el-9.0.33.jar;D:\Tools\maven_repo\org\apache\tomcat\embed\tomcat-embed-websocket\9.0.33\tomcat-embed-websocket-9.0.33.jar;D:\Tools\maven_repo\org\springframework\boot\spring-boot-starter-validation\2.2.6.RELEASE\spring-boot-starter-validation-2.2.6.RELEASE.jar;D:\Tools\maven_repo\jakarta\validation\jakarta.validation-api\2.0.2\jakarta.validation-api-2.0.2.jar;D:\Tools\maven_repo\org\hibernate\validator\hibernate-validator\6.0.18.Final\hibernate-validator-6.0.18.Final.jar;D:\Tools\maven_repo\org\jboss\logging\jboss-logging\3.4.1.Final\jboss-logging-3.4.1.Final.jar;D:\Tools\maven_repo\com\fasterxml\classmate\1.5.1\classmate-1.5.1.jar;D:\Tools\maven_repo\org\springframework\spring-web\5.2.5.RELEASE\spring-web-5.2.5.RELEASE.jar;D:\Tools\maven_repo\org\springframework\spring-beans\5.2.5.RELEASE\spring-beans-5.2.5.RELEASE.jar;D:\Tools\maven_repo\org\springframework\spring-webmvc\5.2.5.RELEASE\spring-webmvc-5.2.5.RELEASE.jar;D:\Tools\maven_repo\org\springframework\spring-aop\5.2.5.RELEASE\spring-aop-5.2.5.RELEASE.jar;D:\Tools\maven_repo\org\springframework\spring-context\5.2.5.RELEASE\spring-context-5.2.5.RELEASE.jar;D:\Tools\maven_repo\org\springframework\spring-expression\5.2.5.RELEASE\spring-expression-5.2.5.RELEASE.jar;D:\Tools\maven_repo\mysql\mysql-connector-java\8.0.19\mysql-connector-java-8.0.19.jar;D:\Tools\maven_repo\org\slf4j\slf4j-api\1.7.30\slf4j-api-1.7.30.jar;D:\Tools\maven_repo\org\springframework\spring-core\5.2.5.RELEASE\spring-core-5.2.5.RELEASE.jar;D:\Tools\maven_repo\org\springframework\spring-jcl\5.2.5.RELEASE\spring-jcl-5.2.5.RELEASE.jar;D:\Program Files\JetBrains\IntelliJ IDEA 2020.1.1\lib\idea_rt.jar" com.reims.main.nacos.NacosApplication
Connected to the target VM, address: '127.0.0.1:57519', transport: 'socket'


  .   ____          _            __ _ _
 /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
 \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
  '  |____| .__|_| |_|_| |_\__, | / / / /
 =========|_|==============|___/=/_/_/_/
 :: Spring Boot ::        (v2.2.6.RELEASE)


2020-05-01 12:22:08.223  INFO 2316 --- [           main] com.reims.main.nacos.NacosApplication    : Starting NacosApplication on DESKTOP-MBI0KTI with PID 2316 (D:\ProjectWork\reims\nacos\target\classes started by wei in D:\ProjectWork\reims\nacos)
2020-05-01 12:22:08.227  INFO 2316 --- [           main] com.reims.main.nacos.NacosApplication    : No active profile set, falling back to default profiles: default
2020-05-01 12:22:08.933  INFO 2316 --- [           main] o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat initialized with port(s): 8080 (http)
2020-05-01 12:22:08.940  INFO 2316 --- [           main] o.apache.catalina.core.StandardService   : Starting service [Tomcat]
2020-05-01 12:22:08.940  INFO 2316 --- [           main] org.apache.catalina.core.StandardEngine  : Starting Servlet engine: [Apache Tomcat/9.0.33]
2020-05-01 12:22:08.997  INFO 2316 --- [           main] o.a.c.c.C.[Tomcat].[localhost].[/]       : Initializing Spring embedded WebApplicationContext
2020-05-01 12:22:08.997  INFO 2316 --- [           main] o.s.web.context.ContextLoader            : Root WebApplicationContext: initialization completed in 729 ms
2020-05-01 12:22:09.116  INFO 2316 --- [           main] o.s.s.concurrent.ThreadPoolTaskExecutor  : Initializing ExecutorService 'applicationTaskExecutor'
2020-05-01 12:22:09.241  INFO 2316 --- [           main] o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat started on port(s): 8080 (http) with context path ''
2020-05-01 12:22:09.243  INFO 2316 --- [           main] com.reims.main.nacos.NacosApplication    : Started NacosApplication in 1.356 seconds (JVM running for 2.355)

添加nacos 相关jar包引用:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.2.6.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.reims.main</groupId>
    <artifactId>nacos</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>nacos</name>
    <description>Demo project for Spring Boot</description>


    <properties>
        <java.version>1.8</java.version>
        <nacos.version>1.2.1</nacos.version>
    </properties>


    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>


        <!-- Nacos Server 相关配置 -->


        <dependency>
            <groupId>com.alibaba.nacos</groupId>
            <artifactId>nacos-config</artifactId>
            <version>${nacos.version}</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba.nacos</groupId>
            <artifactId>nacos-core</artifactId>
            <version>${nacos.version}</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba.nacos</groupId>
            <artifactId>nacos-naming</artifactId>
            <version>${nacos.version}</version>
        </dependency>


        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt-api</artifactId>
            <version>0.10.5</version>
        </dependency>
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt-impl</artifactId>
            <version>0.10.5</version>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt-jackson</artifactId>
            <version>0.10.5</version>
            <scope>runtime</scope>
        </dependency>


        <!--  Nacos Server END  -->


        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
    </dependencies>


    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <version>2.1.1.RELEASE</version>
                <executions>
                    <execution>
                        <goals>
                            <goal>repackage</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>


</project>

前端我们先直接复用，copy源码中static 目录到resources 目录下

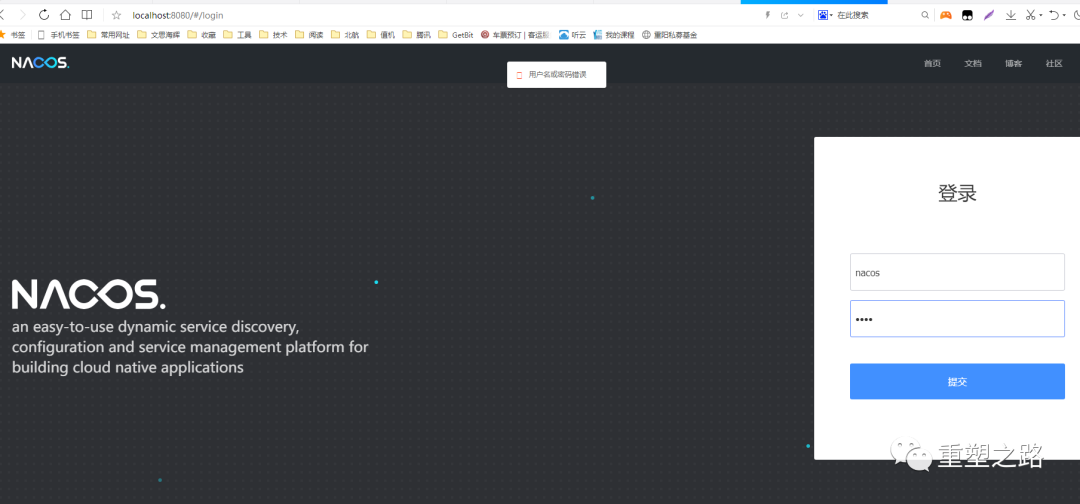

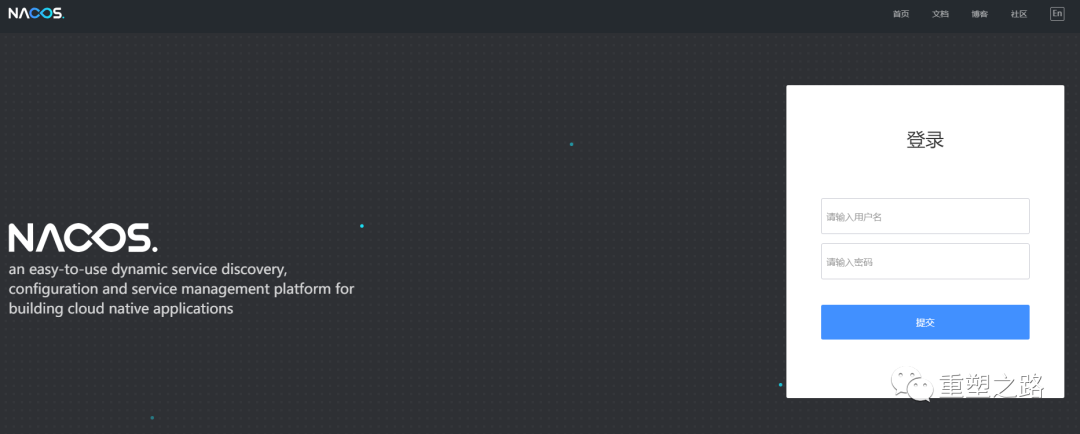

此时启动项目即可访问 http://localhost:8080，但是无法登录：

在application.properties 中添加端口和访问域：

# spring
server.servlet.context-path=/nacos
server.port=9000

实现功能

把源码中的代码实现复制到项目中（我尝试了最小构建，只复制某一个方法，但是发现nacos-config 依赖了很多东西，比较麻烦，所以干脆直接先复制过来。目前我们没有基于更深一层的源码构建，只能先这样了），

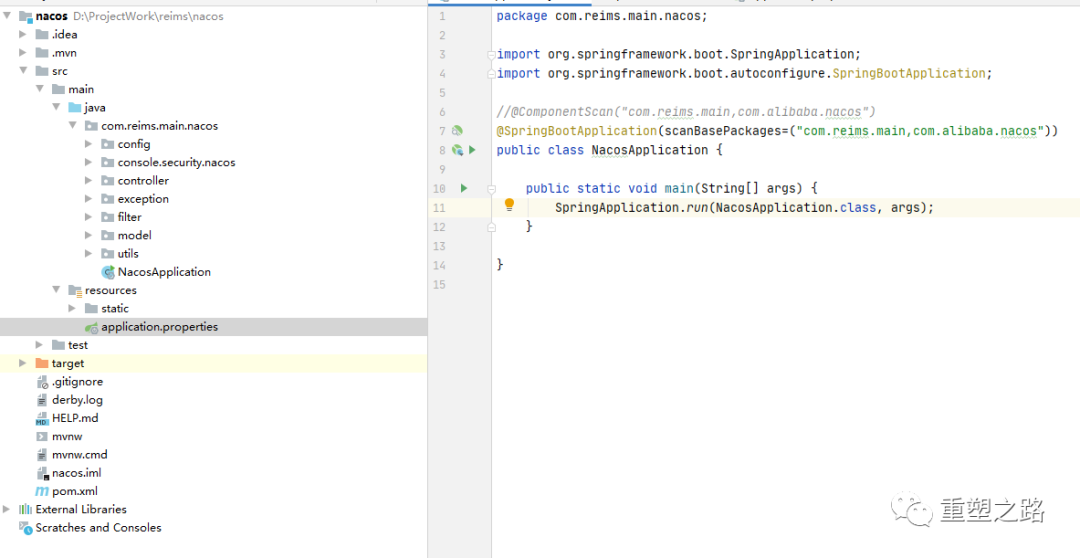

在修改启动类注解，增加nacos的扫描路径：

@SpringBootApplication(scanBasePackages=("com.reims.main,com.alibaba.nacos"))

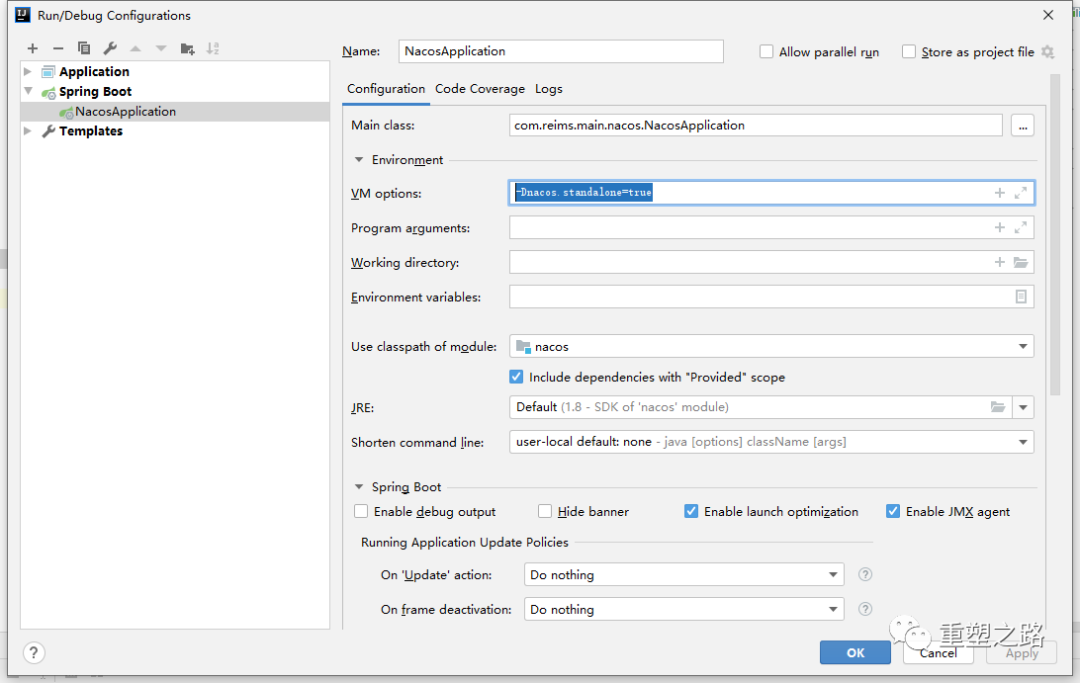

启动参数中添加单机启动：

-Dnacos.standalone=true

此时启动项目，报错：

Error starting ApplicationContext. To display the conditions report re-run your application with 'debug' enabled.
2020-05-01 23:06:43.745 ERROR 18756 --- [           main] o.s.boot.SpringApplication               : Application run failed


org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'configController' defined in URL [jar:file:/D:/Tools/maven_repo/com/alibaba/nacos/nacos-config/1.2.1/nacos-config-1.2.1.jar!/com/alibaba/nacos/config/server/controller/ConfigController.class]: Unsatisfied dependency expressed through constructor parameter 2; nested exception is org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'configSubService' defined in URL [jar:file:/D:/Tools/maven_repo/com/alibaba/nacos/nacos-config/1.2.1/nacos-config-1.2.1.jar!/com/alibaba/nacos/config/server/service/ConfigSubService.class]: Unsatisfied dependency expressed through constructor parameter 0; nested exception is org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'serverListService': Injection of autowired dependencies failed; nested exception is java.lang.IllegalArgumentException: Could not resolve placeholder 'useAddressServer' in value "${useAddressServer}"
  at org.springframework.beans.factory.support.ConstructorResolver.createArgumentArray(ConstructorResolver.java:798)
  at org.springframework.beans.factory.support.ConstructorResolver.autowireConstructor(ConstructorResolver.java:228)
  at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.autowireConstructor(AbstractAutowireCapableBeanFactory.java:1358)
  at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBeanInstance(AbstractAutowireCapableBeanFactory.java:1204)
  at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:557)
  at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:517)
  at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:323)
  at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:222)
  at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:321)
  at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:202)
  at org.springframework.beans.factory.support.DefaultListableBeanFactory.preInstantiateSingletons(DefaultListableBeanFactory.java:882)
  at org.springframework.context.support.AbstractApplicationContext.finishBeanFactoryInitialization(AbstractApplicationContext.java:878)
  at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:550)
  at org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext.refresh(ServletWebServerApplicationContext.java:141)
  at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:747)
  at org.springframework.boot.SpringApplication.refreshContext(SpringApplication.java:397)
  at org.springframework.boot.SpringApplication.run(SpringApplication.java:315)
  at org.springframework.boot.SpringApplication.run(SpringApplication.java:1226)
  at org.springframework.boot.SpringApplication.run(SpringApplication.java:1215)
  at com.reims.main.nacos.NacosApplication.main(NacosApplication.java:11)
Caused by: org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'configSubService' defined in URL [jar:file:/D:/Tools/maven_repo/com/alibaba/nacos/nacos-config/1.2.1/nacos-config-1.2.1.jar!/com/alibaba/nacos/config/server/service/ConfigSubService.class]: Unsatisfied dependency expressed through constructor parameter 0; nested exception is org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'serverListService': Injection of autowired dependencies failed; nested exception is java.lang.IllegalArgumentException: Could not resolve placeholder 'useAddressServer' in value "${useAddressServer}"
  at org.springframework.beans.factory.support.ConstructorResolver.createArgumentArray(ConstructorResolver.java:798)
  at org.springframework.beans.factory.support.ConstructorResolver.autowireConstructor(ConstructorResolver.java:228)
  at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.autowireConstructor(AbstractAutowireCapableBeanFactory.java:1358)
  at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBeanInstance(AbstractAutowireCapableBeanFactory.java:1204)
  at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:557)
  at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:517)
  at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:323)
  at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:222)
  at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:321)
  at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:202)
  at org.springframework.beans.factory.config.DependencyDescriptor.resolveCandidate(DependencyDescriptor.java:276)
  at org.springframework.beans.factory.support.DefaultListableBeanFactory.doResolveDependency(DefaultListableBeanFactory.java:1290)
  at org.springframework.beans.factory.support.DefaultListableBeanFactory.resolveDependency(DefaultListableBeanFactory.java:1210)
  at org.springframework.beans.factory.support.ConstructorResolver.resolveAutowiredArgument(ConstructorResolver.java:885)
  at org.springframework.beans.factory.support.ConstructorResolver.createArgumentArray(ConstructorResolver.java:789)
  ... 19 common frames omitted
Caused by: org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'serverListService': Injection of autowired dependencies failed; nested exception is java.lang.IllegalArgumentException: Could not resolve placeholder 'useAddressServer' in value "${useAddressServer}"
  at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor.postProcessProperties(AutowiredAnnotationBeanPostProcessor.java:405)
  at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.populateBean(AbstractAutowireCapableBeanFactory.java:1422)
  at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:594)
  at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:517)
  at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:323)
  at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:222)
  at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:321)
  at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:202)
  at org.springframework.beans.factory.config.DependencyDescriptor.resolveCandidate(DependencyDescriptor.java:276)
  at org.springframework.beans.factory.support.DefaultListableBeanFactory.doResolveDependency(DefaultListableBeanFactory.java:1290)
  at org.springframework.beans.factory.support.DefaultListableBeanFactory.resolveDependency(DefaultListableBeanFactory.java:1210)
  at org.springframework.beans.factory.support.ConstructorResolver.resolveAutowiredArgument(ConstructorResolver.java:885)
  at org.springframework.beans.factory.support.ConstructorResolver.createArgumentArray(ConstructorResolver.java:789)
  ... 33 common frames omitted
Caused by: java.lang.IllegalArgumentException: Could not resolve placeholder 'useAddressServer' in value "${useAddressServer}"
  at org.springframework.util.PropertyPlaceholderHelper.parseStringValue(PropertyPlaceholderHelper.java:178)
  at org.springframework.util.PropertyPlaceholderHelper.replacePlaceholders(PropertyPlaceholderHelper.java:124)
  at org.springframework.core.env.AbstractPropertyResolver.doResolvePlaceholders(AbstractPropertyResolver.java:236)
  at org.springframework.core.env.AbstractPropertyResolver.resolveRequiredPlaceholders(AbstractPropertyResolver.java:210)
  at org.springframework.context.support.PropertySourcesPlaceholderConfigurer.lambda$processProperties$0(PropertySourcesPlaceholderConfigurer.java:175)
  at org.springframework.beans.factory.support.AbstractBeanFactory.resolveEmbeddedValue(AbstractBeanFactory.java:909)
  at org.springframework.beans.factory.support.DefaultListableBeanFactory.doResolveDependency(DefaultListableBeanFactory.java:1231)
  at org.springframework.beans.factory.support.DefaultListableBeanFactory.resolveDependency(DefaultListableBeanFactory.java:1210)
  at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor$AutowiredFieldElement.inject(AutowiredAnnotationBeanPostProcessor.java:640)
  at org.springframework.beans.factory.annotation.InjectionMetadata.inject(InjectionMetadata.java:130)
  at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor.postProcessProperties(AutowiredAnnotationBeanPostProcessor.java:399)
  ... 45 common frames omitted


Disconnected from the target VM, address: '127.0.0.1:55865', transport: 'socket'


Process finished with exit code 1

在配置文件添加

useAddressServer=true

再次启动即可成功，访问：http://localhost:9000/nacos/

输入nacos/nacos 即可登录：

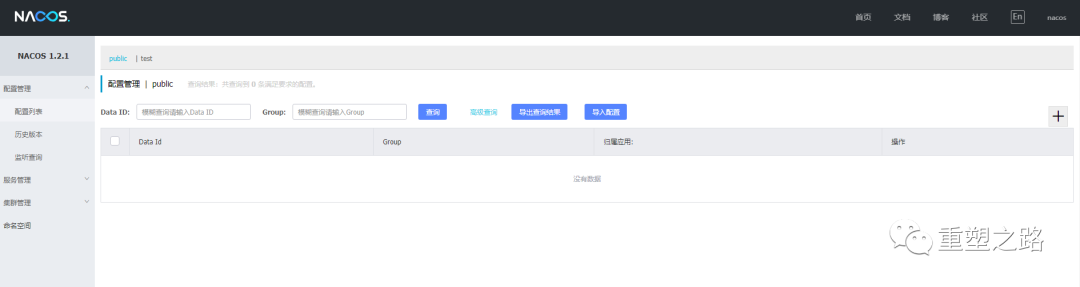

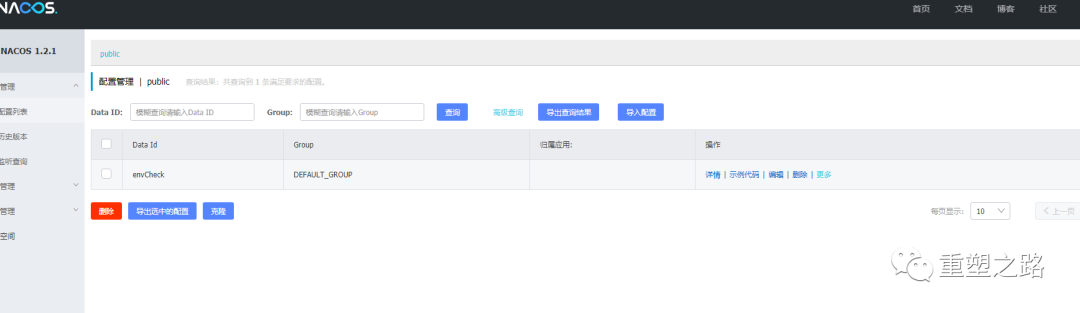

在配置文件添加数据库配置，登录成功后即可看到我们已有的配置：

登录流程详探

篇幅有限，今天先仅跟踪这一个流程。

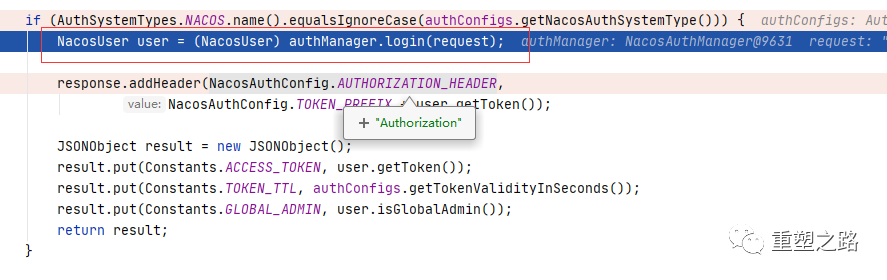

实现登陆的类为：UserController.java 中的login方法：

 @PostMapping("/login")
    public Object login(@RequestParam String username, @RequestParam String password,
                        HttpServletResponse response, HttpServletRequest request) throws AccessException {
        if (AuthSystemTypes.NACOS.name().equalsIgnoreCase(authConfigs.getNacosAuthSystemType())) {
            NacosUser user = (NacosUser) authManager.login(request);
            response.addHeader(NacosAuthConfig.AUTHORIZATION_HEADER,
                    NacosAuthConfig.TOKEN_PREFIX + user.getToken());


            JSONObject result = new JSONObject();
            result.put(Constants.ACCESS_TOKEN, user.getToken());
            result.put(Constants.TOKEN_TTL, authConfigs.getTokenValidityInSeconds());
            result.put(Constants.GLOBAL_ADMIN, user.isGlobalAdmin());
            return result;
        }

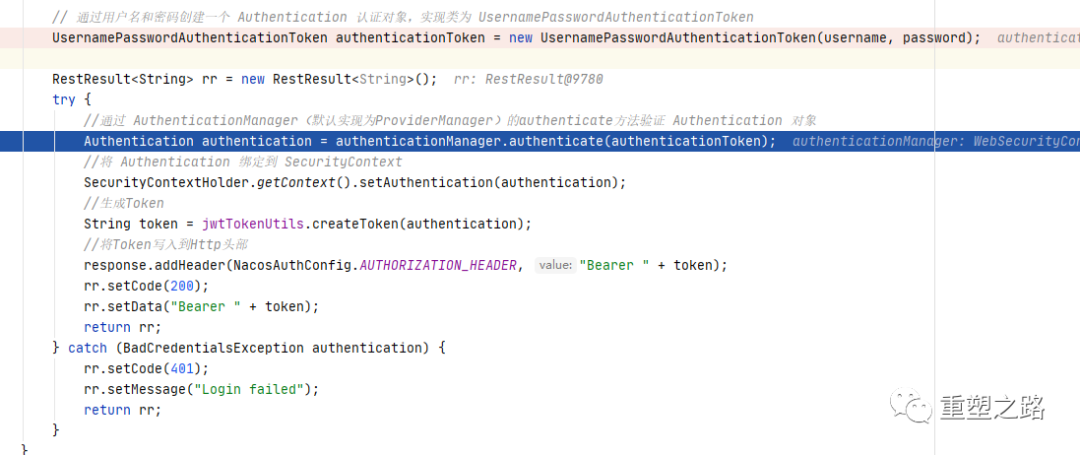

        // 通过用户名和密码创建一个 Authentication 认证对象，实现类为 UsernamePasswordAuthenticationToken
        UsernamePasswordAuthenticationToken authenticationToken = new UsernamePasswordAuthenticationToken(username, password);
        RestResult<String> rr = new RestResult<String>();
        try {
            //通过 AuthenticationManager（默认实现为ProviderManager）的authenticate方法验证 Authentication 对象
            Authentication authentication = authenticationManager.authenticate(authenticationToken);
            //将 Authentication 绑定到 SecurityContext
            SecurityContextHolder.getContext().setAuthentication(authentication);
            //生成Token
            String token = jwtTokenUtils.createToken(authentication);
            //将Token写入到Http头部
            response.addHeader(NacosAuthConfig.AUTHORIZATION_HEADER, "Bearer " + token);
            rr.setCode(200);
            rr.setData("Bearer " + token);
            return rr;
        } catch (BadCredentialsException authentication) {
            rr.setCode(401);
            rr.setMessage("Login failed");
            return rr;
        }
    }

可以看出，在if中判断了某个条件，形成了两种校验的方法。if中成立的条件是：配置文件中添加了以下两个参数，

nacos.core.auth.system.type=nacos
nacos.core.auth.default.token.secret.key=SecretKey012345678901234567890123456789012345678901234567890123456789

目前发现的区别在于使用以上配置时，生成tocken时会使用这个key和userName进行计算生成Tocken：

/**
     * Create token
     *
     * @param authentication auth info
     * @return token
     */
    public String createToken(Authentication authentication) {
        return createToken(authentication.getName());
    }
    public String createToken(String userName) {


        long now = (new Date()).getTime();


        Date validity;
        validity = new Date(now + authConfigs.getTokenValidityInSeconds() * 1000L);


        Claims claims = Jwts.claims().setSubject(userName);


        return Jwts.builder()
            .setClaims(claims)
            .setExpiration(validity)
            .signWith(SignatureAlgorithm.HS256, authConfigs.getSecretKey())
            .compact();
    }

未使用时，是直接生成的：

String token = jwtTokenUtils.createToken(authentication);

 /**
     * Create token
     *
     * @param authentication auth info
     * @return token
     */
    public String createToken(Authentication authentication) {
        /**
         * Current time
         */
        long now = (new Date()).getTime();
        /**
         * Validity date
         */
        Date validity;
        validity = new Date(now + this.tokenValidityInMilliseconds);


        /**
         * create token
         */
        return Jwts.builder()
            .setSubject(authentication.getName())
            .claim(AUTHORITIES_KEY, "")
            .setExpiration(validity)
            .signWith(secretKey, SignatureAlgorithm.HS256)
            .compact();
    }

举例：

使用nacos.core.auth.system.type使生成的tocken为：

不使用是生成tocken为：

可以看出，生成的方式明显是不一样的，第一种的更安全一些。

我们详细看下两种验证的方式：

第一种：

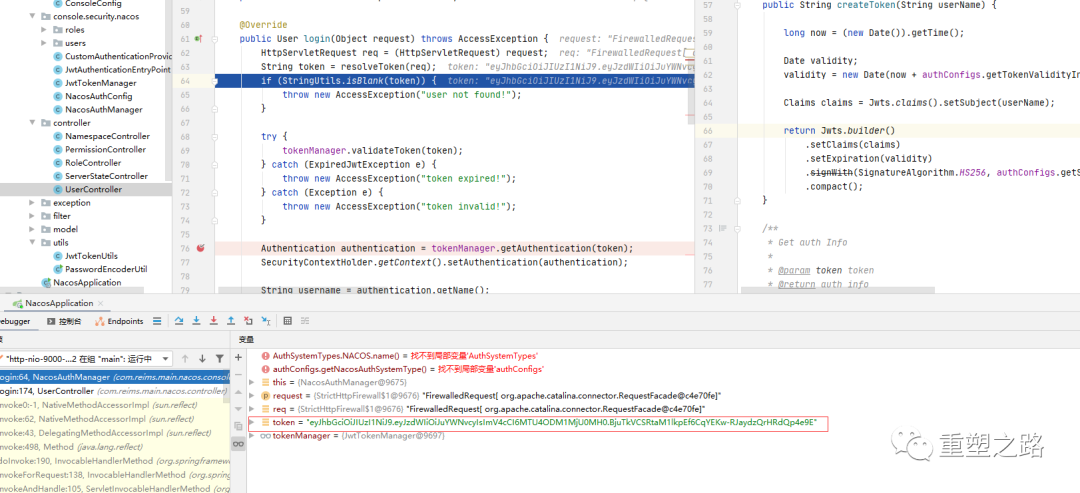

首先进入authManager.login 开始处理

通过resolveToken(req)来进行校验和生成Tocken

  @Override
    public User login(Object request) throws AccessException {
        HttpServletRequest req = (HttpServletRequest) request;
        String token = resolveToken(req);
        if (StringUtils.isBlank(token)) {
            throw new AccessException("user not found!");
        }


        try {
            tokenManager.validateToken(token);
        } catch (ExpiredJwtException e) {
            throw new AccessException("token expired!");
        } catch (Exception e) {
            throw new AccessException("token invalid!");
        }


        Authentication authentication = tokenManager.getAuthentication(token);
        SecurityContextHolder.getContext().setAuthentication(authentication);


        String username = authentication.getName();
        NacosUser user = new NacosUser();
        user.setUserName(username);
        user.setToken(token);
        List<RoleInfo> roleInfoList = roleService.getRoles(username);
        if (roleInfoList != null) {
            for (RoleInfo roleInfo : roleInfoList) {
                if (roleInfo.getRole().equals(NacosRoleServiceImpl.GLOBAL_ADMIN_ROLE)) {
                    user.setGlobalAdmin(true);
                    break;
                }
            }
        }


        return user;
    }

/**
     * Get token from header
     */
    private String resolveToken(HttpServletRequest request) throws AccessException {
        String bearerToken = request.getHeader(NacosAuthConfig.AUTHORIZATION_HEADER);
        if (StringUtils.isNotBlank(bearerToken) && bearerToken.startsWith(TOKEN_PREFIX)) {
            return bearerToken.substring(7);
        }
        bearerToken = request.getParameter(Constants.ACCESS_TOKEN);
        if (StringUtils.isBlank(bearerToken)) {
            String userName = request.getParameter("username");
            String password = request.getParameter("password");
            bearerToken = resolveTokenFromUser(userName, password);
        }


        return bearerToken;
    }
    private String resolveTokenFromUser(String userName, String rawPassword) throws AccessException {


        try {
            UsernamePasswordAuthenticationToken authenticationToken = new UsernamePasswordAuthenticationToken(userName, rawPassword);
            authenticationManager.authenticate(authenticationToken);
        } catch (AuthenticationException e) {
            throw new AccessException("unknown user!");
        }


        return tokenManager.createToken(userName);
    }

最终还是封装UsernamePasswordAuthenticationToken通过AuthenticationManager调用了WebSecurityConfigurerAda的authenticate方法（该方法调用AbstractUserDetailsAuthenticationProvider的authenticate）来调用了继承了UserDetails接口的NacosUserDetails（需实现loadUserByUsername方法）来实现数据库的查询

public Authentication authenticate(Authentication authentication)
        throws AuthenticationException {
      if (delegate != null) {
      //调用AbstractUserDetailsAuthenticationProvider的authenticate
        return delegate.authenticate(authentication);
      }


      synchronized (delegateMonitor) {
        if (delegate == null) {
          delegate = this.delegateBuilder.getObject();
          this.delegateBuilder = null;
        }
      }


      return delegate.authenticate(authentication);
    }

AbstractUserDetailsAuthenticationProvider的authenticate

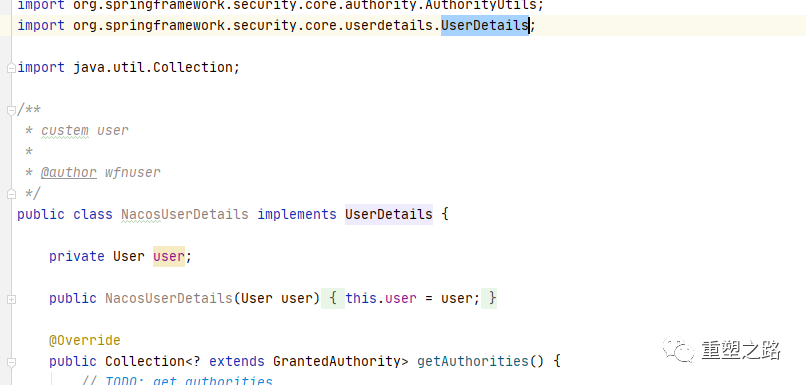

然后从userCache中获取继承了UserDetails的services，调用其loadUserByUsername方法实现数据库查询

public Authentication authenticate(Authentication authentication)
      throws AuthenticationException {
    Assert.isInstanceOf(UsernamePasswordAuthenticationToken.class, authentication,
        () -> messages.getMessage(
            "AbstractUserDetailsAuthenticationProvider.onlySupports",
            "Only UsernamePasswordAuthenticationToken is supported"));


    // Determine username
    String username = (authentication.getPrincipal() == null) ? "NONE_PROVIDED"
        : authentication.getName();


    boolean cacheWasUsed = true;
    //这里从userCache中获取继承了UserDetails的services
    UserDetails user = this.userCache.getUserFromCache(username);


    if (user == null) {
      cacheWasUsed = false;


      try {
      //如果通过名称无法从this.userCache获取，这里进行处理，会进入DaoAuthenticationProvider的retrieveUser方法
        user = retrieveUser(username,
            (UsernamePasswordAuthenticationToken) authentication);
      }
      catch (UsernameNotFoundException notFound) {
        logger.debug("User '" + username + "' not found");


        if (hideUserNotFoundExceptions) {
          throw new BadCredentialsException(messages.getMessage(
              "AbstractUserDetailsAuthenticationProvider.badCredentials",
              "Bad credentials"));
        }
        else {
          throw notFound;
        }
      }


      Assert.notNull(user,
          "retrieveUser returned null - a violation of the interface contract");
    }


    try {
      preAuthenticationChecks.check(user);
      additionalAuthenticationChecks(user,
          (UsernamePasswordAuthenticationToken) authentication);
    }
    catch (AuthenticationException exception) {
      if (cacheWasUsed) {
        // There was a problem, so try again after checking
        // we're using latest data (i.e. not from the cache)
        cacheWasUsed = false;
        user = retrieveUser(username,
            (UsernamePasswordAuthenticationToken) authentication);
        preAuthenticationChecks.check(user);
        additionalAuthenticationChecks(user,
            (UsernamePasswordAuthenticationToken) authentication);
      }
      else {
        throw exception;
      }
    }


    postAuthenticationChecks.check(user);


    if (!cacheWasUsed) {
      this.userCache.putUserInCache(user);
    }


    Object principalToReturn = user;


    if (forcePrincipalAsString) {
      principalToReturn = user.getUsername();
    }


    return createSuccessAuthentication(principalToReturn, authentication, user);
  }

DaoAuthenticationProvider的retrieveUser方法

 final UserDetails retrieveUser(String username,
      UsernamePasswordAuthenticationToken authentication)
      throws AuthenticationException {
    prepareTimingAttackProtection();
    try {
    //通过这里来加载继承了UserDetails的services，然后调用loadUserByUsername来获取数据
      UserDetails loadedUser = this.getUserDetailsService().loadUserByUsername(username);
      if (loadedUser == null) {
        throw new InternalAuthenticationServiceException(
            "UserDetailsService returned null, which is an interface contract violation");
      }
      return loadedUser;
    }
    catch (UsernameNotFoundException ex) {
      mitigateAgainstTimingAttack(authentication);
      throw ex;
    }
    catch (InternalAuthenticationServiceException ex) {
      throw ex;
    }
    catch (Exception ex) {
      throw new InternalAuthenticationServiceException(ex.getMessage(), ex);
    }
  }

/*
 * Copyright 1999-2018 Alibaba Group Holding Ltd.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package com.reims.main.nacos.console.security.nacos.users;




import com.alibaba.nacos.config.server.auth.UserPersistService;
import com.alibaba.nacos.config.server.model.Page;
import com.alibaba.nacos.config.server.model.User;
import com.alibaba.nacos.core.auth.AuthConfigs;
import com.alibaba.nacos.core.utils.Loggers;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.scheduling.annotation.Scheduled;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.stereotype.Service;


import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;


/**
 * Custem user service
 *
 * @author wfnuser
 * @author nkorange
 */
@Service
public class NacosUserDetailsServiceImpl implements UserDetailsService {


    private Map<String, User> userMap = new ConcurrentHashMap<>();


    @Autowired
    private UserPersistService userPersistService;


    @Autowired
    private AuthConfigs authConfigs;


    @Scheduled(initialDelay = 5000, fixedDelay = 15000)
    private void reload() {
        try {
            Page<User> users = getUsersFromDatabase(1, Integer.MAX_VALUE);
            if (users == null) {
                return;
            }


            Map<String, User> map = new ConcurrentHashMap<>(16);
            for (User user : users.getPageItems()) {
                map.put(user.getUsername(), user);
            }
            userMap = map;
        } catch (Exception e) {
            Loggers.AUTH.warn("[LOAD-USERS] load failed", e);
        }
    }


    @Override
    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
        User user = userMap.get(username);
        if (!authConfigs.isCachingEnabled()) {
            user = userPersistService.findUserByUsername(username);
        }


        if (user == null) {
            throw new UsernameNotFoundException(username);
        }
        return new NacosUserDetails(user);
    }


    public void updateUserPassword(String username, String password) {
        userPersistService.updateUserPassword(username, password);
    }


    public Page<User> getUsersFromDatabase(int pageNo, int pageSize) {
        return userPersistService.getUsers(pageNo, pageSize);
    }


    public User getUser(String username) {
        User user = userMap.get(username);
        if (!authConfigs.isCachingEnabled()) {
            user = getUserFromDatabase(username);
        }
        return user;
    }


    public User getUserFromDatabase(String username) {
        return userPersistService.findUserByUsername(username);
    }


    public void createUser(String username, String password) {
        userPersistService.createUser(username, password);
    }


    public void deleteUser(String username) {
        userPersistService.deleteUser(username);
    }
}

到此，生成Tocken完成。在

NacosAuthManager

的login方法中，后续继续获取了角色相关的信息，有代码可知是直接差了数据库，就不在详细描述！

第二种：

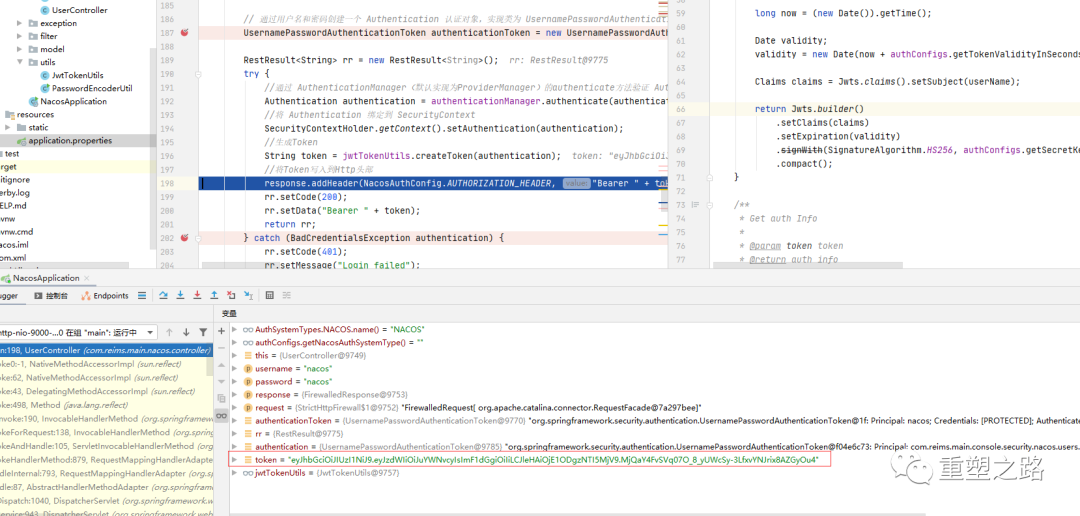

第二种方式是直接根据用户名和密码，创建了一个UsernamePasswordAuthenticationToken，然后调用authenticate方法直接进入WebSecurityConfigurerAda的authenticate方法来进行验证，之后的用户名和密码调用数据库验证过程与第一种是一致的。

验证完成后，直接调用jwtTokenUtils.createToken(authentication)来生成Tocken

   public String createToken(Authentication authentication) {
        /**
         * Current time
         */
        long now = (new Date()).getTime();
        /**
         * Validity date
         */
        Date validity;
        validity = new Date(now + this.tokenValidityInMilliseconds);


        /**
         * create token
         */
        return Jwts.builder()
            .setSubject(authentication.getName())
            .claim(AUTHORITIES_KEY, "")
            .setExpiration(validity)
            .signWith(secretKey, SignatureAlgorithm.HS256)
            .compact();
    }

至此，本次登录过程分析完毕，虽然更深的原理没有详细分析，比如Spring security 的验证过程和原理，不过这些不在本篇中详细讲述了，更多问题留待以后具体分析。

如果觉得有用，请点下在看，关注公众号重塑之路，第一时间得到资源推送

数据库

文章转载自重塑之路，如果涉嫌侵权，请发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。

第四篇：Nacos Server 详探

评论
