初体验 GaussDB T ——GaussDB T与Oracle体系结构对比

体系结构

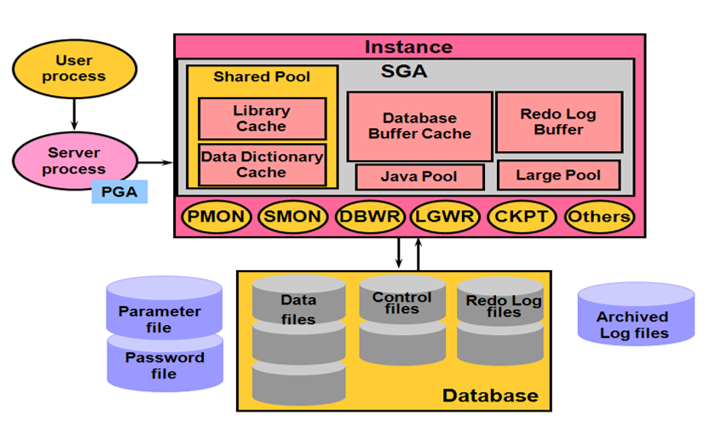

Oracle的体系结构

GaussDB T体系结构

Oracle vs GaussDB T ：从进程到线程服务器

Oracle 12c 开始支持线程服务器模式

通过设置初始化参数 threaded_execution ，可以启用或关闭多线程模式，该参数缺省值为False，设置为TRUE启用12c的这个新特性：

SQL> show parameter threaded_exec
NAME                    	TYPE       	VALUE
------------------------------------ -------------------	--------------------------
threaded_execution             	boolean   	FALSE
SQL> alter system set threaded_execution=true scope=spfile;

System altered.

操作系统上启动的进程只有5个（PMON / PSP0 / VKTM / DBW0 / U004 / U005），其中U进程是共享线程的“容器进程”，每个进程可以容纳100个线程：

[oracle@enmocoredb dbs]$ ps -ef|grep ora_
oracle   27404     1  0 17:00 ?        00:00:00 ora_pmon_core
oracle   27406     1  0 17:00 ?        00:00:00 ora_psp0_core
oracle   27408     1  3 17:00 ?        00:00:05 ora_vktm_core
oracle   27412     1  0 17:00 ?        00:00:00 ora_u004_core
oracle   27418     1  0 17:00 ?        00:00:00 ora_u005_core
oracle   27424     1  0 17:00 ?        00:00:00 ora_dbw0_core

GaussDB 以线程服务器模式运行

在启动日志中可以清晰的看到线程启动的顺序，GaussDB缺省启动 8 个 DBWR 线程 ：

ZENGINE|00000|9302|INFO>lgwr thread started
ZENGINE|00000|9303|INFO>dbwr thread started
ZENGINE|00000|9305|INFO>dbwr thread started
ZENGINE|00000|9306|INFO>dbwr thread started
ZENGINE|00000|9304|INFO>dbwr thread started
ZENGINE|00000|9307|INFO>dbwr thread started
ZENGINE|00000|9308|INFO>dbwr thread started
ZENGINE|00000|9309|INFO>dbwr thread started
ZENGINE|00000|9310|INFO>dbwr thread started
ZENGINE|00000|9311|INFO>ckpt thread started
ZENGINE|00000|9312|INFO>smon thread started
ZENGINE|00000|9313|INFO>stats thread started
ZENGINE|00000|9314|INFO>index page recycle thread started
ZENGINE|00000|9316|INFO>rollback thread started
ZENGINE|00000|9317|INFO>rmon thread started
ZENGINE|00000|9318|INFO>job master thread started
ZENGINE|00000|9319|INFO>reactor thread started
ZENGINE|00000|9320|INFO>tcp-lsnr thread started
ZENGINE|00000|9

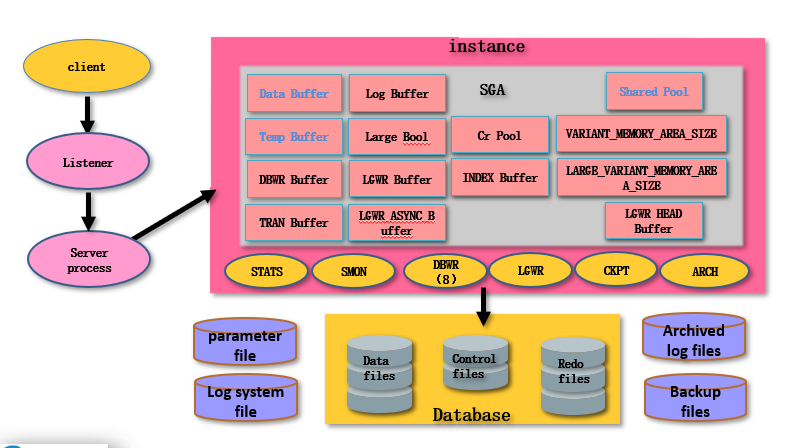

GaussDB T–体系结构：实例

UTC+8 2019-12-06 17:05:28.691|ZENGINE|00000|9300|INFO>[PARAM] LSNR_ADDR = 127.0.0.1
UTC+8 2019-12-06 17:05:28.691|ZENGINE|00000|9300|INFO>[PARAM] LSNR_PORT = 1611
UTC+8 2019-12-06 17:05:28.691|ZENGINE|00000|9300|INFO>[PARAM] DATA_BUFFER_SIZE = 2G
UTC+8 2019-12-06 17:05:28.691|ZENGINE|00000|9300|INFO>[PARAM] SHARED_POOL_SIZE = 1G
UTC+8 2019-12-06 17:05:28.691|ZENGINE|00000|9300|INFO>[PARAM] LOG_BUFFER_SIZE = 64M
UTC+8 2019-12-06 17:05:28.691|ZENGINE|00000|9300|INFO>[PARAM] LOG_BUFFER_COUNT = 8
UTC+8 2019-12-06 17:05:28.691|ZENGINE|00000|9300|INFO>[PARAM] TEMP_BUFFER_SIZE = 1G
UTC+8 2019-12-06 17:05:28.691|ZENGINE|00000|9300|INFO>[PARAM] CONTROL_FILES = (/gaussdb/gaussdata/data/cntl1, /gaussdb/gaussdata/data/cntl2, /gaussdb/gaussdata/data/cntl3)
UTC+8 2019-12-06 17:05:28.691|ZENGINE|00000|9300|INFO>[PARAM] DBWR_PROCESSES = 8
UTC+8 2019-12-06 17:05:28.691|ZENGINE|00000|9300|INFO>[PARAM] INSTANCE_NAME = enmotech
UTC+8 2019-12-06 17:05:28.691|ZENGINE|00000|9300|INFO>[PARAM] ENABLE_SYSDBA_LOGIN = TRUE
UTC+8 2019-12-06 17:05:28.691|ZENGINE|00000|206158439508|INFO>starting instance(normal)
UTC+8 2019-12-06 17:05:28.743|ZENGINE|00000|9302|INFO>lgwr thread started
UTC+8 2019-12-06 17:05:28.743|ZENGINE|00000|9303|INFO>dbwr thread started
UTC+8 2019-12-06 17:05:28.743|ZENGINE|00000|9305|INFO>dbwr thread started
UTC+8 2019-12-06 17:05:28.743|ZENGINE|00000|9306|INFO>dbwr thread started
UTC+8 2019-12-06 17:05:28.743|ZENGINE|00000|9304|INFO>dbwr thread started
UTC+8 2019-12-06 17:05:28.743|ZENGINE|00000|9307|INFO>dbwr thread started
UTC+8 2019-12-06 17:05:28.743|ZENGINE|00000|9308|INFO>dbwr thread started
UTC+8 2019-12-06 17:05:28.743|ZENGINE|00000|9309|INFO>dbwr thread started
UTC+8 2019-12-06 17:05:28.743|ZENGINE|00000|9310|INFO>dbwr thread started
UTC+8 2019-12-06 17:05:28.743|ZENGINE|00000|9311|INFO>ckpt thread started
UTC+8 2019-12-06 17:05:28.743|ZENGINE|00000|9312|INFO>smon thread started
UTC+8 2019-12-06 17:05:28.743|ZENGINE|00000|9313|INFO>stats thread started
UTC+8 2019-12-06 17:05:28.743|ZENGINE|00000|9314|INFO>index page recycle thread started
UTC+8 2019-12-06 17:05:28.743|ZENGINE|00000|9316|INFO>rollback thread started
UTC+8 2019-12-06 17:05:28.743|ZENGINE|00000|9317|INFO>rmon thread started
UTC+8 2019-12-06 17:05:28.743|ZENGINE|00000|9318|INFO>job master thread started
UTC+8 2019-12-06 17:05:28.782|ZENGINE|00000|9319|INFO>reactor thread started
UTC+8 2019-12-06 17:05:28.782|ZENGINE|00000|9320|INFO>tcp-lsnr thread started
UTC+8 2019-12-06 17:05:28.782|ZENGINE|00000|9321|INFO>uds-lsnr thread started

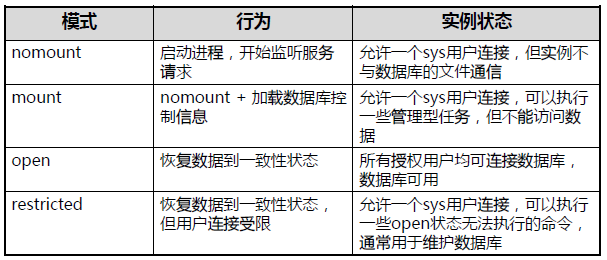

GaussDB T–体系结构：启动三阶段

[gaussdba@localhost~]$ zengine nomount-D /opt/gaussdb
starting instance(nomount)
[gaussdba@localhost~]$ zengine mount -D /opt/gaussdb/
starting instance(mount)
[gaussdba@localhost~]$ zengine
starting instance(normal)
[gaussdba@localhost~]$ zengine open
starting instance(normal)
[gaussdba@localhost~]$ zengine open -D /opt/gaussdb
starting instance(normal)

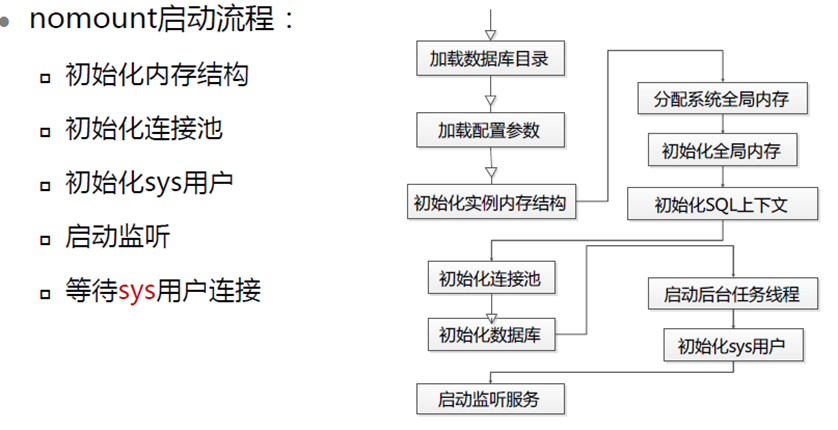

nomount模式：

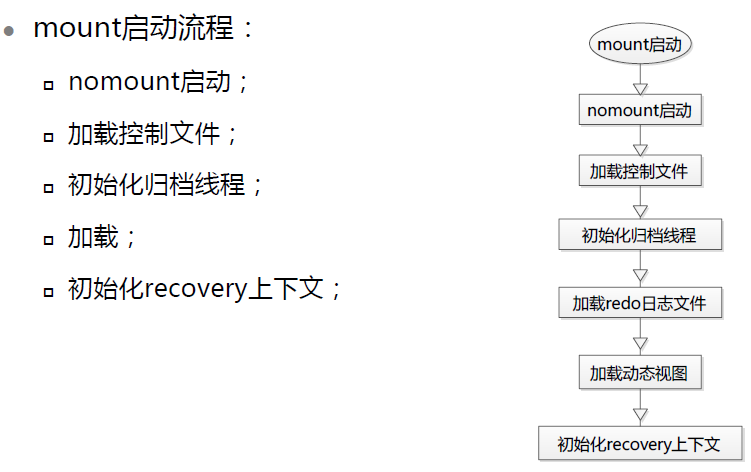

mount模式：

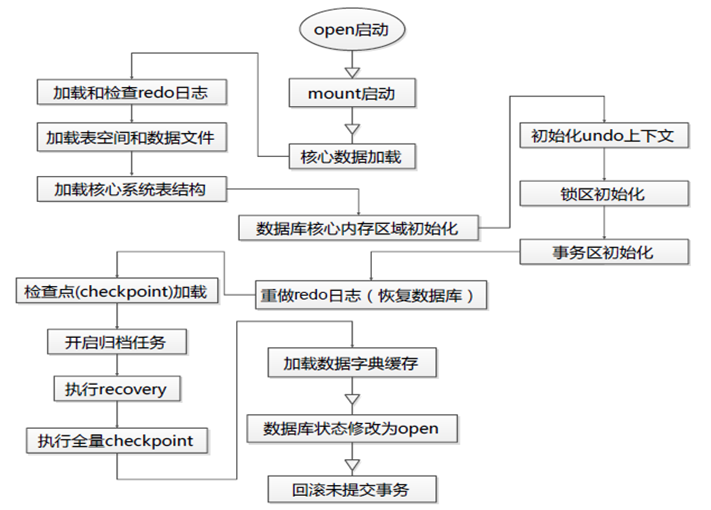

open模式：

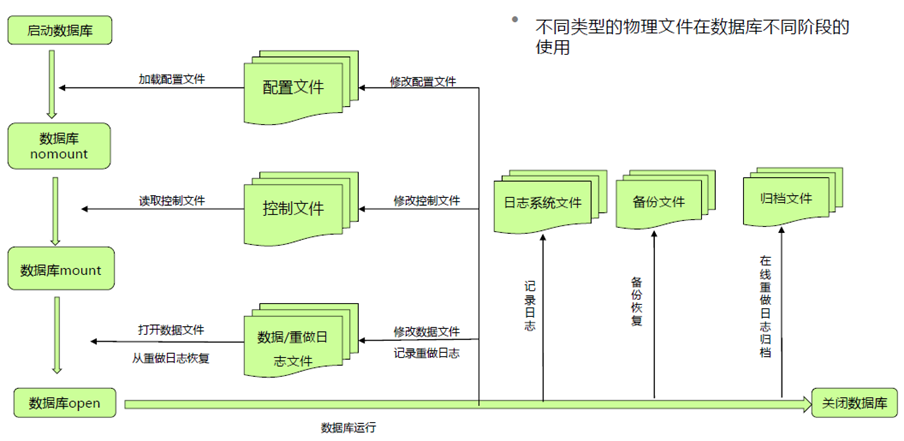

使用的物理文件：

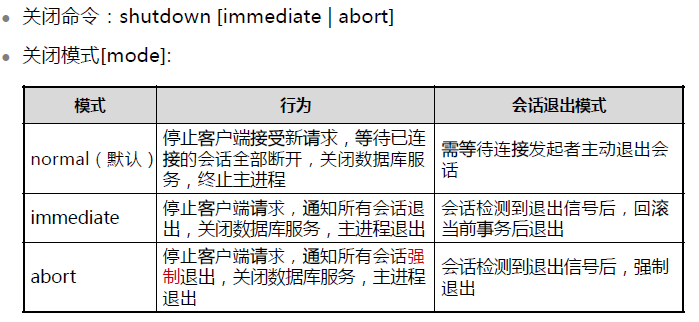

GaussDB T–体系结构：关闭模式

SQL> shutdown;
SQL> shutdown immediate;
SQL> shutdown abort;

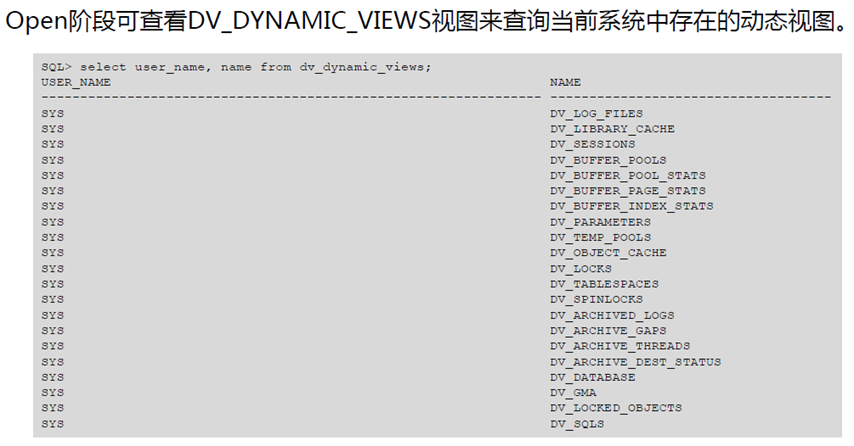

GaussDB T–体系结构：动态视图

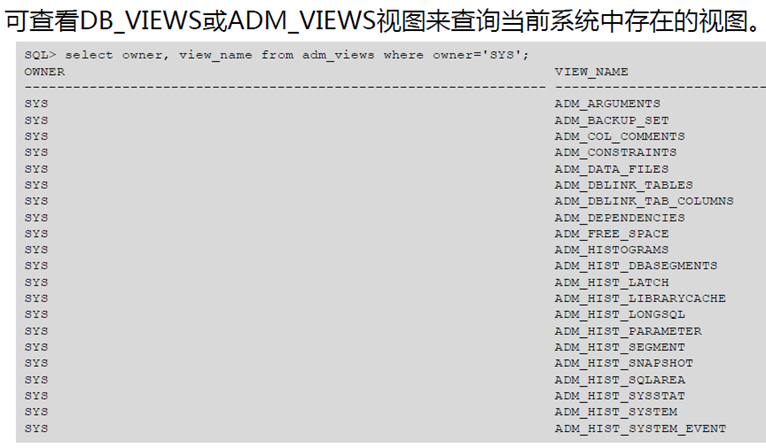

GaussDB T–体系结构：系统视图

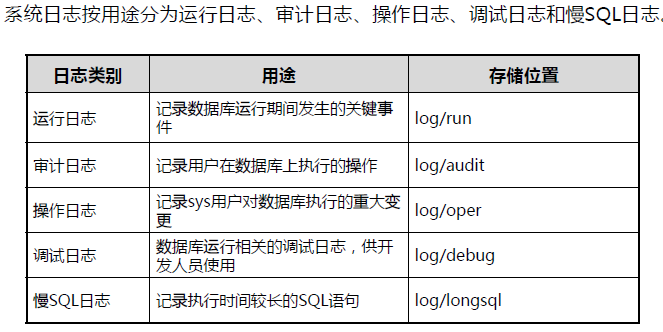

GaussDB T–体系结构：日志
