一、安装环境准备

1、部署架构规划

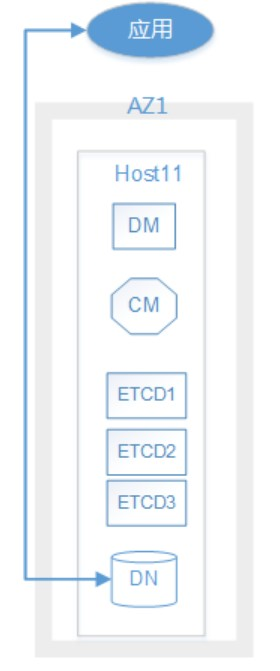

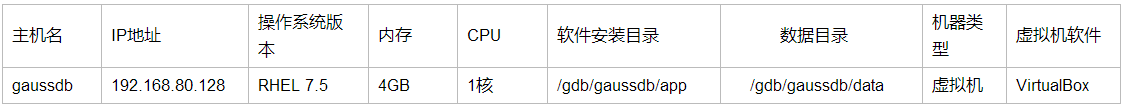

GaussDB 100单机部署的总体架构如上图，DM、CM、ETCD在单机部署中是非必要组件，因此本次不部署，DN节点规划如下：

注：数据目录需要>=20GB,如果要减小，需要修改install.py和create_database.sample.sql。

2、操作系统配置

root远程登录权限修改

sed -i 's/#PermitRootLogin yes/PermitRootLogin yes/g' /etc/ssh/sshd_config
sed -i 's/#PasswordAuthentication yes/ PasswordAuthentication yes/g' /etc/ssh/sshd_config

--修改完重庆sshd服务
/bin/systemctl restart sshd.service

关闭防火墙和SELinux（官方建议是添加信任，此处直接关闭避免后续连接有问题）

systemctl stop firewalld.service
systemctl disable firewalld.service
sed -i 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/selinux/config
     配置corefile
echo 'ulimit -c unlimited'>>/etc/profile
echo 'kernel.core_pattern =/opt/gdb/corefile/core-%e-%p-%t'>>/etc/sysctl.conf
--使配置生效
source /etc/profile
sysctl -p

检查ntp和lsof（此单机环境不需要ntp，可略过）

rpm -qa|grep ntp   --NTP 4.2.6或以上版本
若没有，使用yum安装ntp
yum install ntp
which lsof
--若没有，使用yum安装lsof
yum install lsof

创建数据库安装用户组和用户

groupadd dbgrp
useradd -g dbgrp -d /home/omm -m -s /bin/bash omm
--设置密码
passwd omm

配置数据目录

--查看可用磁盘
[root@gaussdb ~]# lsblk
NAME          MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
sda             8:0    0    8G  0 disk
├─sda1          8:1    0  200M  0 part /boot
└─sda2          8:2    0  7.8G  0 part
  ├─rhel-root 253:0    0  6.8G  0 lvm  /
  └─rhel-swap 253:1    0    1G  0 lvm  [SWAP]
sdb             8:16   0   20G  0 disk
sdc             8:32   0    1G  0 disk
sr0            11:0    1 1024M  0 rom
--创建PV
[root@gaussdb ~]# pvcreate /dev/sdb /dev/sdc
  Physical volume "/dev/sdb" successfully created.
  Physical volume "/dev/sdc" successfully created.
--创建GV
[root@gaussdb ~]# vgcreate  datavg /dev/sdb /dev/sdc
  Volume group "datavg" successfully created
--创建LV
[root@gaussdb ~]# lvcreate -L 20G -n datalv  datavg
  Logical volume "datalv" created.
--格式化LV
[root@gaussdb ~]# mkfs.ext4 /dev/datavg/datalv
--创建挂载点目录
[root@gaussdb ~]# mkdir -p /gdb/gaussdb/data
--挂载LV
[root@gaussdb ~]# mount /dev/datavg/datalv /gdb/gaussdb/data
--删除目录中的lost+found文件，防止安装软件时报错
[root@gaussdb ~]# find /gdb -name lost+found |  xargs rm -rf
--将文件挂载信息写入fstab文件
[root@gaussdb ~]# cat /etc/fstab
#
# /etc/fstab
# Created by anaconda on Wed Feb 19 17:30:47 2020
#
# Accessible filesystems, by reference, are maintained under '/dev/disk'
# See man pages fstab(5), findfs(8), mount(8) and/or blkid(8) for more info
#
/dev/mapper/rhel-root   /                       ext4    defaults        1 1
UUID=a3e33662-9f1b-4a0a-a8c2-7f7681c5d6c9 /boot                   xfs     defaults        0 0
/dev/mapper/rhel-swap   swap                    swap    defaults        0 0
/dev/datavg/datalv      /gdb/gaussdb/data       ext4    defaults,noatime,nobarrier        0 0  --注意添加noatime,nobarrier选项，提升性能
--重新挂载文件系统
[root@gaussdb ~]# mount -o remount /gdb/gaussdb/data

二、安装数据库软件

解压安装包（本次使用的是一个大包，包含多个安装包，因此解压了多次）

chown omm:dbgrp GaussDB_100_1.0.1-REDHAT7.5-X86.tar.gz
su - omm
tar -xvf GaussDB_100_1.0.1-REDHAT7.5-X86.tar.gz
tar -xvf GaussDB_100_1.0.1-CLUSTER-REDHAT7.5-64bit.tar.gz

[omm@gaussdb software]$ tar -xvf GaussDB_100_1.0.1-DATABASE-REDHAT-64bit.tar.gz
GaussDB_100_1.0.1-DATABASE-REDHAT-64bit/
GaussDB_100_1.0.1-DATABASE-REDHAT-64bit/sshexkey.py
GaussDB_100_1.0.1-DATABASE-REDHAT-64bit/upgrade.py
GaussDB_100_1.0.1-DATABASE-REDHAT-64bit/funclib.py
GaussDB_100_1.0.1-DATABASE-REDHAT-64bit/install.py
GaussDB_100_1.0.1-DATABASE-REDHAT-64bit/GaussDB_100_1.0.1-RUN-REDHAT-64bit.sha256
GaussDB_100_1.0.1-DATABASE-REDHAT-64bit/GaussDB_100_1.0.1-RUN-REDHAT-64bit.tar.gz

使用root用户安装（添加-O参数不建库，手工建库方便定制化）

python install.py -U omm:dbgrp -R /gdb/gaussdb/app -D /gdb/gaussdb/data -O

三、手工建库

1、 配置参数文件

虽然安装软件是没有建库，但是相关的目录已经创建好，不需要手工创建

--到 /gdb/gaussdb/data/cfg目录修改zengine.ini
TEMP_BUFFER_SIZE = 1G
DATA_BUFFER_SIZE = 2G
SHARED_POOL_SIZE = 1G
LOG_BUFFER_SIZE = 64M
DBWR_PROCESSES = 8
LOG_BUFFER_COUNT = 8
SESSIONS = 800       --跟进需要设置，最大值为8000
INSTANCE_NAME = gyl  --修改实例名
LSNR_ADDR = 127.0.0.1,192.168.80.128   --添加本机地址到监听端口
LSNR_PORT = 1888   --监听端口
ENABLE_SYSDBA_LOGIN = TRUE

2、启动数据库到nomount阶段

[omm@gaussdb cfg]$ cd $GSDB_HOME/bin
[omm@gaussdb bin]$ python zctl.py -t start -m nomount -D /gdb/gaussdb/data
Successfully started instance.

3、创建数据库

[omm@gaussdb bin]$ zsql / as sysdba
Warning: SSL connection to server without CA certificate is insecure. Continue anyway? (y/n):y
connected.
SQL> @/home/omm/create_db.sql
SQL>   2   3   4   5   6   7   8   9  10  11  12  13  14  15  16  17  18
Succeed.
SQL>
SQL> select instance_name,status from dv_instance;
INSTANCE_NAME        STATUS
-------------------- --------------------
gyl                  OPEN
1 rows fetched.
SQL> select name,status from dv_database;
NAME                             STATUS
-------------------------------- --------------------
GYL                              OPEN
1 rows fetched.

create_db.sql内容如下

create database gyl character set utf8
CONTROLFILE('/gdb/gaussdb/data/cntl1', '/gdb/gaussdb/data/cntl2', '/gdb/gaussdb/data/cntl3')
LOGFILE('/gdb/gaussdb/data/log1' size 128M,     --这里将日志组数和大小进行了修改
        '/gdb/gaussdb/data/log2' size 128M,
        '/gdb/gaussdb/data/log3' size 128M)
 system tablespace DATAFILE '/gdb/gaussdb/data/system' size 1G
 undo tablespace DATAFILE '/gdb/gaussdb/data/undo' size 1G
 default tablespace DATAFILE '/gdb/gaussdb/data/user1' size 1G autoextend on next 32M,
 '/gdb/gaussdb/data/user2' size 1G autoextend on next 32M,
 '/gdb/gaussdb/data/user3' size 1G autoextend on next 32M,
 '/gdb/gaussdb/data/user4' size 1G autoextend on next 32M,
 '/gdb/gaussdb/data/user5' size 1G autoextend on next 32M
 temporary tablespace TEMPFILE '/gdb/gaussdb/data/temp1_01' size 160M autoextend on next 32M,
 '/gdb/gaussdb/data/temp1_02' size 160M autoextend on next 32M nologging
 tablespace TEMPFILE '/gdb/gaussdb/data/temp2_01' size 160M autoextend on next 32M,
 '/gdb/gaussdb/data/temp2_02' size 160M autoextend on next 32M
 nologging undo tablespace TEMPFILE '/gdb/gaussdb/data/temp2_undo' size 1G
 sysaux tablespace DATAFILE '/gdb/gaussdb/data/sysaux' size 160M autoextend on next 32M ARCHIVELOG;

至此，安装结束！

4、附录

1、测试监听连接

[omm@gaussdb bin]$ zsql sys/Changeme_123@127.0.0.1:1888
Warning: SSL connection to server without CA certificate is insecure. Continue anyway? (y/n):y
connected.
SQL> select instance_name,status from dv_instance;
INSTANCE_NAME        STATUS
-------------------- --------------------
gyl                  OPEN
1 rows fetched.

2、主进程状态问题修正

--此时主进程显示的状态还是nomount
[omm@gaussdb ~]$ ps -ef | grep zen
omm       2452     1  5 13:21 pts/0    00:00:21 /gdb/gaussdb/app/bin/zengine nomount -D /gdb/gaussdb/data
--下面做一次启停修复状态
[omm@gaussdb bin]$ python zctl.py -t stop -m immediate
Successfully stopped instance.
[omm@gaussdb bin]$ python zctl.py -t start
Successfully started instance.
[omm@gaussdb bin]$
[omm@gaussdb bin]$ ps -ef | grep zen
omm       2612     1  2 13:34 pts/0    00:00:00 /gdb/gaussdb/app/bin/zengine open -D /gdb/gaussdb/data
omm       2646  2221  0 13:34 pts/0    00:00:00 grep --color=auto zen
[omm@gaussdb bin]$
[omm@gaussdb bin]$ zsql sys/Changeme_123@127.0.0.1:1888
Warning: SSL connection to server without CA certificate is insecure. Continue anyway? (y/n):y
connected.
SQL> select instance_name,status from dv_instance;
INSTANCE_NAME        STATUS
-------------------- --------------------
gyl                  OPEN
1 rows fetched.
