学习目标

学习openGauss存储模型-行存和列存
行存储是指将表按行存储到硬盘分区上，列存储是指将表按列存储到硬盘分区上。默认情况下，创建的表为行存储。
行、列存储模型各有优劣，通常用于TP场景的数据库，默认使用行存储，仅对执行复杂查询且数据量大的AP场景时，才使用列存储

课程学习

连接数据库
#第一次进入等待15秒
#数据库启动中...

su - omm
gsql -r

1.创建行存表

CREATE TABLE test_t1
(
col1 CHAR(2),
col2 VARCHAR2(40),
col3 NUMBER
);

–压缩属性为no

\d+ test_t1
insert into test_t1 select col1, col2, col3 from (select generate_series(1, 100000) as key, repeat(chr(int4(random() * 26) + 65), 2) as col1, repeat(chr(int4(random() * 26) + 65), 30) as col2, (random() * (10^4))::integer as col3);

2.创建列存表

CREATE TABLE test_t2
(
col1 CHAR(2),
col2 VARCHAR2(40),
col3 NUMBER
)
WITH (ORIENTATION = COLUMN);

–压缩属性为low

\d+ test_t2;

–插入和行存表相同的数据

insert into test_t2 select * from test_t1;

3.占用空间对比

\d+

4.对比读取一列的速度

analyze VERBOSE test_t1;
analyze VERBOSE test_t2;

–列存表时间少于行存表

explain analyze select distinct col1 from test_t1;
explain analyze select distinct col1 from test_t2;

5.对比插入一行的速度

–行存表时间少于列存表

explain analyze insert into test_t1 values('x', 'xxxx', '123');
explain analyze insert into test_t2 values('x', 'xxxx', '123');

6.清理数据

drop table test_t1;
drop table test_t2;

课程作业

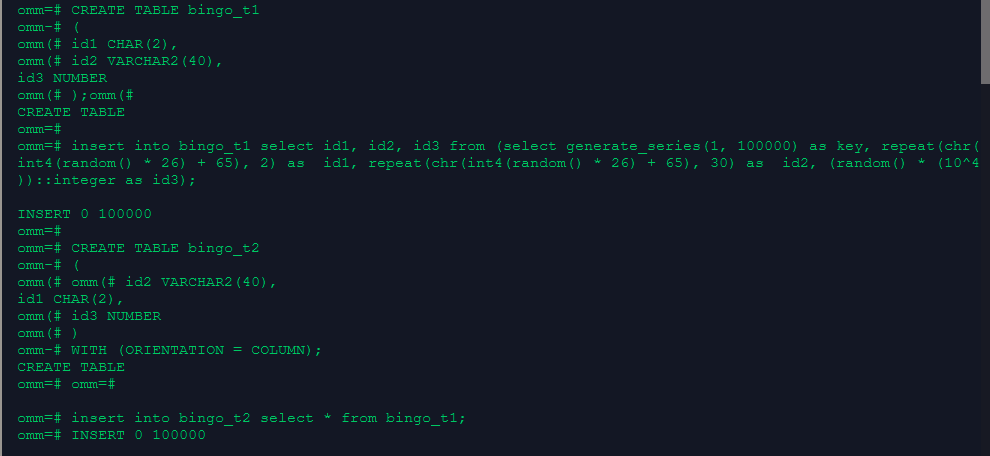

1.创建行存表和列存表，并批量插入10万条数据(行存表和列存表数据相同)

--创建行存表

CREATE TABLE bingo_t1
(
	id1 CHAR(2),
	id2 VARCHAR2(40),
	id3 NUMBER
);

insert into bingo_t1 select id1, id2, id3 from (select generate_series(1, 100000) as key, repeat(chr(int4(random() * 26) + 65), 2) as  id1, repeat(chr(int4(random() * 26) + 65), 30) as  id2, (random() * (10^4))::integer as id3);

--创建列存表

CREATE TABLE test_t2
(
col1 CHAR(2),
col2 VARCHAR2(40),
col3 NUMBER
)
WITH (ORIENTATION = COLUMN);

–插入和行存表相同的数据

insert into test_t2 select * from test_t1;

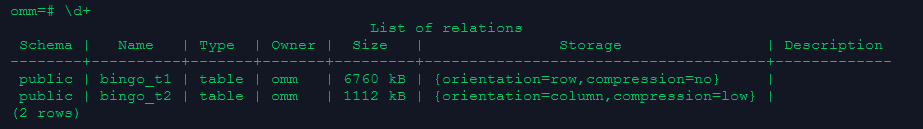

2.对比行存表和列存表空间大小

\d+

3.对比查询一列和插入一行的速度

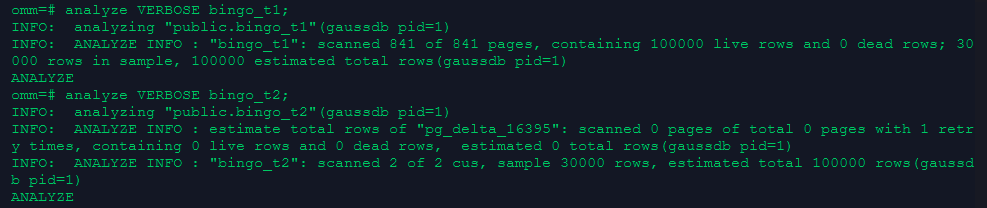

analyze VERBOSE bingo_t1;
analyze VERBOSE bingo_t2;

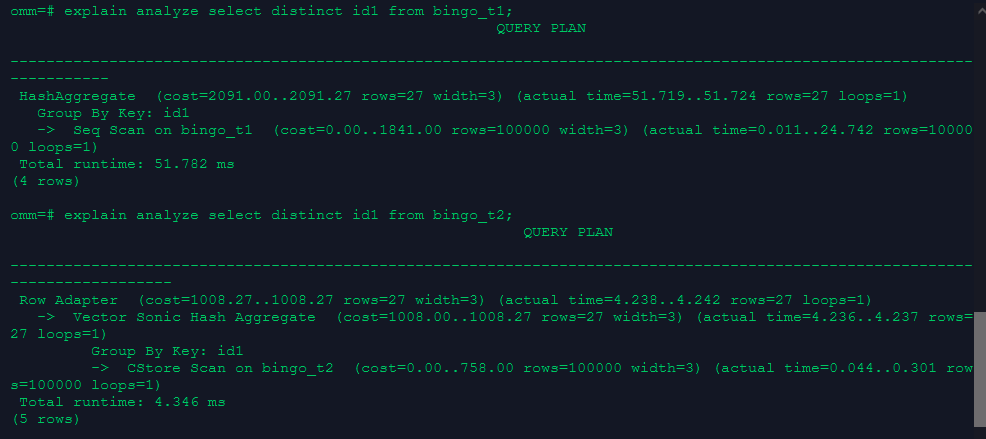

–查询一列

explain analyze select distinct id1 from bingo_t1;
explain analyze select distinct id1 from bingo_t2;

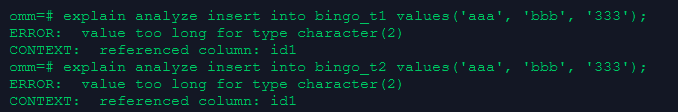

-插入一行

explain analyze insert into bingo_t1 values('a', 'ccc', '333');
explain analyze insert into bingo_t2 values('b', 'ccc', '333');

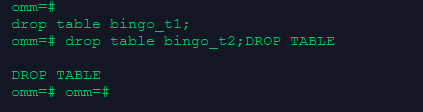

4.清理数据

drop table bingo_t1;
drop table bingo_t2;
