独家 | ​多项式回归：从零开始学习梯度下降

coeffs = [2,-5, 4]

def eval_2nd_degree(coeffs, x):
    """
    Function to return the outputof evaluating a second degree polynomial,
    given a specific x value.


    Args:
        coeffs: List containingthe coefficients a,b, and c for the polynomial.
        x: The input x value tothe polynomial.


    Returns:
        y: The correspondingoutput y value for the second degree polynomial.


    """
    a = (coeffs[0]*(x*x))
    b = coeffs[1]*x
    c = coeffs[2]
    y = a+b+c
    return y

coeffs = [2, -5, 4]
x=3
eval_2nd_degree(coeffs, x)


7

import numpy as np
import matplotlib.pyplot as plt


hundred_xs=np.random.uniform(-10,10,100)
print(hundred_xs)


x_y_pairs = []
for x in hundred_xs:
    y  =eval_2nd_degree(coeffs, x)
    x_y_pairs.append((x,y))


xs = []
ys = []
for a,b in x_y_pairs:
    xs.append(a)
    ys.append(b)

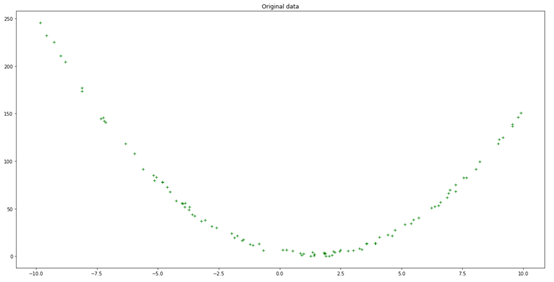

plt.figure(figsize=(20,10))
plt.plot(xs, ys, 'g+')
plt.title('Original data')
plt.show()

defeval_2nd_degree_jitter(coeffs, x, j):
    """
    Function to return the noisy output ofevaluating a second degree polynomial,
    given a specific x value. Output values canbe within [y−j,y+j].


    Args:
        coeffs: List containing thecoefficients a,b, and c for the polynomial.
        x: The input x value to the polynomial.
        j: Jitter parameter, to introduce noiseto output y.


    Returns:
        y: The corresponding jittered output yvalue for the second degree polynomial.


    """
    a = (coeffs[0]*(x*x))
    b = coeffs[1]*x
    c = coeffs[2]
    y = a+b+c
    print(y)


    interval = [y-j, y+j]
    interval_min = interval[0]
    interval_max = interval[1]
    print(f"Should get value in the range{interval_min} - {interval_max}")
    jit_val = random.random() *interval_max      # Generate a randomnumber in range 0 to interval max


    while interval_min > jit_val:                 # While the random jittervalue is less than the interval min,
        jit_val = random.random() *interval_max  # it is not in the rightrange. Re-roll the generator until it
                                                 # give a number greater than the interval min.


    return jit_val

7
Should get value in the range 3 - 11
6.233537936801398

x_y_pairs = []
for x in hundred_xs:
    y  =eval_2nd_degree_jitter(coeffs, x, j)
    x_y_pairs.append((x,y))


xs = []
ys = []
for a,b in x_y_pairs:
    xs.append(a)
    ys.append(b)


plt.figure(figsize=(20,10))
plt.plot(xs, ys, 'g+')
plt.title('Original data')
plt.show()

rand_coeffs=(random.randrange(-10,10),random.randrange(-10,10),random.randrange(-10,10))
rand_coeffs


(7, 6, 3)

y_bar =eval_2nd_degree(rand_coeffs, hundred_xs)

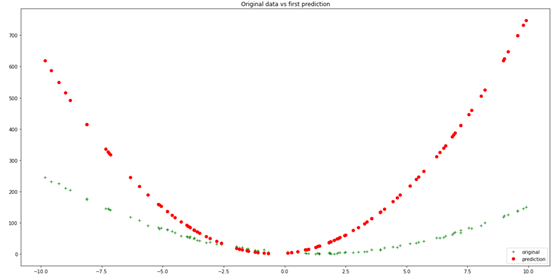

plt.figure(figsize=(20,10))
plt.plot(xs, ys, 'g+', label ='original')
plt.plot(xs, y_bar, 'ro',label='prediction')
plt.title('Original data vsfirst prediction')
plt.legend(loc="lowerright")
plt.show()

def loss_mse(ys, y_bar):
    """
    Calculates MSE loss.


    Args:
        ys: training data labels
        y_bar: prediction labels


    Returns: Calculated MSE loss.
    """
    return sum((ys - y_bar)*(ys - y_bar)) /len(ys)


  initial_model_loss = loss_mse(ys, y_bar)


  initial_model_loss


47922.39790821987

defcalc_gradient_2nd_poly(rand_coeffs, hundred_xs, ys):
    """
    calculates the gradient for a second degreepolynomial.


    Args:
        coeffs: a,b and c, for a 2nd degreepolynomial [ y = ax^2 + bx + c ]
        inputs_x: x input datapoints
        outputs_y: actual y output points


    Returns: Calculated gradients for the 2nddegree polynomial, as a tuple of its parts for a,b,c respectively.


    """


    a_s = []
    b_s = []
    c_s = []




    y_bars = eval_2nd_degree(rand_coeffs,hundred_xs)


    for x,y,y_bar in list(zip(hundred_xs, ys,y_bars)):    # take tuple of (xdatapoint, actual y label, predicted y label)
        x_squared = x**2
        partial_a = x_squared * (y - y_bar)
        a_s.append(partial_a)
        partial_b = x * (y-y_bar)
        b_s.append(partial_b)
        partial_c = (y-y_bar)
        c_s.append(partial_c)


    num = [i for i in y_bars]
    n = len(num)


    gradient_a = (-2 / n) * sum(a_s)
    gradient_b = (-2 / n) * sum(b_s)
    gradient_c = (-2 / n) * sum(c_s)
    return(gradient_a, gradient_b,gradient_c)   # return calculatedgradients as a a tuple of its 3 parts

calc_grad= calc_gradient_2nd_poly(rand_coeffs, hundred_xs, ys)


lr =0.0001
a_new= rand_coeffs[0] - lr * calc_grad[0]
b_new= rand_coeffs[1] - lr * calc_grad[1]
c_new= rand_coeffs[2] - lr * calc_grad[2]


new_model_coeffs= (a_new, b_new, c_new)
print(f"Newmodel coeffs: {new_model_coeffs}")
print("")


#updatewith these new coeffs:
new_y_bar= eval_2nd_degree(new_model_coeffs, hundred_xs)
updated_model_loss= loss_mse(ys, new_y_bar)


print(f"Nowhave smaller model loss: {updated_model_loss} vs {original_model_loss}")

New model coeffs: 5.290395171471687 5.903335222089396 2.9704266522693037
Now have smaller model loss: 23402.14716735533 vs 47922.39790821987

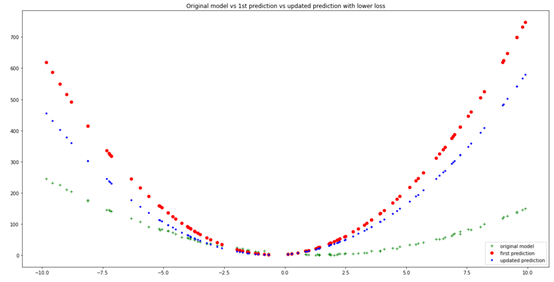

plt.figure(figsize=(20,10))
plt.plot(xs, ys, 'g+', label ='original model')
plt.plot(xs, y_bar, 'ro', label= 'first prediction')
plt.plot(xs, new_y_bar, 'b.',label = 'updated prediction')
plt.title('Original model vs1st prediction vs updated prediction with lower loss')
plt.legend(loc="lower right")
plt.show()

defcalc_gradient_2nd_poly_for_GD(coeffs, inputs_x, outputs_y, lr):
    """
    calculates the gradient for a second degreepolynomial.


    Args:
        coeffs: a,b and c, for a 2nd degreepolynomial [ y = ax^2 + bx + c ]
        inputs_x: x input datapoints
        outputs_y: actual y output points
        lr: learning rate


    Returns: Calculated gradients for the 2nddegree polynomial, as a tuple of its parts for a,b,c respectively.


    """
    a_s = []
    b_s = []
    c_s = []


    y_bars = eval_2nd_degree(coeffs, inputs_x)


    for x,y,y_bar in list(zip(inputs_x,outputs_y, y_bars)):    # take tuple of(x datapoint, actual y label, predicted y label)
        x_squared = x**2
        partial_a = x_squared * (y - y_bar)
        a_s.append(partial_a)
        partial_b = x * (y-y_bar)
        b_s.append(partial_b)
        partial_c = (y-y_bar)
        c_s.append(partial_c)


    num = [i for i in y_bars]
    n = len(num)


    gradient_a = (-2 / n) * sum(a_s)
    gradient_b = (-2 / n) * sum(b_s)
    gradient_c = (-2 / n) * sum(c_s)




    a_new = coeffs[0] - lr * gradient_a
    b_new = coeffs[1] - lr * gradient_b
    c_new = coeffs[2] - lr * gradient_c


    new_model_coeffs = (a_new, b_new, c_new)


    #update with these new coeffs:
    new_y_bar = eval_2nd_degree(new_model_coeffs,inputs_x)


    updated_model_loss = loss_mse(outputs_y,new_y_bar)
    return updated_model_loss,new_model_coeffs, new_y_bar

def gradient_descent(epochs,lr):
    """
    Perform gradient descent for a seconddegree polynomial.


    Args:
        epochs: number of iterations to performof finding new coefficients and updatingt loss.
        lr: specified learning rate


    Returns: Tuple containing (updated_model_loss,new_model_coeffs, new_y_bar predictions, saved loss updates)


    """
    losses = []
    rand_coeffs_to_test = rand_coeffs
    for i in range(epochs):
        loss =calc_gradient_2nd_poly_for_GD(rand_coeffs_to_test, hundred_xs, ys, lr)
       rand_coeffs_to_test = loss[1]
        losses.append(loss[0])
    print(losses)
    return loss[0], loss[1], loss[2],losses  #(updated_model_loss,new_model_coeffs, new_y_bar, saved loss updates)

GD = gradient_descent(1500,0.0001)

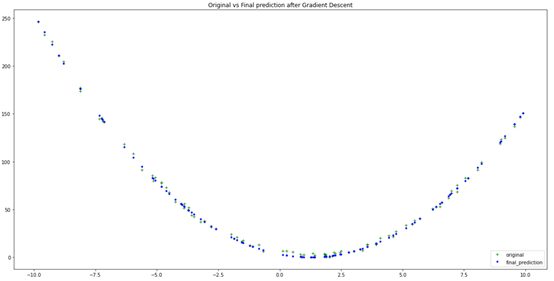

plt.figure(figsize=(20,10))
plt.plot(xs, ys, 'g+', label ='original')
plt.plot(xs, GD[2], 'b.', label= 'final_prediction')
plt.title('Original vs Finalprediction after Gradient Descent')
plt.legend(loc="lowerright")
plt.show()

print(f"FinalCoefficients predicted: {GD[1]}")
print(f"OriginalCoefficients: {coeffs}")

plt.figure(figsize=(20,10))
plt.plot(GD[3], 'b-', label ='loss')
plt.title('Loss over 1500iterations')
plt.legend(loc="lowerright")
plt.xlabel('Iterations')
plt.ylabel('MSE')
plt.show()
