随着业务负载的不断加重，容器化、虚拟化也成为各类在线应用必须要具备的能力。对于分布式数据库，容器化也是提升快速部署、提高运维效率的一个很好的路径。

我们重新优化了 Docker部署的方式，帮助大家更快的上手SequoiaDB集群，本文就将介绍基于 Docker 的SequoiaDB分布式集群快速部署。

1.集群配置

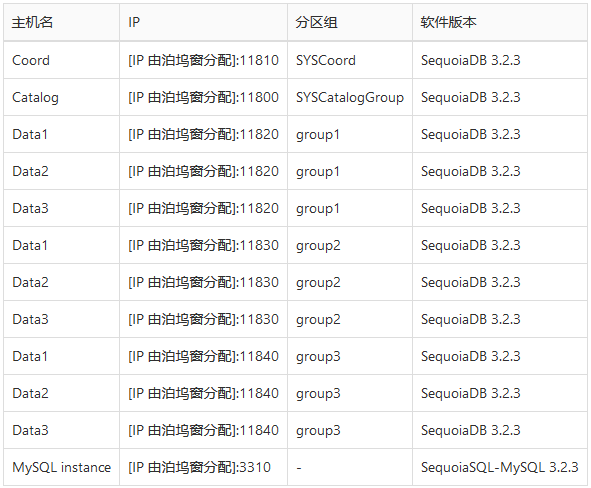

我们将在六个容器中部署一个多节点，高度可用的 SequoiaDB 集群，如下所示:

（本文以 SequoiaDB v3.2.3 版本为例）

该集群包括一个协调器节点、一个目录节点、三个数据组，每个数据组有三个副本数据节点和一个 MySQL 实例节点。

2. 环境

OS :  Ubuntu 18
Docker Version : 18.09.7
Docker Compose Version: 1.25.3
Database Version : SequoiaDB 3.2.3
MySql Client: Sequoiasql-mysql
Cluster Deployment : 1 coordinator, 1 catalog, 3 data nodes, and 1 MySQL instance

‍

2.1 Docker安装

2.1.1 Docker

对于在不同平台上的 Docker 安装，用户可以参阅 Docker 安装指南。

 sudo apt-get install -y docker.io

2.1.2 Docker-compose

Docker compose是一个用于定义和部署在YAML文件中定义的多容器泊坞应用程序的工具(i.e: docker-compose.yaml)。

sudo curl -L "https://github.com/docker/compose/releases/download/1.25.3/docker-compose-$(uname -s)-$(uname -m)" -o usr/local/bin/docker-compose
sudo chmod +x usr/local/bin/docker-compose
sudo ln -s usr/local/bin/docker-compose usr/bin/docker-compose

‍

2.1.3 MySQL 客户端

安装 MySQL 客户端（如果尚未安装)

sudo apt install mysql-client-core-5.7

3. SequoiaDB分布式集群部署

定义 SequoiaDB 集群配置 "sequoiadb_containers/docker-compose.yaml"，用户有两个选项可以下载所需的软件包。

选项1：克隆repo地址

（点击文末【阅读原文】前往获取软件包）

选项2：手动下载（保留相同的目录结构)

（点击文末【阅读原文】前往获取软件包）

3.1 部署 SequoiaDB 集群

docker-compose up 命令将:

- 如果没有在本地找到，可前往dockerhub下载镜像

- 创建所需的容器

- 启动容器

- 初始化 SequoiaDB 集群和 MySQL 实例

1）部署集群

cd sequoiadb_containers  （或者到docker-compose的目录。yaml文件下载)
sudo docker-compose up -d

2）检查集群的状态

$ sudo docker-compose ps
                Name                         Command               State           Ports
         --------------------------------------------------------------------------------------------
         sequoiadb_containers_catalog_1   sh -c chmod +x startup.sh ...   Up
         sequoiadb_containers_coord_1     sh -c chmod +x startup.sh ...   Up
         sequoiadb_containers_data1_1     sh -c chmod +x startup.sh ...   Up
         sequoiadb_containers_data2_1     sh -c chmod +x startup.sh ...   Up
         sequoiadb_containers_data3_1     sh -c chmod +x startup.sh ...   Up
         sequoiadb_containers_mysql_1     sh -c chmod +x startup.sh ...   Up      0.0.0.0:3310->3310/tcp

3）等待集群被部署和 MySQL 连接到协调器节点，用户可以按如下方式检查集群状态。

# 检查 coordinator 日志
         $ sudo docker-compose logs coord
         ...
         ...
         coord_1    | ************ Deploy SequoiaDB ************************
         coord_1    | Create catalog: catalog:11800
         coord_1    | Create coord:   coord:11810
         coord_1    | Create data:    data1:11820
         coord_1    | Create data:    data2:11820
         coord_1    | Create data:    data3:11820
         coord_1    | Create data:    data1:11830
         coord_1    | Create data:    data2:11830
         coord_1    | Create data:    data3:11830
         coord_1    | Create data:    data1:11840
         coord_1    | Create data:    data2:11840
         coord_1    | Create data:    data3:11840
         coord_1    | SDB Cluster successfully created.


         # 检查mysql日志
         $ sudo docker-compose logs mysql
         ...
         ...
         mysql_1    | >>> Waiting for COORD node to come up at (coord:11810)...
         mysql_1    | >>> Waiting for COORD node to come up at (coord:11810)...
         mysql_1    | >>> Waiting for COORD node to come up at (coord:11810)...
         mysql_1    | Successfully reached COORD node at (coord:11810)
         mysql_1    | COMMAND: init.sh --port=3310 --coord=coord:11810
         mysql_1    | Creating SequoiaSQL instance: MySQLInstance
         mysql_1    | Modify configuration file and restart the instance: MySQLInstance
         mysql_1    | Restarting instance: MySQLInstance
         mysql_1    | Opening remote access to user root
         mysql_1    | Restarting instance: MySQLInstance
         mysql_1    | Instance MySQLInstance is created on port 3310, default user is root
         mysql_1    | Init command returned: 0

3.2 验证MySQL连接

$ mysql -h 127.0.0.1 -P 3310 -u root

Welcome to the MySQL monitor.  Commands end with ; or \g.
         Your MySQL connection id is 4
         Server version: 5.7.25 Source distribution


         Copyright (c) 2000, 2020, Oracle and/or its affiliates. All rights reserved.


         Oracle is a registered trademark of Oracle Corporation and/or its
         affiliates. Other names may be trademarks of their respective
         owners.


         Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.


         mysql>

验证SequoiaDB配置:

mysql> show variables like 'sequoiadb%';
         +---------------------------------------+-------------+
         | Variable_name                         | Value       |
         +---------------------------------------+-------------+
         | sequoiadb_bulk_insert_size            | 2000        |
         | sequoiadb_conn_addr                   | coord:11810 |
         | sequoiadb_debug_log                   | OFF         |
         | sequoiadb_execute_only_in_mysql       | OFF         |
         | sequoiadb_optimizer_select_count      | ON          |
         | sequoiadb_password                    |             |
         | sequoiadb_replica_size                | 1           |
         | sequoiadb_selector_pushdown_threshold | 30          |
         | sequoiadb_use_autocommit              | ON          |
         | sequoiadb_use_bulk_insert             | ON          |
         | sequoiadb_use_partition               | ON          |
         | sequoiadb_user                        |             |
         +---------------------------------------+-------------+
         12 rows in set (0.01 sec)




         mysql> show storage engines;
         +--------------------+---------+----------------------------------------------------------------------------------+--------------+------+------------+
         | Engine             | Support | Comment                                                                          | Transactions | XA   | Savepoints |
         +--------------------+---------+----------------------------------------------------------------------------------+--------------+------+------------+
         | SequoiaDB          | DEFAULT | SequoiaDB storage engine(Community). Plugin: eebcb4f, Driver: 3.2.3, BuildTime:  | YES          | NO   | NO         |
         | MRG_MYISAM         | YES     | Collection of identical MyISAM tables                                            | NO           | NO   | NO         |
         | PERFORMANCE_SCHEMA | YES     | Performance Schema                                                               | NO           | NO   | NO         |
         | BLACKHOLE          | YES     | dev/null storage engine (anything you write to it disappears)                   | NO           | NO   | NO         |
         | MyISAM             | YES     | MyISAM storage engine                                                            | NO           | NO   | NO         |
         | CSV                | YES     | CSV storage engine                                                               | NO           | NO   | NO         |
         | ARCHIVE            | YES     | Archive storage engine                                                           | NO           | NO   | NO         |
         | InnoDB             | YES     | Supports transactions, row-level locking, and foreign keys                       | YES          | YES  | YES        |
         | FEDERATED          | NO      | Federated MySQL storage engine                                                   | NULL         | NULL | NULL       |
         | MEMORY             | YES     | Hash based, stored in memory, useful for temporary tables                        | NO           | NO   | NO         |
         +--------------------+---------+----------------------------------------------------------------------------------+--------------+------+------------+
         10 rows in set (0.00 sec)

3.3 测试

用户可以使用 MySQL 命令创建数据库和表：

mysql> create database sample;
         Query OK, 1 row affected (0.01 sec)


         mysql> use sample;
         Database changed
         mysql>  create table t1 (c1 int);
         Query OK, 0 rows affected (0.47 sec)


         mysql> show table status;
         +------+-----------+---------+------------+------+----------------+-------------+-----------------+--------------+-----------+----------------+-------------+-------------+------------+-------------+----------+----------------+---------+
         | Name | Engine    | Version | Row_format | Rows | Avg_row_length | Data_length | Max_data_length | Index_length | Data_free | Auto_increment | Create_time | Update_time | Check_time | Collation   | Checksum | Create_options | Comment |
         +------+-----------+---------+------------+------+----------------+-------------+-----------------+--------------+-----------+----------------+-------------+-------------+------------+-------------+----------+----------------+---------+
         | t1   | SequoiaDB |      10 | Fixed      |    0 |              0 |           0 |   8796093022208 |       131072 |         0 |           NULL | NULL        | NULL        | NULL       | utf8mb4_bin |     NULL |                |         |
         +------+-----------+---------+------------+------+----------------+-------------+-----------------+--------------+-----------+----------------+-------------+-------------+------------+-------------+----------+----------------+---------+
         1 row in set (0.03 sec)

4. 集群管理

4.1 stop/start cluster

使用up命令创建 SequoiaDB 集群后，它可以停止并按如下方式启动。

Note:
"stop"命令不会删除容器，因此不会丢失任何数据。

4.1.1 stop 命令

$ sudo docker-compose stop
         Stopping sequoiadb_containers_mysql_1   ... done
         Stopping sequoiadb_containers_coord_1   ... done
         Stopping sequoiadb_containers_data2_1   ... done
         Stopping sequoiadb_containers_data1_1   ... done
         Stopping sequoiadb_containers_catalog_1 ... done
         Stopping sequoiadb_containers_data3_1   ... done




         $ sudo docker-compose ps
                    Name                         Command                State     Ports
         ------------------------------------------------------------------------------
         sequoiadb_containers_catalog_1   sh -c chmod +x startup.sh ...   Exit 137
         sequoiadb_containers_coord_1     sh -c chmod +x startup.sh ...   Exit 137
         sequoiadb_containers_data1_1     sh -c chmod +x startup.sh ...   Exit 137
         sequoiadb_containers_data2_1     sh -c chmod +x startup.sh ...   Exit 137
         sequoiadb_containers_data3_1     sh -c chmod +x startup.sh ...   Exit 137
         sequoiadb_containers_mysql_1     sh -c chmod +x startup.sh ...   Exit 137

4.1.2 start 命令

$ sudo docker-compose start
         Starting catalog ... done
         Starting data1   ... done
         Starting data2   ... done
         Starting data3   ... done
         Starting coord   ... done
         Starting mysql   ... done




         $ sudo docker-compose ps
                    Name                         Command               State           Ports
         --------------------------------------------------------------------------------------------
         sequoiadb_containers_catalog_1   sh -c chmod +x startup.sh ...   Up
         sequoiadb_containers_coord_1     sh -c chmod +x startup.sh ...   Up
         sequoiadb_containers_data1_1     sh -c chmod +x startup.sh ...   Up
         sequoiadb_containers_data2_1     sh -c chmod +x startup.sh ...   Up
         sequoiadb_containers_data3_1     sh -c chmod +x startup.sh ...   Up
         sequoiadb_containers_mysql_1     sh -c chmod +x startup.sh ...   Up      0.0.0.0:3310->3310/tcp


         # Verity mysql client is up
         $ sudo docker-compose logs mysql
         Attaching to sequoiadb_containers_mysql_1
         mysql_1    | Starting service sequoiasql-mysql ...
         mysql_1    | ok. (PID: 38)
         ...
         mysql_1    | MySql instance is started

4.2 down/up Cluster

4.2.1 down命令

down 命令将停止并删除SequoiaDB集群部署的容器。

Note：
down命令应该谨慎执行，因为当容器被破坏时无法回滚/恢复。

$ sudo docker-compose down
         Stopping sequoiadb_containers_mysql_1   ... done
         Stopping sequoiadb_containers_coord_1   ... done
         Stopping sequoiadb_containers_data2_1   ... done
         Stopping sequoiadb_containers_data1_1   ... done
         Stopping sequoiadb_containers_catalog_1 ... done
         Stopping sequoiadb_containers_data3_1   ... done
         Removing sequoiadb_containers_mysql_1   ... done
         Removing sequoiadb_containers_coord_1   ... done
         Removing sequoiadb_containers_data2_1   ... done
         Removing sequoiadb_containers_data1_1   ... done
         Removing sequoiadb_containers_catalog_1 ... done
         Removing sequoiadb_containers_data3_1   ... done
         Removing network sequoiadb_containers_sequoiadb_net


         $ sudo docker-compose ps
         Name   Command   State   Ports
         ------------------------------

4.2.2 up命令

up命令将创建并启动为sequoiadb cluser定义的服务（容器，网络）。

$ sudo docker-compose up -d
         Creating network "sequoiadb_containers_sequoiadb_net" with the default driver
         Creating sequoiadb_containers_data2_1   ... done
         Creating sequoiadb_containers_data3_1   ... done
         Creating sequoiadb_containers_catalog_1 ... done
         Creating sequoiadb_containers_data1_1   ... done
         Creating sequoiadb_containers_coord_1   ... done
         Creating sequoiadb_containers_mysql_1   ... done


         $ sudo docker-compose ps
                    Name                         Command               State           Ports
         --------------------------------------------------------------------------------------------
         sequoiadb_containers_catalog_1   sh -c chmod +x /startup.sh ...   Up
         sequoiadb_containers_coord_1     sh -c chmod +x /startup.sh ...   Up
         sequoiadb_containers_data1_1     sh -c chmod +x /startup.sh ...   Up
         sequoiadb_containers_data2_1     sh -c chmod +x /startup.sh ...   Up
         sequoiadb_containers_data3_1     sh -c chmod +x /startup.sh ...   Up
         sequoiadb_containers_mysql_1     sh -c chmod +x /startup.sh ...   Up      0.0.0.0:3310->3310/tcp


         # 验证MySQL连接
         $ mysql -h 127.0.0.1  -P 3310 -u root
         Welcome to the MySQL monitor.  Commands end with ; or \g.
         Your MySQL connection id is 2
         Server version: 5.7.25 Source distribution


         Copyright (c) 2000, 2020, Oracle and/or its affiliates. All rights reserved.


         Oracle is a registered trademark of Oracle Corporation and/or its
         affiliates. Other names may be trademarks of their respective
         owners.


         Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.


         mysql> show storage engines;
         +--------------------+---------+----------------------------------------------------------------------------------+--------------+------+------------+
         | Engine             | Support | Comment                                                                          | Transactions | XA   | Savepoints |
         +--------------------+---------+----------------------------------------------------------------------------------+--------------+------+------------+
         | SequoiaDB          | DEFAULT | SequoiaDB storage engine(Community). Plugin: eebcb4f, Driver: 3.2.3, BuildTime:  | YES          | NO   | NO         |
         | MRG_MYISAM         | YES     | Collection of identical MyISAM tables                                            | NO           | NO   | NO         |
         | PERFORMANCE_SCHEMA | YES     | Performance Schema                                                               | NO           | NO   | NO         |
         | BLACKHOLE          | YES     | /dev/null storage engine (anything you write to it disappears)                   | NO           | NO   | NO         |
         | MyISAM             | YES     | MyISAM storage engine                                                            | NO           | NO   | NO         |
         | CSV                | YES     | CSV storage engine                                                               | NO           | NO   | NO         |
         | ARCHIVE            | YES     | Archive storage engine                                                           | NO           | NO   | NO         |
         | InnoDB             | YES     | Supports transactions, row-level locking, and foreign keys                       | YES          | YES  | YES        |
         | FEDERATED          | NO      | Federated MySQL storage engine                                                   | NULL         | NULL | NULL       |
         | MEMORY             | YES     | Hash based, stored in memory, useful for temporary tables                        | NO           | NO   | NO         |
         +--------------------+---------+----------------------------------------------------------------------------------+--------------+------+------------+
