首页 / SpringBoot2.x学习笔记——使用定时任务发送邮件

SpringBoot2.x学习笔记——使用定时任务发送邮件

CodeWu 2019-04-22
354

邮件服务概述

    邮件服务在互联网早期已经出现，发送与接收的过程如下：

  1.  发件人使用SMTP协议传输邮件到邮件A服务器

  2. 邮件服务器A根据邮件中指定的接收者投递邮件到对应的邮件服务器B

  3. 收件人使用POP3协议从邮件服务器B接收邮件

    SMTP(Simple Mail Transfer Protocol)是电子邮件(Email)传输的互联网标准，定义在RFC5321,默认使用25端口。

   POP3(Post Office Protocol -Version 3)主要用于支持使用客户端远程管理所在服务器上的电子邮件，定义在RFC1939，为POP3协议的第三版。

   这两个协议属于TCP/IP协议层的应用层协议，运行在TCP层。

   发送邮件的需求比较常见，如注册用户激活、密码找回、事件通知等。SUN公司给广大Java开发人员提供了用于邮件发送和接收的开源类库JavaMail，支持常用的邮件协议，如SMTP、POP3、IMAP等。开发人员使用JavaMail编写邮件程序时，不需要考虑底层通信细节，只需要关注逻辑层面。JavaMail(仅支持JDK1.4+)可以发送各种复杂MIME格式的邮件内容。Spring提供了JavaMailSender接口实现邮件发送，在SpringBoot的Starter模块中进行了集成。

发送邮件实例

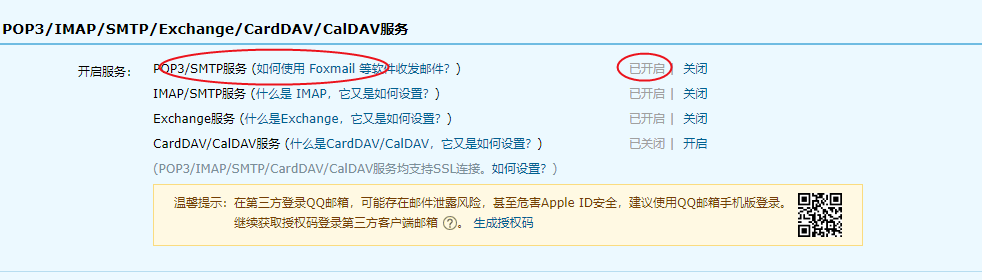

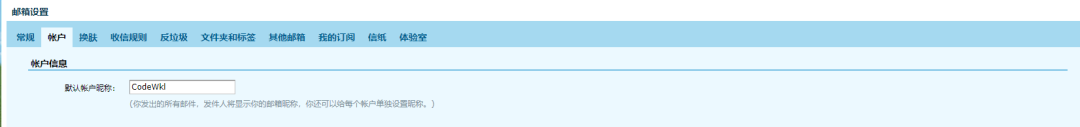

    在使用邮箱发送邮件之前，需要先设置邮箱账户名和开启协议。



   开启服务后， 根据操作生成对应的授权码，对生成的授权码信息进行保存，作为邮件发送用户密码使用。

    引入SpringBootMail依赖

<!--引入发送邮件依赖-->
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-mail</artifactId>
    </dependency>

   配置发送邮件相关配置信息

#配置发送邮件相关信息
#邮件服务器地址
spring.mail.host=smtp.qq.com
#邮件服务器端口号(465或587)
spring.mail.port=465
#邮箱地址作为用户名
spring.mail.username=邮箱地址
#授权码作为邮箱密码
spring.mail.password=授权码
#默认编码集
spring.mail.default-encoding=UTF-8
#设置SSL连接
spring.mail.properties.mail.smtp.socketFactory.class=javax.net.ssl.SSLSocketFactory
#开启调试
spring.mail.properties.mail.debug=true

   邮件类型对应实体

    简单文本邮件

public class SimpleEmail {
    private String fromEmail;//发送邮箱地址
    private String toEmail;//接收邮箱地址
    private String ccList;//抄送人
    private String subject;//邮件主题
    private String content;//邮件内容

}

    附件邮件

public class FileEmail {
    private String fromEmail;//发送邮箱地址
    private String toEmail;//接收邮箱地址
    private String subject;//邮件主题
    private String content;//邮件内容
    private File fileInfo;//附件文件
}

    图片邮件

public class ImageEmail {
    private String fromEmail;//发送邮件地址
    private String toEmail;//接收邮件地址
    private String subject;//邮件主题
    private String content;//邮件内容
    private String[] srcPath;//图片资源路径绝对地址数组
    private String[] resIds;//资源Id数组,在image元素中通过cid:id显示(id与数组元素内容一致)
}

    邮件逻辑层

@Component
public class EmailService {
    @Autowired
    JavaMailSender mailSender;


    /**
     * 发送简单邮件
     * @param simpleEmail：简单邮件实体
     */
    public void sendSimpleMail(SimpleEmail simpleEmail)
    {
        //简单邮件消息
        SimpleMailMessage simpleMailMessage=new SimpleMailMessage();
        simpleMailMessage.setFrom(simpleEmail.getFromEmail());
        simpleMailMessage.setTo(simpleEmail.getToEmail());
        simpleMailMessage.setCc(simpleEmail.getCcList());
        simpleMailMessage.setSubject(simpleEmail.getSubject());
        simpleMailMessage.setText(simpleEmail.getContent());
        mailSender.send(simpleMailMessage);
    }


    /**
     * 发送带图片邮件
     * @param imageEmail:图片邮件实体
     */
    public void sendImageMail(ImageEmail imageEmail)
    {
        if(imageEmail.getSrcPath().length!=imageEmail.getResIds().length)
        {
            System.out.println("图片资源与resIds元素数量不一致，发送失败");
        }
        try {
            MimeMessage mimeMessage=mailSender.createMimeMessage();
            MimeMessageHelper mimeMessageHelper=new MimeMessageHelper(mimeMessage,true);
            mimeMessageHelper.setFrom(imageEmail.getFromEmail());
            mimeMessageHelper.setTo(imageEmail.getToEmail());
            mimeMessageHelper.setSubject(imageEmail.getSubject());
            mimeMessageHelper.setText(imageEmail.getContent(),true);
            for(int i=0;i<imageEmail.getSrcPath().length;i++)
            {
                //根据图片路径构建静态资源
                FileSystemResource systemResource=new FileSystemResource(new File(imageEmail.getSrcPath()[i]));
                //将静态资源加入邮件对象
                mimeMessageHelper.addInline(imageEmail.getSrcPath()[i],systemResource);
            }
            mailSender.send(mimeMessage);
        }catch (MessagingException ex)
        {
            System.out.println("发送失败");
        }
    }


    /**
     * 发送附件邮件
     * @param fileEmail:附件邮件
     */
    public void sendFileEmail(FileEmail fileEmail)
    {
        if(fileEmail.getFileInfo()==null)
        {
            System.out.println("未上传附件文件，发送失败");
        }
        try {
            MimeMessage fileMessage=mailSender.createMimeMessage();
            MimeMessageHelper fileHelper=new MimeMessageHelper(fileMessage,true);
            fileHelper.setFrom(fileEmail.getFromEmail());
            fileHelper.setTo(fileEmail.getToEmail());
            fileHelper.setSubject(fileEmail.getSubject());
            fileHelper.setText(fileEmail.getContent());
            //添加附件(文件名作为附件名)
            fileHelper.addAttachment(fileEmail.getFileInfo().getName(),fileEmail.getFileInfo());
        }catch (MessagingException ex)
        {
            ex.printStackTrace();
        }
    }
}

    发送邮件测试

@RunWith(SpringJUnit4ClassRunner.class)
@SpringBootTest
public class SendMailTest {
    @Autowired
    private EmailService emailService;
    @Test
    public void sendSimpleEmail()
    {
        SimpleEmail simpleEmail=new SimpleEmail();
        simpleEmail.setFromEmail(fromEmail);
        simpleEmail.setToEmail(toEmail);
        simpleEmail.setSubject("文本邮件测试");
        simpleEmail.setCcList(ccEmail);
        simpleEmail.setContent("SpringBoot发送简单文本邮件"+new Date().toString());
        emailService.sendSimpleMail(simpleEmail);
    }
    @Test
    public void sendImageEmail()
    {
        ImageEmail imageEmail=new ImageEmail();
        imageEmail.setToEmail(fromEmail);
        imageEmail.setFromEmail(toEmail);
        imageEmail.setSubject("图片邮件测试");
        String content="<div>SpringBoot发送图片邮件测试" +
                "<div><img src=\\'cid:\" + mybatis + \"\\' ></div>" +
                "<div><img src=\\'cid:\" + springboot + \"\\' ></div>" +
                "<div><img src=\\'cid:\" + rocketmq + \"\\' ></div>" +
                "</div>";
        imageEmail.setContent(content);
        String[] imageUrl=new String[]{"C:\\Users\\Admin\\Desktop\\mybatis.png","C:\\Users\\Admin\\Desktop\\springboot.jpg","C:\\Users\\Admin\\Desktop\\rocketmq.jpg"};
        String[] resIds=new String[]{"mybatis","springboot","rocketmq"};
        imageEmail.setSrcPath(imageUrl);
        imageEmail.setResIds(resIds);
        emailService.sendImageMail(imageEmail);
    }
    @Test
    public void sendFileEmail()
    {
        FileEmail fileEmail=new FileEmail();
        fileEmail.setFromEmail(fromEmail);
        fileEmail.setToEmail(toEmail);
        fileEmail.setSubject("SpringBoot发送附件邮件");
        fileEmail.setContent("SpringBoot发送包含附件邮件");
        fileEmail.setFileInfo(new File(filePath));
        emailService.sendFileEmail(fileEmail);
    }
}

使用定时任务发送邮件

package com.springboot.demo.job;


import com.springboot.demo.sendMail.SimpleEmail;
import com.springboot.demo.sendMail.service.EmailService;
import org.quartz.JobExecutionContext;
import org.quartz.JobExecutionException;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.scheduling.quartz.QuartzJobBean;
import org.springframework.stereotype.Component;


import java.util.Date;
/**
 * 发送文本文件定时任务
 */
@Component
public class SendSimpleEmailJob extends QuartzJobBean {
    private SimpleEmail simpleEmail;
    @Autowired
    private EmailService emailService;
    public void setSimpleEmail(SimpleEmail simpleEmail) {
        this.simpleEmail = simpleEmail;
    }


    @Override
    protected void executeInternal(JobExecutionContext jobExecutionContext) throws JobExecutionException {
        emailService.sendSimpleMail(this.simpleEmail);
    }
}


package com.springboot.demo.job;


import com.springboot.demo.sendMail.FileEmail;
import com.springboot.demo.sendMail.service.EmailService;
import org.quartz.JobExecutionContext;
import org.quartz.JobExecutionException;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.scheduling.quartz.QuartzJobBean;
import org.springframework.stereotype.Component;


/**
 * 发送附件邮件定时任务
 */
@Component
public class SendFileEmailJob extends QuartzJobBean {
    private FileEmail fileEmail;
    @Autowired
    private EmailService emailService;


    public void setFileEmail(FileEmail fileEmail) {
        this.fileEmail = fileEmail;
    }


    @Override
    protected void executeInternal(JobExecutionContext jobExecutionContext) throws JobExecutionException {
        emailService.sendFileEmail(fileEmail);
    }
}


定时任务Quartz配置

package com.springboot.demo.job.config;


import com.springboot.demo.job.SendFileEmailJob;
import com.springboot.demo.job.SendSimpleEmailJob;
import com.springboot.demo.sendMail.FileEmail;
import com.springboot.demo.sendMail.SimpleEmail;


import org.quartz.CronTrigger;
import org.quartz.JobDataMap;
import org.quartz.SimpleTrigger;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.scheduling.quartz.*;


import java.io.File;
import java.util.Date;


@Configuration
public class QuartzConfig {
    /**
     * 获取发送简易文本邮件定时任务
     * @return 发送简易文本邮件定时任务实例
     */
    @Bean
    JobDetailFactoryBean getSimpleEmailJobDetail()
{
        JobDetailFactoryBean simpleEmailJob=new JobDetailFactoryBean();
        simpleEmailJob.setJobClass(SendSimpleEmailJob.class);
        SimpleEmail simpleEmail=new SimpleEmail();
        simpleEmail.setFromEmail("99967706@qq.com");
        simpleEmail.setToEmail("596648433@qq.com");
        simpleEmail.setSubject("定时任务发送文本邮件测试");
        simpleEmail.setCcList("99967706@qq.com");
        simpleEmail.setContent("SpringBoot定时任务发送简单文本邮件"+new Date().toString());
        //设置参数
        JobDataMap dataMap=new JobDataMap();
        dataMap.put("simpleEmail",simpleEmail);
        simpleEmailJob.setJobDataMap(dataMap);
        simpleEmailJob.setDurability(true);
        return simpleEmailJob;
    }


    /**
     * 获取发送附件邮件定时任务
     * @return 发送附件邮件定时任务实例
     */
    @Bean
    JobDetailFactoryBean getFileEmailJobDetail()
{
        JobDetailFactoryBean fileEmailJob=new JobDetailFactoryBean();
        fileEmailJob.setJobClass(SendFileEmailJob.class);
        FileEmail fileEmail=new FileEmail();
        fileEmail.setFromEmail("99967706@qq.com");
        fileEmail.setToEmail("596648433@qq.com");
        fileEmail.setSubject("SpringBoot定时任务发送附件邮件");
        fileEmail.setContent("SpringBoot定时任务发送包含附件邮件");
        fileEmail.setFileInfo(new File("C:\\Users\\Admin\\Desktop\\mybatis.png"));
        //设置参数
        JobDataMap dataMap=new JobDataMap();
        dataMap.put("fileEmail",fileEmail);
        fileEmailJob.setJobDataMap(dataMap);
        fileEmailJob.setDurability(true);
        return fileEmailJob;
    }


    /**
     * 简易触发器
     * @return 简易触发器实例
     */
    @Bean
    SimpleTriggerFactoryBean getSimpleTrigger()
{
        //初始化简易触发器
        SimpleTriggerFactoryBean simpleTriggerBean=new SimpleTriggerFactoryBean();
        //为触发器绑定定时任务
        simpleTriggerBean.setJobDetail(getSimpleEmailJobDetail().getObject());
        //设置定时任务执行次数
        simpleTriggerBean.setRepeatCount(1);
        //定时任务初始化执行延迟时间
        simpleTriggerBean.setStartDelay(1000);
        //定时任务执行时间间隔
        simpleTriggerBean.setRepeatInterval(2000);
        return simpleTriggerBean;
    }


    /**
     * Crom表达式触发器
     * @return cron表达式触发器实例
     */
    @Bean
    CronTriggerFactoryBean getCronTrigger()
{
       //初始化Cron表达式触发器
        CronTriggerFactoryBean cronTrigger=new CronTriggerFactoryBean();
        //触发器绑定定时任务
        cronTrigger.setJobDetail(getFileEmailJobDetail().getObject());
        //设置cron表达式(每天22:30自动执行定时任务)
        cronTrigger.setCronExpression("0 30 22 * * ?");
        return cronTrigger;
    }


    /**
     * 创建定时任务工厂并设置触发器
     * @return 定时任务工厂
     */
    @Bean
    SchedulerFactoryBean getSchedulerFactory()
{
        //初始化定时任务工厂实例
        SchedulerFactoryBean schedulerFactory=new SchedulerFactoryBean();
        //获取绑定定时任务后的触发器
        SimpleTrigger simpleTrigger=getSimpleTrigger().getObject();
        CronTrigger cronTrigger=getCronTrigger().getObject();
        //为定时任务工厂设置触发器
        schedulerFactory.setTriggers(simpleTrigger,cronTrigger);
        //返回定时任务工厂
        return schedulerFactory;
    }


}
