ES学习-02节点启动代码流程

小怂读书 2021-10-10
881

ES6.3.2

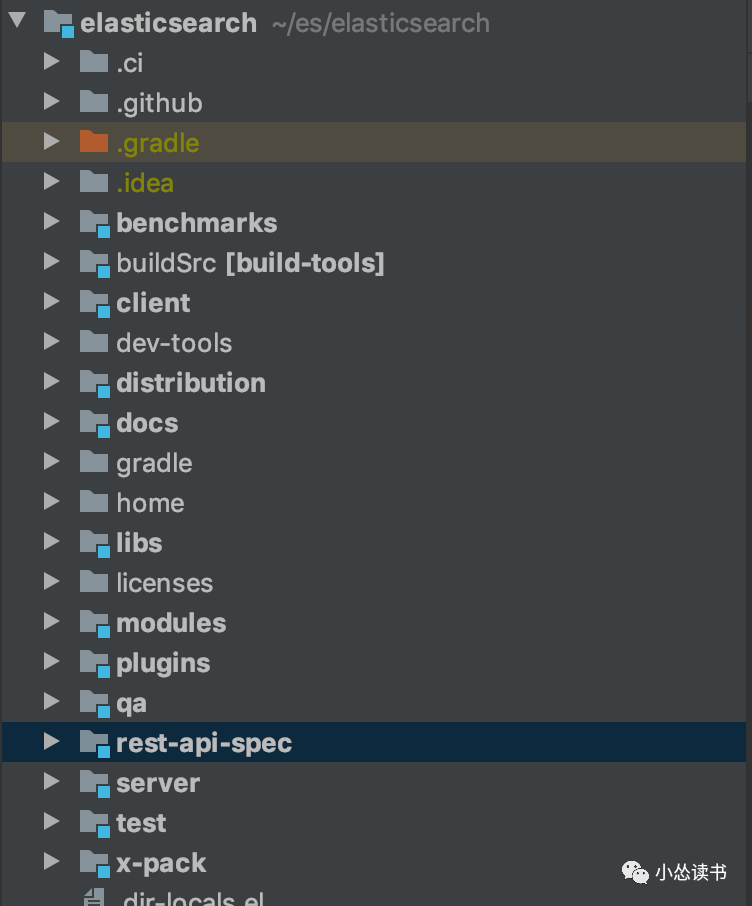

1、Elasticsearch源代码目录结构

packagedescription
benchmarks该目录包含Elasticsearch的一些基准，基于JMH
client访问ES的客户端API方法,包括REST和Transport
distribution打包工具，打包各类压缩发布包
serverES功能实现核心
plugins插件
x-packES License
buildSrcEs构建相关的代码
modules核心代码外的扩展模块，包括聚合

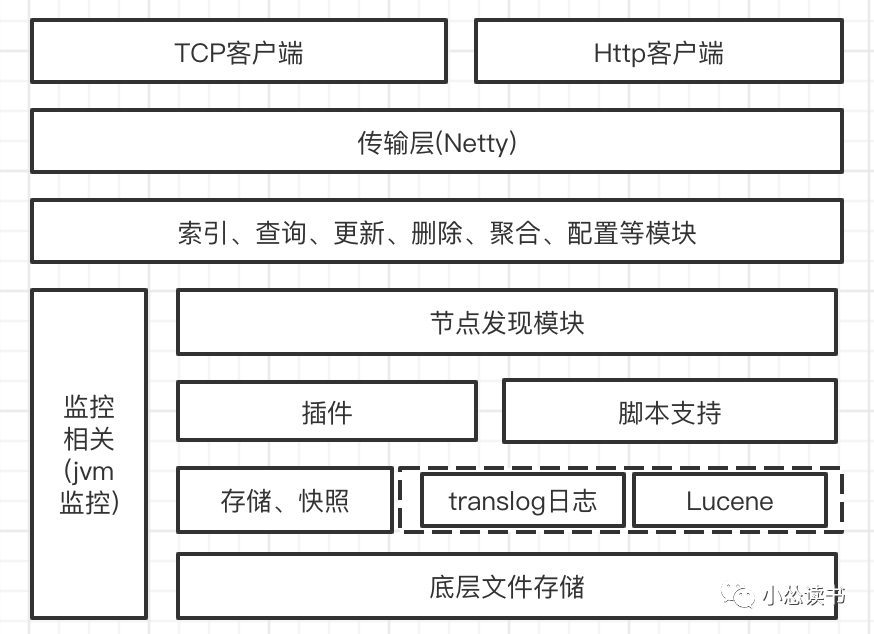

2、Elasticsearch基本模块


3、ES节点启动代码流程梳理

1）debug模式启动：Elasticsearch.java

/**
* Main entry point for starting elasticsearch
*/
public static void main(final String[] args) throws Exception {
    …
    // 注册状态记录器错误的侦听器
    LogConfigurator.registerErrorListener();
    final Elasticsearch elasticsearch = new Elasticsearch();
    // 进入static main方法，调用elasticsearch.main(args, terminal)
    int status = main(args, elasticsearch, Terminal.DEFAULT);
    if (status != ExitCodes.OK) {
        exit(status);
    }
}


2）调用执行Command.java中的main方法

/** Parses options for this command from args and executes it. */
public final int main(String[] args, Terminal terminal) throws Exception {
    //… 启动shutdown处理的钩子线程，es进程关闭时执行回调处理
    //… 执行命令，抛出执行过程中的异常
    try {
    mainWithoutErrorHandling(args, terminal);
} catch (OptionException e) {
    printHelp(terminal);
    terminal.println(Terminal.Verbosity.SILENT, "ERROR: " + e.getMessage());
    return ExitCodes.USAGE;
} catch (UserException e) {
    if (e.exitCode == ExitCodes.USAGE) {
        printHelp(terminal);
    }
    terminal.println(Terminal.Verbosity.SILENT, "ERROR: " + e.getMessage());
    return e.exitCode;
}
    return ExitCodes.OK;
}

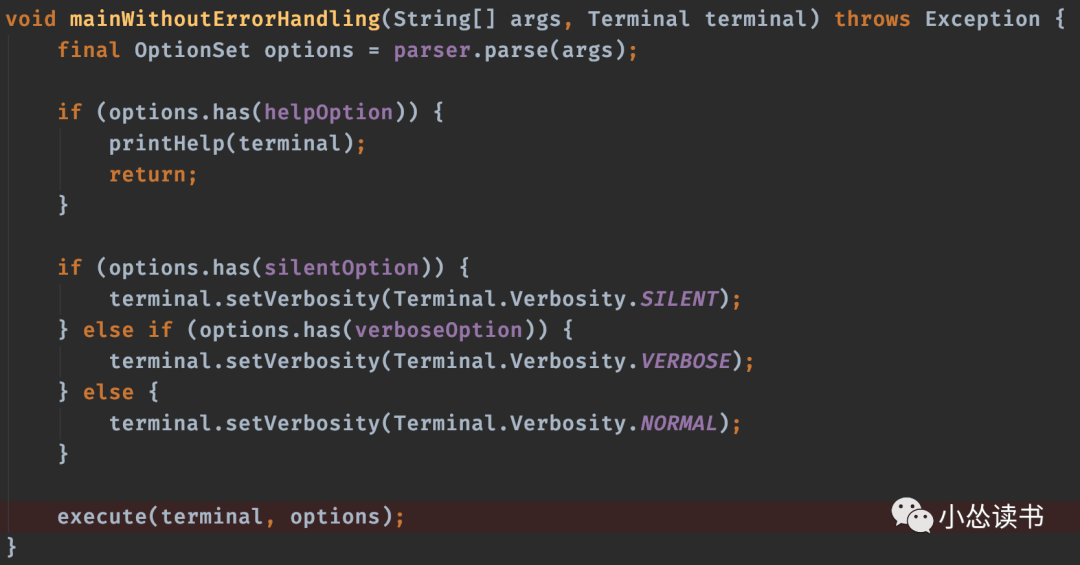

3）mainWithoutErrorHandling函数中执行execute

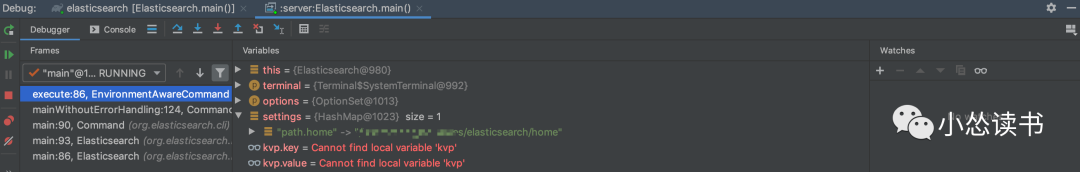

进入EnvironmentAwareCommand.java 中的execute方法

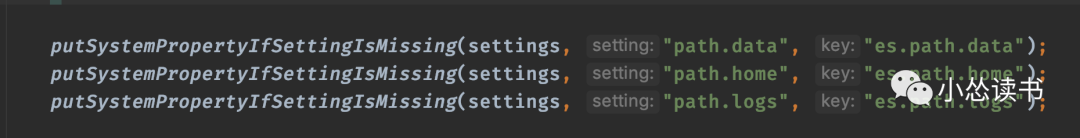

这里主要是检查ES启动需要的配置是否存在，如果不存在，从系统属性中获取进行赋值：




4）执行Elasticsearch.java execute方法

@Override
protected void execute(Terminal terminal, OptionSet options, Environment env) throws UserException {
    // ...
    final boolean daemonize = options.has(daemonizeOption);
    final Path pidFile = pidfileOption.value(options);
    final boolean quiet = options.has(quietOption);
    // ...
    try {
        init(daemonize, pidFile, quiet, env);
    } catch (NodeValidationException e) {
        throw new UserException(ExitCodes.CONFIG, e.getMessage());
    }
}

进入Bootstrap.init方法

void init(final boolean daemonize, final Path pidFile, final boolean quiet, Environment initialEnv)
    throws NodeValidationException, UserException {
    try {
        Bootstrap.init(!daemonize, pidFile, quiet, initialEnv);
    } catch (BootstrapException | RuntimeException e) {
        // format exceptions to the console in a special way
        // to avoid 2MB stacktraces from guice, etc.
        throw new StartupException(e);
    }
}


5）Bootstrap.init

static void init(
        final boolean foreground,
        final Path pidFile,
        final boolean quiet,
        final Environment initialEnv) throws BootstrapException, NodeValidationException, UserException {
    // … 实例化Bootstrap
    INSTANCE = new Bootstrap();
    // 加载elasticsearch.keystore文件，重新创建env环境变量
    final SecureSettings keystore = loadSecureSettings(initialEnv);
    final Environment environment = createEnvironment(foreground, pidFile, keystore, initialEnv.settings(), initialEnv.configFile());
    // ...
    final boolean closeStandardStreams = (foreground == false) || quiet;
    try {
        if (closeStandardStreams) {
            final Logger rootLogger = ESLoggerFactory.getRootLogger();
            final Appender maybeConsoleAppender = Loggers.findAppender(rootLogger, ConsoleAppender.class);
            if (maybeConsoleAppender != null) {
                Loggers.removeAppender(rootLogger, maybeConsoleAppender);
            }
            closeSystOut();
        }
        // 检查Lucene版本
        checkLucene();
        // install the default uncaught exception handler; must be done before security is
        // initialized as we do not want to grant the runtime permission
        // setDefaultUncaughtExceptionHandler
        Thread.setDefaultUncaughtExceptionHandler(
            new ElasticsearchUncaughtExceptionHandler(() -> Node.NODE_NAME_SETTING.get(environment.settings())));
        INSTANCE.setup(true, environment);
        try {
            // any secure settings must be read during node construction
            IOUtils.close(keystore);
        } catch (IOException e) {
            throw new BootstrapException(e);
        }
        // 实例启动
        INSTANCE.start();
        if (closeStandardStreams) {
            closeSysError();
        }
    } catch (NodeValidationException | RuntimeException e) {
       // ...
    }
}


6、执行setup

private void setup(boolean addShutdownHook, Environment environment) throws BootstrapException {
    Settings settings = environment.settings();
    try {
        spawner.spawnNativeControllers(environment);
    } catch (IOException e) {
        throw new BootstrapException(e);
    }
    // 初始化本地资源，此时
    initializeNatives(
            environment.tmpFile(),
            BootstrapSettings.MEMORY_LOCK_SETTING.get(settings),
            BootstrapSettings.SYSTEM_CALL_FILTER_SETTING.get(settings),
            BootstrapSettings.CTRLHANDLER_SETTING.get(settings));
    // 在安装security manager之前初始化探针
    initializeProbes();
    if (addShutdownHook) {
        Runtime.getRuntime().addShutdownHook(new Thread() {
            @Override
            public void run() {
                try {
                    IOUtils.close(node, spawner);
                    LoggerContext context = (LoggerContext) LogManager.getContext(false);
                    Configurator.shutdown(context);
                } catch (IOException ex) {
                    throw new ElasticsearchException("failed to stop node", ex);
                }
            }
        });
    }
    try {
        // look for jar hell
        final Logger logger = ESLoggerFactory.getLogger(JarHell.class);
        JarHell.checkJarHell(logger::debug);
    } catch (IOException | URISyntaxException e) {
        throw new BootstrapException(e);
    }
    // Log ifconfig output before SecurityManager is installed
    IfConfig.logIfNecessary();
    // install SM after natives, shutdown hooks, etc.
    try {
        Security.configure(environment, BootstrapSettings.SECURITY_FILTER_BAD_DEFAULTS_SETTING.get(settings));
    } catch (IOException | NoSuchAlgorithmException e) {
        throw new BootstrapException(e);
    }
    // 初始化Node节点
    node = new Node(environment) {
        @Override
        protected void validateNodeBeforeAcceptingRequests(
            final BootstrapContext context,
            final BoundTransportAddress boundTransportAddress, List<BootstrapCheck> checks) throws NodeValidationException {
            BootstrapChecks.check(context, boundTransportAddress, checks);
        }
    };
}

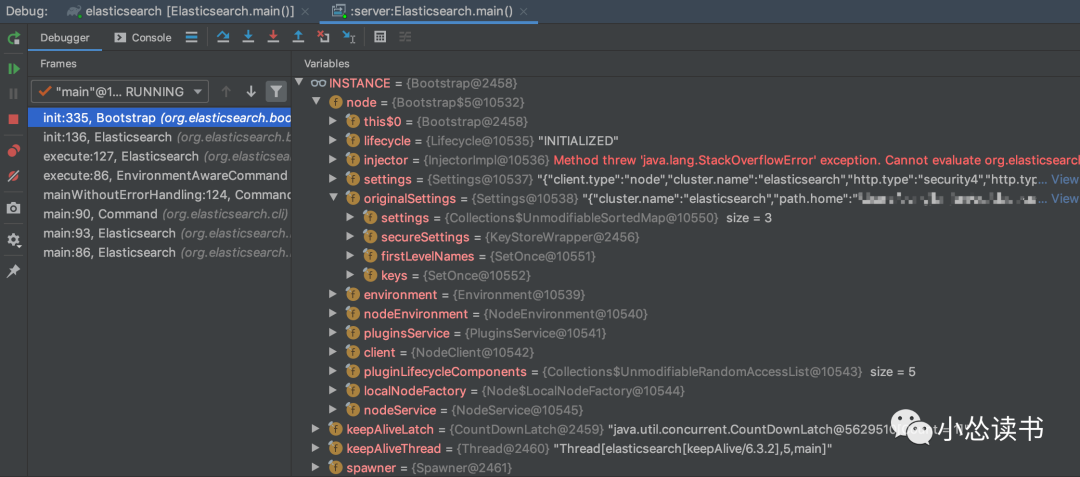

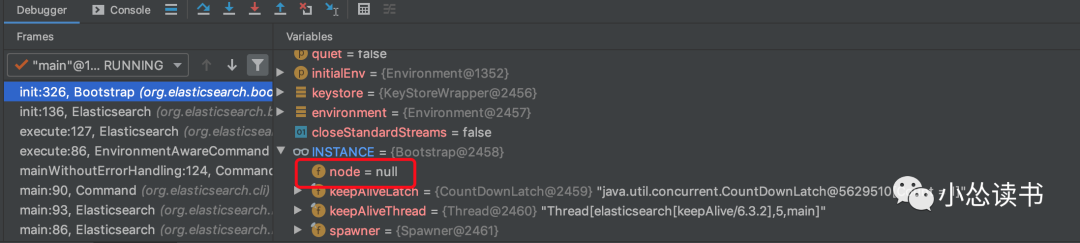

初始化之前的INSTANCE实例状态：


初始化完成后，集群基本配置信息、环境变量等已初始化完成。



7、INSTANCE.start();

private void start() throws NodeValidationException {
    node.start();
    keepAliveThread.start();
    // 启动keepAlive线程，线程不执行具体的操作，是唯一的用户线程，作用是保持进程的运行(Java程序中至少要有一个用户进程，用户进程为0时退出进程，注：是用户进程，不是守护进程)
}

Node.start()方法中主要进行ES外部环境的检查BootstrapChecks，检查包括堆大小检查、文件描述符检查、内存锁定检查、最大线程数检查、最大虚拟内存检查等等。

nodeConnectionsService.start();
discovery.start(); // start before cluster service so that it can set initial state on ClusterApplierService
clusterService.start();

初始化内部数据、创建线程池等操作。


8）节点启动相关日志

[2021-10-10T15:57:09,118][INFO ][o.e.n.Node               ] [50mY7pf] initialized
[2021-10-10T15:59:03,774][INFO ][o.e.n.Node               ] [50mY7pf] starting ...
[2021-10-10T15:59:59,585][INFO ][o.e.t.TransportService   ] [50mY7pf] publish_address {127.0.0.1:9300}, bound_addresses {[::1]:9300}, {127.0.0.1:9300}
[2021-10-10T16:07:44,642][WARN ][o.e.b.BootstrapChecks    ] [50mY7pf] initial heap size [268435456] not equal to maximum heap size [4294967296]; this can cause resize pauses and prevents mlockall from locking the entire heap
[2021-10-10T16:07:51,817][INFO ][o.e.c.s.MasterService    ] [50mY7pf] zen-disco-elected-as-master ([0] nodes joined)[, ], reason: new_master {50mY7pf}{50mY7pfYSja9aXpQfjZsHQ}{qXQYrlCXSwq75wtkUvr6ng}{127.0.0.1}{127.0.0.1:9300}{ml.machine_memory=17179869184, xpack.installed=true, ml.max_open_jobs=20, ml.enabled=true}
[2021-10-10T16:07:51,825][INFO ][o.e.c.s.ClusterApplierService] [50mY7pf] new_master {50mY7pf}{50mY7pfYSja9aXpQfjZsHQ}{qXQYrlCXSwq75wtkUvr6ng}{127.0.0.1}{127.0.0.1:9300}{ml.machine_memory=17179869184, xpack.installed=true, ml.max_open_jobs=20, ml.enabled=true}, reason: apply cluster state (from master [master {50mY7pf}{50mY7pfYSja9aXpQfjZsHQ}{qXQYrlCXSwq75wtkUvr6ng}{127.0.0.1}{127.0.0.1:9300}{ml.machine_memory=17179869184, xpack.installed=true, ml.max_open_jobs=20, ml.enabled=true} committed version [1] source [zen-disco-elected-as-master ([0] nodes joined)[, ]]])
[2021-10-10T16:09:19,308][WARN ][o.e.c.s.MasterService    ] [50mY7pf] cluster state update task [zen-disco-elected-as-master ([0] nodes joined)[, ]] took [1.4m] above the warn threshold of 30s
[2021-10-10T16:09:20,203][INFO ][o.e.x.s.t.n.SecurityNetty4HttpServerTransport] [50mY7pf] publish_address {127.0.0.1:9200}, bound_addresses {[::1]:9200}, {127.0.0.1:9200}
[2021-10-10T16:09:21,959][INFO ][o.e.n.Node               ] [50mY7pf] started
[2021-10-10T16:09:45,316][WARN ][o.e.x.s.a.s.m.NativeRoleMappingStore] [50mY7pf] Failed to clear cache for realms [[]]
[2021-10-10T16:10:08,195][INFO ][o.e.l.LicenseService     ] [50mY7pf] license [0cbc53f2-c8df-4cea-9209-ba7d8144faef] mode [basic] - valid
[2021-10-10T16:10:17,619][INFO ][o.e.g.GatewayService     ] [50mY7pf] recovered [4] indices into cluster_state
[2021-10-10T16:10:18,927][WARN ][o.e.c.s.MasterService    ] [50mY7pf] cluster state update task [local-gateway-elected-state] took [58.1s] above the warn threshold of 30s
[2021-10-10T16:10:20,950][WARN ][o.e.c.s.ClusterApplierService] [50mY7pf] cluster state applier task [apply cluster state (from master [master {50mY7pf}{50mY7pfYSja9aXpQfjZsHQ}{qXQYrlCXSwq75wtkUvr6ng}{127.0.0.1}{127.0.0.1:9300}{ml.machine_memory=17179869184, xpack.installed=true, ml.max_open_jobs=20, ml.enabled=true} committed version [2] source [local-gateway-elected-state]])] took [55.8s] above the warn threshold of 30s
[2021-10-10T16:10:47,473][INFO ][o.e.c.r.a.AllocationService] [50mY7pf] Cluster health status changed from [RED] to [YELLOW] (reason: [shards started [[test123][4], [test123][1], [test123][3], [test123][0]] ...]).

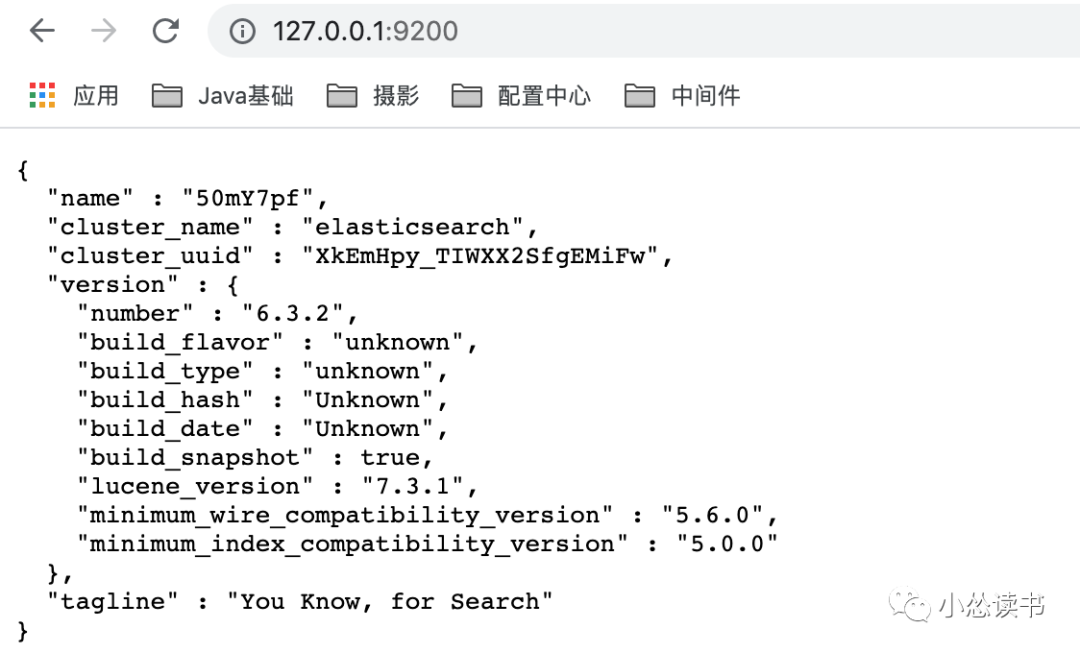

9）启动完成访问

数据库
