Spring MVC处理请求流程分析

//我去除了一些异步,文件类型的request代码,只保留主流程代码
public class DispatcherServlet extends FrameworkServlet {
  protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
    HttpServletRequest processedRequest = request;
    HandlerExecutionChain mappedHandler = null;
    try {
      ModelAndView mv = null;
      Exception dispatchException = null;
      try {

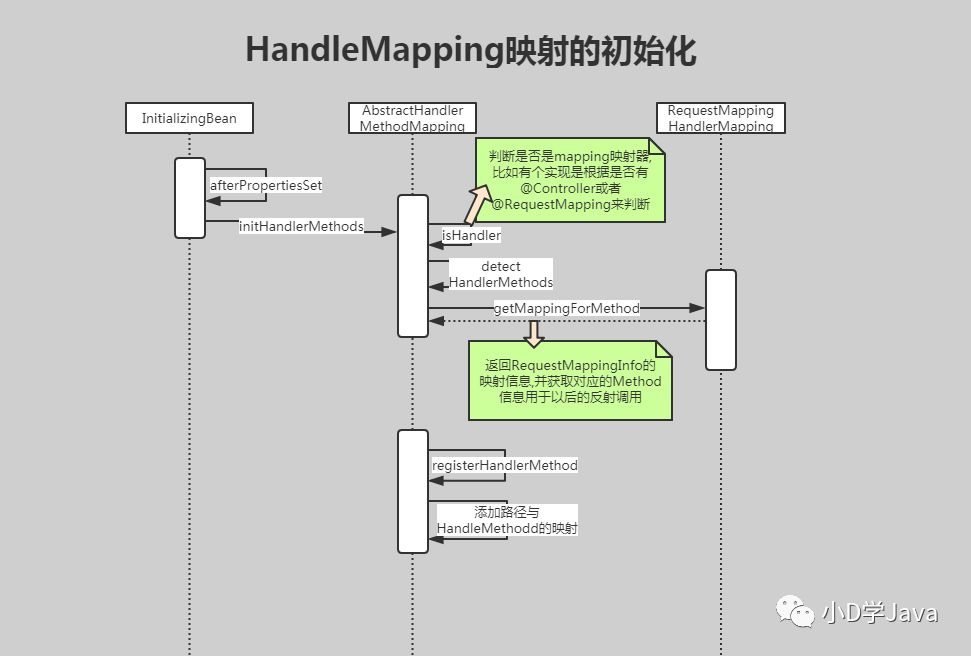

        //首先基本的HandleMapping在onRefresh时内部已经被初始化了
        //这里是获取一个执行器链
        mappedHandler = getHandler(processedRequest);
        //获取真正的执行器
        HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());
        //执行拦截器的预处理,拦截器是在getHandle方法中添加的
        if (!mappedHandler.applyPreHandle(processedRequest, response)) {
          return;
        }
        //触发调用逻辑
        mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
        //设置视图
        applyDefaultViewName(processedRequest, mv);
        //在视图返回前,执行拦截器的postHandle处理
        mappedHandler.applyPostHandle(processedRequest, response, mv);
      }
      catch (Exception ex) {
        dispatchException = ex;
      }
      //渲染视图后,并触发拦截器的`afterCompletion`操作
      processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
    }
    catch (Exception ex) {
      triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
    }
  }

    //根据HandlerMapping找到合适的HandlerMethod,并包装成HandlerExecutionChain
    protected HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
    for (HandlerMapping hm : this.handlerMappings) {
      HandlerExecutionChain handler = hm.getHandler(request);
      if (handler != null) {
        return handler;
      }
    }
    return null;
  }
}

public abstract class AbstractHandlerMapping extends WebApplicationObjectSupport implements HandlerMapping, Ordered, BeanNameAware {
  public final HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
    //调用父类AbstractHandlerMethodMapping获取HandleMethod
    Object handler = getHandlerInternal(request);
    if (handler == null) {
      handler = getDefaultHandler();
    }
    if (handler == null) {
      return null;
    }
    //如果返回的类型是字符串,则通过bean工厂获取
    if (handler instanceof String) {
      String handlerName = (String) handler;
      handler = obtainApplicationContext().getBean(handlerName);
    }
    //获取执行器链
    HandlerExecutionChain executionChain = getHandlerExecutionChain(handler, request);
    return executionChain;
  }


    //获取执行器链
    protected HandlerExecutionChain getHandlerExecutionChain(Object handler, HttpServletRequest request) {
    HandlerExecutionChain chain = (handler instanceof HandlerExecutionChain ? HandlerExecutionChain) handler : new HandlerExecutionChain(handler));


    //添加拦截器
    String lookupPath = this.urlPathHelper.getLookupPathForRequest(request);
    for (HandlerInterceptor interceptor : this.adaptedInterceptors) {
      if (interceptor instanceof MappedInterceptor) {
        MappedInterceptor mappedInterceptor = (MappedInterceptor) interceptor;
        if (mappedInterceptor.matches(lookupPath, this.pathMatcher)) {
          chain.addInterceptor(mappedInterceptor.getInterceptor());
        }
      }
      else {
        chain.addInterceptor(interceptor);
      }
    }
    return chain;
  }
}

public abstract class AbstractHandlerMethodMapping<T> extends AbstractHandlerMapping implements InitializingBean {

    protected HandlerMethod getHandlerInternal(HttpServletRequest request) throws Exception {
    String lookupPath = getUrlPathHelper().getLookupPathForRequest(request);
    //Notice,下面两行代码加了读写锁,加锁代码以及try/finally代码被我省略了
    //根据调用路径找到匹配的HandlerMethod
    HandlerMethod handlerMethod = lookupHandlerMethod(lookupPath, request);
    return (handlerMethod != null ? handlerMethod.createWithResolvedBean() : null);

  }
}

public class HandlerMethod {
  public HandlerMethod createWithResolvedBean() {
    Object handler = this.bean;
    //如果HandlerMethod的bean是字符串,则从bean工厂获取
    if (this.bean instanceof String) {
      String beanName = (String) this.bean;
      handler = this.beanFactory.getBean(beanName);
    }
    return new HandlerMethod(this, handler);
  }

    //内部构造方法
    private HandlerMethod(HandlerMethod handlerMethod, Object handler) {
    this.bean = handler;
    this.beanFactory = handlerMethod.beanFactory;
    this.beanType = handlerMethod.beanType;
    this.method = handlerMethod.method;
    //注意这个属性,是之后执行业务逻辑方法位置的依据
    this.bridgedMethod = handlerMethod.bridgedMethod;
    this.parameters = handlerMethod.parameters;
    this.responseStatus = handlerMethod.responseStatus;
    this.responseStatusReason = handlerMethod.responseStatusReason;
    this.resolvedFromHandlerMethod = handlerMethod;
  }
}

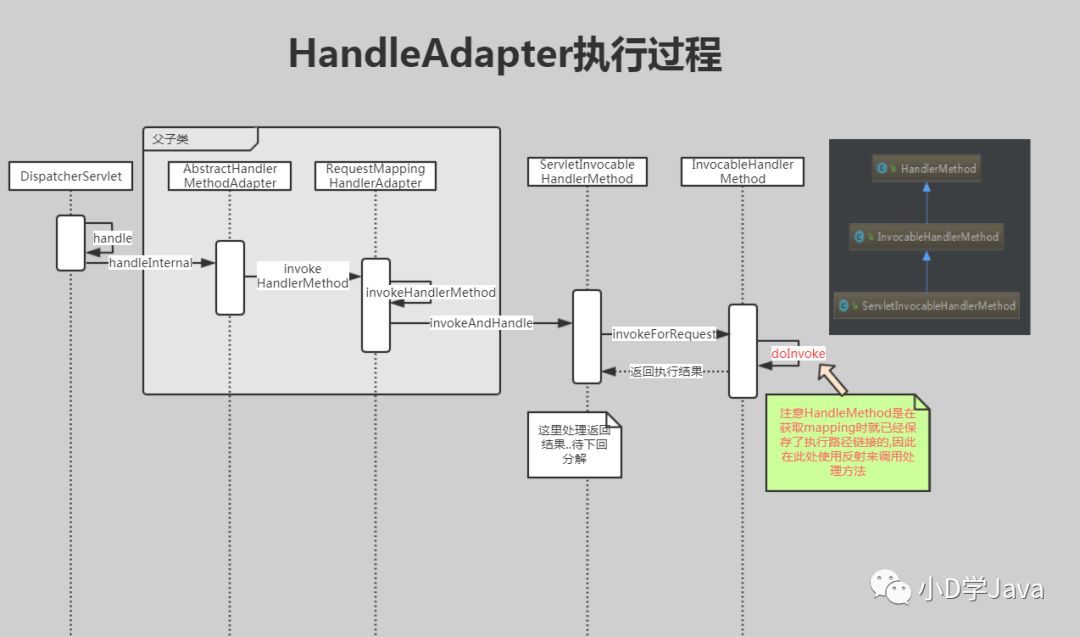

 //入口是在`DispatcherServlet`的`doDispatch`方法里面的`ha.handle(processedRequest, response, mappedHandler.getHandler())`
 public class RequestMappingHandlerAdapter extends AbstractHandlerMethodAdapter implements BeanFactoryAware, InitializingBean {
   //真正执行业务代码的方法,创建了`ServletInvocableHandlerMethod`用以下面调用
     protected ModelAndView invokeHandlerMethod(HttpServletRequest request,HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {
    ServletWebRequest webRequest = new ServletWebRequest(request, response);
    try {
      WebDataBinderFactory binderFactory = getDataBinderFactory(handlerMethod);
      ModelFactory modelFactory = getModelFactory(handlerMethod, binderFactory);

      //创建ServletInvocableHandlerMethod,其实HandleMethod的子类
      ServletInvocableHandlerMethod invocableMethod = createInvocableHandlerMethod(handlerMethod);
      if (this.argumentResolvers != null) {
        invocableMethod.setHandlerMethodArgumentResolvers(this.argumentResolvers);
      }
      if (this.returnValueHandlers != null) {
        invocableMethod.setHandlerMethodReturnValueHandlers(this.returnValueHandlers);
      }
      invocableMethod.setDataBinderFactory(binderFactory);
      invocableMethod.setParameterNameDiscoverer(this.parameterNameDiscoverer);


      ModelAndViewContainer mavContainer = new ModelAndViewContainer();
      mavContainer.addAllAttributes(RequestContextUtils.getInputFlashMap(request));
      modelFactory.initModel(webRequest, mavContainer, invocableMethod);
      mavContainer.setIgnoreDefaultModelOnRedirect(this.ignoreDefaultModelOnRedirect);
      //关键代码入口
      invocableMethod.invokeAndHandle(webRequest, mavContainer);


      return getModelAndView(mavContainer, modelFactory, webRequest);
    }
    finally {
      webRequest.requestCompleted();
    }
  }
 }

public class ServletInvocableHandlerMethod extends InvocableHandlerMethod {
  public void invokeAndHandle(ServletWebRequest webRequest, ModelAndViewContainer mavContainer,Object... providedArgs) throws Exception {
    //关键代码,真正执行请求代码的方法
    Object returnValue = invokeForRequest(webRequest, mavContainer, providedArgs);
    setResponseStatus(webRequest);


    if (returnValue == null) {
      if (isRequestNotModified(webRequest) || getResponseStatus() != null || mavContainer.isRequestHandled()) {
        mavContainer.setRequestHandled(true);
        return;
      }
    }
    else if (StringUtils.hasText(getResponseStatusReason())) {
      mavContainer.setRequestHandled(true);
      return;
    }


    mavContainer.setRequestHandled(false);
    try {
      //处理返回数据
      this.returnValueHandlers.handleReturnValue(
          returnValue, getReturnValueType(returnValue), mavContainer, webRequest);
    }
    catch (Exception ex) {
      throw ex;
    }
  }


  public Object invokeForRequest(NativeWebRequest request, @Nullable ModelAndViewContainer mavContainer,Object... providedArgs) throws Exception {
      //获取方法参数
      Object[] args = getMethodArgumentValues(request, mavContainer, providedArgs);
      return doInvoke(args);
  }

  protected Object doInvoke(Object... args) throws Exception {
      //使用反射将方法设置方法访问级别
      ReflectionUtils.makeAccessible(getBridgedMethod());
      try {
              //使用反射执行`RequestMapping`对应的方法
        return getBridgedMethod().invoke(getBean(), args);
      }
      catch (IllegalArgumentException ex) {
        assertTargetBean(getBridgedMethod(), getBean(), args);
        String text = (ex.getMessage() != null ? ex.getMessage() : "Illegal argument");
        throw new IllegalStateException(formatInvokeError(text, args), ex);
      }
      catch (InvocationTargetException ex) {
        // Unwrap for HandlerExceptionResolvers ...
        //我省略了异常包装以及抛出
      }
  }


}
