rancher替换ssl证书恢复原有k8s集群

原创雪狼sunny 2022-01-12

1055

rancher默认启动用的是自己的签名证书，这个证书只有一年的期限，到期无法继续使用，必须使用自己的证书，很多朋友都在使用rancher的过程中忽略这个小问题；

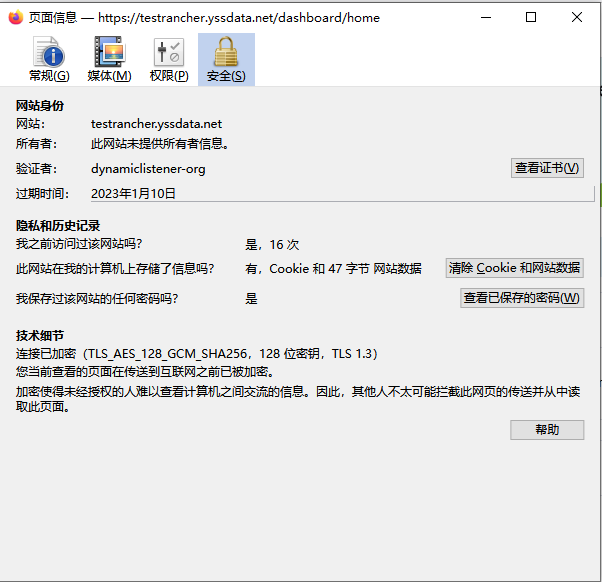

rancher部署完成证书详情如下：

1 现有运行的rancher环境如下：

rancher-master：192.168.104.111

node-1: 192.168.104.117

node-2: 192.168.104.124

centos7:

4cpu,8GB,100GB

[root@master ssl]# cat /etc/redhat-release

CentOS Linux release 7.9.2009 (Core)

docker 安装rancher集群系统：

注意：

A centos7系统开启forward转发功能；

B centos7 系统设置好hostname，关闭防火墙和selinux；

C docker安装最新版本，docker的加速器要有华为云或者着阿里云，要不然node节点无法注册到master上去；

2 切换前准备：这个是官方提供的方法，我这边没按照这个操作没法执行，如果有人做了下面的测试可以和我沟通；

因为替换证书之后，Rancher Agent 需要修使用域名连接 Rancher Server，业务集群会出现无法连接的情况，所以需要提前从 Rancher UI 下载业务集群的 kubeconfig，并且将context切换到demo-rancher-demo2。切换后，可以不通过 Rancher api 直接访问 k8s api-server。

# kubectl config get-contexts CURRENT NAME CLUSTER AUTHINFO NAMESPACE * demo demo demo demo-rancher-demo2 demo-rancher-demo2 demo

# kubectl config use-context demo-rancher-demo2 Switched to context "demo-rancher-demo2".

# kubectl config current-context demo-rancher-demo2

# kubectl get nodes NAME STATUS ROLES AGE VERSION rancher-demo2 Ready controlplane,etcd,worker 58m v1.19.6

3 Rancher Server 替换证书官方给出的建议是let's Encrypt证书，关于申请证书的方法官方很详细这里不在讲述；

Let's Encrypt是一个于2015年三季度推出的数字证书认证机构，旨在以自动化流程消除手动创建和安装证书的复杂流程，并推广使万维网服务器的加密连接无所不在，为安全网站提供免费的传输层安全性协议（TLS）证书

备份docker 安装的 Rancher Server

  # docker ps
  CONTAINER ID        IMAGE               COMMAND             CREATED             STATUS              PORTS                                      NAMES
  b0e3062667a2        rancher/rancher     "entrypoint.sh"     2 hours ago         Up 2 hours          0.0.0.0:8081->80/tcp, 0.0.0.0:4443->443/tcp   rancher-master

  # docker stop rancher-master
  rancher-master

  # docker create --volumes-from silly_swanson --name rancher-data rancher/rancher
  e265b3939d8c46e090f527bce7c82561a2982a64754aa307c05e47ab4f989d7c

基于备份，使用自定义证书启动 Rancher Server

  docker run -d --privileged --volumes-from rancher-data \            --name rancher-master
            --restart=unless-stopped \
            -p 80:80 -p 443:443 \
            -v /opt/rancher/ssl/cert.pem:/etc/rancher/ssl/cert.pem \
            -v /opt/rancher/ssl/key.pem:/etc/rancher/ssl/key.pem \
            -v /opt/rancher/ssl/ca.pem:/etc/rancher/ssl/cacerts.pem \
            --privileged \
            rancher/rancher:v2.5.9

注意：
如果你的需求只是为了要替换证书，请不要修改 Rancher Server 镜像的版本号，保持和之前版本一致，本例为：rancher/rancher:v2.5.9，否则将执行升级的操作。

操作记录

[root@master  ~]# cd testrancher.yssdata.net
[root@master  testrancher.yssdata.net]# ls
cert1.pem  chain1.pem  fullchain1.pem  privkey1.pem
[root@master  testrancher.yssdata.net]# mv * /opt/rancher/ssl/
[root@master  testrancher.yssdata.net]# cd ../
[root@master  ~]# ls
anaconda-ks.cfg  testrancher.yssdata.net  testrancher.yssdata.net.tar.gz
[root@master  ~]# rm -rf testrancher.yssdata.net
[root@master  ~]# cd /opt/rancher/ssl/
[root@master  ssl]# ls
cert1.pem  chain1.pem  fullchain1.pem  privkey1.pem
[root@master  ssl]# cp cert1.pem cert.pem
[root@master  ssl]# cp privkey1.pem key.pem
[root@master  ssl]# cp fullchain1.pem cacerts.pem
[root@master  ssl]# docker stop rancher-master
rancher-master
[root@master  ssl]# docker create --volumes-from rancher-master --name rancher-data rancher/rancher
e265b3939d8c46e090f527bce7c82561a2982a64754aa307c05e47ab4f989d7c

重新启动rancher-master

docker run -d --privileged --volumes-from rancher-data \
--name rancher-master \
        --restart=unless-stopped \
        -p 8081:80 -p 4443:443 \
        -v/opt/rancher/ssl/cert.pem:/etc/rancher/ssl/cert.pem\
        -v /opt/rancher/ssl/key.pem:/etc/rancher/ssl/key.pem \

      -v  /opt/rancher/ssl/cacerts.pem:/etc/rancher/ssl/cacerts.pem\
        --privileged \
        rancher/rancher:v2.5.9

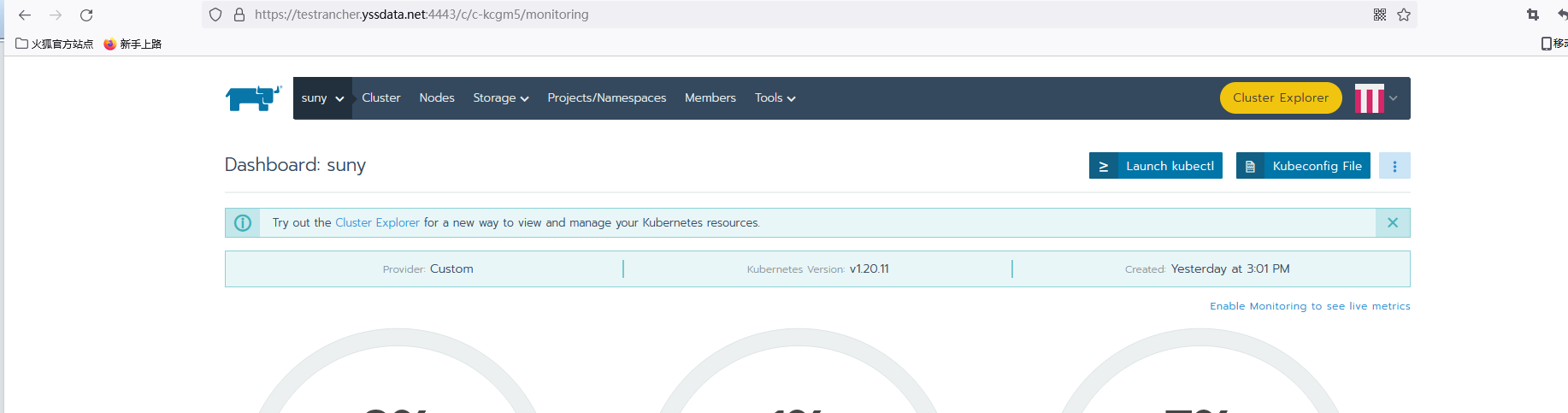

2 更新完证书以后的浏览器访问如下：

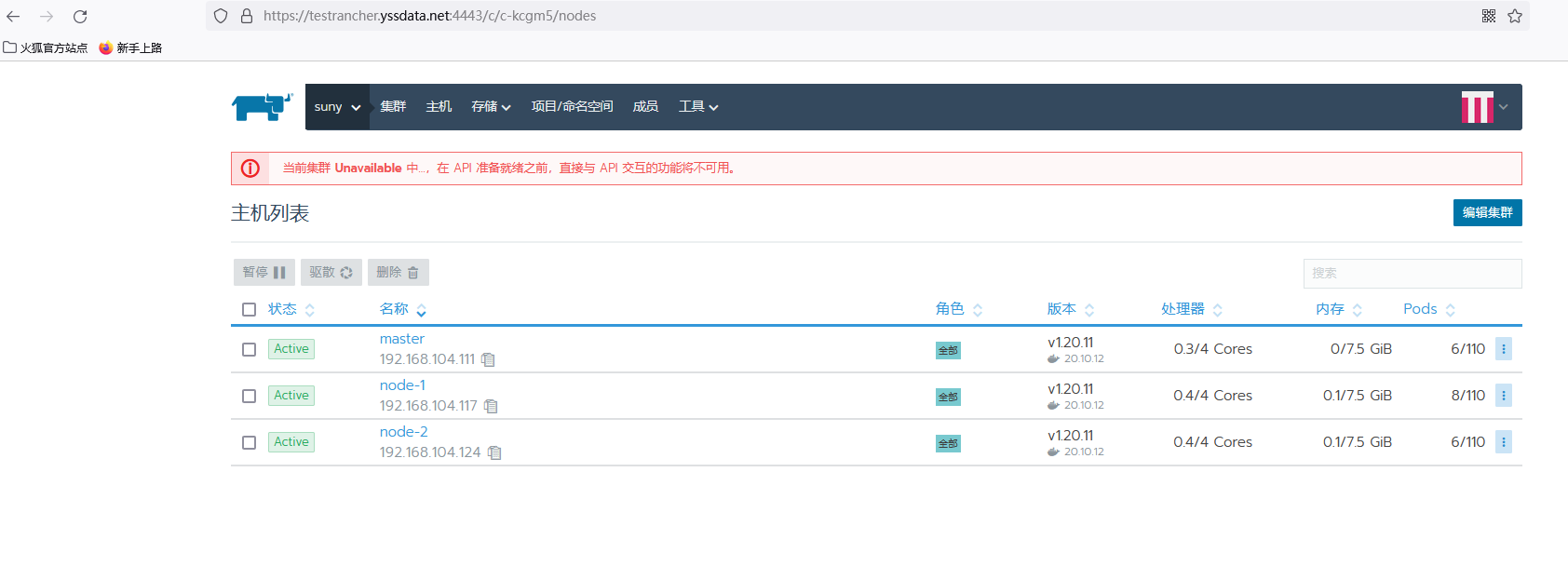

suny集群处于unavailable状态；

A 修复集群内部问题：

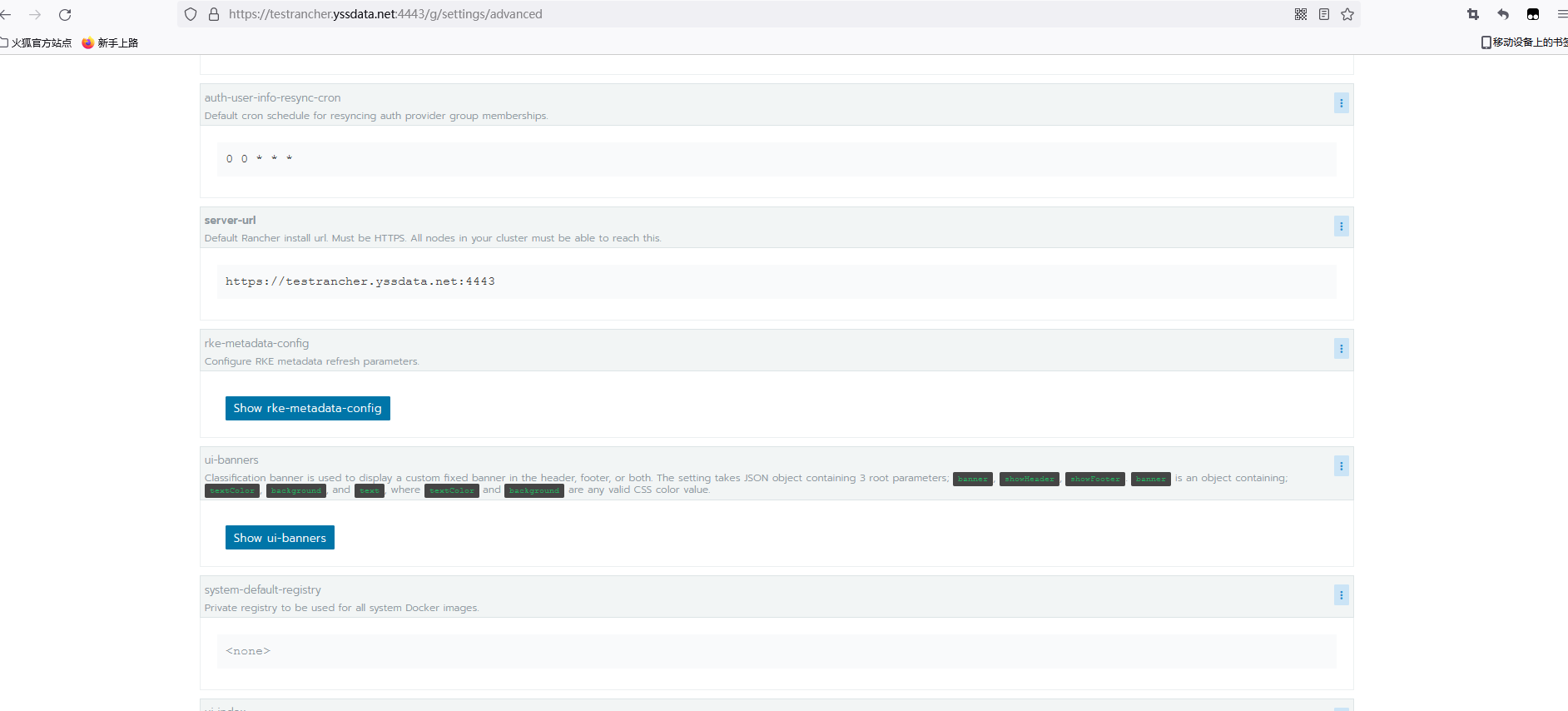

1 进入到Setting-> Advanced Settings页面，修改server-url的地址为你定义的域名，本例为: testrancher.yssdata.net

确定的rancher的访问地址是不是正确；

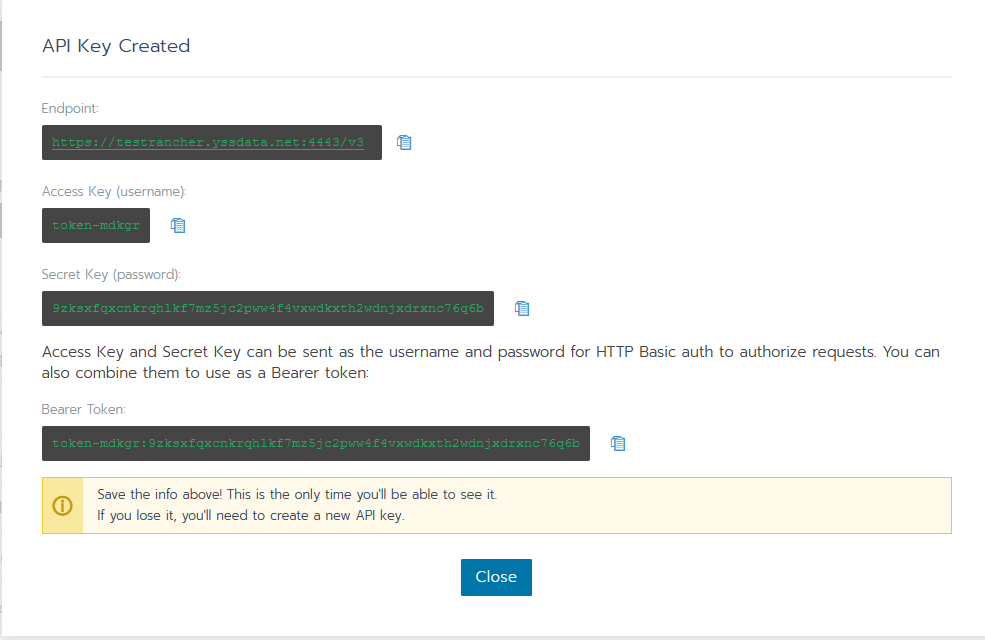

2 再rancher新建用户在 Rancher UI 上创建 API token（用户-> API & Keys）并保存Bearer Token

3 进入rancher-master 容器进行修复：

rancher-master 容器里面需要url和jq两个命令，url容器里面自带， jq需要单独安装，安装命令为：apt-get install jq -y

命令详解：

# Rancher URLRANCHERURL="https://testrancher.yssdata.net:4443"   ###rancher-master的url的访问地址# Cluster IDCLUSTERID="c-kcgm5"                                ### rancher-master访问内部集群的clustid人员下图浏览器里面
# TokenTOKEN="token-qq5d9:tqgfsh66lcv2vj8j7tknn9j46drv9dc7gb2hbbrdlx2n7lq6fz9l79"     ###创建新的api和key保留的Bearer Token# Valid certificatescurl -s -H "Authorization: Bearer ${TOKEN}" "${RANCHERURL}/v3/clusterregistrationtokens?clusterId=${CLUSTERID}" | jq -r '.data[] | select(.name != "system") | .command'# Self signed certificatescurl -s -k -H "Authorization: Bearer ${TOKEN}" "${RANCHERURL}/v3/clusterregistrationtokens?clusterId=${CLUSTERID}" | jq -r '.data[] | select(.name != "system") | .insecureCommand'  ####执行完这条命令会生成一条命令继续执行让集群内部自我修复，修复时间为20分钟；

root@d1b844f63b65:/var/lib/rancher#  RANCHERURL="https://testrancher.yssdata.net:4443"
root@d1b844f63b65:/var/lib/rancher# CLUSTERID="c-kcgm5"
root@d1b844f63b65:/var/lib/rancher# TOKEN="token-qq5d9:tqgfsh66lcv2vj8j7tknn9j46drv9dc7gb2hbbrdlx2n7lq6fz9l79"
root@d1b844f63b65:/var/lib/rancher# apt-get install jq -y
Reading package lists... Done
Building dependency tree
Reading state information... Done
The following additional packages will be installed:
  libjq1 libonig4
The following NEW packages will be installed:
  jq libjq1 libonig4
0 upgraded, 3 newly installed, 0 to remove and 0 not upgraded.
Need to get 276 kB of archives.
After this operation, 930 kB of additional disk space will be used.
Get:1 http://archive.ubuntu.com/ubuntu bionic/universe amd64 libonig4 amd64 6.7.0-1 [119 kB]
Get:2 http://archive.ubuntu.com/ubuntu bionic/universe amd64 libjq1 amd64 1.5+dfsg-2 [111 kB]
Get:3 http://archive.ubuntu.com/ubuntu bionic/universe amd64 jq amd64 1.5+dfsg-2 [45.6 kB]
Fetched 276 kB in 3s (108 kB/s)
debconf: delaying package configuration, since apt-utils is not installed
Selecting previously unselected package libonig4:amd64.
(Reading database ... 7873 files and directories currently installed.)
Preparing to unpack .../libonig4_6.7.0-1_amd64.deb ...
Unpacking libonig4:amd64 (6.7.0-1) ...
Selecting previously unselected package libjq1:amd64.
Preparing to unpack .../libjq1_1.5+dfsg-2_amd64.deb ...
Unpacking libjq1:amd64 (1.5+dfsg-2) ...
Selecting previously unselected package jq.
Preparing to unpack .../jq_1.5+dfsg-2_amd64.deb ...
Unpacking jq (1.5+dfsg-2) ...
Setting up libonig4:amd64 (6.7.0-1) ...
Setting up libjq1:amd64 (1.5+dfsg-2) ...
Setting up jq (1.5+dfsg-2) ...
Processing triggers for libc-bin (2.27-3ubuntu1.4) ...
root@d1b844f63b65:/var/lib/rancher# curl -s -H "Authorization: Bearer ${TOKEN}" "${RANCHERURL}/v3/clusterregistrationtokens?clusterId=${CLUSTERID}" | jq -r '.data[] | select(.name != "system") | .command'
root@d1b844f63b65:/var/lib/rancher# curl -s -k -H "Authorization: Bearer ${TOKEN}" "${RANCHERURL}/v3/clusterregistrationtokens?clusterId=${CLUSTERID}" | jq -r '.data[] | select(.name != "system") | .insecureCommand'
curl --insecure -sfL https://testrancher.yssdata.net:4443/v3/import/lrhzvcs8vhmtcql77bsg72ngl7svc7m6fhsvfl6qjlnk6wv9dskr4g_c-kcgm5.yaml | kubectl apply -f -
root@d1b844f63b65:/var/lib/rancher# curl --insecure -sfL https://testrancher.yssdata.net:4443/v3/import/lrhzvcs8vhmtcql77bsg72ngl7svc7m6fhsvfl6qjlnk6wv9dskr4g_c-kcgm5.yaml | kubectl apply -f -
clusterrole.rbac.authorization.k8s.io/proxy-clusterrole-kubeapiserver unchanged
clusterrolebinding.rbac.authorization.k8s.io/proxy-role-binding-kubernetes-master unchanged
namespace/cattle-system unchanged
serviceaccount/cattle unchanged
clusterrolebinding.rbac.authorization.k8s.io/cattle-admin-binding unchanged
secret/cattle-credentials-159e21c unchanged
clusterrole.rbac.authorization.k8s.io/cattle-admin unchanged
deployment.apps/cattle-cluster-agent configured
daemonset.apps/cattle-node-agent unchanged
root@d1b844f63b65:/var/lib/rancher#
root@d1b844f63b65:/var/lib/rancher# kubectl -n cattle-system get pods
NAME                                   READY   STATUS              RESTARTS   AGE
cattle-cluster-agent-d746d9697-jdcks   0/1     ContainerCreating   0          10m
cattle-node-agent-f2qcb                0/1     ContainerCreating   0          10m
helm-operation-z78dp                   0/2     Completed           0
