首页 / 大数据安全利器ranger 编译安装

大数据安全利器ranger 编译安装

数据库干货铺 2019-08-20
861

ranger大数据领域的一个集中式安全管理框架，它可以对诸如hdfs、hive、kafka、storm等组件进行细粒度的权限控制。本文将介绍部署过程

1.  部署准备
ranger:    进入apach官网下载 http://ranger.apache.org/download.html，  本次使用的是ranger1.2.0 ，地址为http://mirror.bit.edu.cn/apache/ranger/1.2.0/apache-ranger-1.2.0.tar.gz
maven:    进入Apache的maven官网http://maven.apache.org/download.cgi下载, 本次用的是maven3.6 ，下载地址 http://mirrors.tuna.tsinghua.edu.cn/apache/maven/maven-3/3.6.1/binaries/apache-maven-3.6.1-bin.tar.gz
python2.7:  因编译及试用中需要Python2.7版本的Python，因此如果为Centos6系统，需要手动升级Python至Python2.7，升级过程可参考历史文章Python升级
MySQL：   需要mysql数据库，如无可用MySQL需要部署一套MySQL，部署方法请参考历史文章MySQL部署
mysql-connector-java:  进入MySQL官网下载 https://dev.mysql.com/downloads/connector/j/5.1.html
bc命令:   使用过程中需要使用bc命令
    ## 下载ranger
    wget  http://mirror.bit.edu.cn/apache/ranger/1.2.0/apache-ranger-1.2.0.tar.gz
    ##  下载maven
    wget  http://mirrors.tuna.tsinghua.edu.cn/apache/maven/maven-3/3.6.1/binaries/apache-maven-3.6.1-bin.tar.gz
    ##  安装bc命令
    yum  install bc -y

    2.  编译安装过程
    2.1   解压
      #  解压ranger及maven包
      tar  -zxvf apache-ranger-1.2.0.tar.gz
      tar -zxvf  apache-maven-3.6.1-bin.tar.gz


      #  将maven相关命令路径配置到环境变量
      vim  /etc/profile
      export PATH=/usr/local/maven/bin:$PATH
      2.2  编译
        cd apache-ranger-1.2.0
        mvn clean
        # 编译
        mvn clean compile package assembly:assembly install -DskipTests -Drat.skip=true

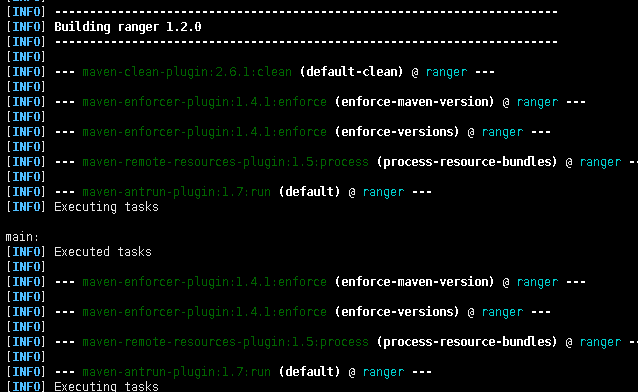

        编译过程中会有如下信息

        执行过程中会出现很多信息，且编译时间很长，如果出现异常，根据对应的报错信息进行处理，例如Python包不存在时需要手动添加；如果某个jar不存在，可以手动下载放置对应的路径或修改pom地址或文件。
        经过很长一段时间，且多次解决错误后，编译完成，出现如下结果
          [INFO] Reactor Summary for ranger 1.2.0:
          [INFO]
          [INFO] ranger ............................................. SUCCESS [  0.244 s]
          [INFO] Jdbc SQL Connector ................................. SUCCESS [  0.573 s]
          [INFO] Credential Support ................................. SUCCESS [  0.391 s]
          [INFO] Audit Component .................................... SUCCESS [  1.065 s]
          [INFO] Common library for Plugins ......................... SUCCESS [  1.332 s]
          [INFO] Installer Support Component ........................ SUCCESS [  0.153 s]
          [INFO] Credential Builder ................................. SUCCESS [  0.293 s]
          [INFO] Embedded Web Server Invoker ........................ SUCCESS [  0.345 s]
          [INFO] Key Management Service ............................. SUCCESS [  0.984 s]
          [INFO] ranger-plugin-classloader .......................... SUCCESS [  0.209 s]
          [INFO] HBase Security Plugin Shim ......................... SUCCESS [  0.830 s]
          [INFO] HBase Security Plugin .............................. SUCCESS [  1.092 s]
          [INFO] Hdfs Security Plugin ............................... SUCCESS [  0.786 s]
          [INFO] Hive Security Plugin ............................... SUCCESS [  1.135 s]
          [INFO] Knox Security Plugin Shim .......................... SUCCESS [  0.524 s]
          [INFO] Knox Security Plugin ............................... SUCCESS [  0.712 s]
          [INFO] Storm Security Plugin .............................. SUCCESS [  0.533 s]
          [INFO] YARN Security Plugin ............................... SUCCESS [  0.398 s]
          [INFO] Ranger Util ........................................ SUCCESS [  1.099 s]
          [INFO] Unix Authentication Client ......................... SUCCESS [  0.259 s]
          [INFO] Security Admin Web Application ..................... SUCCESS [ 12.847 s]
          [INFO] KAFKA Security Plugin .............................. SUCCESS [  0.458 s]
          [INFO] SOLR Security Plugin ............................... SUCCESS [  1.208 s]
          [INFO] NiFi Security Plugin ............................... SUCCESS [  0.386 s]
          [INFO] NiFi Registry Security Plugin ...................... SUCCESS [  0.381 s]
          [INFO] Unix User Group Synchronizer ....................... SUCCESS [  1.016 s]
          [INFO] Ldap Config Check Tool ............................. SUCCESS [  0.222 s]
          [INFO] Unix Authentication Service ........................ SUCCESS [  0.330 s]
          [INFO] KMS Security Plugin ................................ SUCCESS [  0.490 s]
          [INFO] Tag Synchronizer ................................... SUCCESS [  1.211 s]
          [INFO] Hdfs Security Plugin Shim .......................... SUCCESS [  0.311 s]
          [INFO] Hive Security Plugin Shim .......................... SUCCESS [  0.800 s]
          [INFO] YARN Security Plugin Shim .......................... SUCCESS [  0.320 s]
          [INFO] Storm Security Plugin shim ......................... SUCCESS [  0.365 s]
          [INFO] KAFKA Security Plugin Shim ......................... SUCCESS [  0.313 s]
          [INFO] SOLR Security Plugin Shim .......................... SUCCESS [  0.701 s]
          [INFO] Atlas Security Plugin Shim ......................... SUCCESS [  0.398 s]
          [INFO] KMS Security Plugin Shim ........................... SUCCESS [  0.342 s]
          [INFO] ranger-examples .................................... SUCCESS [  0.042 s]
          [INFO] Ranger Examples - Conditions and ContextEnrichers .. SUCCESS [  0.335 s]
          [INFO] Ranger Examples - SampleApp ........................ SUCCESS [  0.140 s]
          [INFO] Ranger Examples - Ranger Plugin for SampleApp ...... SUCCESS [  0.322 s]
          [INFO] Ranger Tools ....................................... SUCCESS [  0.457 s]
          [INFO] Atlas Security Plugin .............................. SUCCESS [  0.722 s]
          [INFO] Sqoop Security Plugin .............................. SUCCESS [  0.472 s]
          [INFO] Sqoop Security Plugin Shim ......................... SUCCESS [  0.293 s]
          [INFO] Kylin Security Plugin .............................. SUCCESS [  0.410 s]
          [INFO] Kylin Security Plugin Shim ......................... SUCCESS [  0.315 s]
          [INFO] Unix Native Authenticator .......................... SUCCESS [  0.491 s]
          [INFO] ------------------------------------------------------------------------
          [INFO] BUILD SUCCESS
          [INFO] ------------------------------------------------------------------------
          [INFO] Total time:  01:24 h
          [INFO] Finished at: 2019-08-19T09:47:05+08:00
          [INFO] ------------------------------------------------------------------------

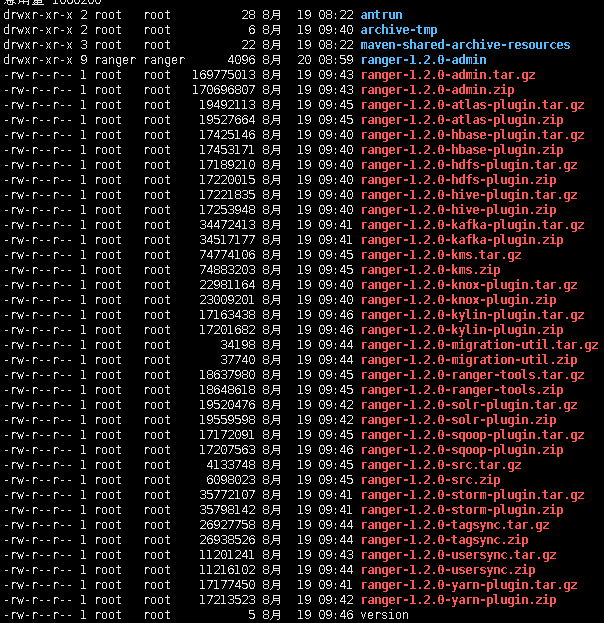

          在target文件夹下将有如下包
          即表示编译成功完成。
          2.3  安装并启动ranger-admin
          2.3.1 修改配置文件
          关于数据库安装，权限设置等，本文不再展开。
            #  进入target目录
            cd opt/apache-ranger-1.2.0/target/


            #  解压ranger-1.2.0-admin.tar.gz
            tar  -zxvf  ranger-1.2.0-admin.tar.gz


            # 进入ranger-1.2.0-admin目录
            cd  ranger-1.2.0-admin


            # 修改 install.properties
            vim install.properties




            SQL_CONNECTOR_JAR=/usr/share/java/mysql-connector-java-8.0.17.jar     修改为准备工作中下载的jar包及路径


            db_root_user=root
            db_root_password=123456
            db_host=192.168.56.105


            db_name=ranger
            db_user=rangeradmin
            db_password=rangeradmin




            # 可以注销如下内容
            #Source for Audit Store. Currently only solr is supported.
            # * audit_store is solr
            ## audit_store=solr


            # * audit_solr_url URL to Solr. E.g. http://<solr_host>:6083/solr/ranger_audits
            ## audit_solr_urls=
            ## audit_solr_user=
            ## audit_solr_password=
            ## audit_solr_zookeepers=
            2.3.2 修改 setup.sh
              // 注销如下内容


              ## if [ "$?" != "0" ]
              ## then
              ##         validateDefaultUsersPassword 'admin' "${rangerAdmin_password}"
              ##         validateDefaultUsersPassword 'rangertagsync' "${rangerTagsync_password}"
              ##         validateDefaultUsersPassword 'rangerusersync' "${rangerUsersync_password}"
              ##         validateDefaultUsersPassword 'keyadmin' "${keyadmin_password}"
              ## fi
              2.3.3   安装
                ./ setup.sh
                注意，如果中途报如下错误
                  2019-08-20 08:54:22,460  [I] '/usr/local/java/bin/java' command found
                  setup.sh:行325: bc: 未找到命令
                  setup.sh: 第 325 行:[: -eq: 期待一元表达式
                  即缺少bc命令，安装后即可
                  最终出现如下结果
                    2019-08-20 09:00:18,240  [I] --------- Verifying Ranger DB connection ---------
                    2019-08-20 09:00:18,240  [I] Checking connection..
                    geradmin' -p '********' -noheader -trim -c \; -query "SELECT version();"
                    Loading class `com.mysql.jdbc.Driver'. This is deprecated. The new driver class is `com.mysql.cj.jdbc.Driver'. The driver is automatically registered via the SPI and manual loading of the driver class is generally unnecessary.
                    2019-08-20 09:00:18,838  [I] Checking connection passed.
                    2019-08-20 09:00:19,091  [I] DB FLAVOR :MYSQL
                    2019-08-20 09:00:19,092  [I] --------- Verifying Ranger DB connection ---------
                    2019-08-20 09:00:19,092  [I] Checking connection..
                    geradmin' -p '********' -noheader -trim -c \; -query "SELECT version();"
                    Loading class `com.mysql.jdbc.Driver'. This is deprecated. The new driver class is `com.mysql.cj.jdbc.Driver'. The driver is automatically registered via the SPI and manual loading of the driver class is generally unnecessary.
                    2019-08-20 09:00:19,660  [I] Checking connection passed.
                    Installation of Ranger PolicyManager Web Application is completed.
                    表示已完成安装。
                    2.4  启动ranger-admin
                      #  进入ews目录
                      cd ews
                      # 启动服务
                      ./ranger-admin-services.sh  start
                      /**  正常情况下出现如下结果*/
                      Starting Apache Ranger Admin Service


                      Apache Ranger Admin Service with pid 236275 has started.


                      #  查看是否启动
                      ps -ef|grep ranger
                      或
                      netstat -lntp|grep 6080

                      2.5 web端验证
                      启动完成后，可以用web端登录验证，默认端口为6080,默认用户名密码均为admin

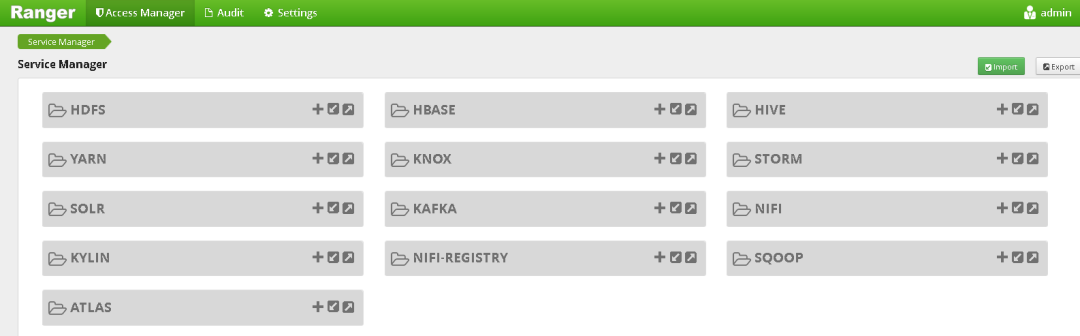

                      登录后，结果如下

                      3. 配置hdfs插件

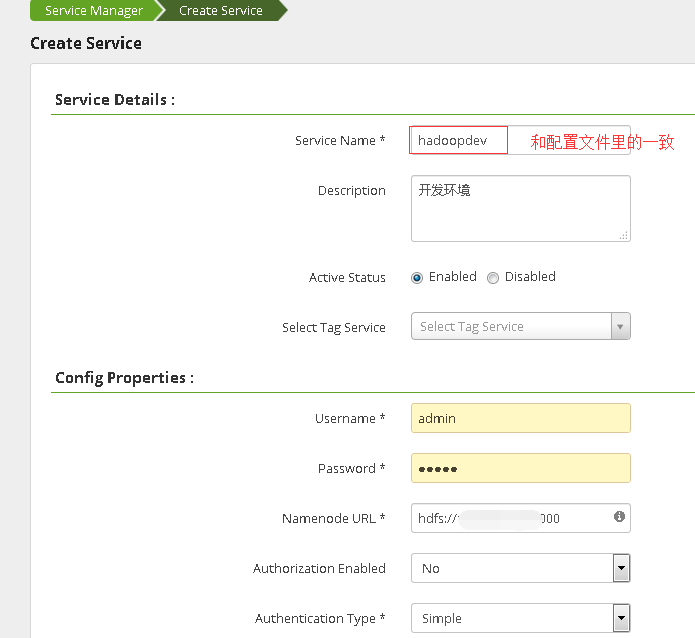

                      3.1 在ranger-admim上配置一个服务
                      注意配置的服务名与底层配置文件里配置的服务名一致
                      3.2   修改配置文件
                        # 解压
                        tar -zxvf ranger-1.2.0-hdfs-plugin.tar.gz


                        # 进入目录
                        cd  opt/apache-ranger-1.2.0/target/ranger-1.2.0-hdfs-plugin


                        # 修改install.properties


                        vim install.properties


                        /**  主要修改如下内容*/
                        # Example:
                        # POLICY_MGR_URL=http://policymanager.xasecure.net:6080
                        #


                        POLICY_MGR_URL=http://192.168.1.17:6080


                        #
                        # This is the repository name created within policy manager
                        #
                        # Example:
                        # REPOSITORY_NAME=hadoopdev
                        #
                        REPOSITORY_NAME=hadoopdev


                        #
                        # Set hadoop home when hadoop program and Ranger HDFS Plugin are not in the
                        # same path.
                        #
                        COMPONENT_INSTALL_DIR_NAME=/opt/software/hadoop/hadoop-3.2.0
                        3.3 启动插件
                          ./enable-hdfs-plugin.sh
                          /** 结果如下*/
                          Custom user and group is available, using custom user and group.
                          + Tue Aug 20 18:04:14 CST 2019 : hadoop: lib folder=/opt/software/hadoop/hadoop-3.2.0/share/hadoop/hdfs/lib conf folder=/opt/software/hadoop/hadoop-3.2.0/etc/hadoop
                          + Tue Aug 20 18:04:14 CST 2019 : Saving current config file: /opt/software/hadoop/hadoop-3.2.0/etc/hadoop/hdfs-site.xml to /opt/software/hadoop/hadoop-3.2.0/etc/hadoop/.hdfs-site.xml.20190820-180414 ...
                          + Tue Aug 20 18:04:14 CST 2019 : Saving current config file: /opt/software/hadoop/hadoop-3.2.0/etc/hadoop/ranger-hdfs-audit.xml to /opt/software/hadoop/hadoop-3.2.0/etc/hadoop/.ranger-hdfs-audit.xml.20190820-180414 ...
                          + Tue Aug 20 18:04:15 CST 2019 : Saving current config file: /opt/software/hadoop/hadoop-3.2.0/etc/hadoop/ranger-hdfs-security.xml to /opt/software/hadoop/hadoop-3.2.0/etc/hadoop/.ranger-hdfs-security.xml.20190820-180414 ...
                          + Tue Aug 20 18:04:15 CST 2019 : Saving current config file: /opt/software/hadoop/hadoop-3.2.0/etc/hadoop/ranger-policymgr-ssl.xml to /opt/software/hadoop/hadoop-3.2.0/etc/hadoop/.ranger-policymgr-ssl.xml.20190820-180414 ...
                          + Tue Aug 20 18:04:16 CST 2019 : Saving current JCE file: /etc/ranger/hadoopdev/cred.jceks to /etc/ranger/hadoopdev/.cred.jceks.20190820180416 ...
                          Ranger Plugin for hadoop has been enabled. Please restart hadoop to ensure that changes are effective.


                          网页上测试成功后即可

                          其他组件的测试和hdfs类似，可自行尝试。如果大家使用过程中编译或配置有问题，可以添或公众号和我沟通讨论。

                          另外，大家帮忙关注一下我的微信公众号：   数据库干货铺  ，将不定期有书籍及学习资料赠送
