近期在学习OpenStack，分享一下Rocky版本的OpenStack安装过程，请各位大佬多多关注，不当之处望斧正。
本小节分享Neutron服务的安装配置。接上小节：CentOS7-徒手安装OpenStack（Rocky版）系列-05-配置一个nova计算节点
***本节操作命令2.4在计算节点执行，其余在控制节点****
1. 基础知识
Neutron是openstack核心项目之一，提供云计算环境下的虚拟网络功能，用来管理OpenStack环境中所有虚拟网络基础设施，物理网络基础设施的接入层。Neutron为整个OpenStack环境提供网络支持，包括二层交换，三层路由，负载均衡，防火墙和VPN等。Neutron提供了一个灵活的框架，通过配置，无论是开源还是商业软件都可以被用来实现这些功能。 （1）二层交换 Switching Nova的Instance是通过虚拟交换机连接到虚拟二层网络的。Neutron支持多种虚拟交换机，包括Linux原生的Linux Bridge和Open vSwitch，Open vSwitch (OVS)是一个开源的虚拟交换机，它支持标准的管理接口和协议。利用Linux Bridge和OVS, Neutron除了可以创建传统的VLAN网络，还可以创建基于隧道技术的Overlay网络，比如VxLAN和GRE (Linux Bridge目前只支持VxLAN)。 （2）三层路由 Routing Instance可以配置不同网段的IP, Neutron的router （虚拟路由器）实现instance跨网段通信。router通过IP forwardings iptables等技术来实现路由和NAT。 （3）负载均衡 Load Balancing OpenStack目前是以Plugin的形式集成到Neutron，目前默认的是HAProxy。 （4）防火墙 Firwalling Neutron目前通过iptables实现，有两种方式：Security Group：限制进出instance的网络包；Firewalls-as-a-Service：限制进出路由器的网络。 （5）Neutron 管理的网络资源包括network、subnet和port a. network：是一个隔离的二层广播域。Neutron支持多种类型的netwok，包括 local、fla、VLAN、VxLAN 和 GRE。 b. subnet（子网）：subnet是一个IPv4或者IPv6地址段。instance的IP从subnet中分配。每个subnet需要定义IP地址的范围和掩码。network与subnet是1对多关系。一个subnet只能属于某个network；一个netwok可以有多个subnet,这些subnet可以是不同的IP段，但不能重叠。 c. prot：虚拟交换机上的一个端口，port上定义了MAC和IP地址。port与subnet是1对多的关系，一个port必须属于某个subnet；一个subnet可以有多个port。 |
#Neutron组件相当复杂。
1.1 组件
1.2基本架构

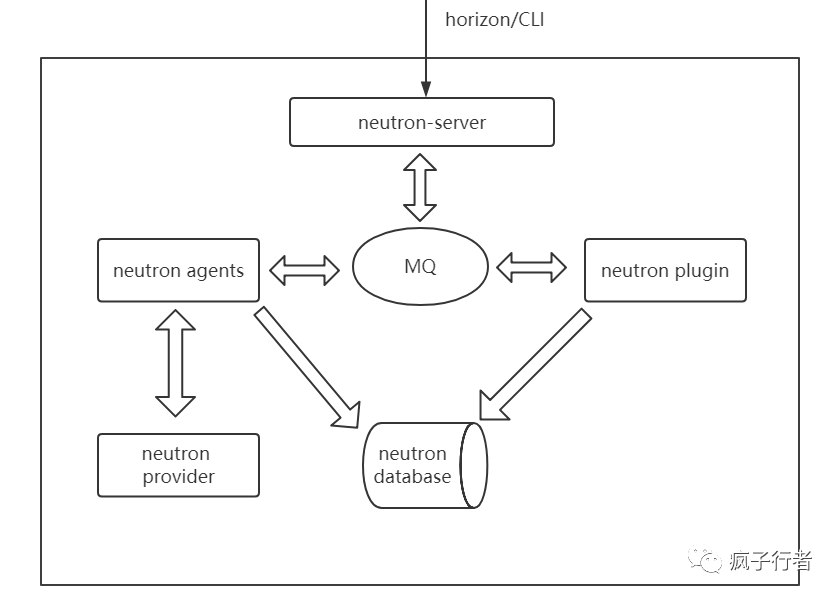

。Neutron Server 对外提供OpenStack网络API,接收请求，并调用Plugin处理请求。 。Plugin 处理Neutron Server发来的请求，维护OpenStack逻辑网络的状态，并调用Agent处理 请求。 。Agent 处理Plugin的请求，负责在network provider上真正实现各种网络功能。 。network provider 提供网络服务的虚拟或物理网络设备，例如Linux Bridge, Open vSwitch或者其他支持Neutron的物理交换机。 。Queue Neutron Server^ Plugin 和 Agent 之间通过 Messaging Queue 通信和调用。 。Datebase Database 用来存放 OpenStack 的网络状态信息，包括 Network、Subnet、Port、Router 等。 |
2 安装Neutron组件
2.1 确认网络配置
（1）控制节点 [root@controller ~]# more etc/hosts 127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4 ::1 localhost localhost.localdomain localhost6 localhost6.localdomain6 ********** 192.168.137.100 controller.fzxz686.com controller 192.168.137.101 nova.fzxz686.com nova block object ********** [root@controller ~]# （2）计算节点 [root@nova ~]# more etc/hosts 127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4 ::1 localhost localhost.localdomain localhost6 localhost6.localdomain6 ********** 192.168.137.100 controller.fzxz686.com controller 192.168.137.101 nova.fzxz686.com nova block object ********** [root@nova ~]# （3）ping测试 [root@controller ~]# ping -c 2 nova PING nova.fzxz686.com (192.168.137.101) 56(84) bytes of data. 64 bytes from nova.fzxz686.com (192.168.137.101): icmp_seq=1 ttl=64 time=2.09 ms 64 bytes from nova.fzxz686.com (192.168.137.101): icmp_seq=2 ttl=64 time=0.912 ms --- nova.fzxz686.com ping statistics --- 2 packets transmitted, 2 received, 0% packet loss, time 1001ms rtt min/avg/max/mdev = 0.912/1.503/2.094/0.591 ms [root@controller ~]# ping -c 2 object PING nova.fzxz686.com (192.168.137.101) 56(84) bytes of data. 64 bytes from nova.fzxz686.com (192.168.137.101): icmp_seq=1 ttl=64 time=0.834 ms 64 bytes from nova.fzxz686.com (192.168.137.101): icmp_seq=2 ttl=64 time=0.349 ms --- nova.fzxz686.com ping statistics --- 2 packets transmitted, 2 received, 0% packet loss, time 1002ms rtt min/avg/max/mdev = 0.349/0.591/0.834/0.243 ms [root@controller ~]# ping -c 2 block PING nova.fzxz686.com (192.168.137.101) 56(84) bytes of data. 64 bytes from nova.fzxz686.com (192.168.137.101): icmp_seq=1 ttl=64 time=0.671 ms 64 bytes from nova.fzxz686.com (192.168.137.101): icmp_seq=2 ttl=64 time=0.338 ms --- nova.fzxz686.com ping statistics --- 2 packets transmitted, 2 received, 0% packet loss, time 1000ms rtt min/avg/max/mdev = 0.338/0.504/0.671/0.168 ms [root@controller ~]# |
2.2 在keystone数据中注册neutron服务
1）创建neutron数据库并赋权 [root@controller ~]# mysql -predhat Welcome to the MariaDB monitor. Commands end with ; or \g. Your MariaDB connection id is 30 Server version: 10.1.20-MariaDB MariaDB Server Copyright (c) 2000, 2016, Oracle, MariaDB Corporation Ab and others. Type 'help;' or '\h' for help. Type '\c' to clear the current input statement. MariaDB [(none)]> CREATE DATABASE neutron; Query OK, 1 row affected (0.01 sec) MariaDB [(none)]> GRANT ALL PRIVILEGES ON neutron.* TO 'neutron'@'localhost' IDENTIFIED BY 'neutron'; Query OK, 0 rows affected (0.00 sec) MariaDB [(none)]> GRANT ALL PRIVILEGES ON neutron.* TO 'neutron'@'%' IDENTIFIED BY 'neutron'; Query OK, 0 rows affected (0.00 sec) MariaDB [(none)]> exit Bye You have mail in /var/spool/mail/root [root@controller ~]# （2）创建neutron用户 [root@controller ~]# cd /server/tools/ [root@controller tools]# source keystone-admin-pass.sh [root@controller tools]# openstack user create --domain default --password=neutron neutron +---------------------+----------------------------------+ | Field | Value | +---------------------+----------------------------------+ | domain_id | default | | enabled | True | | id | 24a0a037c3a940a0a9c2318cc1dc53e8 | | name | neutron | | options | {} | | password_expires_at | None | +---------------------+----------------------------------+ [root@controller tools]# openstack user list +----------------------------------+-----------+ | ID | Name | +----------------------------------+-----------+ | 07d8304d0e7346f5940e3b7842f88f2d | myuser | | 0e10848856dd40d5abf8ef91801766c8 | placement | | 24a0a037c3a940a0a9c2318cc1dc53e8 | neutron | | 417263d5a1d44e7486a52f5466794b57 | glance | | 7129dac220e041acabf74d8f722bc080 | admin | | 8dad157be2734f5083bfd92c14f3f2fe | nova | +----------------------------------+-----------+ （3）授权admin角色 [root@controller tools]# openstack role add --project service --user neutron admin （4）创建neutron服务实体 [root@controller tools]# openstack service create --name neutron --description "OpenStack Networking" network +-------------+----------------------------------+ | Field | Value | +-------------+----------------------------------+ | description | OpenStack Networking | | enabled | True | | id | 852aa5da037f4181bae4d81901a4e7e4 | | name | neutron | | type | network | +-------------+----------------------------------+ [root@controller tools]# openstack service list +----------------------------------+-----------+-----------+ | ID | Name | Type | +----------------------------------+-----------+-----------+ | 0360d744466f45028fd796a2eb2d77d4 | glance | image | | 079ea394c9ea476085ab6f0790d18296 | nova | compute | | 16f472518085448da6542ff821e1e6d0 | keystone | identity | | 7eaf62ef2f99421abe8d1d614517d913 | placement | placement | | 852aa5da037f4181bae4d81901a4e7e4 | neutron | network | +----------------------------------+-----------+-----------+ （5）创建neutron的API endpoint [root@controller tools]# openstack endpoint create --region RegionOne network public http://controller:9696 +--------------+----------------------------------+ | Field | Value | +--------------+----------------------------------+ | enabled | True | | id | b024ea0cbba4416ab0a53129dc9cc96a | | interface | public | | region | RegionOne | | region_id | RegionOne | | service_id | 852aa5da037f4181bae4d81901a4e7e4 | | service_name | neutron | | service_type | network | | url | http://controller:9696 | +--------------+----------------------------------+ [root@controller tools]# openstack endpoint create --region RegionOne network internal http://controller:9696 +--------------+----------------------------------+ | Field | Value | +--------------+----------------------------------+ | enabled | True | | id | c5d3b5e66ee24544aca6d372e2028516 | | interface | internal | | region | RegionOne | | region_id | RegionOne | | service_id | 852aa5da037f4181bae4d81901a4e7e4 | | service_name | neutron | | service_type | network | | url | http://controller:9696 | +--------------+----------------------------------+ [root@controller tools]# openstack endpoint create --region RegionOne network internal http://controller:9696 +--------------+----------------------------------+ | Field | Value | +--------------+----------------------------------+ | enabled | True | | id | 2cec3c012b91464d84e40b6b3cbe9ca9 | | interface | internal | | region | RegionOne | | region_id | RegionOne | | service_id | 852aa5da037f4181bae4d81901a4e7e4 | | service_name | neutron | | service_type | network | | url | http://controller:9696 | +--------------+----------------------------------+ [root@controller tools]# |
2.3 在控制节点安装neutron网络组件
# 关于neutron的网络提供了两种方式： https://docs.openstack.org/neutron/rocky/install/controller-install-option1-rdo.html 以下为第一种Networking Option 1: Provider networks （1）安装neutron软件包 [root@controller tools]# yum install openstack-neutron openstack-neutron-ml2 openstack-neutron-linuxbridge ebtables -y （2）配置/etc/neutron/neutron.conf openstack-config --set /etc/neutron/neutron.conf database connection mysql+pymysql://neutron:neutron@controller/neutron openstack-config --set /etc/neutron/neutron.conf DEFAULT core_plugin ml2 openstack-config --set /etc/neutron/neutron.conf DEFAULT service_plugins openstack-config --set /etc/neutron/neutron.conf DEFAULT transport_url rabbit://openstack:openstack@controller openstack-config --set /etc/neutron/neutron.conf DEFAULT auth_strategy keystone openstack-config --set /etc/neutron/neutron.conf keystone_authtoken www_authenticate_uri http://controller:5000 openstack-config --set /etc/neutron/neutron.conf keystone_authtoken auth_url http://controller:5000 openstack-config --set /etc/neutron/neutron.conf keystone_authtoken memcached_servers controller:11211 openstack-config --set /etc/neutron/neutron.conf keystone_authtoken auth_type password openstack-config --set /etc/neutron/neutron.conf keystone_authtoken project_domain_name default openstack-config --set /etc/neutron/neutron.conf keystone_authtoken user_domain_name default openstack-config --set /etc/neutron/neutron.conf keystone_authtoken project_name service openstack-config --set /etc/neutron/neutron.conf keystone_authtoken username neutron openstack-config --set /etc/neutron/neutron.conf keystone_authtoken password neutron openstack-config --set /etc/neutron/neutron.conf DEFAULT notify_nova_on_port_status_changes True openstack-config --set /etc/neutron/neutron.conf DEFAULT notify_nova_on_port_data_changes True openstack-config --set /etc/neutron/neutron.conf nova auth_url http://controller:5000 openstack-config --set /etc/neutron/neutron.conf nova auth_type password openstack-config --set /etc/neutron/neutron.conf nova project_domain_name default openstack-config --set /etc/neutron/neutron.conf nova user_domain_name default openstack-config --set /etc/neutron/neutron.conf nova region_name RegionOne openstack-config --set /etc/neutron/neutron.conf nova project_name service openstack-config --set /etc/neutron/neutron.conf nova username nova openstack-config --set /etc/neutron/neutron.conf nova password nova openstack-config --set /etc/neutron/neutron.conf oslo_concurrency lock_path /var/lib/neutron/tmp [root@controller tools]# egrep -v '(^$|^#)' /etc/neutron/neutron.conf [DEFAULT] core_plugin = ml2 service_plugins = transport_url = rabbit://openstack:openstack@controller auth_strategy = keystone notify_nova_on_port_status_changes = True notify_nova_on_port_data_changes = True [agent] [cors] [database] connection = mysql+pymysql://neutron:neutron@controller/neutron [keystone_authtoken] www_authenticate_uri = http://controller:5000 auth_url = http://controller:5000 memcached_servers = controller:11211 auth_type = password project_domain_name = default user_domain_name = default project_name = service username = neutron password = neutron [matchmaker_redis] [nova] auth_url = http://controller:5000 auth_type = password project_domain_name = default user_domain_name = default region_name = RegionOne project_name = service username = nova password = nova [oslo_concurrency] lock_path = /var/lib/neutron/tmp [oslo_messaging_amqp] [oslo_messaging_kafka] [oslo_messaging_notifications] [oslo_messaging_rabbit] [oslo_messaging_zmq] [oslo_middleware] [oslo_policy] [quotas] [ssl] [root@controller tools] （3）配置/etc/neutron/plugins/ml2/ml2_conf.ini openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini ml2 type_drivers flat,vlan openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini ml2 tenant_network_types openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini ml2 mechanism_drivers linuxbridge openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini ml2 extension_drivers port_security openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini ml2_type_flat flat_networks provider openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini securitygroup enable_ipset True [root@controller tools]# egrep -v '(^$|^#)' /etc/neutron/plugins/ml2/ml2_conf.ini [DEFAULT] [l2pop] [ml2] type_drivers = flat,vlan tenant_network_types = mechanism_drivers = linuxbridge extension_drivers = port_security [ml2_type_flat] flat_networks = provider [ml2_type_geneve] [ml2_type_gre] [ml2_type_vlan] [ml2_type_vxlan] [securitygroup] enable_ipset = True [root@controller tools]# （4）配置/etc/neutron/plugins/ml2/linuxbridge_agent.ini openstack-config --set /etc/neutron/plugins/ml2/linuxbridge_agent.ini linux_bridge physical_interface_mappings provider:ens32 openstack-config --set /etc/neutron/plugins/ml2/linuxbridge_agent.ini vxlan enable_vxlan False openstack-config --set /etc/neutron/plugins/ml2/linuxbridge_agent.ini securitygroup enable_security_group True openstack-config --set /etc/neutron/plugins/ml2/linuxbridge_agent.ini securitygroup firewall_driver neutron.agent.linux.iptables_firewall.IptablesFirewallDriver ##注意修改网卡名称为系统内的网卡，我这里是ens32 [root@controller tools]# egrep -v '(^$|^#)' /etc/neutron/plugins/ml2/linuxbridge_agent.ini [DEFAULT] [agent] [linux_bridge] physical_interface_mappings = provider:ens32 [network_log] [securitygroup] enable_security_group = True firewall_driver = neutron.agent.linux.iptables_firewall.IptablesFirewallDriver [vxlan] enable_vxlan = False [root@controller tools]# （5）配置/etc/neutron/dhcp_agent.ini openstack-config --set /etc/neutron/dhcp_agent.ini DEFAULT interface_driver linuxbridge openstack-config --set /etc/neutron/dhcp_agent.ini DEFAULT dhcp_driver neutron.agent.linux.dhcp.Dnsmasq openstack-config --set /etc/neutron/dhcp_agent.ini DEFAULT enable_isolated_metadata True [root@controller tools]# egrep -v '(^$|^#)' /etc/neutron/dhcp_agent.ini [DEFAULT] interface_driver = linuxbridge dhcp_driver = neutron.agent.linux.dhcp.Dnsmasq enable_isolated_metadata = True [agent] [ovs] [root@controller tools]# #方式1配置文件修改完毕 （6）配置/etc/neutron/metadata_agent.ini openstack-config --set /etc/neutron/metadata_agent.ini DEFAULT nova_metadata_host controller openstack-config --set /etc/neutron/metadata_agent.ini DEFAULT metadata_proxy_shared_secret neutron [root@controller tools]# egrep -v '(^$|^#)' /etc/neutron/metadata_agent.ini [DEFAULT] nova_metadata_host = controller metadata_proxy_shared_secret = neutron [agent] [cache] [root@controller tools]# （7）配置计算服务使用网络服务 openstack-config --set /etc/nova/nova.conf neutron url http://controller:9696 openstack-config --set /etc/nova/nova.conf neutron auth_url http://controller:5000 openstack-config --set /etc/nova/nova.conf neutron auth_type password openstack-config --set /etc/nova/nova.conf neutron project_domain_name default openstack-config --set /etc/nova/nova.conf neutron user_domain_name default openstack-config --set /etc/nova/nova.conf neutron region_name RegionOne openstack-config --set /etc/nova/nova.conf neutron project_name service openstack-config --set /etc/nova/nova.conf neutron username neutron openstack-config --set /etc/nova/nova.conf neutron password neutron openstack-config --set /etc/nova/nova.conf neutron service_metadata_proxy true openstack-config --set /etc/nova/nova.conf neutron metadata_proxy_shared_secret neutron [root@controller tools]# egrep -v '(^$|^#)' /etc/nova/nova.conf [DEFAULT] enabled_apis = osapi_compute,metadata my_ip = 192.168.137.100 use_neutron = true firewall_driver = nova.virt.firewall.NoopFirewallDriver transport_url = rabbit://openstack:openstack@controller [api] auth_strategy = keystone [api_database] connection = mysql+pymysql://nova:nova@controller/nova_api [barbican] [cache] [cells] [cinder] [compute] [conductor] [console] [consoleauth] [cors] [database] connection = mysql+pymysql://nova:nova@controller/nova [devices] [ephemeral_storage_encryption] [filter_scheduler] [glance] api_servers = http://controller:9292 [guestfs] [healthcheck] [hyperv] [ironic] [key_manager] [keystone] [keystone_authtoken] auth_url = http://controller:5000/v3 memcached_servers = controller:11211 auth_type = password project_domain_name = default user_domain_name = default project_name = service username = nova password = nova [libvirt] [matchmaker_redis] [metrics] [mks] [neutron] url = http://controller:9696 auth_url = http://controller:5000 auth_type = password project_domain_name = default user_domain_name = default region_name = RegionOne project_name = service username = neutron password = neutron service_metadata_proxy = true metadata_proxy_shared_secret = neutron [notifications] [osapi_v21] [oslo_concurrency] lock_path = /var/lib/nova/tmp [oslo_messaging_amqp] [oslo_messaging_kafka] [oslo_messaging_notifications] [oslo_messaging_rabbit] [oslo_messaging_zmq] [oslo_middleware] [oslo_policy] [pci] [placement] region_name = RegionOne project_domain_name = Default project_name = service auth_type = password user_domain_name = Default auth_url = http://controller:5000/v3 username = placement password = placement [placement_database] connection = mysql+pymysql://placement:placement@controller/placement [powervm] [profiler] [quota] [rdp] [remote_debug] [scheduler] discover_hosts_in_cells_interval = 300 [serial_console] [service_user] [spice] [upgrade_levels] [vault] [vendordata_dynamic_auth] [vmware] [vnc] enabled = true server_listen = $my_ip server_proxyclient_address = $my_ip [workarounds] [wsgi] [xenserver] [xvp] [zvm] [root@controller tools]# （8）初始化安装网络插件 # 创建网络插件的链接，初始化网络的脚本插件会用到/etc/neutron/plugin.ini，需要使用ML2的插件进行提供 [root@controller tools]# ln -s /etc/neutron/plugins/ml2/ml2_conf.ini /etc/neutron/plugin.ini [root@controller tools]# （9）同步数据库 [root@controller tools]# su -s /bin/sh -c "neutron-db-manage --config-file /etc/neutron/neutron.conf \ > --config-file /etc/neutron/plugins/ml2/ml2_conf.ini upgrade head" neutron INFO [alembic.runtime.migration] Context impl MySQLImpl. INFO [alembic.runtime.migration] Will assume non-transactional DDL. Running upgrade for neutron ... INFO [alembic.runtime.migration] Context impl MySQLImpl. INFO [alembic.runtime.migration] Will assume non-transactional DDL. INFO [alembic.runtime.migration] Running upgrade -> kilo INFO [alembic.runtime.migration] Running upgrade kilo -> 354db87e3225 INFO [alembic.runtime.migration] Running upgrade 354db87e3225 -> 599c6a226151 INFO [alembic.runtime.migration] Running upgrade 599c6a226151 -> 52c5312f6baf INFO [alembic.runtime.migration] Running upgrade 52c5312f6baf -> 313373c0ffee INFO [alembic.runtime.migration] Running upgrade 313373c0ffee -> 8675309a5c4f INFO [alembic.runtime.migration] Running upgrade 8675309a5c4f -> 45f955889773 INFO [alembic.runtime.migration] Running upgrade 45f955889773 -> 26c371498592 INFO [alembic.runtime.migration] Running upgrade 26c371498592 -> 1c844d1677f7 INFO [alembic.runtime.migration] Running upgrade 1c844d1677f7 -> 1b4c6e320f79 INFO [alembic.runtime.migration] Running upgrade 1b4c6e320f79 -> 48153cb5f051 INFO [alembic.runtime.migration] Running upgrade 48153cb5f051 -> 9859ac9c136 INFO [alembic.runtime.migration] Running upgrade 9859ac9c136 -> 34af2b5c5a59 INFO [alembic.runtime.migration] Running upgrade 34af2b5c5a59 -> 59cb5b6cf4d INFO [alembic.runtime.migration] Running upgrade 59cb5b6cf4d -> 13cfb89f881a INFO [alembic.runtime.migration] Running upgrade 13cfb89f881a -> 32e5974ada25 INFO [alembic.runtime.migration] Running upgrade 32e5974ada25 -> ec7fcfbf72ee INFO [alembic.runtime.migration] Running upgrade ec7fcfbf72ee -> dce3ec7a25c9 INFO [alembic.runtime.migration] Running upgrade dce3ec7a25c9 -> c3a73f615e4 INFO [alembic.runtime.migration] Running upgrade c3a73f615e4 -> 659bf3d90664 INFO [alembic.runtime.migration] Running upgrade 659bf3d90664 -> 1df244e556f5 INFO [alembic.runtime.migration] Running upgrade 1df244e556f5 -> 19f26505c74f INFO [alembic.runtime.migration] Running upgrade 19f26505c74f -> 15be73214821 INFO [alembic.runtime.migration] Running upgrade 15be73214821 -> b4caf27aae4 INFO [alembic.runtime.migration] Running upgrade b4caf27aae4 -> 15e43b934f81 INFO [alembic.runtime.migration] Running upgrade 15e43b934f81 -> 31ed664953e6 INFO [alembic.runtime.migration] Running upgrade 31ed664953e6 -> 2f9e956e7532 INFO [alembic.runtime.migration] Running upgrade 2f9e956e7532 -> 3894bccad37f INFO [alembic.runtime.migration] Running upgrade 3894bccad37f -> 0e66c5227a8a INFO [alembic.runtime.migration] Running upgrade 0e66c5227a8a -> 45f8dd33480b INFO [alembic.runtime.migration] Running upgrade 45f8dd33480b -> 5abc0278ca73 INFO [alembic.runtime.migration] Running upgrade kilo -> 30018084ec99 INFO [alembic.runtime.migration] Running upgrade 30018084ec99 -> 4ffceebfada INFO [alembic.runtime.migration] Running upgrade 4ffceebfada -> 5498d17be016 INFO [alembic.runtime.migration] Running upgrade 5498d17be016 -> 2a16083502f3 INFO [alembic.runtime.migration] Running upgrade 2a16083502f3 -> 2e5352a0ad4d INFO [alembic.runtime.migration] Running upgrade 2e5352a0ad4d -> 11926bcfe72d INFO [alembic.runtime.migration] Running upgrade 11926bcfe72d -> 4af11ca47297 INFO [alembic.runtime.migration] Running upgrade 4af11ca47297 -> 1b294093239c INFO [alembic.runtime.migration] Running upgrade 1b294093239c -> 8a6d8bdae39 INFO [alembic.runtime.migration] Running upgrade 8a6d8bdae39 -> 2b4c2465d44b INFO [alembic.runtime.migration] Running upgrade 2b4c2465d44b -> e3278ee65050 INFO [alembic.runtime.migration] Running upgrade e3278ee65050 -> c6c112992c9 INFO [alembic.runtime.migration] Running upgrade c6c112992c9 -> 5ffceebfada INFO [alembic.runtime.migration] Running upgrade 5ffceebfada -> 4ffceebfcdc INFO [alembic.runtime.migration] Running upgrade 4ffceebfcdc -> 7bbb25278f53 INFO [alembic.runtime.migration] Running upgrade 7bbb25278f53 -> 89ab9a816d70 INFO [alembic.runtime.migration] Running upgrade 5abc0278ca73 -> d3435b514502 INFO [alembic.runtime.migration] Running upgrade d3435b514502 -> 30107ab6a3ee INFO [alembic.runtime.migration] Running upgrade 30107ab6a3ee -> c415aab1c048 INFO [alembic.runtime.migration] Running upgrade c415aab1c048 -> a963b38d82f4 INFO [alembic.runtime.migration] Running upgrade 89ab9a816d70 -> c879c5e1ee90 INFO [alembic.runtime.migration] Running upgrade c879c5e1ee90 -> 8fd3918ef6f4 INFO [alembic.runtime.migration] Running upgrade 8fd3918ef6f4 -> 4bcd4df1f426 INFO [alembic.runtime.migration] Running upgrade 4bcd4df1f426 -> b67e765a3524 INFO [alembic.runtime.migration] Running upgrade a963b38d82f4 -> 3d0e74aa7d37 INFO [alembic.runtime.migration] Running upgrade 3d0e74aa7d37 -> 030a959ceafa INFO [alembic.runtime.migration] Running upgrade 030a959ceafa -> a5648cfeeadf INFO [alembic.runtime.migration] Running upgrade a5648cfeeadf -> 0f5bef0f87d4 INFO [alembic.runtime.migration] Running upgrade 0f5bef0f87d4 -> 67daae611b6e INFO [alembic.runtime.migration] Running upgrade 67daae611b6e -> 6b461a21bcfc INFO [alembic.runtime.migration] Running upgrade 6b461a21bcfc -> 5cd92597d11d INFO [alembic.runtime.migration] Running upgrade 5cd92597d11d -> 929c968efe70 INFO [alembic.runtime.migration] Running upgrade 929c968efe70 -> a9c43481023c INFO [alembic.runtime.migration] Running upgrade a9c43481023c -> 804a3c76314c INFO [alembic.runtime.migration] Running upgrade 804a3c76314c -> 2b42d90729da INFO [alembic.runtime.migration] Running upgrade 2b42d90729da -> 62c781cb6192 INFO [alembic.runtime.migration] Running upgrade 62c781cb6192 -> c8c222d42aa9 INFO [alembic.runtime.migration] Running upgrade c8c222d42aa9 -> 349b6fd605a6 INFO [alembic.runtime.migration] Running upgrade 349b6fd605a6 -> 7d32f979895f INFO [alembic.runtime.migration] Running upgrade 7d32f979895f -> 594422d373ee INFO [alembic.runtime.migration] Running upgrade 594422d373ee -> 61663558142c INFO [alembic.runtime.migration] Running upgrade 61663558142c -> 867d39095bf4, port forwarding INFO [alembic.runtime.migration] Running upgrade b67e765a3524 -> a84ccf28f06a INFO [alembic.runtime.migration] Running upgrade a84ccf28f06a -> 7d9d8eeec6ad INFO [alembic.runtime.migration] Running upgrade 7d9d8eeec6ad -> a8b517cff8ab INFO [alembic.runtime.migration] Running upgrade a8b517cff8ab -> 3b935b28e7a0 INFO [alembic.runtime.migration] Running upgrade 3b935b28e7a0 -> b12a3ef66e62 INFO [alembic.runtime.migration] Running upgrade b12a3ef66e62 -> 97c25b0d2353 INFO [alembic.runtime.migration] Running upgrade 97c25b0d2353 -> 2e0d7a8a1586 INFO [alembic.runtime.migration] Running upgrade 2e0d7a8a1586 -> 5c85685d616d OK [root@controller tools]# （10）重启服务 #重启nova-api [root@controller tools]# systemctl restart openstack-nova-api.service #重启neutron 并设置为开机启动 [root@controller tools]# systemctl start neutron-server.service neutron-linuxbridge-agent.service neutron-dhcp-agent.service neutron-metadata-agent.service [root@controller tools]# systemctl status neutron-server.service neutron-linuxbridge-agent.service neutron-dhcp-agent.service neutron-metadata-agent.service ● neutron-server.service - OpenStack Neutron Server Loaded: loaded (/usr/lib/systemd/system/neutron-server.service; disabled; vendor preset: disabled) Active: active (running) since Sun 2020-06-14 11:40:17 CST; 27s ago Main PID: 8062 (neutron-server) CGroup: /system.slice/neutron-server.service ├─8062 /usr/bin/python2 /usr/bin/neutron-server --config-file /usr/share/neut... ├─8133 /usr/bin/python2 /usr/bin/neutron-server --config-file /usr/share/neut... ├─8134 /usr/bin/python2 /usr/bin/neutron-server --config-file /usr/share/neut... ├─8135 /usr/bin/python2 /usr/bin/neutron-server --config-file /usr/share/neut... ├─8136 /usr/bin/python2 /usr/bin/neutron-server --config-file /usr/share/neut... ├─8137 /usr/bin/python2 /usr/bin/neutron-server --config-file /usr/share/neut... └─8138 /usr/bin/python2 /usr/bin/neutron-server --config-file /usr/share/neut... Jun 14 11:40:04 controller.fzxz686.com systemd[1]: Starting OpenStack Neutron Server... Jun 14 11:40:17 controller.fzxz686.com systemd[1]: Started OpenStack Neutron Server. ● neutron-linuxbridge-agent.service - OpenStack Neutron Linux Bridge Agent Loaded: loaded (/usr/lib/systemd/system/neutron-linuxbridge-agent.service; disabled; vendor preset: disabled) Active: active (running) since Sun 2020-06-14 11:40:04 CST; 40s ago Process: 8063 ExecStartPre=/usr/bin/neutron-enable-bridge-firewall.sh (code=exited, status=0/SUCCESS) Main PID: 8073 (neutron-linuxbr) CGroup: /system.slice/neutron-linuxbridge-agent.service └─8073 /usr/bin/python2 /usr/bin/neutron-linuxbridge-agent --config-file /usr... Jun 14 11:40:04 controller.fzxz686.com systemd[1]: Starting OpenStack Neutron Linux Bri.... Jun 14 11:40:04 controller.fzxz686.com neutron-enable-bridge-firewall.sh[8063]: net.brid... Jun 14 11:40:04 controller.fzxz686.com neutron-enable-bridge-firewall.sh[8063]: net.brid... Jun 14 11:40:04 controller.fzxz686.com systemd[1]: Started OpenStack Neutron Linux Brid.... Jun 14 11:40:15 controller.fzxz686.com sudo[8122]: neutron : TTY=unknown ; PWD=/ ; USER... Jun 14 11:40:18 controller.fzxz686.com sudo[8150]: neutron : TTY=unknown ; PWD=/ ; USE...f ● neutron-dhcp-agent.service - OpenStack Neutron DHCP Agent Loaded: loaded (/usr/lib/systemd/system/neutron-dhcp-agent.service; disabled; vendor preset: disabled) Active: active (running) since Sun 2020-06-14 11:40:04 CST; 40s ago Main PID: 8064 (neutron-dhcp-ag) CGroup: /system.slice/neutron-dhcp-agent.service └─8064 /usr/bin/python2 /usr/bin/neutron-dhcp-agent --config-file /usr/share/... Jun 14 11:40:04 controller.fzxz686.com systemd[1]: Started OpenStack Neutron DHCP Agent. ● neutron-metadata-agent.service - OpenStack Neutron Metadata Agent Loaded: loaded (/usr/lib/systemd/system/neutron-metadata-agent.service; disabled; vendor preset: disabled) Active: active (running) since Sun 2020-06-14 11:40:04 CST; 40s ago Main PID: 8065 (neutron-metadat) CGroup: /system.slice/neutron-metadata-agent.service ├─8065 /usr/bin/python2 /usr/bin/neutron-metadata-agent --config-file /usr/sh... └─8121 /usr/bin/python2 /usr/bin/neutron-metadata-agent --config-file /usr/sh... Jun 14 11:40:04 controller.fzxz686.com systemd[1]: Started OpenStack Neutron Metadata A.... Hint: Some lines were ellipsized, use -l to show in full. [root@controller tools]# systemctl enable neutron-server.service neutron-linuxbridge-agent.service neutron-dhcp-agent.service neutron-metadata-agent.service Created symlink from /etc/systemd/system/multi-user.target.wants/neutron-server.service to /usr/lib/systemd/system/neutron-server.service. Created symlink from /etc/systemd/system/multi-user.target.wants/neutron-linuxbridge-agent.service to /usr/lib/systemd/system/neutron-linuxbridge-agent.service. Created symlink from /etc/systemd/system/multi-user.target.wants/neutron-dhcp-agent.service to /usr/lib/systemd/system/neutron-dhcp-agent.service. Created symlink from /etc/systemd/system/multi-user.target.wants/neutron-metadata-agent.service to /usr/lib/systemd/system/neutron-metadata-agent.service. [root@controller tools]# systemctl list-unit-files |grep neutron* |grep enabled neutron-dhcp-agent.service enabled neutron-linuxbridge-agent.service enabled neutron-metadata-agent.service enabled neutron-server.service enabled [root@controller tools]# ##控制端配置完成 |
2.4 计算节点安装neutron服务
（1）安装neutron组件 [root@nova ~]# yum install openstack-neutron-linuxbridge ebtables ipset -y （2）配置/etc/neutron/neutron.conf openstack-config --set /etc/neutron/neutron.conf DEFAULT transport_url rabbit://openstack:openstack@controller openstack-config --set /etc/neutron/neutron.conf DEFAULT auth_strategy keystone openstack-config --set /etc/neutron/neutron.conf keystone_authtoken www_authenticate_uri http://controller:5000 openstack-config --set /etc/neutron/neutron.conf keystone_authtoken auth_url http://controller:5000 openstack-config --set /etc/neutron/neutron.conf keystone_authtoken memcached_servers controller:11211 openstack-config --set /etc/neutron/neutron.conf keystone_authtoken auth_type password openstack-config --set /etc/neutron/neutron.conf keystone_authtoken project_domain_name default openstack-config --set /etc/neutron/neutron.conf keystone_authtoken user_domain_name default openstack-config --set /etc/neutron/neutron.conf keystone_authtoken project_name service openstack-config --set /etc/neutron/neutron.conf keystone_authtoken username neutron openstack-config --set /etc/neutron/neutron.conf keystone_authtoken password neutron openstack-config --set /etc/neutron/neutron.conf oslo_concurrency lock_path /var/lib/neutron/tmp [root@nova ~]# egrep -v '(^$|^#)' /etc/neutron/neutron.conf [DEFAULT] auth_strategy = keystone [agent] [cors] [database] [keystone_authtoken] www_authenticate_uri = http://controller:5000 auth_url = http://controller:5000 memcached_servers = controller:11211 auth_type = password project_domain_name = default user_domain_name = default project_name = service username = neutron password = neutron [matchmaker_redis] [nova] [oslo_concurrency] lock_path = /var/lib/neutron/tmp [oslo_messaging_amqp] [oslo_messaging_kafka] [oslo_messaging_notifications] [oslo_messaging_rabbit] [oslo_messaging_zmq] [oslo_middleware] [oslo_policy] [quotas] [ssl] [root@nova ~] （3）配置/etc/neutron/plugins/ml2/linuxbridge_agent.ini openstack-config --set /etc/neutron/plugins/ml2/linuxbridge_agent.ini linux_bridge physical_interface_mappings provider:ens32 openstack-config --set /etc/neutron/plugins/ml2/linuxbridge_agent.ini vxlan enable_vxlan false openstack-config --set /etc/neutron/plugins/ml2/linuxbridge_agent.ini securitygroup enable_security_group true openstack-config --set /etc/neutron/plugins/ml2/linuxbridge_agent.ini securitygroup firewall_driver neutron.agent.linux.iptables_firewall.IptablesFirewallDriver # 第一个选项physical_interface_mappings选项要配置计算节点自身的网卡名称provider:ens32 [root@nova ~]# egrep -v '(^$|^#)' /etc/neutron/plugins/ml2/linuxbridge_agent.ini [DEFAULT] [agent] [linux_bridge] physical_interface_mappings = provider:ens32 [network_log] [securitygroup] enable_security_group = true firewall_driver = neutron.agent.linux.iptables_firewall.IptablesFirewallDriver [vxlan] enable_vxlan = false [root@nova ~]# （4）配置nova计算服务与neutron网络服务协同工作 openstack-config --set /etc/nova/nova.conf neutron url http://controller:9696 openstack-config --set /etc/nova/nova.conf neutron auth_url http://controller:5000 openstack-config --set /etc/nova/nova.conf neutron auth_type password openstack-config --set /etc/nova/nova.conf neutron project_domain_name default openstack-config --set /etc/nova/nova.conf neutron user_domain_name default openstack-config --set /etc/nova/nova.conf neutron region_name RegionOne openstack-config --set /etc/nova/nova.conf neutron project_name service openstack-config --set /etc/nova/nova.conf neutron username neutron openstack-config --set /etc/nova/nova.conf neutron password neutron [root@nova ~]# egrep -v '(^$|^#)' /etc/nova/nova.conf [DEFAULT] my_ip = 192.168.137.101 use_neutron = True firewall_driver = nova.virt.firewall.NoopFirewallDriver enabled_apis = osapi_compute,metadata transport_url = rabbit://openstack:openstack@controller [api] auth_strategy = keystone [api_database] [barbican] [cache] [cells] [cinder] [compute] [conductor] [console] [consoleauth] [cors] [database] [devices] [ephemeral_storage_encryption] [filter_scheduler] [glance] api_servers = http://controller:9292 [guestfs] [healthcheck] [hyperv] [ironic] [key_manager] [keystone] [keystone_authtoken] auth_url = http://controller:5000/v3 memcached_servers = controller:11211 auth_type = password project_domain_name = default user_domain_name = default project_name = service username = nova password = nova [libvirt] virt_type = kvm [matchmaker_redis] [metrics] [mks] [neutron] url = http://controller:9696 auth_url = http://controller:5000 auth_type = password project_domain_name = default user_domain_name = default region_name = RegionOne project_name = service username = neutron password = neutron [notifications] [osapi_v21] [oslo_concurrency] lock_path = /var/lib/nova/tmp [oslo_messaging_amqp] [oslo_messaging_kafka] [oslo_messaging_notifications] [oslo_messaging_rabbit] [oslo_messaging_zmq] [oslo_middleware] [oslo_policy] [pci] [placement] region_name = RegionOne project_domain_name = Default project_name = service auth_type = password user_domain_name = Default auth_url = http://controller:5000/v3 username = placement password = placement [placement_database] [powervm] [profiler] [quota] [rdp] [remote_debug] [scheduler] [serial_console] [service_user] [spice] [upgrade_levels] [vault] [vendordata_dynamic_auth] [vmware] [vnc] enabled = True server_listen = 0.0.0.0 server_proxyclient_address = $my_ip novncproxy_base_url = http://controller:6080/vnc_auto.html [workarounds] [wsgi] [xenserver] [xvp] [zvm] [root@nova ~]# （5）启动服务 [root@nova ~]# systemctl restart openstack-nova-compute.service [root@nova ~]# systemctl status openstack-nova-compute.service ● openstack-nova-compute.service - OpenStack Nova Compute Server Loaded: loaded (/usr/lib/systemd/system/openstack-nova-compute.service; enabled; vendor preset: disabled) Active: active (running) since Sun 2020-06-14 12:19:52 CST; 2s ago Main PID: 14847 (nova-compute) Tasks: 22 CGroup: /system.slice/openstack-nova-compute.service └─14847 /usr/bin/python2 /usr/bin/nova-compute Jun 14 12:19:44 nova.fzxz686.com systemd[1]: Stopped OpenStack Nova Compute Server. Jun 14 12:19:44 nova.fzxz686.com systemd[1]: Starting OpenStack Nova Compute Server... Jun 14 12:19:52 nova.fzxz686.com systemd[1]: Started OpenStack Nova Compute Server. [root@nova ~]# systemctl restart neutron-linuxbridge-agent.service [root@nova ~]# systemctl status neutron-linuxbridge-agent.service ● neutron-linuxbridge-agent.service - OpenStack Neutron Linux Bridge Agent Loaded: loaded (/usr/lib/systemd/system/neutron-linuxbridge-agent.service; disabled; vendor preset: disabled) Active: active (running) since Sun 2020-06-14 12:18:49 CST; 640ms ago Process: 14411 ExecStartPre=/usr/bin/neutron-enable-bridge-firewall.sh (code=exited, status=0/SUCCESS) Main PID: 14417 (neutron-linuxbr) Tasks: 1 CGroup: /system.slice/neutron-linuxbridge-agent.service └─14417 /usr/bin/python2 /usr/bin/neutron-linuxbridge-agent --config-file /us... Jun 14 12:18:49 nova.fzxz686.com systemd[1]: Starting OpenStack Neutron Linux Bridge A..... Jun 14 12:18:49 nova.fzxz686.com neutron-enable-bridge-firewall.sh[14411]: net.bridge.br... Jun 14 12:18:49 nova.fzxz686.com neutron-enable-bridge-firewall.sh[14411]: net.bridge.br... Jun 14 12:18:49 nova.fzxz686.com systemd[1]: Started OpenStack Neutron Linux Bridge Agent. Hint: Some lines were ellipsized, use -l to show in full. [root@nova ~]# systemctl enable neutron-linuxbridge-agent.service Created symlink from /etc/systemd/system/multi-user.target.wants/neutron-linuxbridge-agent.service to /usr/lib/systemd/system/neutron-linuxbridge-agent.service. [root@nova ~]# systemctl list-unit-files |grep neutron* |grep enabled neutron-linuxbridge-agent.service enabled [root@nova ~]# ##计算节点配置完毕 |
2.5控制节点检查neutron服务安装成功
（1）命令openstack extension list --network或neutron ext-list [root@controller tools]# neutron ext-list neutron CLI is deprecated and will be removed in the future. Use openstack CLI instead. +--------------------------------+-----------------------------------------------------------------------------------------------------------------------------------------+ | alias | name | +--------------------------------+-----------------------------------------------------------------------------------------------------------------------------------------+ | default-subnetpools | Default Subnetpools | | network-ip-availability | Network IP Availability | | network_availability_zone | Network Availability Zone | | net-mtu-writable | Network MTU (writable) | | binding | Port Binding | | agent | agent | | subnet_allocation | Subnet Allocation | | dhcp_agent_scheduler | DHCP Agent Scheduler | | external-net | Neutron external network | | flavors | Neutron Service Flavors | | net-mtu | Network MTU | | availability_zone | Availability Zone | | quotas | Quota management support | | standard-attr-tag | Tag support for resources with standard attribute: subnet, trunk, router, network, policy, subnetpool, port, security_group, floatingip | | availability_zone_filter | Availability Zone Filter Extension | | revision-if-match | If-Match constraints based on revision_number | | filter-validation | Filter parameters validation | | multi-provider | Multi Provider Network | quota_details | Quota details management support | | address-scope | Address scope | | empty-string-filtering | Empty String Filtering Extension | | subnet-service-types | Subnet service types | | port-mac-address-regenerate | Neutron Port MAC address regenerate | | standard-attr-timestamp | Resource timestamps | | provider | Provider Network | | service-type | Neutron Service Type Management | | extra_dhcp_opt | Neutron Extra DHCP options | | port-security-groups-filtering | Port filtering on security groups | | standard-attr-revisions | Resource revision numbers | | pagination | Pagination support | | sorting | Sorting support | | security-group | security-group | | rbac-policies | RBAC Policies | | standard-attr-description | standard-attr-description | | ip-substring-filtering | IP address substring filtering | | port-security | Port Security | | allowed-address-pairs | Allowed Address Pairs | | project-id | project_id field enabled | | binding-extended | Port Bindings Extended | +--------------------------------+-----------------------------------------------------------------------------------------------------------------------------------------+ [root@controller tools]# （2）查看网络代理 [root@controller tools]# openstack network agent list +--------------------------------------+--------------------+------------------------+-------------------+-------+-------+---------------------------+ | ID | Agent Type | Host | Availability Zone | Alive | State | Binary | +--------------------------------------+--------------------+------------------------+-------------------+-------+-------+---------------------------+ | b52a0d9d-a6a6-46cf-bd37-d9f27d8befbe | Linux bridge agent | controller.fzxz686.com | None | :-) | UP | neutron-linuxbridge-agent | | c5cb2c9e-aec7-4a91-824b-a0b313a14573 | Linux bridge agent | nova.fzxz686.com | None | :-) | UP | neutron-linuxbridge-agent | | c88c4ce2-a53e-4b91-ab1c-f0303e862ac5 | Metadata agent | controller.fzxz686.com | None | :-) | UP | neutron-metadata-agent | | e6b61746-6090-4eea-a438-1732d463e408 | DHCP agent | controller.fzxz686.com | nova | :-) | UP | neutron-dhcp-agent | +--------------------------------------+--------------------+------------------------+-------------------+-------+-------+---------------------------+ 可以看到，控制节点有3个服务，计算节点有1个服务。 |
# 以上 Neutron网络服务安装完毕。
