技术分享 | Online DDL 工具 gh-ost

爱可生开源社区 2020-07-31
2044

作者：翟硕

爱可生 DBA 团队成员，负责公司 DMP 产品的运维和客户 MySQL 问题的处理。擅长数据库故障处理。对数据库技术和 python 有着浓厚的兴趣。

本文来源：原创投稿 *爱可生开源社区出品，原创内容未经授权不得随意使用，转载请联系小编并注明来源。

一、gh-ost 介绍

gh-ost 是 GitHub 发布的一款用于 MySQL 的无触发器在线模式迁移解决方案。它是可测试的，并提供暂停，动态控制/重新配置，审计和许多操作特权。它在整个迁移过程中，对主服务器产生的工作量很少，与已迁移表上的现有工作分离。
gh-ost 与所有现有的在线模式更改工具都以类似的方式操作：它们以与原始表相似的方式创建幽灵表，将数据从原始表缓慢且增量地复制到幽灵表，同时应用正在进行的更改（INSERT，DELETE，UPDATE）到幽灵表。最后，在适当的时候，它用幽灵表替换了原始表。gh-ost 使用相同的模式。但是，它与所有现有工具的不同之处在于不使用触发器。取而代之的是，gh-ost 使用二进制日志流捕获表的更改，然后将其异步应用到幽灵表。
gh-ost 承担一些其他工具留给数据库执行的任务。gh-ost 可以更好地控制迁移过程；可以真正暂停它；可以真正将迁移的写入负载与主服务器的工作负载分离。此外，它还提供了许多可操作的特权，使其更安全、可信赖且易于使用。

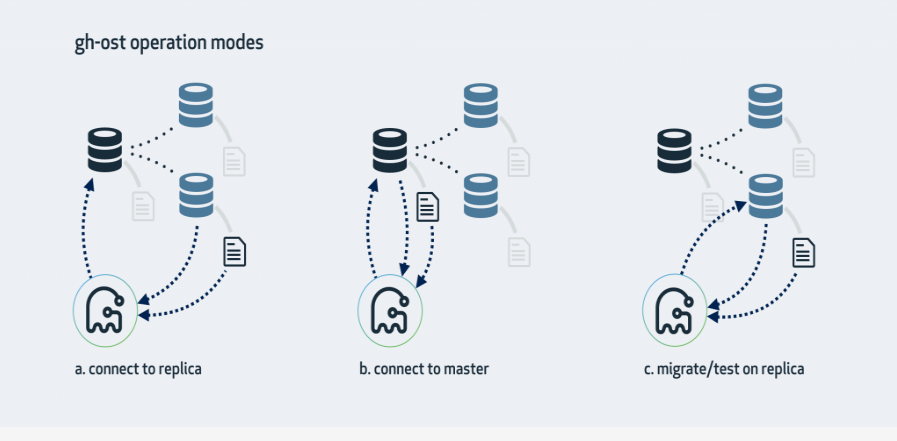

二、gh-ost 的三种模式架构

2.1 连接从库，在主库转换

这是 gh-ost 默认的工作模式，它会查看从库情况，找到集群的主库并且连接上去，对主库侵入最少。
大体步骤是：
  • 在主库上创建 _xxx_gho（和原表表结构一致）、_xxx_ghc（记录变更日志），并修改 _xxx_gho 表结构；
  • 从 slave 上读取二进制日志事件，将变更应用到主库上的 _xxx_gho 表；
  • 在主库上读源表的数据写入 _xxx_gho 表中；
  • 在主库上完成表切换。

2.2 连接主库，在主库转换

需要使用 --allow-on-master 选项：

  • 在主库上创建 _xxx_gho、_xxx_ghc，并修改 _xxx_gho 表结构；

  • 从主库上读取二进制日志事件，将变更应用到主库上的 _xxx_gho 表；

  • 在主库上读源表的数据写入 _xxx_gho 表中；

  • 在主库上完成表切换。

2.3 在从库上测试和转换

这种模式会在从库上做修改。gh-ost 仍然会连上主库，但所有操作都是在从库上做的，不会对主库产生任何影响。在操作过程中，gh-ost 也会不时地暂停，以便从库的数据可以保持最新。
--migrate-on-replica 选项让 gh-ost 直接在从库上修改表。最终的切换过程也是在从库正常复制的状态下完成的。
--test-on-replica 表明操作只是为了测试目的。在进行最终的切换操作之前，复制会被停止。原始表和临时表会相互切换，再切换回来，最终相当于原始表没被动过。主从复制暂停的状态下，你可以检查和对比这两张表中的数据。

三、下载安装

3.1 下载

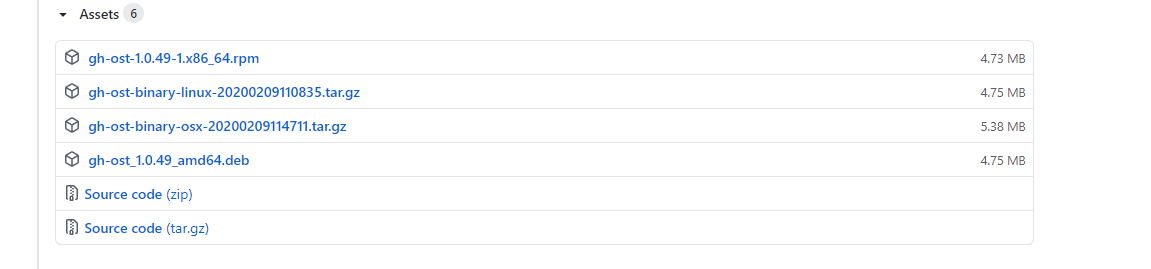

访问github，在此页面 https://github.com/github/gh-ost/releases 下载 gh-ost 最新的 rpm 安装包。

或者使用 wget 获取安装包
    # 使用 wget 获取安装包
    [root@10-186-61-20 ~]# wget https://github.com/github/gh-ost/releases/download/v1.0.49/gh-ost-1.0.49-1.x86_64.rpm

    3.2 安装

      使用 rpm 命令进行安装
          # 使用rpm安装
          [root@10-186-61-20 ~]# rpm -ivh gh-ost-1.0.49-1.x86_64.rpm
          Preparing...                          ################################# [100%]
          Updating  installing...
             1:gh-ost-1:1.0.49-1                ################################# [100%]
          # 验证是否安装成功
          [root@10-186-61-20 ~]# gh-ost --version
          1.0.49


      四、使用

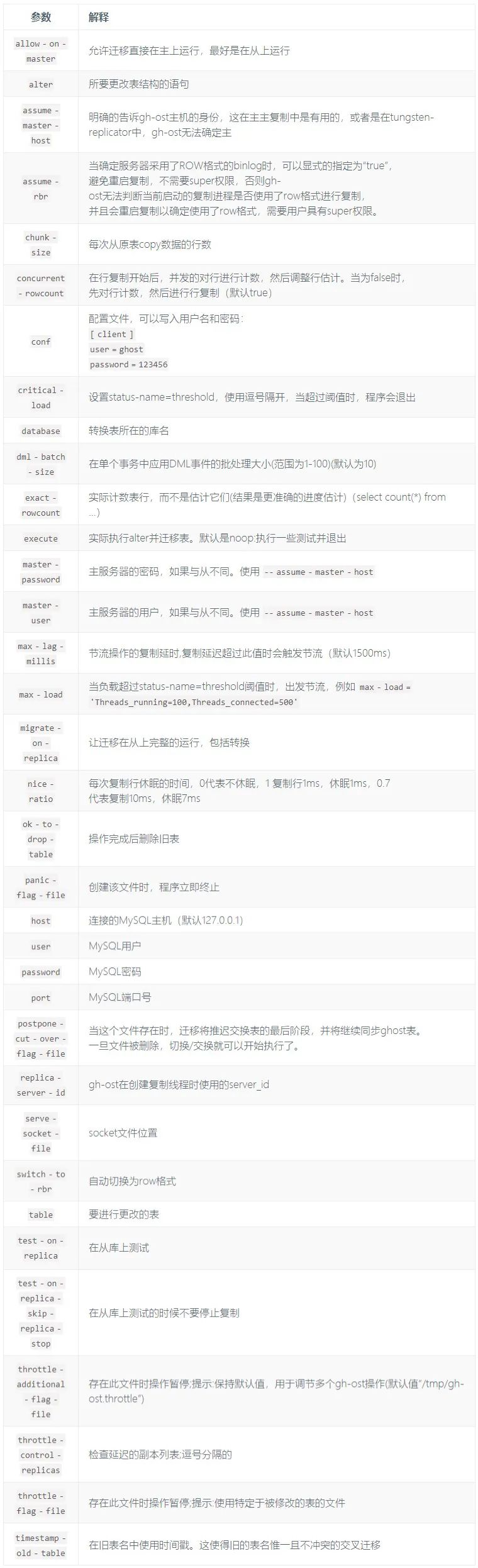

      4.1 常用参数介绍

      4.2 交互式命令

      • 需要安装 nmap-ncat 包来使用 nc 命令

      • 使用方式为 echo "命令" | nc -U socket文件名，例如：echo status | nc -U sbtest1.gh-ost.socket

      4.2.1 status
      查看详细的执行状态信息。
        [root@10-186-61-96 tmp]# echo status | nc -U sbtest1.gh-ost.socket
        # Migrating `sbtest`.`sbtest1`; Ghost table is `sbtest`.`_sbtest1_gho`
        # Migrating 10-186-61-20:3306; inspecting 10-186-61-20:3306; executing on 10-186-61-96
        # Migration started at Mon Feb 17 02:08:10 +0000 2020
        # chunk-size: 100000; max-lag-millis: 1500ms; dml-batch-size: 100; max-load: Threads_running=100; critical-load: Threads_running=1000; nice-ratio: 0.000000
        # throttle-flag-file: tmp/sbtest1.throttle
        # throttle-additional-flag-file: tmp/gh-ost.throttle
        # throttle-control-replicas count: 1
        # postpone-cut-over-flag-file: tmp/sbtest1.postpone
        # panic-flag-file: tmp/sbtest1.panic
        # Serving on unix socket: tmp/sbtest1.gh-ost.socket
        Copy: 19733607/19731368 100.0%; Applied: 3425325; Backlog: 863/1000; Time: 5h18m48s(total), 5h18m48s(copy); streamer: mysql_bin.000083:192819590; Lag: 0.01s, State: throttled, 10.186.61.96:3306 replica-lag=3.686724s; ETA: due

        4.2.2 sup

        打印简短的状态信息。
          [root@10-186-61-96 tmp]# echo sup | nc -U sbtest1.gh-ost.socket
          Copy: 19833607/19731368 100.5%; Applied: 3479988; Backlog: 1000/1000; Time: 5h22m21s(total), 5h22m21s(copy); streamer: mysql_bin.000084:12427624; Lag: 1.61s, State: migrating; ETA: due

          4.2.3 coordinates

          打印当前检查的 binlog 的位置信息。
            [root@10-186-61-96 tmp]# echo coordinates |nc -U sbtest1.gh-ost.socket
            mysql_bin.000131:10563681

            4.2.4 可动态修改的参数

            具体参数含义参考常用参数介绍。
              chunk-size=<newsize>                 # Set a new chunk-size
              dml-batch-size=<newsize>             # Set a new dml-batch-size
              nice-ratio=<ratio>                   # Set a new nice-ratio, immediate sleep after each row-copy operation, float (examples: 0 is aggressive, 0.7 adds 70% runtime, 1.0 doubles runtime, 2.0 triples runtime, ...)
              critical-load=<load>                 # Set a new set of max-load thresholds
              max-lag-millis=<max-lag>             # Set a new replication lag threshold
              replication-lag-query=<query>        # Set a new query that determines replication lag (no quotes)
              max-load=<load>                      # Set a new set of max-load thresholds
              throttle-query=<query>               # Set a new throttle-query (no quotes)
              throttle-http=<URL>                  # Set a new throttle URL
              throttle-control-replicas=<replicas> # Set a new comma delimited list of throttle control replicas
              使用示例：
                [root@10-186-61-96 tmp]# echo "chunk-size=10000" |nc -U sbtest1.gh-ost.socket

                4.2.5 强制节流和取消节流

                  throttle                             # Force throttling
                  no-throttle                          # End forced throttling (other throttling may still apply)

                  4.2.6 取消推迟转换

                  gh-ost 默认在完成所有的 copy 动作后，不会马上转换原表和幽灵表，而是继续读取binlog应用到幽灵表中，直到发出转换的动作，所以发出此命令会立刻开始转换。
                    unpostpone                           # Bail out a cut-over postpone; proceed to cut-over

                    4.2.7 立刻停止进程

                    不清理现场，发出此命令后会立刻停止所有动作并退出进程。
                      panic                                # panic and quit without cleanup
                      4.2.8 help
                      打印出所有可用命令与解释。
                        [root@10-186-61-103 tmp]# echo help  | nc -U sbtest1.gh-ost.socket
                        available commands:
                        status                               # Print a detailed status message
                        sup                                  # Print a short status message
                        coordinates                             # Print the currently inspected coordinates
                        chunk-size=<newsize>                 # Set a new chunk-size
                        dml-batch-size=<newsize>             # Set a new dml-batch-size
                        nice-ratio=<ratio>                   # Set a new nice-ratio, immediate sleep after each row-copy operation, float (examples: 0 is aggressive, 0.7 adds 70% runtime, 1.0 doubles runtime, 2.0 triples runtime, ...)
                        critical-load=<load>                 # Set a new set of max-load thresholds
                        max-lag-millis=<max-lag>             # Set a new replication lag threshold
                        replication-lag-query=<query>        # Set a new query that determines replication lag (no quotes)
                        max-load=<load>                      # Set a new set of max-load thresholds
                        throttle-query=<query>               # Set a new throttle-query (no quotes)
                        throttle-http=<URL>                  # Set a new throttle URL
                        throttle-control-replicas=<replicas> # Set a new comma delimited list of throttle control replicas
                        throttle                             # Force throttling
                        no-throttle                          # End forced throttling (other throttling may still apply)
                        unpostpone                           # Bail out a cut-over postpone; proceed to cut-over
                        panic                                # panic and quit without cleanup
                        help                                 # This message
                        - use '?' (question mark) as argument to get info rather than set. e.g. "max-load=?" will just print out current max-load

                        4.3 使用示例

                        本示例模拟更改字段数据类型，将 sbtest1 表的 c 字段由 char(120) 改为varchar(200)。采用连接从库，在主库转换的模式架构。
                        • CPU：4C

                        • 内存：4G

                        • 操作系统版本：CentOS 7.5.1804

                        • MySQL版本：5.7.29

                        • MySQL架构：主从复制
                          主库：10.186.61.88:3306
                          从库：10.186.61.101:3306

                        • gh-ost版本：1.0.4

                        4.3.2 准备工作

                        检查从库的 binlog_format 参数和 log_slave_update 参数是或否正确。
                          mysql> select @@global.binlog_format,@@log_slave_updates;
                          +------------------------+---------------------+
                          | @@global.binlog_format | @@log_slave_updates |
                          +------------------------+---------------------+
                          | ROW                    |                   1 |
                          +------------------------+---------------------+
                          1 row in set (0.00 sec)
                          确定需要变更的表没有被复制过滤。
                            mysql> show slave status\G
                            *************************** 1. row ***************************
                            -- 省略其他信息
                                          Replicate_Do_DB:
                                      Replicate_Ignore_DB:
                                       Replicate_Do_Table:
                                   Replicate_Ignore_Table:
                                  Replicate_Wild_Do_Table:
                              Replicate_Wild_Ignore_Table:
                            -- 省略其他信息
                            确认需要变更的表存在主键或者非空的唯一键。
                              mysql> desc sbtest1;
                              +-------+-----------+------+-----+---------+----------------+
                              | Field | Type      | Null | Key | Default | Extra          |
                              +-------+-----------+------+-----+---------+----------------+
                              | id    | int(11)   | NO   | PRI | NULL    | auto_increment |
                              | k     | int(11)   | NO   | MUL | 0       |                |
                              | c     | char(120) | NO   |     |         |                |
                              | pad   | char(60)  | NO   |     |         |                |
                              +-------+-----------+------+-----+---------+----------------+
                              4 rows in set (0.00 sec)
                              创建 ghost 使用的变更用户。
                                mysql> GRANT ALTER, CREATE, DELETE, DROP, INDEX, INSERT, LOCK TABLES, SELECT, TRIGGER, UPDATE,SUPER, REPLICATION SLAVE on *.* TO ghost@'%' identified by 'ghost';
                                Query OK, 0 rows affected, 1 warning (0.01 sec)
                                将用户和密码写入工作目录的配置文件中。
                                  [root@10-186-61-88 ~]# cat ghost.conf
                                  [client]
                                  user=ghost
                                  password=ghost

                                  4.3.3 开始执行更改操作

                                  开启一个 screen，防止变更中途连接断开。
                                    [root@10-186-61-88 ~]# screen
                                    将变更的 alter 语句写成以下形式。
                                      modify c varchar(200) not null default ""
                                      执行命令开始变更，变更之前先去掉 `--execute` 选项模拟执行过程，查看执行中是否有问题。
                                        [root@10-186-61-88 ~]# gh-ost --conf=ghost.conf --database=sbtest --table=sbtest1 \
                                        --alter='modify c varchar(200) not null default ""' --max-load=Threads_running=100 \
                                        --critical-load=Threads_running=1000 --critical-load-interval-millis=100 \
                                        --chunk-size=100000 --throttle-control-replicas="10.186.61.101:3306" \
                                        --max-lag-millis=1500 --host=10.186.61.101 --port=3306 --verbose  \
                                        --default-retries=120 --dml-batch-size=100  \
                                        --assume-rbr --assume-master-host=10.186.61.88 \
                                        --panic-flag-file=/tmp/sbtest1.panic \
                                        --postpone-cut-over-flag-file=/tmp/sbtest1.postpone \
                                        --throttle-flag-file=/tmp/sbtest1.throttle \
                                        --timestamp-old-table \
                                        --serve-socket-file=/tmp/sbtest1.gh-ost.socket


                                        2020-07-24 15:06:28 INFO starting gh-ost 1.0.49
                                        2020-07-24 15:06:28 INFO Migrating `sbtest`.`sbtest1`
                                        2020-07-24 15:06:28 INFO connection validated on 10.186.61.101:3306
                                        2020-07-24 15:06:28 INFO User has SUPER, REPLICATION SLAVE privileges, and has ALL privileges on `sbtest`.*
                                        2020-07-24 15:06:28 INFO binary logs validated on 10.186.61.101:3306
                                        2020-07-24 15:06:28 INFO Inspector initiated on 10-186-61-101:3306, version 5.7.29-log
                                        2020-07-24 15:06:28 INFO Table found. Engine=InnoDB
                                        2020-07-24 15:06:28 INFO Estimated number of rows via EXPLAIN: 4814427
                                        2020-07-24 15:06:28 INFO Master forced to be 10.186.61.88:3306
                                        2020-07-24 15:06:28 INFO log_slave_updates validated on 10.186.61.101:3306
                                        2020-07-24 15:06:28 INFO connection validated on 10.186.61.101:3306
                                        2020-07-24 15:06:28 INFO Connecting binlog streamer at mysql_bin.000008:95041262
                                        [2020/07/24 15:06:28] [info] binlogsyncer.go:133 create BinlogSyncer with config {99999 mysql 10.186.61.101 3306 ghost    false false <nil> false UTC true 0 0s 0s 0 false}
                                        [2020/07/24 15:06:28] [info] binlogsyncer.go:354 begin to sync binlog from position (mysql_bin.000008, 95041262)
                                        [2020/07/24 15:06:28] [info] binlogsyncer.go:203 register slave for master server 10.186.61.101:3306
                                        [2020/07/24 15:06:28] [info] binlogsyncer.go:723 rotate to (mysql_bin.000008, 95041262)
                                        2020-07-24 15:06:28 INFO rotate to next log from mysql_bin.000008:0 to mysql_bin.000008
                                        2020-07-24 15:06:28 INFO connection validated on 10.186.61.88:3306
                                        2020-07-24 15:06:28 INFO connection validated on 10.186.61.88:3306
                                        2020-07-24 15:06:28 INFO will use time_zone='SYSTEM' on applier
                                        2020-07-24 15:06:28 INFO Examining table structure on applier
                                        2020-07-24 15:06:28 INFO Applier initiated on 10-186-61-88:3306, version 5.7.29-log
                                        2020-07-24 15:06:28 INFO Dropping table `sbtest`.`_sbtest1_ghc`
                                        2020-07-24 15:06:28 INFO Table dropped
                                        2020-07-24 15:06:28 INFO Creating changelog table `sbtest`.`_sbtest1_ghc`
                                        2020-07-24 15:06:28 INFO Changelog table created
                                        2020-07-24 15:06:28 INFO Creating ghost table `sbtest`.`_sbtest1_gho`
                                        2020-07-24 15:06:28 INFO Ghost table created
                                        2020-07-24 15:06:28 INFO Altering ghost table `sbtest`.`_sbtest1_gho`
                                        2020-07-24 15:06:28 INFO Ghost table altered
                                        2020-07-24 15:06:28 INFO Created postpone-cut-over-flag-file: /tmp/sbtest1.postpone
                                        2020-07-24 15:06:28 INFO Waiting for ghost table to be migrated. Current lag is 0s
                                        2020-07-24 15:06:28 INFO Intercepted changelog state GhostTableMigrated
                                        2020-07-24 15:06:28 INFO Handled changelog state GhostTableMigrated
                                        2020-07-24 15:06:28 INFO Chosen shared unique key is PRIMARY
                                        2020-07-24 15:06:28 INFO Shared columns are id,k,c,pad
                                        2020-07-24 15:06:28 INFO Listening on unix socket file: /tmp/sbtest1.gh-ost.socket
                                        2020-07-24 15:06:28 INFO Migration min values: [1]
                                        2020-07-24 15:06:28 INFO Migration max values: [5000000]
                                        2020-07-24 15:06:28 INFO Waiting for first throttle metrics to be collected
                                        2020-07-24 15:06:28 INFO First throttle metrics collected
                                        # Migrating `sbtest`.`sbtest1`; Ghost table is `sbtest`.`_sbtest1_gho`
                                        # Migrating 10-186-61-88:3306; inspecting 10-186-61-101:3306; executing on 10-186-61-88
                                        # Migration started at Fri Jul 24 15:06:28 +0800 2020
                                        # chunk-size: 100000; max-lag-millis: 1500ms; dml-batch-size: 100; max-load: Threads_running=100; critical-load: Threads_running=1000; nice-ratio: 0.000000
                                        # throttle-flag-file: /tmp/sbtest1.throttle
                                        # throttle-additional-flag-file: /tmp/gh-ost.throttle
                                        # throttle-control-replicas count: 1
                                        # postpone-cut-over-flag-file: /tmp/sbtest1.postpone [set]
                                        # panic-flag-file: /tmp/sbtest1.panic
                                        # Serving on unix socket: /tmp/sbtest1.gh-ost.socket
                                        2020-07-24 15:06:28 INFO Row copy complete
                                        # Migrating `sbtest`.`sbtest1`; Ghost table is `sbtest`.`_sbtest1_gho`
                                        # Migrating 10-186-61-88:3306; inspecting 10-186-61-101:3306; executing on 10-186-61-88
                                        # Migration started at Fri Jul 24 15:06:28 +0800 2020
                                        # chunk-size: 100000; max-lag-millis: 1500ms; dml-batch-size: 100; max-load: Threads_running=100; critical-load: Threads_running=1000; nice-ratio: 0.000000
                                        # throttle-flag-file: /tmp/sbtest1.throttle
                                        # throttle-additional-flag-file: /tmp/gh-ost.throttle
                                        # throttle-control-replicas count: 1
                                        # postpone-cut-over-flag-file: /tmp/sbtest1.postpone [set]
                                        # panic-flag-file: /tmp/sbtest1.panic
                                        # Serving on unix socket: /tmp/sbtest1.gh-ost.socket
                                        Copy: 0/4814427 0.0%; Applied: 0; Backlog: 0/1000; Time: 0s(total), 0s(copy); streamer: mysql_bin.000008:95044050; Lag: 0.03s, State: migrating; ETA: N/A
                                        Copy: 0/0 100.0%; Applied: 0; Backlog: 0/1000; Time: 0s(total), 0s(copy); streamer: mysql_bin.000008:95044050; Lag: 0.03s, State: migrating; ETA: due
                                        2020-07-24 15:06:28 INFO New table structure follows
                                        CREATE TABLE `_sbtest1_gho` (
                                          `id` int(11) NOT NULL AUTO_INCREMENT,
                                          `k` int(11) NOT NULL DEFAULT '0',
                                          `c` varchar(200) NOT NULL DEFAULT '',
                                          `pad` char(60) NOT NULL DEFAULT '',
                                          PRIMARY KEY (`id`),
                                          KEY `k_1` (`k`)
                                        ) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4
                                        [2020/07/24 15:06:28] [info] binlogsyncer.go:164 syncer is closing...
                                        2020-07-24 15:06:28 INFO Closed streamer connection. err=<nil>
                                        2020-07-24 15:06:28 INFO Dropping table `sbtest`.`_sbtest1_ghc`
                                        [2020/07/24 15:06:28] [error] binlogstreamer.go:77 close sync with err: sync is been closing...
                                        [2020/07/24 15:06:28] [info] binlogsyncer.go:179 syncer is closed
                                        2020-07-24 15:06:28 INFO Table dropped
                                        2020-07-24 15:06:28 INFO Dropping table `sbtest`.`_sbtest1_gho`
                                        2020-07-24 15:06:28 INFO Table dropped
                                        2020-07-24 15:06:28 INFO Done migrating `sbtest`.`sbtest1`
                                        2020-07-24 15:06:28 INFO Removing socket file: /tmp/sbtest1.gh-ost.socket
                                        2020-07-24 15:06:28 INFO Tearing down inspector
                                        2020-07-24 15:06:28 INFO Tearing down applier
                                        2020-07-24 15:06:28 INFO Tearing down streamer
                                        2020-07-24 15:06:28 INFO Tearing down throttler
                                        # Done
                                        确认无误后，即可开始正式的更改工作。
                                          gh-ost --conf=ghost.conf --database=sbtest --table=sbtest1 \
                                          --alter='modify c varchar(200) not null default ""' \
                                          --max-load=Threads_running=100  \
                                          --critical-load=Threads_running=1000 \
                                          --critical-load-interval-millis=100 --chunk-size=100000 \
                                          --throttle-control-replicas="10.186.61.101:3306" \
                                          --max-lag-millis=1500 --host=10.186.61.101 \
                                          --port=3306 --verbose   --default-retries=120 \
                                          --dml-batch-size=100  --assume-rbr \
                                          --assume-master-host=10.186.61.88 \
                                          --panic-flag-file=/tmp/sbtest1.panic \
                                          --postpone-cut-over-flag-file=/tmp/sbtest1.postpone \
                                          --throttle-flag-file=/tmp/sbtest1.throttle \
                                          --timestamp-old-table \
                                          --serve-socket-file=/tmp/sbtest1.gh-ost.socket --execute

                                          执行过程中会有如下的日志打印，代表的含义如下：

                                          • Copy：从原表 copy row 的进度，三列分别代表已 cpoy 的行、预估行数、进度

                                          • Applied：表示从二进制日志中读取并应用到幽灵表上的行数

                                          • Backlog：当前处理二进制日志的积压数量

                                          • Time：执行时间

                                          • streamer：当前处理到的二进制日志的位置

                                          • Lag：延时时间

                                          • State：状态（migrating：正常迁移，throttled：限流中，postponing cut-over：等待转换）

                                          • ETA：预估的完成耗时

                                            Copy: 300000/4814427 6.2%; Applied: 0; Backlog: 0/1000; Time: 6s(total), 6s(copy); streamer: mysql_bin.000008:116441176; Lag: 1.72s, State: throttled, lag=1.824079s; ETA: 1m30s
                                            Copy: 300000/4814427 6.2%; Applied: 0; Backlog: 0/1000; Time: 7s(total), 7s(copy); streamer: mysql_bin.000008:133260367; Lag: 1.42s, State: migrating; ETA: 1m45s
                                            当状态成为 postponing cut-over 后，我们就可以进行下一步的转换环节，转换方式有两种，第一种是删除创建的标志文件，标志文件为 --postpone-cut-over-flag-file 选项定义的。第二种是执行交互式命令，这里我们采用第二种。
                                            通过输出的日志，我们可以看到状态已经处于 postponing cut-over。
                                              Copy: 5000000/5000000 100.0%; Applied: 0; Backlog: 0/1000; Time: 18m0s(total), 1m49s(copy); streamer: mysql_bin.000011:254596764; Lag: 0.02s, State: postponing cut-over; ETA: due
                                              Copy: 5000000/5000000 100.0%; Applied: 0; Backlog: 0/1000; Time: 18m30s(total), 1m49s(copy); streamer: mysql_bin.000011:254786245; Lag: 0.02s, State: postponing cut-over; ETA: due
                                              执行以下命令。
                                                [root@10-186-61-88 tmp]# echo "unpostpone" |nc -U sbtest1.gh-ost.socket
                                                查看日志输出，可以看到转换完成。
                                                  Copy: 5000000/5000000 100.0%; Applied: 0; Backlog: 0/1000; Time: 20m27s(total), 1m49s(copy); streamer: mysql_bin.000011:255529733; Lag: 0.02s, State: postponing cut-over; ETA: due
                                                  2020-07-24 15:28:53 INFO Grabbing voluntary lock: gh-ost.2088.lock
                                                  2020-07-24 15:28:53 INFO Setting LOCK timeout as 6 seconds
                                                  2020-07-24 15:28:53 INFO Looking for magic cut-over table
                                                  2020-07-24 15:28:53 INFO Creating magic cut-over table `sbtest`.`_sbtest1_20200724150824_del`
                                                  2020-07-24 15:28:53 INFO Magic cut-over table created
                                                  2020-07-24 15:28:53 INFO Locking `sbtest`.`sbtest1`, `sbtest`.`_sbtest1_20200724150824_del`
                                                  2020-07-24 15:28:53 INFO Tables locked
                                                  2020-07-24 15:28:53 INFO Session locking original & magic tables is 2088
                                                  2020-07-24 15:28:53 INFO Writing changelog state: AllEventsUpToLockProcessed:1595575733351893170
                                                  2020-07-24 15:28:53 INFO Waiting for events up to lock
                                                  2020-07-24 15:28:53 INFO Intercepted changelog state AllEventsUpToLockProcessed
                                                  2020-07-24 15:28:53 INFO Handled changelog state AllEventsUpToLockProcessed
                                                  2020-07-24 15:28:54 INFO Waiting for events up to lock: got AllEventsUpToLockProcessed:1595575733351893170
                                                  2020-07-24 15:28:54 INFO Done waiting for events up to lock; duration=696.107491ms
                                                  # Migrating `sbtest`.`sbtest1`; Ghost table is `sbtest`.`_sbtest1_gho`
                                                  # Migrating 10-186-61-88:3306; inspecting 10-186-61-101:3306; executing on 10-186-61-88
                                                  # Migration started at Fri Jul 24 15:08:24 +0800 2020
                                                  # chunk-size: 100000; max-lag-millis: 1500ms; dml-batch-size: 100; max-load: Threads_running=100; critical-load: Threads_running=1000; nice-ratio: 0.000000
                                                  # throttle-flag-file: /tmp/sbtest1.throttle
                                                  # throttle-additional-flag-file: /tmp/gh-ost.throttle
                                                  # throttle-control-replicas count: 1
                                                  # postpone-cut-over-flag-file: /tmp/sbtest1.postpone [set]
                                                  # panic-flag-file: /tmp/sbtest1.panic
                                                  # Serving on unix socket: /tmp/sbtest1.gh-ost.socket
                                                  Copy: 5000000/5000000 100.0%; Applied: 0; Backlog: 0/1000; Time: 20m29s(total), 1m49s(copy); streamer: mysql_bin.000011:255542872; Lag: 0.02s, State: migrating; ETA: due
                                                  2020-07-24 15:28:54 INFO Setting RENAME timeout as 3 seconds
                                                  2020-07-24 15:28:54 INFO Session renaming tables is 2084
                                                  2020-07-24 15:28:54 INFO Issuing and expecting this to block: rename /* gh-ost */ table `sbtest`.`sbtest1` to `sbtest`.`_sbtest1_20200724150824_del`, `sbtest`.`_sbtest1_gho` to `sbtest`.`sbtest1`
                                                  2020-07-24 15:28:54 INFO Found atomic RENAME to be blocking, as expected. Double checking the lock is still in place (though I don't strictly have to)
                                                  2020-07-24 15:28:54 INFO Checking session lock: gh-ost.2088.lock
                                                  2020-07-24 15:28:54 INFO Connection holding lock on original table still exists
                                                  2020-07-24 15:28:54 INFO Will now proceed to drop magic table and unlock tables
                                                  2020-07-24 15:28:54 INFO Dropping magic cut-over table
                                                  2020-07-24 15:28:54 INFO Releasing lock from `sbtest`.`sbtest1`, `sbtest`.`_sbtest1_20200724150824_del`
                                                  2020-07-24 15:28:54 INFO Tables unlocked
                                                  2020-07-24 15:28:54 INFO Tables renamed
                                                  2020-07-24 15:28:54 INFO Lock & rename duration: 721.156968ms. During this time, queries on `sbtest1` were blocked
                                                  2020-07-24 15:28:54 INFO Looking for magic cut-over table
                                                  [2020/07/24 15:28:54] [info] binlogsyncer.go:164 syncer is closing...
                                                  2020-07-24 15:28:54 INFO Closed streamer connection. err=<nil>
                                                  2020-07-24 15:28:54 INFO Dropping table `sbtest`.`_sbtest1_ghc`
                                                  [2020/07/24 15:28:54] [error] binlogstreamer.go:77 close sync with err: sync is been closing...
                                                  [2020/07/24 15:28:54] [info] binlogsyncer.go:179 syncer is closed
                                                  2020-07-24 15:28:54 INFO Table dropped
                                                  2020-07-24 15:28:54 INFO Am not dropping old table because I want this operation to be as live as possible. If you insist I should do it, please add `--ok-to-drop-table` next time. But I prefer you do not. To drop the old table, issue:
                                                  2020-07-24 15:28:54 INFO -- drop table `sbtest`.`_sbtest1_20200724150824_del`
                                                  2020-07-24 15:28:54 INFO Done migrating `sbtest`.`sbtest1`
                                                  2020-07-24 15:28:54 INFO Removing socket file: /tmp/sbtest1.gh-ost.socket
                                                  2020-07-24 15:28:54 INFO Tearing down inspector
                                                  2020-07-24 15:28:54 INFO Tearing down applier
                                                  2020-07-24 15:28:54 INFO Tearing down streamer
                                                  2020-07-24 15:28:54 INFO Tearing down throttler
                                                  # Done
                                                  登陆数据库，查看表结构是否更改。
                                                    mysql> desc sbtest1;
                                                    +-------+--------------+------+-----+---------+----------------+
                                                    | Field | Type         | Null | Key | Default | Extra          |
                                                    +-------+--------------+------+-----+---------+----------------+
                                                    |
                                                    | k     | int(11)      | NO   | MUL | 0       |                |
                                                    |
                                                    | pad   | char(60)     | NO   |     |         |                |
                                                    +-------+--------------+------+-----+---------+----------------+
                                                    4 rows in set (0.00 sec)
                                                    4.3.4 后续收尾工作
                                                    • 验证表数据是否正常
                                                    • 删除旧表
                                                      mysql> show tables;
                                                      +-----------------------------+
                                                      | Tables_in_sbtest            |
                                                      +-----------------------------+
                                                      | _sbtest1_20200724150824_del |
                                                      | sbtest1                     |
                                                      +-----------------------------+
                                                      2 rows in set (0.00 sec)
                                                      mysql> drop table  _sbtest1_20200724150824_del;
                                                      Query OK, 0 rows affected (0.03 sec)
                                                      • 清理残留的标志文件
                                                        [root@10-186-61-88 tmp]# rm sbtest1.postpone
                                                        rm: remove regular empty file ‘sbtest1.postpone’? y

                                                        参考：

                                                        https://github.com/github/gh-ost/tree/master/doc

                                                        相关推荐：

                                                        gh-ost 原理剖析

                                                        gh-ost 在线 ddl 变更工具


                                                        社区近期动态




                                                         点一下“阅读原文”了解更多资讯

                                                        数据库
                                                        文章转载自爱可生开源社区，如果涉嫌侵权，请发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。

                                                        评论
