一、开篇

继续上一章节的动态模块加载，接下来以一个带参数传递的示例来开始。

二、带传参的内核模块示例

这里写了一个简单的hello内核模块（hello.c和Makefile）。

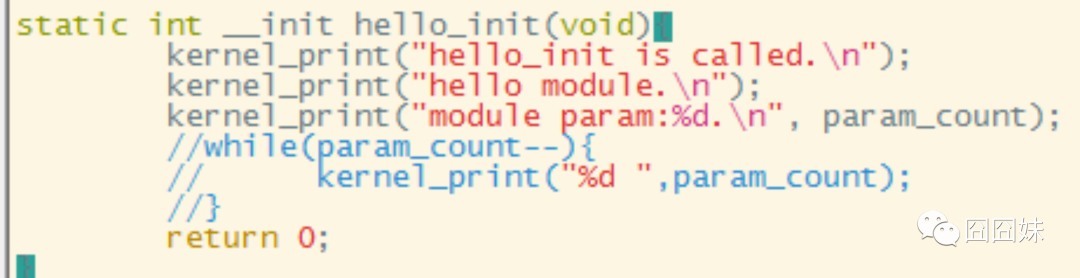

hello.c在昨天的基础上我们增加一个全局静态变量param_count初始化为0，当加载该模块时我们通过在用户态执行insmod命令时对内核模块传递一个参数，该参数会传递给这个全局变量param_count。同时在加载函数中对param_count打印并进行减减操作至0.

/**
* @file hello.c
* @brief 打印hello进行简单测试
* @author zshare
* @version v1.0
* @date 2022-02-12
* @history
*/


#include <linux/module.h>//对应内核源码中include/linux/module.h
#include <linux/moduleparam.h>
#include <linux/kernel.h>
#include <linux/init.h>  //包含了module_init和module_exit的声明


#define _log_
#ifdef _log_
  #define kernel_print(format, arg...) printk(format,## arg)
#else
  #define kernel_print(format, arg...) do{}while(0)
#endif
#define VERSION "V1.0"
typedef unsigned char u8;
typedef unsigned short u16;
typedef unsigned int u32;


static u32 param_count = 0;
module_param(param_count, uint, 0644);


static int __init hello_init(void){
  kernel_print("hello_init is called.\n");
  kernel_print("hello module.\n");
  kernel_print("module param:%d.\n", param_count);
  while(param_count--){
    kernel_print("%d ",param_count);
  }
  return 0;
}


static void __exit hello_exit(void){
  kernel_print("hello_exit is called.\n");
  kernel_print("bye module.\n");
}


module_init(hello_init);
module_exit(hello_exit);


MODULE_LICENSE("GPL");//软件代码接受的许可协议General Public License
MODULE_AUTHOR("Share");//声明作者
MODULE_DESCRIPTION("Print hello module");//模块简单的描述
MODULE_VERSION(VERSION);//模块版本
MODULE_ALIAS("HELLO");//模块在用户空间的别名

#Makefile
obj-m :=hello.o
KERNELDIR =/lib/modules/$(shell uname -r)/build
PWD := $(shell pwd)
default:
  $(MAKE) -C $(KERNELDIR) M=$(PWD) modules
clean:
  rm -f  *o  *.mod *.mod.o  *mod.c  *.symvers *.order

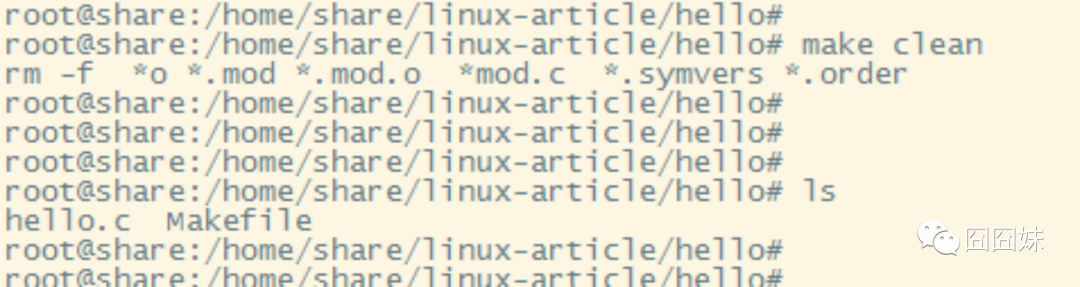

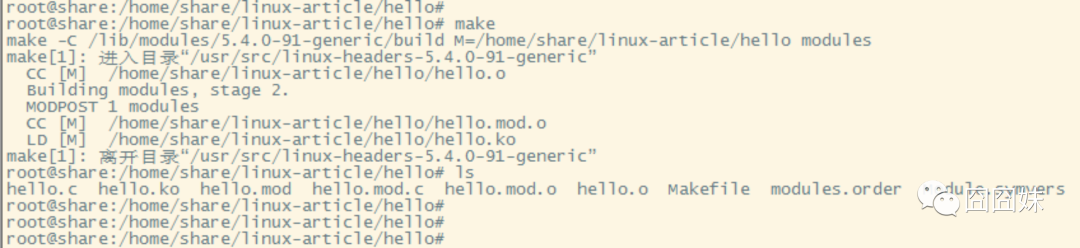

接下来就可以通过make和make clean指令来进行内核模块的编译和清理工作。

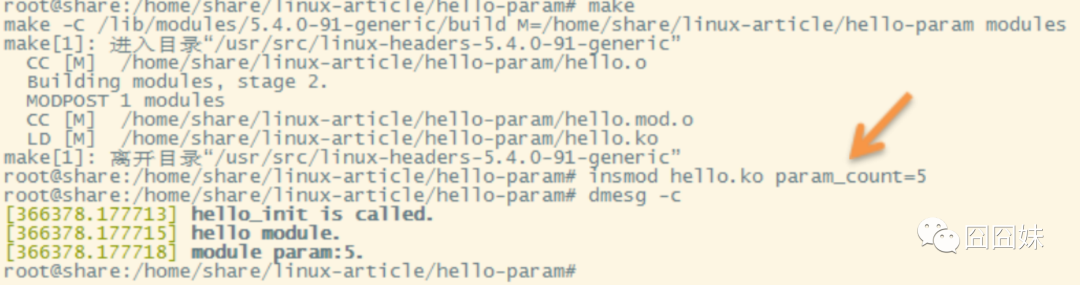

通过指令insmod进行传参加载，指令：insmod hello.ko param_count=5，这样就是给我们定义的全局变量传参为整型数5。

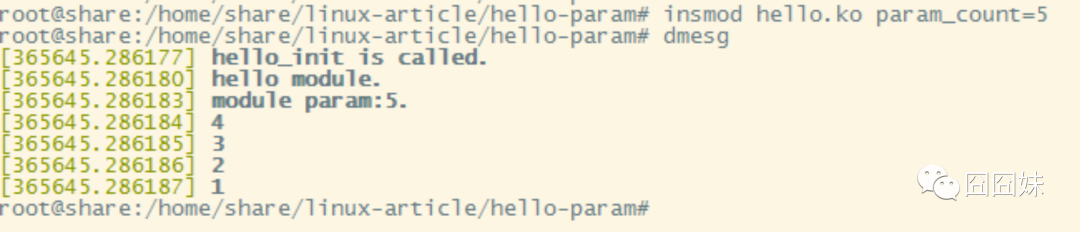

通过dmesg打印可以发现，打印出变量的值为5，同时将该全局变量减减至0退出init函数。

三、参数传递过程

参数是通过内核定义的宏module_param来实现的。源码在include/linux/moduleparam.h

/**
 * module_param - typesafe helper for a module/cmdline parameter
 * @value: the variable to alter, and exposed parameter name.
 * @type: the type of the parameter
 * @perm: visibility in sysfs.
 *
 * @value becomes the module parameter, or (prefixed by KBUILD_MODNAME and a
 * ".") the kernel commandline parameter.  Note that - is changed to _, so
 * the user can use "foo-bar=1" even for variable "foo_bar".
 *
 * @perm is 0 if the the variable is not to appear in sysfs, or 0444
 * for world-readable, 0644 for root-writable, etc.  Note that if it
 * is writable, you may need to use kernel_param_lock() around
 * accesses (esp. charp, which can be kfreed when it changes).
 *
 * The @type is simply pasted to refer to a param_ops_##type and a
 * param_check_##type: for convenience many standard types are provided but
 * you can create your own by defining those variables.
 *
 * Standard types are:
 *  byte, short, ushort, int, uint, long, ulong
 *  charp: a character pointer
 *  bool: a bool, values 0/1, y/n, Y/N.
 *  invbool: the above, only sense-reversed (N = true).
 */
#define module_param(name, type, perm)        \
  module_param_named(name, name, type, perm)

name：接收参数的变量名，示例中的param_count。

type：类型内核定义了其标准类型传参，支持：byte, short, ushort, int, uint, long, ulong，charp（字符串指针），bool（布尔类型0/1, y/n, Y/N），invbool（ the above, only sense-reversed (N = true)）

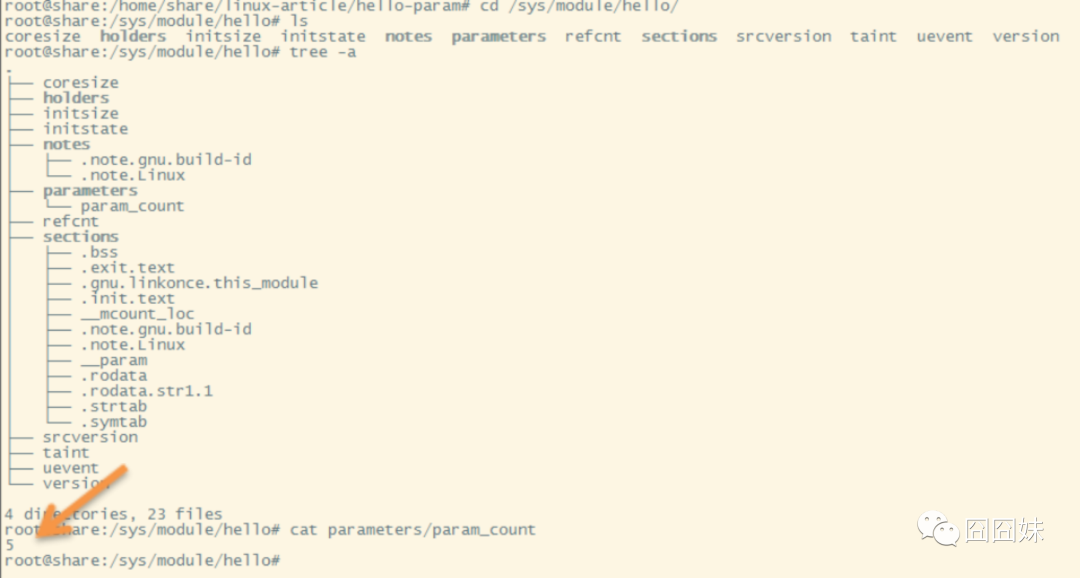

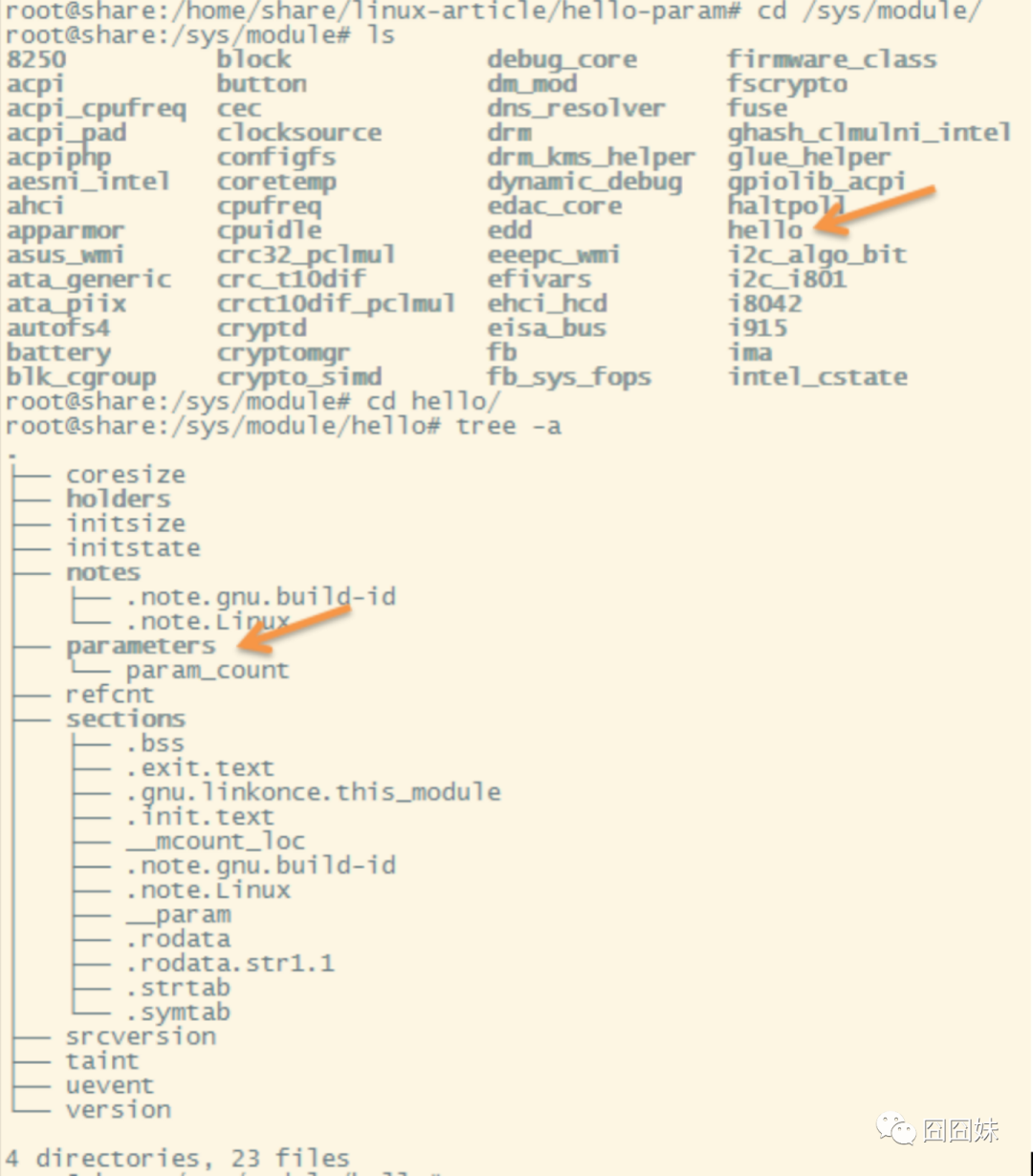

perm：

0-不出现在sysfs中

0444-所有人可读

0644-root权限可写

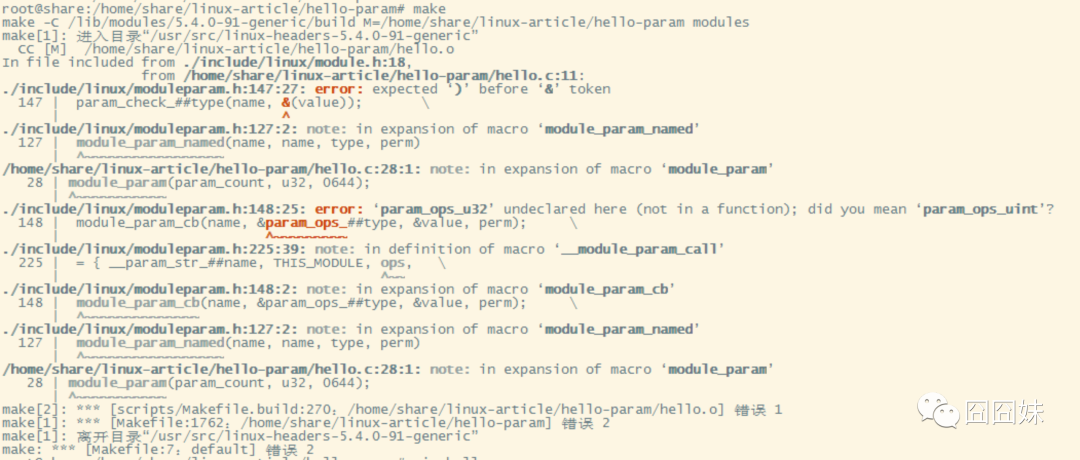

注意：type类型的传递一定要是规定的类型，不可通过typedef重定义后再传递，为什么呢？

我们看下module_param的具体实现，也就是module_param_named宏定义：

/**
 * module_param_named - typesafe helper for a renamed module/cmdline parameter
 * @name: a valid C identifier which is the parameter name.
 * @value: the actual lvalue to alter.
 * @type: the type of the parameter
 * @perm: visibility in sysfs.
 *
 * Usually it's a good idea to have variable names and user-exposed names the
 * same, but that's harder if the variable must be non-static or is inside a
 * structure.  This allows exposure under a different name.
 */
#define module_param_named(name, value, type, perm)         \
  param_check_##type(name, &(value));           \
  module_param_cb(name, &param_ops_##type, &value, perm);       \
  __MODULE_PARM_TYPE(name, #type)
