一、说明
对于ob集群的扩容和租户的扩容，在之前的1.4版本文章里已经有过实操体验。ob2.2版本下操作命令是一样的。
本篇使用的ob版本是目前oceanbase官网免费提供下载的2c8g迷你试用版mini-ob-deploy.tar，关于此试用版的安装，上一篇文章也已经介绍了，本篇不再累述。
本篇主要介绍在ob2.2迷你试用安装版上，进行集群的扩容和租户的扩容，并观察ob集群的负载均衡、分区副本的迁移以及leader选主等特性。
二、我的操作流程是这样的：
1、先搭建一个三副本的1-1-1架构集群。
2、创建两个业务租户，一个mysql类型的租户mysql_test_tent和一个oracle类型的租户ora_test_tent，资源池分别是mysql_pool_test和ora_pool_test，使用的都是1c1g的unit规格。
3、分别在两个租户下创建业务用户aps2，并在业务用户aps2下创建两个测试表，一个是非分区表test，一个是hash分区表test_hash，并插入测试数据。
4、记录在1-1-1集群架构下，各节点资源使用情况，以及两个租户下每个表的分区副本所在节点情况。（扩容前的状态）
5、开始集群扩容，从1-1-1架构增加三台服务器，扩容到2-2-2架构。
6、记录集群扩容到2-2-2架构下，整个集群资源使用情况，两个租户下表分区副本分布情况。（集群扩容后的状态：涉及ob的负载均衡、分区副本迁移、leader_switch等）
7、开始租户扩容，这里只演示增加资源池的unit数量。
8、记录租户扩容后，整个集群资源使用情况，两个租户下表分区副本分布情况。（租户扩容后的状态：涉及ob的负载均衡、分区副本迁移、leader_switch等）
三、最后以手工绘图的形式来展示集群和租户分别扩容后的变化

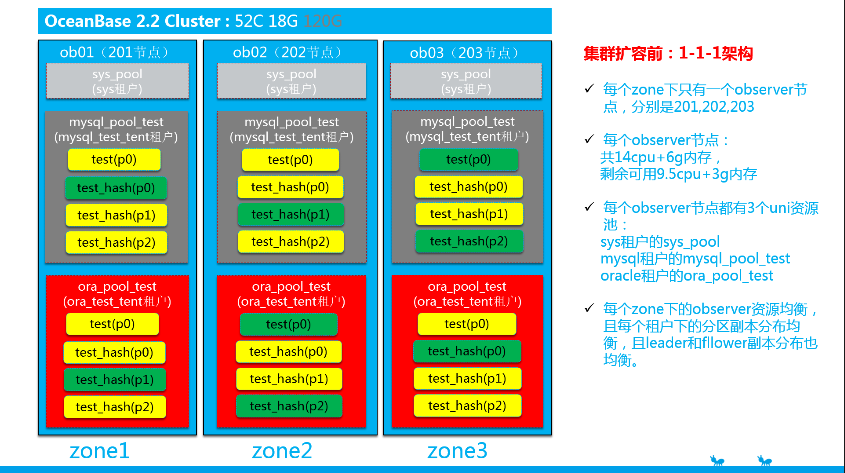

图一：集群扩容前：1-1-1架构

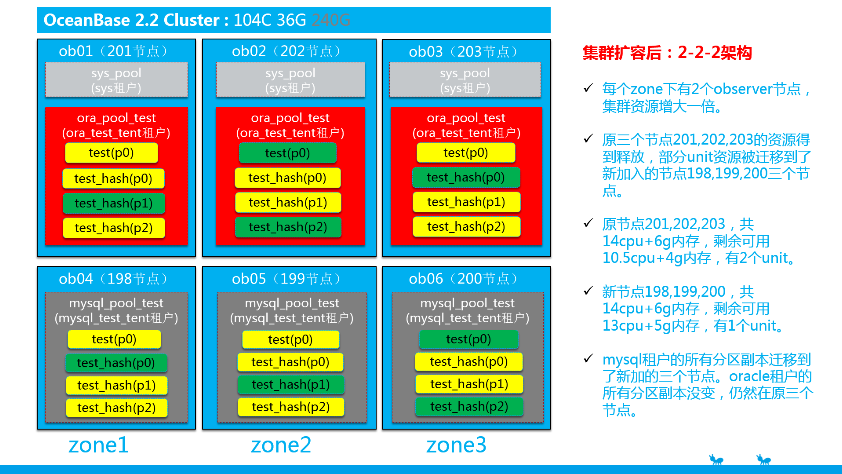

图二：集群扩容后：2-2-2架构

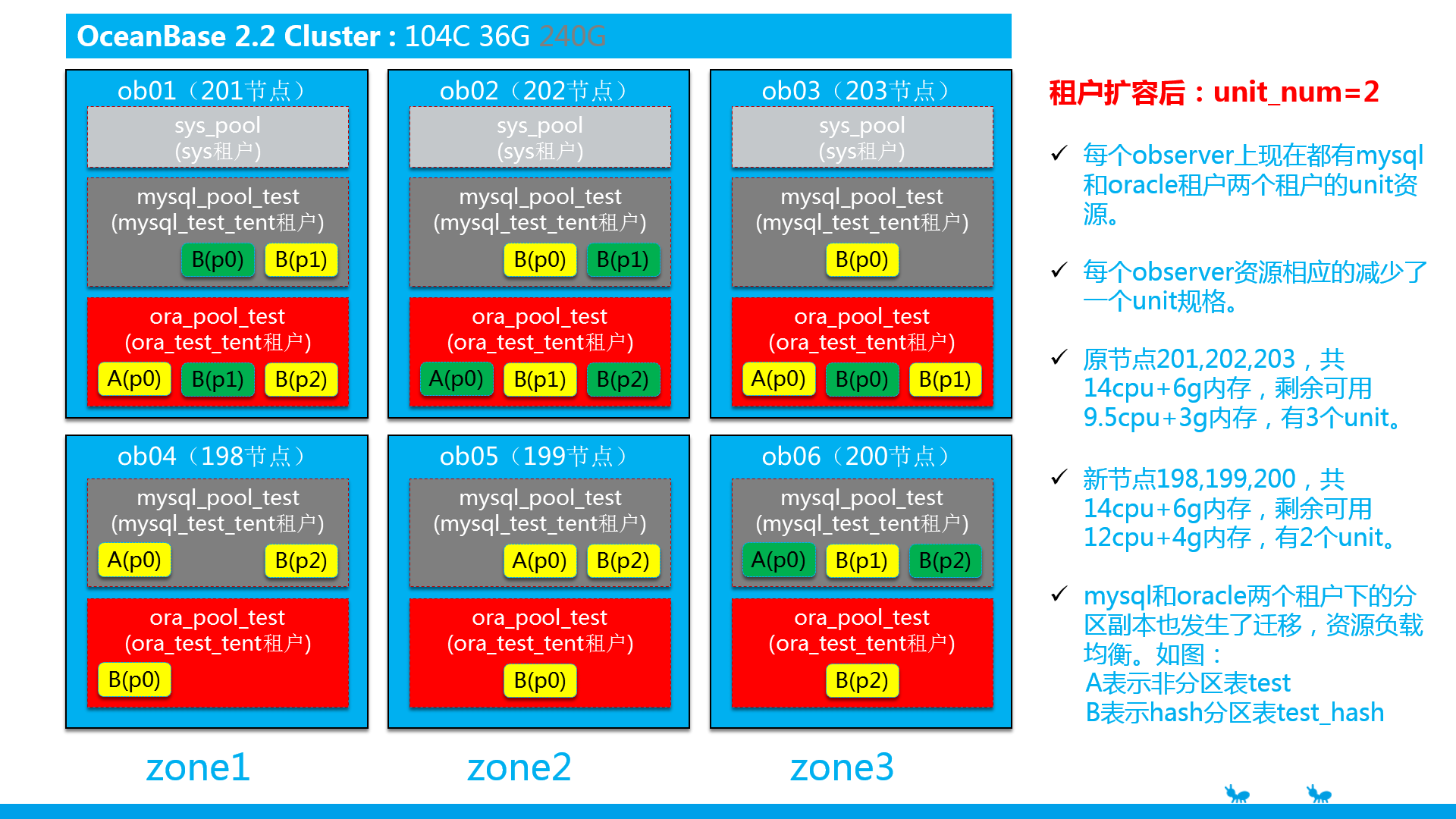

图三：租户扩容后：unit_num=2
以下是操作步骤：
1、搭建1-1-1架构的ob2.2集群
节点服务器配置4cpu+16g内存（这里由于服务器资源够，采用的是4c16g配置来安装，当然你也可以完全用2c8g的配置来安装。）
zone1 ob01: 192.168.26.201
zone2 ob02: 192.168.26.202
zone3 ob03: 192.168.26.203
启动observer进程时，指定的参数除了系统内部预留内存system_memory=10G，其它参数不变，参考上一篇文章。
安装完成后，查看集群的信息，如下：
$ obclient -h192.168.26.201 -P2883 -uroot@sys#obdemo -padmin123 -c -A oceanbase
obclient> select zone,svr_ip,svr_port,inner_port,with_rootserver,status,gmt_create from __all_server order by zone, svr_ip;
+-------+----------------+----------+------------+-----------------+--------+----------------------------+
| zone | svr_ip | svr_port | inner_port | with_rootserver | status | gmt_create |
+-------+----------------+----------+------------+-----------------+--------+----------------------------+
| zone1 | 192.168.26.201 | 2882 | 2881 | 1 | active | 2020-10-14 10:19:35.093668 |
| zone2 | 192.168.26.202 | 2882 | 2881 | 0 | active | 2020-10-14 10:19:28.917915 |
| zone3 | 192.168.26.203 | 2882 | 2881 | 0 | active | 2020-10-14 10:19:27.641625 |
+-------+----------------+----------+------------+-----------------+--------+----------------------------+
3 rows in set (0.01 sec)
obclient> select a.zone,concat(a.svr_ip,':',a.svr_port) observer, cpu_total, (cpu_total-cpu_assigned) cpu_free,
-> round(mem_total/1024/1024/1024) mem_total_gb, round((mem_total-mem_assigned)/1024/1024/1024) mem_free_gb,
-> round(disk_total/1024/1024/1024) disk_total_gb,unit_num,
-> substr(a.build_version,1,6) version,usec_to_time(b.start_service_time) start_service_time,b.status
-> from __all_virtual_server_stat a join __all_server b on (a.svr_ip=b.svr_ip and a.svr_port=b.svr_port)
-> order by a.zone, a.svr_ip;
+-------+---------------------+-----------+----------+--------------+-------------+---------------+----------+---------+----------------------------+--------+
| zone | observer | cpu_total | cpu_free | mem_total_gb | mem_free_gb | disk_total_gb | unit_num | version | start_service_time | status |
+-------+---------------------+-----------+----------+--------------+-------------+---------------+----------+---------+----------------------------+--------+
| zone1 | 192.168.26.201:2882 | 14 | 11.5 | 6 | 5 | 40 | 1 | 2.2.50 | 2020-10-14 10:20:38.298274 | active |
| zone2 | 192.168.26.202:2882 | 14 | 11.5 | 6 | 5 | 40 | 1 | 2.2.50 | 2020-10-14 10:20:40.019536 | active |
| zone3 | 192.168.26.203:2882 | 14 | 11.5 | 6 | 5 | 40 | 1 | 2.2.50 | 2020-10-14 10:20:41.147584 | active |
+-------+---------------------+-----------+----------+--------------+-------------+---------------+----------+---------+----------------------------+--------+
3 rows in set (0.01 sec)
obclient> select t1.name resource_pool_name, t2.`name` unit_config_name, t2.max_cpu, t2.min_cpu,
-> round(t2.max_memory/1024/1024/1024) max_mem_gb, round(t2.min_memory/1024/1024/1024) min_mem_gb,
-> t3.unit_id, t3.zone, concat(t3.svr_ip,':',t3.`svr_port`) observer,t4.tenant_id, t4.tenant_name
-> from __all_resource_pool t1 join __all_unit_config t2 on (t1.unit_config_id=t2.unit_config_id)
-> join __all_unit t3 on (t1.`resource_pool_id` = t3.`resource_pool_id`)
-> left join __all_tenant t4 on (t1.tenant_id=t4.tenant_id)
-> order by t1.`resource_pool_id`, t2.`unit_config_id`, t3.unit_id
-> ;
+--------------------+------------------+---------+---------+------------+------------+---------+-------+---------------------+-----------+-------------+
| resource_pool_name | unit_config_name | max_cpu | min_cpu | max_mem_gb | min_mem_gb | unit_id | zone | observer | tenant_id | tenant_name |
+--------------------+------------------+---------+---------+------------+------------+---------+-------+---------------------+-----------+-------------+
| sys_pool | sys_unit_config | 5 | 2.5 | 2 | 2 | 1 | zone1 | 192.168.26.201:2882 | 1 | sys |
| sys_pool | sys_unit_config | 5 | 2.5 | 2 | 2 | 2 | zone2 | 192.168.26.202:2882 | 1 | sys |
| sys_pool | sys_unit_config | 5 | 2.5 | 2 | 2 | 3 | zone3 | 192.168.26.203:2882 | 1 | sys |
+--------------------+------------------+---------+---------+------------+------------+---------+-------+---------------------+-----------+-------------+
3 rows in set (0.01 sec)
obclient> select unit_config_id,name,max_cpu,min_cpu,round(max_memory/1024/1024/1024) max_mem_gb,
-> round(min_memory/1024/1024/1024) min_mem_gb, round(max_disk_size/1024/1024/1024) max_disk_size_gb
-> from __all_unit_config
-> order by unit_config_id;
+----------------+-----------------+---------+---------+------------+------------+------------------+
| unit_config_id | name | max_cpu | min_cpu | max_mem_gb | min_mem_gb | max_disk_size_gb |
+----------------+-----------------+---------+---------+------------+------------+------------------+
| 1 | sys_unit_config | 5 | 2.5 | 2 | 2 | 40 |
+----------------+-----------------+---------+---------+------------+------------+------------------+
1 row in set (0.03 sec)
obclient> select tenant_id, tenant_name, compatibility_mode,zone_list, locality ,primary_zone ,gmt_modified from __all_tenant;
+-----------+-------------+--------------------+-------------------+---------------------------------------------+-------------------+----------------------------+
| tenant_id | tenant_name | compatibility_mode | zone_list | locality | primary_zone | gmt_modified |
+-----------+-------------+--------------------+-------------------+---------------------------------------------+-------------------+----------------------------+
| 1 | sys | 0 | zone1;zone2;zone3 | FULL{1}@zone1, FULL{1}@zone2, FULL{1}@zone3 | zone1;zone2,zone3 | 2020-10-14 10:20:36.979339 |
+-----------+-------------+--------------------+-------------------+---------------------------------------------+-------------------+----------------------------+
1 row in set (0.00 sec)
可以看到，搭建1-1-1的ob集群，集群扩容前，只有201,202,203三个observer节点，每个zone下的observer节点资源使用情况是：
cpu总共14个，剩余可用11.5个，内存总共6g剩余可用5g，且每个zone下的observer只有一个sys系统租户的unit单元，大小规格是2.5~5cpu,2g内存。
2、创建mysql和oracle租户，并创建业务用户和测试表
创建mysql租户
$ obclient -h192.168.26.201 -P2883 -uroot@sys#obdemo -padmin123 -c -A oceanbase
obclient> create resource unit my_unit_1c1g max_cpu=1, min_cpu=1, max_memory='1g', min_memory='1g', max_iops=10000, min_iops=1000, max_session_num=1000000, max_disk_size='10g';
Query OK, 0 rows affected (0.18 sec)
obclient> select unit_config_id,name,max_cpu,min_cpu,round(max_memory/1024/1024/1024) max_mem_gb,
-> round(min_memory/1024/1024/1024) min_mem_gb, round(max_disk_size/1024/1024/1024) max_disk_size_gb
-> from __all_unit_config
-> order by unit_config_id;
+----------------+-----------------+---------+---------+------------+------------+------------------+
| unit_config_id | name | max_cpu | min_cpu | max_mem_gb | min_mem_gb | max_disk_size_gb |
+----------------+-----------------+---------+---------+------------+------------+------------------+
| 1 | sys_unit_config | 5 | 2.5 | 2 | 2 | 40 |
| 1001 | my_unit_1c1g | 1 | 1 | 1 | 1 | 10 |
+----------------+-----------------+---------+---------+------------+------------+------------------+
2 rows in set (0.00 sec)
obclient> create resource pool mysql_pool_test unit = 'my_unit_1c1g', unit_num = 1;
Query OK, 0 rows affected (0.39 sec)
obclient> select t1.name resource_pool_name, t2.`name` unit_config_name, t2.max_cpu, t2.min_cpu,
-> round(t2.max_memory/1024/1024/1024) max_mem_gb, round(t2.min_memory/1024/1024/1024) min_mem_gb,
-> t3.unit_id, t3.zone, concat(t3.svr_ip,':',t3.`svr_port`) observer,t4.tenant_id, t4.tenant_name
-> from __all_resource_pool t1 join __all_unit_config t2 on (t1.unit_config_id=t2.unit_config_id)
-> join __all_unit t3 on (t1.`resource_pool_id` = t3.`resource_pool_id`)
-> left join __all_tenant t4 on (t1.tenant_id=t4.tenant_id)
-> order by t1.`resource_pool_id`, t2.`unit_config_id`, t3.unit_id
-> ;
+--------------------+------------------+---------+---------+------------+------------+---------+-------+---------------------+-----------+-------------+
| resource_pool_name | unit_config_name | max_cpu | min_cpu | max_mem_gb | min_mem_gb | unit_id | zone | observer | tenant_id | tenant_name |
+--------------------+------------------+---------+---------+------------+------------+---------+-------+---------------------+-----------+-------------+
| sys_pool | sys_unit_config | 5 | 2.5 | 2 | 2 | 1 | zone1 | 192.168.26.201:2882 | 1 | sys |
| sys_pool | sys_unit_config | 5 | 2.5 | 2 | 2 | 2 | zone2 | 192.168.26.202:2882 | 1 | sys |
| sys_pool | sys_unit_config | 5 | 2.5 | 2 | 2 | 3 | zone3 | 192.168.26.203:2882 | 1 | sys |
| mysql_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1001 | zone1 | 192.168.26.201:2882 | NULL | NULL |
| mysql_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1002 | zone2 | 192.168.26.202:2882 | NULL | NULL |
| mysql_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1003 | zone3 | 192.168.26.203:2882 | NULL | NULL |
+--------------------+------------------+---------+---------+------------+------------+---------+-------+---------------------+-----------+-------------+
6 rows in set (0.01 sec)
obclient> create tenant mysql_test_tent resource_pool_list=('mysql_pool_test'), primary_zone='RANDOM',comment 'mysql tenant/instance', charset='utf8' set ob_tcp_invited_nodes='%', ob_compatibility_mode='mysql';
Query OK, 0 rows affected (16.68 sec)
obclient> select t1.name resource_pool_name, t2.`name` unit_config_name, t2.max_cpu, t2.min_cpu,
-> round(t2.max_memory/1024/1024/1024) max_mem_gb, round(t2.min_memory/1024/1024/1024) min_mem_gb,
-> t3.unit_id, t3.zone, concat(t3.svr_ip,':',t3.`svr_port`) observer,t4.tenant_id, t4.tenant_name
-> from __all_resource_pool t1 join __all_unit_config t2 on (t1.unit_config_id=t2.unit_config_id)
-> join __all_unit t3 on (t1.`resource_pool_id` = t3.`resource_pool_id`)
-> left join __all_tenant t4 on (t1.tenant_id=t4.tenant_id)
-> order by t1.`resource_pool_id`, t2.`unit_config_id`, t3.unit_id
-> ;
+--------------------+------------------+---------+---------+------------+------------+---------+-------+---------------------+-----------+-----------------+
| resource_pool_name | unit_config_name | max_cpu | min_cpu | max_mem_gb | min_mem_gb | unit_id | zone | observer | tenant_id | tenant_name |
+--------------------+------------------+---------+---------+------------+------------+---------+-------+---------------------+-----------+-----------------+
| sys_pool | sys_unit_config | 5 | 2.5 | 2 | 2 | 1 | zone1 | 192.168.26.201:2882 | 1 | sys |
| sys_pool | sys_unit_config | 5 | 2.5 | 2 | 2 | 2 | zone2 | 192.168.26.202:2882 | 1 | sys |
| sys_pool | sys_unit_config | 5 | 2.5 | 2 | 2 | 3 | zone3 | 192.168.26.203:2882 | 1 | sys |
| mysql_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1001 | zone1 | 192.168.26.201:2882 | 1001 | mysql_test_tent |
| mysql_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1002 | zone2 | 192.168.26.202:2882 | 1001 | mysql_test_tent |
| mysql_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1003 | zone3 | 192.168.26.203:2882 | 1001 | mysql_test_tent |
+--------------------+------------------+---------+---------+------------+------------+---------+-------+---------------------+-----------+-----------------+
6 rows in set (0.00 sec)
obclient> select tenant_id, tenant_name, compatibility_mode,zone_list, locality ,primary_zone ,gmt_modified from __all_tenant;
+-----------+-----------------+--------------------+-------------------+---------------------------------------------+-------------------+----------------------------+
| tenant_id | tenant_name | compatibility_mode | zone_list | locality | primary_zone | gmt_modified |
+-----------+-----------------+--------------------+-------------------+---------------------------------------------+-------------------+----------------------------+
| 1 | sys | 0 | zone1;zone2;zone3 | FULL{1}@zone1, FULL{1}@zone2, FULL{1}@zone3 | zone1;zone2,zone3 | 2020-10-14 10:20:36.979339 |
| 1001 | mysql_test_tent | 0 | zone1;zone2;zone3 | FULL{1}@zone1, FULL{1}@zone2, FULL{1}@zone3 | RANDOM | 2020-10-14 10:43:31.034562 |
+-----------+-----------------+--------------------+-------------------+---------------------------------------------+-------------------+----------------------------+
2 rows in set (0.00 sec)
obclient> select zone,svr_ip,svr_port,inner_port,with_rootserver,status,gmt_create from __all_server order by zone, svr_ip;
+-------+----------------+----------+------------+-----------------+--------+----------------------------+
| zone | svr_ip | svr_port | inner_port | with_rootserver | status | gmt_create |
+-------+----------------+----------+------------+-----------------+--------+----------------------------+
| zone1 | 192.168.26.201 | 2882 | 2881 | 1 | active | 2020-10-14 10:19:35.093668 |
| zone2 | 192.168.26.202 | 2882 | 2881 | 0 | active | 2020-10-14 10:19:28.917915 |
| zone3 | 192.168.26.203 | 2882 | 2881 | 0 | active | 2020-10-14 10:19:27.641625 |
+-------+----------------+----------+------------+-----------------+--------+----------------------------+
3 rows in set (0.01 sec)
登录mysql租户，修改管理员密码，并创建业务数据库和业务用户：
$ obclient -h192.168.26.201 -P2883 -uroot@mysql_test_tent#obdemo -p -c -A oceanbase
obclient> alter user root identified by 'admin123';
Query OK, 0 rows affected (0.17 sec)
obclient> create database testdb;
Query OK, 1 row affected (0.30 sec)
obclient> grant all privileges on testdb.* to aps2@'%' identified by 'aps2#12345';
Query OK, 0 rows affected (0.27 sec)
obclient> show grants for aps2;
+----------------------------------------------+
| Grants for aps2@% |
+----------------------------------------------+
| GRANT USAGE ON *.* TO 'aps2' |
| GRANT ALL PRIVILEGES ON `testdb`.* TO 'aps2' |
+----------------------------------------------+
2 rows in set (0.02 sec)
obclient>
登录mysql租户的业务用户，创建测试表，并插入测试数据：
$ obclient -h192.168.26.201 -uaps2@mysql_test_tent#obdemo -P2883 -paps2#12345 -c -A testdb
创建一个非分区表test:
obclient> create table test(id int not null primary key,name varchar(20),age int,dt datetime);
Query OK, 0 rows affected (0.70 sec)
obclient> insert into test values(1,'ob2.2.50',20,now());
Query OK, 1 row affected (0.08 sec)
obclient> insert into test values(2,'张三',26,'1998-06-17');
Query OK, 1 row affected (0.02 sec)
obclient> insert into test values(3,'李四',32,'1989-10-13');
Query OK, 1 row affected (0.02 sec)
obclient> insert into test values(4,'Tom',30,'1990-02-21');
Query OK, 1 row affected (0.02 sec)
obclient> select * from test;
+----+------------+------+---------------------+
| id | name | age | dt |
+----+------------+------+---------------------+
| 1 | ob2.2-mini | 20 | 2020-10-14 10:47:08 |
| 2 | 张三 | 26 | 1998-06-17 00:00:00 |
| 3 | 李四 | 32 | 1989-10-13 00:00:00 |
| 4 | Tom | 30 | 1990-02-21 00:00:00 |
+----+------------+------+---------------------+
4 rows in set (0.25 sec)
obclient>
创建一个hash分区表test_hash:
obclient> create table test_hash(id int not null,name varchar(20) not null,
-> age int,dt datetime default now())
-> partition by hash(id)
-> partitions 3;
Query OK, 0 rows affected (0.54 sec)
obclient> insert into test_hash values(1,'张三',26,'1998-06-17');
Query OK, 1 row affected (0.09 sec)
obclient> insert into test_hash values(2,'李四',32,'1989-10-13');
Query OK, 1 row affected (0.05 sec)
obclient> insert into test_hash values(3,'Tom',30,'1990-02-21');
Query OK, 1 row affected (0.06 sec)
obclient> select * from test_hash;
+----+--------+------+---------------------+
| id | name | age | dt |
+----+--------+------+---------------------+
| 3 | Tom | 30 | 1990-02-21 00:00:00 |
| 2 | 李四 | 32 | 1989-10-13 00:00:00 |
| 1 | 张三 | 26 | 1998-06-17 00:00:00 |
+----+--------+------+---------------------+
3 rows in set (0.05 sec)
obclient>
创建oracle类型的租户:
$ obclient -h192.168.26.201 -P2883 -uroot@sys#obdemo -padmin123 -c -A oceanbase
obclient> create resource pool ora_pool_test unit = 'my_unit_1c1g', unit_num = 1;
Query OK, 0 rows affected (0.64 sec)
obclient> select t1.name resource_pool_name, t2.`name` unit_config_name, t2.max_cpu, t2.min_cpu,
-> round(t2.max_memory/1024/1024/1024) max_mem_gb, round(t2.min_memory/1024/1024/1024) min_mem_gb,
-> t3.unit_id, t3.zone, concat(t3.svr_ip,':',t3.`svr_port`) observer,t4.tenant_id, t4.tenant_name
-> from __all_resource_pool t1 join __all_unit_config t2 on (t1.unit_config_id=t2.unit_config_id)
-> join __all_unit t3 on (t1.`resource_pool_id` = t3.`resource_pool_id`)
-> left join __all_tenant t4 on (t1.tenant_id=t4.tenant_id)
-> order by t1.`resource_pool_id`, t2.`unit_config_id`, t3.unit_id
-> ;
+--------------------+------------------+---------+---------+------------+------------+---------+-------+---------------------+-----------+-----------------+
| resource_pool_name | unit_config_name | max_cpu | min_cpu | max_mem_gb | min_mem_gb | unit_id | zone | observer | tenant_id | tenant_name |
+--------------------+------------------+---------+---------+------------+------------+---------+-------+---------------------+-----------+-----------------+
| sys_pool | sys_unit_config | 5 | 2.5 | 2 | 2 | 1 | zone1 | 192.168.26.201:2882 | 1 | sys |
| sys_pool | sys_unit_config | 5 | 2.5 | 2 | 2 | 2 | zone2 | 192.168.26.202:2882 | 1 | sys |
| sys_pool | sys_unit_config | 5 | 2.5 | 2 | 2 | 3 | zone3 | 192.168.26.203:2882 | 1 | sys |
| mysql_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1001 | zone1 | 192.168.26.201:2882 | 1001 | mysql_test_tent |
| mysql_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1002 | zone2 | 192.168.26.202:2882 | 1001 | mysql_test_tent |
| mysql_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1003 | zone3 | 192.168.26.203:2882 | 1001 | mysql_test_tent |
| ora_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1004 | zone1 | 192.168.26.201:2882 | NULL | NULL |
| ora_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1005 | zone2 | 192.168.26.202:2882 | NULL | NULL |
| ora_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1006 | zone3 | 192.168.26.203:2882 | NULL | NULL |
+--------------------+------------------+---------+---------+------------+------------+---------+-------+---------------------+-----------+-----------------+
9 rows in set (0.01 sec)
obclient> create tenant ora_test_tent resource_pool_list=('ora_pool_test'), primary_zone='RANDOM',comment 'oracle tenant/instance', charset='utf8' set ob_tcp_invited_nodes='%', ob_compatibility_mode='oracle';
Query OK, 0 rows affected (14.09 sec)
obclient> select tenant_id, tenant_name, compatibility_mode,zone_list, locality ,gmt_modified from __all_tenant;
+-----------+-----------------+--------------------+-------------------+---------------------------------------------+----------------------------+
| tenant_id | tenant_name | compatibility_mode | zone_list | locality | gmt_modified |
+-----------+-----------------+--------------------+-------------------+---------------------------------------------+----------------------------+
| 1 | sys | 0 | zone1;zone2;zone3 | FULL{1}@zone1, FULL{1}@zone2, FULL{1}@zone3 | 2020-10-14 10:20:36.979339 |
| 1001 | mysql_test_tent | 0 | zone1;zone2;zone3 | FULL{1}@zone1, FULL{1}@zone2, FULL{1}@zone3 | 2020-10-14 10:43:31.034562 |
| 1002 | ora_test_tent | 1 | zone1;zone2;zone3 | FULL{1}@zone1, FULL{1}@zone2, FULL{1}@zone3 | 2020-10-14 10:50:51.345926 |
+-----------+-----------------+--------------------+-------------------+---------------------------------------------+----------------------------+
3 rows in set (0.00 sec)
登录oracle租户，修改sys管理员密码，并创建业务用户和测试表：
$ obclient -h192.168.26.201 -usys@ora_test_tent#obdemo -P2883 -p -c -A
obclient> alter user sys identified by admin123;
Query OK, 0 rows affected (0.06 sec)
obclient> exit
Bye
$ obclient -h192.168.26.201 -usys@ora_test_tent#obdemo -P2883 -padmin123 -c -A
obclient> create user aps2 identified by aps2#12345;
Query OK, 0 rows affected (0.23 sec)
obclient> grant all privileges on aps2.* to aps2 with grant option;
Query OK, 0 rows affected (0.10 sec)
obclient> show grants for aps2;
+--------------------------------------------------------------+
| Grants for APS2@% |
+--------------------------------------------------------------+
| GRANT USAGE ON *.* TO 'APS2' |
| GRANT ALL PRIVILEGES ON "APS2".* TO 'APS2' WITH GRANT OPTION |
+--------------------------------------------------------------+
2 rows in set (0.06 sec)
obclient> exit
Bye
$ obclient -h192.168.26.201 -uaps2@ora_test_tent#obdemo -P2883 -paps2#12345 -c -A
--创建一个非分区表test
obclient> create table test(id int not null,name varchar2(20) not null,age int,dt date not null,primary key(id));
Query OK, 0 rows affected (0.70 sec)
obclient> insert into test values(1,'ob2.2-oracle',20,sysdate);
Query OK, 1 row affected (0.15 sec)
obclient> insert into test values(2,'张三',26,to_date('1998-06-17','yyyy-mm-dd'));
Query OK, 1 row affected (0.03 sec)
obclient> insert into test values(3,'李四',32,to_date('1989-10-13','yyyy-mm-dd'));
Query OK, 1 row affected (0.02 sec)
obclient> commit;
Query OK, 0 rows affected (0.06 sec)
--创建一个hash分区表
obclient> create table test_hash(id int not null,name varchar2(20) not null,age int,dt date default sysdate) partition by hash(id) partitions 3;
Query OK, 0 rows affected (1.18 sec)
obclient> insert into test_hash values(1,'ob2.2-oracle',20,sysdate);
Query OK, 1 row affected (0.06 sec)
obclient> insert into test_hash values(2,'张三',26,to_date('1998-06-17','yyyy-mm-dd'));
Query OK, 1 row affected (0.24 sec)
obclient> insert into test_hash values(3,'李四',32,to_date('1989-10-13','yyyy-mm-dd'));
Query OK, 1 row affected (0.11 sec)
obclient> commit;
Query OK, 0 rows affected (0.12 sec)
obclient> select * from test_hash;
+----+--------------+------+---------------------+
| ID | NAME | AGE | DT |
+----+--------------+------+---------------------+
| 2 | 张三 | 26 | 1998-06-17 00:00:00 |
| 1 | ob2.2-oracle | 20 | 2020-10-14 10:58:06 |
| 3 | 李四 | 32 | 1989-10-13 00:00:00 |
+----+--------------+------+---------------------+
3 rows in set (0.01 sec)
obclient> exit
Bye
3、查看集群扩容前，资源使用情况和租户下分区副本所在节点情况：
$ obclient -h192.168.26.201 -P2883 -uroot@sys#obdemo -padmin123 -c -A oceanbase
扩容前查看集群资源使用情况：
obclient> select zone,svr_ip,svr_port,inner_port,with_rootserver,status,gmt_create from __all_server order by zone, svr_ip;
+-------+----------------+----------+------------+-----------------+--------+----------------------------+
| zone | svr_ip | svr_port | inner_port | with_rootserver | status | gmt_create |
+-------+----------------+----------+------------+-----------------+--------+----------------------------+
| zone1 | 192.168.26.201 | 2882 | 2881 | 1 | active | 2020-10-14 10:19:35.093668 |
| zone2 | 192.168.26.202 | 2882 | 2881 | 0 | active | 2020-10-14 10:19:28.917915 |
| zone3 | 192.168.26.203 | 2882 | 2881 | 0 | active | 2020-10-14 10:19:27.641625 |
+-------+----------------+----------+------------+-----------------+--------+----------------------------+
3 rows in set (0.01 sec)
obclient> select tenant_id, tenant_name, compatibility_mode,zone_list, locality ,primary_zone ,gmt_modified from __all_tenant;
+-----------+-----------------+--------------------+-------------------+---------------------------------------------+-------------------+----------------------------+
| tenant_id | tenant_name | compatibility_mode | zone_list | locality | primary_zone | gmt_modified |
+-----------+-----------------+--------------------+-------------------+---------------------------------------------+-------------------+----------------------------+
| 1 | sys | 0 | zone1;zone2;zone3 | FULL{1}@zone1, FULL{1}@zone2, FULL{1}@zone3 | zone1;zone2,zone3 | 2020-10-14 10:20:36.979339 |
| 1001 | mysql_test_tent | 0 | zone1;zone2;zone3 | FULL{1}@zone1, FULL{1}@zone2, FULL{1}@zone3 | RANDOM | 2020-10-14 10:43:31.034562 |
| 1002 | ora_test_tent | 1 | zone1;zone2;zone3 | FULL{1}@zone1, FULL{1}@zone2, FULL{1}@zone3 | RANDOM | 2020-10-14 10:50:51.345926 |
+-----------+-----------------+--------------------+-------------------+---------------------------------------------+-------------------+----------------------------+
3 rows in set (0.00 sec)
obclient> select unit_config_id,name,max_cpu,min_cpu,round(max_memory/1024/1024/1024) max_mem_gb,
-> round(min_memory/1024/1024/1024) min_mem_gb, round(max_disk_size/1024/1024/1024) max_disk_size_gb
-> from __all_unit_config
-> order by unit_config_id;
+----------------+-----------------+---------+---------+------------+------------+------------------+
| unit_config_id | name | max_cpu | min_cpu | max_mem_gb | min_mem_gb | max_disk_size_gb |
+----------------+-----------------+---------+---------+------------+------------+------------------+
| 1 | sys_unit_config | 5 | 2.5 | 2 | 2 | 40 |
| 1001 | my_unit_1c1g | 1 | 1 | 1 | 1 | 10 |
+----------------+-----------------+---------+---------+------------+------------+------------------+
2 rows in set (0.00 sec)
obclient> select t1.name resource_pool_name, t2.`name` unit_config_name, t2.max_cpu, t2.min_cpu,
-> round(t2.max_memory/1024/1024/1024) max_mem_gb, round(t2.min_memory/1024/1024/1024) min_mem_gb,
-> t3.unit_id, t3.zone, concat(t3.svr_ip,':',t3.`svr_port`) observer,t4.tenant_id, t4.tenant_name
-> from __all_resource_pool t1 join __all_unit_config t2 on (t1.unit_config_id=t2.unit_config_id)
-> join __all_unit t3 on (t1.`resource_pool_id` = t3.`resource_pool_id`)
-> left join __all_tenant t4 on (t1.tenant_id=t4.tenant_id)
-> order by t1.`resource_pool_id`, t2.`unit_config_id`, t3.unit_id
-> ;
+--------------------+------------------+---------+---------+------------+------------+---------+-------+---------------------+-----------+-----------------+
| resource_pool_name | unit_config_name | max_cpu | min_cpu | max_mem_gb | min_mem_gb | unit_id | zone | observer | tenant_id | tenant_name |
+--------------------+------------------+---------+---------+------------+------------+---------+-------+---------------------+-----------+-----------------+
| sys_pool | sys_unit_config | 5 | 2.5 | 2 | 2 | 1 | zone1 | 192.168.26.201:2882 | 1 | sys |
| sys_pool | sys_unit_config | 5 | 2.5 | 2 | 2 | 2 | zone2 | 192.168.26.202:2882 | 1 | sys |
| sys_pool | sys_unit_config | 5 | 2.5 | 2 | 2 | 3 | zone3 | 192.168.26.203:2882 | 1 | sys |
| mysql_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1001 | zone1 | 192.168.26.201:2882 | 1001 | mysql_test_tent |
| mysql_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1002 | zone2 | 192.168.26.202:2882 | 1001 | mysql_test_tent |
| mysql_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1003 | zone3 | 192.168.26.203:2882 | 1001 | mysql_test_tent |
| ora_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1004 | zone1 | 192.168.26.201:2882 | 1002 | ora_test_tent |
| ora_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1005 | zone2 | 192.168.26.202:2882 | 1002 | ora_test_tent |
| ora_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1006 | zone3 | 192.168.26.203:2882 | 1002 | ora_test_tent |
+--------------------+------------------+---------+---------+------------+------------+---------+-------+---------------------+-----------+-----------------+
9 rows in set (0.00 sec)
obclient> select a.zone,concat(a.svr_ip,':',a.svr_port) observer, cpu_total, (cpu_total-cpu_assigned) cpu_free,
-> round(mem_total/1024/1024/1024) mem_total_gb, round((mem_total-mem_assigned)/1024/1024/1024) mem_free_gb,
-> round(disk_total/1024/1024/1024) disk_total_gb,unit_num,
-> substr(a.build_version,1,6) version,usec_to_time(b.start_service_time) start_service_time,b.status
-> from __all_virtual_server_stat a join __all_server b on (a.svr_ip=b.svr_ip and a.svr_port=b.svr_port)
-> order by a.zone, a.svr_ip;
+-------+---------------------+-----------+----------+--------------+-------------+---------------+----------+---------+----------------------------+--------+
| zone | observer | cpu_total | cpu_free | mem_total_gb | mem_free_gb | disk_total_gb | unit_num | version | start_service_time | status |
+-------+---------------------+-----------+----------+--------------+-------------+---------------+----------+---------+----------------------------+--------+
| zone1 | 192.168.26.201:2882 | 14 | 9.5 | 6 | 3 | 40 | 3 | 2.2.50 | 2020-10-14 10:20:38.298274 | active |
| zone2 | 192.168.26.202:2882 | 14 | 9.5 | 6 | 3 | 40 | 3 | 2.2.50 | 2020-10-14 10:20:40.019536 | active |
| zone3 | 192.168.26.203:2882 | 14 | 9.5 | 6 | 3 | 40 | 3 | 2.2.50 | 2020-10-14 10:20:41.147584 | active |
+-------+---------------------+-----------+----------+--------------+-------------+---------------+----------+---------+----------------------------+--------+
3 rows in set (0.00 sec)
obclient>
查看mysql租户下的分区副本所在节点分布情况：
obclient> SELECT t1.tenant_id,t1.tenant_name,t2.database_name,t3.table_id,t3.table_Name,t3.tablegroup_id,t3.part_num,t4.partition_Id,
-> t4.zone,t4.svr_ip,t4.role, round(t4.data_size/1024/1024) data_size_mb
-> from `gv$tenant` t1
-> join `gv$database` t2 on (t1.tenant_id = t2.tenant_id)
-> join gv$table t3 on (t2.tenant_id = t3.tenant_id and t2.database_id = t3.database_id and t3.index_type = 0)
-> left join `gv$partition` t4 on (t2.tenant_id = t4.tenant_id and ( t3.table_id = t4.table_id or t3.tablegroup_id = t4.table_id ) and t4.role in (1,2))
-> where t1.tenant_id =1001
-> order by t1.tenant_id,t3.tablegroup_id, t3.table_name,t4.partition_Id,t4.role ;
+-----------+-----------------+---------------+------------------+------------+---------------+----------+--------------+-------+----------------+------+--------------+
| tenant_id | tenant_name | database_name | table_id | table_Name | tablegroup_id | part_num | partition_Id | zone | svr_ip | role | data_size_mb |
+-----------+-----------------+---------------+------------------+------------+---------------+----------+--------------+-------+----------------+------+--------------+
| 1001 | mysql_test_tent | testdb | 1100611139453777 | test | -1 | 1 | 0 | zone3 | 192.168.26.203 | 1 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453777 | test | -1 | 1 | 0 | zone1 | 192.168.26.201 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453777 | test | -1 | 1 | 0 | zone2 | 192.168.26.202 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 0 | zone1 | 192.168.26.201 | 1 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 0 | zone2 | 192.168.26.202 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 0 | zone3 | 192.168.26.203 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 1 | zone2 | 192.168.26.202 | 1 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 1 | zone1 | 192.168.26.201 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 1 | zone3 | 192.168.26.203 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 2 | zone3 | 192.168.26.203 | 1 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 2 | zone1 | 192.168.26.201 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 2 | zone2 | 192.168.26.202 | 2 | 0 |
+-----------+-----------------+---------------+------------------+------------+---------------+----------+--------------+-------+----------------+------+--------------+
12 rows in set (0.12 sec)
查看oracle租户下的分区副本所在节点分布情况：
obclient> SELECT t1.tenant_id,t1.tenant_name,t2.database_name,t3.table_id,t3.table_Name,t3.tablegroup_id,t3.part_num,t4.partition_Id,
-> t4.zone,t4.svr_ip,t4.role, round(t4.data_size/1024/1024) data_size_mb
-> from `gv$tenant` t1
-> join `gv$database` t2 on (t1.tenant_id = t2.tenant_id)
-> join gv$table t3 on (t2.tenant_id = t3.tenant_id and t2.database_id = t3.database_id and t3.index_type = 0)
-> left join `gv$partition` t4 on (t2.tenant_id = t4.tenant_id and ( t3.table_id = t4.table_id or t3.tablegroup_id = t4.table_id ) and t4.role in (1,2))
-> where t1.tenant_id =1002
-> order by t1.tenant_id,t3.tablegroup_id, t3.table_name,t4.partition_Id,t4.role ;
+-----------+---------------+---------------+------------------+------------+---------------+----------+--------------+-------+----------------+------+--------------+
| tenant_id | tenant_name | database_name | table_id | table_Name | tablegroup_id | part_num | partition_Id | zone | svr_ip | role | data_size_mb |
+-----------+---------------+---------------+------------------+------------+---------------+----------+--------------+-------+----------------+------+--------------+
| 1002 | ora_test_tent | APS2 | 1101710651081553 | TEST | -1 | 1 | 0 | zone2 | 192.168.26.202 | 1 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081553 | TEST | -1 | 1 | 0 | zone1 | 192.168.26.201 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081553 | TEST | -1 | 1 | 0 | zone3 | 192.168.26.203 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 0 | zone3 | 192.168.26.203 | 1 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 0 | zone1 | 192.168.26.201 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 0 | zone2 | 192.168.26.202 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 1 | zone1 | 192.168.26.201 | 1 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 1 | zone2 | 192.168.26.202 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 1 | zone3 | 192.168.26.203 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 2 | zone2 | 192.168.26.202 | 1 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 2 | zone1 | 192.168.26.201 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 2 | zone3 | 192.168.26.203 | 2 | 0 |
+-----------+---------------+---------------+------------------+------------+---------------+----------+--------------+-------+----------------+------+--------------+
12 rows in set (0.06 sec)
以上可以看到，创建两个租户后，ob集群资源使用情况是：
三个zone下，每个zone下只有一个observer节点，分别是201,202,203，每个observer节点总共14个cpu+6g内存，剩余可用9.5cpu+3g内存，有3个租户的unit资源。
其中：
mysl类型的sys系统租户资源占用2.5cpu+2g内存，所在节点201,202,203，每个节点剩余可用9.5cpu+3g内存。
mysql类型的业务租户 mysql_test_tent 资源占用1cpu1g内存，所在节点201,202,203，每个节点剩余可用9.5cpu+3g内存。
oracle类型的业务租户 ora_test_tent 资源占用1cpu1g内存，所在节点201,202,203，每个节点剩余可用9.5cpu+3g内存。
两个租户下表分区副本分布情况：（扩容前）
(1).mysql_test_tent租户下testdb库
非分区表test的p0号分区，主副本在zone3下的203节点，两个备副本在zone1下的201节点和zone2下的202节点。
分区表test_hash的p0分区的主副本在zone1下的201节点，p0分区的两个备副本在zone2下的202节点和zone3下的203节点。
分区表test_hash的p1分区的主副本在zone2下的202节点，p1分区的两个备副本在zone1下的201节点和zone3下的203节点。
分区表test_hash的p2分区的主副本在zone3下的203节点，p2分区的两个备副本在zone1下的201节点和zone2下的202节点。
(1).ora_test_tent租户下aps2用户
非分区表test的p0号分区，主副本在zone2下的202节点，两个备副本在zone1下的201节点和zone3下的203节点。
分区表test_hash的p0分区的主副本在zone3下的203节点，p0分区的两个备副本在zone1下的201节点和zone2下的202节点。
分区表test_hash的p1分区的主副本在zone1下的201节点，p1分区的两个备副本在zone2下的202节点和zone3下的203节点。
分区表test_hash的p2分区的主副本在zone2下的202节点，p2分区的两个备副本在zone1下的201节点和zone3下的203节点。
以图的形式展示集群扩容前的状态，如图一所示。由此可以看出，observer上分区主备副本分布比较均匀。
4、集群扩容：
现需要添加3个节点，将1-1-1架构的ob2.2集群扩容到2-2-2架构。
新加的节点服务器配置，跟之前一样4cpu+16g内存
zone1 ob04: 192.168.26.198
zone2 ob05: 192.168.26.199
zone3 ob06: 192.168.26.200
新节点的安装环境准备，以及OB软件安装，observer进程的启动等，这里忽略，参考之前的文章。
添加新节点：
$ obclient -h192.168.26.201 -P2883 -uroot@sys#obdemo -padmin123 -c -A oceanbase
obclient> alter system add server '192.168.26.198:2882' zone 'zone1';
Query OK, 0 rows affected (0.18 sec)
obclient> alter system add server '192.168.26.199:2882' zone 'zone2';
Query OK, 0 rows affected (0.27 sec)
obclient> alter system add server '192.168.26.200:2882' zone 'zone3';
Query OK, 0 rows affected (0.35 sec)
obclient>
节点添加完成后，查看OB集群所有节点信息：
obclient> select zone,svr_ip,svr_port,inner_port,with_rootserver,status,gmt_create from __all_server order by zone, svr_ip;
+-------+----------------+----------+------------+-----------------+--------+----------------------------+
| zone | svr_ip | svr_port | inner_port | with_rootserver | status | gmt_create |
+-------+----------------+----------+------------+-----------------+--------+----------------------------+
| zone1 | 192.168.26.198 | 2882 | 2881 | 0 | active | 2020-10-14 11:12:31.240273 |
| zone1 | 192.168.26.201 | 2882 | 2881 | 1 | active | 2020-10-14 10:19:35.093668 |
| zone2 | 192.168.26.199 | 2882 | 2881 | 0 | active | 2020-10-14 11:12:37.089939 |
| zone2 | 192.168.26.202 | 2882 | 2881 | 0 | active | 2020-10-14 10:19:28.917915 |
| zone3 | 192.168.26.200 | 2882 | 2881 | 0 | active | 2020-10-14 11:12:41.474299 |
| zone3 | 192.168.26.203 | 2882 | 2881 | 0 | active | 2020-10-14 10:19:27.641625 |
+-------+----------------+----------+------------+-----------------+--------+----------------------------+
6 rows in set (0.00 sec)
可以看到，新加的198,199,200三个observer节点已经加入集群，并且状态是active活动状态。
此时，新节点加入，由于新节点资源负载为0，直接导致OB集群每个zone内各个observer的资源分布不均衡。由于ob自身带集群的负载均衡策略，会根据每个zone的各个observer资源的状况，动态重新调整各个observer上的资源分布，从而达到每个observer的资源负载均衡，这个过程对业务是完全透明的。
当然，平衡observer资源的过程，其实就是分区副本迁移的过程，此过程会耗费点时间根据副本迁移数据量而定，分区副本的迁移，实质是通过分区拷贝复制到新observer，等拷贝复制完成后，再删除原observer上的分区副本，副本迁移过程中业务访问仍然是访问原来分区主副本所在节点，对应用业务是完全透明的，不影响业务的使用。
另外，集群的负载均衡除了体现在资源的负载均衡外，还体现在业务的负载均衡。业务读写默认只访问主副本所在的节点，ob集群内部会根据每个observer的应用读写负载情况，对各个分区的leader和fllower进行自动重新选主，也就是leader主副本切换，从而达到每个observer的应用负载均衡。
分区副本迁移重新选主的过程，可以通过视图__all_rootservice_event_history查看集群event事件信息。
如：
SELECT *
FROM __all_rootservice_event_history
WHERE 1 = 1
and gmt_create> date_format('2020-10-14 11:12:00', '%Y%m%d%H%i%s')
ORDER BY gmt_create
LIMIT 50;
+----------------+--------------------+-----------------------------+------------+------------------------------------------------------------------------+---------------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+----------------+
| gmt_create_ | module | event | name1 | value1 | name2 | value2 | rs_svr_ip |
+----------------+--------------------+-----------------------------+------------+------------------------------------------------------------------------+---------------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+----------------+
| Oct14 11:12:37 | server | add_server | server | "192.168.26.199:2882" | | | 192.168.26.201 |
| Oct14 11:12:37 | root_service | add_server | ret | 0 | arg | {servers:["192.168.26.199:2882"], zone:"zone2"} | 192.168.26.201 |
| Oct14 11:12:37 | root_service | admin_set_config | ret | 0 | arg | {items:[{name:"all_server_list", value:"192.168.26.201:2882,192.168.26.202:2882,192.168.26.203:2882,192.168.26.198:2882,192.168.26.199:2882", comment:"", zone:"", server:"0.0.0.0", tenant_name:"", exec_tenant_id:1, tenant_ids:[]}]} | 192.168.26.201 |
| Oct14 11:12:37 | server | online | server | "192.168.26.199:2882" | | | 192.168.26.201 |
| Oct14 11:12:41 | server | add_server | server | "192.168.26.200:2882" | | | 192.168.26.201 |
| Oct14 11:12:41 | root_service | add_server | ret | 0 | arg | {servers:["192.168.26.200:2882"], zone:"zone3"} | 192.168.26.201 |
| Oct14 11:12:41 | unit | migrate_unit | unit_id | 1001 | migrate_from_server | "192.168.26.201:2882" | 192.168.26.201 |
| Oct14 11:12:41 | root_service | admin_set_config | ret | 0 | arg | {items:[{name:"all_server_list", value:"192.168.26.201:2882,192.168.26.202:2882,192.168.26.203:2882,192.168.26.198:2882,192.168.26.199:2882,192.168.26.200:2882", comment:"", zone:"", server:"0.0.0.0", tenant_name:"", exec_tenant_id:1, tenant_ids:[]}]} | 192.168.26.201 |
| Oct14 11:12:44 | server | online | server | "192.168.26.200:2882" | | | 192.168.26.201 |
| Oct14 11:12:53 | server | set_with_partition | server | "192.168.26.198:2882" | | | 192.168.26.201 |
| Oct14 11:12:56 | balancer | tenant_balance_started | start_time | 1602645171716008 | | | 192.168.26.201 |
| Oct14 11:13:09 | balancer | start_batch_migrate_replica | tenant_id | 1001 | destiontion | "192.168.26.198:2882" | 192.168.26.201 |
| Oct14 11:13:09 | balancer | start_migrate_replica | partition | {pkey:{tid:1100611139403779, partition_id:0, part_cnt:0}, data_size:0} | source | {server:"192.168.26.201:2882", timestamp:1602643395447764, flag:0, replica_type:0, region:"default_region", memstore_percent:100} | 192.168.26.201 |
| Oct14 11:13:09 | balancer | start_migrate_replica | partition | {pkey:{tid:1100611139403780, partition_id:0, part_cnt:0}, data_size:0} | source | {server:"192.168.26.201:2882", timestamp:1602643395448183, flag:0, replica_type:0, region:"default_region", memstore_percent:100} | 192.168.26.201 |
| Oct14 11:13:09 | balancer | start_migrate_replica | partition | {pkey:{tid:1100611139403781, partition_id:0, part_cnt:0}, data_size:0} | source | {server:"192.168.26.201:2882", timestamp:1602643395448384, flag:0, replica_type:0, region:"default_region", memstore_percent:100} | 192.168.26.201 |
| Oct14 11:13:09 | balancer | start_migrate_replica | partition | {pkey:{tid:1100611139403878, partition_id:0, part_cnt:0}, data_size:0} | source | {server:"192.168.26.201:2882", timestamp:1602643395448836, flag:0, replica_type:0, region:"default_region", memstore_percent:100} | 192.168.26.201 |
...........
...........
...........
...........
| Oct14 11:22:03 | balancer | finish_migrate_replica | partition | {pkey:{tid:1100611139404044, partition_id:0, part_cnt:0}, data_size:0} | source | {server:"192.168.26.203:2882", timestamp:1602643395480649, flag:0, replica_type:0, region:"default_region", memstore_percent:100} | 192.168.26.201 |
| Oct14 11:22:03 | balancer | finish_migrate_replica | partition | {pkey:{tid:1100611139404046, partition_id:0, part_cnt:0}, data_size:0} | source | {server:"192.168.26.203:2882", timestamp:1602643395481042, flag:0, replica_type:0, region:"default_region", memstore_percent:100} | 192.168.26.201 |
| Oct14 11:22:03 | balancer | finish_migrate_replica | partition | {pkey:{tid:1100611139404052, partition_id:0, part_cnt:0}, data_size:0} | source | {server:"192.168.26.203:2882", timestamp:1602643395481317, flag:0, replica_type:0, region:"default_region", memstore_percent:100} | 192.168.26.201 |
| Oct14 11:22:03 | unit | finish_migrate_unit | unit_id | 1003 | end_op | 0 | 192.168.26.201 |
| Oct14 11:22:05 | balancer | tenant_balance_finished | finish_time | 1602645725677943 | task_count | 320 | 192.168.26.201 |
| Oct14 11:22:13 | leader_coordinator | switch_leader | current_rs | "192.168.26.201:2882" | tenant_id | 1001 | 192.168.26.201 |
| Oct14 11:22:13 | leader_coordinator | switch_leader | current_rs | "192.168.26.201:2882" | tenant_id | 1001 | 192.168.26.201 |
等待资源平衡分区副本迁移完成后，查看资源使用情况：
obclient> select a.zone,concat(a.svr_ip,':',a.svr_port) observer, cpu_total, (cpu_total-cpu_assigned) cpu_free,
-> round(mem_total/1024/1024/1024) mem_total_gb, round((mem_total-mem_assigned)/1024/1024/1024) mem_free_gb,
-> round(disk_total/1024/1024/1024) disk_total_gb,unit_num,
-> substr(a.build_version,1,6) version,usec_to_time(b.start_service_time) start_service_time,b.status
-> from __all_virtual_server_stat a join __all_server b on (a.svr_ip=b.svr_ip and a.svr_port=b.svr_port)
-> order by a.zone, a.svr_ip;
+-------+---------------------+-----------+----------+--------------+-------------+---------------+----------+---------+----------------------------+--------+
| zone | observer | cpu_total | cpu_free | mem_total_gb | mem_free_gb | disk_total_gb | unit_num | version | start_service_time | status |
+-------+---------------------+-----------+----------+--------------+-------------+---------------+----------+---------+----------------------------+--------+
| zone1 | 192.168.26.198:2882 | 14 | 13 | 6 | 5 | 40 | 1 | 2.2.50 | 2020-10-14 11:12:38.283882 | active |
| zone1 | 192.168.26.201:2882 | 14 | 10.5 | 6 | 4 | 40 | 2 | 2.2.50 | 2020-10-14 10:20:38.298274 | active |
| zone2 | 192.168.26.199:2882 | 14 | 13 | 6 | 5 | 40 | 1 | 2.2.50 | 2020-10-14 11:12:48.894618 | active |
| zone2 | 192.168.26.202:2882 | 14 | 10.5 | 6 | 4 | 40 | 2 | 2.2.50 | 2020-10-14 10:20:40.019536 | active |
| zone3 | 192.168.26.200:2882 | 14 | 13 | 6 | 5 | 40 | 1 | 2.2.50 | 2020-10-14 11:12:55.862304 | active |
| zone3 | 192.168.26.203:2882 | 14 | 10.5 | 6 | 4 | 40 | 2 | 2.2.50 | 2020-10-14 10:20:41.147584 | active |
+-------+---------------------+-----------+----------+--------------+-------------+---------------+----------+---------+----------------------------+--------+
6 rows in set (0.00 sec)
obclient>
查看mysql租户下的分区副本所在节点分布情况：
obclient> SELECT t1.tenant_id,t1.tenant_name,t2.database_name,t3.table_id,t3.table_Name,t3.tablegroup_id,t3.part_num,t4.partition_Id,
-> t4.zone,t4.svr_ip,t4.role, round(t4.data_size/1024/1024) data_size_mb
-> from `gv$tenant` t1
-> join `gv$database` t2 on (t1.tenant_id = t2.tenant_id)
-> join gv$table t3 on (t2.tenant_id = t3.tenant_id and t2.database_id = t3.database_id and t3.index_type = 0)
-> left join `gv$partition` t4 on (t2.tenant_id = t4.tenant_id and ( t3.table_id = t4.table_id or t3.tablegroup_id = t4.table_id ) and t4.role in (1,2))
-> where t1.tenant_id =1001
-> order by t1.tenant_id,t3.tablegroup_id, t3.table_name,t4.partition_Id,t4.role ;
+-----------+-----------------+---------------+------------------+------------+---------------+----------+--------------+-------+----------------+------+--------------+
| tenant_id | tenant_name | database_name | table_id | table_Name | tablegroup_id | part_num | partition_Id | zone | svr_ip | role | data_size_mb |
+-----------+-----------------+---------------+------------------+------------+---------------+----------+--------------+-------+----------------+------+--------------+
| 1001 | mysql_test_tent | testdb | 1100611139453777 | test | -1 | 1 | 0 | zone3 | 192.168.26.200 | 1 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453777 | test | -1 | 1 | 0 | zone1 | 192.168.26.198 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453777 | test | -1 | 1 | 0 | zone2 | 192.168.26.199 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 0 | zone1 | 192.168.26.198 | 1 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 0 | zone2 | 192.168.26.199 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 0 | zone3 | 192.168.26.200 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 1 | zone2 | 192.168.26.199 | 1 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 1 | zone1 | 192.168.26.198 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 1 | zone3 | 192.168.26.200 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 2 | zone3 | 192.168.26.200 | 1 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 2 | zone1 | 192.168.26.198 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 2 | zone2 | 192.168.26.199 | 2 | 0 |
+-----------+-----------------+---------------+------------------+------------+---------------+----------+--------------+-------+----------------+------+--------------+
12 rows in set (0.36 sec)
查看oracle租户下的分区副本所在节点分布情况：
obclient> SELECT t1.tenant_id,t1.tenant_name,t2.database_name,t3.table_id,t3.table_Name,t3.tablegroup_id,t3.part_num,t4.partition_Id,
-> t4.zone,t4.svr_ip,t4.role, round(t4.data_size/1024/1024) data_size_mb
-> from `gv$tenant` t1
-> join `gv$database` t2 on (t1.tenant_id = t2.tenant_id)
-> join gv$table t3 on (t2.tenant_id = t3.tenant_id and t2.database_id = t3.database_id and t3.index_type = 0)
-> left join `gv$partition` t4 on (t2.tenant_id = t4.tenant_id and ( t3.table_id = t4.table_id or t3.tablegroup_id = t4.table_id ) and t4.role in (1,2))
-> where t1.tenant_id =1002
-> order by t1.tenant_id,t3.tablegroup_id, t3.table_name,t4.partition_Id,t4.role ;
+-----------+---------------+---------------+------------------+------------+---------------+----------+--------------+-------+----------------+------+--------------+
| tenant_id | tenant_name | database_name | table_id | table_Name | tablegroup_id | part_num | partition_Id | zone | svr_ip | role | data_size_mb |
+-----------+---------------+---------------+------------------+------------+---------------+----------+--------------+-------+----------------+------+--------------+
| 1002 | ora_test_tent | APS2 | 1101710651081553 | TEST | -1 | 1 | 0 | zone2 | 192.168.26.202 | 1 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081553 | TEST | -1 | 1 | 0 | zone1 | 192.168.26.201 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081553 | TEST | -1 | 1 | 0 | zone3 | 192.168.26.203 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 0 | zone3 | 192.168.26.203 | 1 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 0 | zone1 | 192.168.26.201 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 0 | zone2 | 192.168.26.202 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 1 | zone1 | 192.168.26.201 | 1 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 1 | zone2 | 192.168.26.202 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 1 | zone3 | 192.168.26.203 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 2 | zone2 | 192.168.26.202 | 1 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 2 | zone1 | 192.168.26.201 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 2 | zone3 | 192.168.26.203 | 2 | 0 |
+-----------+---------------+---------------+------------------+------------+---------------+----------+--------------+-------+----------------+------+--------------+
12 rows in set (0.05 sec)
obclient>
以上可以看到，集群扩容前后ob集群资源变化情况：
集群扩容前，原三个节点201,202,203，每个节点资源总共14cpu+6g内存，剩余还可用9.5cpu, 3g内存，有3个unit，其中系统sys租户占用2.5cpu+2g内存，两个业务租户mysql_test_tent和ora_test_tent各占用1cpu+1g内存。
集群扩容后，原三个节点201,202,203的资源得到释放，部分unit资源被迁移到了新加入的节点198,199,200三个节点。
集群扩容后，最终资源大概可用情况：
原节点201,202,203，总共14个cpu+6g内存，剩余可用10.5cpu+4g内存，有2个unit资源（一个sys租户资源和一个mysql租户资源）。
新节点198,199,200，总共14个cpu+6g内存，剩余可用13cpu+5g内存，有1个unit资源（一个oracle租户资源）。
增加节点集群扩容后，直接导致了资源Unit迁移，伴随着migrate_replica分区副本迁移和tenant_balance平衡租户资源以及switch_leader切主等操作，这是OceanBase集群负载均衡的体现。
当新的observer节点加入后，由于新节点资源为0，整个OB集群每个zone下的各个observer节点资源使用就不均衡，OceanBase通过副本迁移和leader切换来实现了资源的负载均衡和应用读写的负载均衡，此过程对应用完全透明，不影响业务使用。
补充：资源Unit迁移的步骤是在目标observer节点内部先创建Unit，然后再复制 Unit内部的Partition，最后做副本的角色切换(leader跟follower的切换)，最后下线多余的Partition和Unit。
两个租户下表分区副本分布情况：（集群扩容后）
(1).mysql_test_tent租户下testdb库，发生了unit迁移，mysql租户的所有分区副本迁移到了新加入的198,199,200三个节点。
非分区表test的p0号分区，主副本从原来的zone3下的203节点，迁移到了zone3下的200节点；两个备副本也从原来的zone1下的201节点和zone2下的202节点，转移到了zone1下的198节点和zone2下的199节点。
分区表test_hash的p0分区的主副本从原来的zone1下的201节点，迁移到了zone1下的198节点；p0分区的两个备副本也从原来的zone2下的202节点和zone3下的203节点，迁移到了zone2下的199节点和zone3下的200节点。
分区表test_hash的p1分区的主副本从原来的zone2下的202节点，迁移到了zone2下的199节点；p1分区的两个备副本也从原来的zone1下的201节点和zone3下的203节点，迁移到了zone1下的198节点和zone3下的200节点。
分区表test_hash的p2分区的主副本从原来的zone3下的203节点，迁移到了zone3下的200节点；p2分区的两个备副本也从原来的zone1下的201节点和zone2下的202节点，迁移到了zone1下的198节点和zone2下的199节点。
(2).ora_test_tent租户下aps2用户，没有发生unit迁移，该租户的所有分区副本没变
非分区表test的p0号分区，主副本在zone2下的202节点，两个备副本在zone1下的201节点和zone3下的203节点。
分区表test_hash的p0分区的主副本在zone3下的203节点，p0分区的两个备副本在zone1下的201节点和zone2下的202节点。
分区表test_hash的p1分区的主副本在zone1下的201节点，p1分区的两个备副本在zone2下的202节点和zone3下的203节点。
分区表test_hash的p2分区的主副本在zone2下的202节点，p2分区的两个备副本在zone1下的201节点和zone3下的203节点。
以图的形式展示集群扩容后的状态，如图二所示。由此可以看出，集群扩容后，每个zone下的observer资源分布比较均匀。
5、租户扩容
租户扩容有两个思路，一是提升资源单元规格，二是增加资源单元数量。
扩容前查看系统资源和租户下数据主备副本分布情况
obclient>
obclient> select zone,svr_ip,svr_port,inner_port,with_rootserver,status,gmt_create from __all_server order by zone, svr_ip;
+-------+----------------+----------+------------+-----------------+--------+----------------------------+
| zone | svr_ip | svr_port | inner_port | with_rootserver | status | gmt_create |
+-------+----------------+----------+------------+-----------------+--------+----------------------------+
| zone1 | 192.168.26.198 | 2882 | 2881 | 0 | active | 2020-10-14 11:12:31.240273 |
| zone1 | 192.168.26.201 | 2882 | 2881 | 1 | active | 2020-10-14 10:19:35.093668 |
| zone2 | 192.168.26.199 | 2882 | 2881 | 0 | active | 2020-10-14 11:12:37.089939 |
| zone2 | 192.168.26.202 | 2882 | 2881 | 0 | active | 2020-10-14 10:19:28.917915 |
| zone3 | 192.168.26.200 | 2882 | 2881 | 0 | active | 2020-10-14 11:12:41.474299 |
| zone3 | 192.168.26.203 | 2882 | 2881 | 0 | active | 2020-10-14 10:19:27.641625 |
+-------+----------------+----------+------------+-----------------+--------+----------------------------+
6 rows in set (0.01 sec)
obclient> select tenant_id, tenant_name, compatibility_mode,zone_list, locality ,primary_zone ,gmt_modified from __all_tenant;
+-----------+-----------------+--------------------+-------------------+---------------------------------------------+-------------------+----------------------------+
| tenant_id | tenant_name | compatibility_mode | zone_list | locality | primary_zone | gmt_modified |
+-----------+-----------------+--------------------+-------------------+---------------------------------------------+-------------------+----------------------------+
| 1 | sys | 0 | zone1;zone2;zone3 | FULL{1}@zone1, FULL{1}@zone2, FULL{1}@zone3 | zone1;zone2,zone3 | 2020-10-14 10:20:36.979339 |
| 1001 | mysql_test_tent | 0 | zone1;zone2;zone3 | FULL{1}@zone1, FULL{1}@zone2, FULL{1}@zone3 | RANDOM | 2020-10-14 10:43:31.034562 |
| 1002 | ora_test_tent | 1 | zone1;zone2;zone3 | FULL{1}@zone1, FULL{1}@zone2, FULL{1}@zone3 | RANDOM | 2020-10-14 10:50:51.345926 |
+-----------+-----------------+--------------------+-------------------+---------------------------------------------+-------------------+----------------------------+
3 rows in set (0.00 sec)
obclient> select a.zone,concat(a.svr_ip,':',a.svr_port) observer, cpu_total, (cpu_total-cpu_assigned) cpu_free,
-> round(mem_total/1024/1024/1024) mem_total_gb, round((mem_total-mem_assigned)/1024/1024/1024) mem_free_gb,
-> round(disk_total/1024/1024/1024) disk_total_gb,unit_num,
-> substr(a.build_version,1,6) version,usec_to_time(b.start_service_time) start_service_time,b.status
-> from __all_virtual_server_stat a join __all_server b on (a.svr_ip=b.svr_ip and a.svr_port=b.svr_port)
-> order by a.zone, a.svr_ip;
+-------+---------------------+-----------+----------+--------------+-------------+---------------+----------+---------+----------------------------+--------+
| zone | observer | cpu_total | cpu_free | mem_total_gb | mem_free_gb | disk_total_gb | unit_num | version | start_service_time | status |
+-------+---------------------+-----------+----------+--------------+-------------+---------------+----------+---------+----------------------------+--------+
| zone1 | 192.168.26.198:2882 | 14 | 13 | 6 | 5 | 40 | 1 | 2.2.50 | 2020-10-14 11:12:38.283882 | active |
| zone1 | 192.168.26.201:2882 | 14 | 10.5 | 6 | 4 | 40 | 2 | 2.2.50 | 2020-10-14 10:20:38.298274 | active |
| zone2 | 192.168.26.199:2882 | 14 | 13 | 6 | 5 | 40 | 1 | 2.2.50 | 2020-10-14 11:12:48.894618 | active |
| zone2 | 192.168.26.202:2882 | 14 | 10.5 | 6 | 4 | 40 | 2 | 2.2.50 | 2020-10-14 10:20:40.019536 | active |
| zone3 | 192.168.26.200:2882 | 14 | 13 | 6 | 5 | 40 | 1 | 2.2.50 | 2020-10-14 11:12:55.862304 | active |
| zone3 | 192.168.26.203:2882 | 14 | 10.5 | 6 | 4 | 40 | 2 | 2.2.50 | 2020-10-14 10:20:41.147584 | active |
+-------+---------------------+-----------+----------+--------------+-------------+---------------+----------+---------+----------------------------+--------+
6 rows in set (0.00 sec)
obclient> select t1.name resource_pool_name, t2.`name` unit_config_name, t2.max_cpu, t2.min_cpu,
-> round(t2.max_memory/1024/1024/1024) max_mem_gb, round(t2.min_memory/1024/1024/1024) min_mem_gb,
-> t3.unit_id, t3.zone, concat(t3.svr_ip,':',t3.`svr_port`) observer,t4.tenant_id, t4.tenant_name
-> from __all_resource_pool t1 join __all_unit_config t2 on (t1.unit_config_id=t2.unit_config_id)
-> join __all_unit t3 on (t1.`resource_pool_id` = t3.`resource_pool_id`)
-> left join __all_tenant t4 on (t1.tenant_id=t4.tenant_id)
-> order by t1.`resource_pool_id`, t2.`unit_config_id`, t3.unit_id
-> ;
+--------------------+------------------+---------+---------+------------+------------+---------+-------+---------------------+-----------+-----------------+
| resource_pool_name | unit_config_name | max_cpu | min_cpu | max_mem_gb | min_mem_gb | unit_id | zone | observer | tenant_id | tenant_name |
+--------------------+------------------+---------+---------+------------+------------+---------+-------+---------------------+-----------+-----------------+
| sys_pool | sys_unit_config | 5 | 2.5 | 2 | 2 | 1 | zone1 | 192.168.26.201:2882 | 1 | sys |
| sys_pool | sys_unit_config | 5 | 2.5 | 2 | 2 | 2 | zone2 | 192.168.26.202:2882 | 1 | sys |
| sys_pool | sys_unit_config | 5 | 2.5 | 2 | 2 | 3 | zone3 | 192.168.26.203:2882 | 1 | sys |
| mysql_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1001 | zone1 | 192.168.26.198:2882 | 1001 | mysql_test_tent |
| mysql_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1002 | zone2 | 192.168.26.199:2882 | 1001 | mysql_test_tent |
| mysql_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1003 | zone3 | 192.168.26.200:2882 | 1001 | mysql_test_tent |
| ora_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1004 | zone1 | 192.168.26.201:2882 | 1002 | ora_test_tent |
| ora_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1005 | zone2 | 192.168.26.202:2882 | 1002 | ora_test_tent |
| ora_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1006 | zone3 | 192.168.26.203:2882 | 1002 | ora_test_tent |
+--------------------+------------------+---------+---------+------------+------------+---------+-------+---------------------+-----------+-----------------+
9 rows in set (0.01 sec)
obclient> select unit_config_id,name,max_cpu,min_cpu,round(max_memory/1024/1024/1024) max_mem_gb,
-> round(min_memory/1024/1024/1024) min_mem_gb, round(max_disk_size/1024/1024/1024) max_disk_size_gb
-> from __all_unit_config
-> order by unit_config_id;
+----------------+-----------------+---------+---------+------------+------------+------------------+
| unit_config_id | name | max_cpu | min_cpu | max_mem_gb | min_mem_gb | max_disk_size_gb |
+----------------+-----------------+---------+---------+------------+------------+------------------+
| 1 | sys_unit_config | 5 | 2.5 | 2 | 2 | 40 |
| 1001 | my_unit_1c1g | 1 | 1 | 1 | 1 | 10 |
+----------------+-----------------+---------+---------+------------+------------+------------------+
2 rows in set (0.00 sec)
obclient> SELECT t1.tenant_id,t1.tenant_name,t2.database_name,t3.table_id,t3.table_Name,t3.tablegroup_id,t3.part_num,t4.partition_Id,
-> t4.zone,t4.svr_ip,t4.role, round(t4.data_size/1024/1024) data_size_mb
-> from `gv$tenant` t1
-> join `gv$database` t2 on (t1.tenant_id = t2.tenant_id)
-> join gv$table t3 on (t2.tenant_id = t3.tenant_id and t2.database_id = t3.database_id and t3.index_type = 0)
-> left join `gv$partition` t4 on (t2.tenant_id = t4.tenant_id and ( t3.table_id = t4.table_id or t3.tablegroup_id = t4.table_id ) and t4.role in (1,2))
-> where t1.tenant_id >1000
-> order by t1.tenant_id,t3.tablegroup_id, t3.table_name,t4.partition_Id ,t4.role;
+-----------+-----------------+---------------+------------------+------------+---------------+----------+--------------+-------+----------------+------+--------------+
| tenant_id | tenant_name | database_name | table_id | table_Name | tablegroup_id | part_num | partition_Id | zone | svr_ip | role | data_size_mb |
+-----------+-----------------+---------------+------------------+------------+---------------+----------+--------------+-------+----------------+------+--------------+
| 1001 | mysql_test_tent | testdb | 1100611139453777 | test | -1 | 1 | 0 | zone3 | 192.168.26.200 | 1 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453777 | test | -1 | 1 | 0 | zone2 | 192.168.26.199 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453777 | test | -1 | 1 | 0 | zone1 | 192.168.26.198 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 0 | zone1 | 192.168.26.198 | 1 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 0 | zone2 | 192.168.26.199 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 0 | zone3 | 192.168.26.200 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 1 | zone2 | 192.168.26.199 | 1 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 1 | zone1 | 192.168.26.198 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 1 | zone3 | 192.168.26.200 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 2 | zone3 | 192.168.26.200 | 1 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 2 | zone1 | 192.168.26.198 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 2 | zone2 | 192.168.26.199 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081553 | TEST | -1 | 1 | 0 | zone2 | 192.168.26.202 | 1 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081553 | TEST | -1 | 1 | 0 | zone1 | 192.168.26.201 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081553 | TEST | -1 | 1 | 0 | zone3 | 192.168.26.203 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 0 | zone3 | 192.168.26.203 | 1 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 0 | zone1 | 192.168.26.201 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 0 | zone2 | 192.168.26.202 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 1 | zone1 | 192.168.26.201 | 1 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 1 | zone2 | 192.168.26.202 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 1 | zone3 | 192.168.26.203 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 2 | zone2 | 192.168.26.202 | 1 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 2 | zone1 | 192.168.26.201 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 2 | zone3 | 192.168.26.203 | 2 | 0 |
+-----------+-----------------+---------------+------------------+------------+---------------+----------+--------------+-------+----------------+------+--------------+
24 rows in set (0.38 sec)
obclient>
这里演示增加unit数量
obclient> alter resource pool mysql_pool_test unit_num = 2;
Query OK, 0 rows affected (0.35 sec)
obclient> alter resource pool ora_pool_test unit_num = 2;
Query OK, 0 rows affected (0.76 sec)
obclient>
租户扩容，unit_num=2，表示每个zone下有两个unit资源。由于集群是2-2-2架构，每个zone下只有2台observer，因此，每个zone下的每个observer都会有1个mysql租户和oracle租户的unit资源。
由于集群负载均衡策略，会导致副本迁移和leader重新选主。
待资源平衡分区副本迁移选主完成后，查看每个节点资源使用情况：
obclient> select a.zone,concat(a.svr_ip,':',a.svr_port) observer, cpu_total, (cpu_total-cpu_assigned) cpu_free,
-> round(mem_total/1024/1024/1024) mem_total_gb, round((mem_total-mem_assigned)/1024/1024/1024) mem_free_gb,
-> round(disk_total/1024/1024/1024) disk_total_gb,unit_num,
-> substr(a.build_version,1,6) version,usec_to_time(b.start_service_time) start_service_time,b.status
-> from __all_virtual_server_stat a join __all_server b on (a.svr_ip=b.svr_ip and a.svr_port=b.svr_port)
-> order by a.zone, a.svr_ip;
+-------+---------------------+-----------+----------+--------------+-------------+---------------+----------+---------+----------------------------+--------+
| zone | observer | cpu_total | cpu_free | mem_total_gb | mem_free_gb | disk_total_gb | unit_num | version | start_service_time | status |
+-------+---------------------+-----------+----------+--------------+-------------+---------------+----------+---------+----------------------------+--------+
| zone1 | 192.168.26.198:2882 | 14 | 12 | 6 | 4 | 40 | 2 | 2.2.50 | 2020-10-14 11:12:38.283882 | active |
| zone1 | 192.168.26.201:2882 | 14 | 9.5 | 6 | 3 | 40 | 3 | 2.2.50 | 2020-10-14 10:20:38.298274 | active |
| zone2 | 192.168.26.199:2882 | 14 | 12 | 6 | 4 | 40 | 2 | 2.2.50 | 2020-10-14 11:12:48.894618 | active |
| zone2 | 192.168.26.202:2882 | 14 | 9.5 | 6 | 3 | 40 | 3 | 2.2.50 | 2020-10-14 10:20:40.019536 | active |
| zone3 | 192.168.26.200:2882 | 14 | 12 | 6 | 4 | 40 | 2 | 2.2.50 | 2020-10-14 11:12:55.862304 | active |
| zone3 | 192.168.26.203:2882 | 14 | 9.5 | 6 | 3 | 40 | 3 | 2.2.50 | 2020-10-14 10:20:41.147584 | active |
+-------+---------------------+-----------+----------+--------------+-------------+---------------+----------+---------+----------------------------+--------+
6 rows in set (0.09 sec)
查看资源分布情况：
obclient> select t1.name resource_pool_name, t2.`name` unit_config_name, t2.max_cpu, t2.min_cpu,
-> round(t2.max_memory/1024/1024/1024) max_mem_gb, round(t2.min_memory/1024/1024/1024) min_mem_gb,
-> t3.unit_id, t3.zone, concat(t3.svr_ip,':',t3.`svr_port`) observer,t4.tenant_id, t4.tenant_name
-> from __all_resource_pool t1 join __all_unit_config t2 on (t1.unit_config_id=t2.unit_config_id)
-> join __all_unit t3 on (t1.`resource_pool_id` = t3.`resource_pool_id`)
-> left join __all_tenant t4 on (t1.tenant_id=t4.tenant_id)
-> order by t1.`resource_pool_id`, t2.`unit_config_id`, t3.unit_id
-> ;
+--------------------+------------------+---------+---------+------------+------------+---------+-------+---------------------+-----------+-----------------+
| resource_pool_name | unit_config_name | max_cpu | min_cpu | max_mem_gb | min_mem_gb | unit_id | zone | observer | tenant_id | tenant_name |
+--------------------+------------------+---------+---------+------------+------------+---------+-------+---------------------+-----------+-----------------+
| sys_pool | sys_unit_config | 5 | 2.5 | 2 | 2 | 1 | zone1 | 192.168.26.201:2882 | 1 | sys |
| sys_pool | sys_unit_config | 5 | 2.5 | 2 | 2 | 2 | zone2 | 192.168.26.202:2882 | 1 | sys |
| sys_pool | sys_unit_config | 5 | 2.5 | 2 | 2 | 3 | zone3 | 192.168.26.203:2882 | 1 | sys |
| mysql_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1001 | zone1 | 192.168.26.198:2882 | 1001 | mysql_test_tent |
| mysql_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1002 | zone2 | 192.168.26.199:2882 | 1001 | mysql_test_tent |
| mysql_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1003 | zone3 | 192.168.26.200:2882 | 1001 | mysql_test_tent |
| mysql_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1007 | zone1 | 192.168.26.201:2882 | 1001 | mysql_test_tent |
| mysql_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1008 | zone2 | 192.168.26.202:2882 | 1001 | mysql_test_tent |
| mysql_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1009 | zone3 | 192.168.26.203:2882 | 1001 | mysql_test_tent |
| ora_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1004 | zone1 | 192.168.26.201:2882 | 1002 | ora_test_tent |
| ora_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1005 | zone2 | 192.168.26.202:2882 | 1002 | ora_test_tent |
| ora_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1006 | zone3 | 192.168.26.203:2882 | 1002 | ora_test_tent |
| ora_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1010 | zone1 | 192.168.26.198:2882 | 1002 | ora_test_tent |
| ora_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1011 | zone2 | 192.168.26.199:2882 | 1002 | ora_test_tent |
| ora_pool_test | my_unit_1c1g | 1 | 1 | 1 | 1 | 1012 | zone3 | 192.168.26.200:2882 | 1002 | ora_test_tent |
+--------------------+------------------+---------+---------+------------+------------+---------+-------+---------------------+-----------+-----------------+
15 rows in set (0.02 sec)
obclient>
查看mysql和oracle租户下的分区副本所在节点分布情况：
obclient> SELECT t1.tenant_id,t1.tenant_name,t2.database_name,t3.table_id,t3.table_Name,t3.tablegroup_id,t3.part_num,t4.partition_Id,
-> t4.zone,t4.svr_ip,t4.role, round(t4.data_size/1024/1024) data_size_mb
-> from `gv$tenant` t1
-> join `gv$database` t2 on (t1.tenant_id = t2.tenant_id)
-> join gv$table t3 on (t2.tenant_id = t3.tenant_id and t2.database_id = t3.database_id and t3.index_type = 0)
-> left join `gv$partition` t4 on (t2.tenant_id = t4.tenant_id and ( t3.table_id = t4.table_id or t3.tablegroup_id = t4.table_id ) and t4.role in (1,2))
-> where t1.tenant_id >1000
-> order by t1.tenant_id,t3.tablegroup_id, t3.table_name,t4.partition_Id ,t4.role;
+-----------+-----------------+---------------+------------------+------------+---------------+----------+--------------+-------+----------------+------+--------------+
| tenant_id | tenant_name | database_name | table_id | table_Name | tablegroup_id | part_num | partition_Id | zone | svr_ip | role | data_size_mb |
+-----------+-----------------+---------------+------------------+------------+---------------+----------+--------------+-------+----------------+------+--------------+
| 1001 | mysql_test_tent | testdb | 1100611139453777 | test | -1 | 1 | 0 | zone3 | 192.168.26.200 | 1 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453777 | test | -1 | 1 | 0 | zone2 | 192.168.26.199 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453777 | test | -1 | 1 | 0 | zone1 | 192.168.26.198 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 0 | zone1 | 192.168.26.201 | 1 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 0 | zone2 | 192.168.26.202 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 0 | zone3 | 192.168.26.203 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 1 | zone2 | 192.168.26.202 | 1 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 1 | zone3 | 192.168.26.200 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 1 | zone1 | 192.168.26.201 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 2 | zone3 | 192.168.26.200 | 1 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 2 | zone1 | 192.168.26.198 | 2 | 0 |
| 1001 | mysql_test_tent | testdb | 1100611139453778 | test_hash | -1 | 3 | 2 | zone2 | 192.168.26.199 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081553 | TEST | -1 | 1 | 0 | zone2 | 192.168.26.202 | 1 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081553 | TEST | -1 | 1 | 0 | zone1 | 192.168.26.201 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081553 | TEST | -1 | 1 | 0 | zone3 | 192.168.26.203 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 0 | zone3 | 192.168.26.203 | 1 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 0 | zone1 | 192.168.26.198 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 0 | zone2 | 192.168.26.199 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 1 | zone1 | 192.168.26.201 | 1 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 1 | zone2 | 192.168.26.202 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 1 | zone3 | 192.168.26.203 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 2 | zone2 | 192.168.26.202 | 1 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 2 | zone3 | 192.168.26.200 | 2 | 0 |
| 1002 | ora_test_tent | APS2 | 1101710651081554 | TEST_HASH | -1 | 3 | 2 | zone1 | 192.168.26.201 | 2 | 0 |
+-----------+-----------------+---------------+------------------+------------+---------------+----------+--------------+-------+----------------+------+--------------+
24 rows in set (0.17 sec)
obclient>
从以上结果可以看出，由于unit资源单元大小为1cpu+1g内存，租户扩容前，每个zone下的observer节点都可以再分配一个此大小的unit单元资源。
当unit_num修改为2个后，增加Unit数量也触发了ob集群的负载均衡逻辑，整个OB集群下observer资源分布再次发生了改变。
租户扩容后（unit_num增加），直接导致了每个资源unit里的分区发生了unit迁移，并通过改变每个分区leader副本在不同unit之间的分布，从而到达集群的负载均衡。
最终租户扩容后，
原节点201、202、203，总共14个cpu+6g内存，剩余可用9.5cpu+3g内存，有3个unit资源（一个sys租户资源、一个mysql租户资源和一个oracle租户资源）。
新节点198、199、200，总共14个cpu+6g内存，剩余可用12cpu+4g内存，有2个unit资源（一个mysql租户资源和一个oracle租户资源）。
两个租户下表分区副本分布情况：（租户扩容后）
(1).mysql_test_tent租户下testdb库
非分区表test的p0号分区的主副本在zone3下的200节点；两个备副本在zone1下的198节点和zone2下的199节点。
分区表test_hash的p0分区的主副本在zone1下的201节点；p0分区的两个备副本在zone2下的202节点和zone3下的203节点。
分区表test_hash的p1分区的主副本在zone2下的202节点；p1分区的两个备副本在zone1下的201节点和zone3下的200节点。
分区表test_hash的p2分区的主副本在zone3下的200节点；p2分区的两个备副本在zone1下的198节点和zone2下的199节点。
(2).ora_test_tent租户下aps2用户
非分区表test的p0号分区，主副本在zone2下的202节点，两个备副本在zone1下的201节点和zone3下的203节点。
分区表test_hash的p0分区的主副本在zone3下的203节点，p0分区的两个备副本在zone1下的198节点和zone2下的199节点。
分区表test_hash的p1分区的主副本在zone1下的201节点，p1分区的两个备副本在zone2下的202节点和zone3下的203节点。
分区表test_hash的p2分区的主副本在zone2下的202节点，p2分区的两个备副本在zone1下的201节点和zone3下的200节点。
以图的形式展示租户扩容后的状态，如图三所示。
查看集群rootserver事件，了解租户扩容过程，如下：
obclient> SELECT *
-> FROM __all_rootservice_event_history
-> WHERE 1 = 1
-> and gmt_create> date_format('2020-10-14 11:30:00', '%Y%m%d%H%i%s')
-> ORDER BY gmt_create DESC
-> LIMIT 50;
+----------------+--------------------+-------------------------+-------------+------------------------------------------------------------------------+------------+-----------------------------------------------------------------------------------------------------------------------------------+----------------+
| gmt_create_ | module | event | name1 | value1 | name2 | value2 | rs_svr_ip |
+----------------+--------------------+-------------------------+-------------+------------------------------------------------------------------------+------------+-----------------------------------------------------------------------------------------------------------------------------------+----------------+
| Oct14 12:03:19 | leader_coordinator | switch_leader | current_rs | "192.168.26.201:2882" | tenant_id | 1001 | 192.168.26.201 |
| Oct14 12:03:08 | balancer | tenant_balance_finished | finish_time | 1602648188797431 | task_count | 8 | 192.168.26.201 |
| Oct14 12:02:58 | balancer | finish_migrate_replica | partition | {pkey:{tid:1100611139453778, partition_id:0, part_cnt:0}, data_size:0} | source | {server:"192.168.26.200:2882", timestamp:1602645547542750, flag:0, replica_type:0, region:"default_region", memstore_percent:100} | 192.168.26.201 |
| Oct14 12:02:55 | balancer | start_migrate_replica | partition | {pkey:{tid:1100611139453778, partition_id:0, part_cnt:0}, data_size:0} | source | {server:"192.168.26.200:2882", timestamp:1602645547542750, flag:0, replica_type:0, region:"default_region", memstore_percent:100} | 192.168.26.201 |
| Oct14 12:02:53 | balancer | finish_migrate_replica | partition | {pkey:{tid:1100611139453778, partition_id:1, part_cnt:0}, data_size:0} | source | {server:"192.168.26.199:2882", timestamp:1602645359581436, flag:0, replica_type:0, region:"default_region", memstore_percent:100} | 192.168.26.201 |
| Oct14 12:02:53 | balancer | finish_migrate_replica | partition | {pkey:{tid:1101710651081554, partition_id:0, part_cnt:0}, data_size:0} | source | {server:"192.168.26.202:2882", timestamp:1602644278523731, flag:0, replica_type:0, region:"default_region", memstore_percent:100} | 192.168.26.201 |
| Oct14 12:02:49 | balancer | start_migrate_replica | partition | {pkey:{tid:1101710651081554, partition_id:0, part_cnt:0}, data_size:0} | source | {server:"192.168.26.202:2882", timestamp:1602644278523731, flag:0, replica_type:0, region:"default_region", memstore_percent:100} | 192.168.26.201 |
| Oct14 12:02:49 | balancer | start_migrate_replica | partition | {pkey:{tid:1100611139453778, partition_id:1, part_cnt:0}, data_size:0} | source | {server:"192.168.26.199:2882", timestamp:1602645359581436, flag:0, replica_type:0, region:"default_region", memstore_percent:100} | 192.168.26.201 |
| Oct14 12:02:48 | balancer | finish_migrate_replica | partition | {pkey:{tid:1100611139453778, partition_id:0, part_cnt:0}, data_size:0} | source | {server:"192.168.26.199:2882", timestamp:1602645359581335, flag:0, replica_type:0, region:"default_region", memstore_percent:100} | 192.168.26.201 |
| Oct14 12:02:47 | leader_coordinator | switch_leader | current_rs | "192.168.26.201:2882" | tenant_id | 1001 | 192.168.26.201 |
| Oct14 12:02:46 | balancer | finish_migrate_replica | partition | {pkey:{tid:1101710651081554, partition_id:2, part_cnt:0}, data_size:0} | source | {server:"192.168.26.203:2882", timestamp:1602644278523826, flag:0, replica_type:0, region:"default_region", memstore_percent:100} | 192.168.26.201 |
| Oct14 12:02:46 | balancer | start_migrate_replica | partition | {pkey:{tid:1100611139453778, partition_id:0, part_cnt:0}, data_size:0} | source | {server:"192.168.26.199:2882", timestamp:1602645359581335, flag:0, replica_type:0, region:"default_region", memstore_percent:100} | 192.168.26.201 |
| Oct14 12:02:45 | leader_coordinator | switch_leader | current_rs | "192.168.26.201:2882" | tenant_id | 1001 | 192.168.26.201 |
| Oct14 12:02:45 | balancer | finish_migrate_replica | partition | {pkey:{tid:1101710651081554, partition_id:0, part_cnt:0}, data_size:0} | source | {server:"192.168.26.201:2882", timestamp:1602644278523731, flag:0, replica_type:0, region:"default_region", memstore_percent:100} | 192.168.26.201 |
| Oct14 12:02:44 | balancer | finish_migrate_replica | partition | {pkey:{tid:1100611139453778, partition_id:1, part_cnt:0}, data_size:0} | source | {server:"192.168.26.198:2882", timestamp:1602645173778330, flag:0, replica_type:0, region:"default_region", memstore_percent:100} | 192.168.26.201 |
| Oct14 12:02:43 | balancer | finish_migrate_replica | partition | {pkey:{tid:1100611139453778, partition_id:0, part_cnt:0}, data_size:0} | source | {server:"192.168.26.198:2882", timestamp:1602645173777572, flag:0, replica_type:0, region:"default_region", memstore_percent:100} | 192.168.26.201 |
| Oct14 12:02:42 | balancer | tenant_balance_started | start_time | 1602648157852339 | | | 192.168.26.201 |
| Oct14 12:02:42 | balancer | start_migrate_replica | partition | {pkey:{tid:1101710651081554, partition_id:2, part_cnt:0}, data_size:0} | source | {server:"192.168.26.203:2882", timestamp:1602644278523826, flag:0, replica_type:0, region:"default_region", memstore_percent:100} | 192.168.26.201 |
| Oct14 12:02:42 | balancer | start_migrate_replica | partition | {pkey:{tid:1101710651081554, partition_id:0, part_cnt:0}, data_size:0} | source | {server:"192.168.26.201:2882", timestamp:1602644278523731, flag:0, replica_type:0, region:"default_region", memstore_percent:100} | 192.168.26.201 |
| Oct14 12:02:40 | balancer | start_migrate_replica | partition | {pkey:{tid:1100611139453778, partition_id:1, part_cnt:0}, data_size:0} | source | {server:"192.168.26.198:2882", timestamp:1602645173778330, flag:0, replica_type:0, region:"default_region", memstore_percent:100} | 192.168.26.201 |
| Oct14 12:02:40 | balancer | start_migrate_replica | partition | {pkey:{tid:1100611139453778, partition_id:0, part_cnt:0}, data_size:0} | source | {server:"192.168.26.198:2882", timestamp:1602645173777572, flag:0, replica_type:0, region:"default_region", memstore_percent:100} | 192.168.26.201 |
| Oct14 12:02:39 | leader_coordinator | switch_leader | current_rs | "192.168.26.201:2882" | tenant_id | 1001 | 192.168.26.201 |
| Oct14 11:58:45 | root_service | alter_resource_pool | ret | 0 | arg | pool_name:"ora_pool_test", unit:"", unit_num:2, zone_list:[], delete_unit_id_array:[] | 192.168.26.201 |
| Oct14 11:58:45 | unit | alter_resource_pool | name | ora_pool_test | | | 192.168.26.201 |
| Oct14 11:58:45 | unit | create_unit | unit_id | 1012 | server | "192.168.26.200:2882" | 192.168.26.201 |
| Oct14 11:58:45 | unit | create_unit | unit_id | 1011 | server | "192.168.26.199:2882" | 192.168.26.201 |
| Oct14 11:58:44 | unit | create_unit | unit_id | 1010 | server | "192.168.26.198:2882" | 192.168.26.201 |
| Oct14 11:58:15 | root_service | alter_resource_pool | ret | 0 | arg | pool_name:"mysql_pool_test", unit:"", unit_num:2, zone_list:[], delete_unit_id_array:[] | 192.168.26.201 |
| Oct14 11:58:15 | unit | alter_resource_pool | name | mysql_pool_test | | | 192.168.26.201 |
| Oct14 11:58:15 | unit | create_unit | unit_id | 1009 | server | "192.168.26.203:2882" | 192.168.26.201 |
| Oct14 11:58:15 | unit | create_unit | unit_id | 1008 | server | "192.168.26.202:2882" | 192.168.26.201 |
| Oct14 11:58:15 | unit | create_unit | unit_id | 1007 | server | "192.168.26.201:2882" | 192.168.26.201 |
+----------------+--------------------+-------------------------+-------------+------------------------------------------------------------------------+------------+-----------------------------------------------------------------------------------------------------------------------------------+----------------+
32 rows in set (0.24 sec)
obclient>
到此，OceanBase2.2集群2c8g迷你版集群和租户的扩容体验到此结束。
一步一步学习OceanBase系列
最后修改时间：2020-10-15 20:23:34
「喜欢这篇文章，您的关注和赞赏是给作者最好的鼓励」
关注作者
【版权声明】本文为墨天轮用户原创内容，转载时必须标注文章的来源（墨天轮），文章链接，文章作者等基本信息，否则作者和墨天轮有权追究责任。如果您发现墨天轮中有涉嫌抄袭或者侵权的内容，欢迎发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。
