Python PyCharm利用PyQt5使QPlainTextEdit支持拖放文件,重写QPlainTextEdit类,类提升

捷创源科技 2022-02-17
686

点击上方蓝字 ● 关注捷创源科技

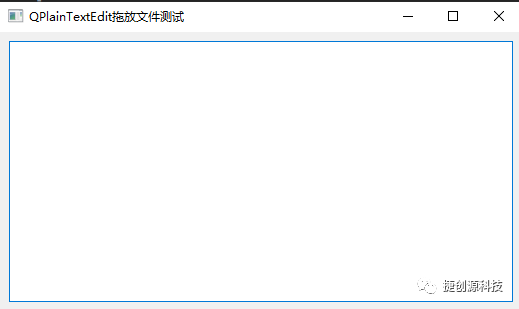

一、利用PyCharm新建基于PyQt5对话框工程MyMainTest,添加QPlainTextEdit控件,保存主窗口MyQTMainForm.ui文件运行如下:


二、新建myqplaintextedit.py文件,创建MyQPlainTextEdit 类继承于QPlainTextEdit ,只允许excel(.xls或.xlsx)文件拖放,及信号发射处理。代码如下:

myqplaintextedit.py

    # -*- coding: utf-8 -*-
    from PyQt5.QtCore import pyqtSignal
    from PyQt5.QtWidgets import QPlainTextEdit




    class MyQPlainTextEdit(QPlainTextEdit):
    """QPlainTextEdit控件实现文件拖放功能"""


    # 定义一个信号
    sendmsg = pyqtSignal(object)


    def __init__(self, parent=None):
    super(MyQPlainTextEdit, self).__init__(parent)
    self.setAcceptDrops(True)
    self.strPathFile = ""


    def dragEnterEvent(self, e):
    self.strPathFile = e.mimeData().text().replace('file:///', '')
    if self.strPathFile.endswith('.xls') or self.strPathFile.endswith('.xlsx'):
    e.accept()
    else:
    self.strPathFile = ""
    e.ignore()


    def dropEvent(self, e):
    super().dropEvent(e) # 加这一句即可
    # 发射信号
    self.sendmsg.emit(self.strPathFile)

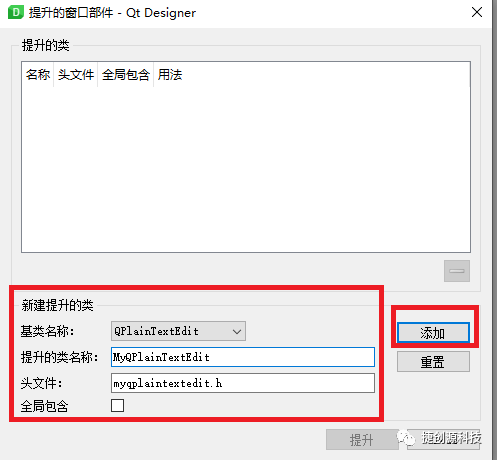

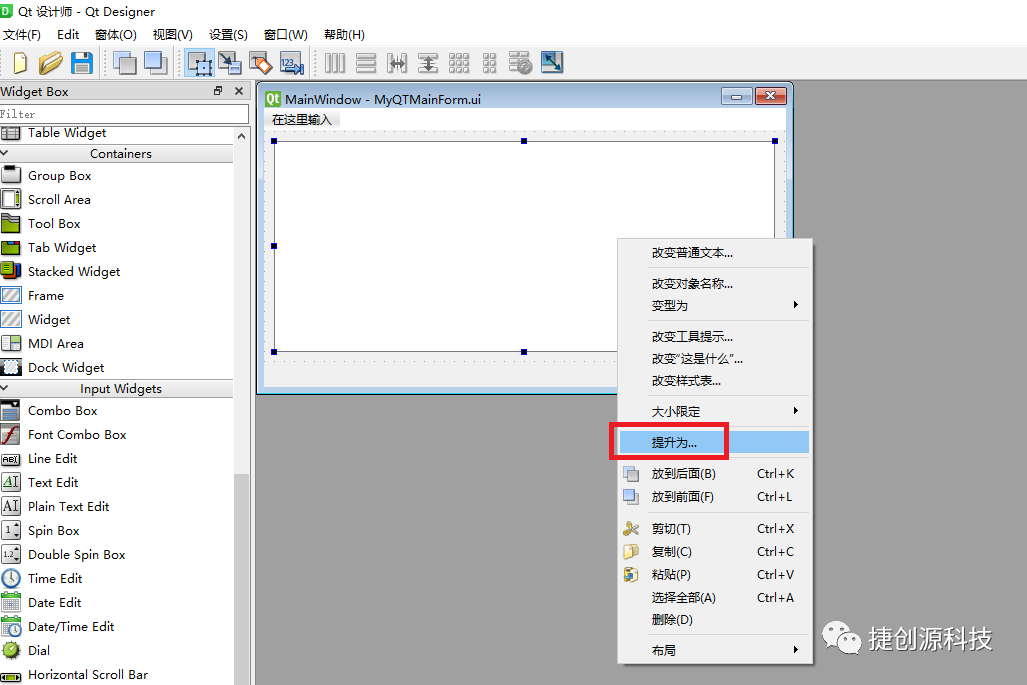

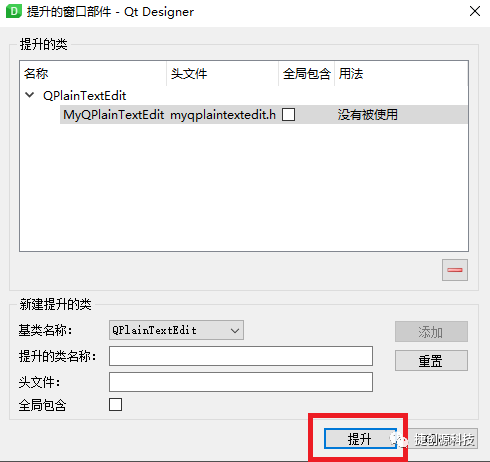

    三、使用QT设计器打开主窗口MyQTMainForm.ui 文件,将QPlainTextEdit 提升为MyQPlainTextEdit 类,如下图示:




    四、将主窗口MyQTMainForm.ui 文件转为MyQTMainForm.py 文件


    五、在main.py文件中,添加槽函数,绑定信号和槽函数


      # 绑定信号和槽
        self.plainTextEdit.sendmsg.connect(self.slotDoDropEvent)


         def slotDoDropEvent(self, strXlsFilePath):
        """
        槽函数:QPlainTextEdit控件拖放excel文件后处理函数
        """
        # 文件存在就加载,不存在就提示。
        if os.path.exists(strXlsFilePath):
        self.plainTextEdit.setPlainText(strXlsFilePath)
        print(strXlsFilePath)
        else:
        # 提示信息框
        win32api.MessageBox(0, "文件路径不存在,请先拖放excel文件到编辑框上!", "提示", win32con.MB_ICONWARNING)



        main.py主文件中全部代码如下:


          """
          python主文件
          """
          # -*- coding: utf-8 -*-
          import os
          import sys
          from PyQt5.QtWidgets import QApplication, QMainWindow, QDesktopWidget
          from PyQt5 import QtCore
          import win32api
          import win32con


          import MyQTMainForm # 导入MyQTMainForm.py文件




          class MyPyQTMainForm(QMainWindow, MyQTMainForm.Ui_MainWindow):
          """
          主界面
          """


          def __init__(self):
          """
          初始化
          """
          super(MyPyQTMainForm, self).__init__()
          self.setupUi(self)


          # QPlainTextEdit初始化
          self.plainTextEdit.clear()
          # 绑定信号和槽
          self.plainTextEdit.sendmsg.connect(self.slotDoDropEvent)


          def center(self):
          """
          定义一个函数使得窗口居中显示
          """
          # 获取屏幕坐标系
          screen = QDesktopWidget().screenGeometry()
          # 获取窗口坐标系
          size = self.geometry()
          newLeft = (screen.width() - size.width()) 2
          newTop = (screen.height() - size.height()) 2
          self.move(int(newLeft), int(newTop))


          def slotDoDropEvent(self, strXlsFilePath):
          """
          槽函数:QPlainTextEdit控件拖放excel文件后处理函数
          """
          # 文件存在就加载,不存在就提示。
          if os.path.exists(strXlsFilePath):
          self.plainTextEdit.setPlainText(strXlsFilePath)
          print(strXlsFilePath)
          else:
          # 提示信息框
          win32api.MessageBox(0, "文件路径不存在,请先拖放excel文件到编辑框上!", "提示", win32con.MB_ICONWARNING)




          """=====================================
          主函数
          ====================================="""
          if __name__ == '__main__':
          app = QApplication(sys.argv)
          # 创建主窗口对象
          myPyMainForm = MyPyQTMainForm()
          # 主窗口显示在屏幕中间
          myPyMainForm.center()


          # 禁止最大化按钮
          # myPyMainForm.setWindowFlags(QtCore.Qt.WindowMinimizeButtonHint | QtCore.Qt.WindowCloseButtonHint)
          # 禁止拉伸窗口大小
          # myPyMainForm.setFixedSize(myPyMainForm.width(), myPyMainForm.height())


          # 显示主界面
          myPyMainForm.show()


          sys.exit(app.exec_())

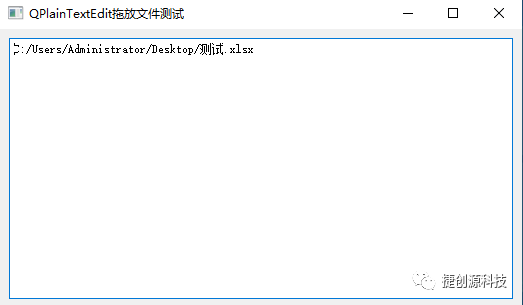

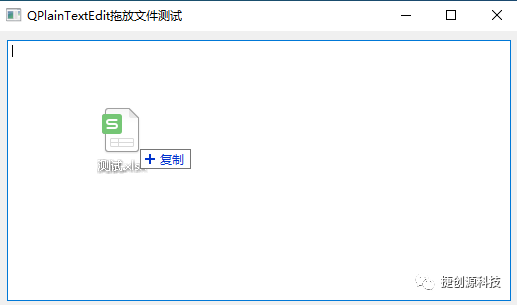

          六、运行测试,拖放excel文件如下图:QPlainTextEdit已支持拖放excel文件
