使用OBD 为 OceanBase 集群扩容

本文将通过示例介绍如何借助 OBD 把 1-1-1 的集群扩容成 2-2-2 的集群。

前提条件

我们本次示例操作共用到三台机器，其中三台机器用来组成集群，IP 分别为172.20.2.120:2881;172.20.2.121:2881;172.20.2.122:2881；由于空间有限另外三台机器以增加ob2目录方式新加入集群，用来扩容，IP 分别为 172.20.2.120:3881;172.20.2.121:3881;172.20.2.122:3881。

oceanbase部署请查看历史文章

https://www.modb.pro/db/324460  使用OBD自动部署三节点OceanBase文档

https://www.modb.pro/db/328171 OceanBase手动部署三节点OBserver文档
https://www.modb.pro/db/322997 OceanBase 单节点手动部署OB文档
https://www.modb.pro/db/250245 Docker单节点自动化部署OB集群

机器信息

机器划分

安装部署版本

一、编辑 OBD 配置文件

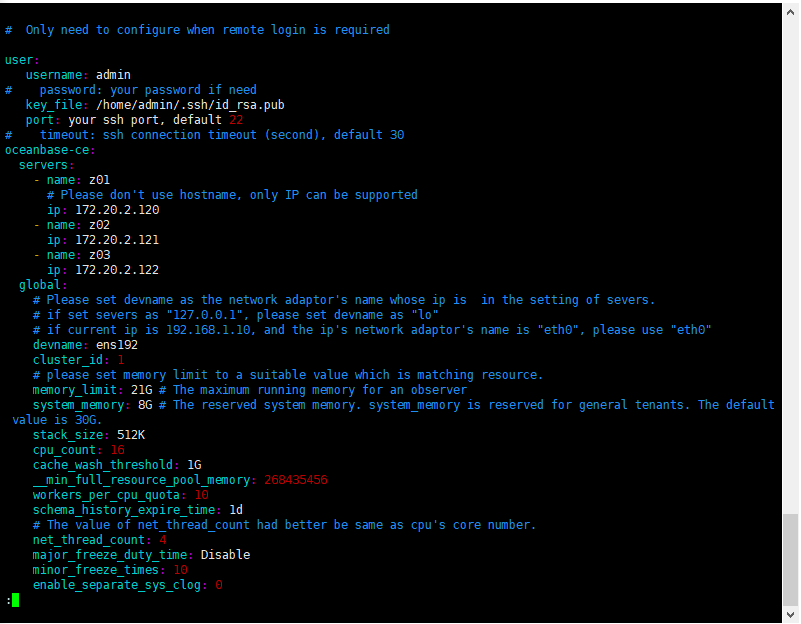

[admin@CAIP131 ~]$ vim obce-3zones.yaml

#  Only need to configure when remote login is required

user:
   username: admin
#    password: your password if need
   key_file: /home/admin/.ssh/id_rsa.pub
   port: your ssh port, default 22
#    timeout: ssh connection timeout (second), default 30
oceanbase-ce:
  servers:
    - name: z01
      # Please don't use hostname, only IP can be supported
      ip: 172.20.2.120
    - name: z02
      ip: 172.20.2.121
    - name: z03
      ip: 172.20.2.122
  global:
    # Please set devname as the network adaptor's name whose ip is  in the setting of severs.
    # if set severs as "127.0.0.1", please set devname as "lo"
    # if current ip is 192.168.1.10, and the ip's network adaptor's name is "eth0", please use "eth0"
    devname: ens192
    cluster_id: 1
    # please set memory limit to a suitable value which is matching resource.
    memory_limit: 21G # The maximum running memory for an observer
    system_memory: 8G # The reserved system memory. system_memory is reserved for general tenants. The default value is 30G.
    stack_size: 512K
    cpu_count: 16
    cache_wash_threshold: 1G
    __min_full_resource_pool_memory: 268435456
    workers_per_cpu_quota: 10
    schema_history_expire_time: 1d
    # The value of net_thread_count had better be same as cpu's core number.
    net_thread_count: 4
    major_freeze_duty_time: Disable
    minor_freeze_times: 10
    enable_separate_sys_clog: 0
    enable_merge_by_turn: FALSE
    #datafile_disk_percentage: 20 # The percentage of the data_dir space to the total disk space. This value takes effect only when datafile_size is 0. The default value is 90.
    datafile_size: 50G
    syslog_level: WARN # System log level. The default value is INFO.
    enable_syslog_wf: false # Print system logs whose levels are higher than WARNING to a separate log file. The default value is true.
    enable_syslog_recycle: true # Enable auto system log recycling or not. The default value is false.
    max_syslog_file_count: 10 # The maximum number of reserved log files before enabling auto recycling. The default value is 0.
    # observer cluster name, consistent with obproxy's cluster_name
    appname: obce-3zones
    root_password: Pwd2022# # root user password, can be empty
    proxyro_password: Pwd2022# # proxyro user pasword, consistent with obproxy's observer_sys_password, can be empty
  z01:
    mysql_port: 2881 # External port for OceanBase Database. The default value is 2881.
    rpc_port: 2882 # Internal port for OceanBase Database. The default value is 2882.
    #  The working directory for OceanBase Database. OceanBase Database is started under this directory. This is a required field.
    home_path: /home/admin/oceanbase-ce
    # The directory for data storage. The default value is $home_path/store.
    data_dir: /data
    # The directory for clog, ilog, and slog. The default value is the same as the data_dir value.
    redo_dir: /redo
    zone: zone1
  z02:
    mysql_port: 2881 # External port for OceanBase Database. The default value is 2881.
    rpc_port: 2882 # Internal port for OceanBase Database. The default value is 2882.
    #  The working directory for OceanBase Database. OceanBase Database is started under this directory. This is a required field.
    home_path: /home/admin/oceanbase-ce
    # The directory for data storage. The default value is $home_path/store.
    data_dir: /data
    # The directory for clog, ilog, and slog. The default value is the same as the data_dir value.
    redo_dir: /redo
    zone: zone2
  z03:
    mysql_port: 2881 # External port for OceanBase Database. The default value is 2881.
    rpc_port: 2882 # Internal port for OceanBase Database. The default value is 2882.
    #  The working directory for OceanBase Database. OceanBase Database is started under this directory. This is a required field.
    home_path: /home/admin/oceanbase-ce
    # The directory for data storage. The default value is $home_path/store.
    data_dir: /data
    # The directory for clog, ilog, and slog. The default value is the same as the data_dir value.
    redo_dir: /redo
    zone: zone3
obproxy:
  servers:
    - 172.20.2.120
    - 172.20.2.121
    - 172.20.2.122
  # Set dependent components for the component.
  # When the associated configurations are not done, OBD will automatically get the these configurations from the dependent components.
  depends:
    - oceanbase-ce
  global:
    listen_port: 2883 # External port. The default value is 2883.
    prometheus_listen_port: 2884 # The Prometheus port. The default value is 2884.
    home_path: /home/admin/obproxy
    # oceanbase root server list
    # format: ip:mysql_port;ip:mysql_port
    rs_list: 172.20.2.120:2881;172.20.2.121:2881;172.20.2.122:2881
    enable_cluster_checkout: false
    # observer cluster name, consistent with oceanbase-ce's appname
    cluster_name: obce-3zones
    obproxy_sys_password: Pwd2022# # obproxy sys user password, can be empty
    observer_sys_password: Pwd2022# # proxyro user pasword, consistent with oceanbase-ce's proxyro_password, can be empty

二、OBD 开始部署集群

1、部署OBD（obce-3zones）

obd cluster deploy [集群名] -c 集群配置文件 。 集群名可以跟配置文件中的集群名一样，也可以跟文件名一样

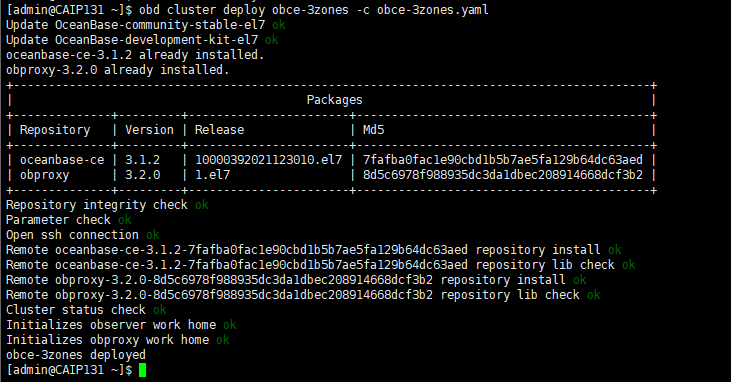

[admin@CAIP131 ~]$ obd cluster deploy obce-3zones -c obce-3zones.yaml

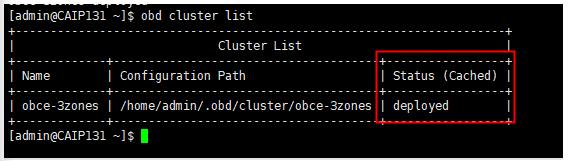

检查集群部署状态

[admin@CAIP131 ~]$ obd cluster list

2、OBD 启动和初始化集群bootstrap

上面 deploy 操作只是安装了软件和准备初始化目录，您还需使用命令 obd cluster start 启动集群节点并初始化集群。

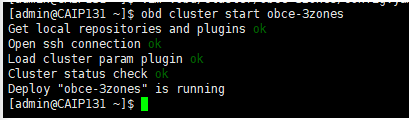

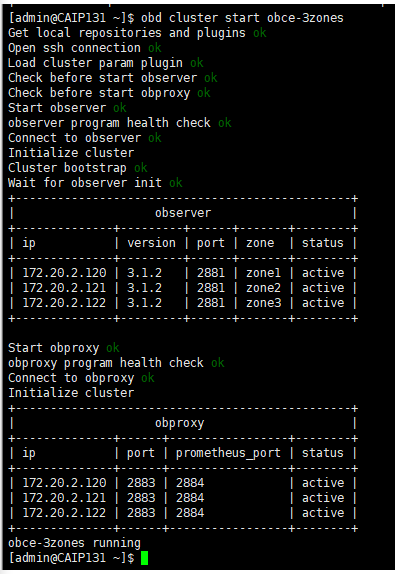

[admin@CAIP131 ~]$ obd cluster start obce-3zones

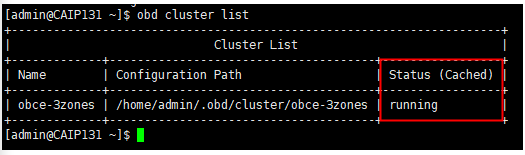

查看启动后的集群状态

[admin@CAIP131 ~]$ obd cluster list

状态running已经运行

3、查看集群信息

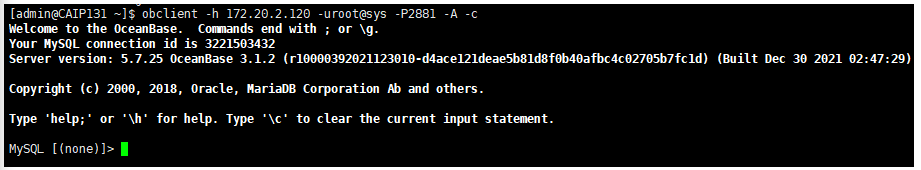

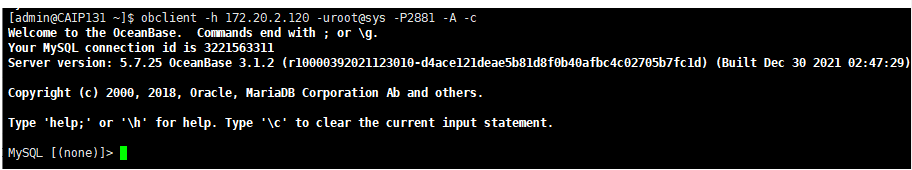

连接 OceanBase 数据库

obclient -h 172.20.2.120 -uroot@sys -P2881 -A -c
[admin@CAIP131 ~]$ mysql -h 172.20.2.120 -uroot@sys#obce-3zones -P2881 -pPwd2022# -c -A oceanbase
[admin@CAIP131 ~]$ obclient -h 172.20.2.120 -uroot@sys -P2881 -A -c

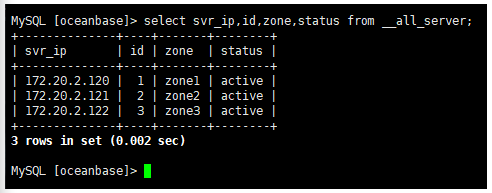

查看机器列表(需要先进入oceanbase数据库)

MySQL [(none)]> use oceanbase;
MySQL [oceanbase]> select svr_ip,id,zone,status from __all_server;

通过此命令返回结果，您可以看到此时有 3 台机器。

三、集群扩容

1、写一份新的配置文件，使用 OBD 进行部署（obce-3zones2）

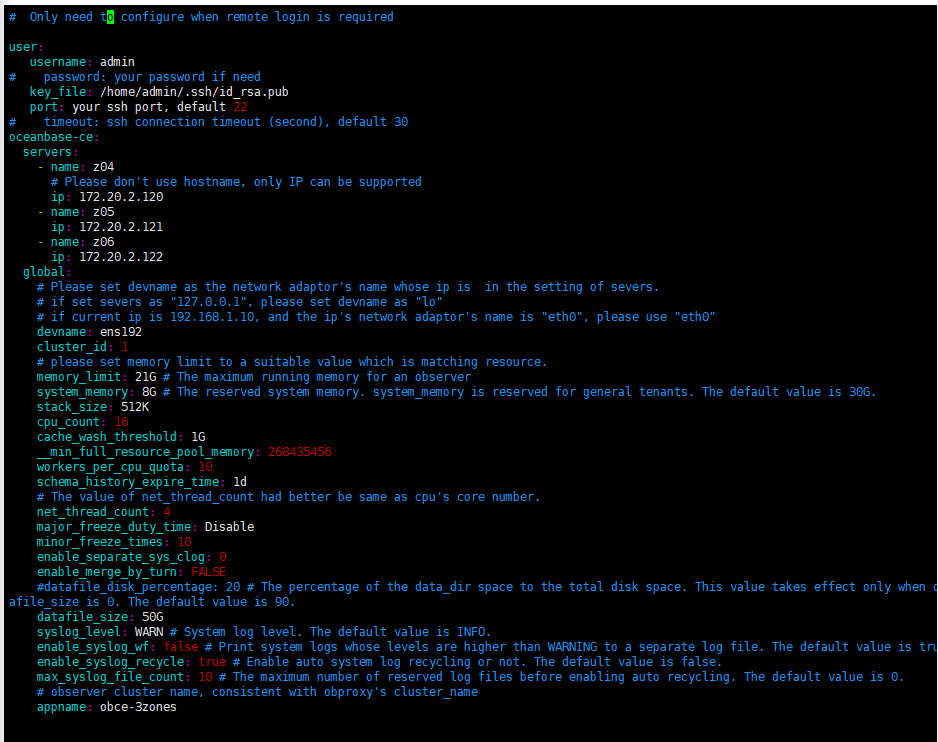

[admin@CAIP131 ~]$ vim obce-3zones2.yaml

#  Only need to configure when remote login is required

user:
   username: admin
#    password: your password if need
   key_file: /home/admin/.ssh/id_rsa.pub
   port: your ssh port, default 22
#    timeout: ssh connection timeout (second), default 30
oceanbase-ce:
  servers:
    - name: z04
      # Please don't use hostname, only IP can be supported
      ip: 172.20.2.120
    - name: z05
      ip: 172.20.2.121
    - name: z06
      ip: 172.20.2.122
  global:
    # Please set devname as the network adaptor's name whose ip is  in the setting of severs.
    # if set severs as "127.0.0.1", please set devname as "lo"
    # if current ip is 192.168.1.10, and the ip's network adaptor's name is "eth0", please use "eth0"
    devname: ens192
    cluster_id: 1
    # please set memory limit to a suitable value which is matching resource.
    memory_limit: 21G # The maximum running memory for an observer
    system_memory: 8G # The reserved system memory. system_memory is reserved for general tenants. The default value is 30G.
    stack_size: 512K
    cpu_count: 16
    cache_wash_threshold: 1G
    __min_full_resource_pool_memory: 268435456
    workers_per_cpu_quota: 10
    schema_history_expire_time: 1d
    # The value of net_thread_count had better be same as cpu's core number.
    net_thread_count: 4
    major_freeze_duty_time: Disable
    minor_freeze_times: 10
    enable_separate_sys_clog: 0
    enable_merge_by_turn: FALSE
    #datafile_disk_percentage: 20 # The percentage of the data_dir space to the total disk space. This value takes effect only when datafile_size is 0. The default value is 90.
    datafile_size: 50G
    syslog_level: WARN # System log level. The default value is INFO.
    enable_syslog_wf: false # Print system logs whose levels are higher than WARNING to a separate log file. The default value is true.
    enable_syslog_recycle: true # Enable auto system log recycling or not. The default value is false.
    max_syslog_file_count: 10 # The maximum number of reserved log files before enabling auto recycling. The default value is 0.
    # observer cluster name, consistent with obproxy's cluster_name
    appname: obce-3zones
    root_password: Pwd2022# # root user password, can be empty
    proxyro_password: Pwd2022# # proxyro user pasword, consistent with obproxy's observer_sys_password, can be empty
  z04:
    mysql_port: 3881 # External port for OceanBase Database. The default value is 2881.
    rpc_port: 3882 # Internal port for OceanBase Database. The default value is 2882.
    #  The working directory for OceanBase Database. OceanBase Database is started under this directory. This is a required field.
    home_path: /home/admin/oceanbase-ce
    # The directory for data storage. The default value is $home_path/store.
    data_dir: /data/ob2
    # The directory for clog, ilog, and slog. The default value is the same as the data_dir value.
    redo_dir: /redo/ob2
    zone: zone1
  z05:
    mysql_port: 3881 # External port for OceanBase Database. The default value is 2881.
    rpc_port: 3882 # Internal port for OceanBase Database. The default value is 2882.
    #  The working directory for OceanBase Database. OceanBase Database is started under this directory. This is a required field.
    home_path: /home/admin/oceanbase-ce
    # The directory for data storage. The default value is $home_path/store.
    data_dir: /data/ob2
    # The directory for clog, ilog, and slog. The default value is the same as the data_dir value.
    redo_dir: /redo/ob2
    zone: zone2
  z06:
    mysql_port: 3881 # External port for OceanBase Database. The default value is 2881.
    rpc_port: 3882 # Internal port for OceanBase Database. The default value is 2882.
    #  The working directory for OceanBase Database. OceanBase Database is started under this directory. This is a required field.
    home_path: /home/admin/oceanbase-ce
    # The directory for data storage. The default value is $home_path/store.
    data_dir: /data/ob2
    # The directory for clog, ilog, and slog. The default value is the same as the data_dir value.
    redo_dir: /redo/ob2
    zone: zone3

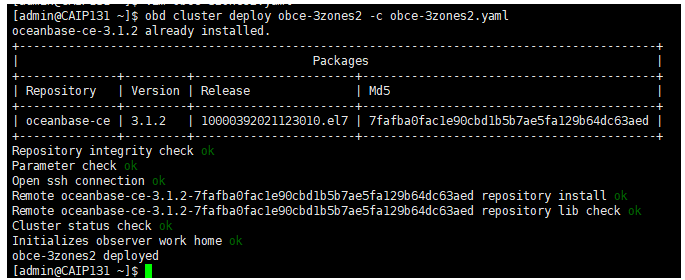

[admin@CAIP131 ~]$ obd cluster deploy obce-3zones2 -c obce-3zones2.yaml

2、把新的配置文件复制一份到原本配置文件中

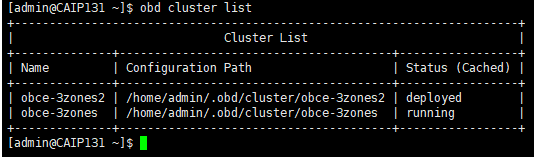

1. 查看配置路径

   [admin@CAIP131 ~]$ obd cluster list

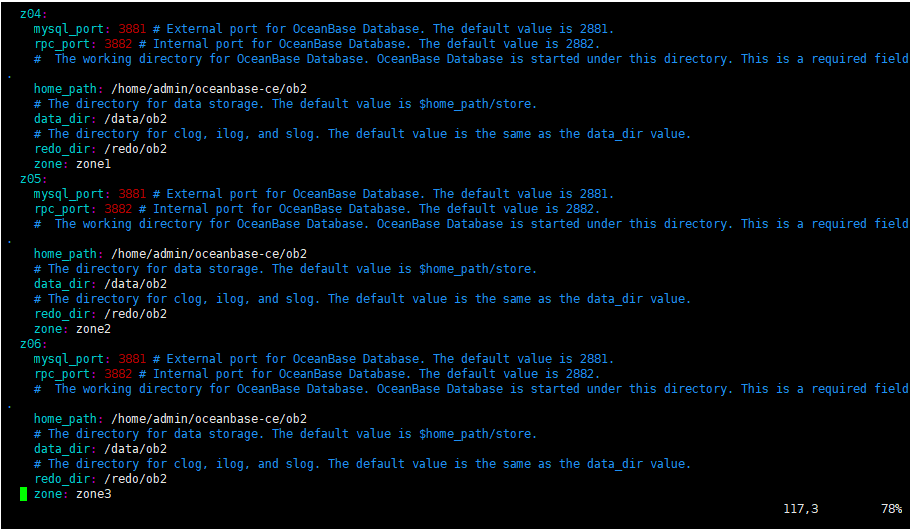

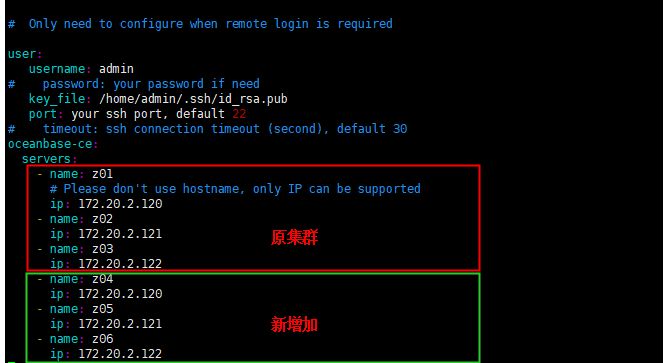

2. 打开原配置文件obce-3zones，将新配置文件的内容复制到原本配置文件中

   [admin@CAIP131 ~]$ vim .obd/cluster/obce-3zones/config.yaml




   新配置文件的内容需放在原本配置文件对应内容之后。







3、再次启动集群(原集群obce-3zones)

[admin@CAIP131 ~]$ obd cluster start obce-3zones

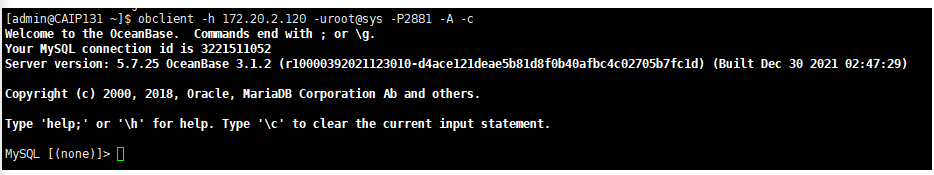

4、重新连接 OceanBase 数据库查看扩容前集群3zone

[admin@CAIP131 ~]$ obclient -h 172.20.2.120 -uroot@sys -P2881 -A -c

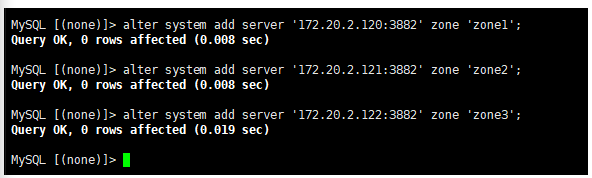

5、添加新的进程

MySQL [(none)]> alter system add server '172.20.2.120:3882' zone 'zone1';
MySQL [(none)]> alter system add server '172.20.2.121:3882' zone 'zone2';
MySQL [(none)]> alter system add server '172.20.2.122:3882' zone 'zone3';

6、查看扩容结果

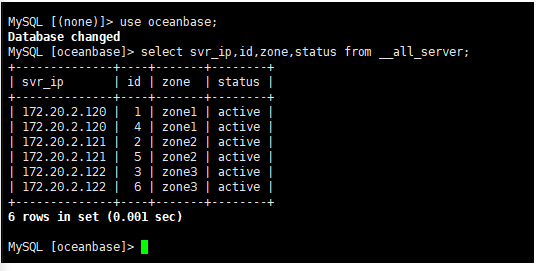

MySQL [(none)]> use oceanbase;

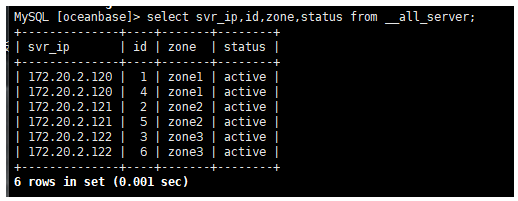

MySQL [oceanbase]> select svr_ip,id,zone,status from __all_server;

返回结果中可以看到每个 ZONE 都有两个进程，则表示扩容成功。

四、租户扩缩容

1. 连接 OceanBase 数据库

   obclient -h 172.20.2.1 -uroot@sys -P2881 -A -c





2. 创建资源单元

   MySQL [(none)]> CREATE RESOURCE UNIT S1 max_cpu=2, min_cpu=2, max_memory='2G', min_memory='2G',max_iops=1000, min_iops=1000, max_session_num=10000, max_disk_size='20G';





3. 创建资源池

   MySQL [(none)]> CREATE RESOURCE POOL pool1 unit=S1, unit_num=1;

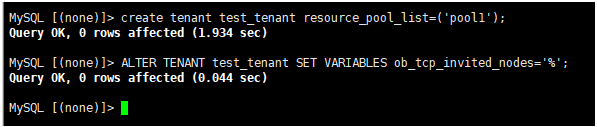

4. 创建租户

   MySQL [(none)]> create tenant test_tenant resource_pool_list=('pool1');
   MySQL [(none)]> ALTER TENANT test_tenant SET VARIABLES ob_tcp_invited_nodes='%';

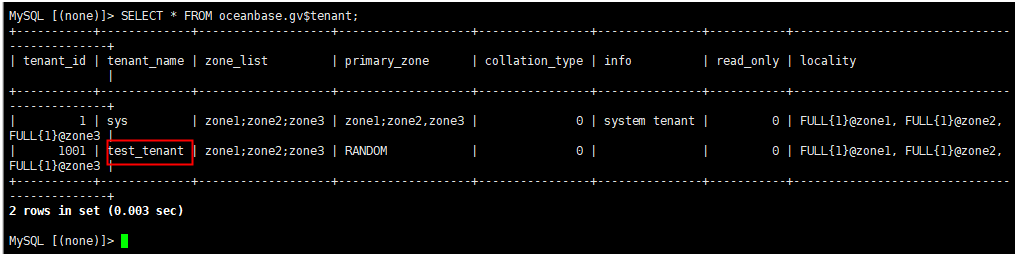

   查看租户是否创建成功

   MySQL [(none)]> SELECT * FROM oceanbase.gv$tenant;





5. 查看机器列表

   MySQL [oceanbase]> select svr_ip,id,zone,status from __all_server;





6. 为业务租户，扩容unit_num数量改为2

   MySQL [(none)]> alter resource pool pool1 unit_num=2;





7. 租户缩容，unit_num数量改为1

   MySQL [oceanbase]> alter resource pool pool1 unit_num=1;
